mp-28603/NaLiSe/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-28603.tar.gz

Harmonic properties

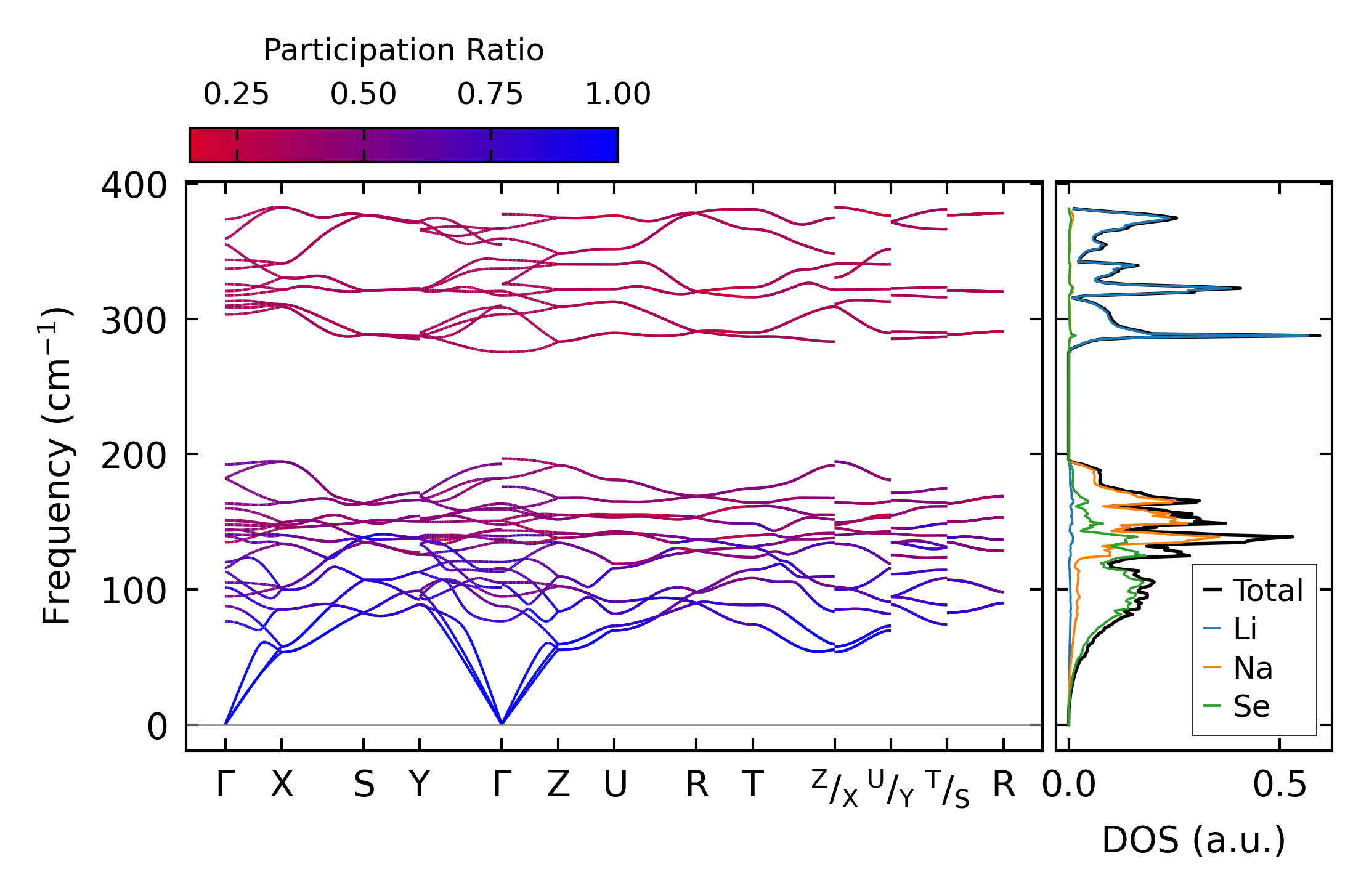

../../_images/fig_bandos_pr11560.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11560.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4805.png — (a) Grüneisen parameters

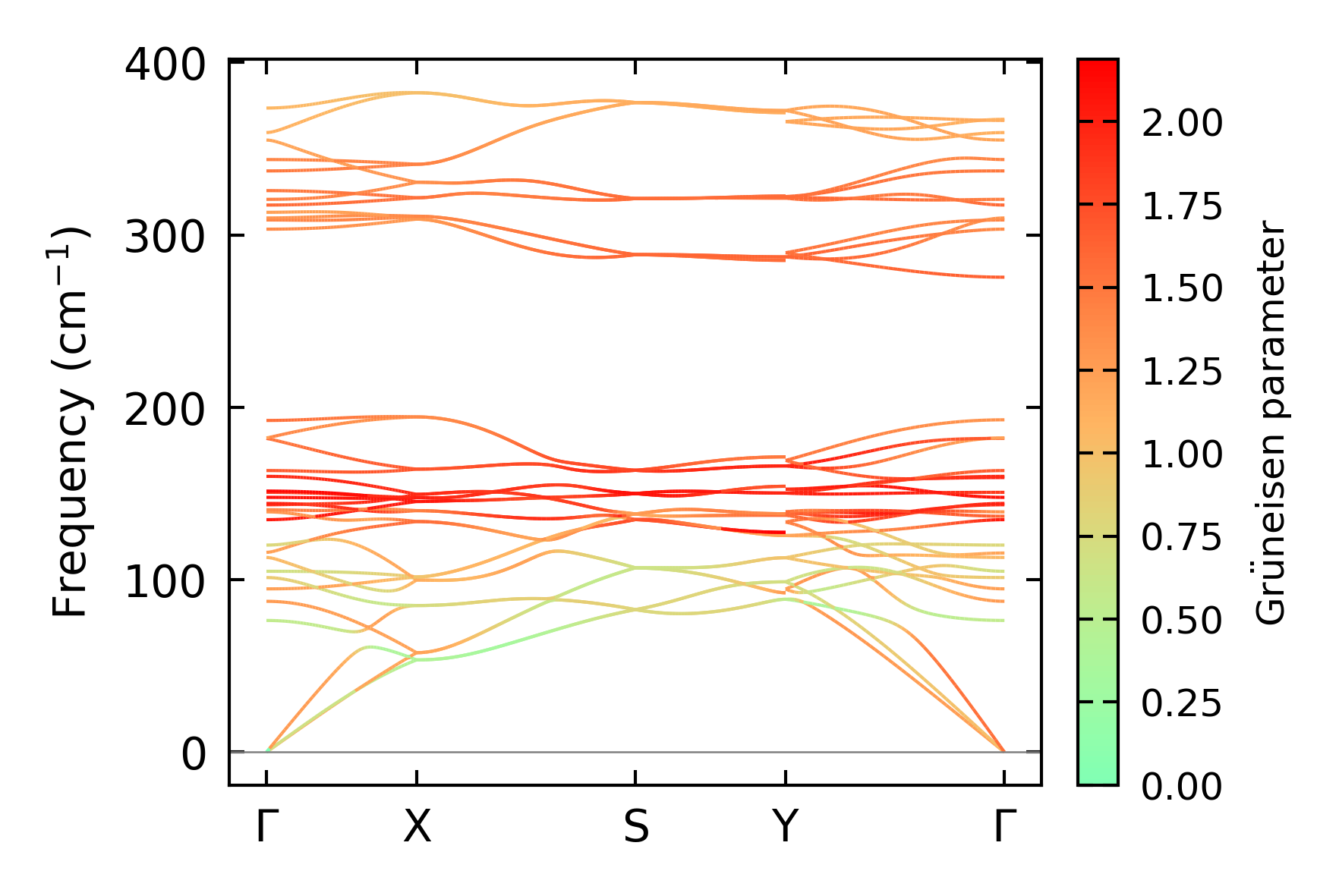

../../_images/fig_gruneisen4805.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x17x9, supercell: 2x3x2

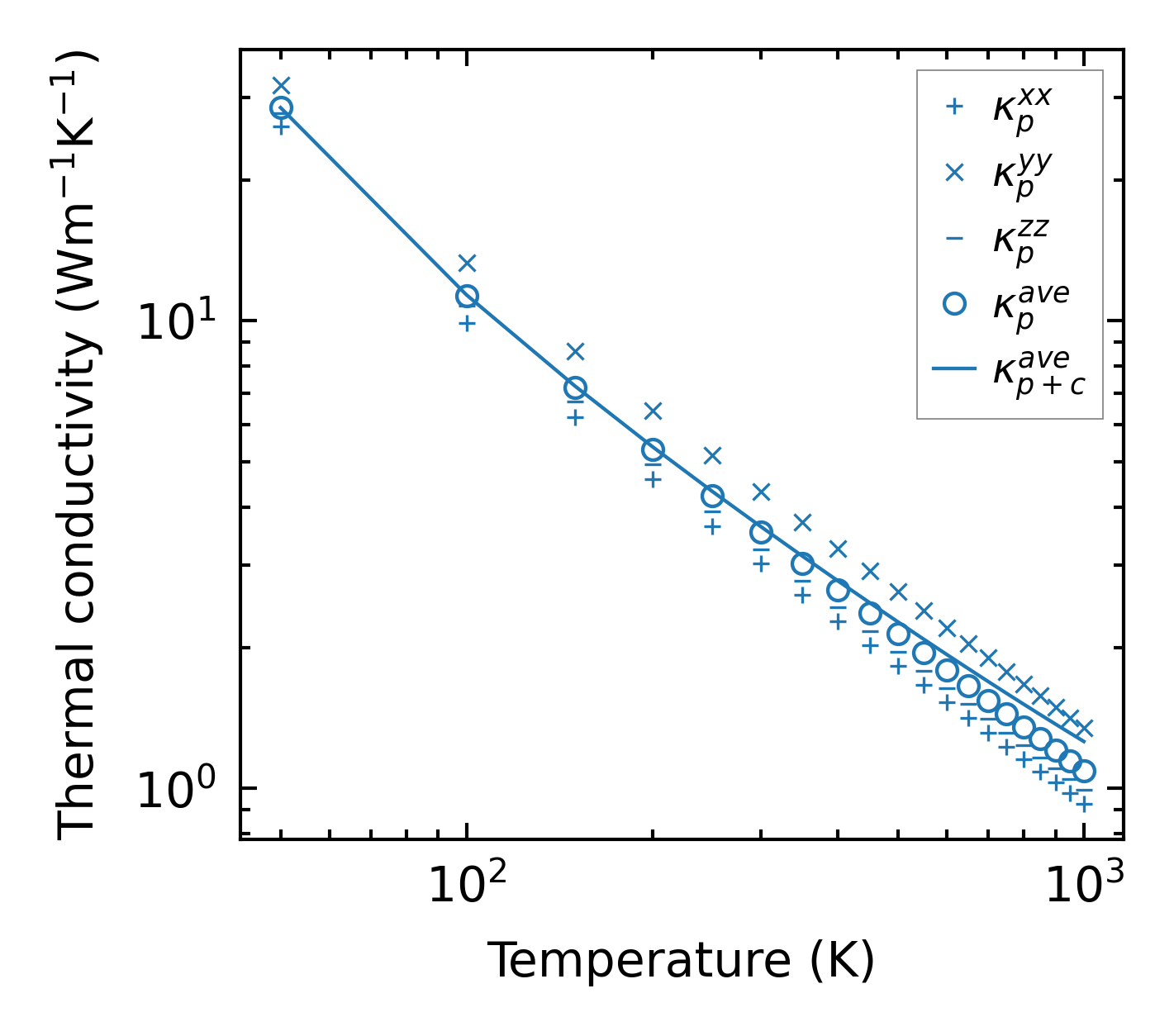

../../_images/fig_kappa9065.png — (a) Temperature-dependent lattice thermal conductivity

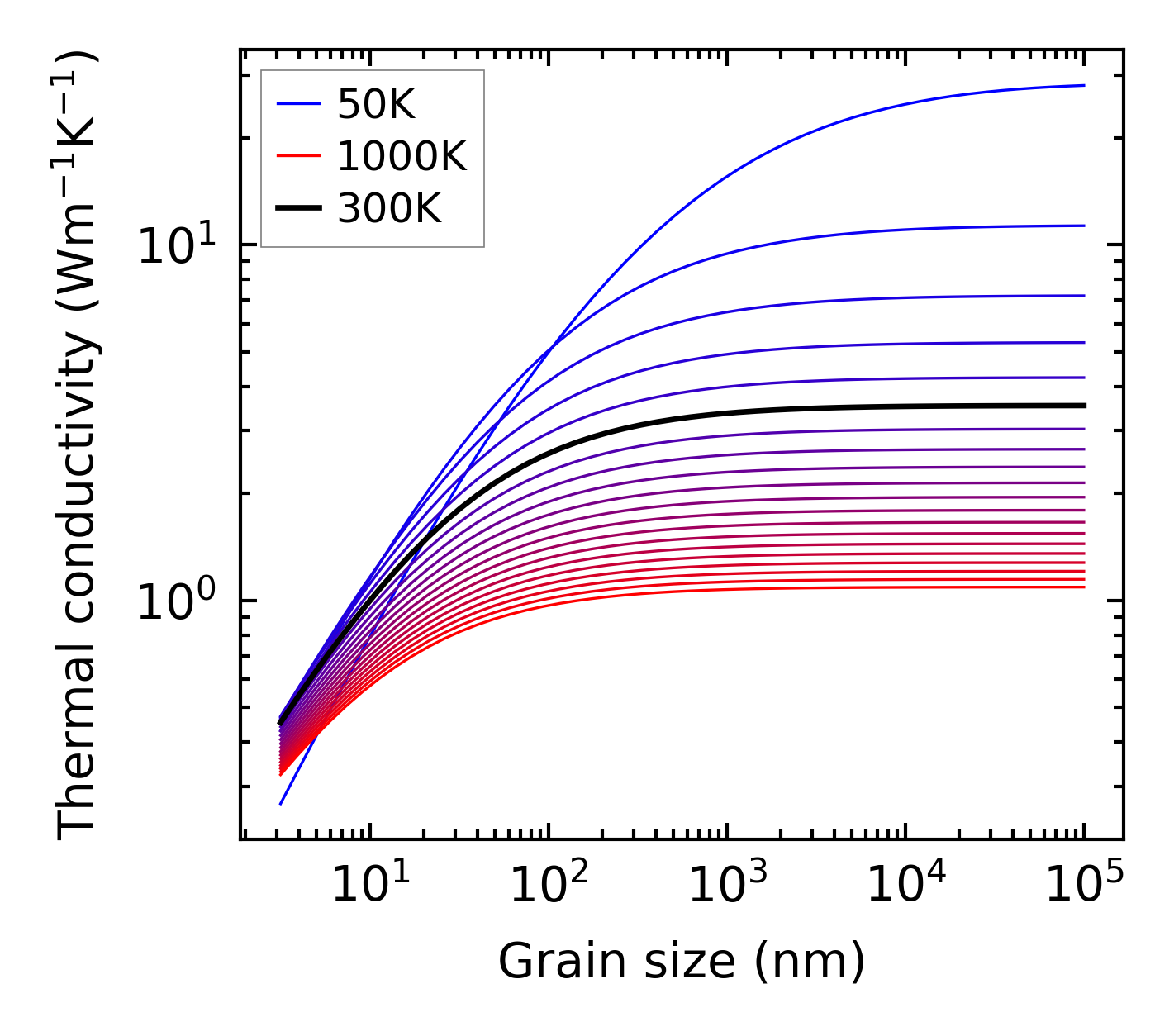

../../_images/fig_kappa_vs_grain_size4863.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

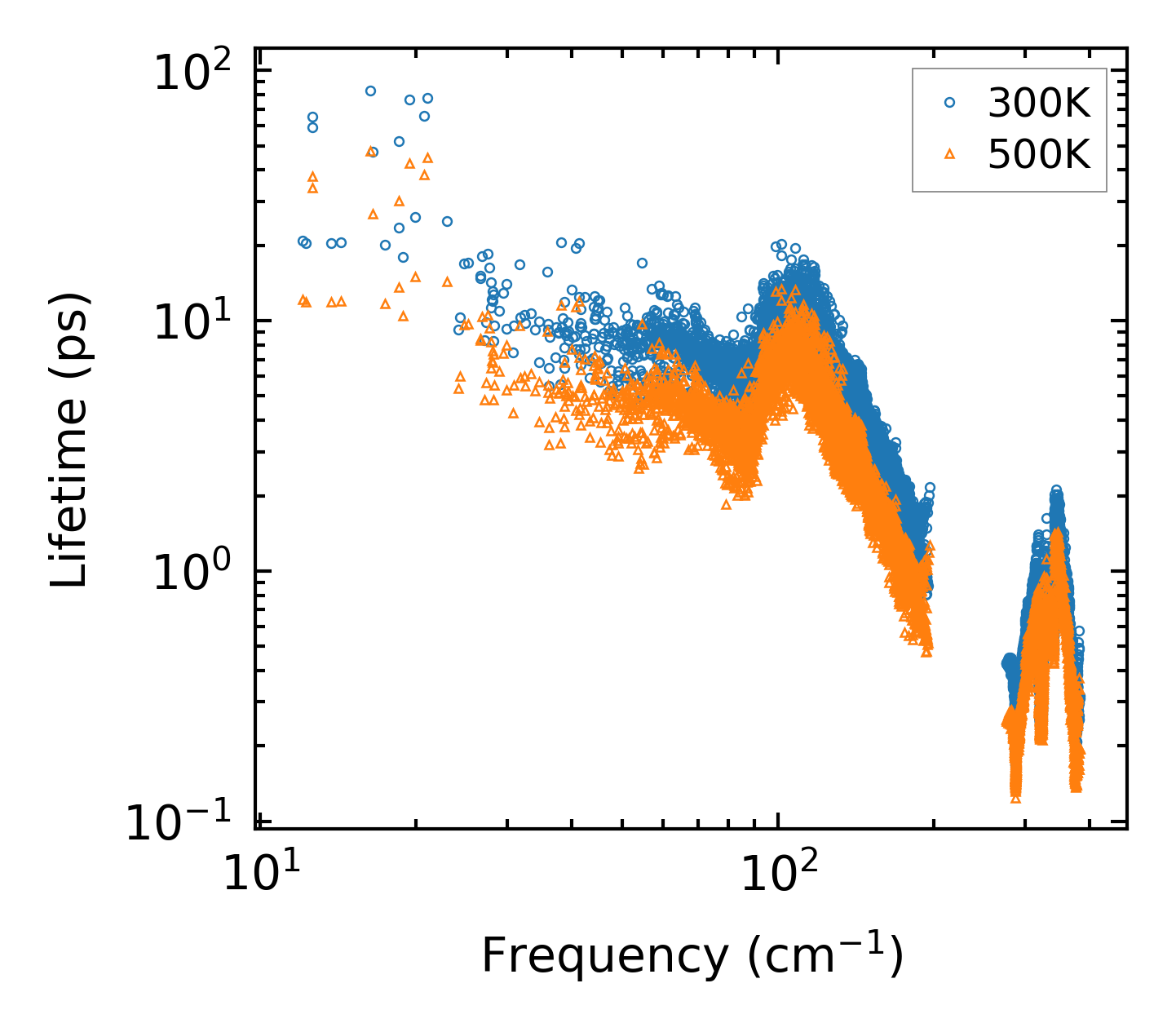

../../_images/fig_lifetime4759.png — (a) Phonon lifetime due to phonon-phonon scattering

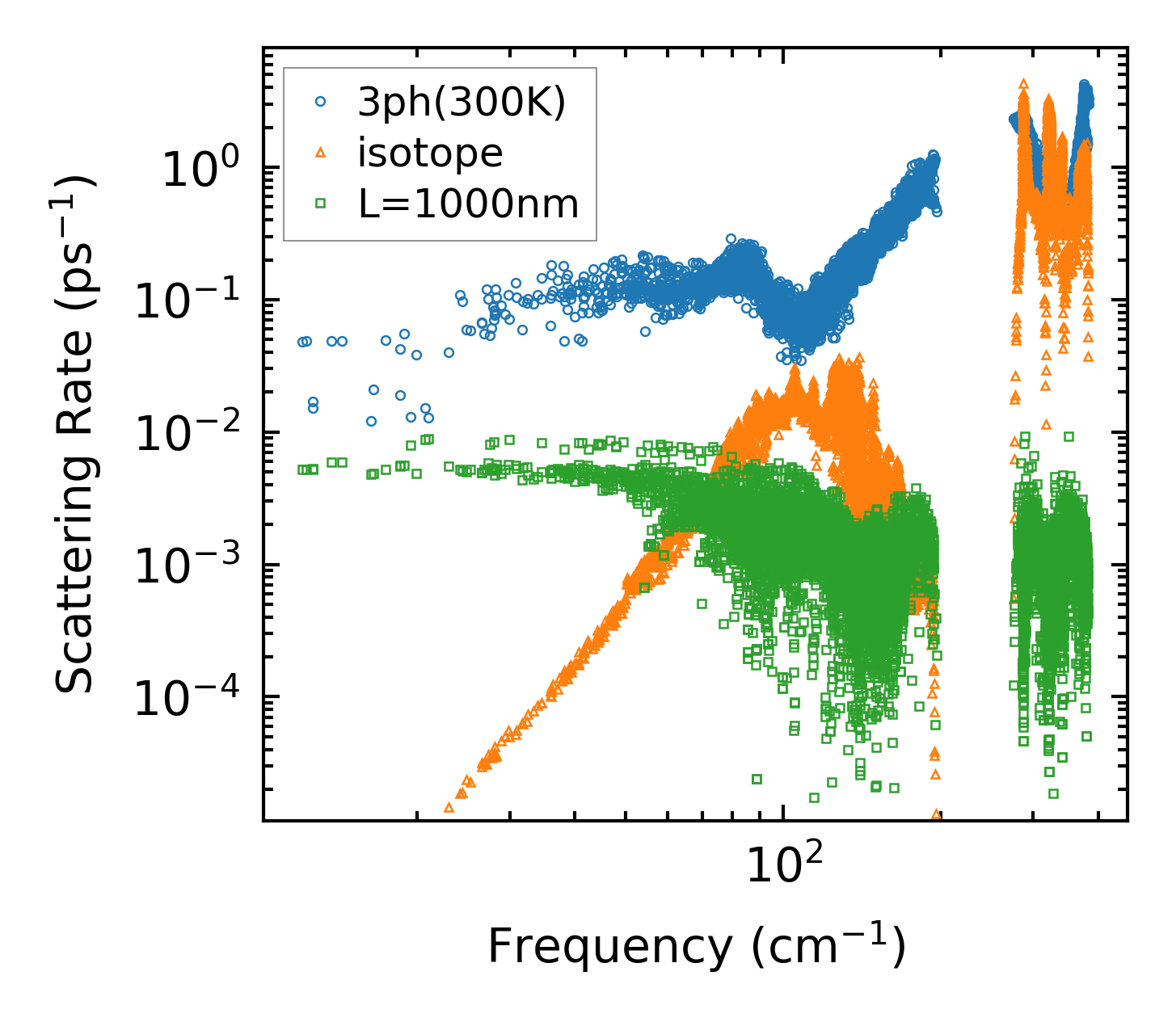

../../_images/fig_scat_rates4758.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4759.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4758.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

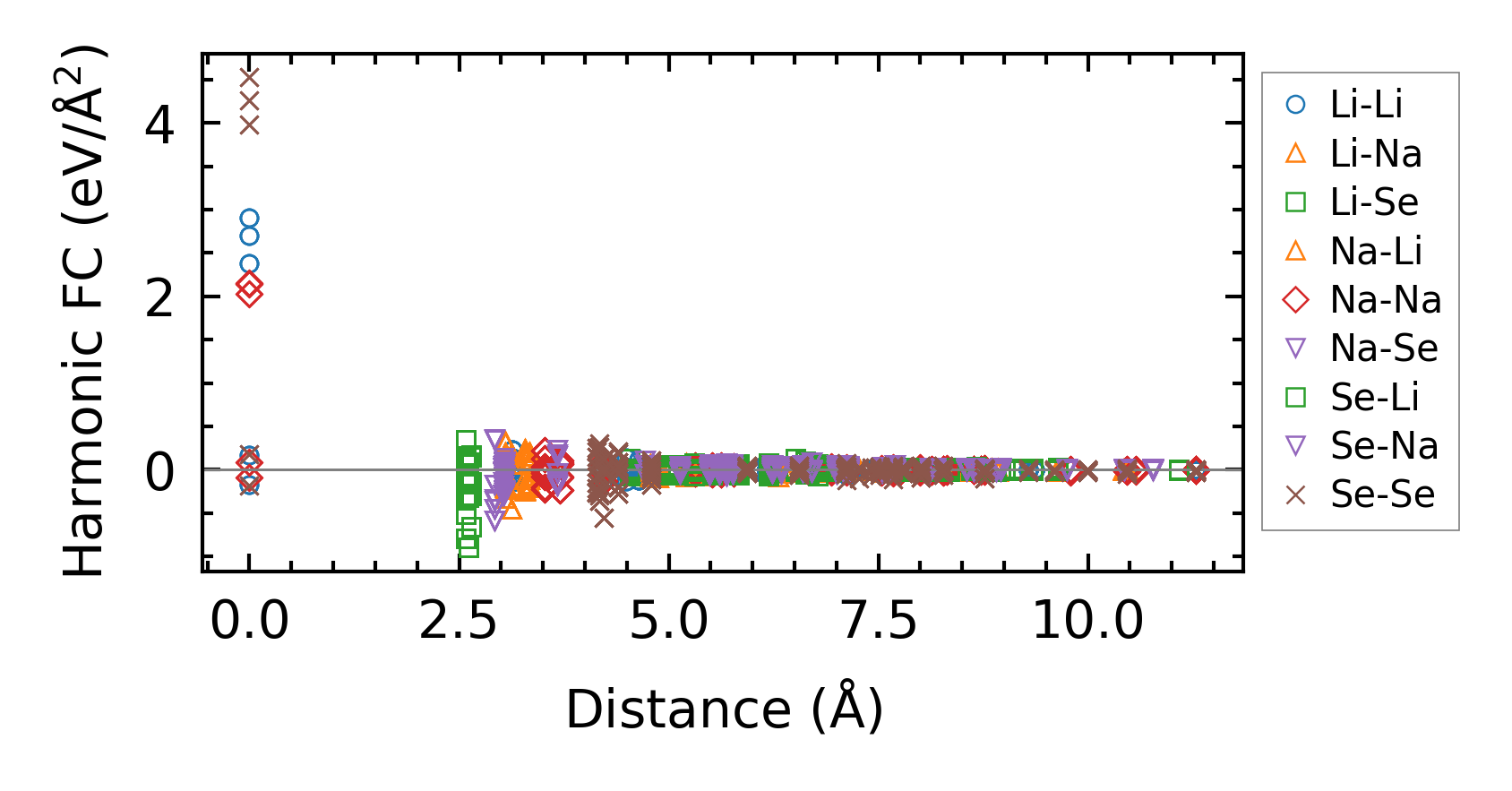

../../_images/fig_fc211273.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9066.png — (a) Temperature-dependent lattice thermal conductivity

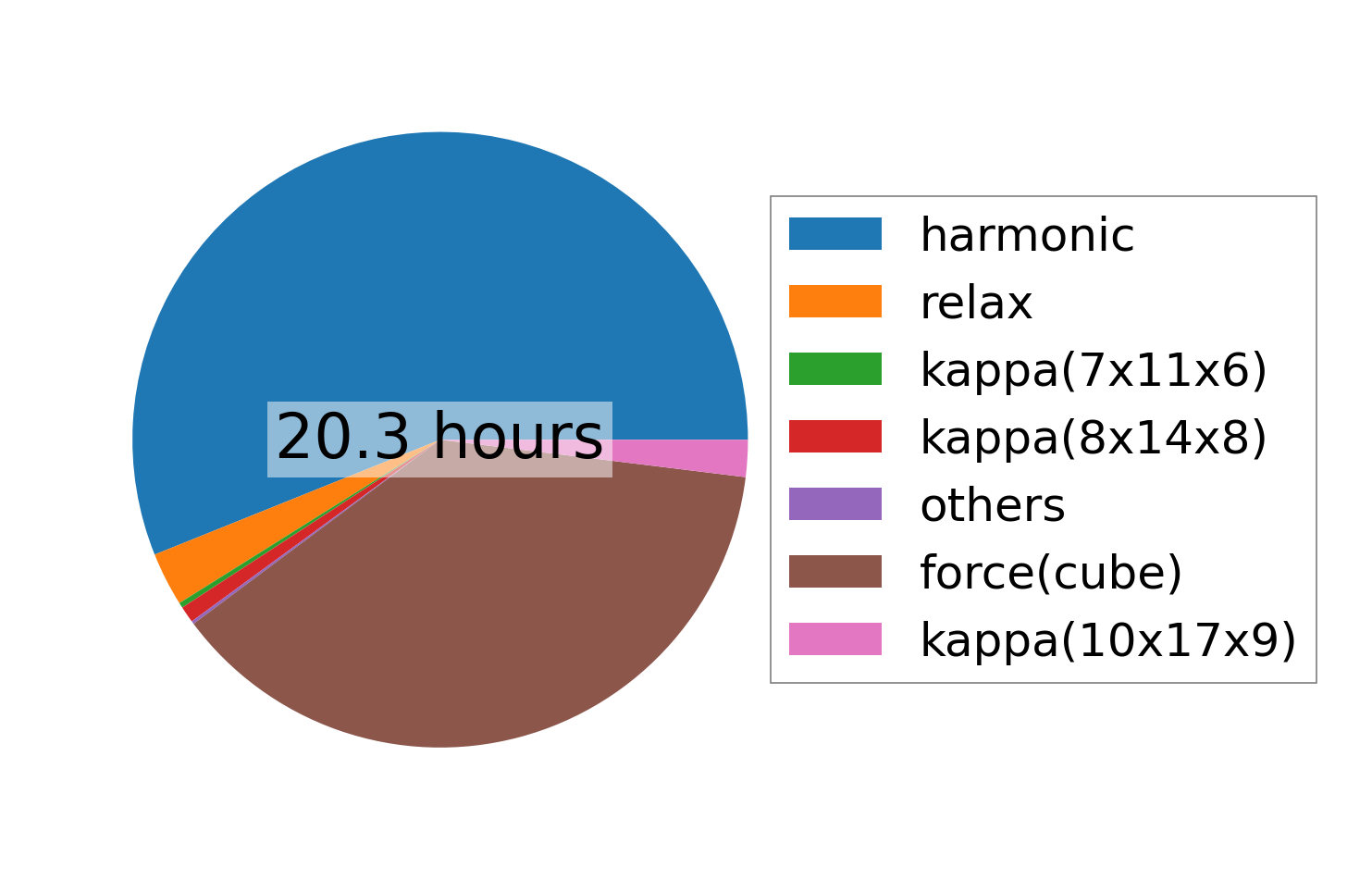

../../_images/fig_times19689.png — (b) Computation time
