mp-28970/Nd2NCl3/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-28970.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11340.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11340.png — (b) Thermodynamic properties

Grüneisen parameters

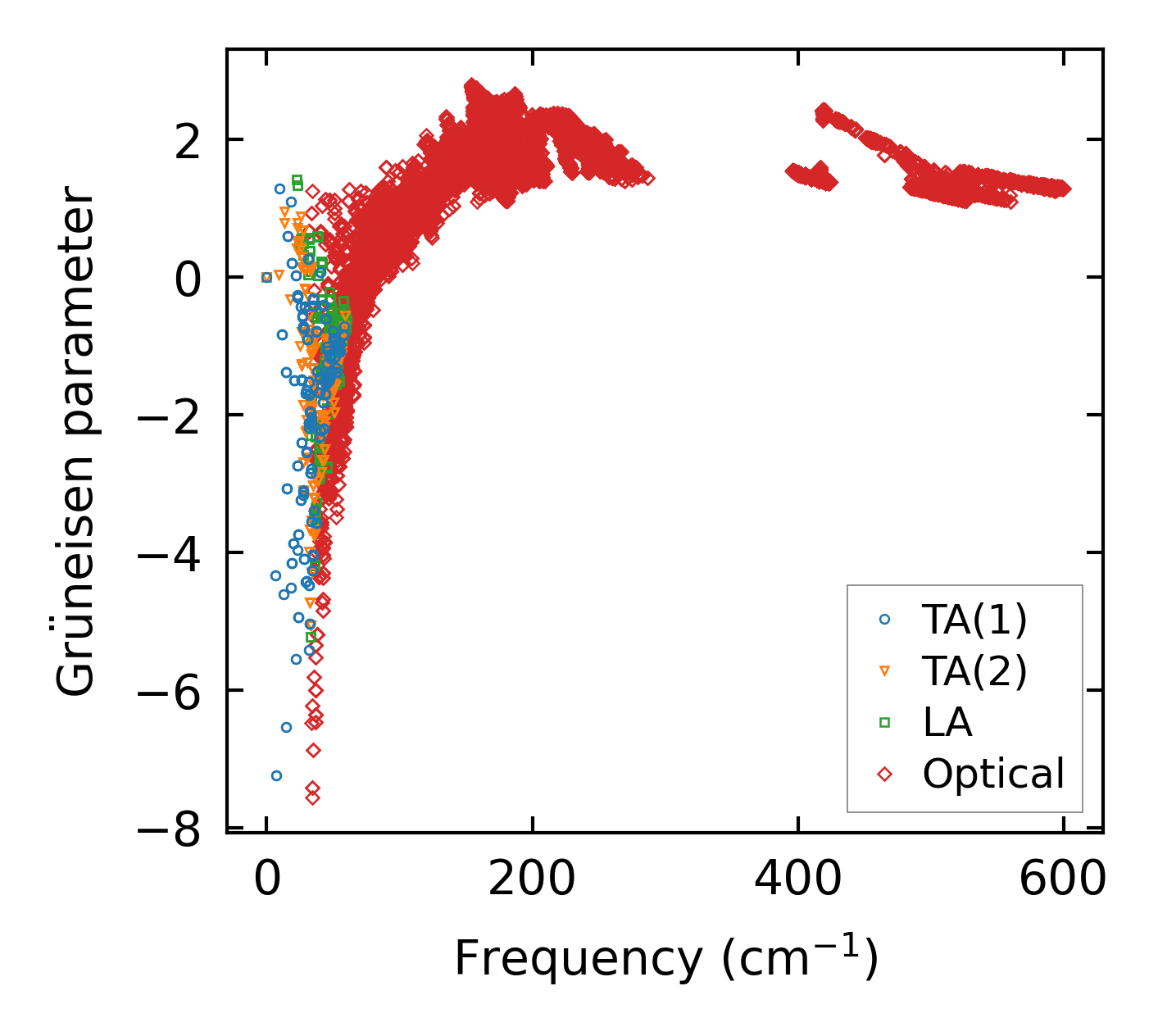

../../_images/fig_gru_all4688.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4688.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x10x11, supercell: 1x2x3

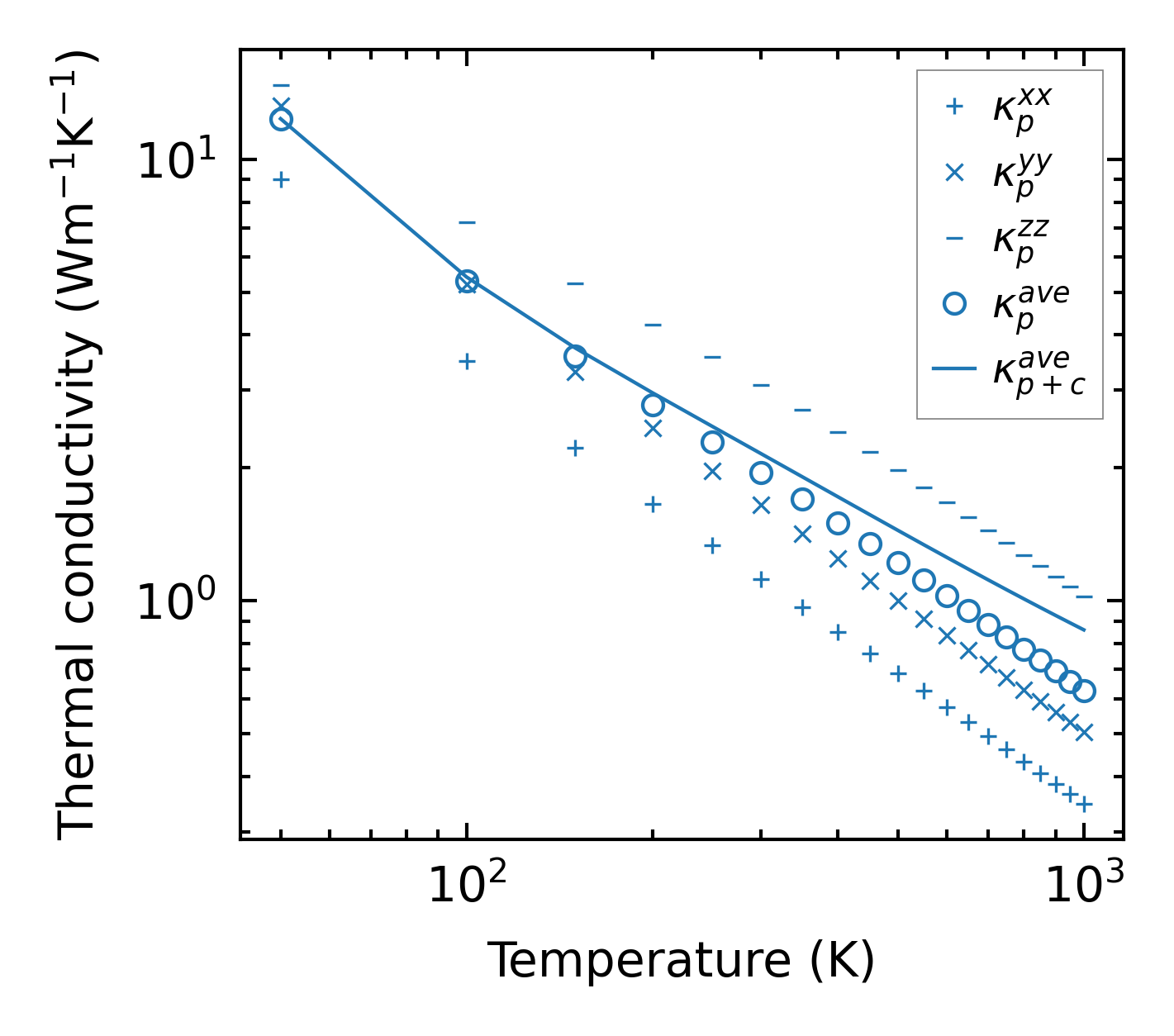

../../_images/fig_kappa8848.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4746.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

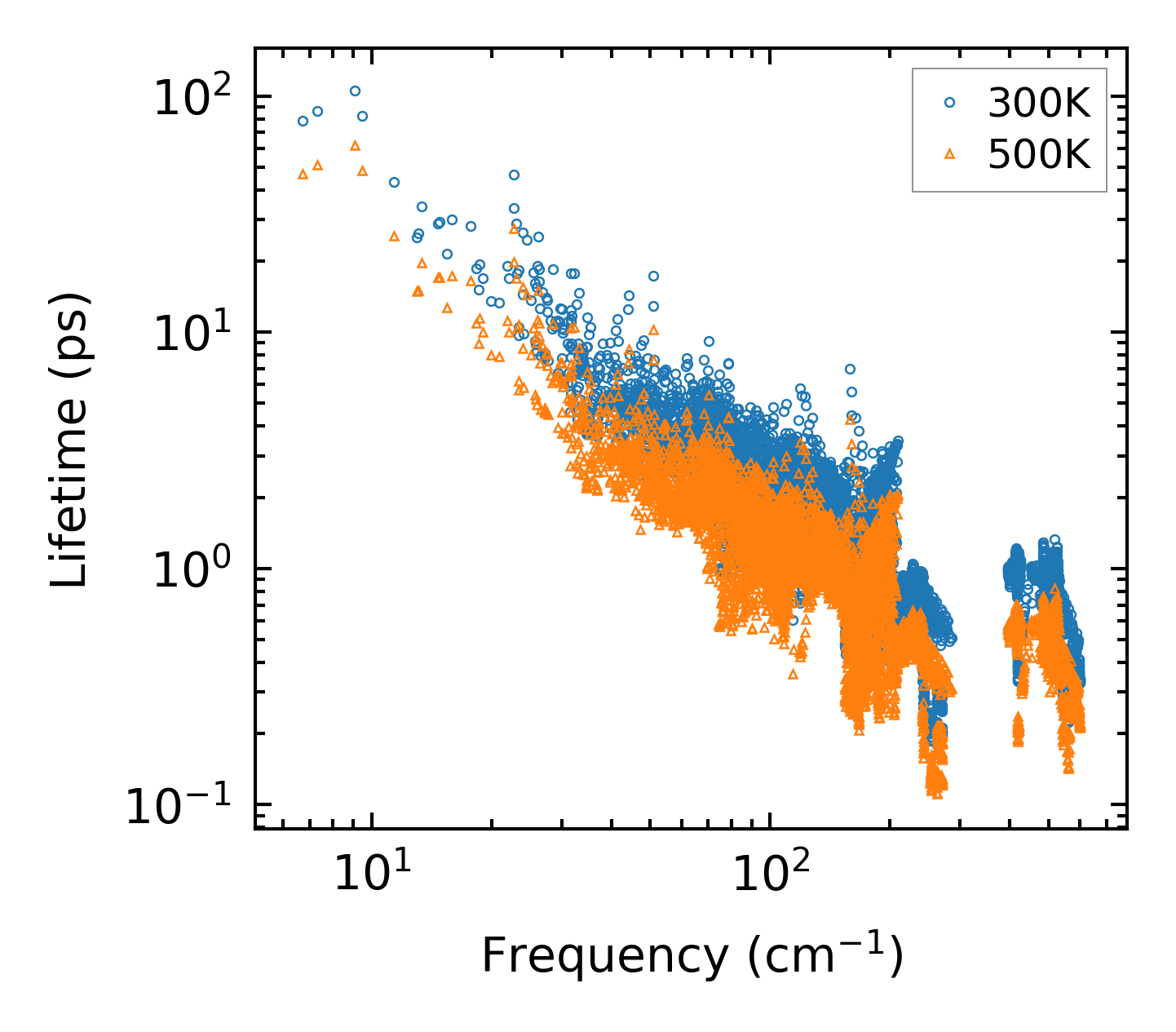

../../_images/fig_lifetime4644.png — (a) Phonon lifetime due to phonon-phonon scattering

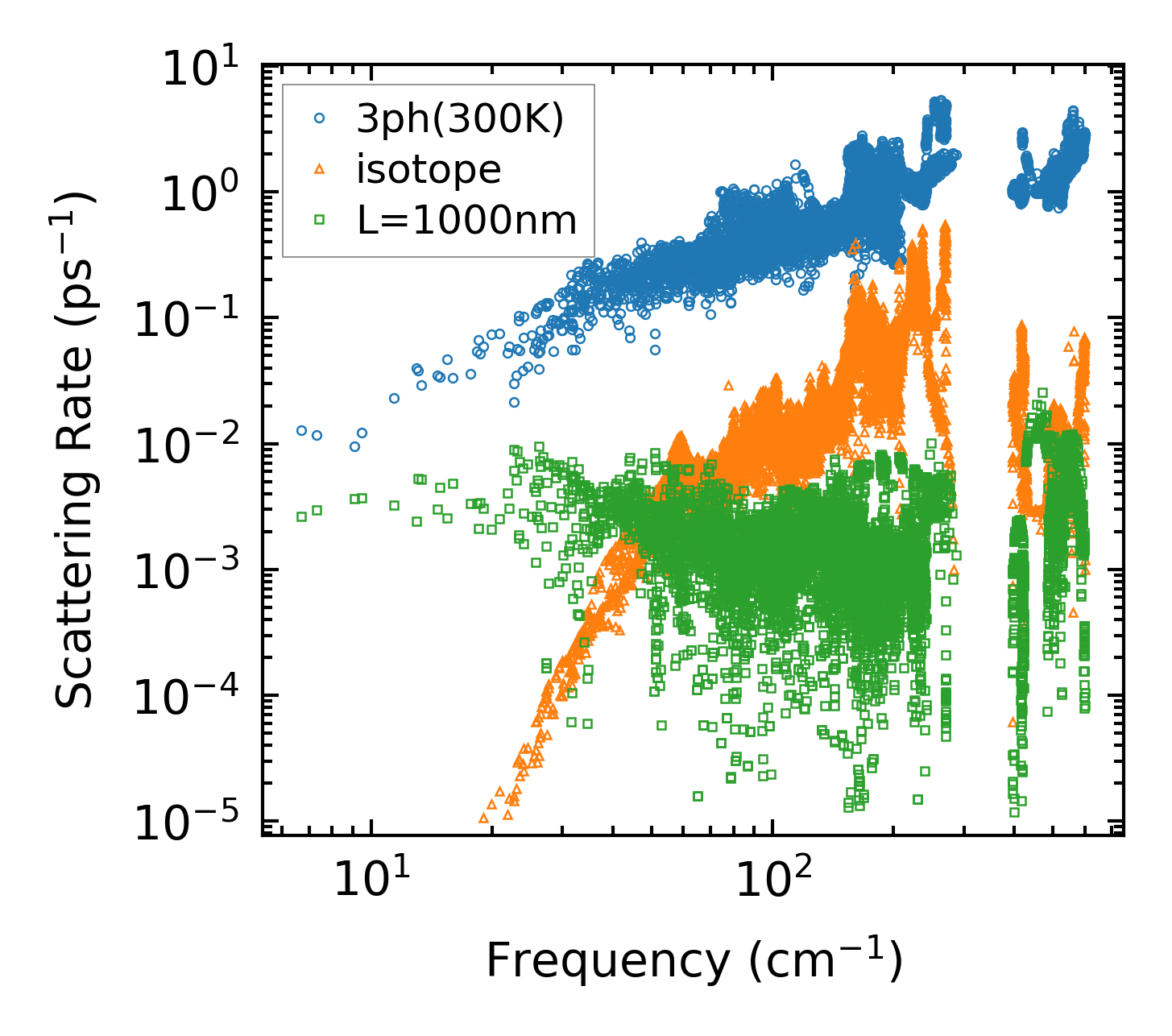

../../_images/fig_scat_rates4643.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

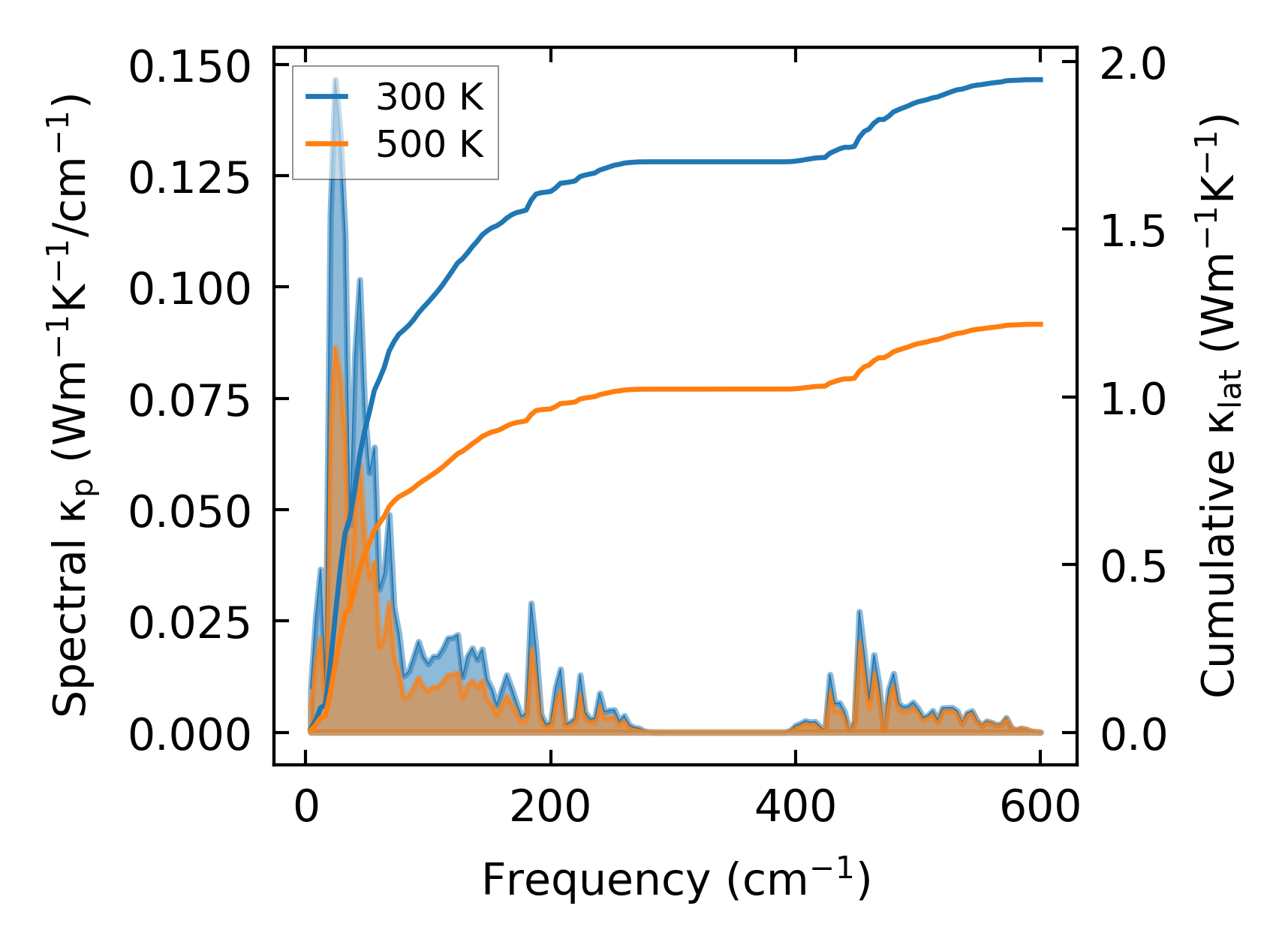

../../_images/fig_cumu_frequency4644.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4643.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

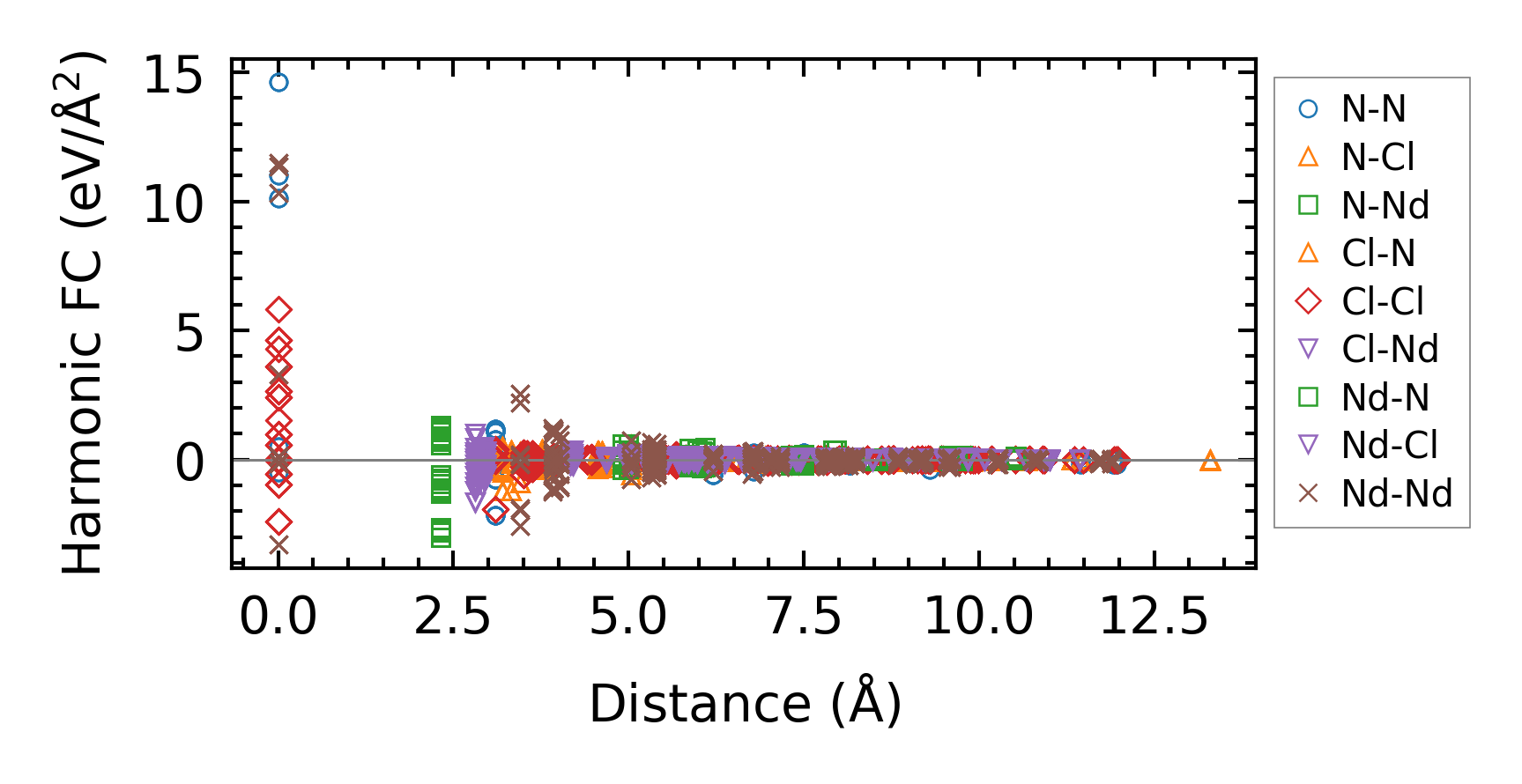

../../_images/fig_fc211056.png — (a) Force constants w.r.t atomic distance

Summary

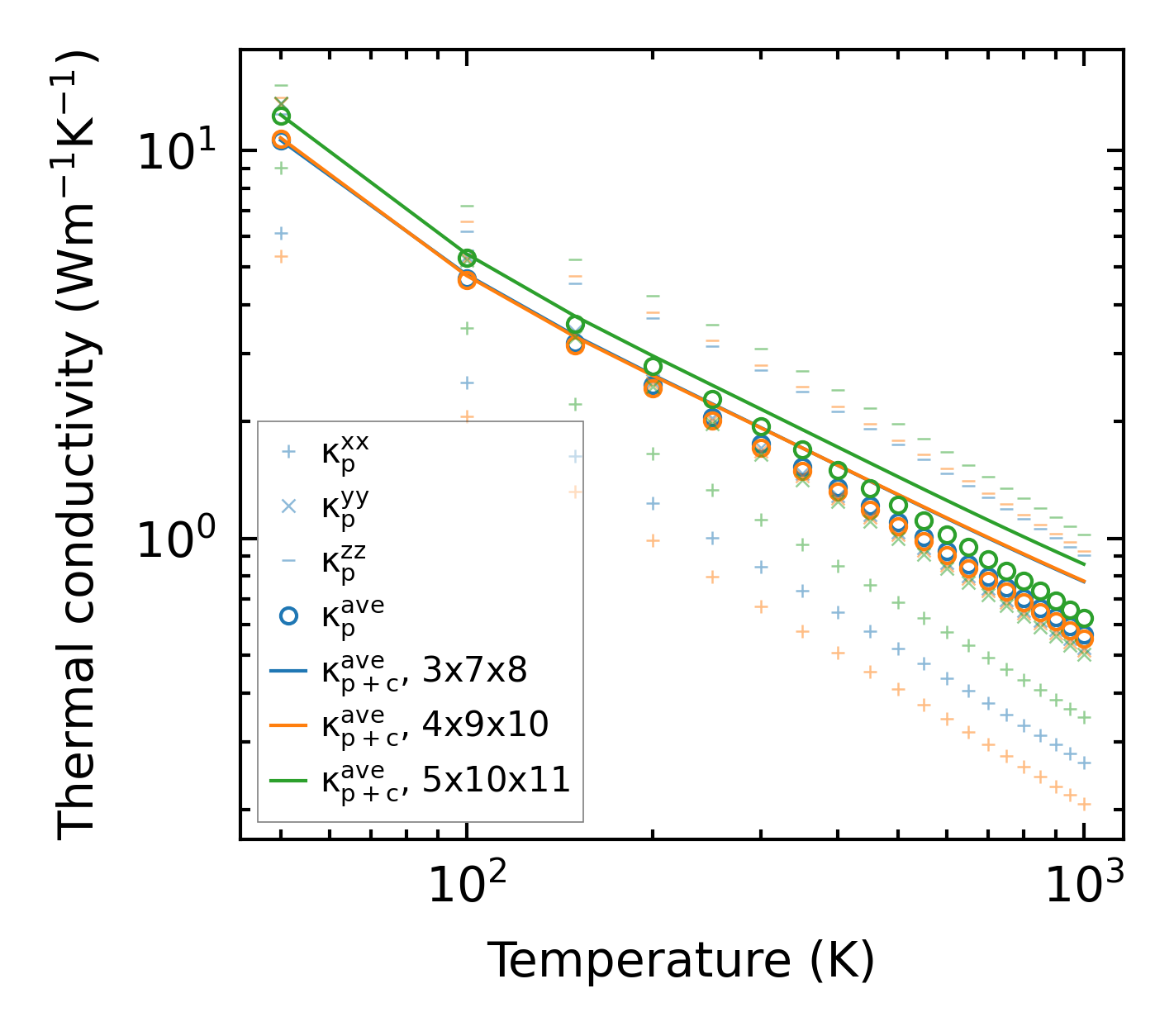

../../_images/fig_kappa8849.png — (a) Temperature-dependent lattice thermal conductivity

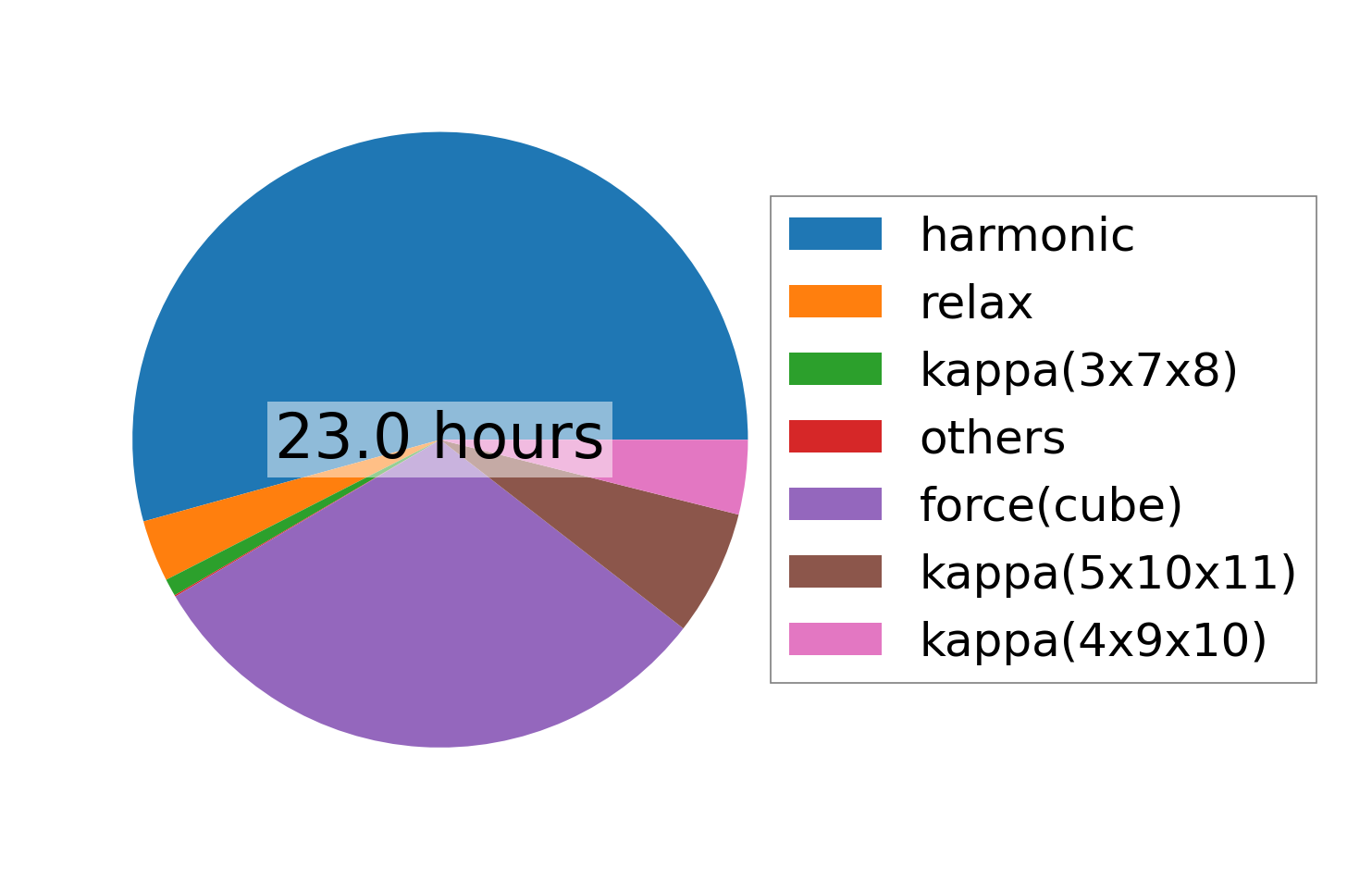

../../_images/fig_times19359.png — (b) Computation time
