mp-28395/B6P/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-28395.tar.gz

Harmonic properties

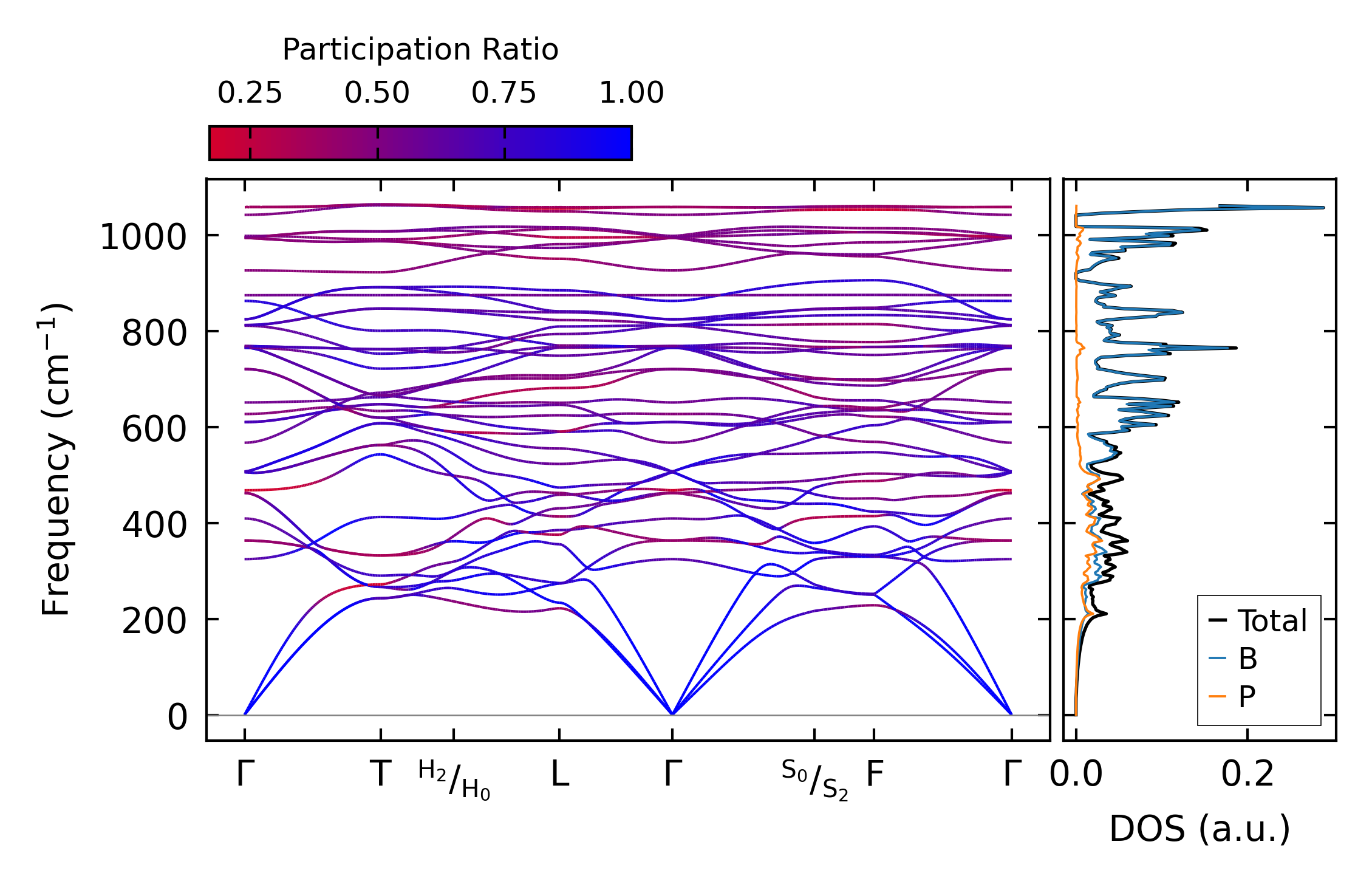

../../_images/fig_bandos_pr11839.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11839.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4933.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4933.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 1x1x1

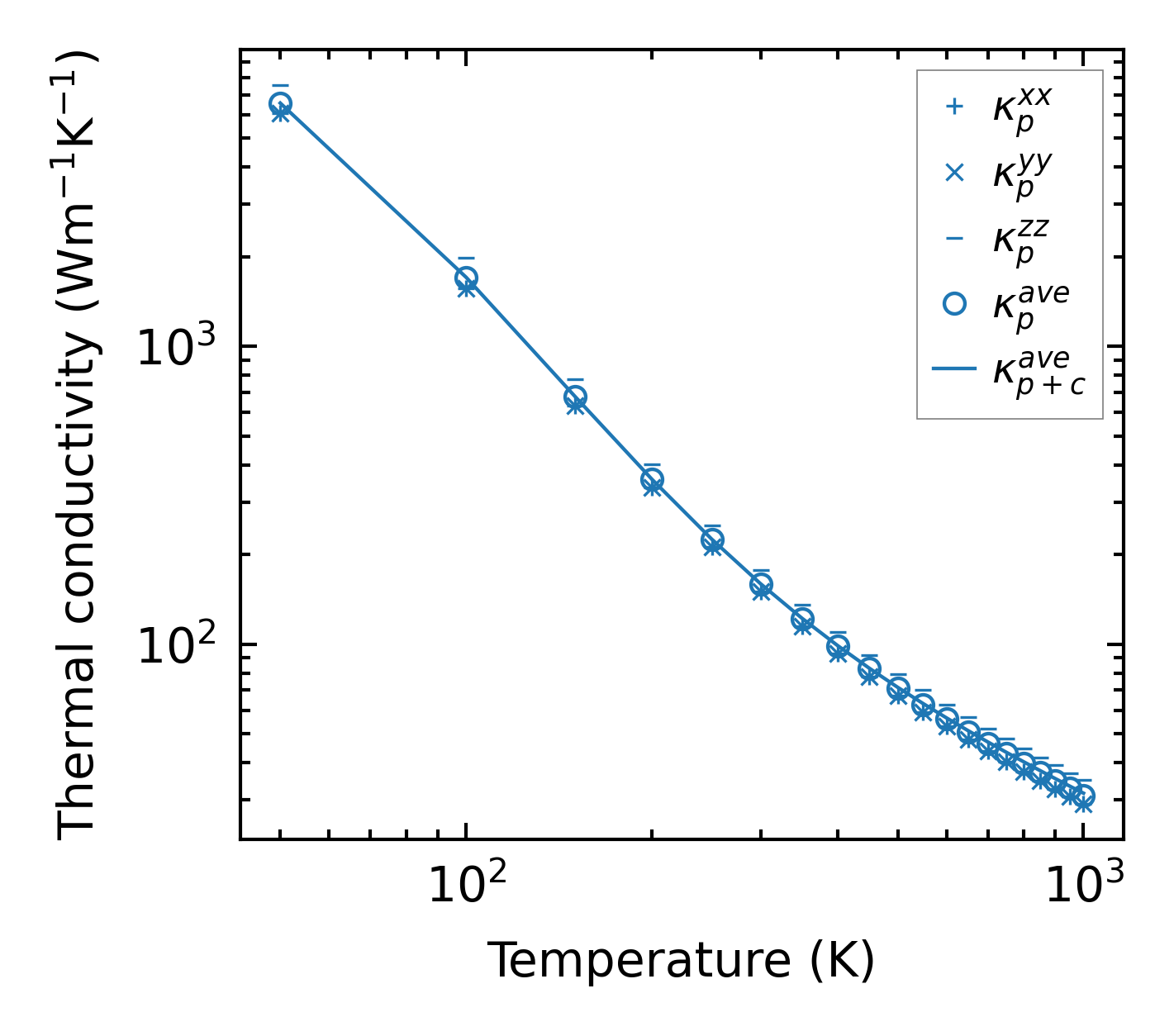

../../_images/fig_kappa9302.png — (a) Temperature-dependent lattice thermal conductivity

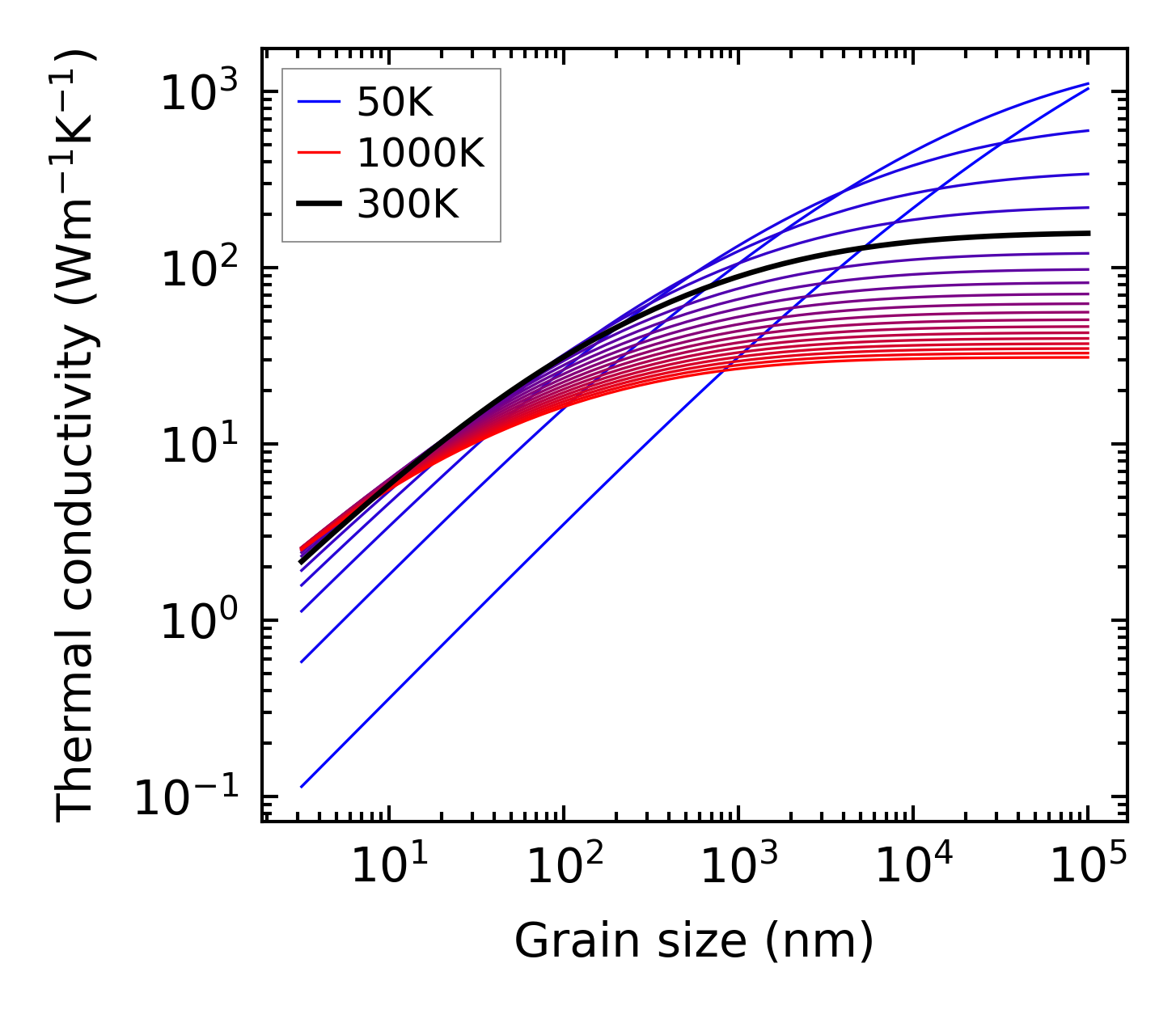

../../_images/fig_kappa_vs_grain_size4992.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4884.png — (a) Phonon lifetime due to phonon-phonon scattering

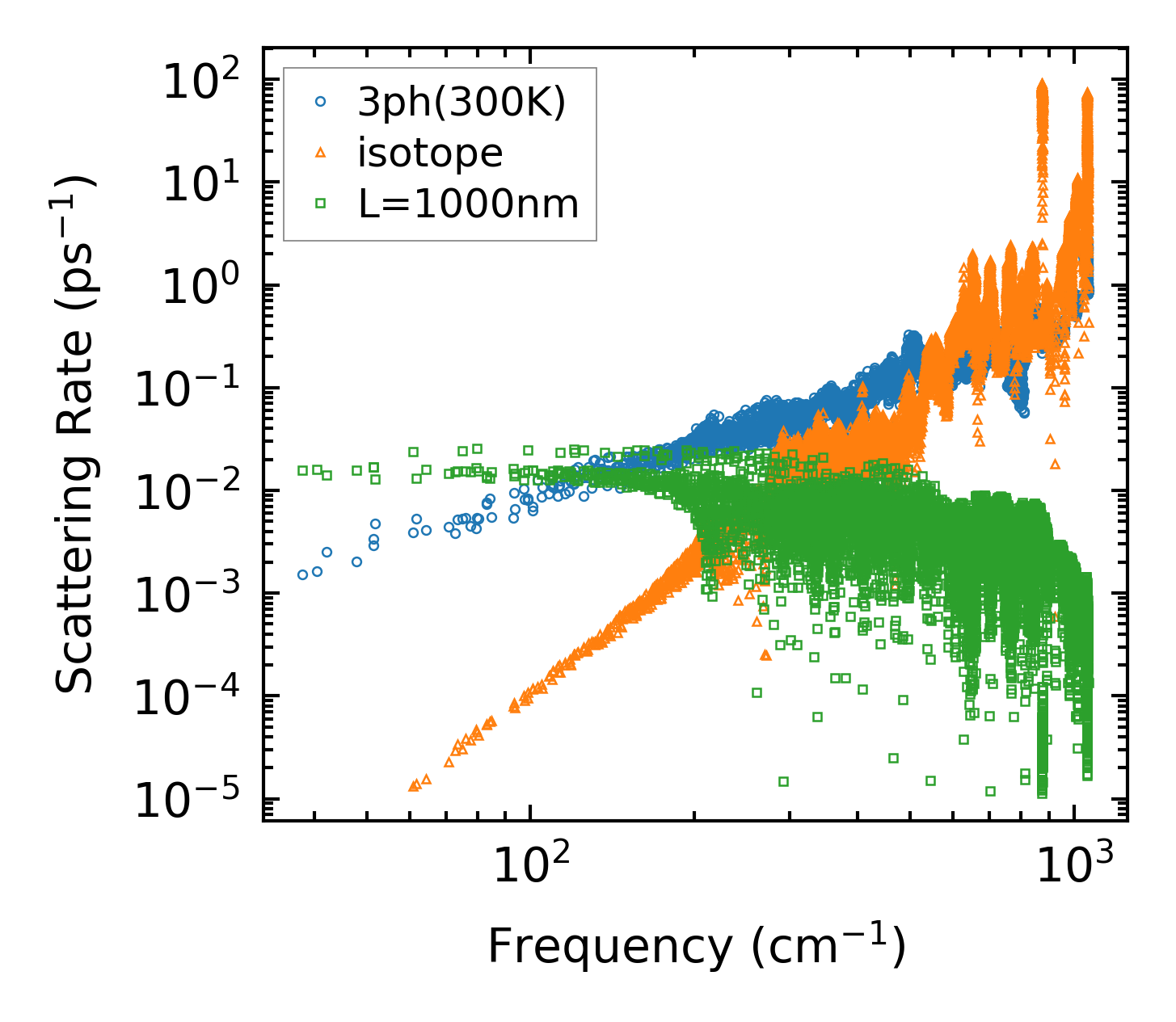

../../_images/fig_scat_rates4883.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

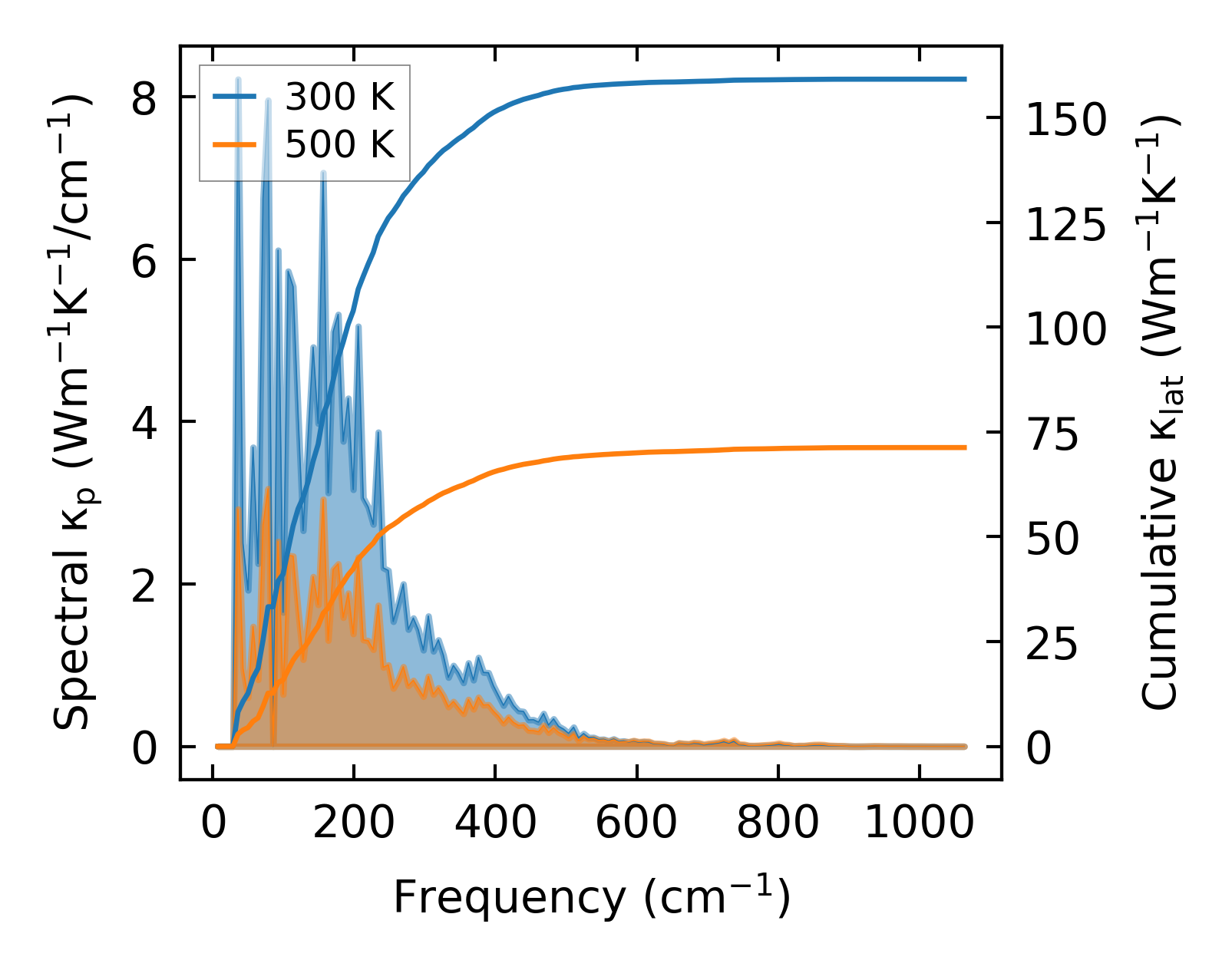

../../_images/fig_cumu_frequency4884.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

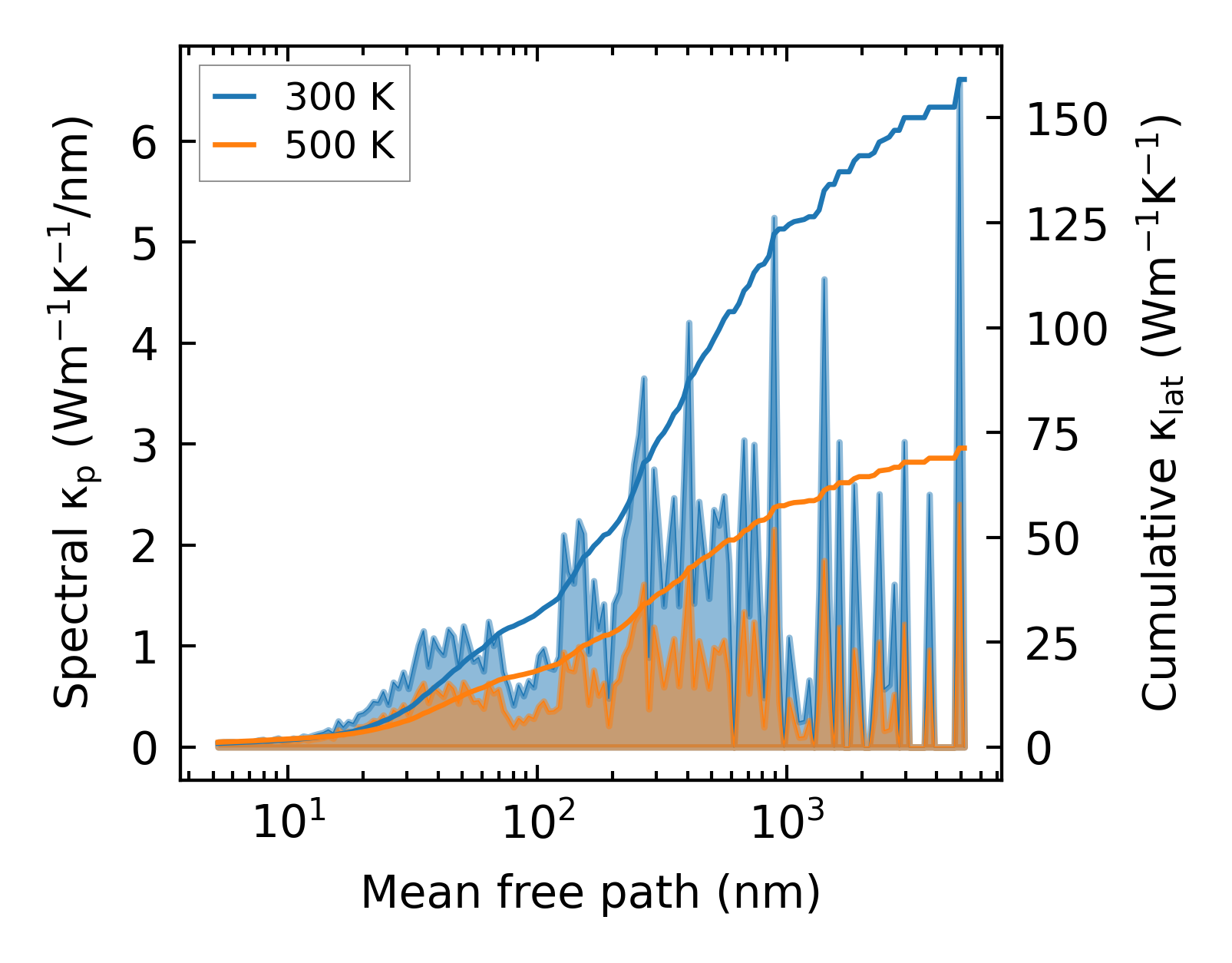

../../_images/fig_cumu_mfp4883.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211550.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9303.png — (a) Temperature-dependent lattice thermal conductivity

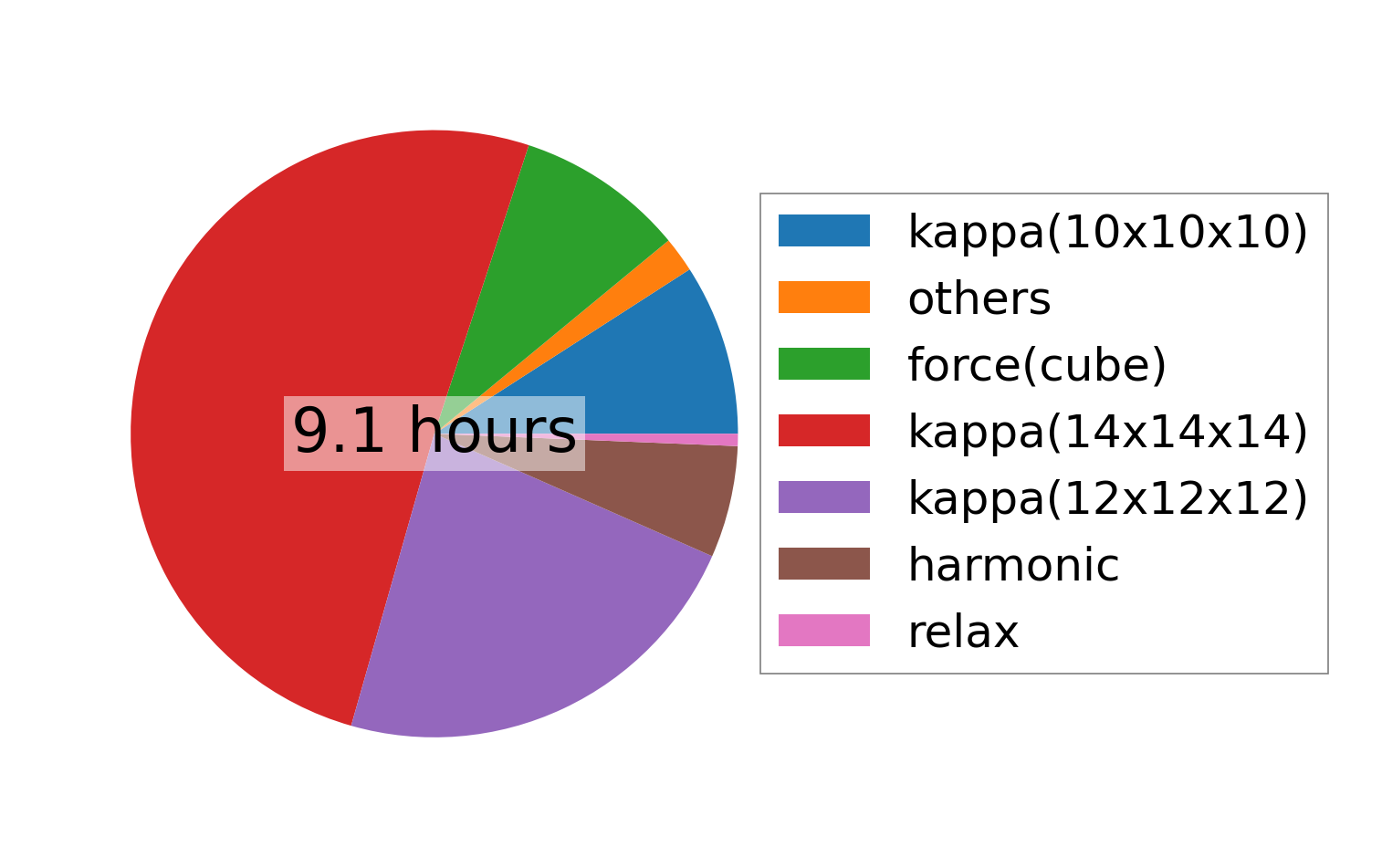

../../_images/fig_times20086.png — (b) Computation time
