mp-28728-2/K6Sn3As5/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-28728-2.tar.gz

Equation of state

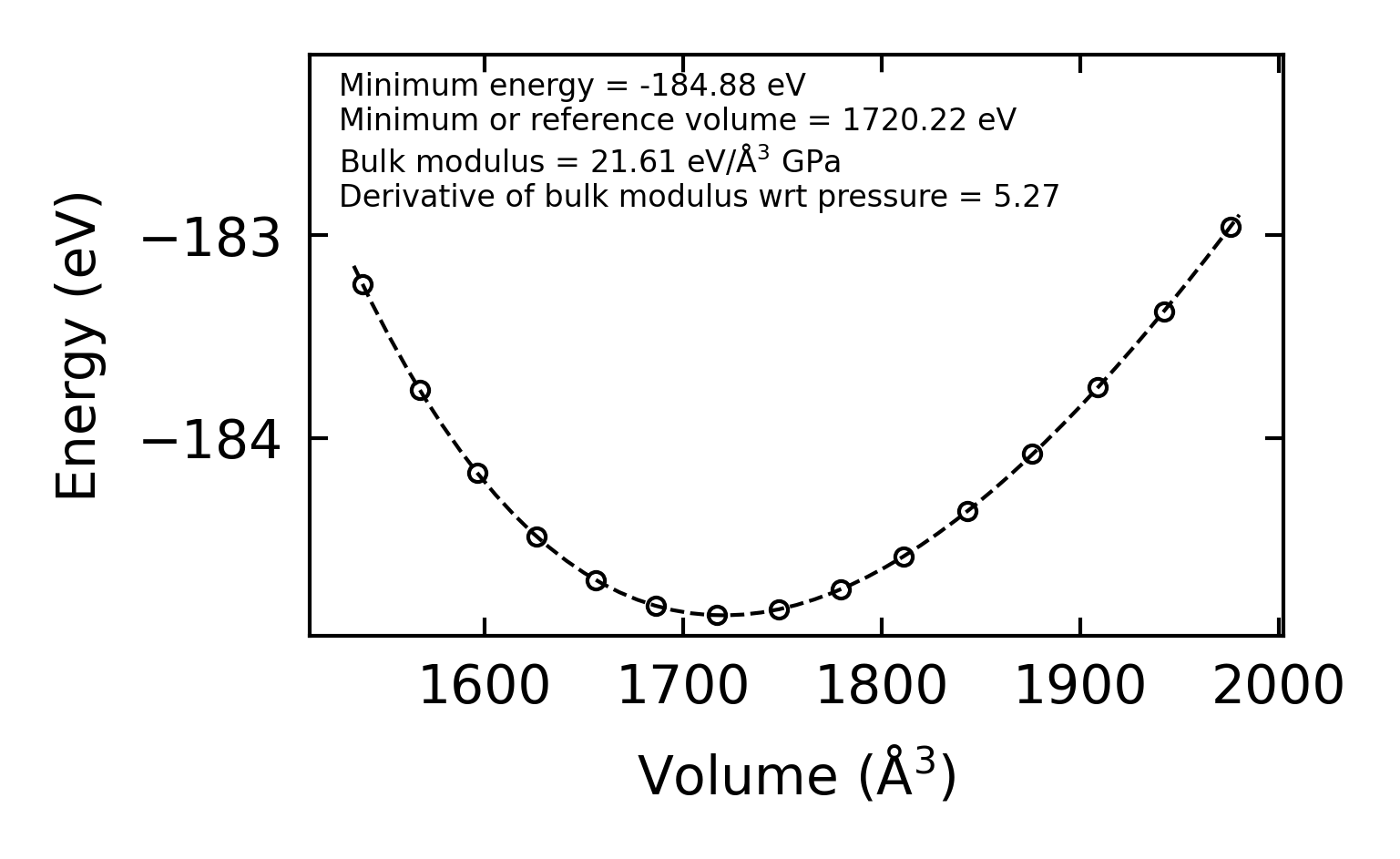

../../_images/fig_bm5669.png — (a) Equation of state

Harmonic properties

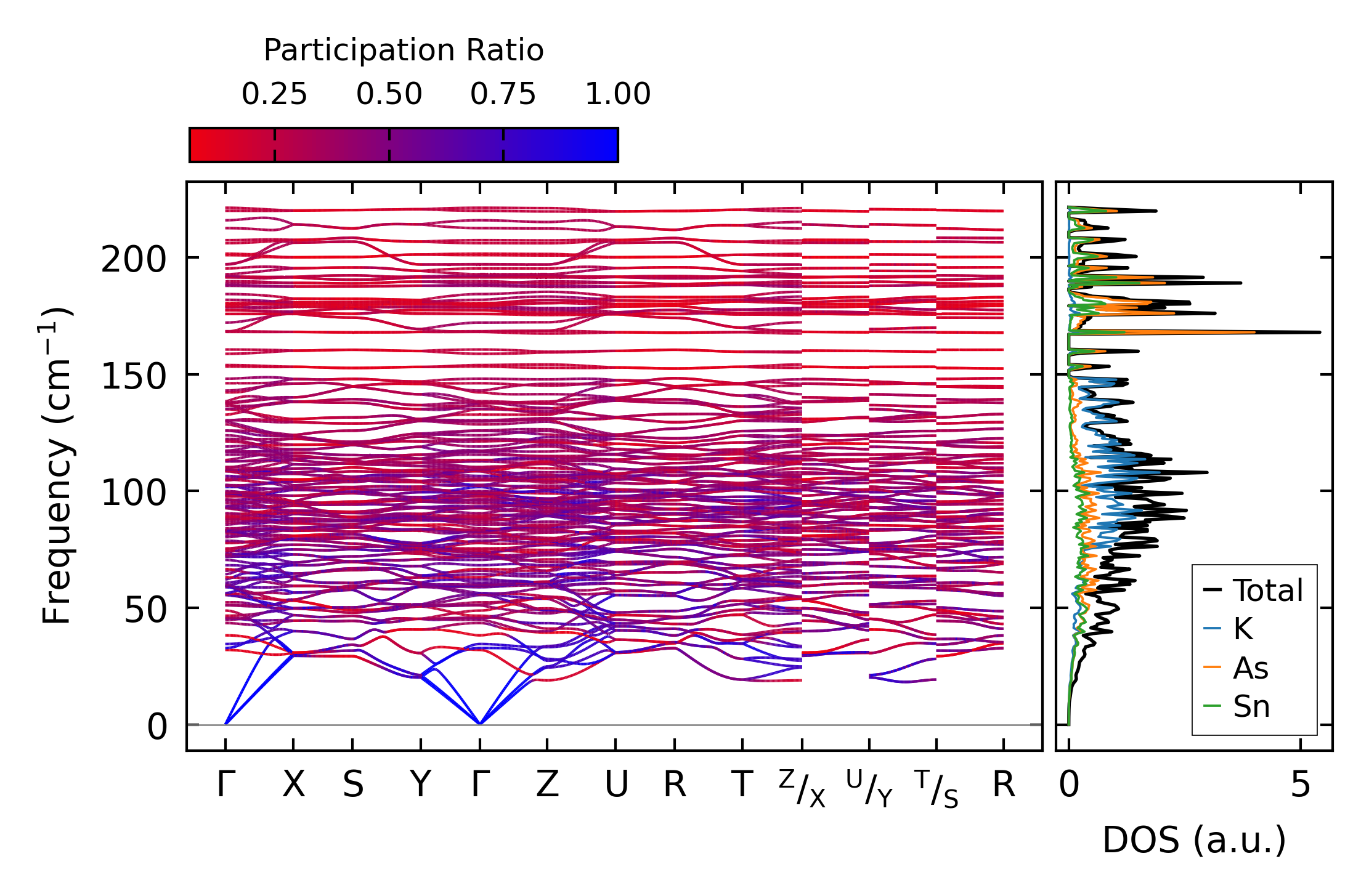

../../_images/fig_bandos_pr11612.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11612.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4830.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4830.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x4x6, supercell: 2x1x1

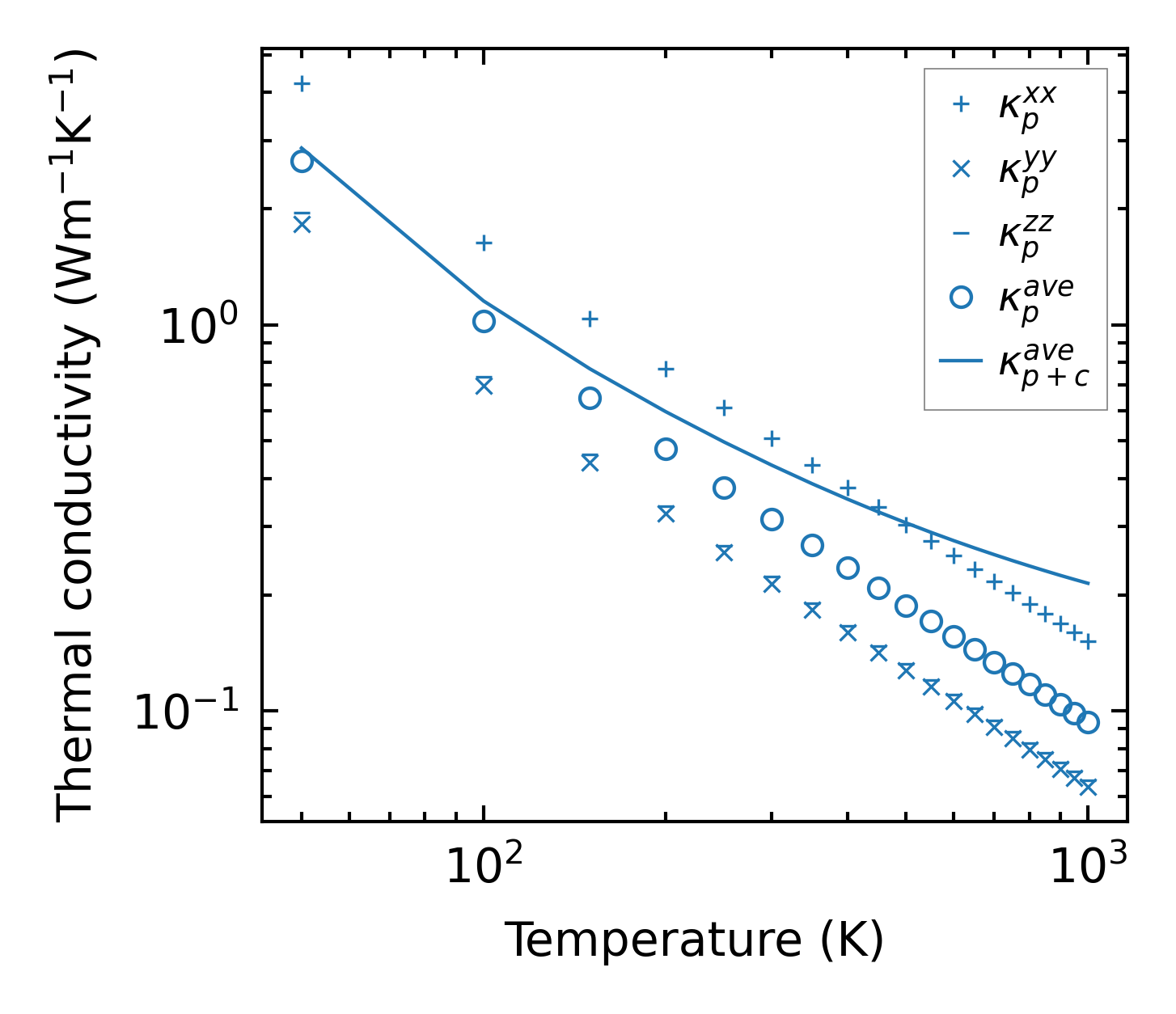

../../_images/fig_kappa9110.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4888.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

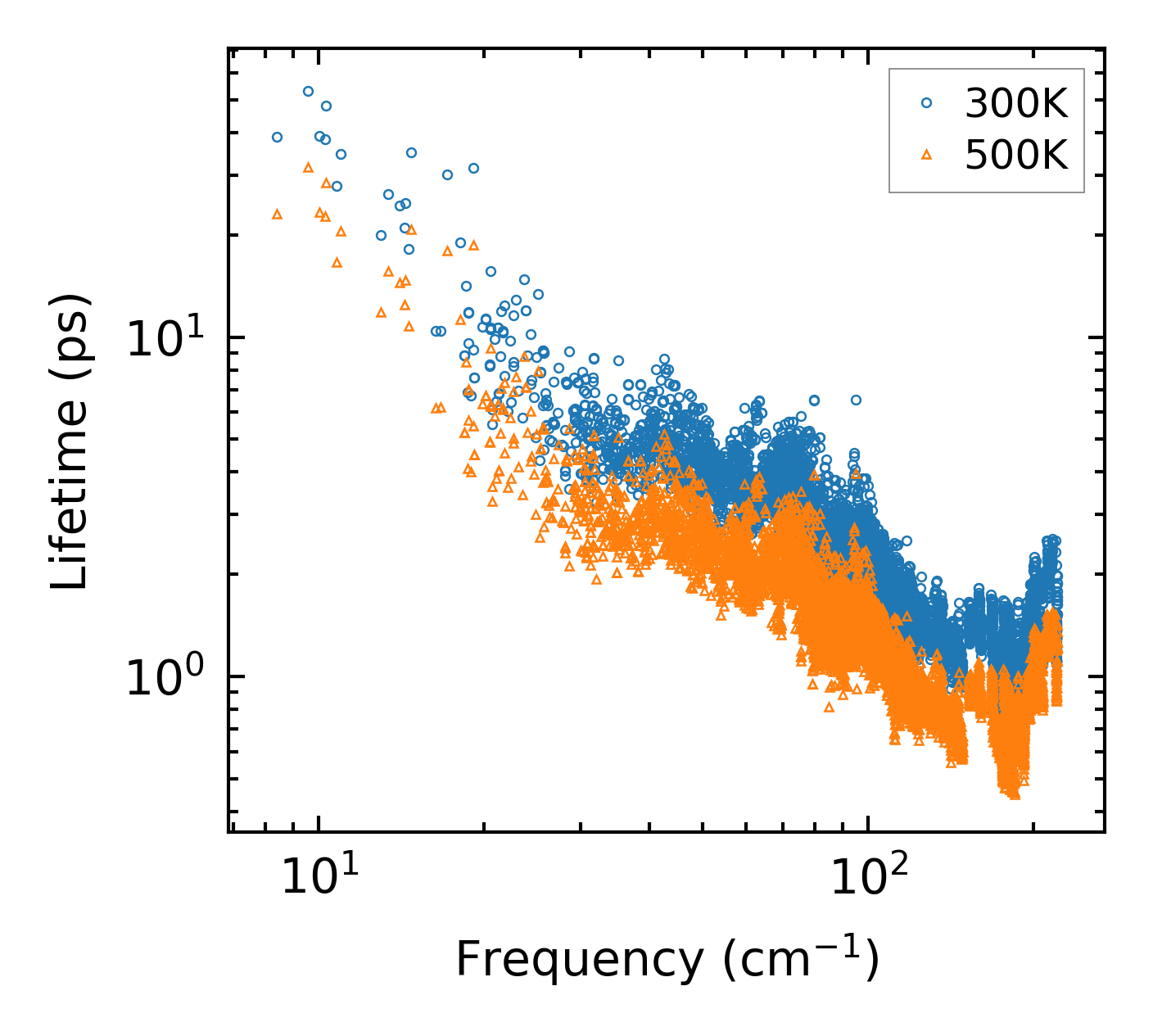

../../_images/fig_lifetime4783.png — (a) Phonon lifetime due to phonon-phonon scattering

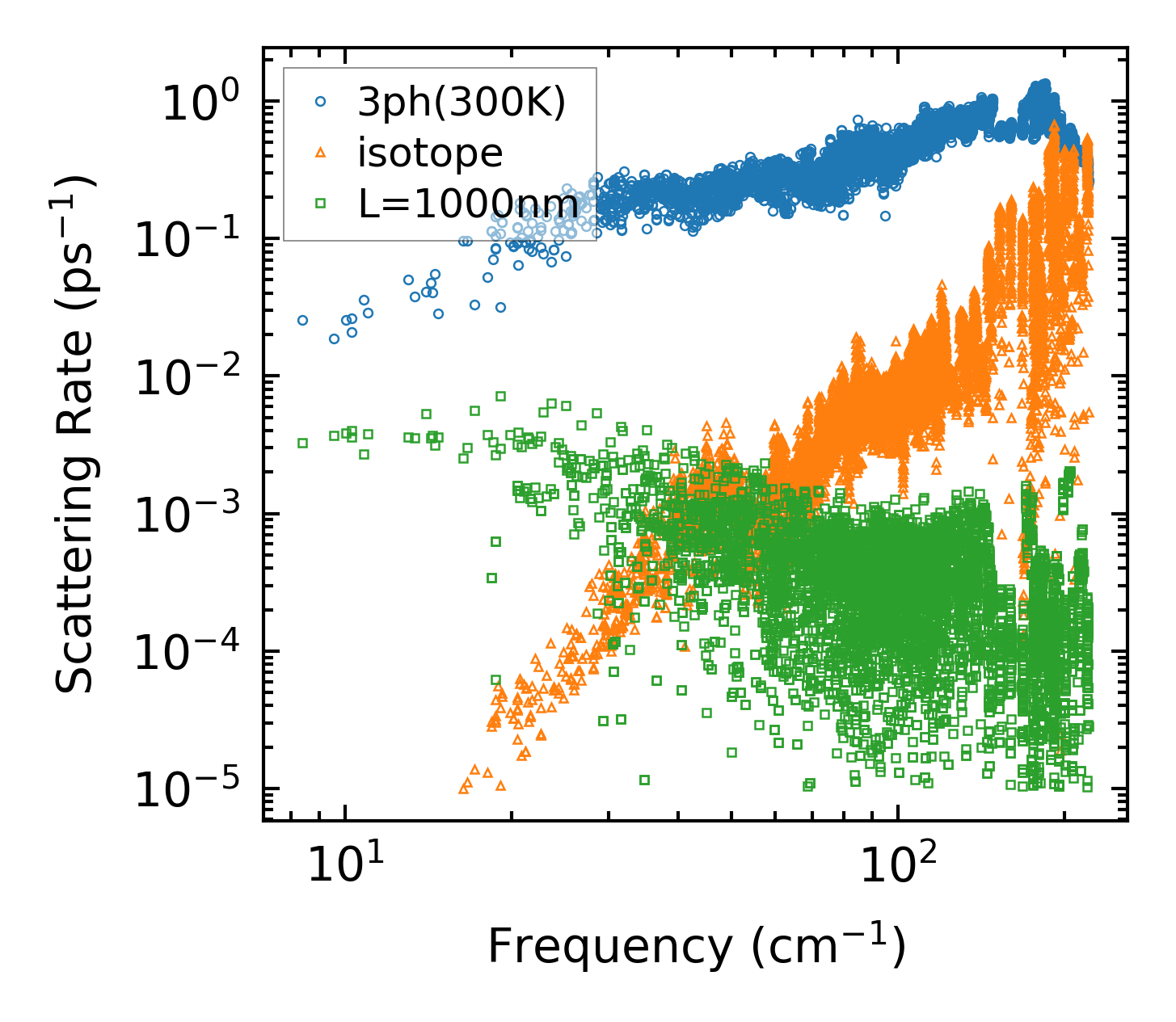

../../_images/fig_scat_rates4782.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4783.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

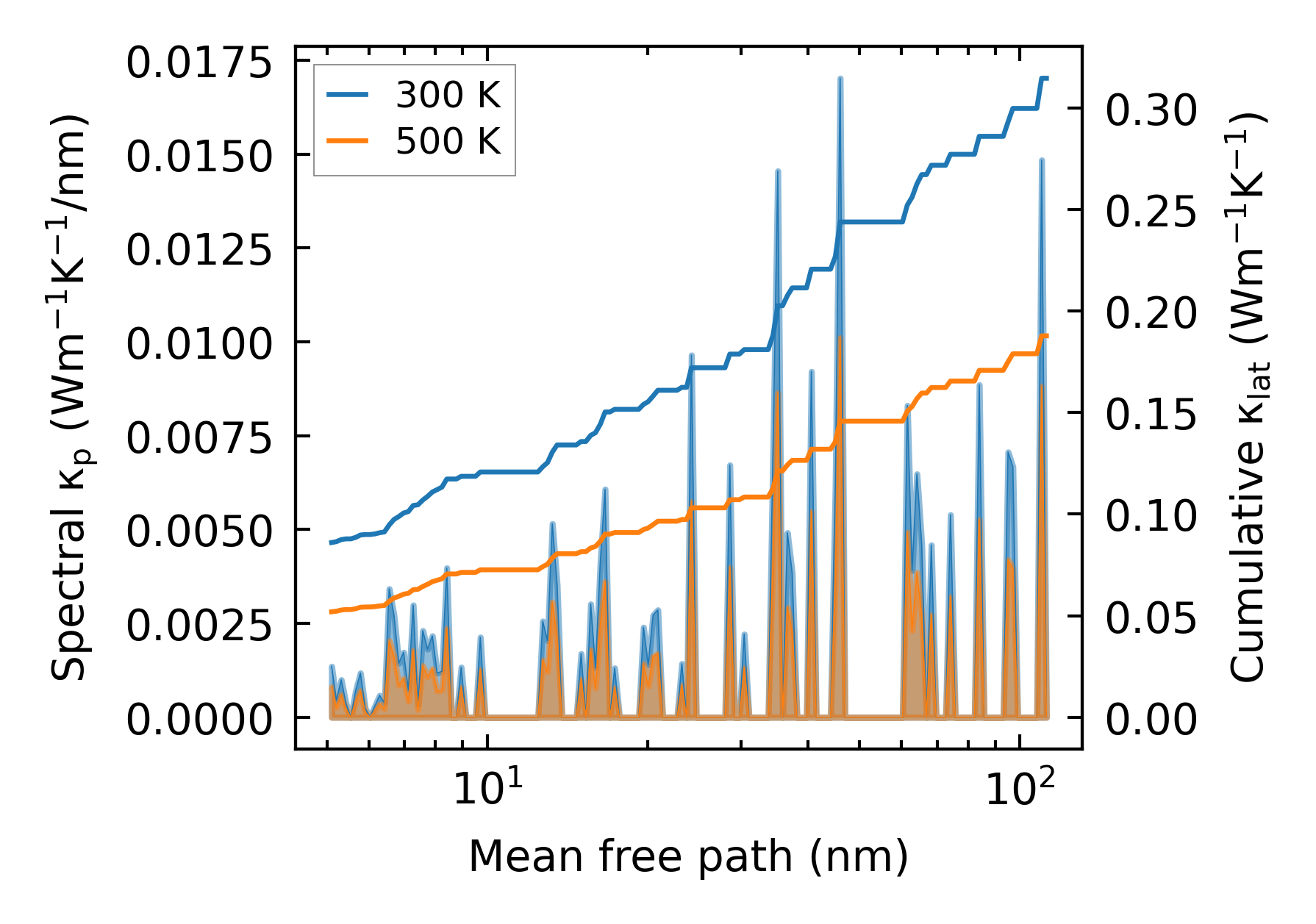

../../_images/fig_cumu_mfp4782.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

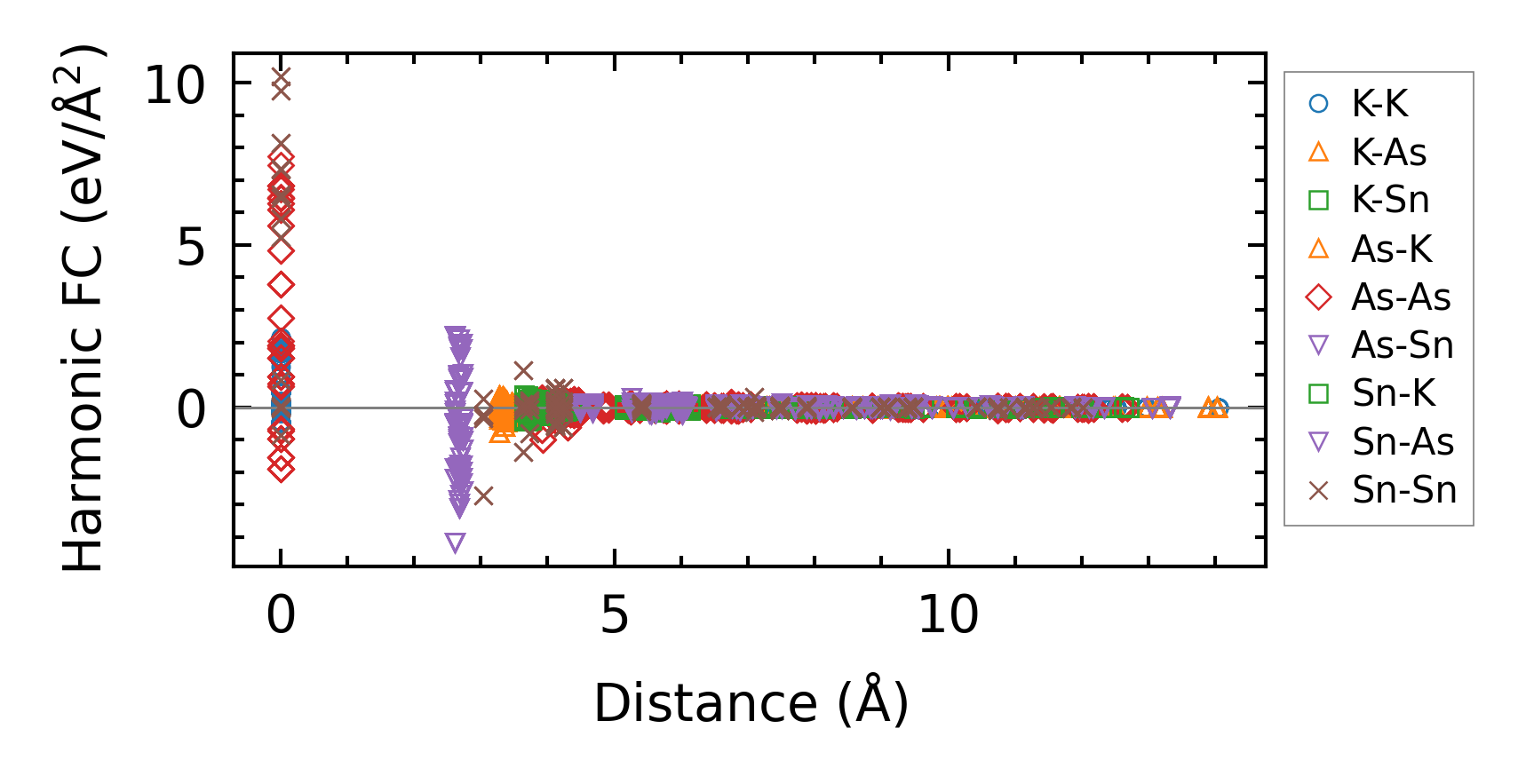

../../_images/fig_fc211324.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9111.png — (a) Temperature-dependent lattice thermal conductivity

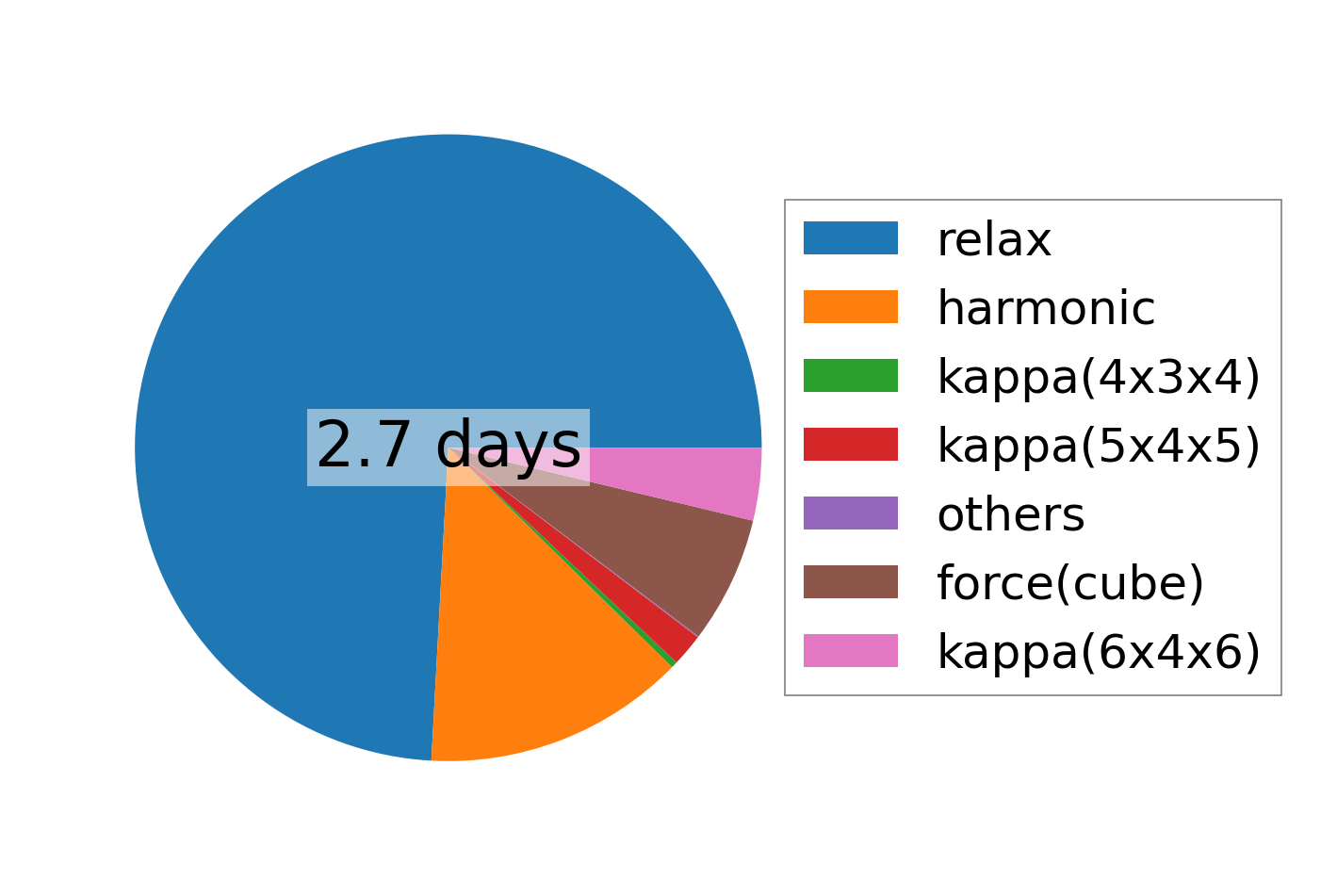

../../_images/fig_times19760.png — (b) Computation time
