mp-28929/DySI/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-28929.tar.gz

Harmonic properties

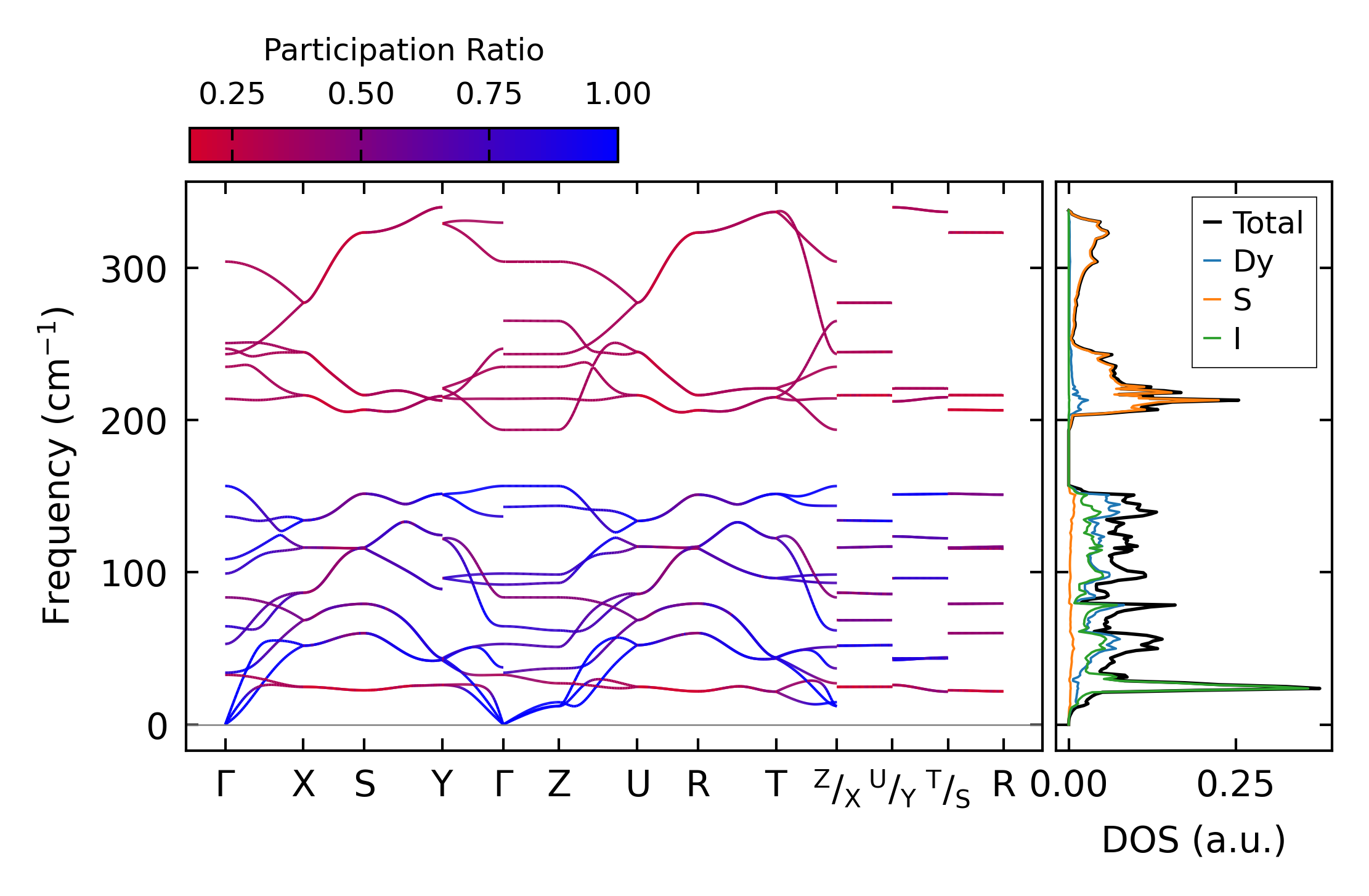

../../_images/fig_bandos_pr11326.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11326.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4683.png — (a) Grüneisen parameters

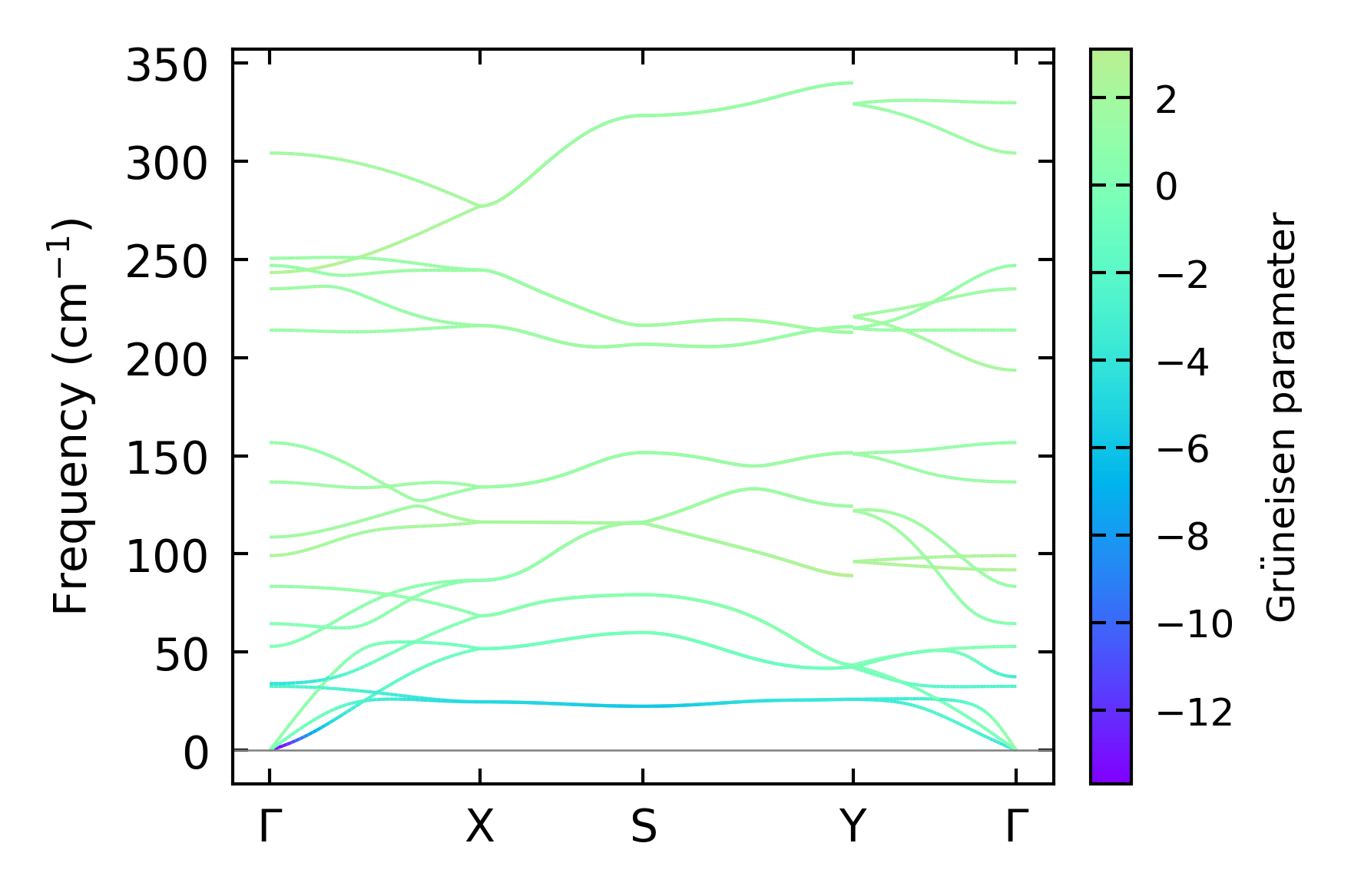

../../_images/fig_gruneisen4683.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x13x7, supercell: 4x3x2

../../_images/fig_kappa8838.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4740.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

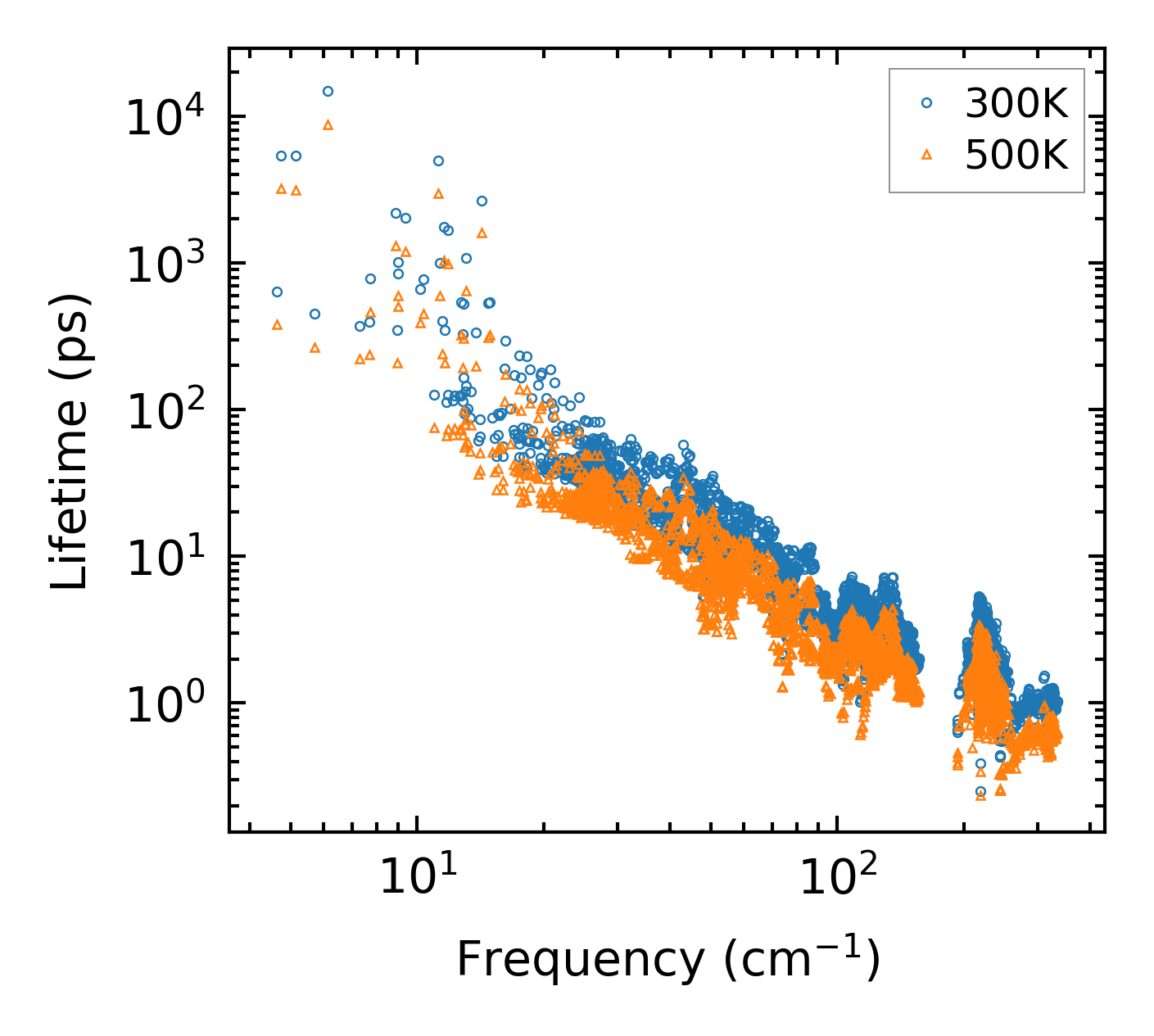

../../_images/fig_lifetime4639.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4638.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

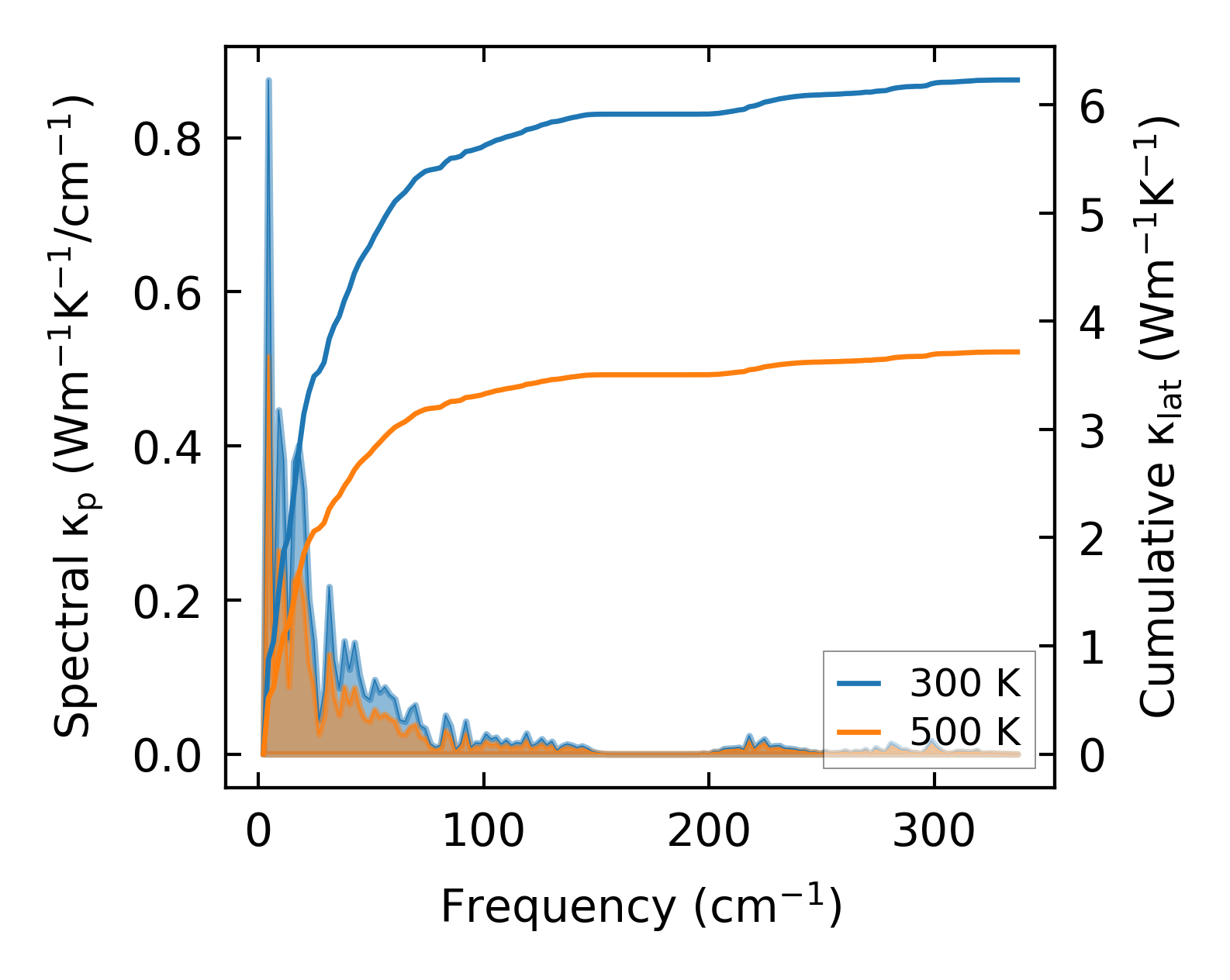

../../_images/fig_cumu_frequency4639.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

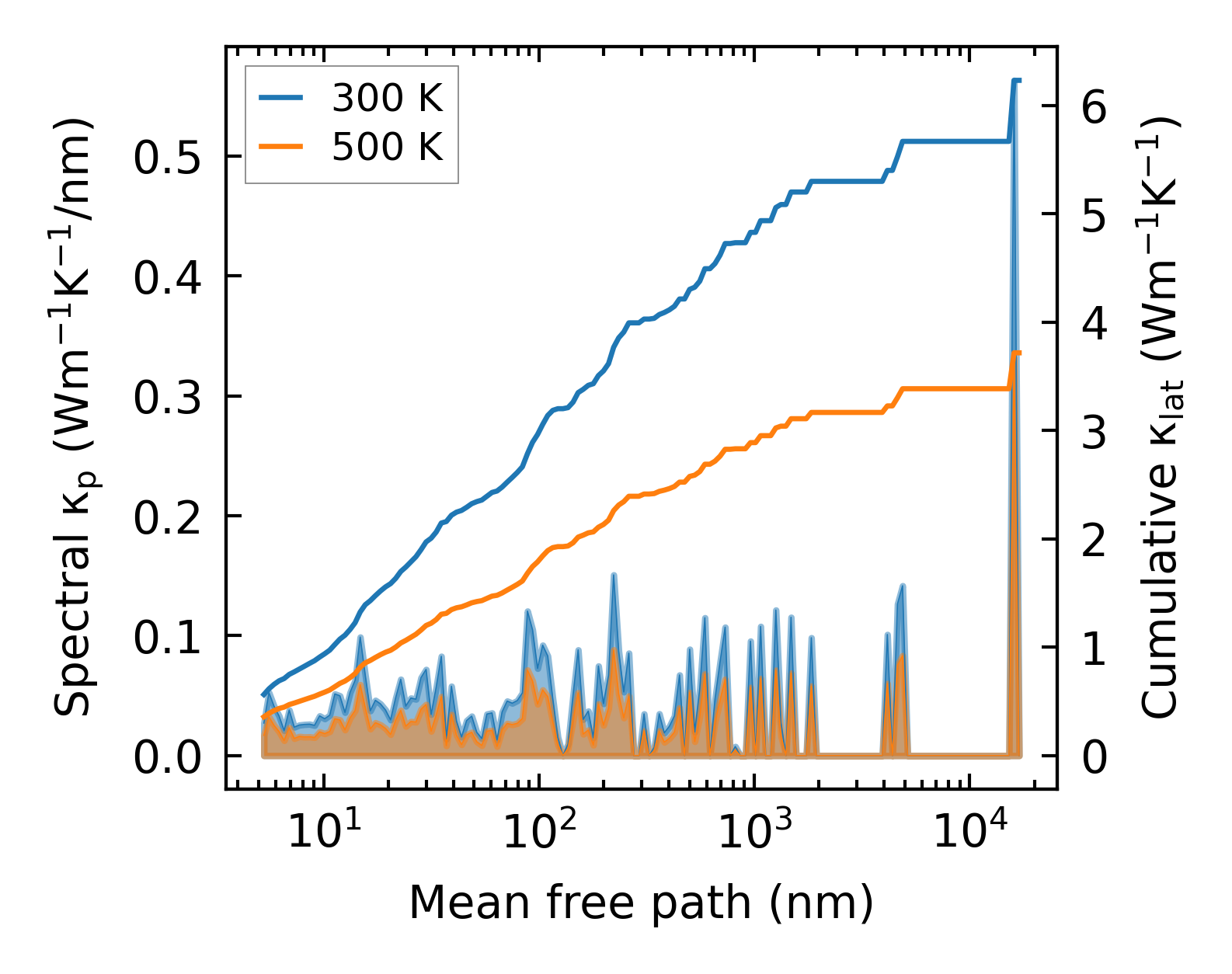

../../_images/fig_cumu_mfp4638.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

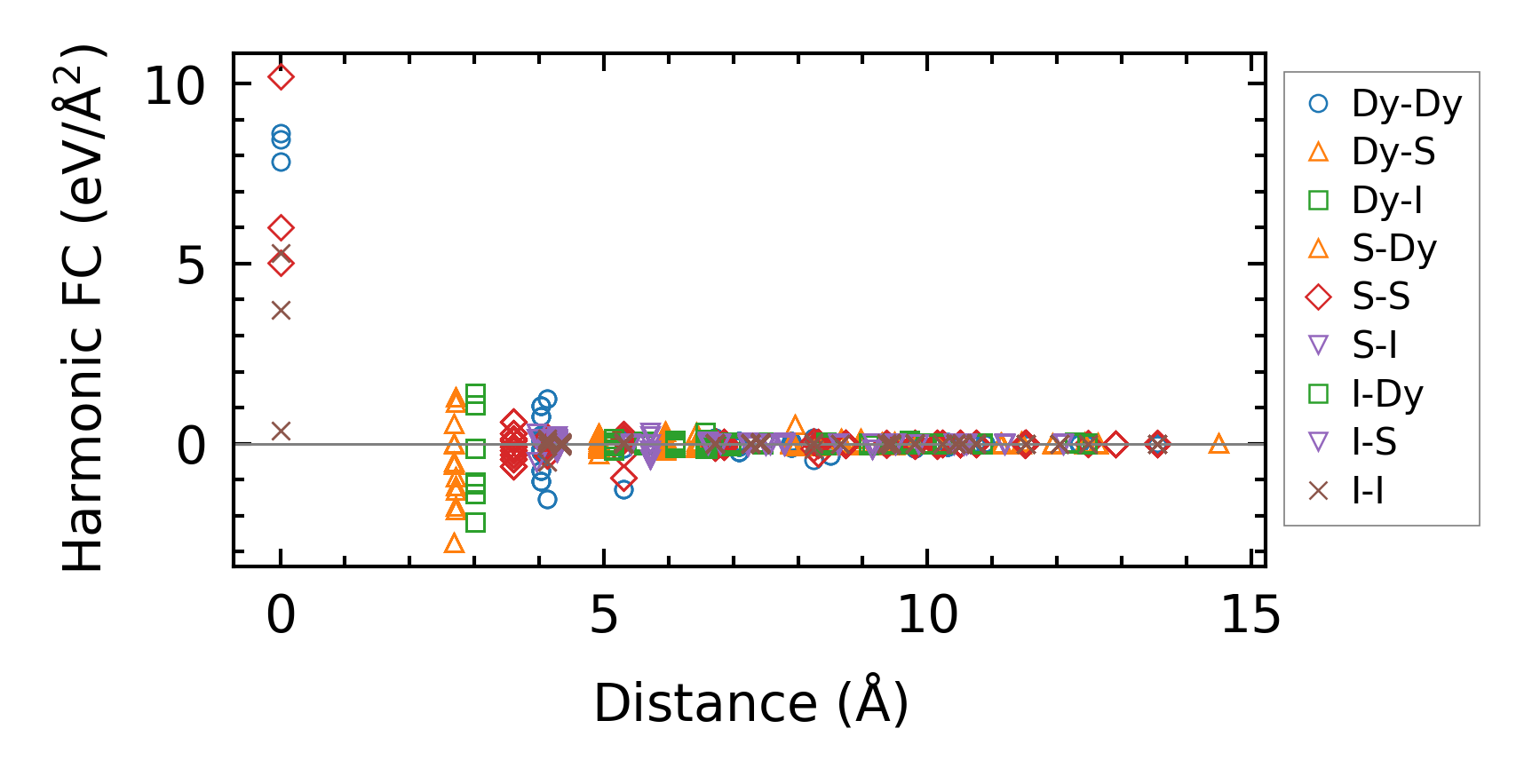

../../_images/fig_fc211042.png — (a) Force constants w.r.t atomic distance

Summary

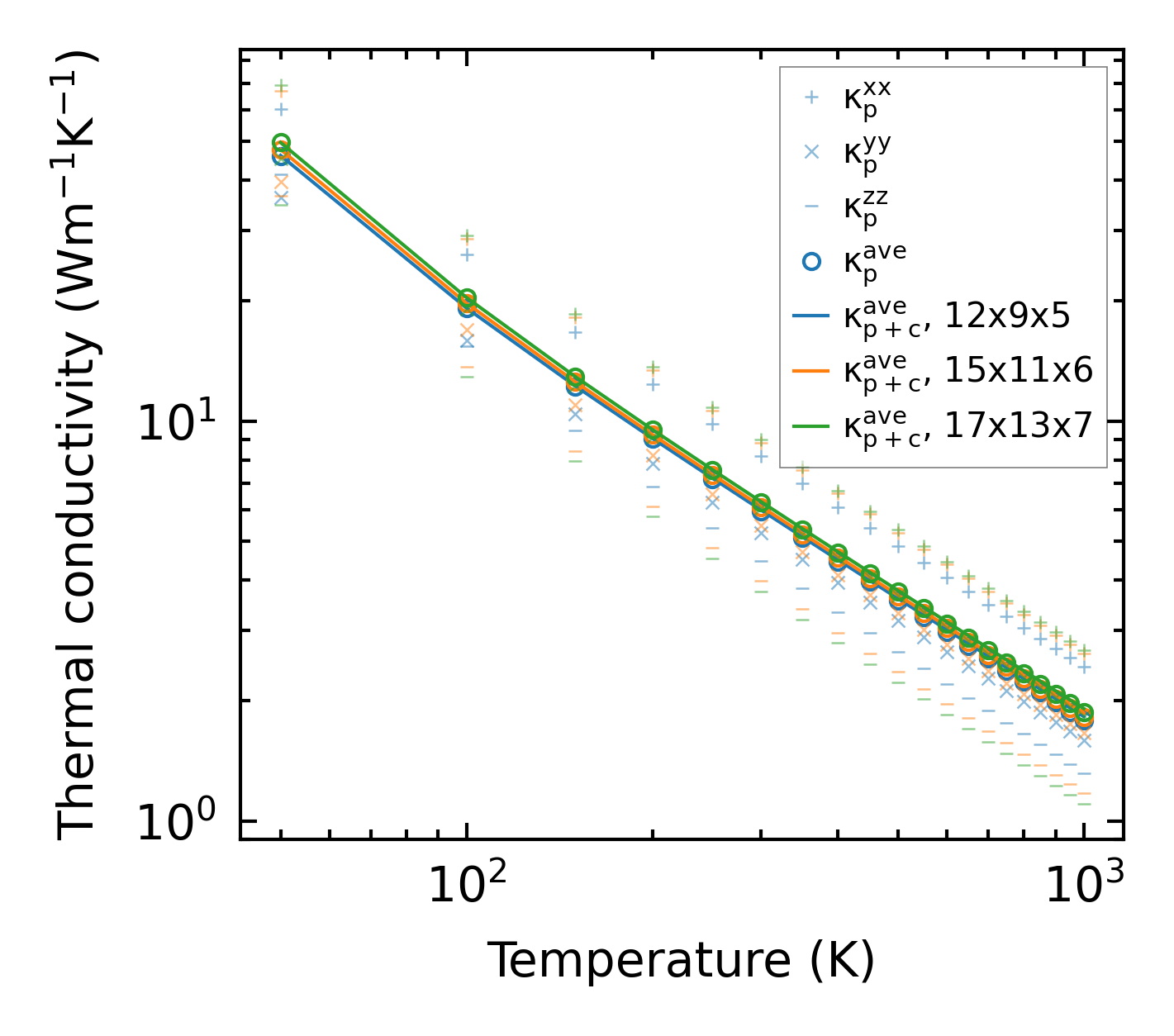

../../_images/fig_kappa8839.png — (a) Temperature-dependent lattice thermal conductivity

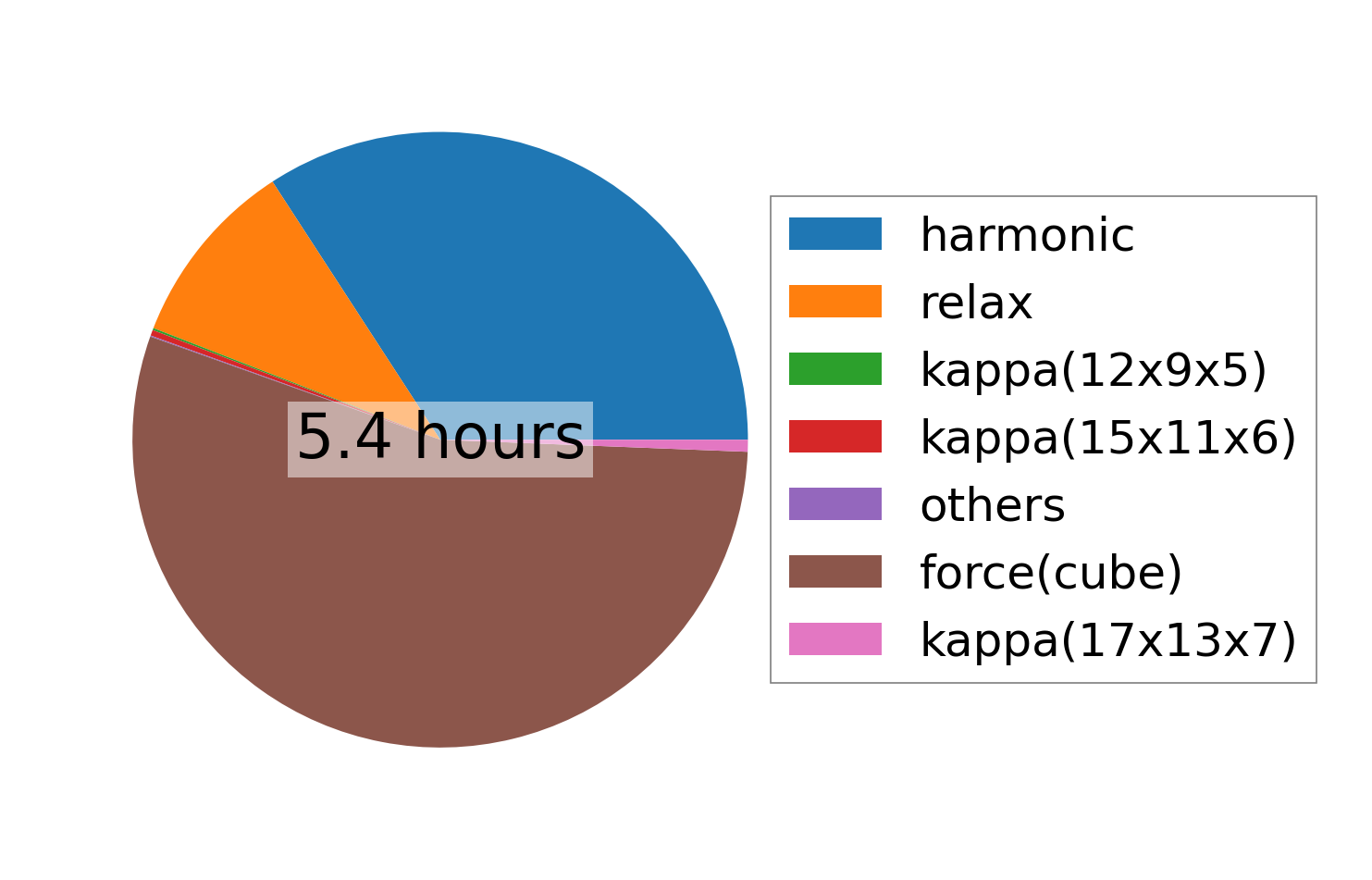

../../_images/fig_times19332.png — (b) Computation time
