mp-28663/Mg14Si5O24/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-28663.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11579.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11579.png — (b) Thermodynamic properties

Grüneisen parameters

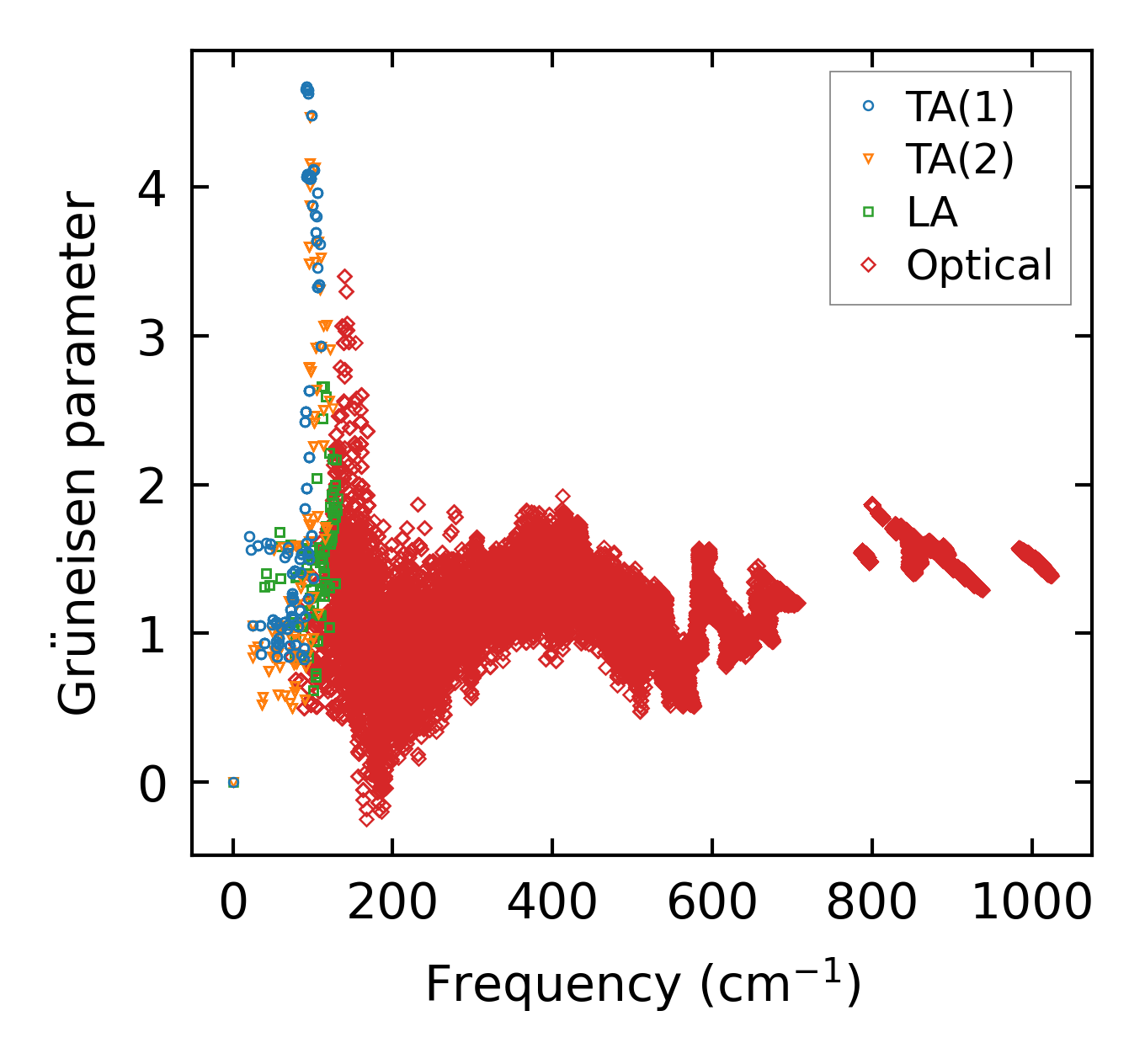

../../_images/fig_gru_all4815.png — (a) Grüneisen parameters

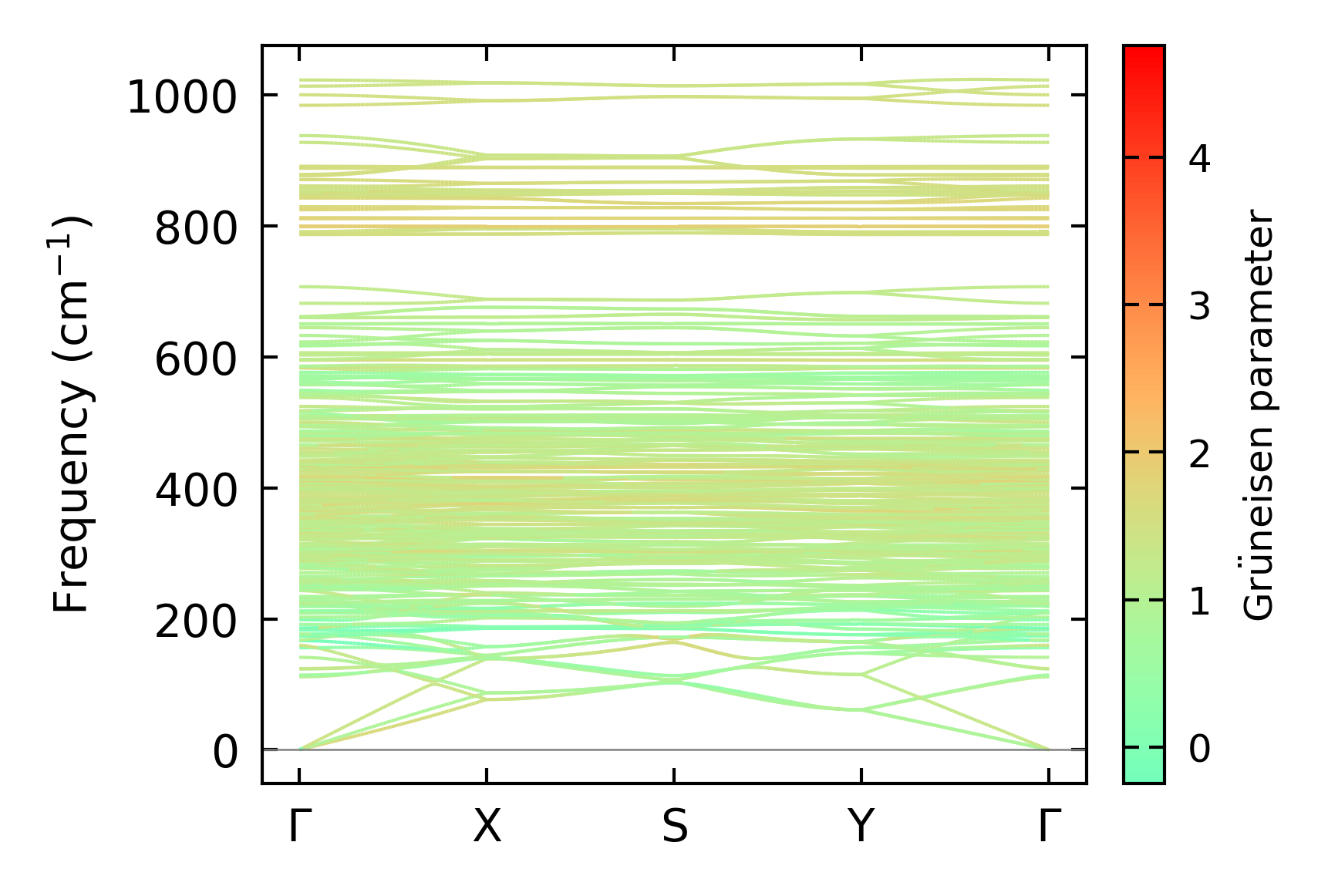

../../_images/fig_gruneisen4815.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x5x12, supercell: 1x1x1

../../_images/fig_kappa9082.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4873.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

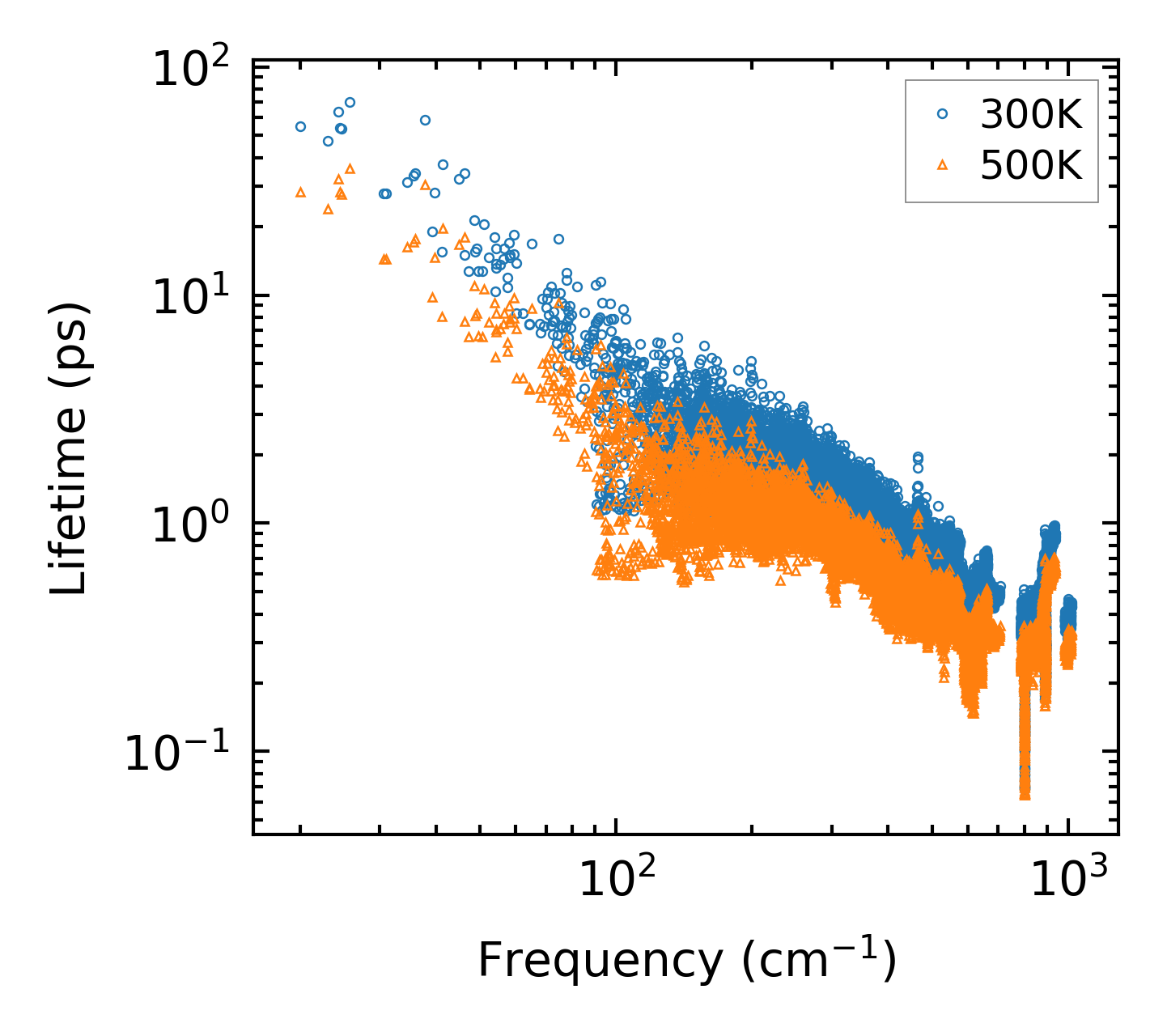

../../_images/fig_lifetime4769.png — (a) Phonon lifetime due to phonon-phonon scattering

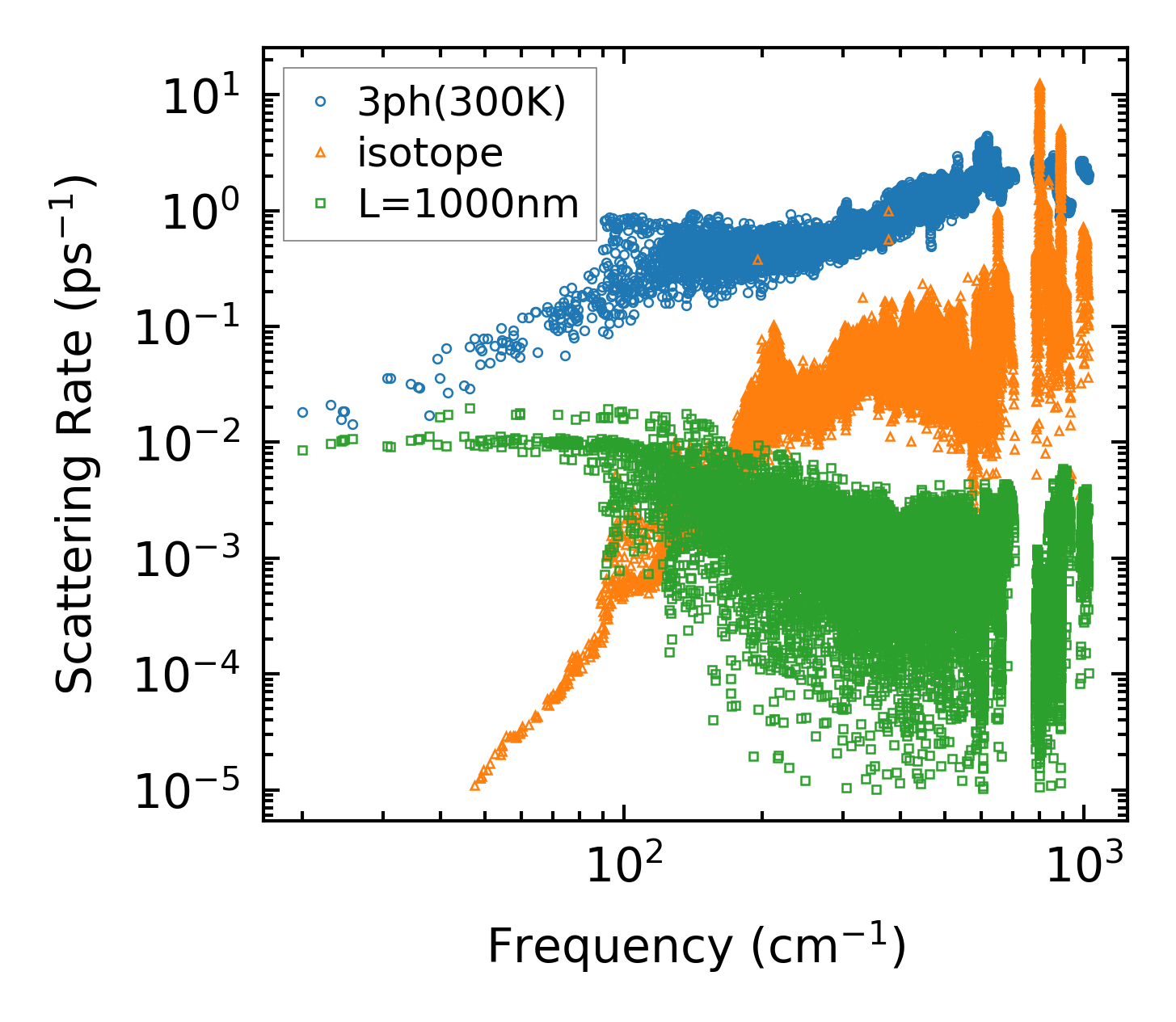

../../_images/fig_scat_rates4768.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

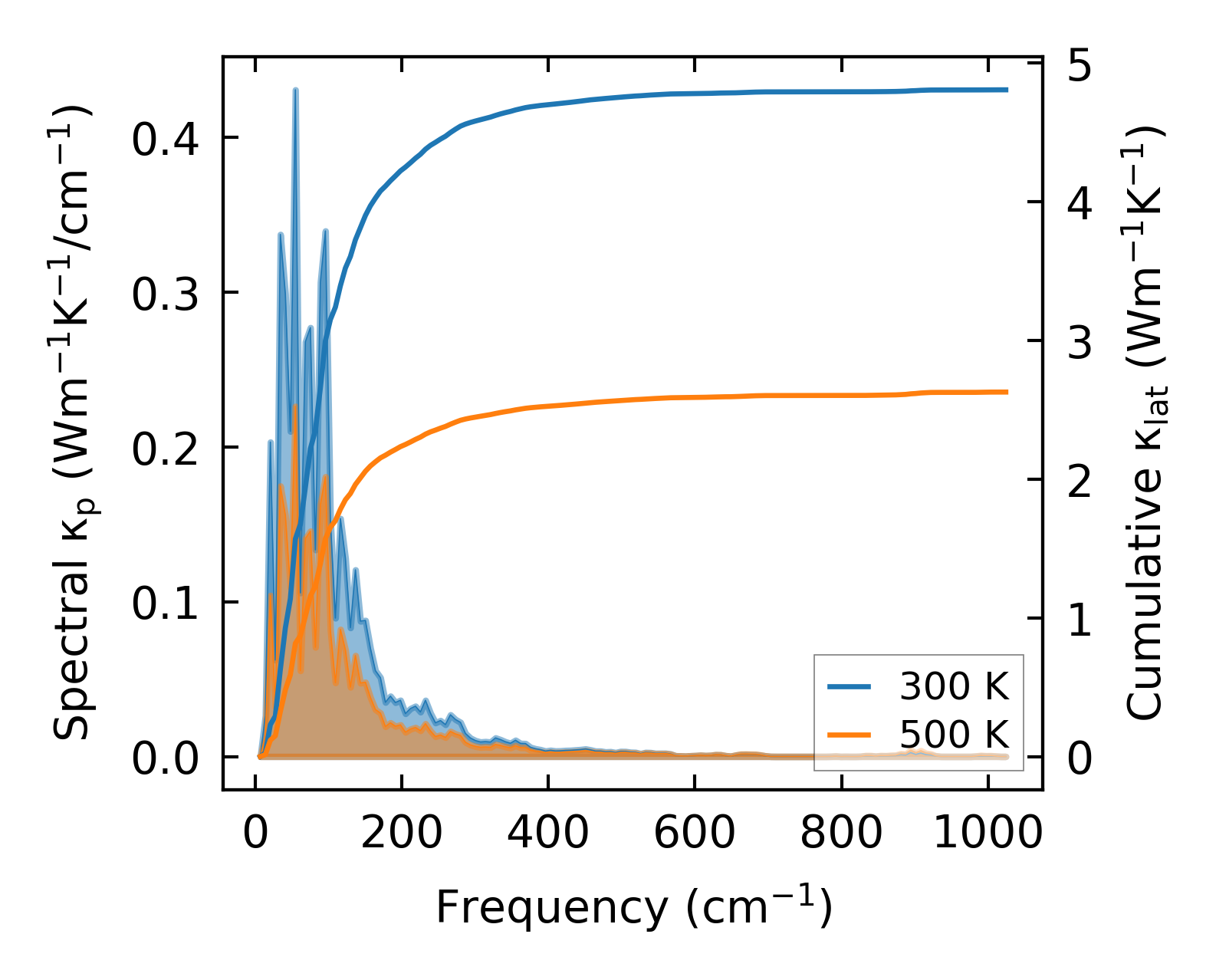

../../_images/fig_cumu_frequency4769.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

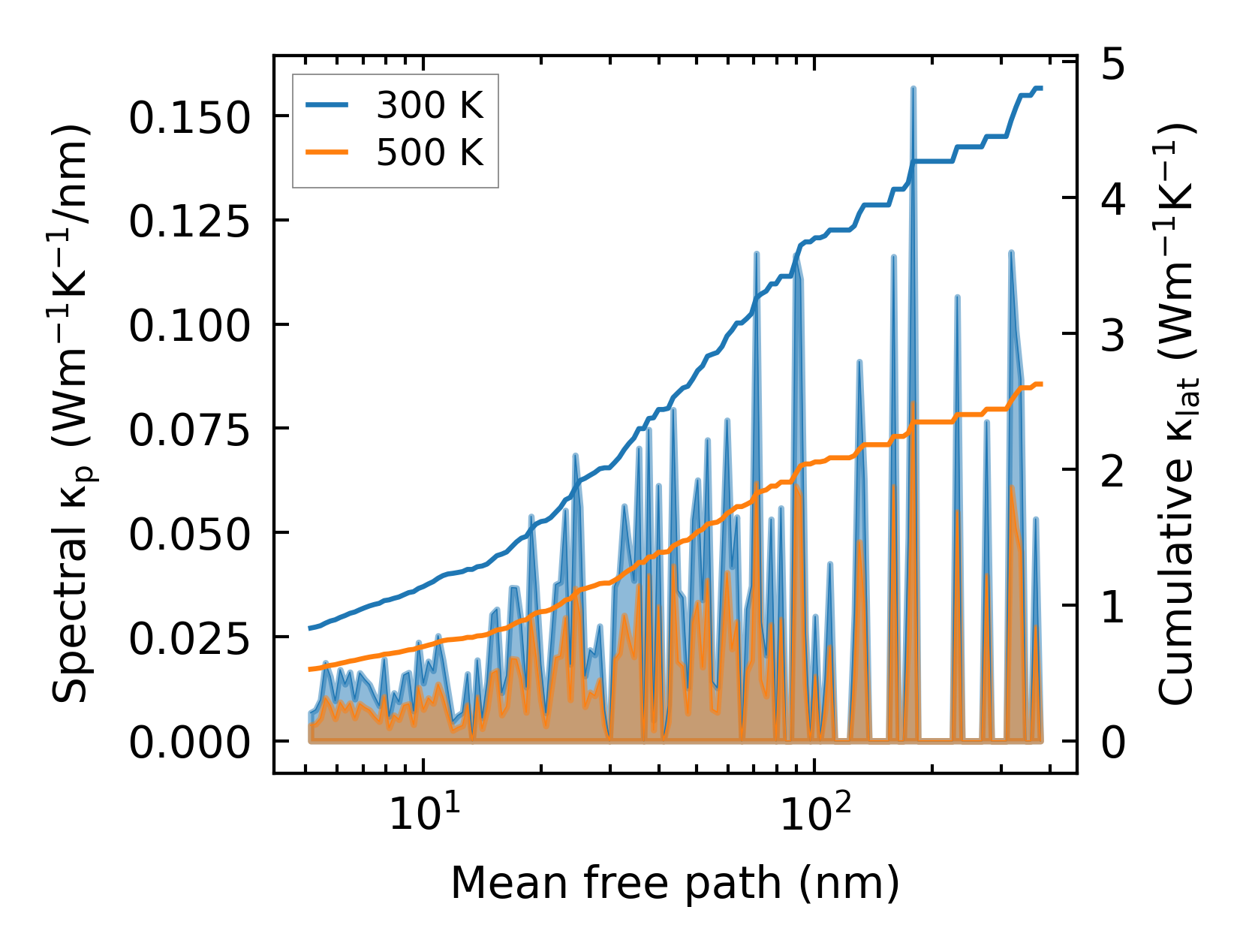

../../_images/fig_cumu_mfp4768.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

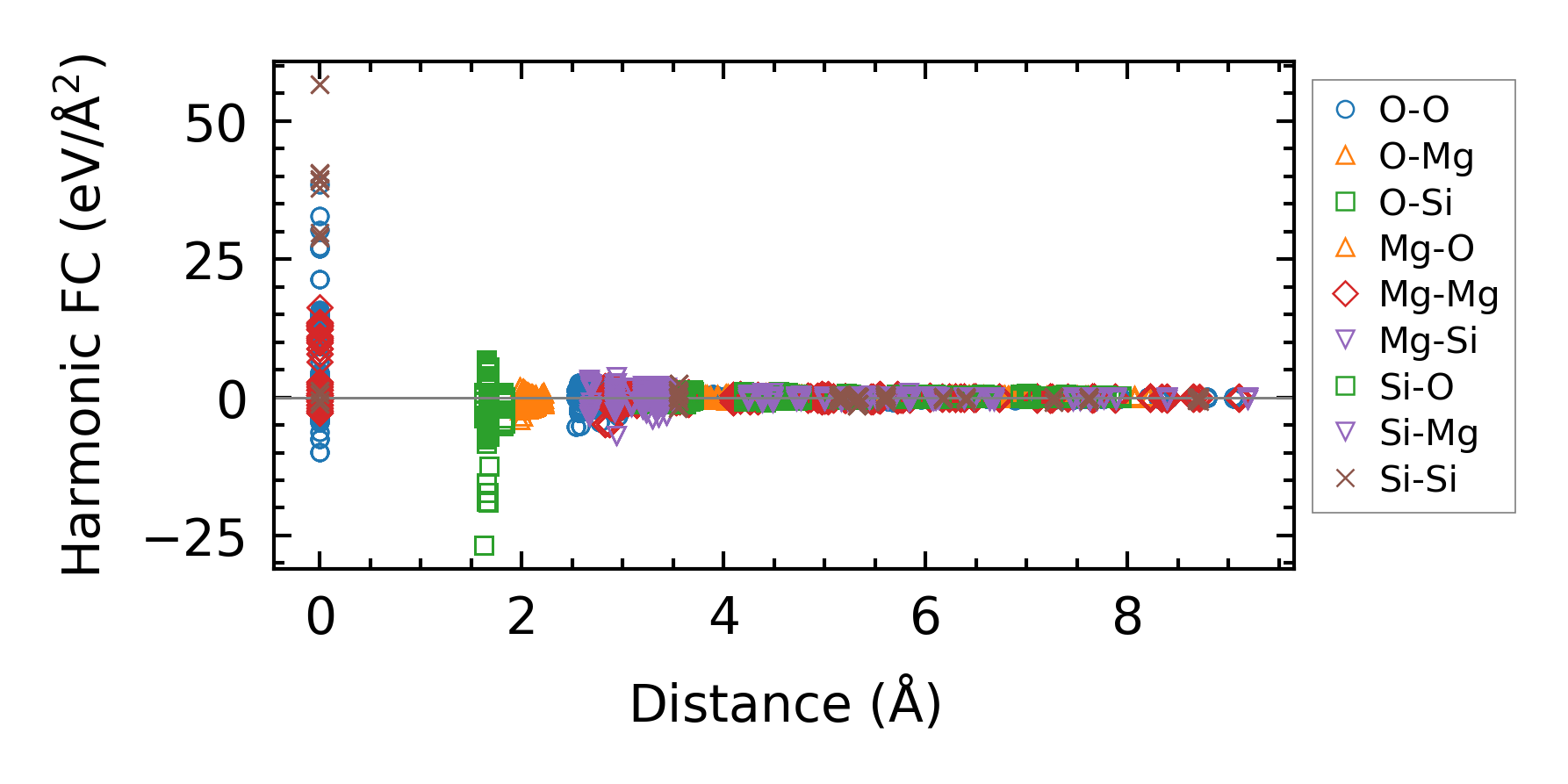

../../_images/fig_fc211291.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa9083.png — (a) Temperature-dependent lattice thermal conductivity

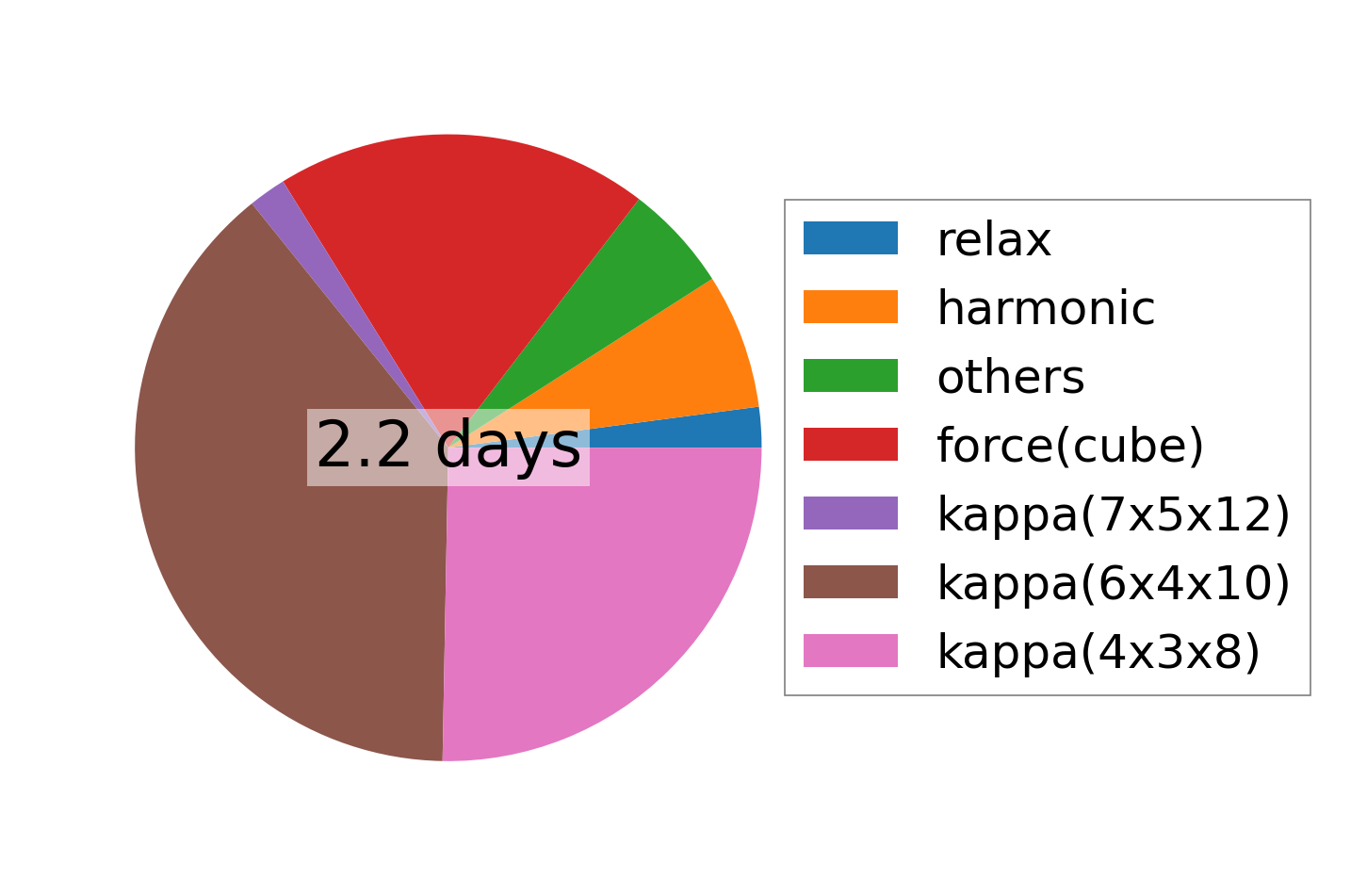

../../_images/fig_times19717.png — (b) Computation time
