mp-28171/K3IO/anharm

Space group: Pm-3m (221)
Link: Materials Project
Download: mp-28171.tar.gz

Harmonic properties

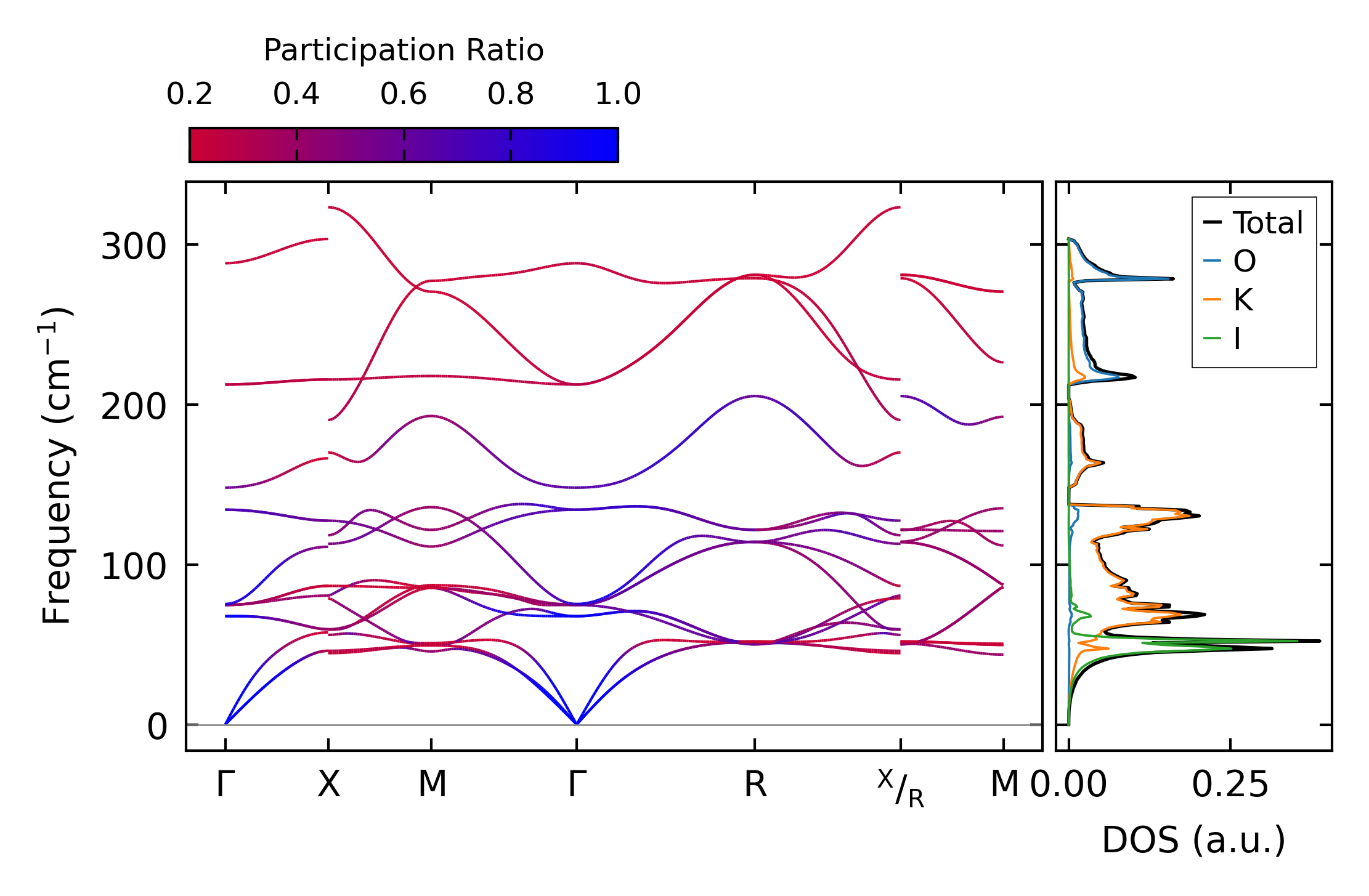

../../_images/fig_bandos_pr11740.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11740.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4892.png — (a) Grüneisen parameters

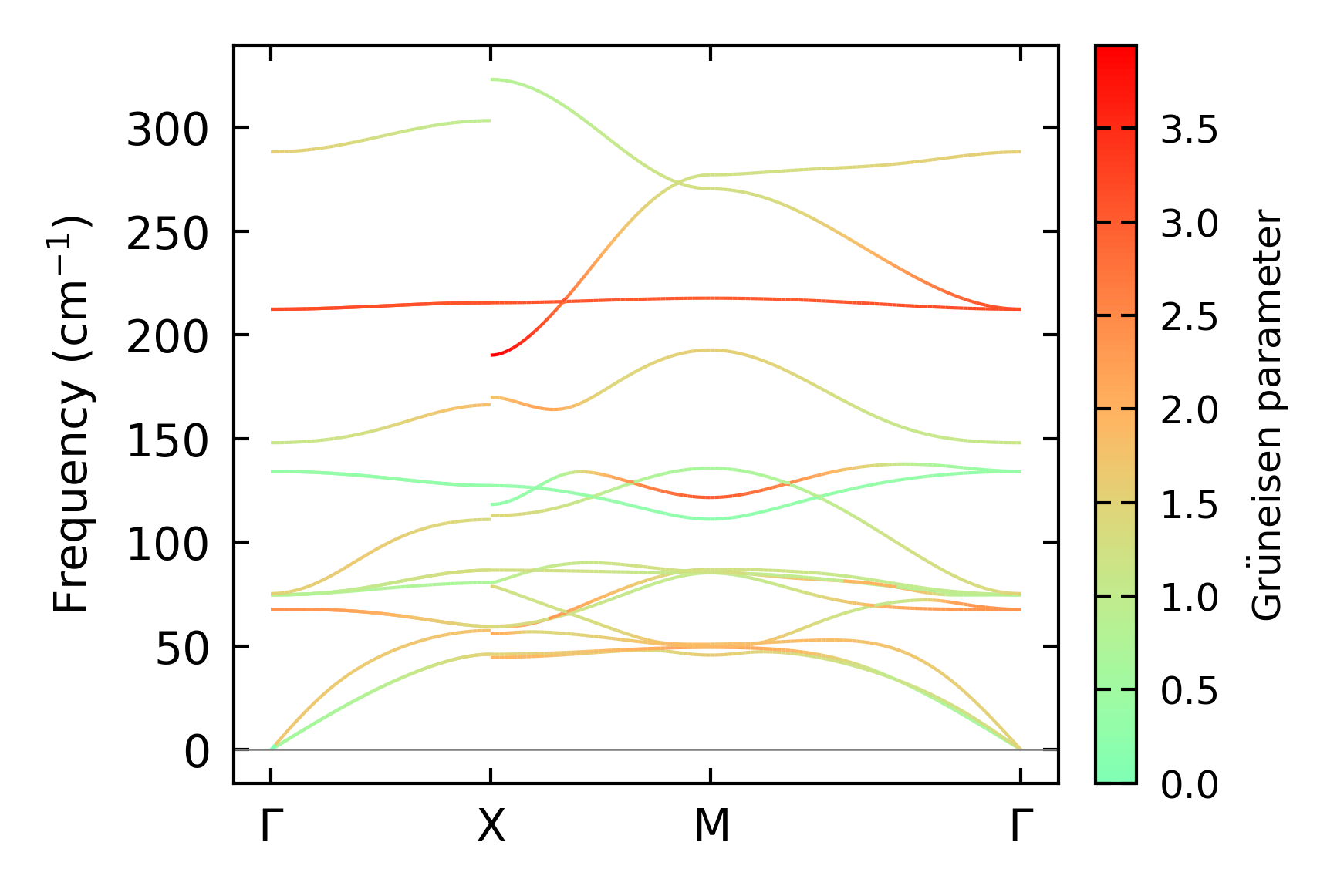

../../_images/fig_gruneisen4892.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x3x3

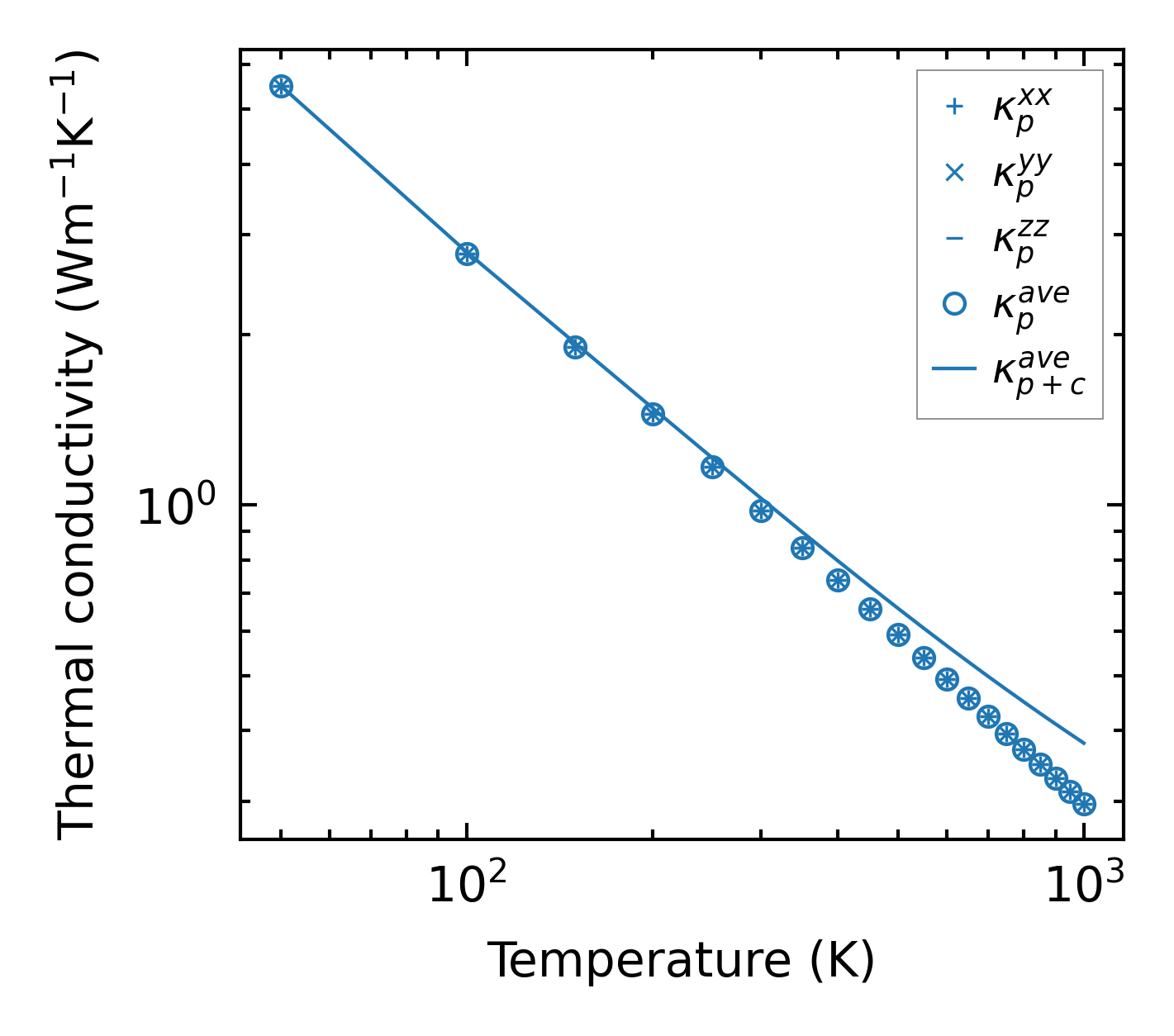

../../_images/fig_kappa9219.png — (a) Temperature-dependent lattice thermal conductivity

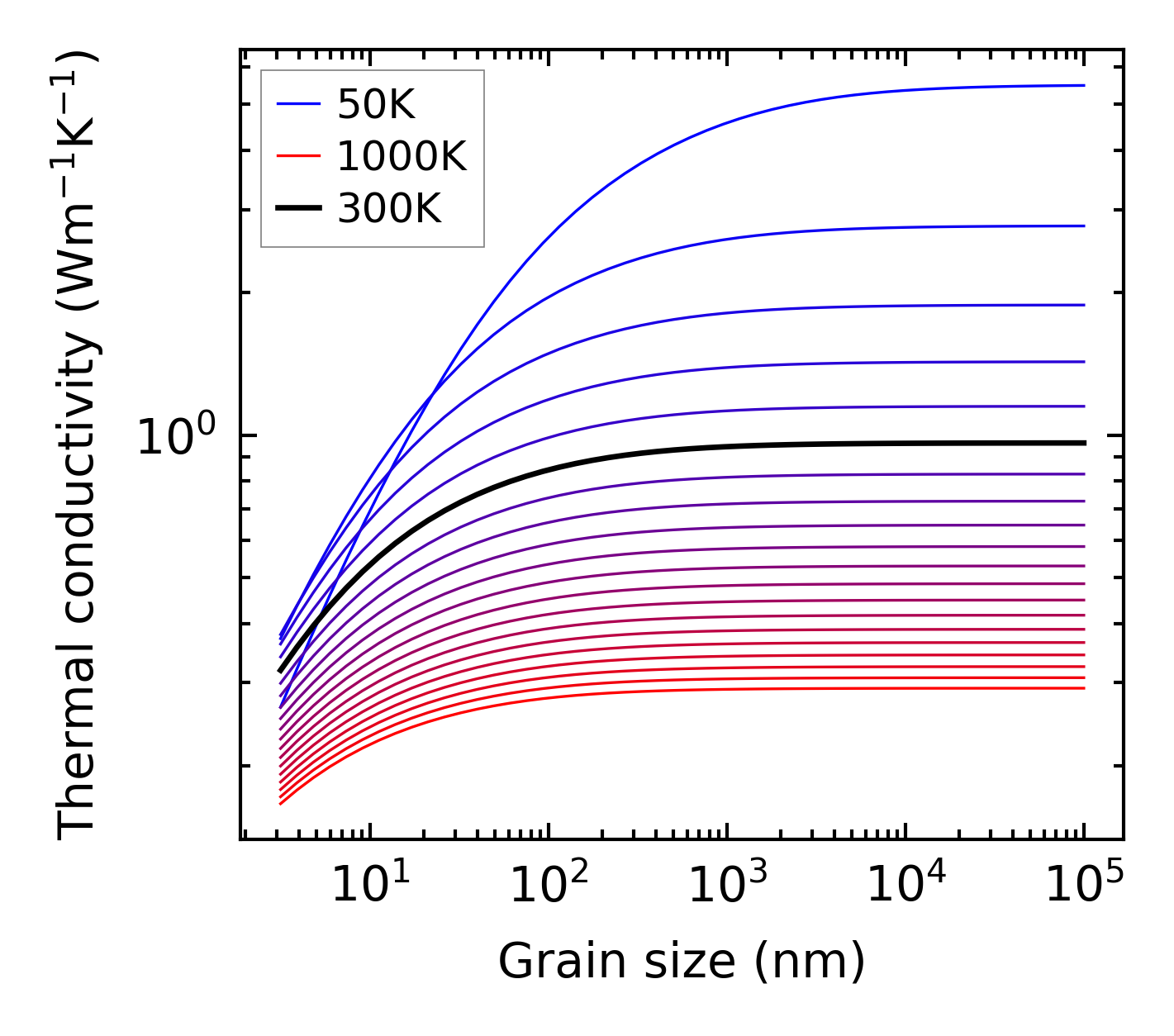

../../_images/fig_kappa_vs_grain_size4948.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4843.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4842.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4843.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

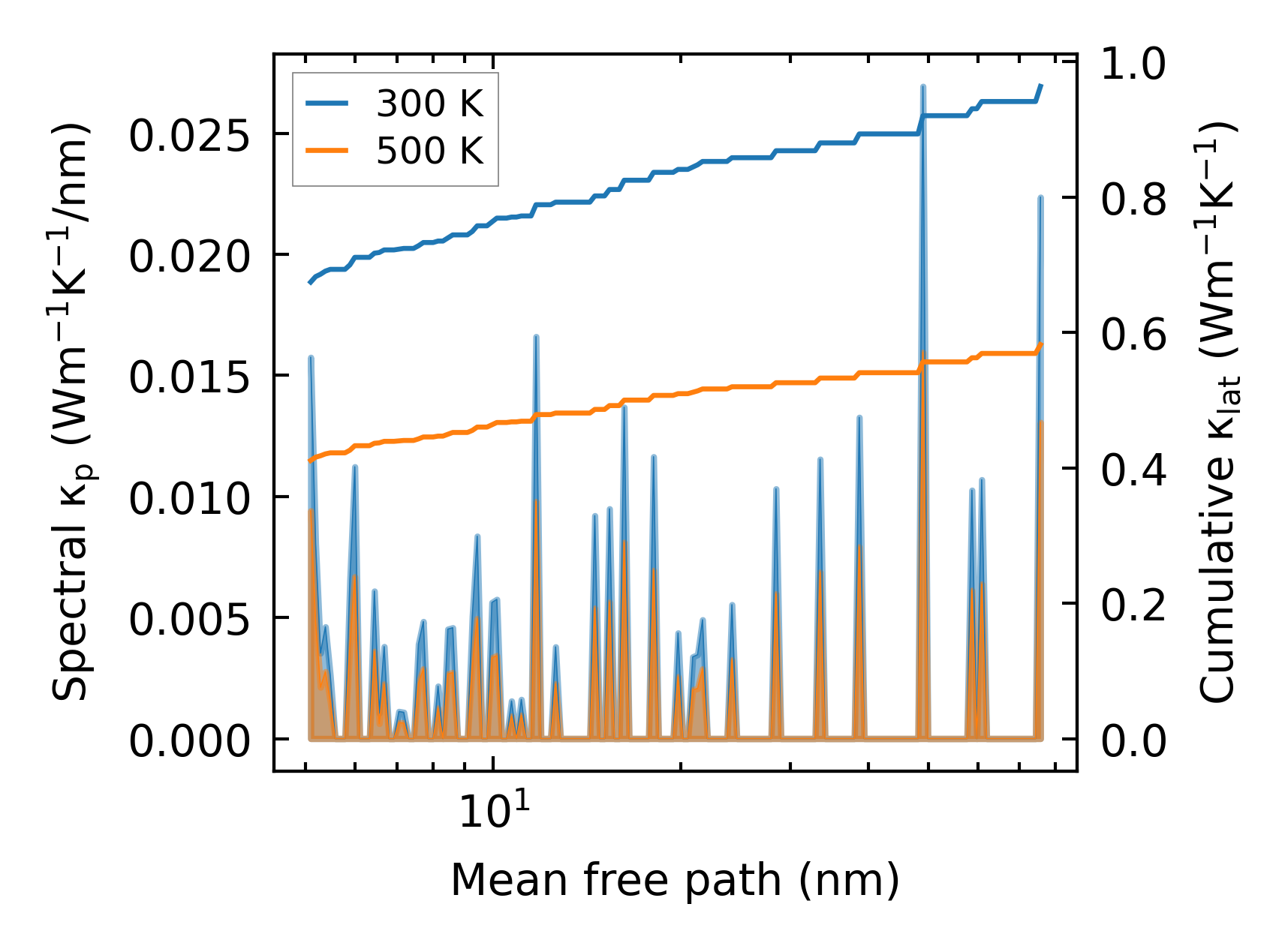

../../_images/fig_cumu_mfp4842.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

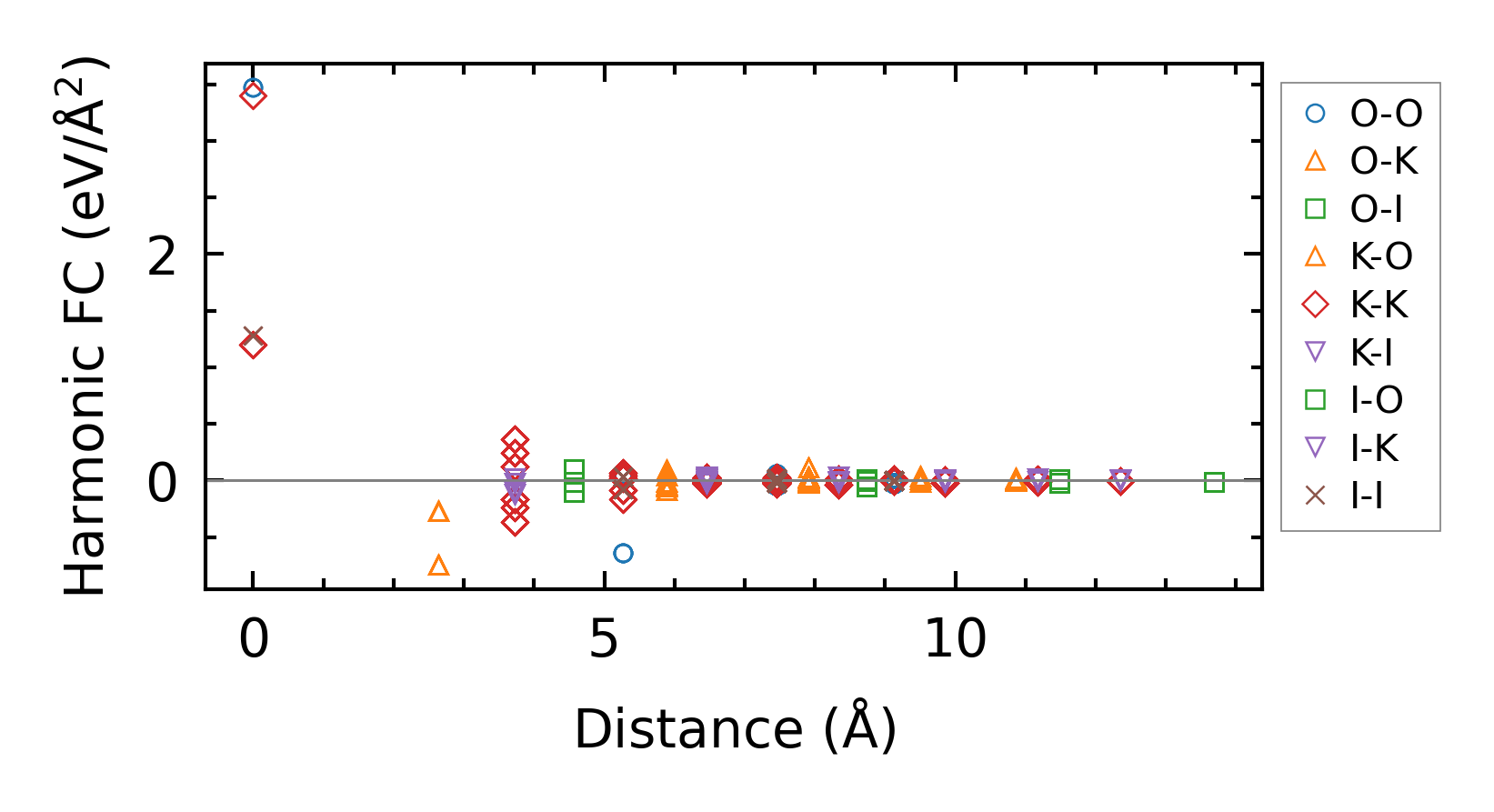

../../_images/fig_fc211451.png — (a) Force constants w.r.t atomic distance

Summary

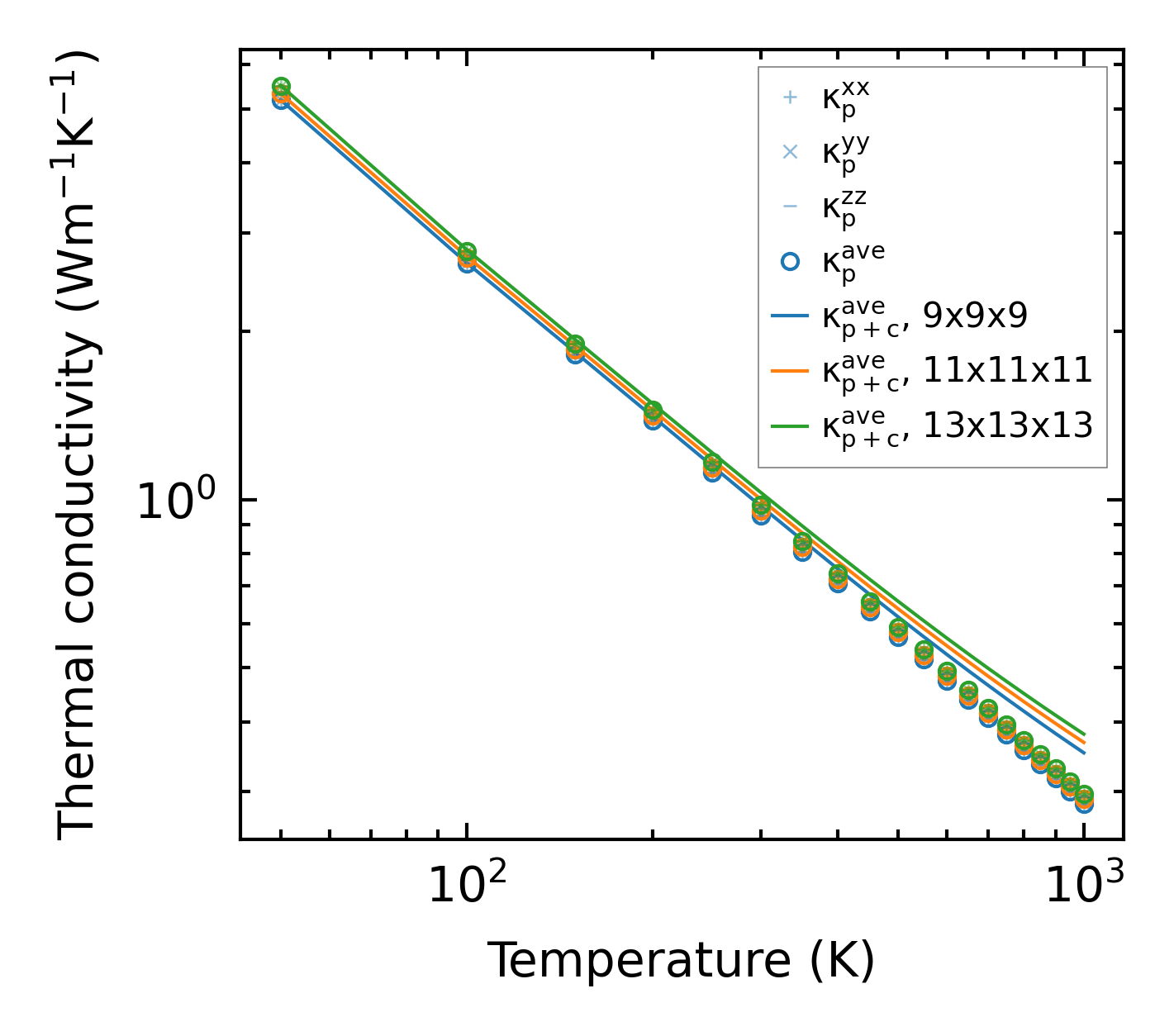

../../_images/fig_kappa9220.png — (a) Temperature-dependent lattice thermal conductivity

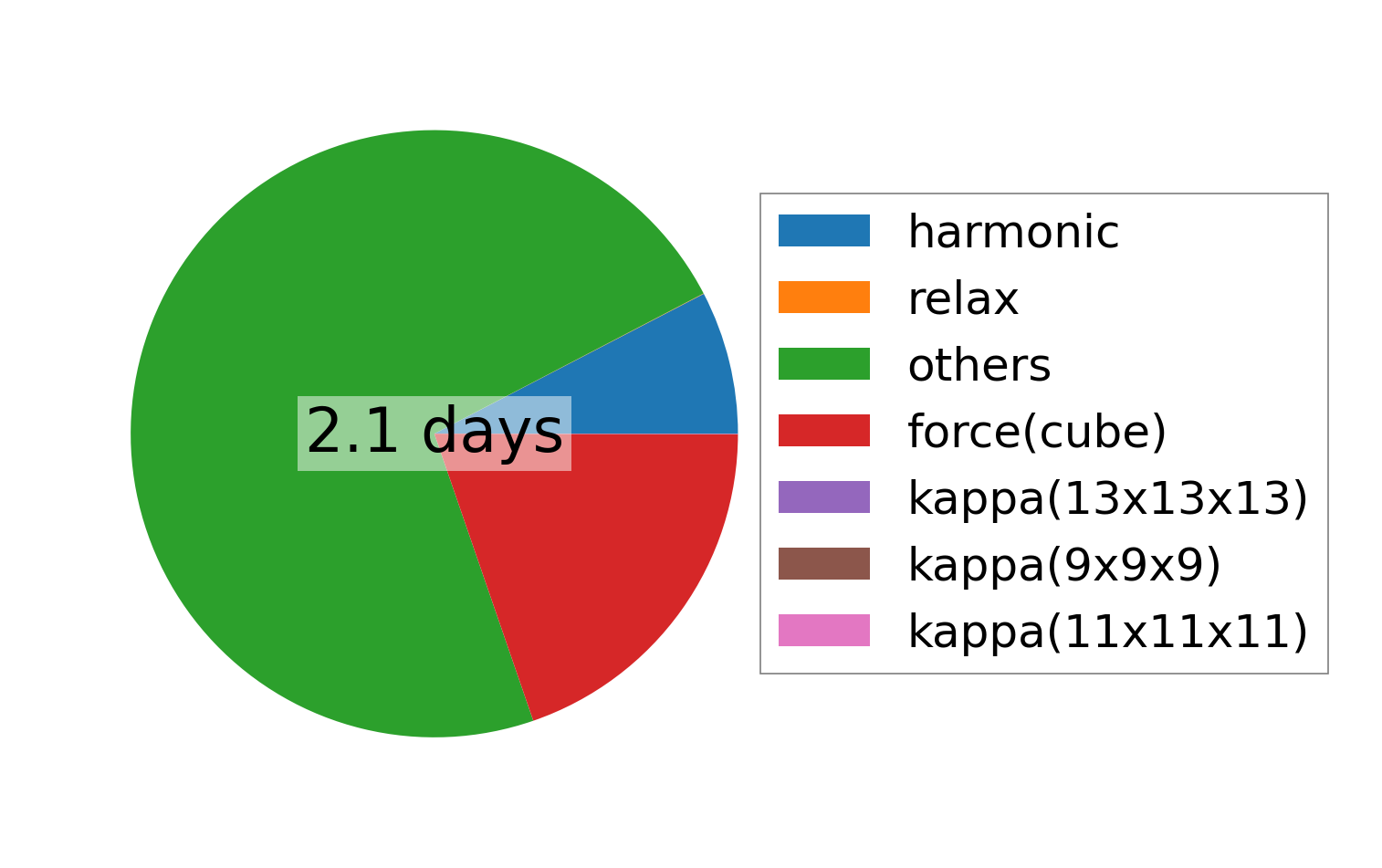

../../_images/fig_times19936.png — (b) Computation time
