mp-28479-2/Sc2CCl2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-28479-2.tar.gz

Equation of state

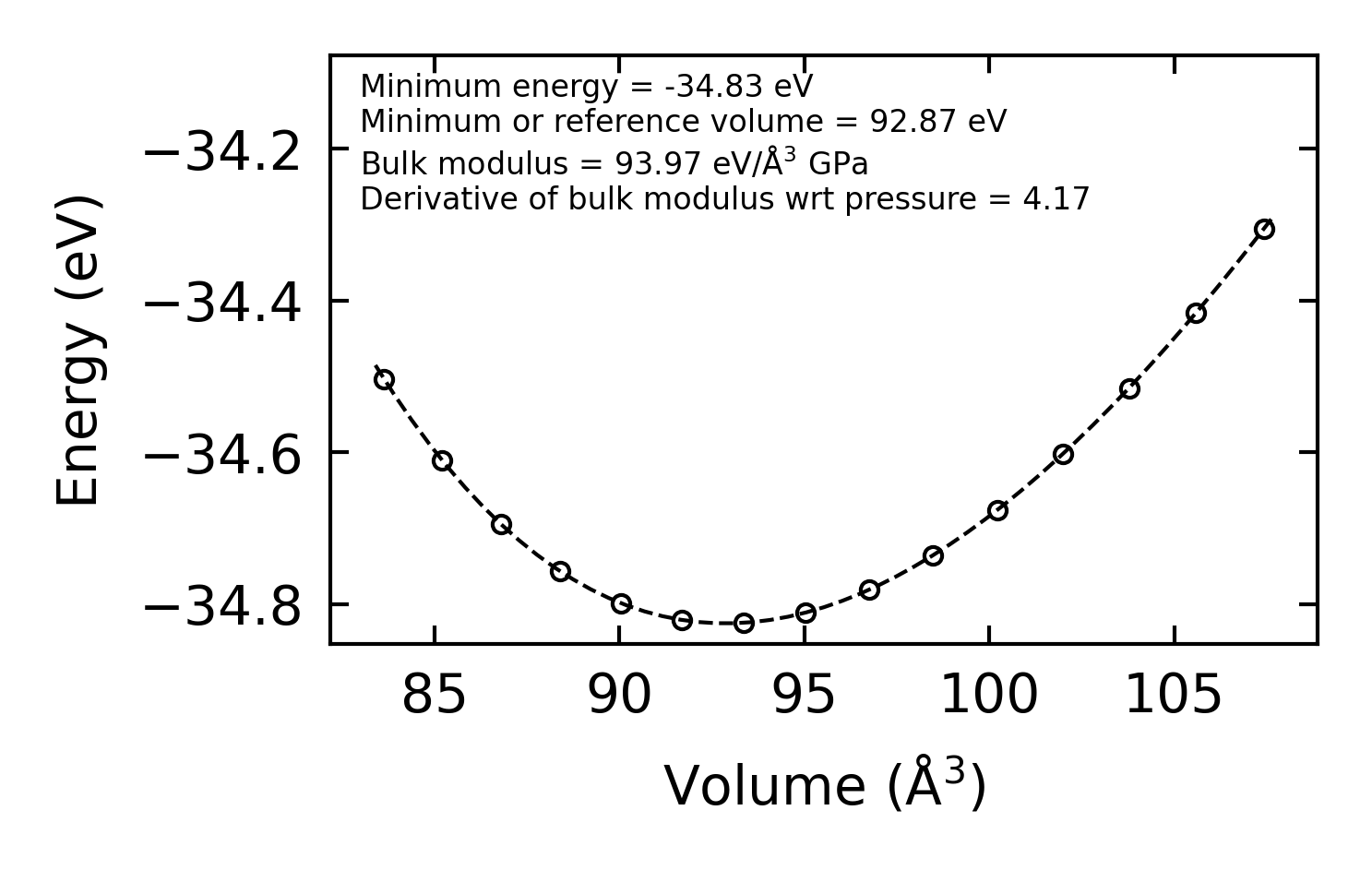

../../_images/fig_bm5618.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr11497.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos15506.png — (b) Phonon dispersion and DOS

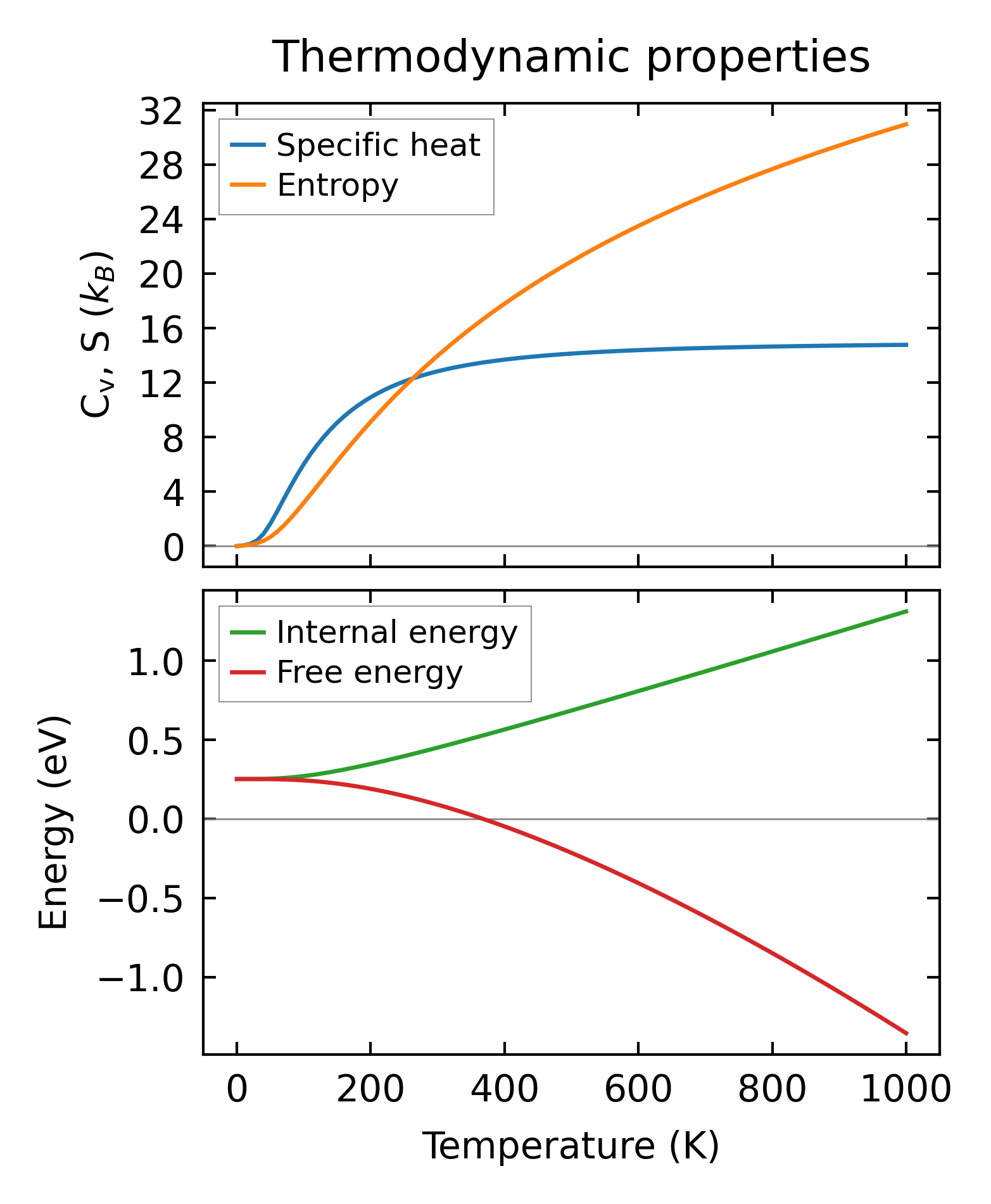

../../_images/fig_thermo11497.png — (c) Thermodynamic properties

Grüneisen parameters

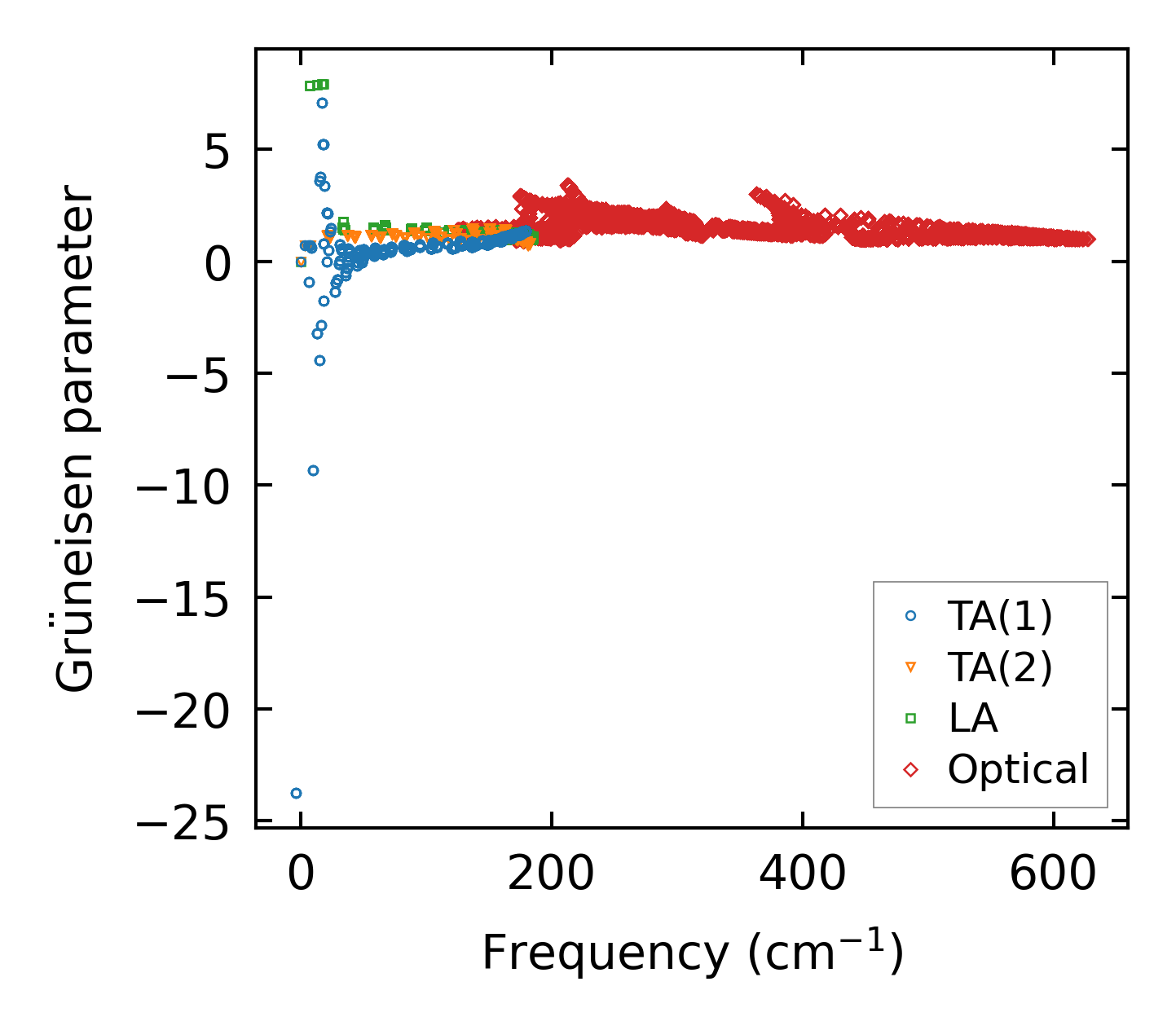

../../_images/fig_gru_all4765.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4765.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x4x2 — q-mesh: 22x22x8, supercell: 4x4x2

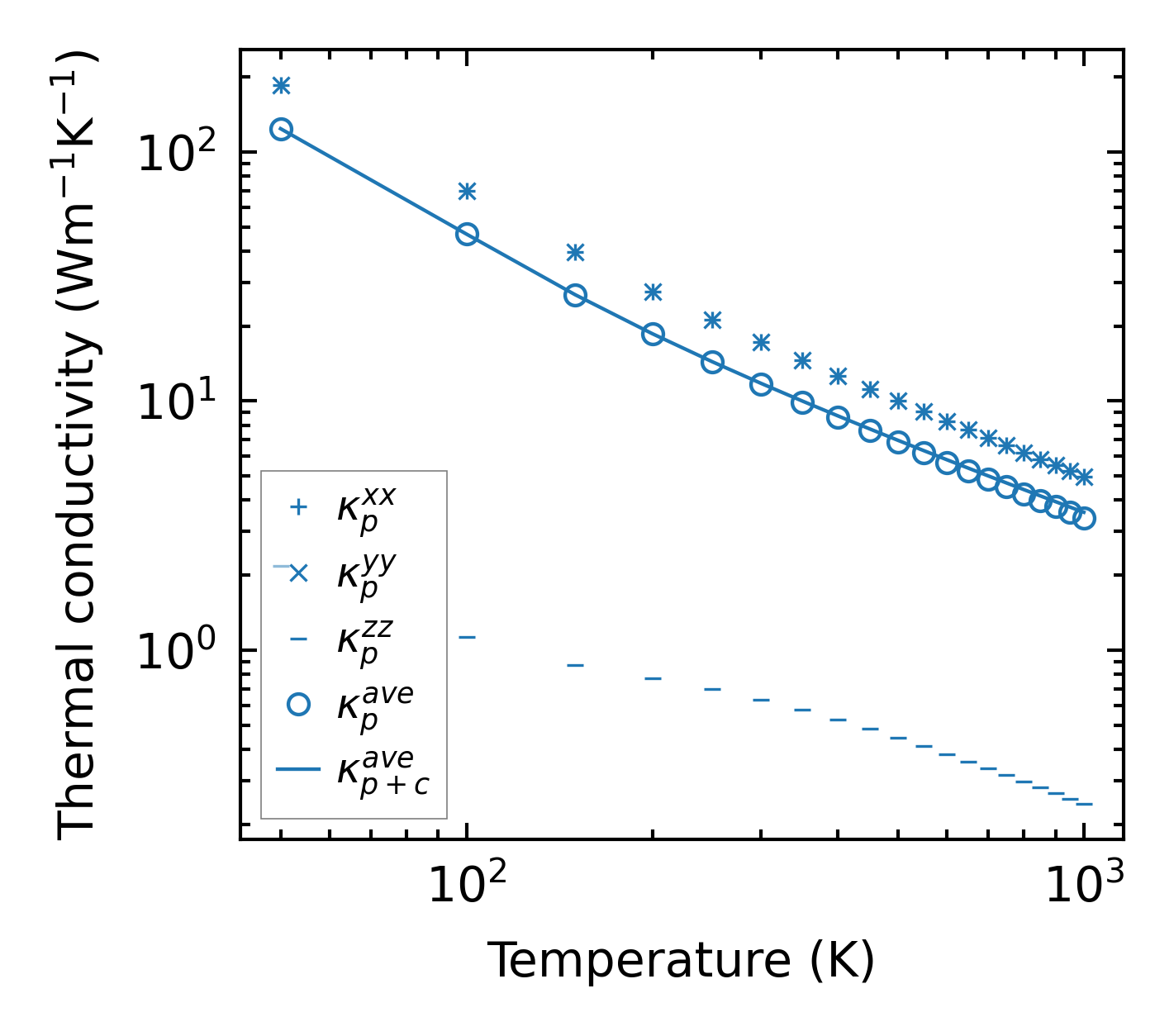

../../_images/fig_kappa8994.png — (a) Temperature-dependent lattice thermal conductivity

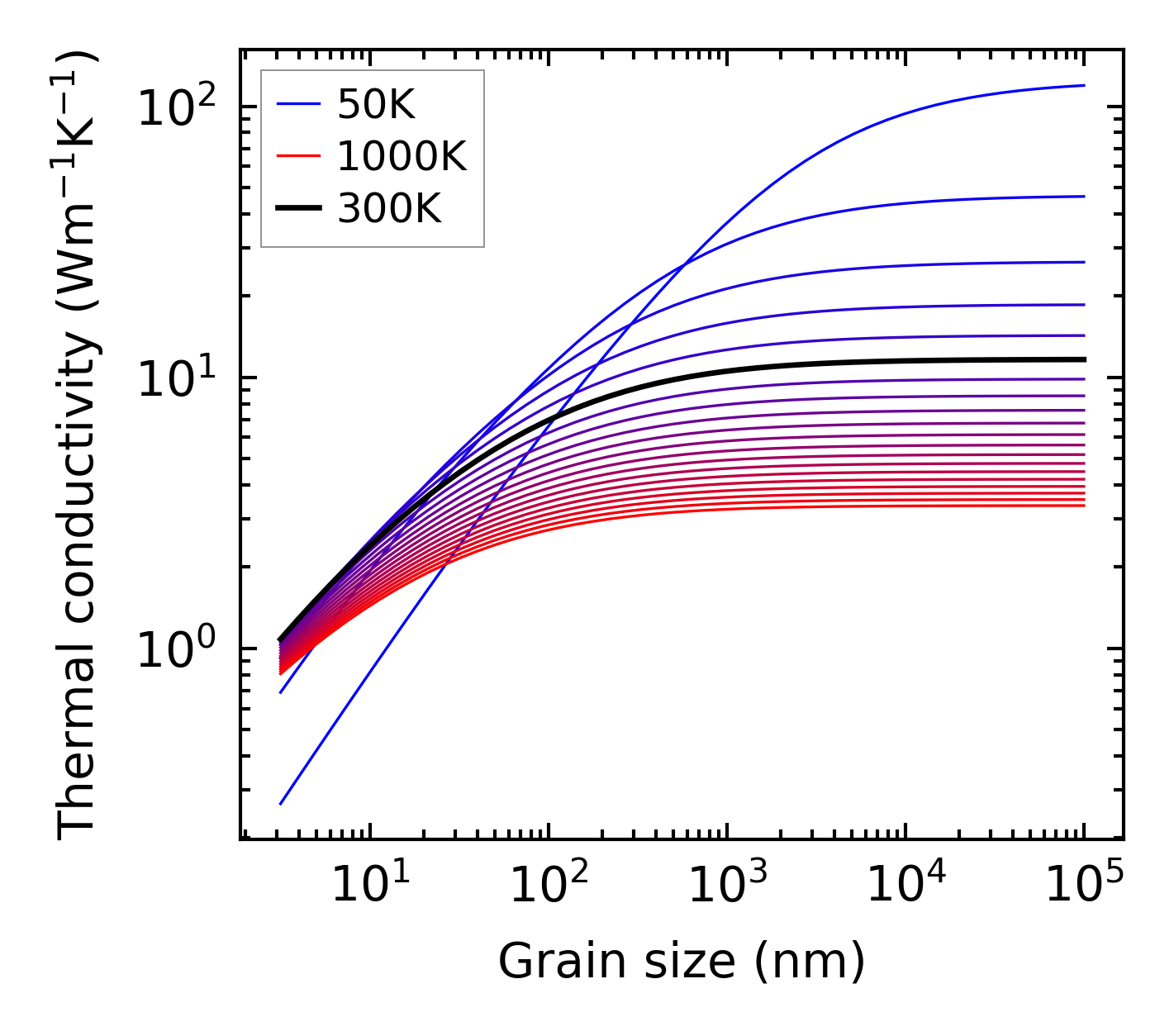

../../_images/fig_kappa_vs_grain_size4824.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

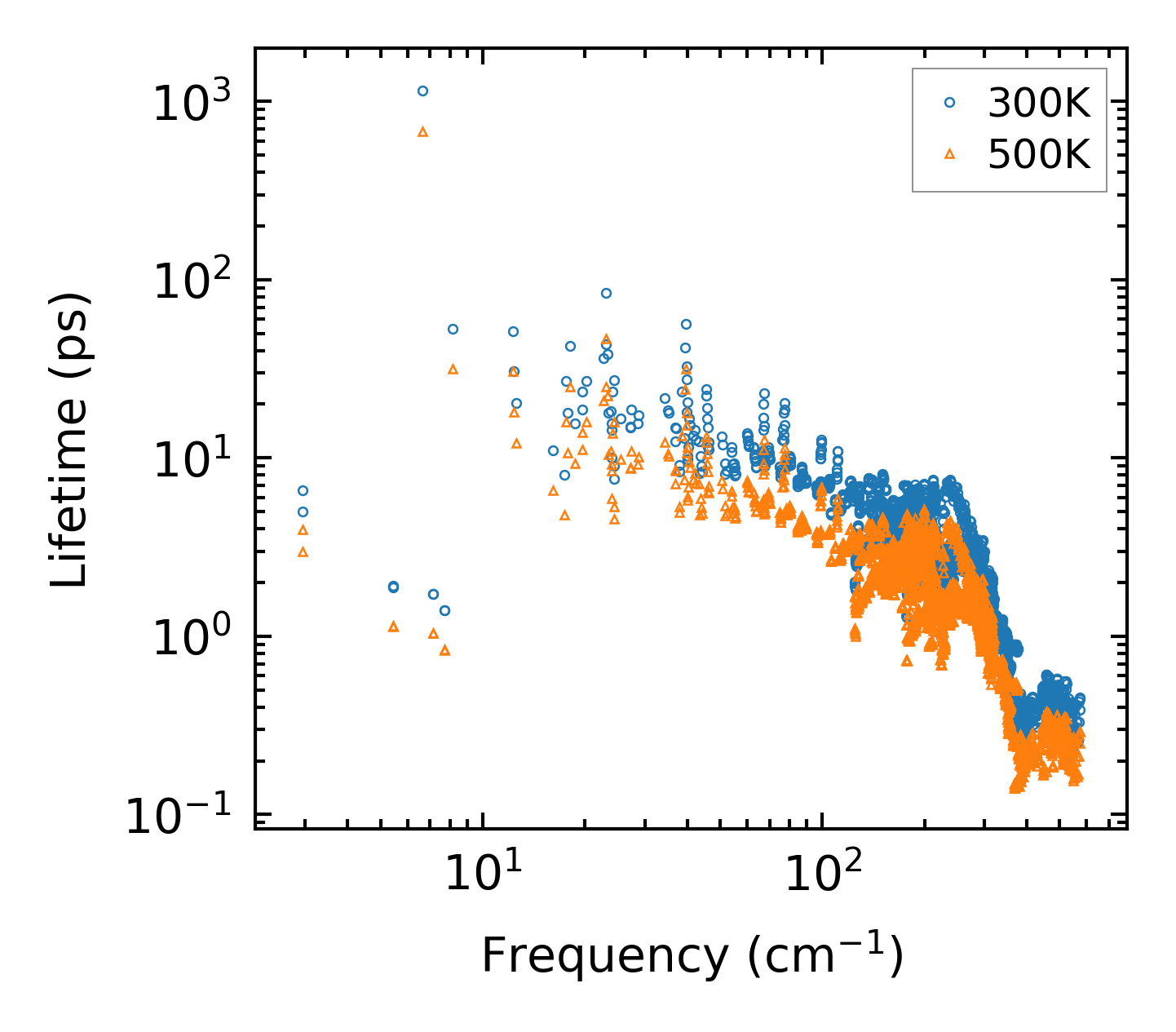

../../_images/fig_lifetime4720.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4719.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4720.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

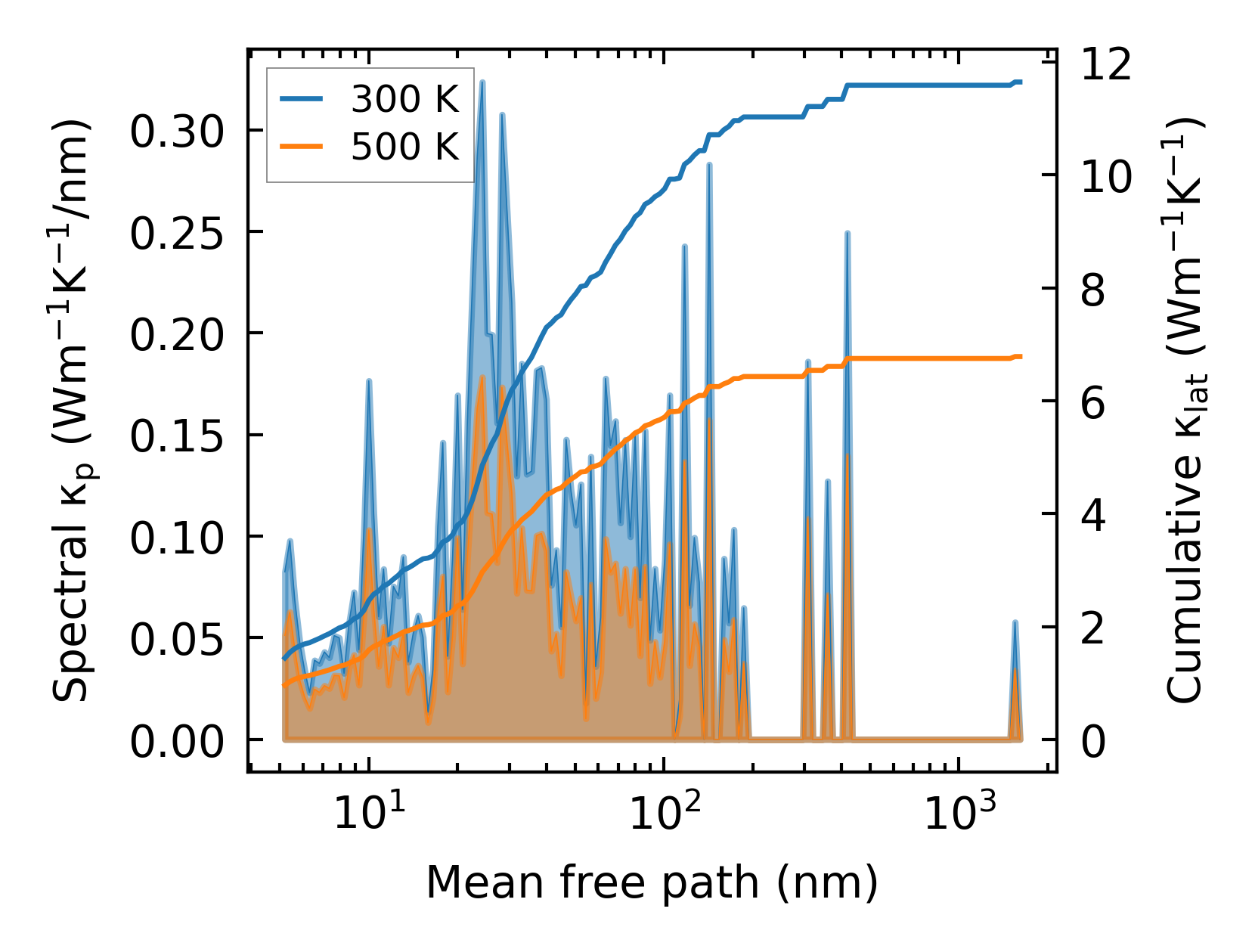

../../_images/fig_cumu_mfp4719.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211212.png — (a) Force constants w.r.t atomic distance

Summary

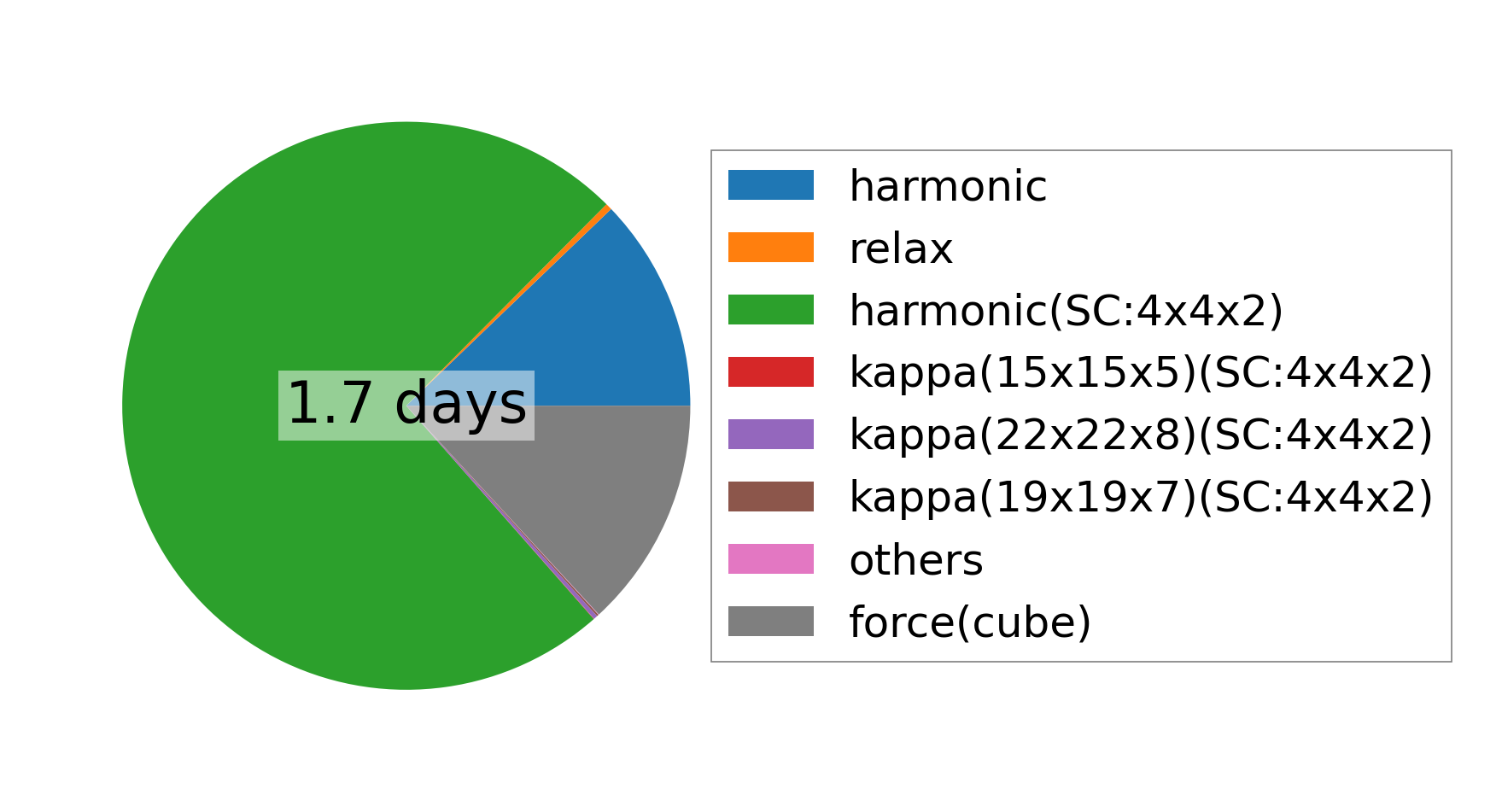

../../_images/fig_times19599.png — (a) Computation time
