mp-28842-2/Si3PH9/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-28842-2.tar.gz

Equation of state

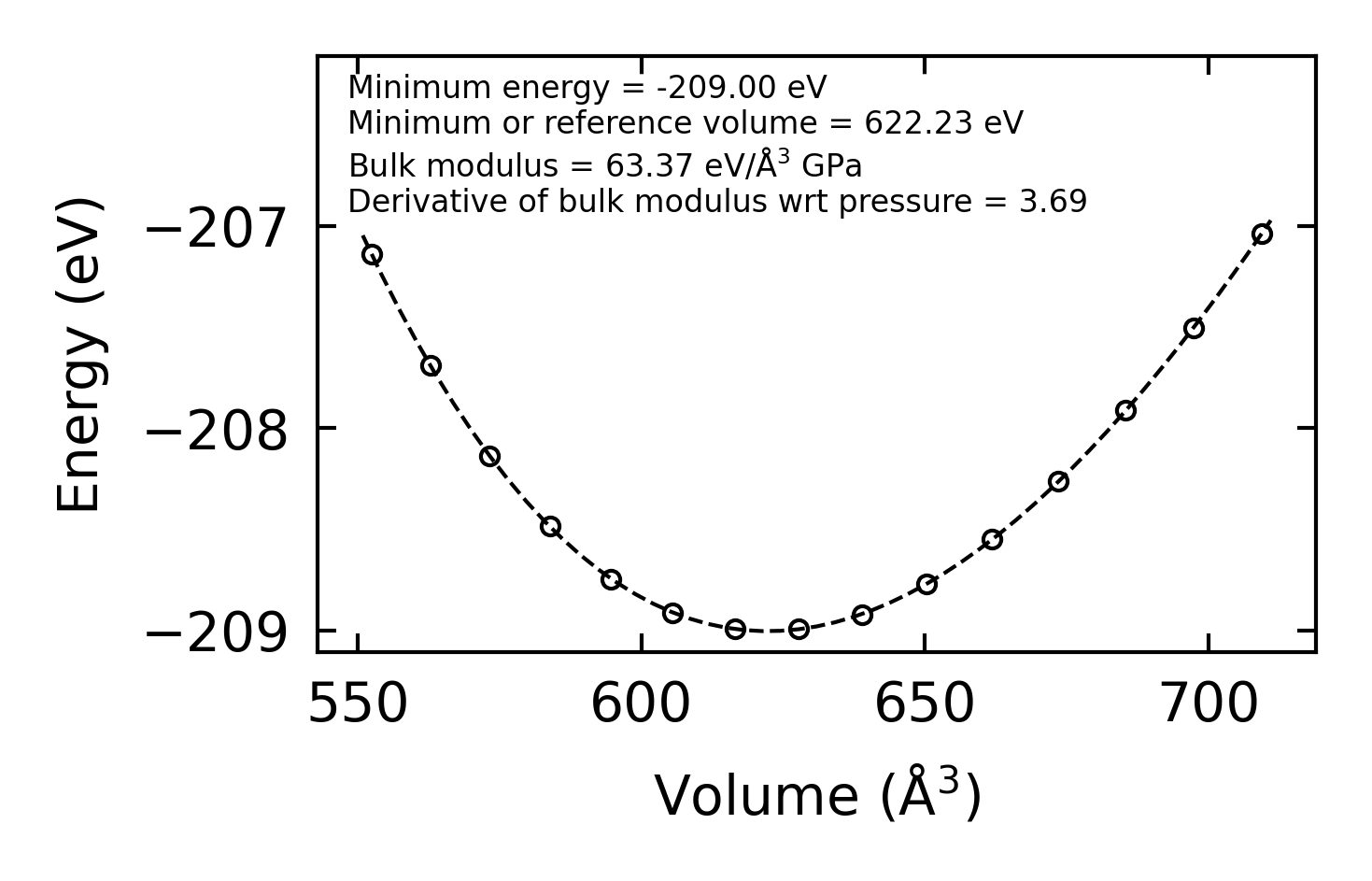

../../_images/fig_bm5687.png — (a) Equation of state

Harmonic properties

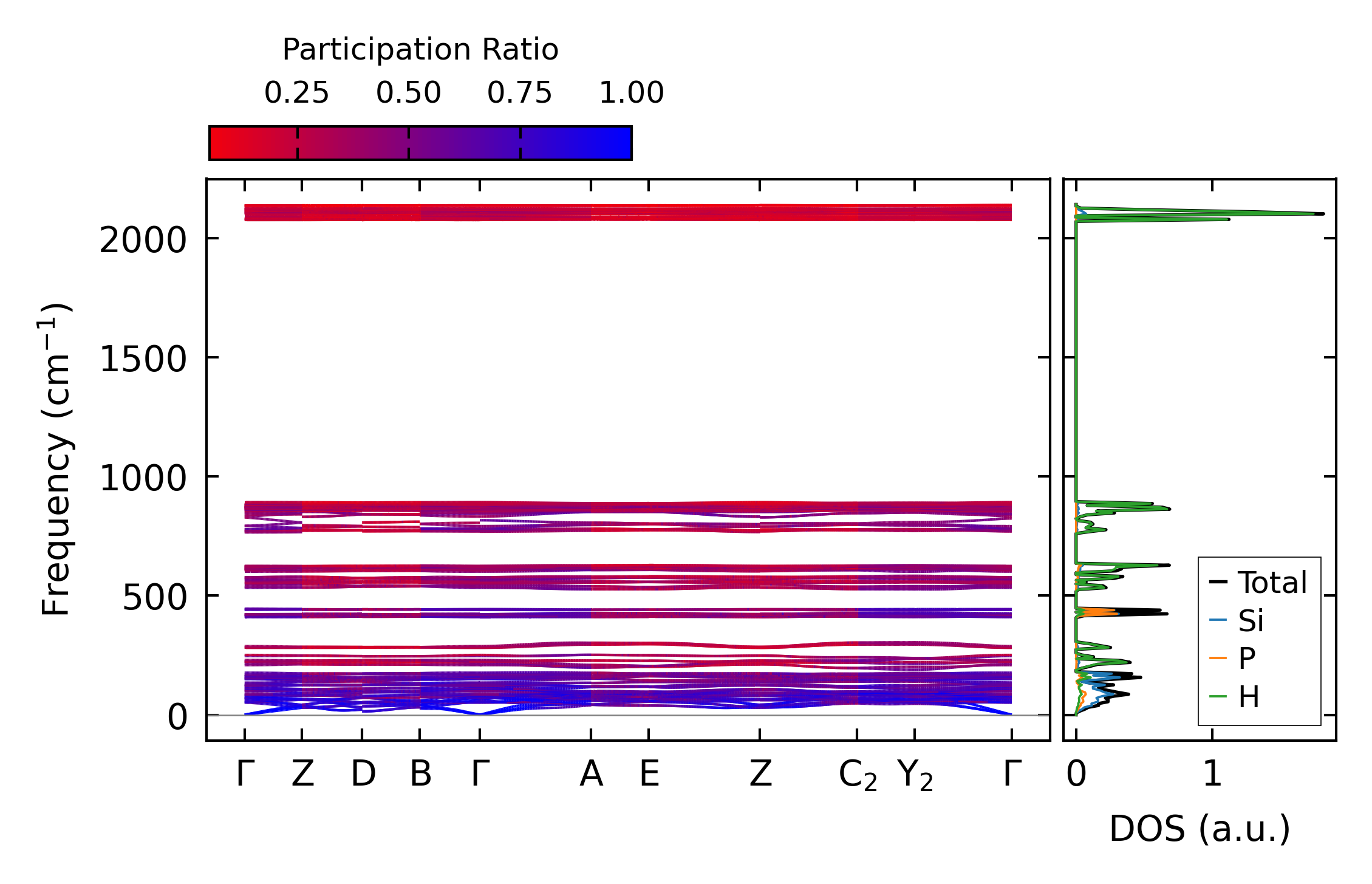

../../_images/fig_bandos_pr11651.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11651.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4855.png — (a) Grüneisen parameters

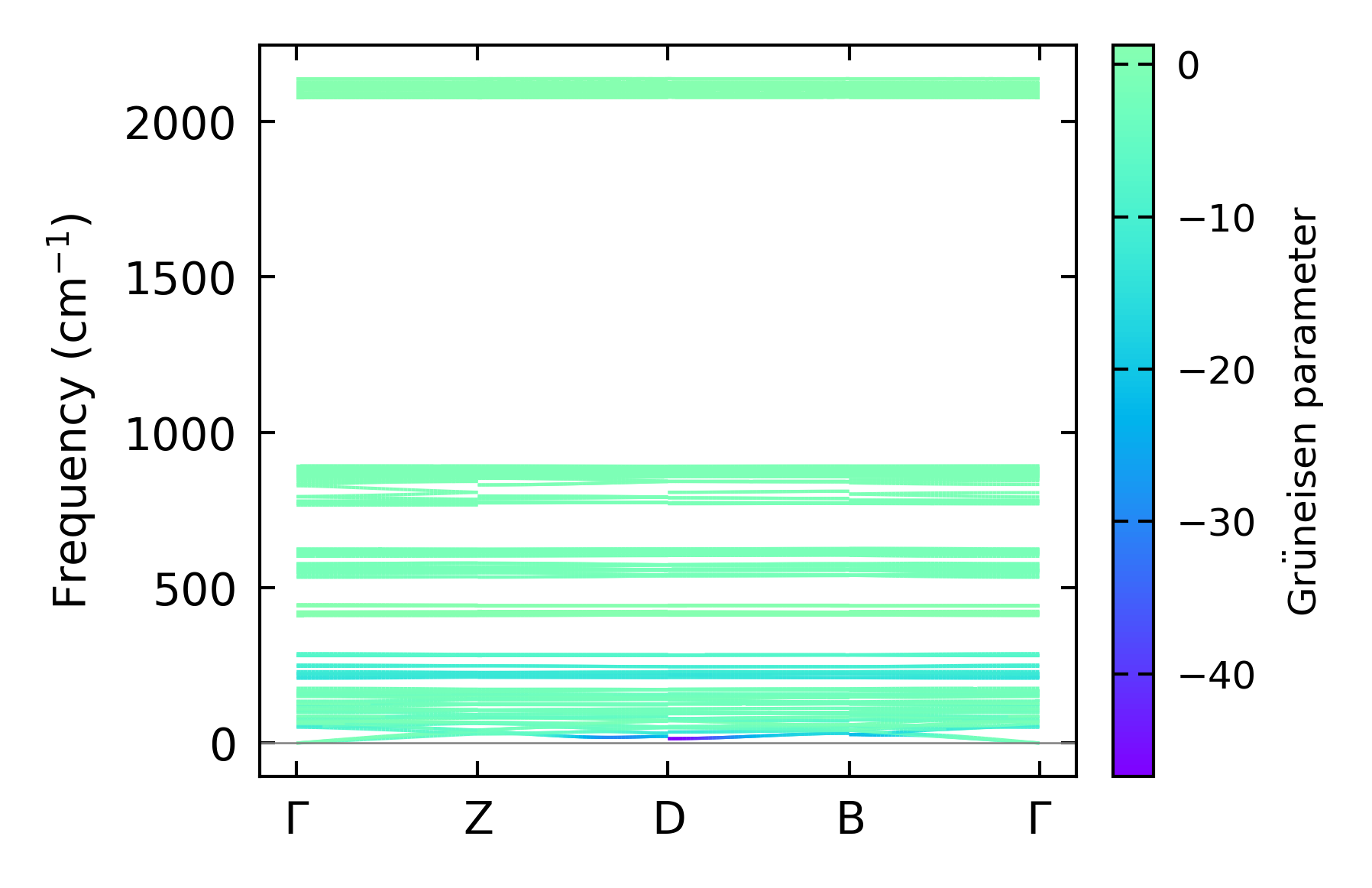

../../_images/fig_gruneisen4855.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x5x7, supercell: 2x1x1

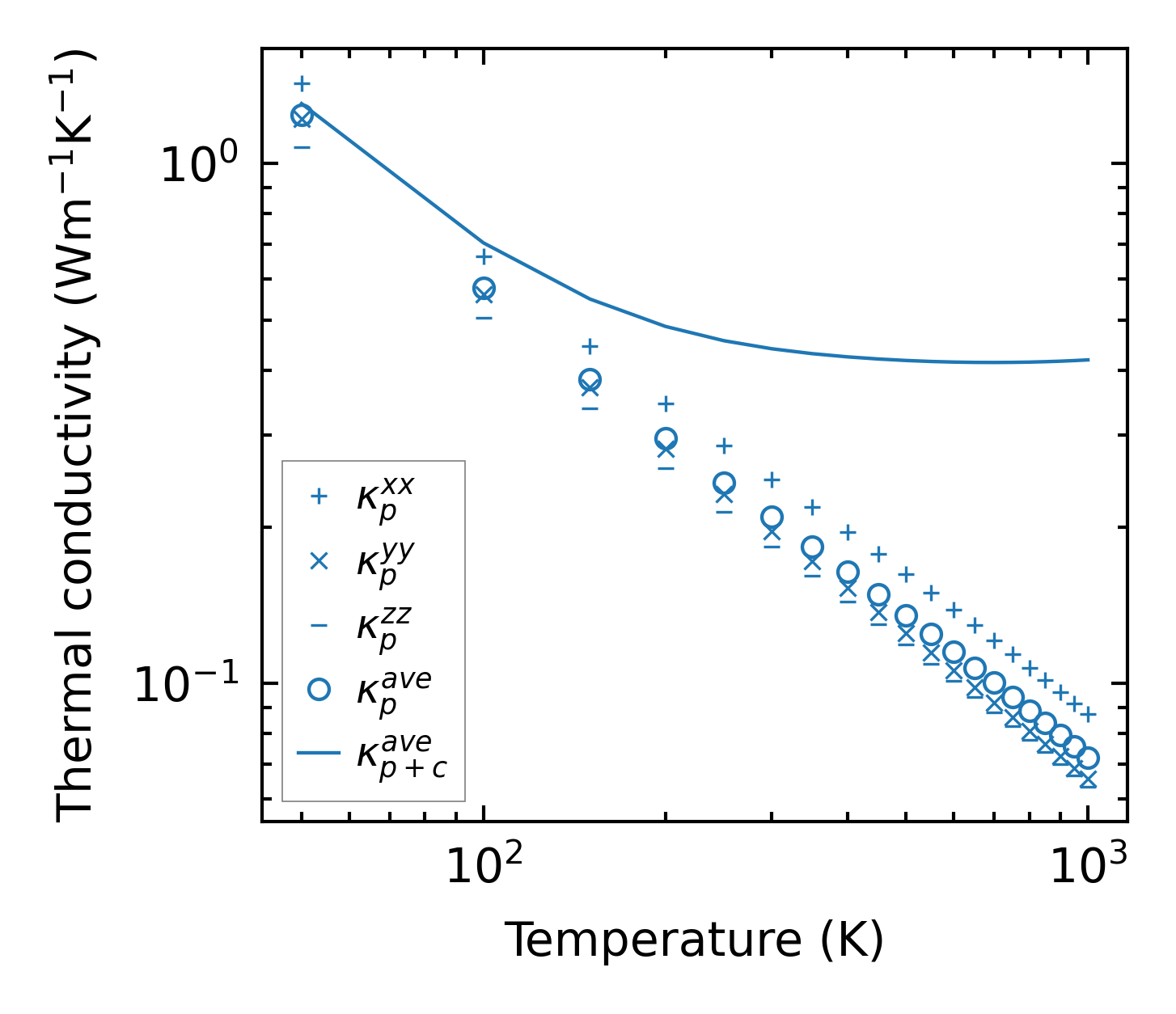

../../_images/fig_kappa9154.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4911.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4806.png — (a) Phonon lifetime due to phonon-phonon scattering

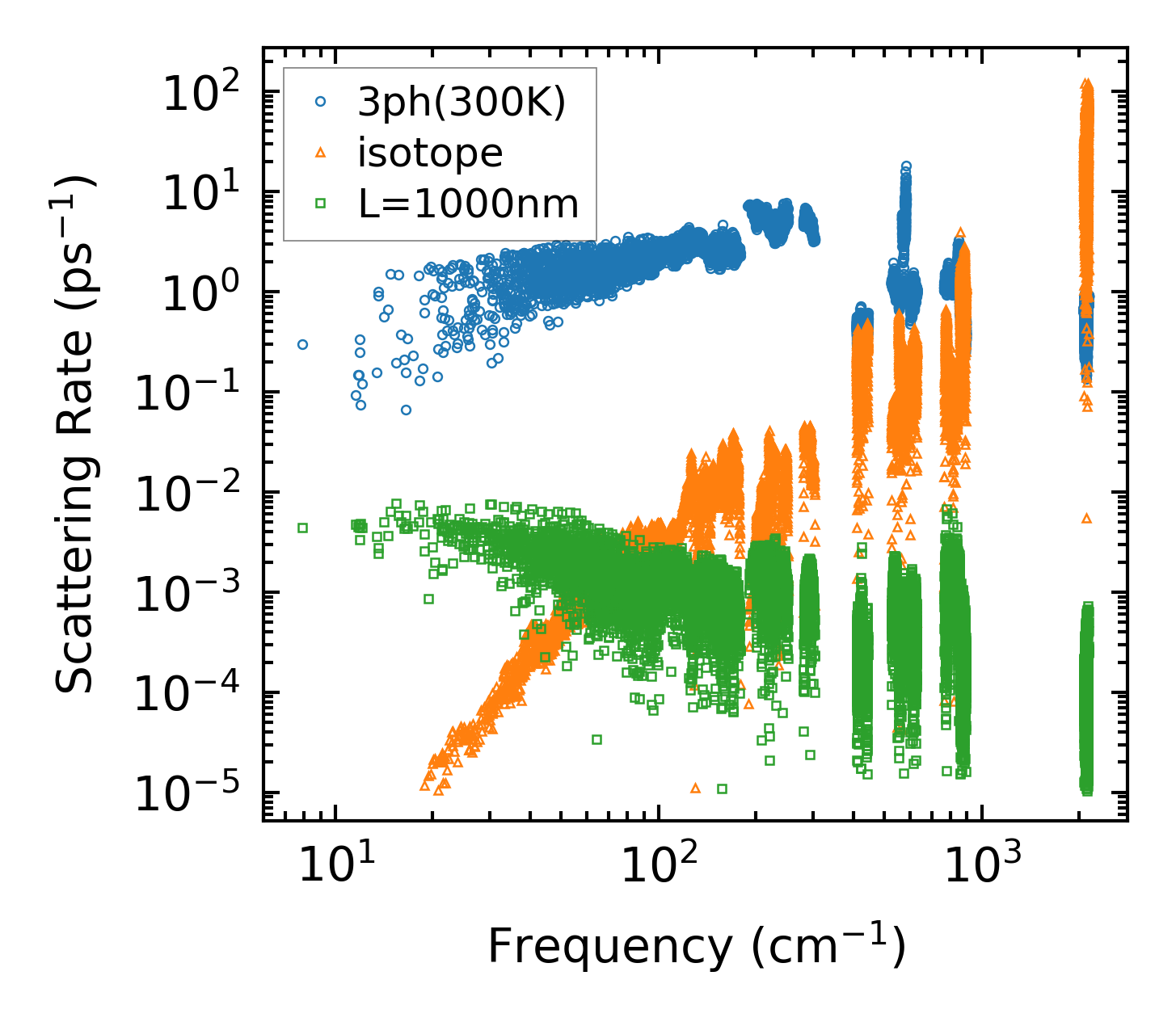

../../_images/fig_scat_rates4805.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4806.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

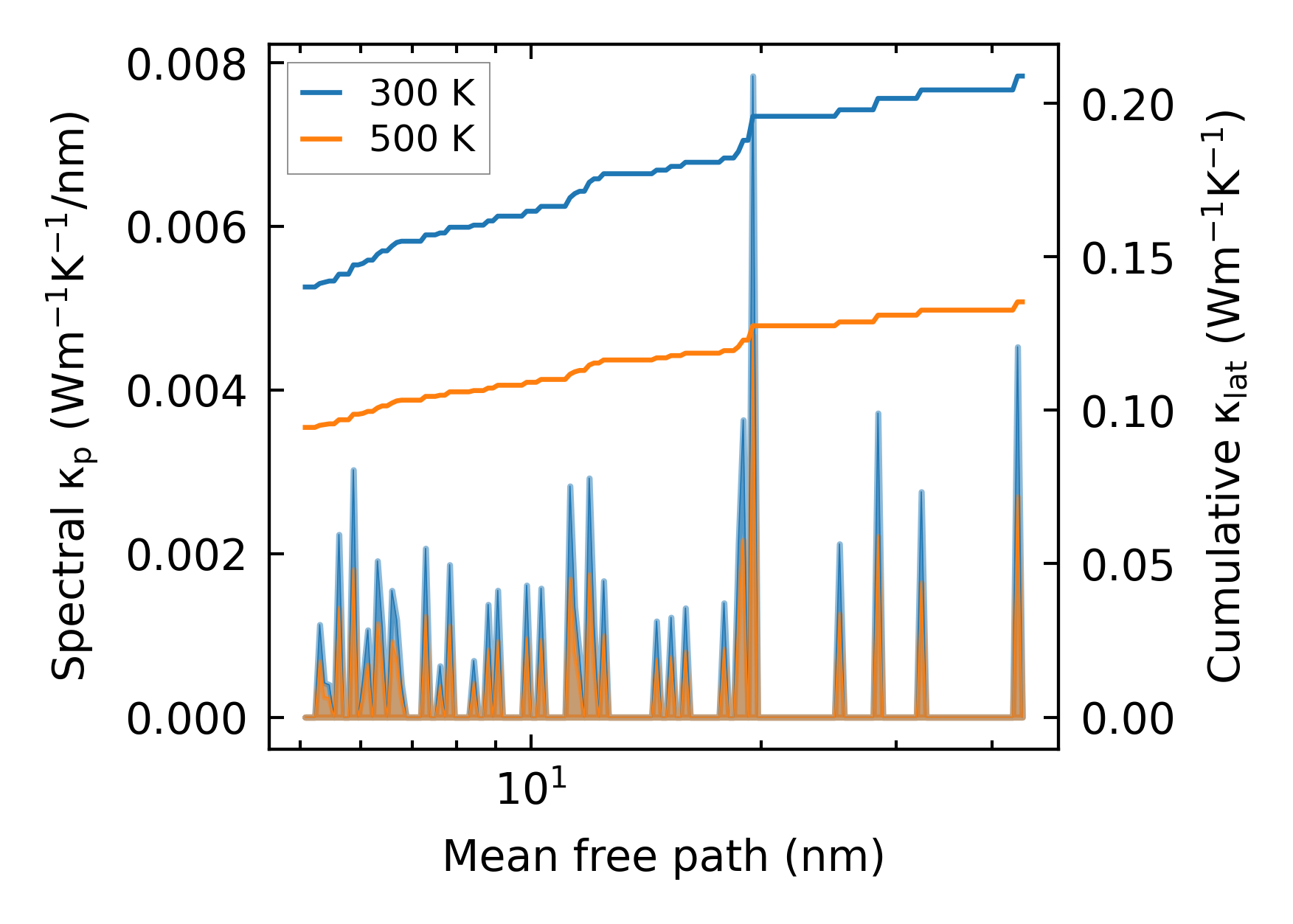

../../_images/fig_cumu_mfp4805.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211363.png — (a) Force constants w.r.t atomic distance

Summary

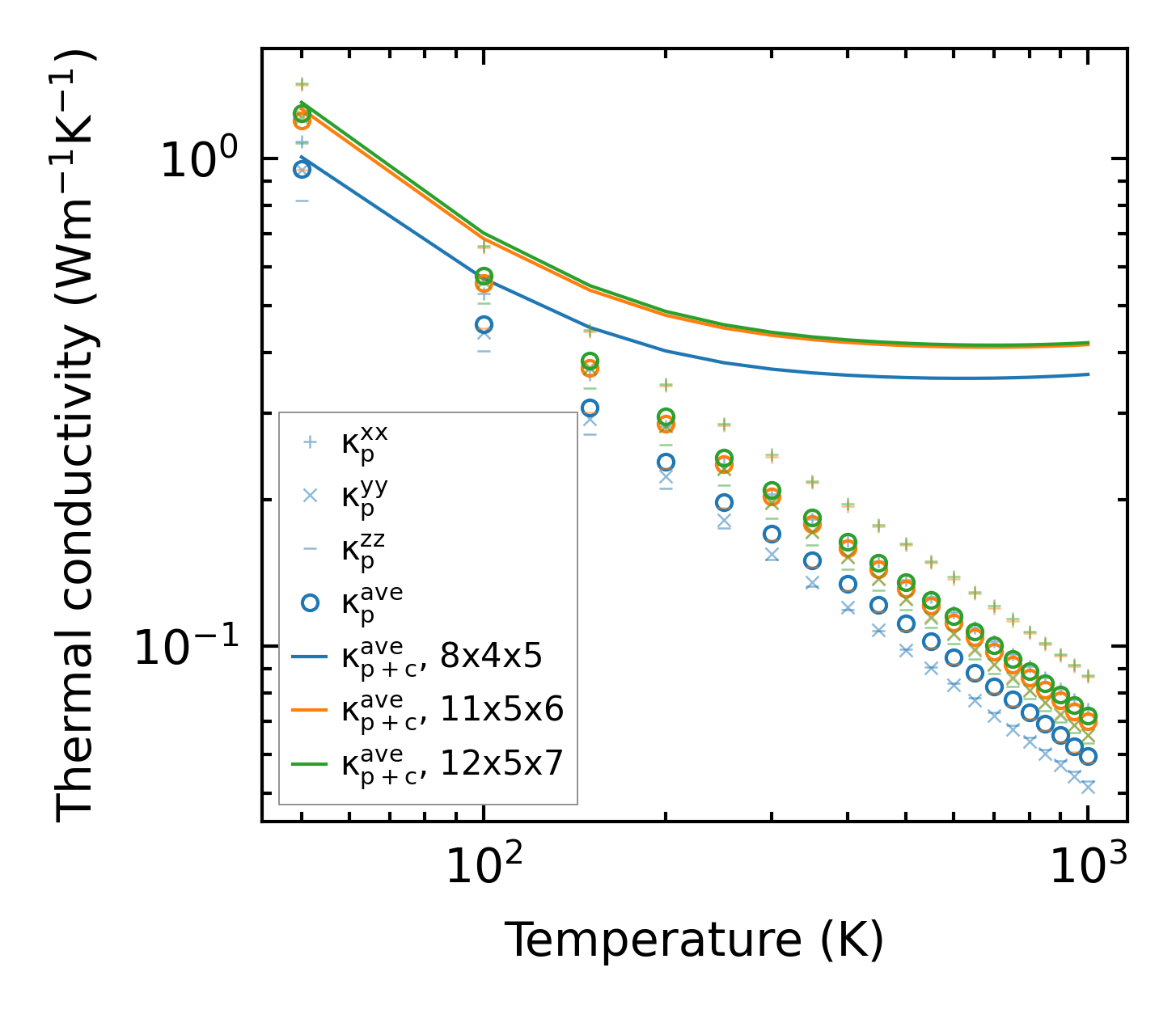

../../_images/fig_kappa9155.png — (a) Temperature-dependent lattice thermal conductivity

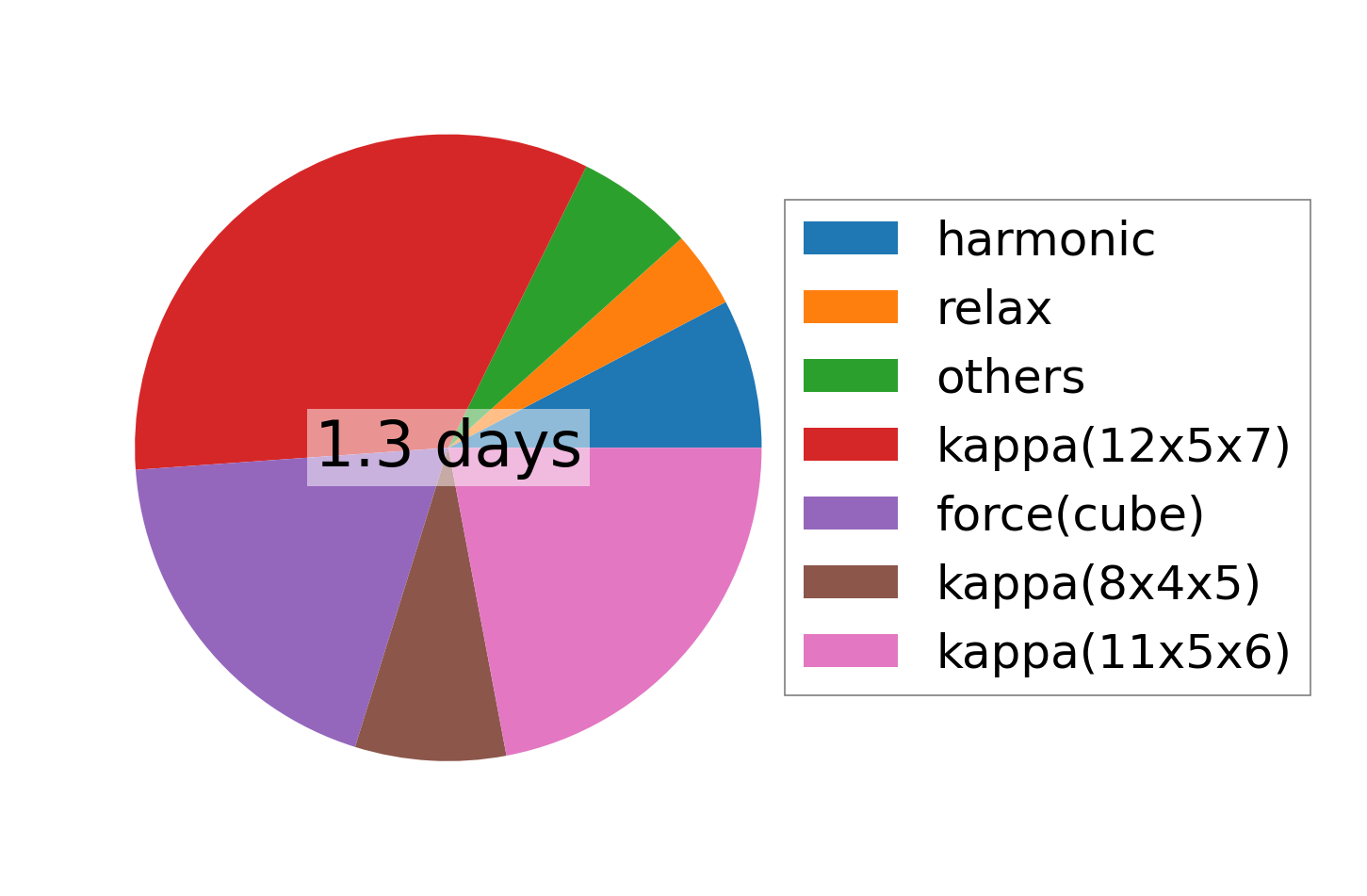

../../_images/fig_times19818.png — (b) Computation time
