mp-8989/Na2P2PdO7/harm

Harmonic properties

../../_images/fig_bandos_pr1680.png

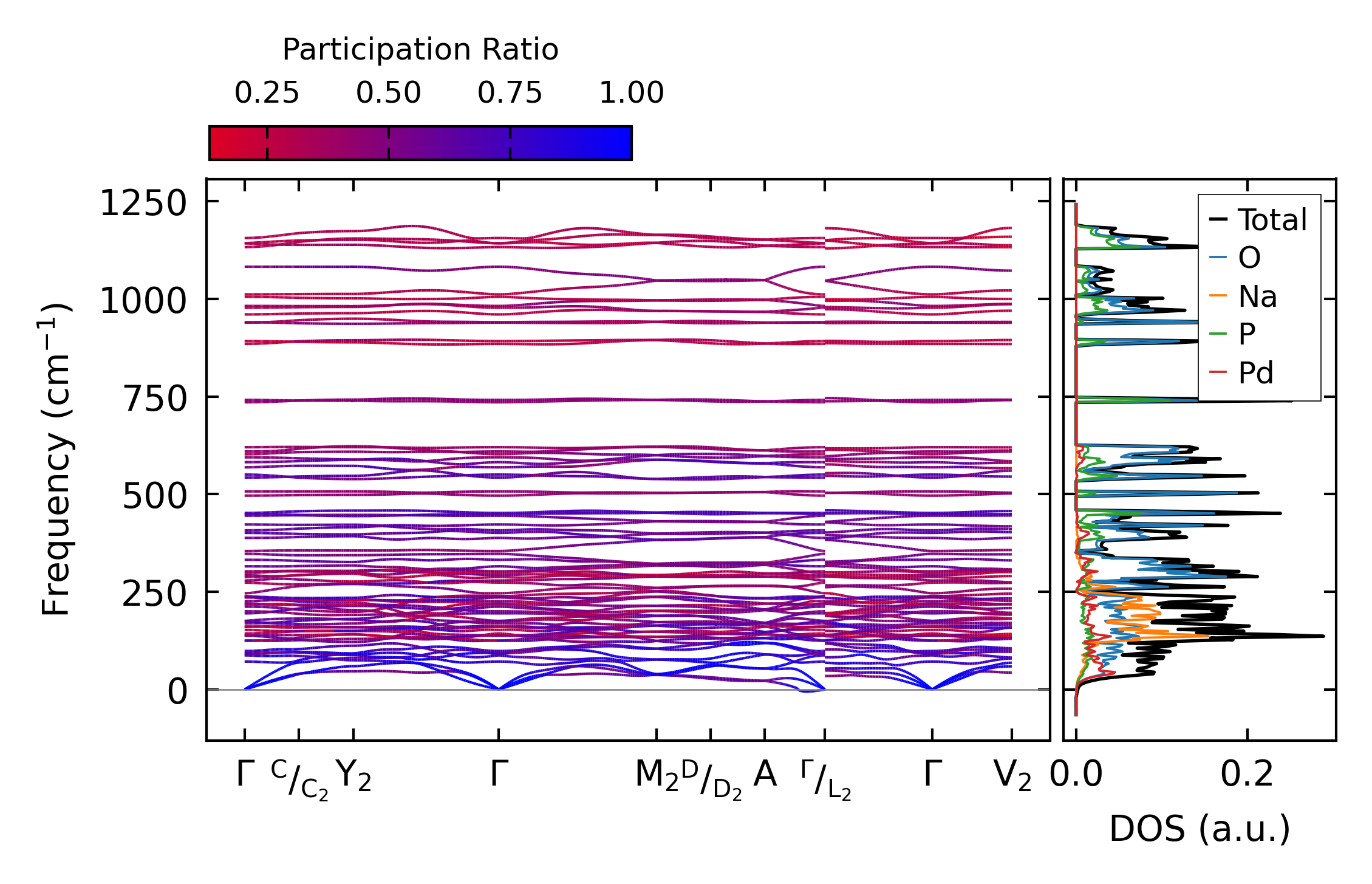

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos1607.png

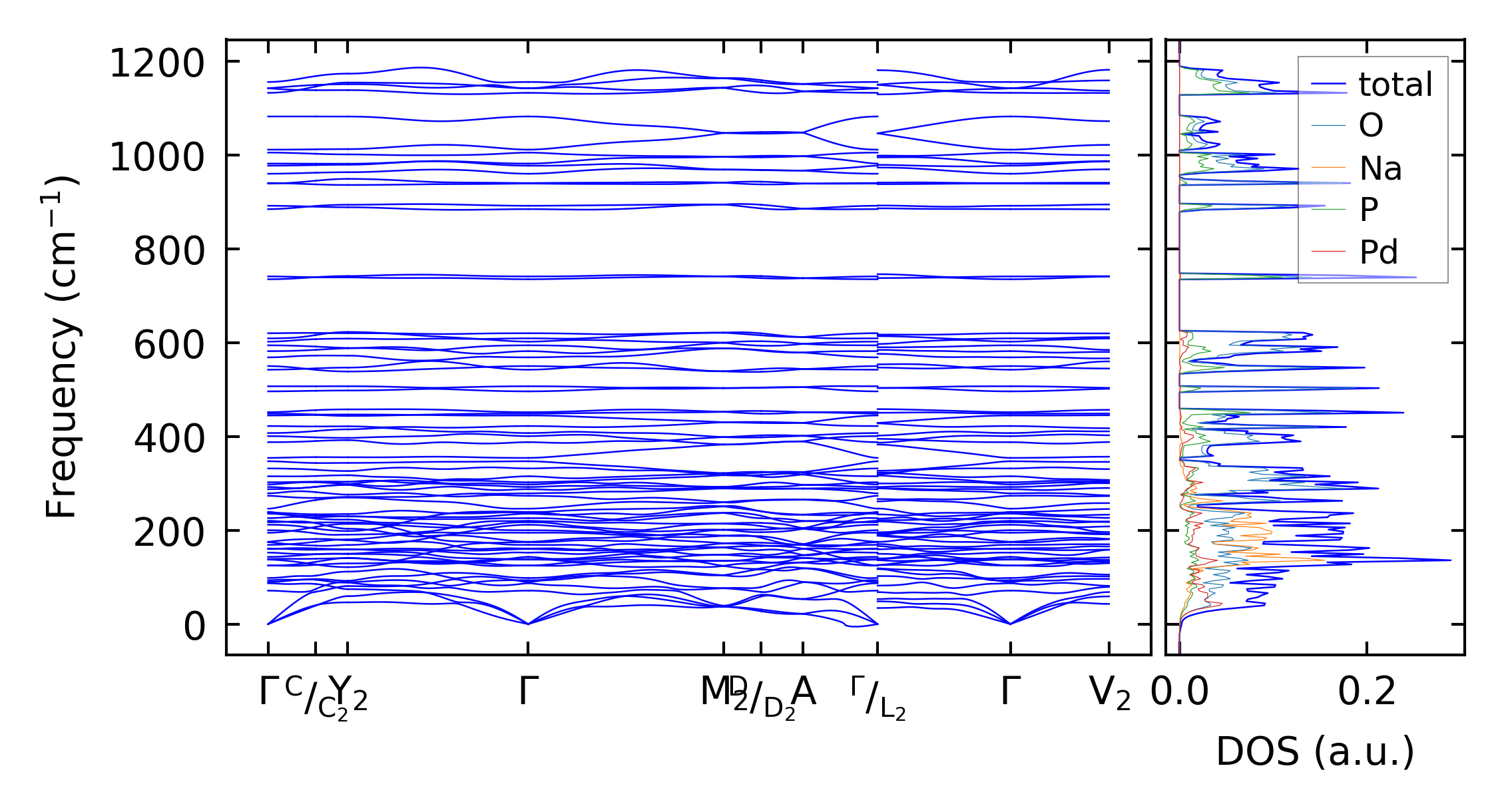

(b) Phonon dispersion and DOS

../../_images/fig_thermo1680.png

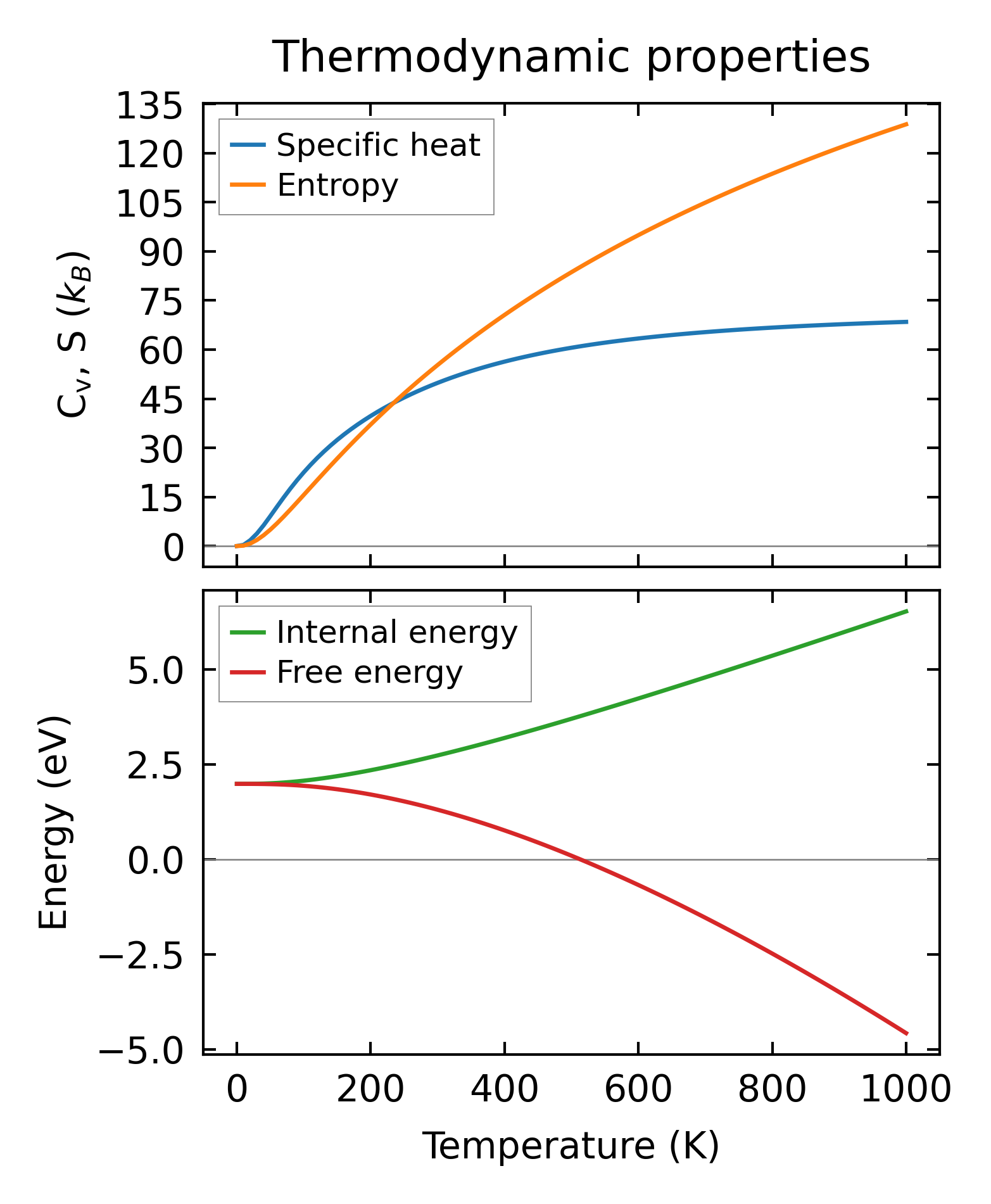

(c) Thermodynamic properties

Force constants

../../_images/fig_fc21513.png

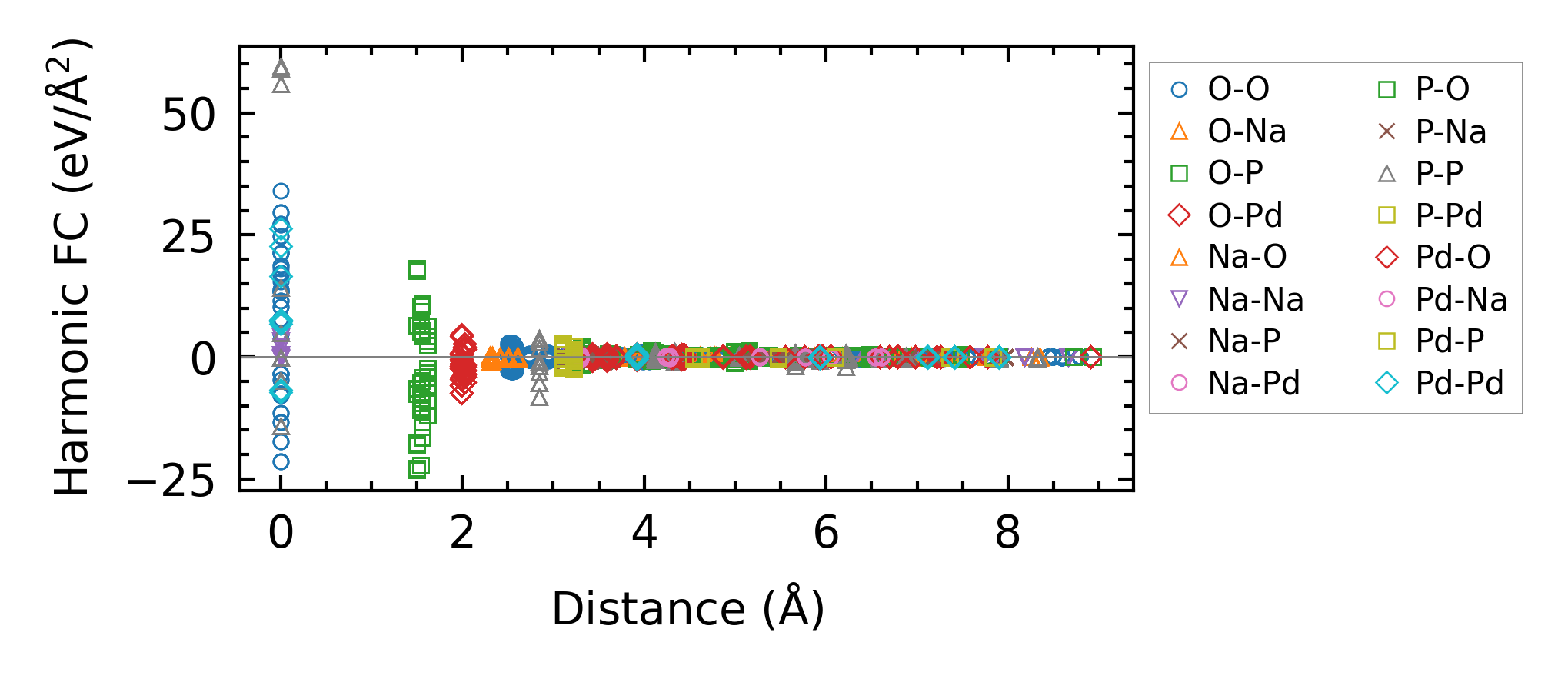

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times2509.png

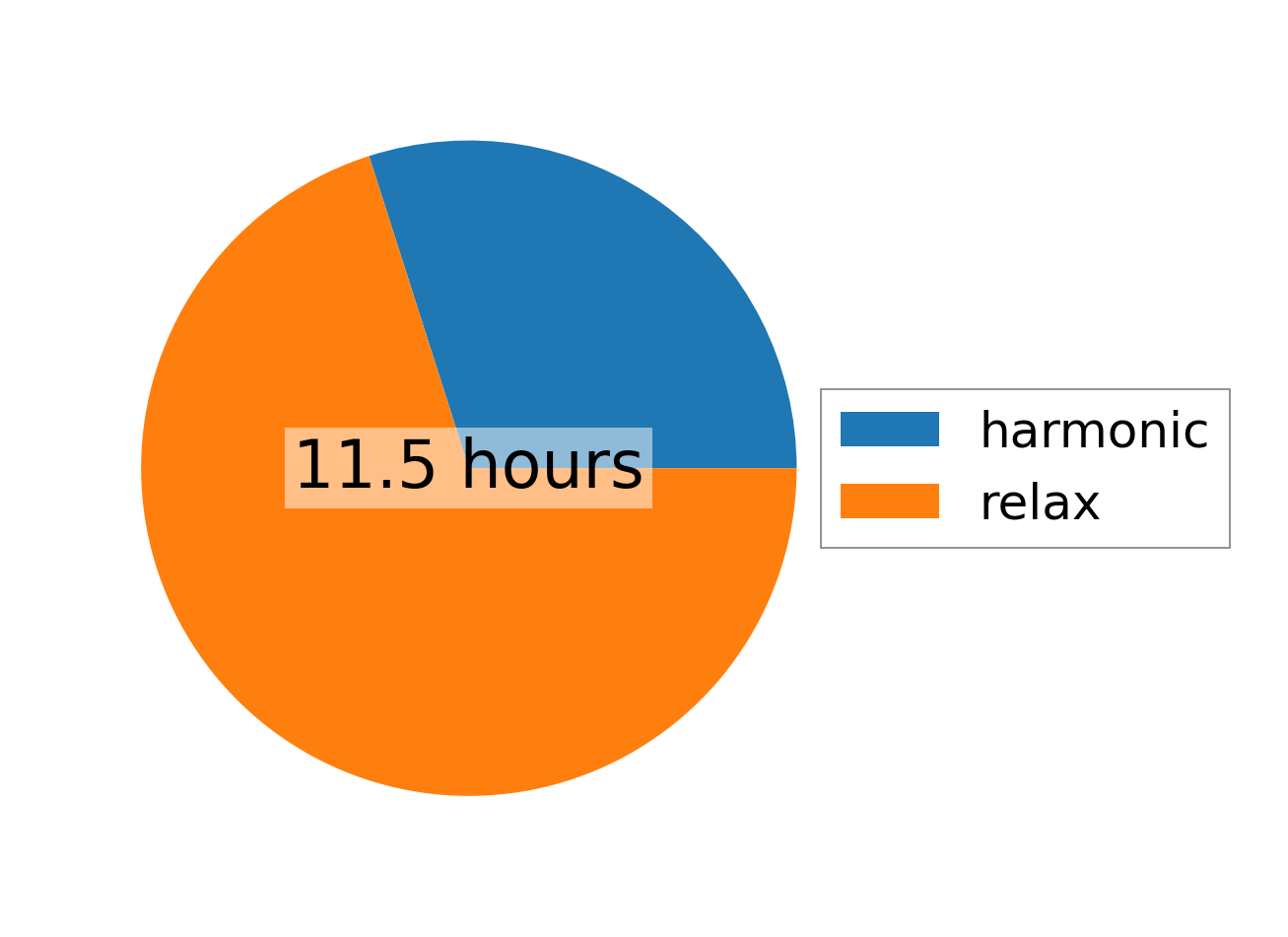

(a) Computation time
