mp-8446/K2CuP/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-8446.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1820.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1820.png — (b) Thermodynamic properties

Grüneisen parameters

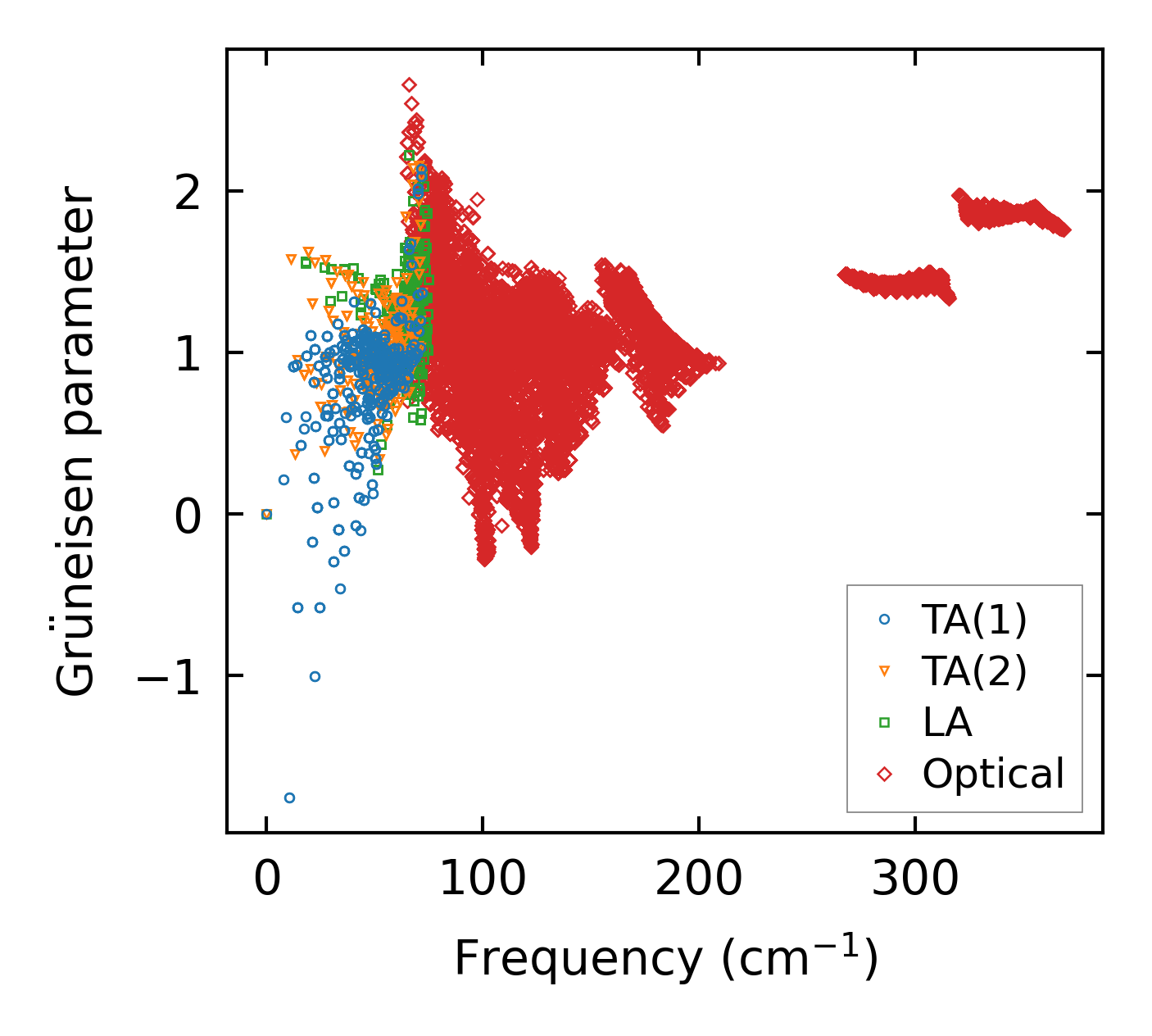

../../_images/fig_gru_all1034.png — (a) Grüneisen parameters

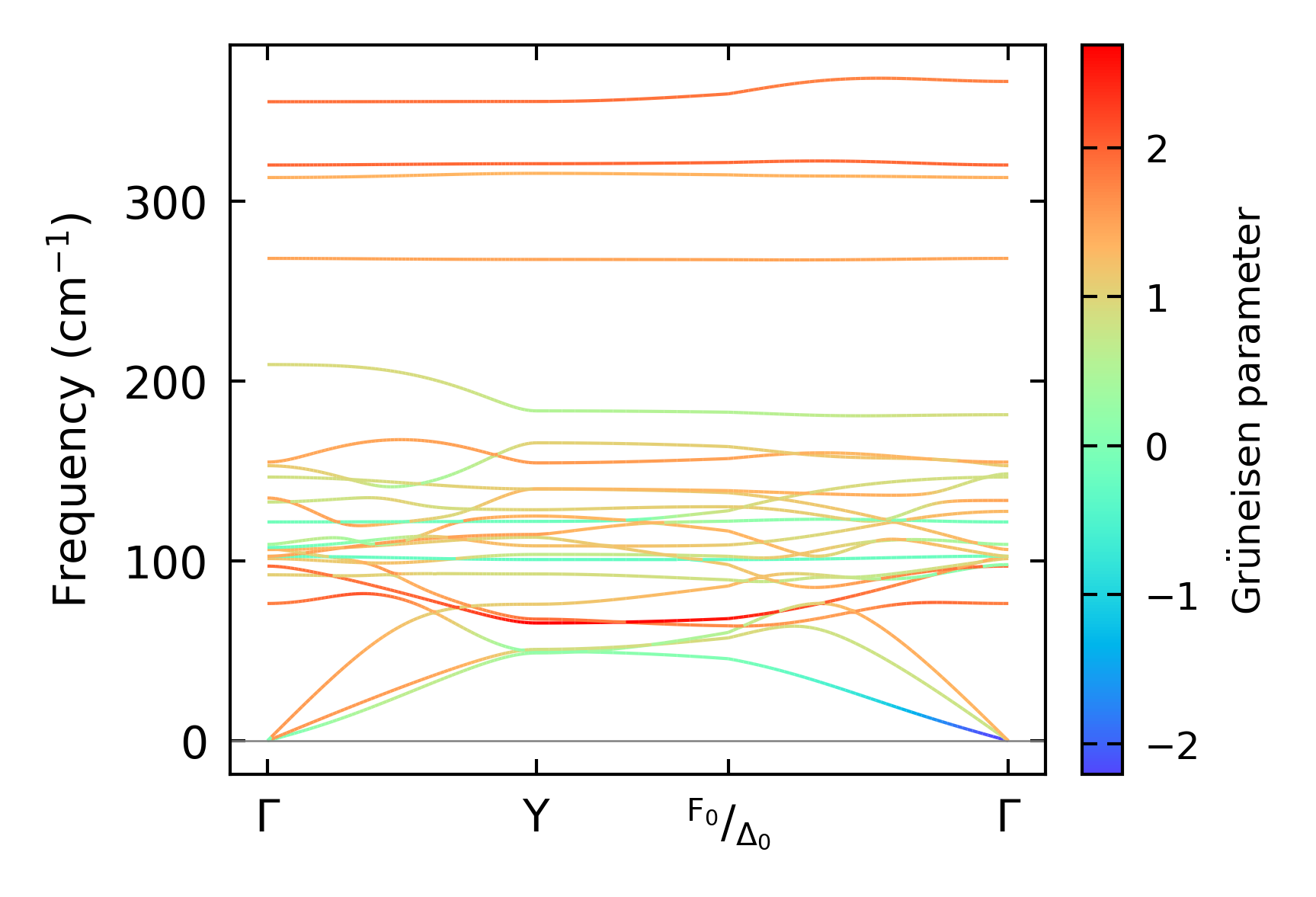

../../_images/fig_gruneisen1034.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x12, supercell: 2x2x2

../../_images/fig_kappa2001.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1045.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

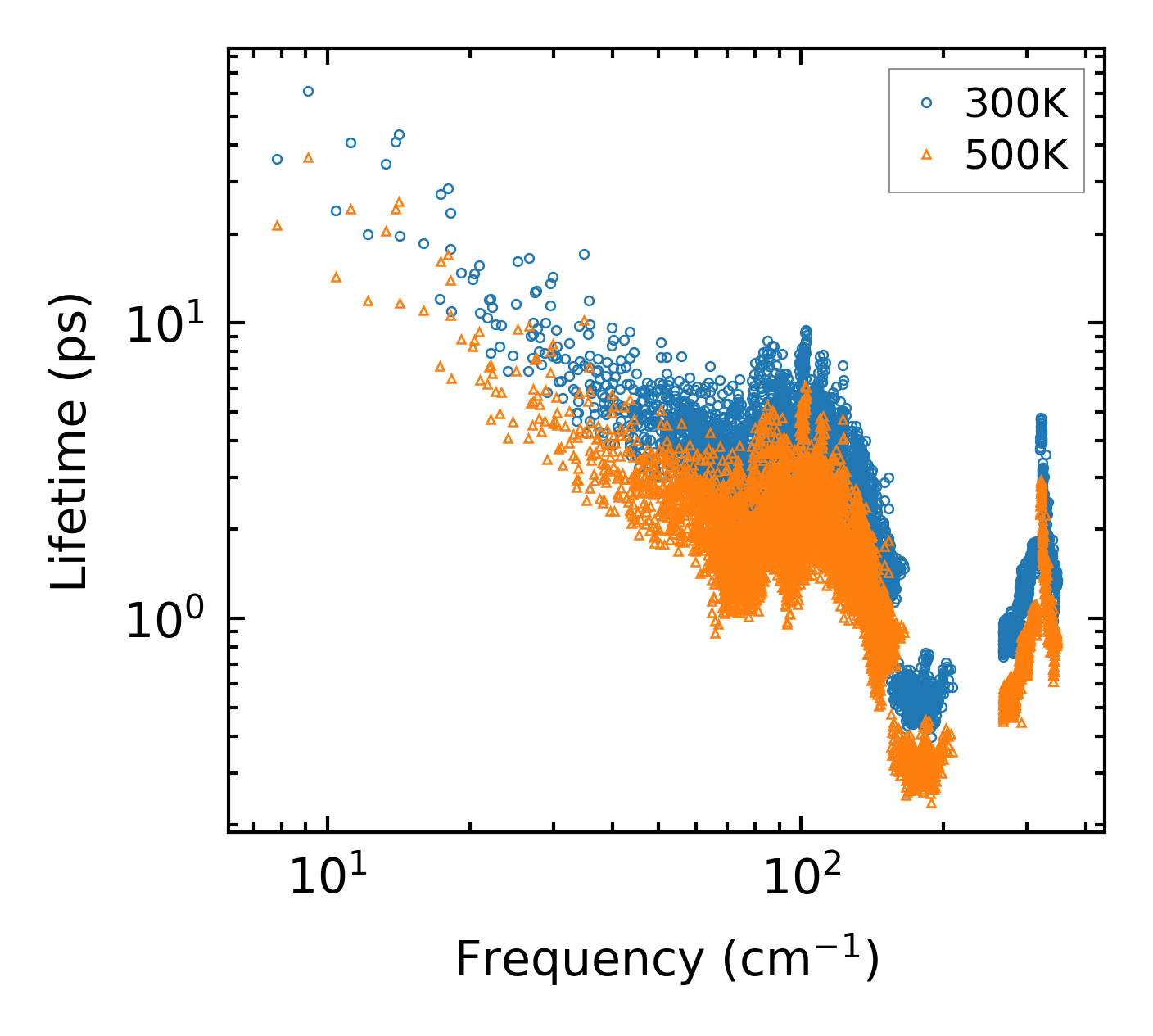

../../_images/fig_lifetime1026.png — (a) Phonon lifetime due to phonon-phonon scattering

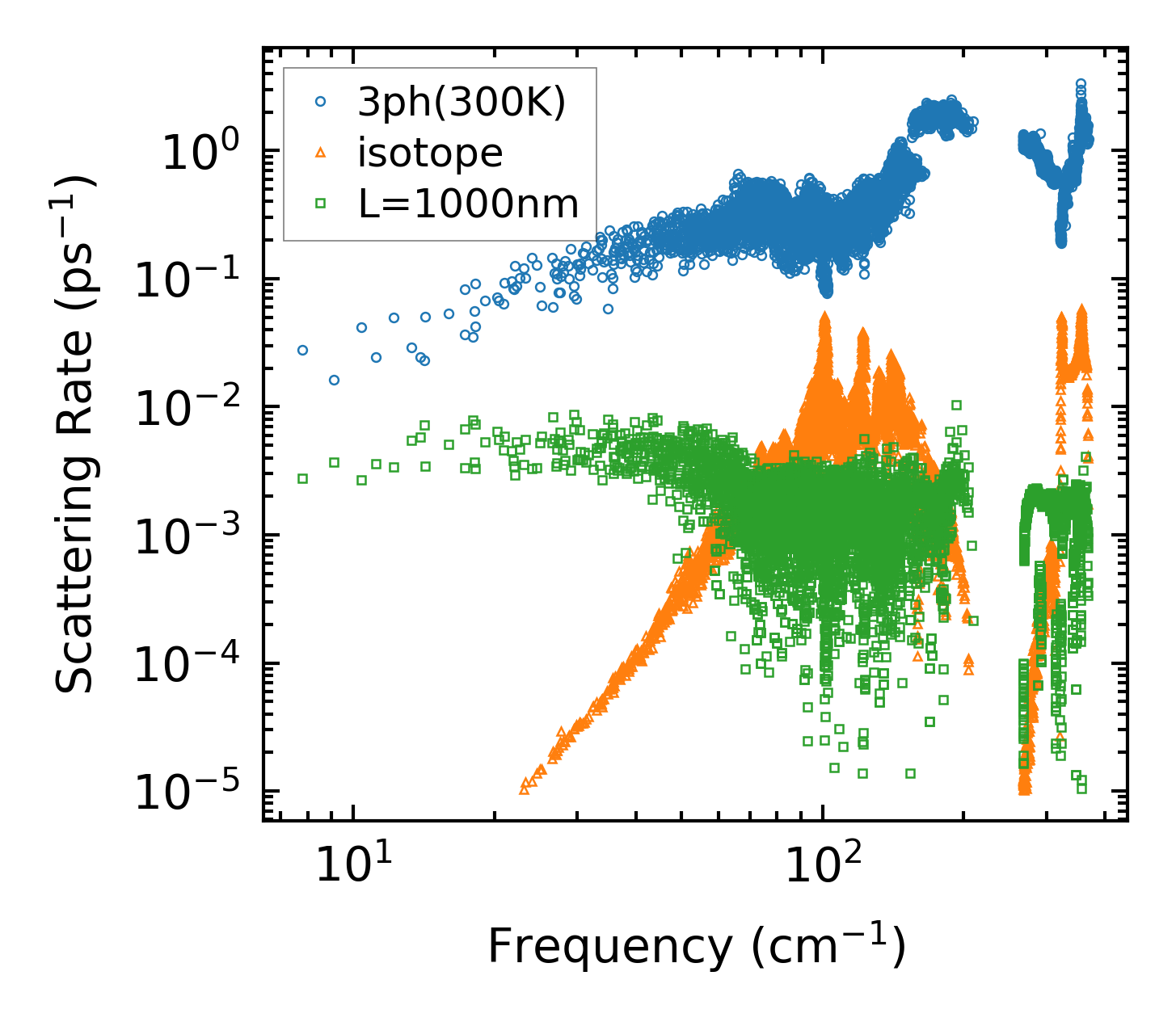

../../_images/fig_scat_rates1025.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

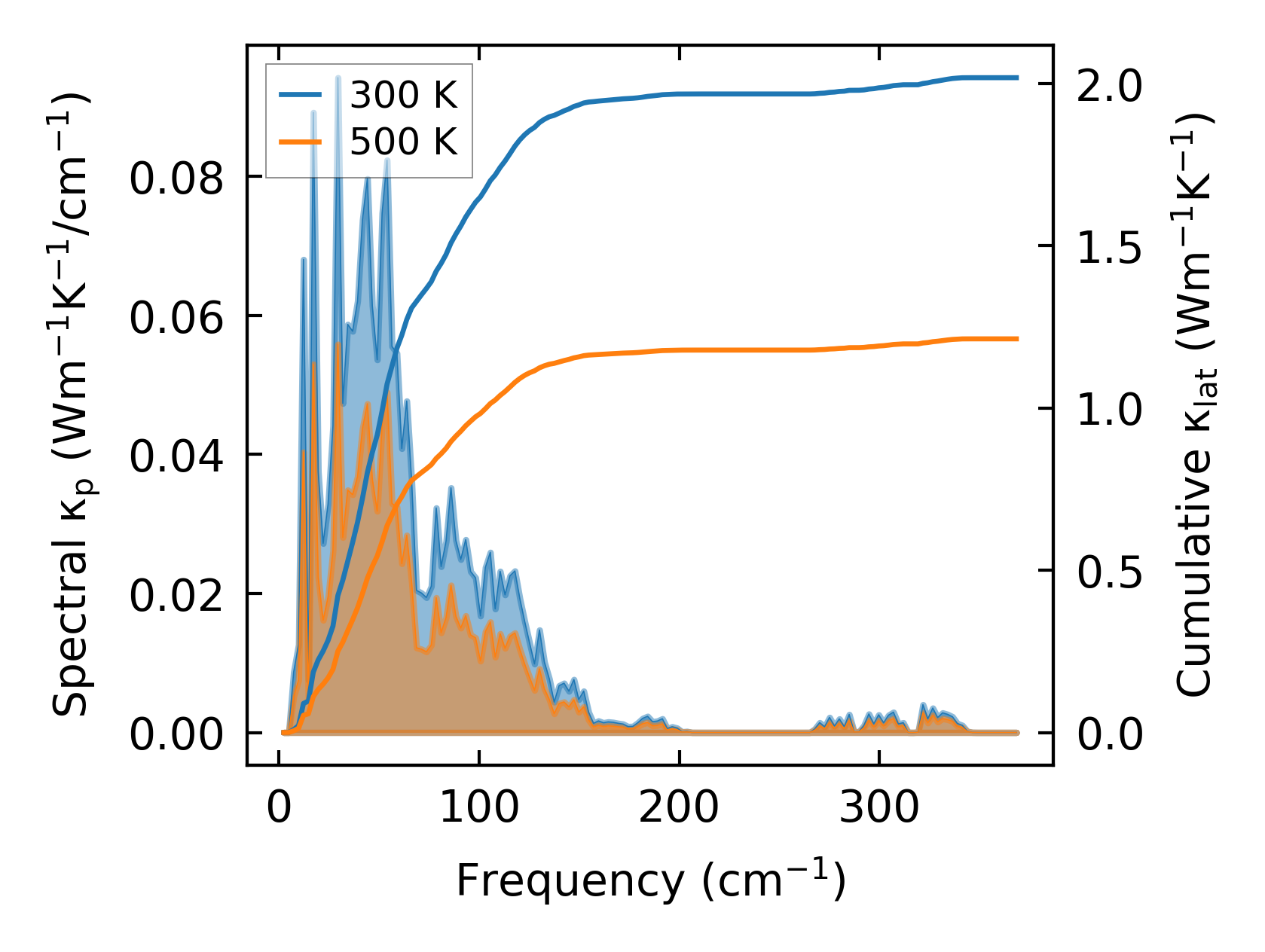

../../_images/fig_cumu_frequency1026.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

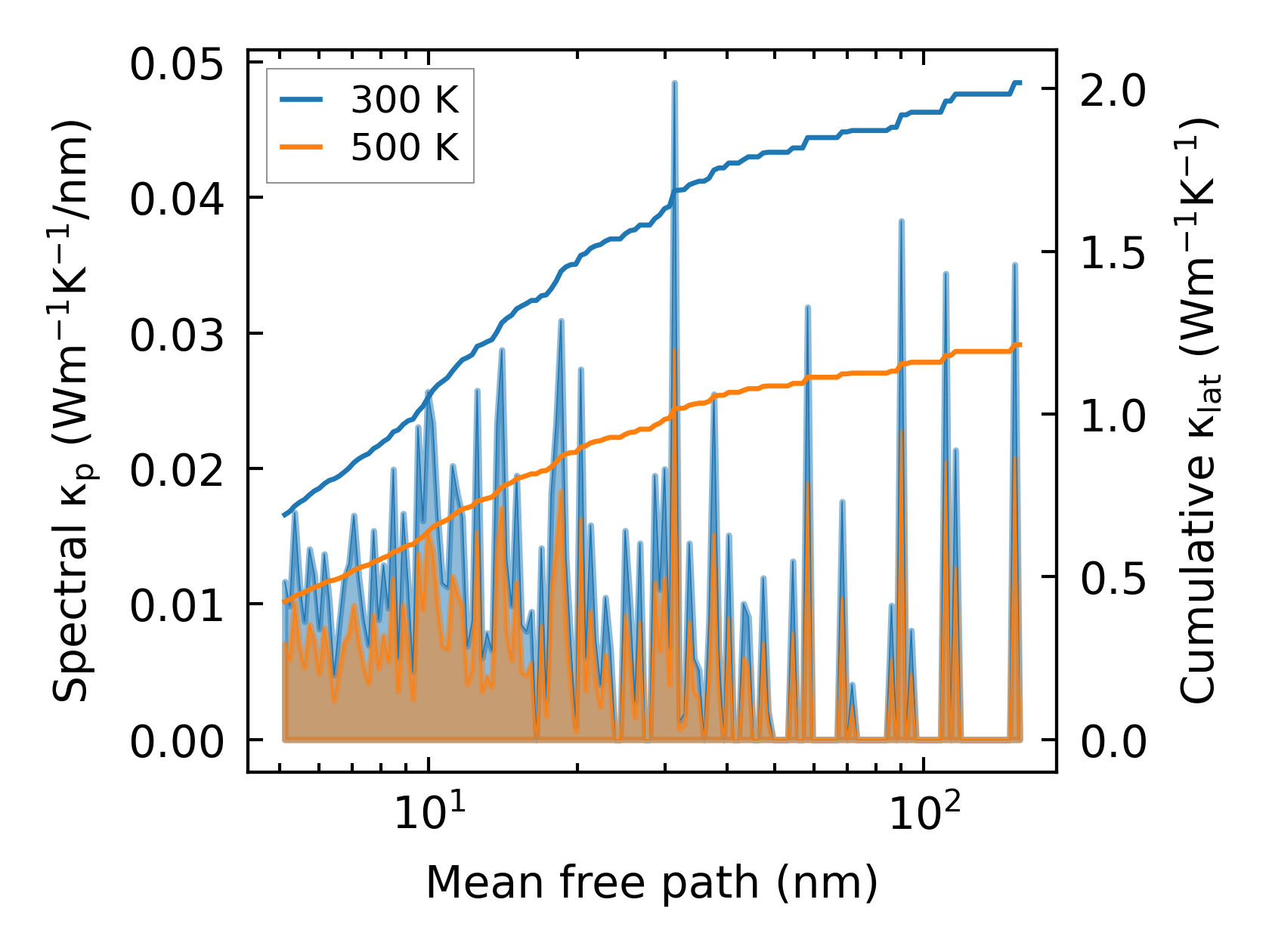

../../_images/fig_cumu_mfp1026.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

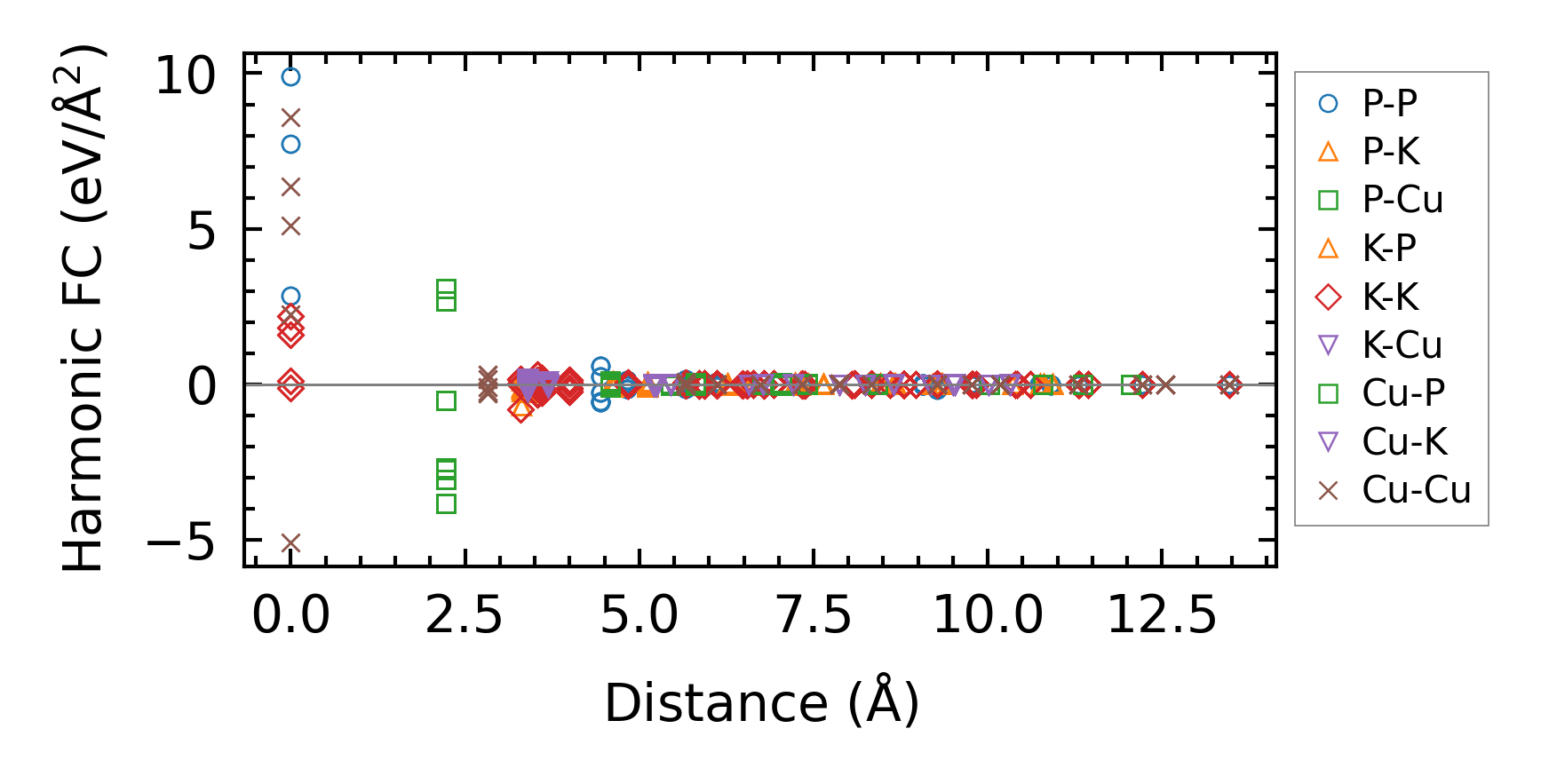

../../_images/fig_fc21645.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2002.png — (a) Temperature-dependent lattice thermal conductivity

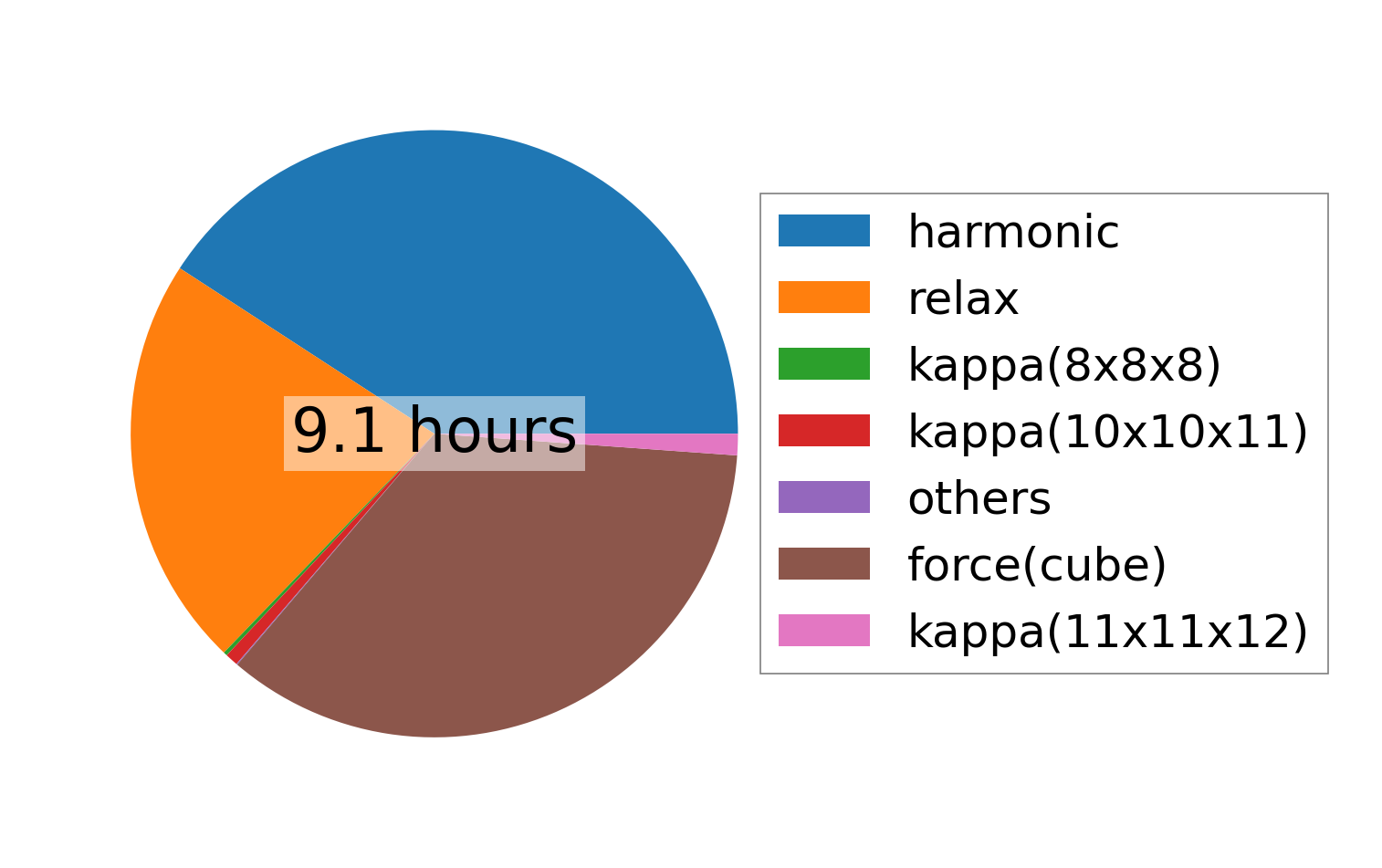

../../_images/fig_times2786.png — (b) Computation time
