mp-8804/Li6MoN4/anharm

Space group: P4_2/nmc (137)
Link: Materials Project
Download: mp-8804.tar.gz

Harmonic properties

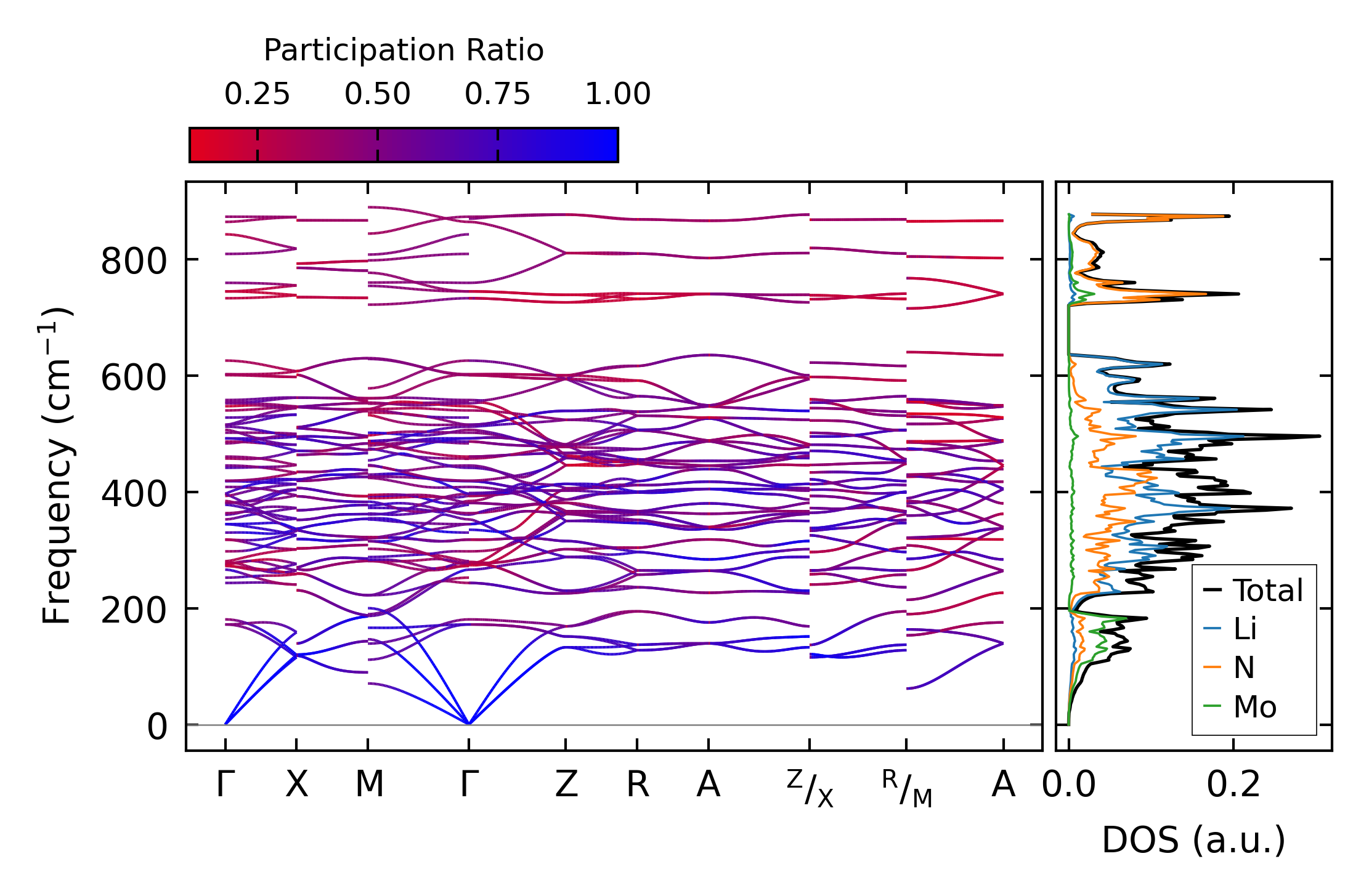

../../_images/fig_bandos_pr1921.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1921.png — (b) Thermodynamic properties

Grüneisen parameters

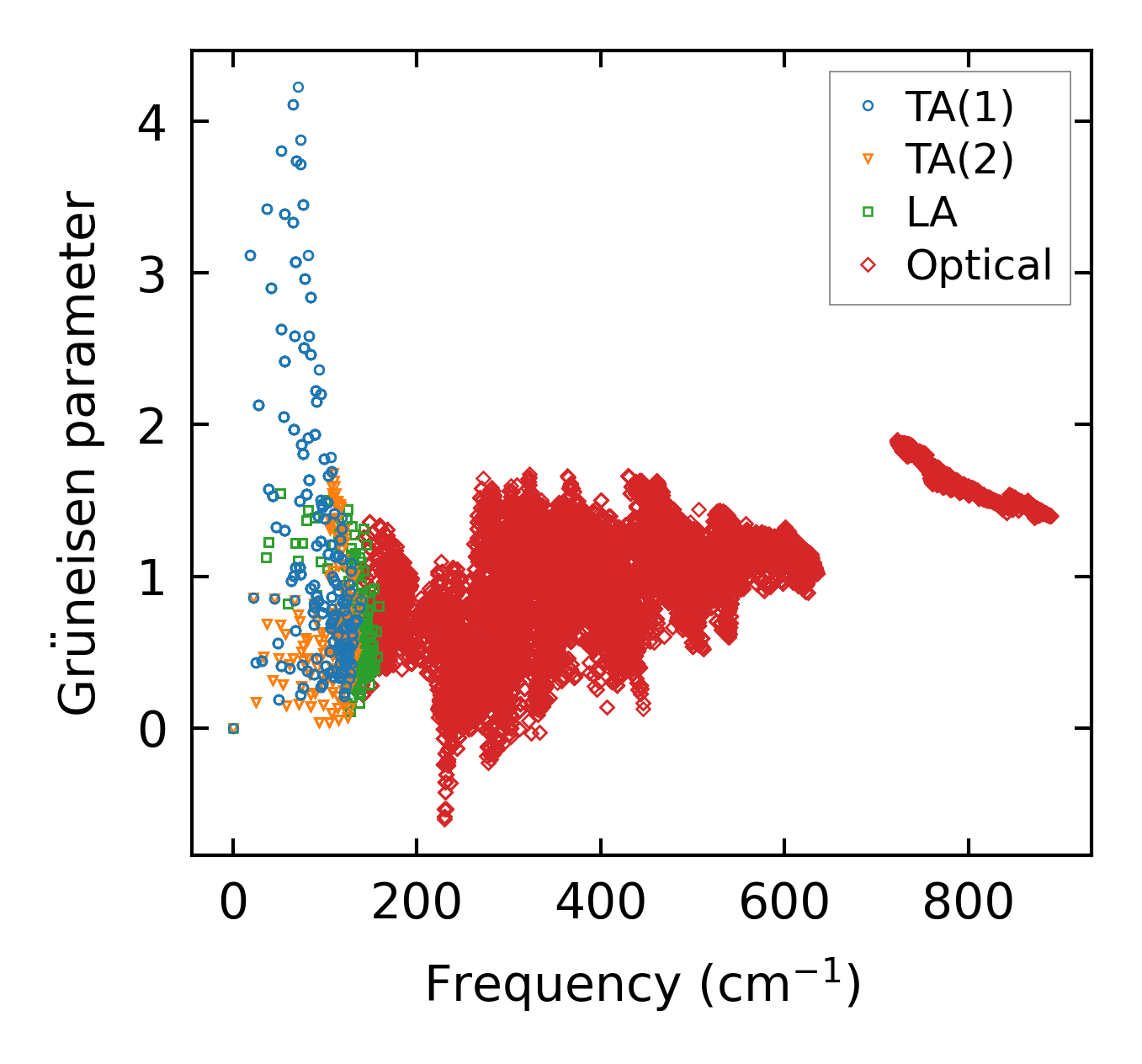

../../_images/fig_gru_all1099.png — (a) Grüneisen parameters

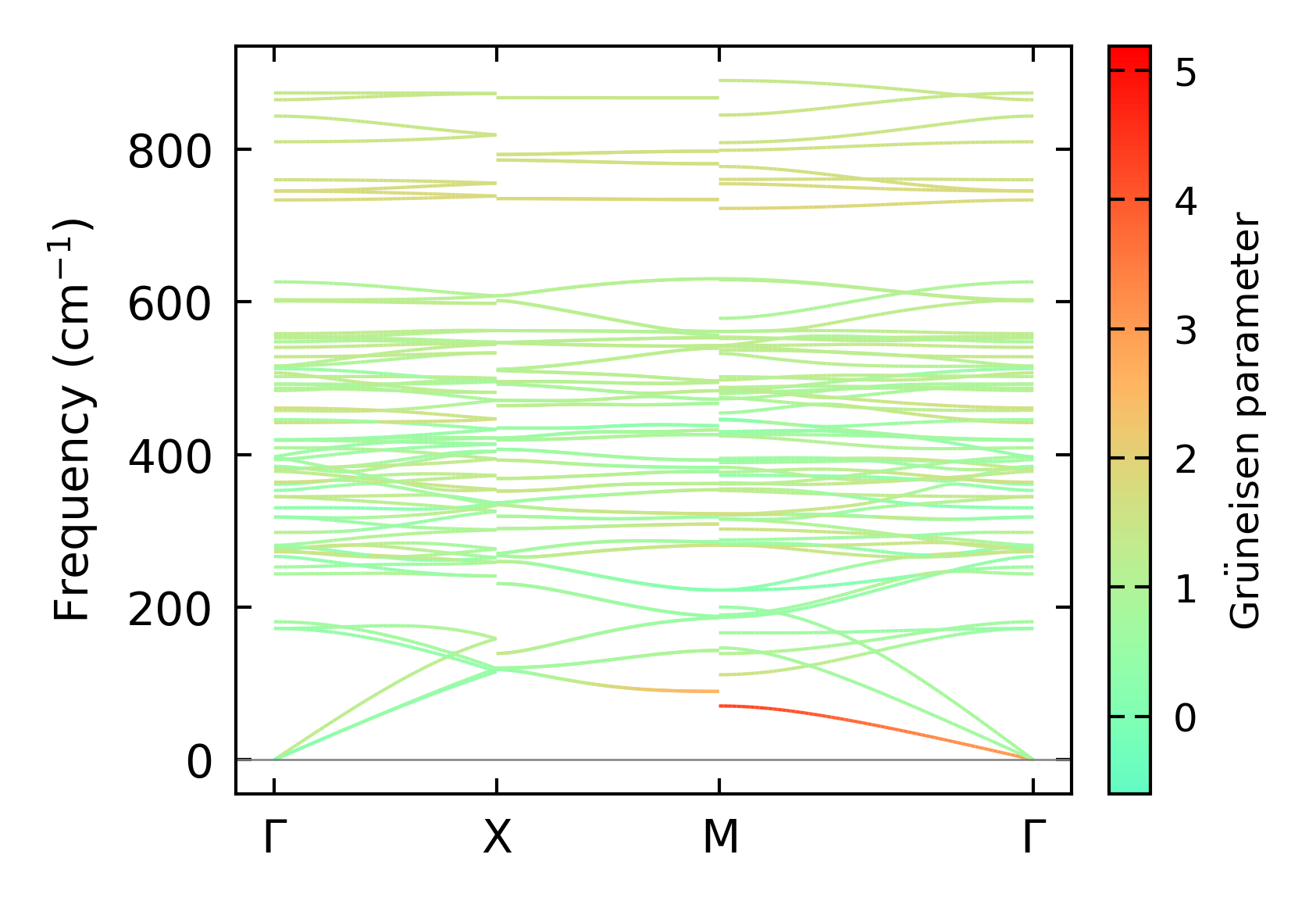

../../_images/fig_gruneisen1099.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x14, supercell: 1x1x2

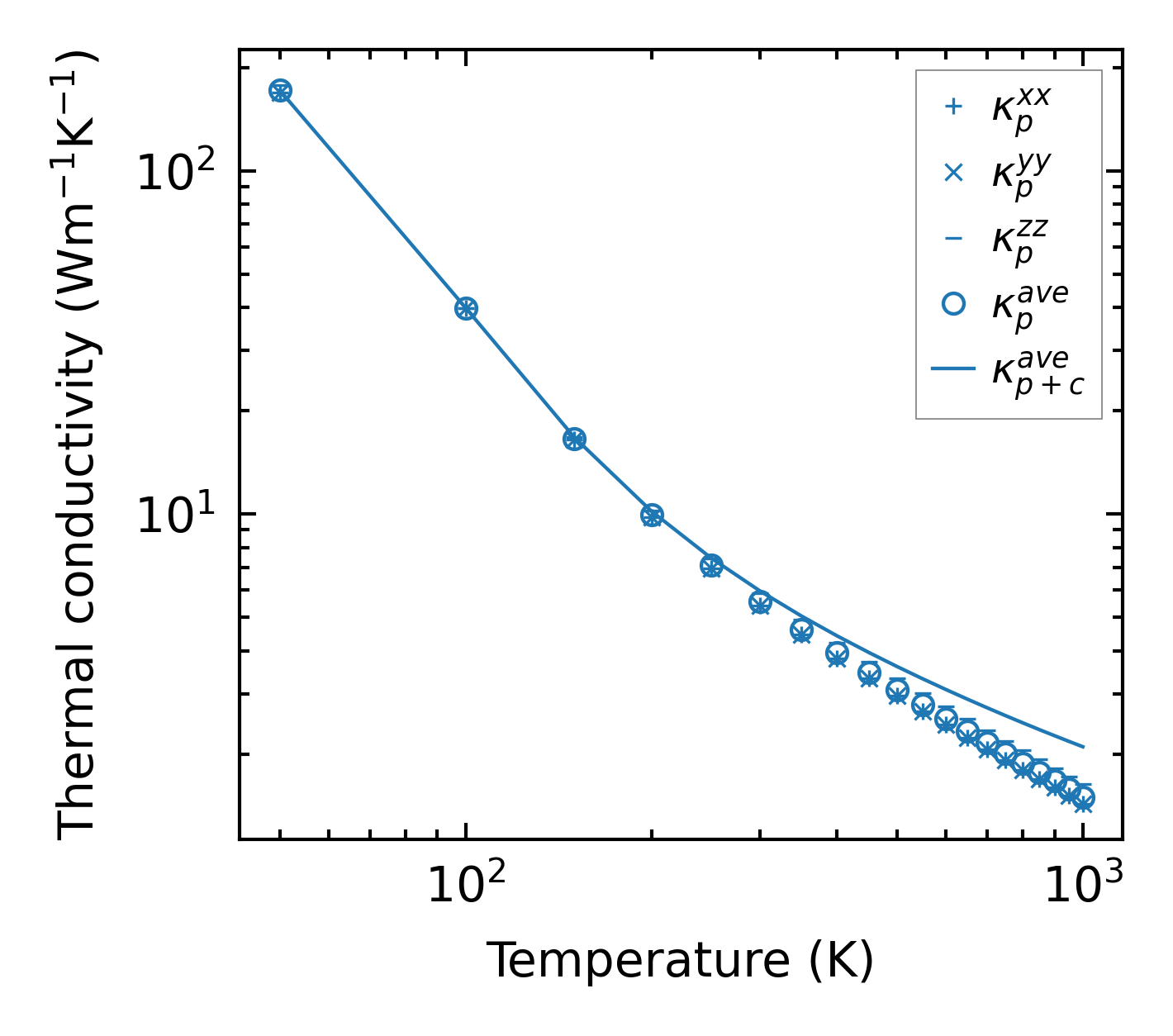

../../_images/fig_kappa2117.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1110.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

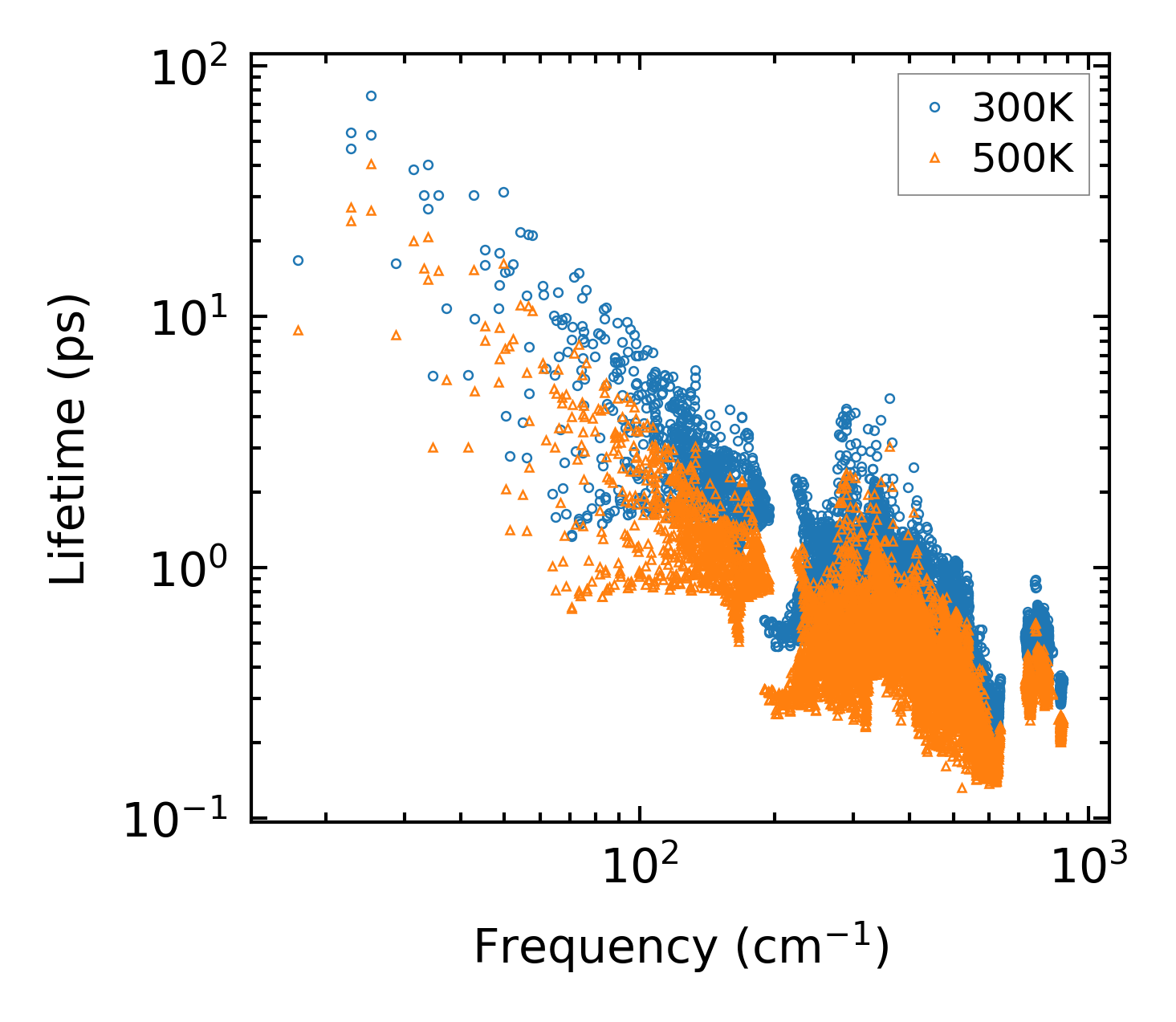

../../_images/fig_lifetime1090.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1089.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1090.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

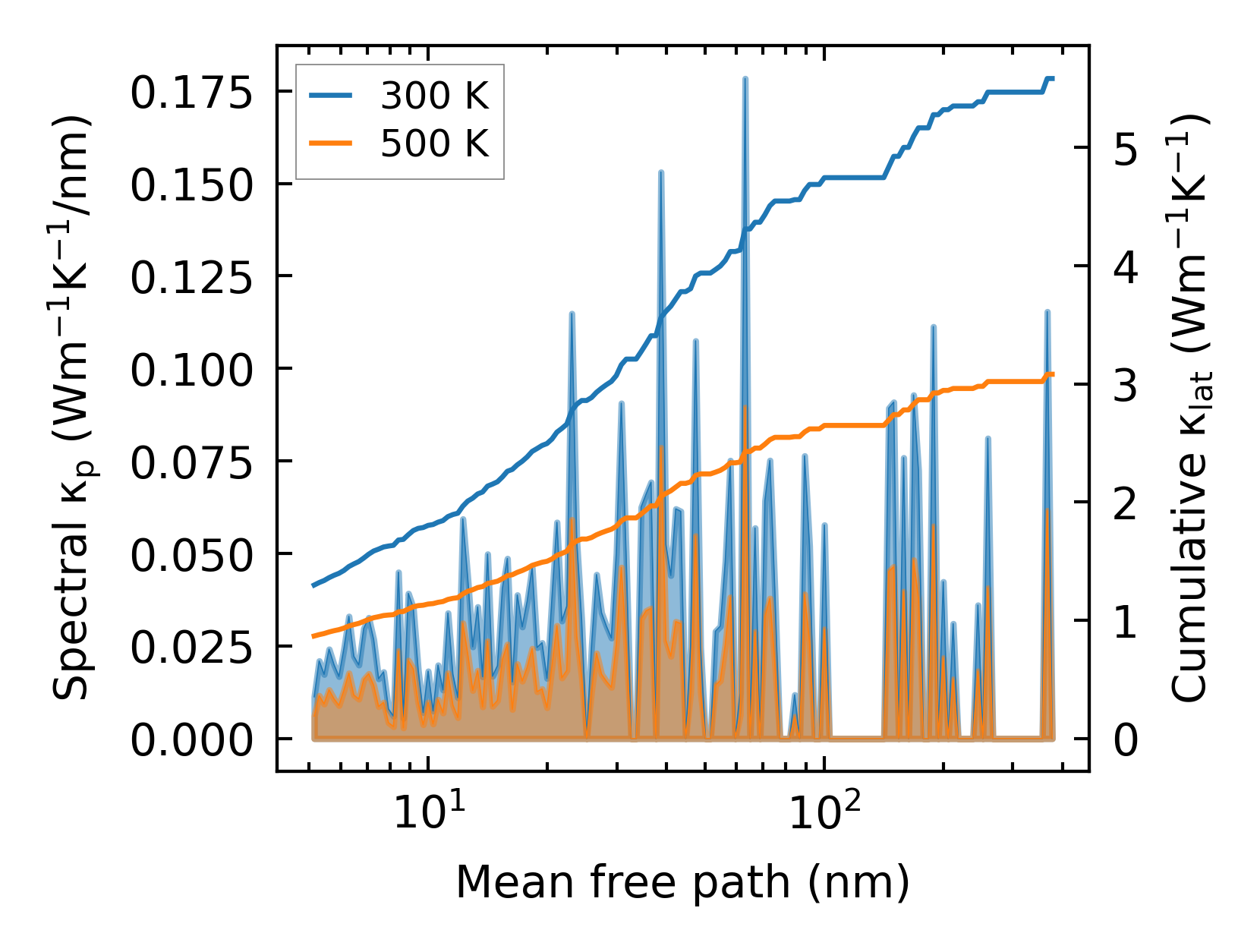

../../_images/fig_cumu_mfp1090.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

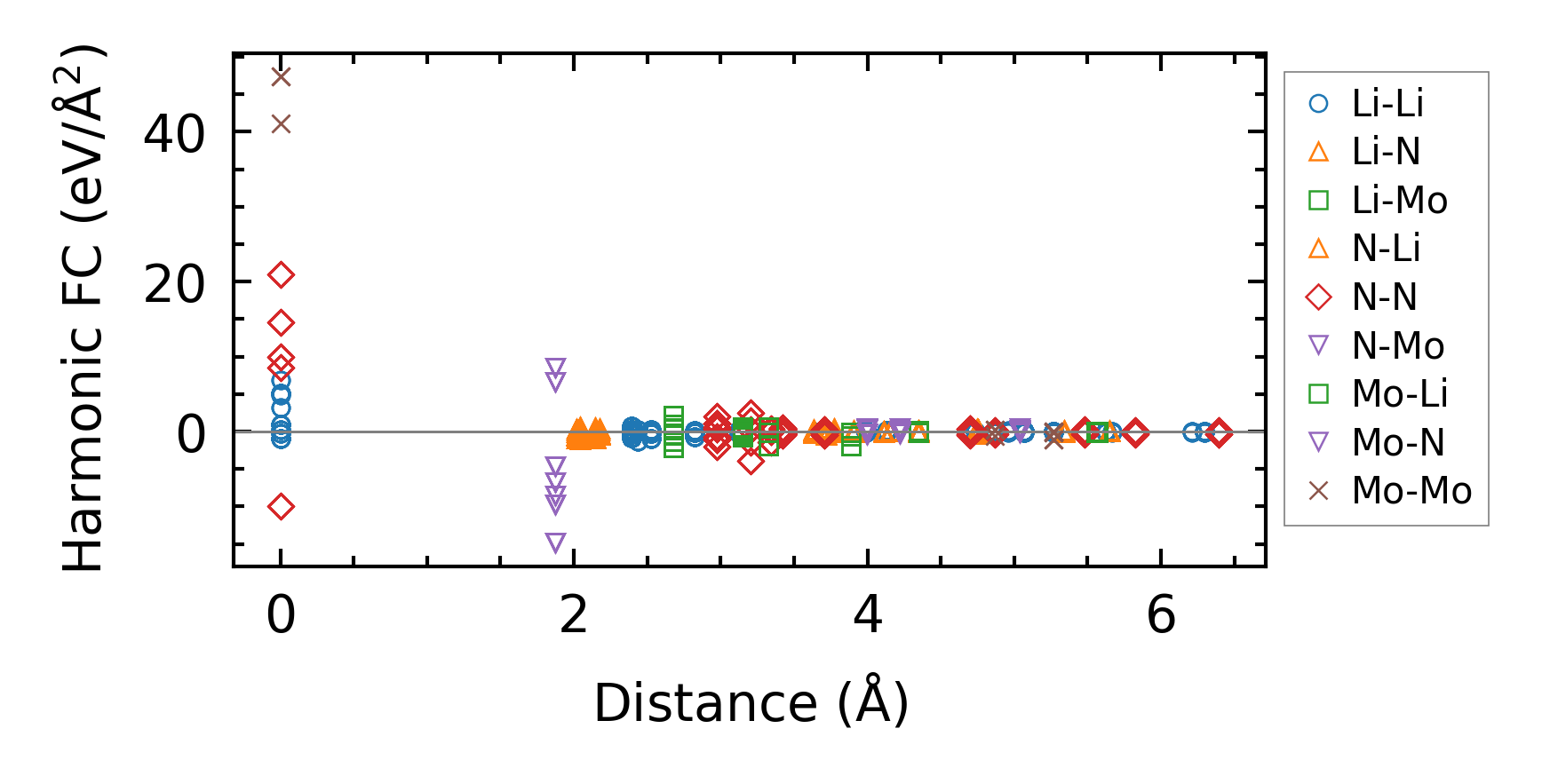

../../_images/fig_fc21744.png — (a) Force constants w.r.t atomic distance

Summary

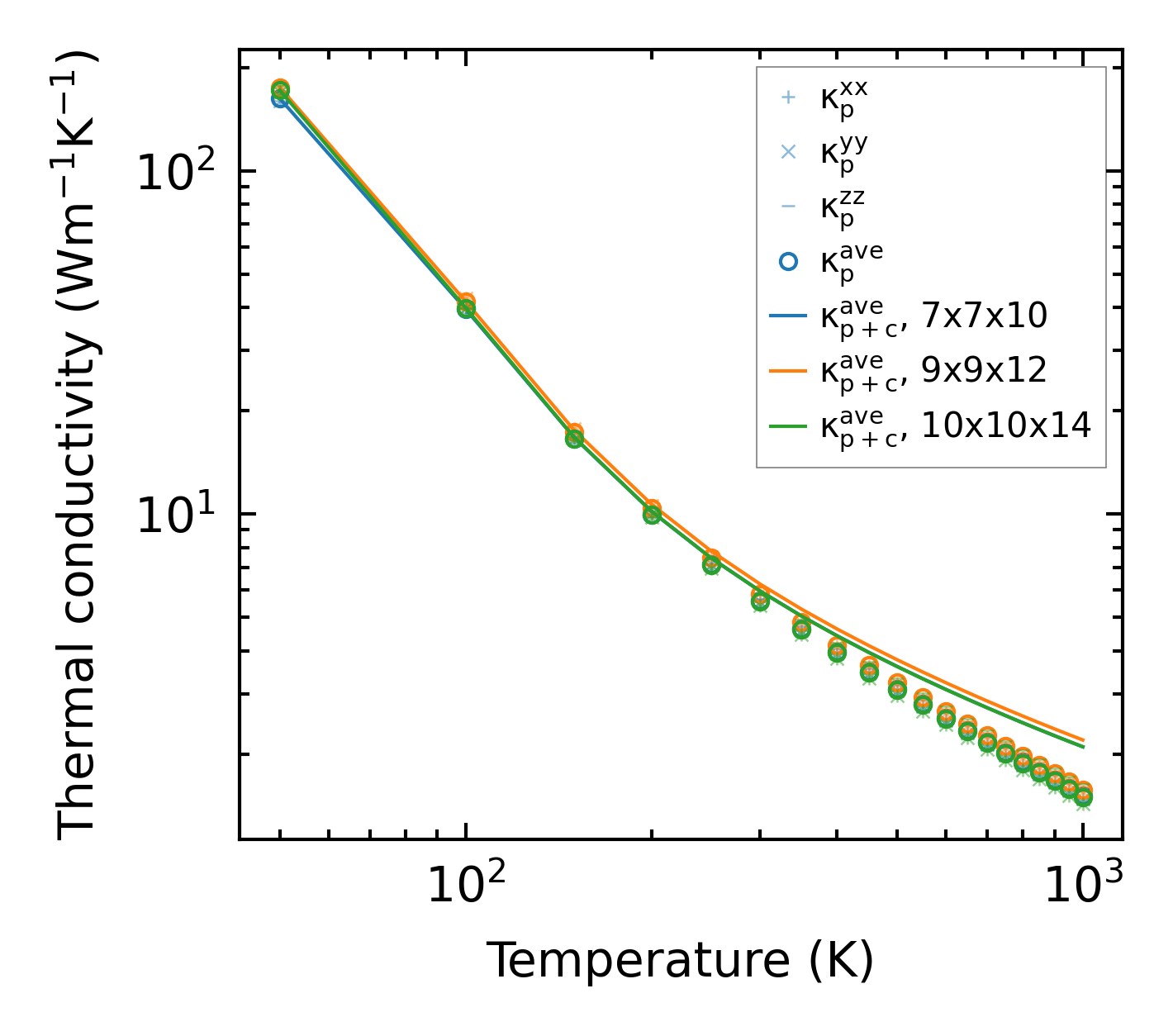

../../_images/fig_kappa2118.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times2922.png — (b) Computation time
