mp-8882-2/GaP/anharm

Space group: P6_3mc (186)
Link: Materials Project
Download: mp-8882-2.tar.gz

Equation of state

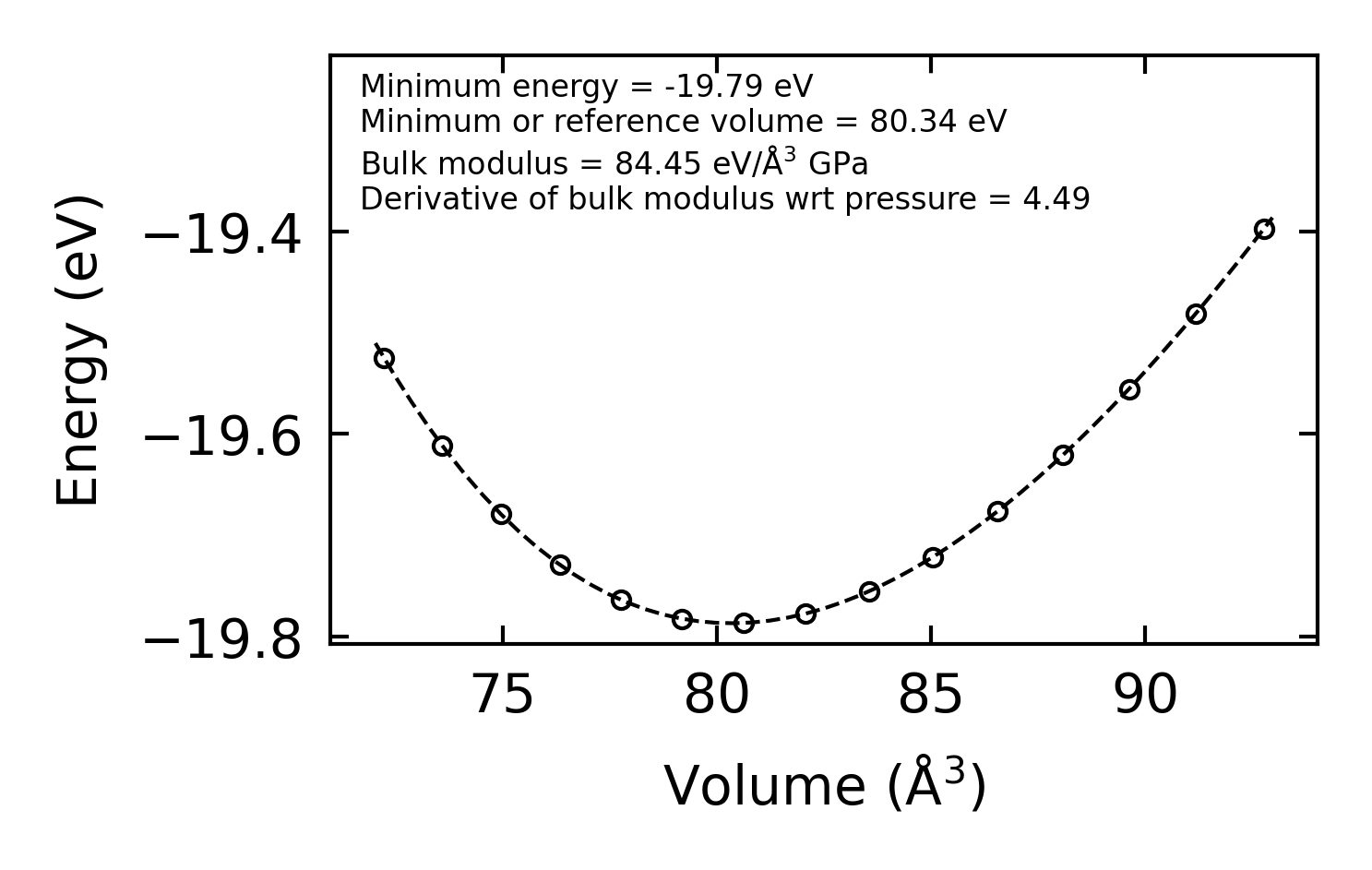

../../_images/fig_bm802.png — (a) Equation of state

Harmonic properties

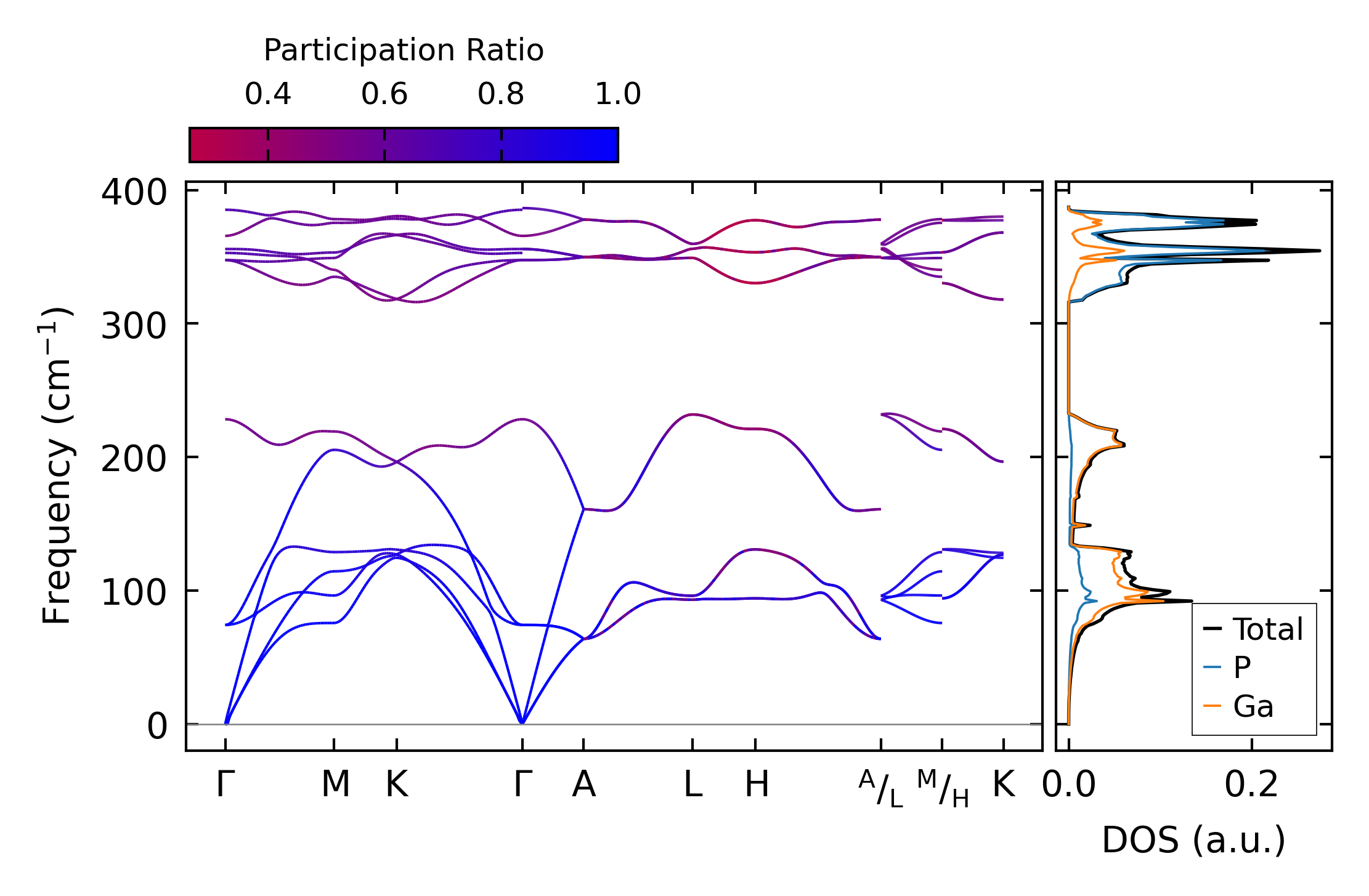

../../_images/fig_bandos_pr1951.png — (a) Phonon dispersion with participation ratio and DOS

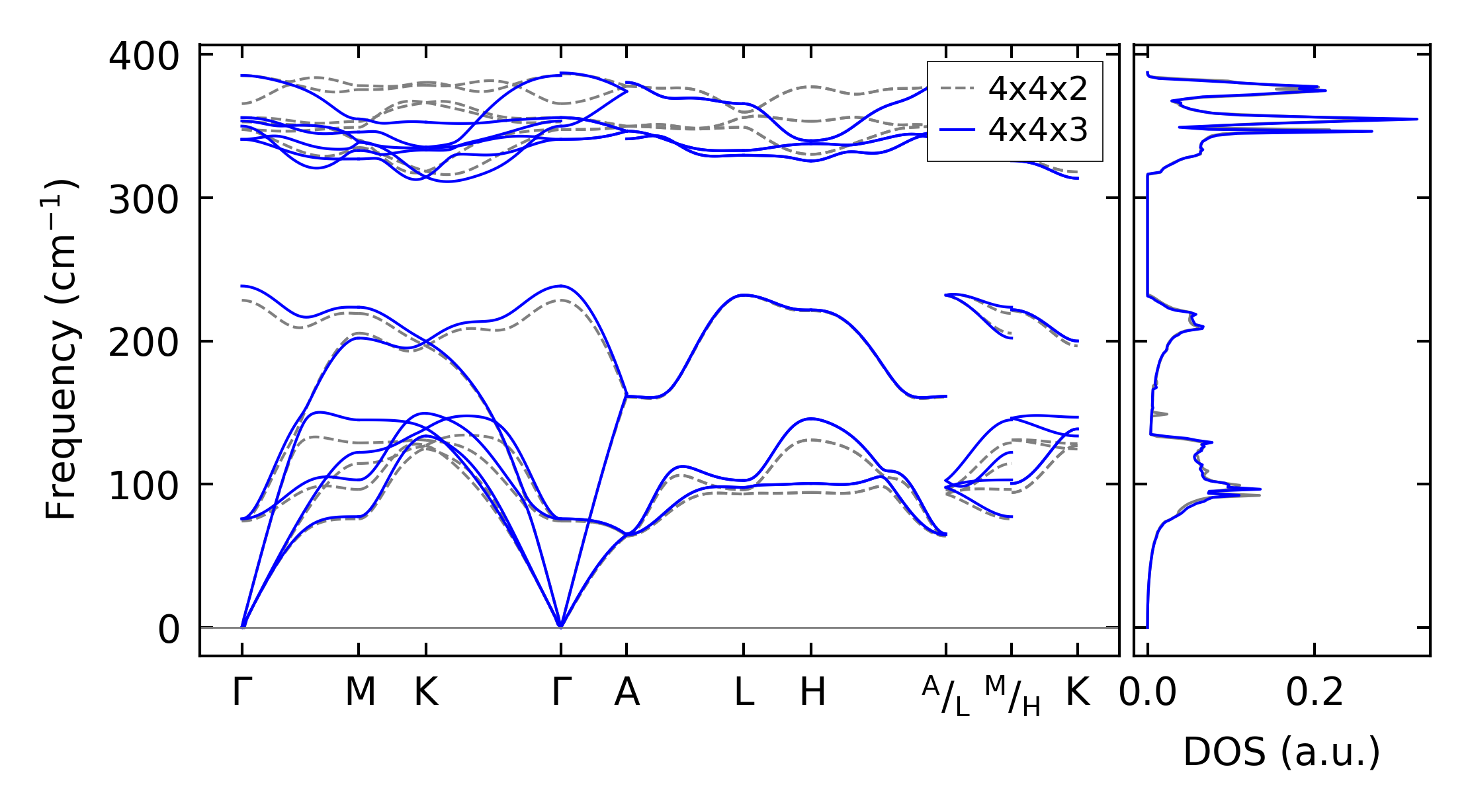

../../_images/fig_bandos1952.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo1951.png — (c) Thermodynamic properties

Grüneisen parameters

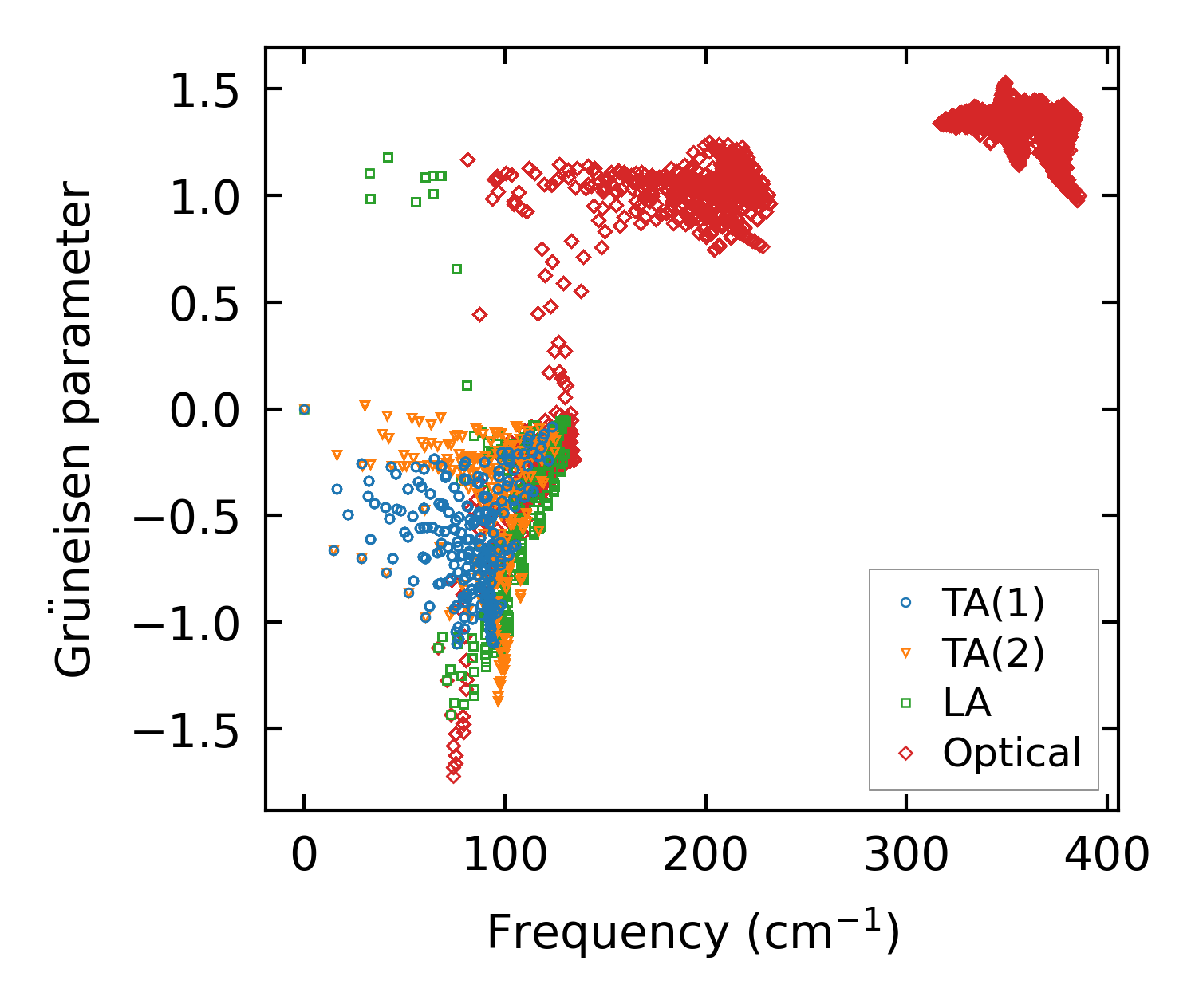

../../_images/fig_gru_all1122.png — (a) Grüneisen parameters

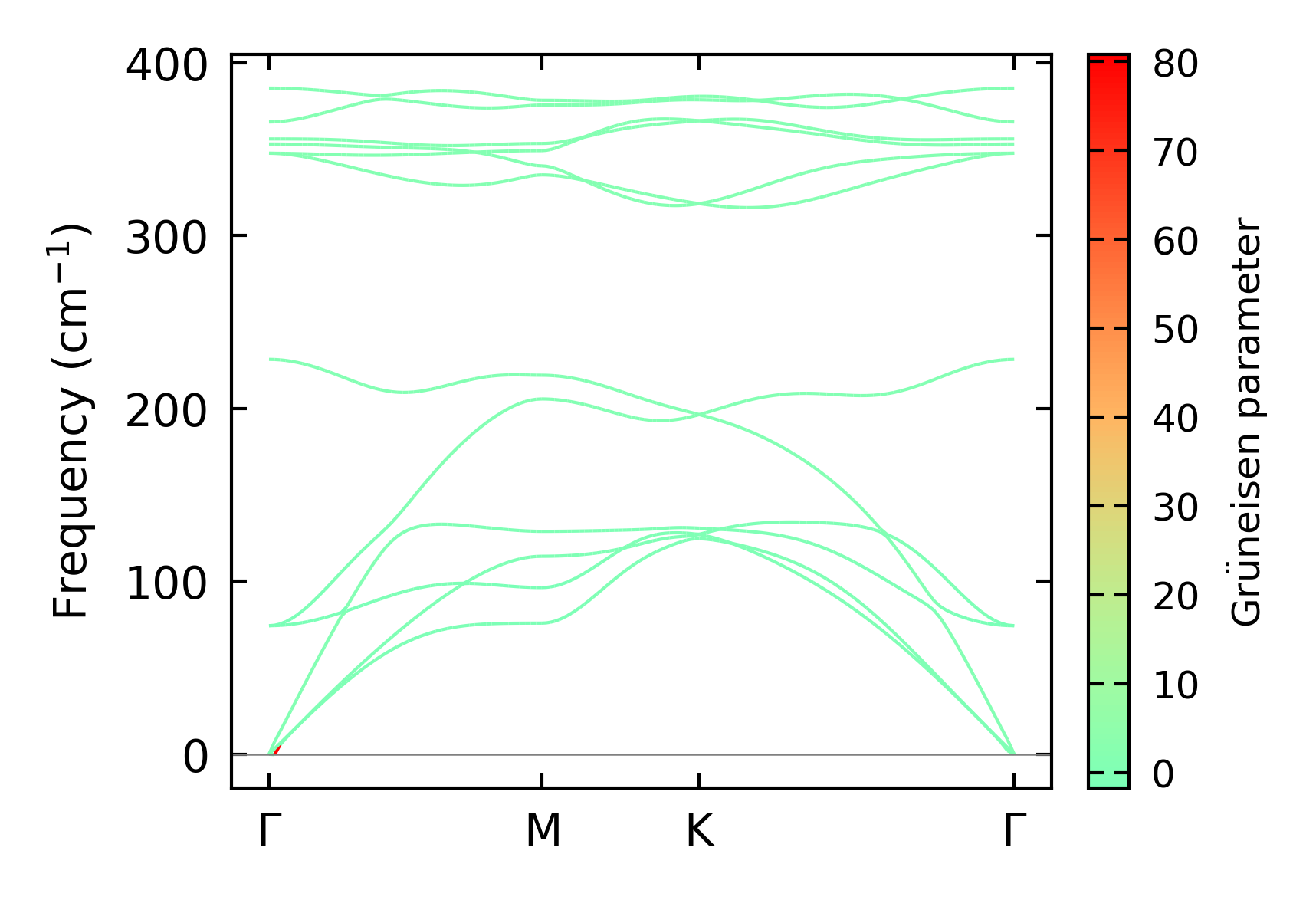

../../_images/fig_gruneisen1122.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 4x4x3 — q-mesh: 19x19x11, supercell: 4x4x3

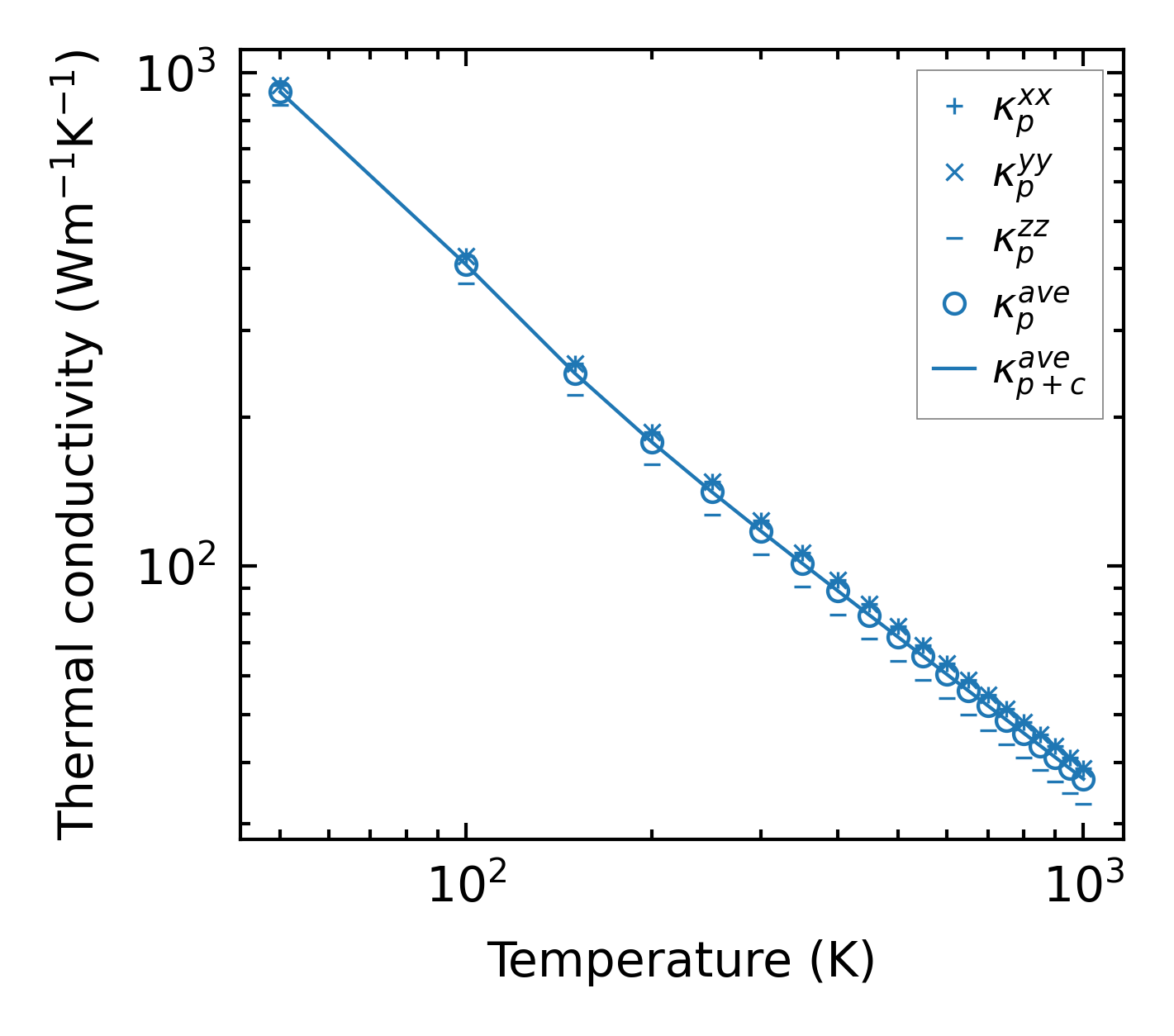

../../_images/fig_kappa2160.png — (a) Temperature-dependent lattice thermal conductivity

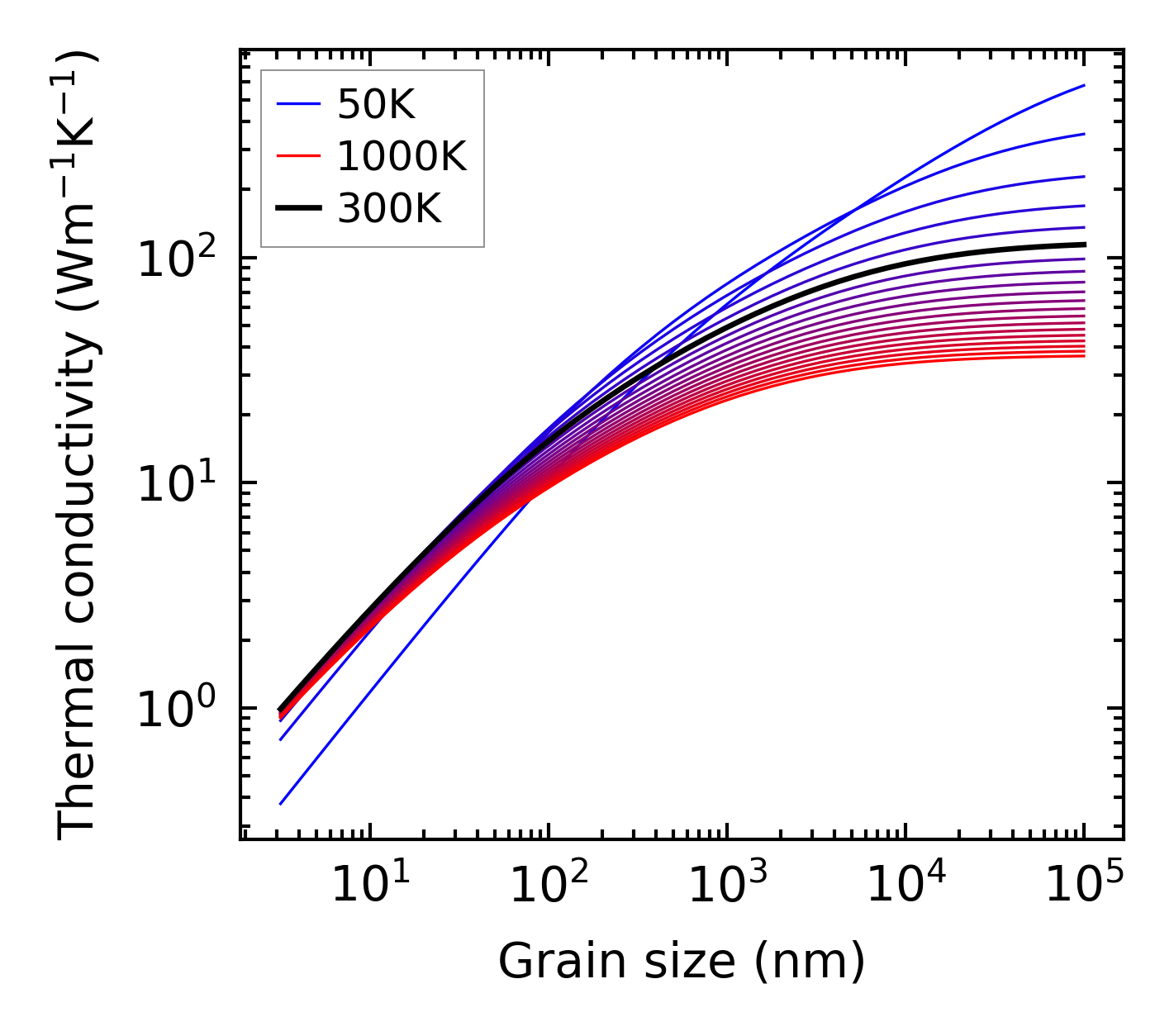

../../_images/fig_kappa_vs_grain_size1134.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

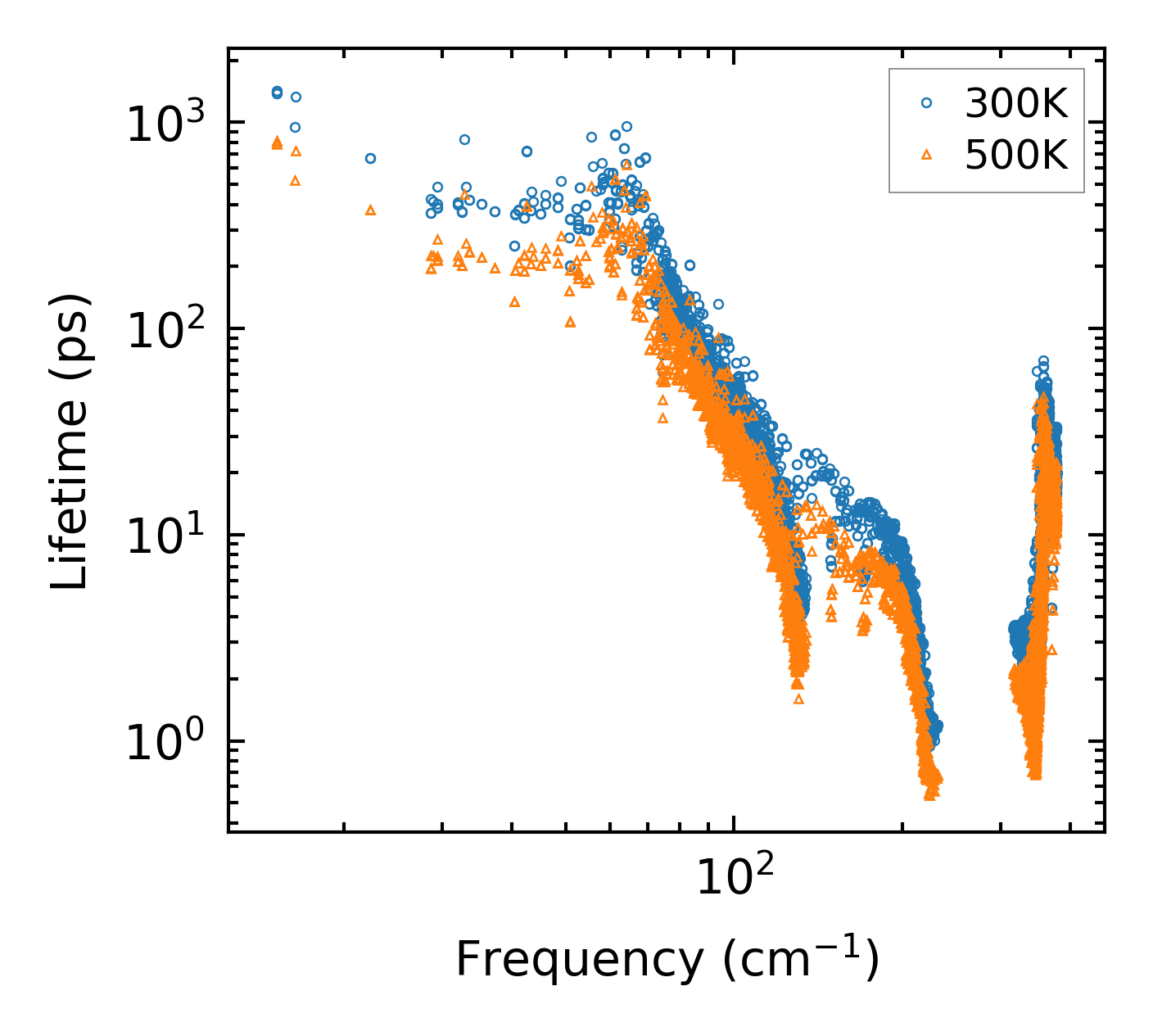

../../_images/fig_lifetime1113.png — (a) Phonon lifetime due to phonon-phonon scattering

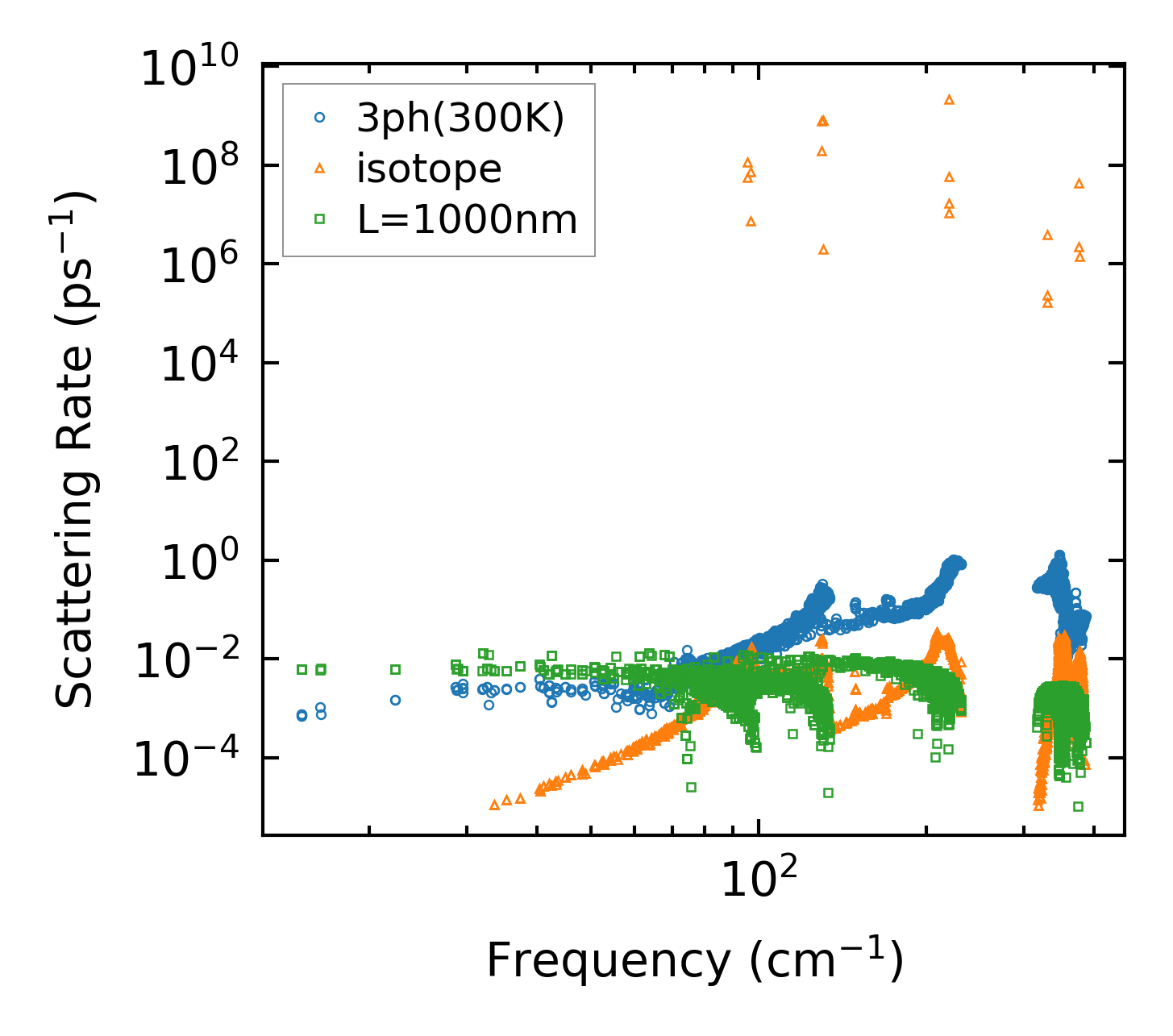

../../_images/fig_scat_rates1112.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

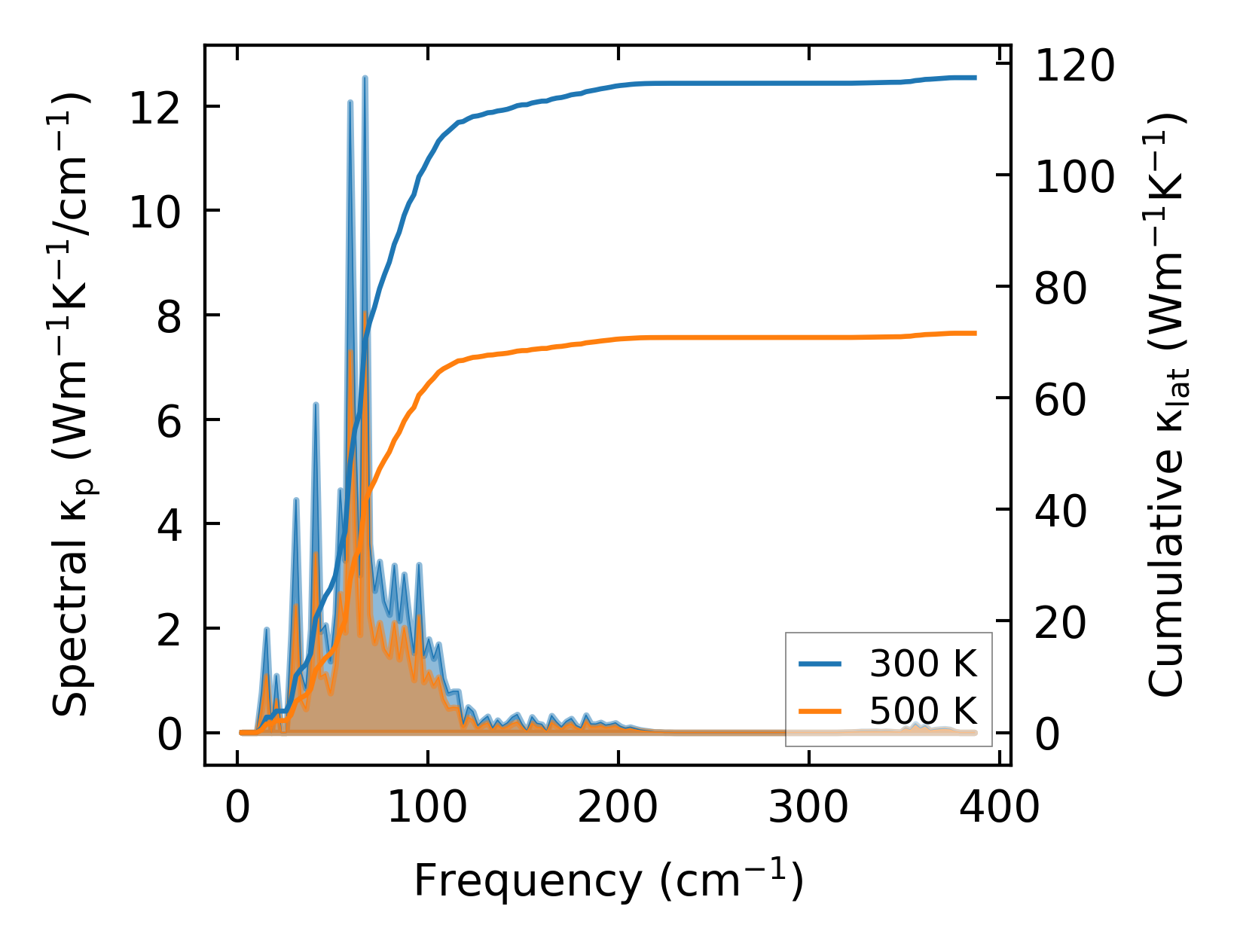

../../_images/fig_cumu_frequency1113.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

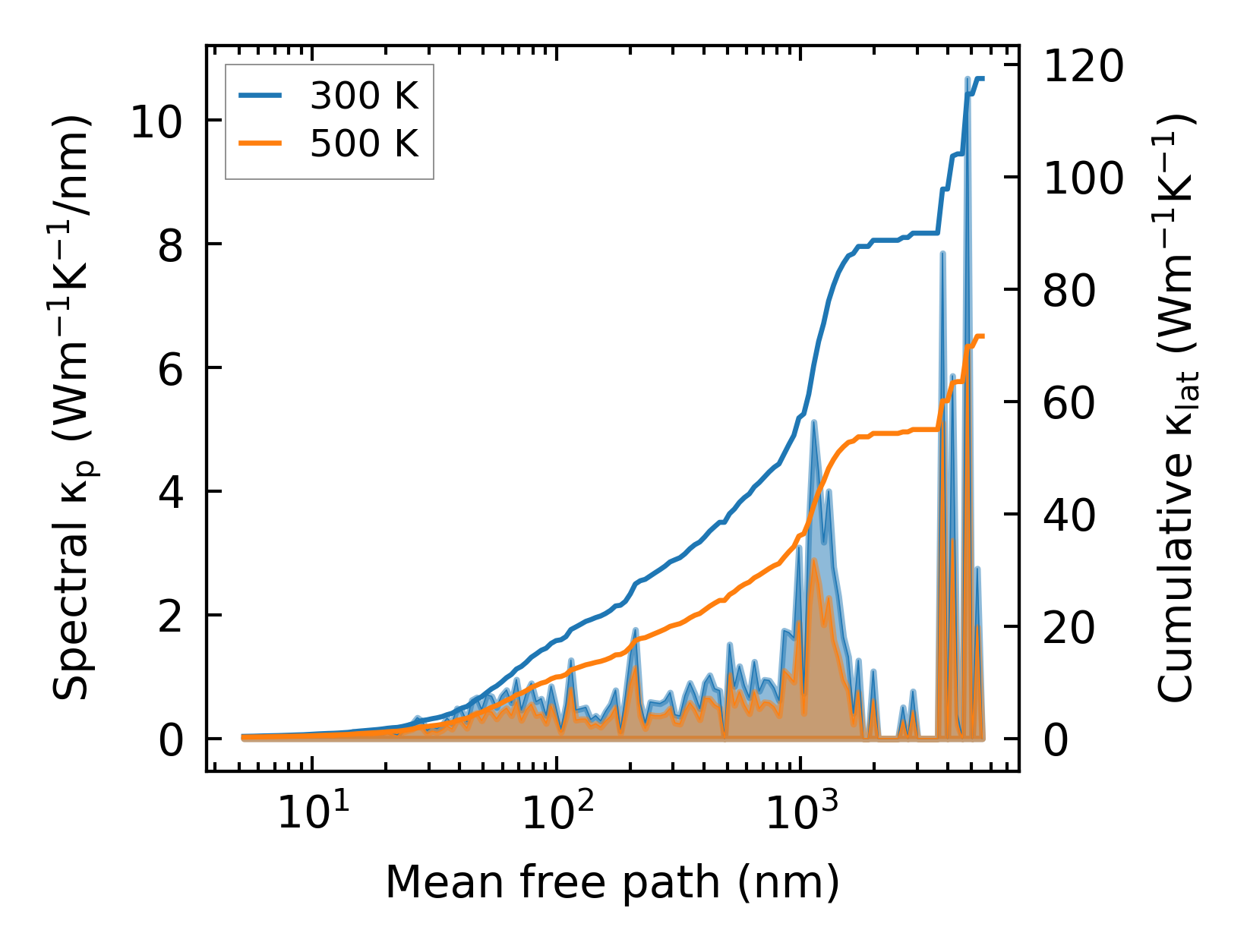

../../_images/fig_cumu_mfp1113.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

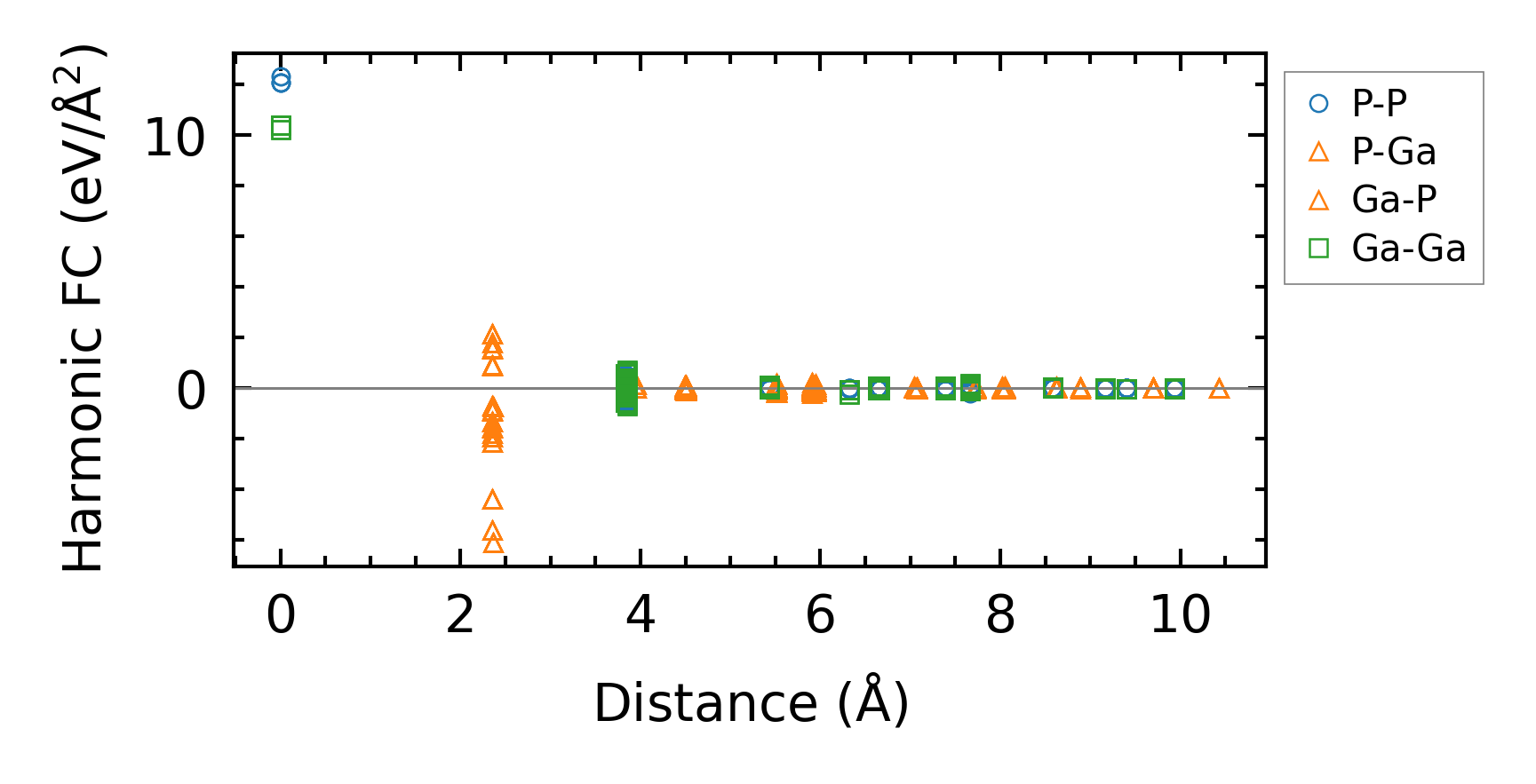

../../_images/fig_fc21774.png — (a) Force constants w.r.t atomic distance

Summary

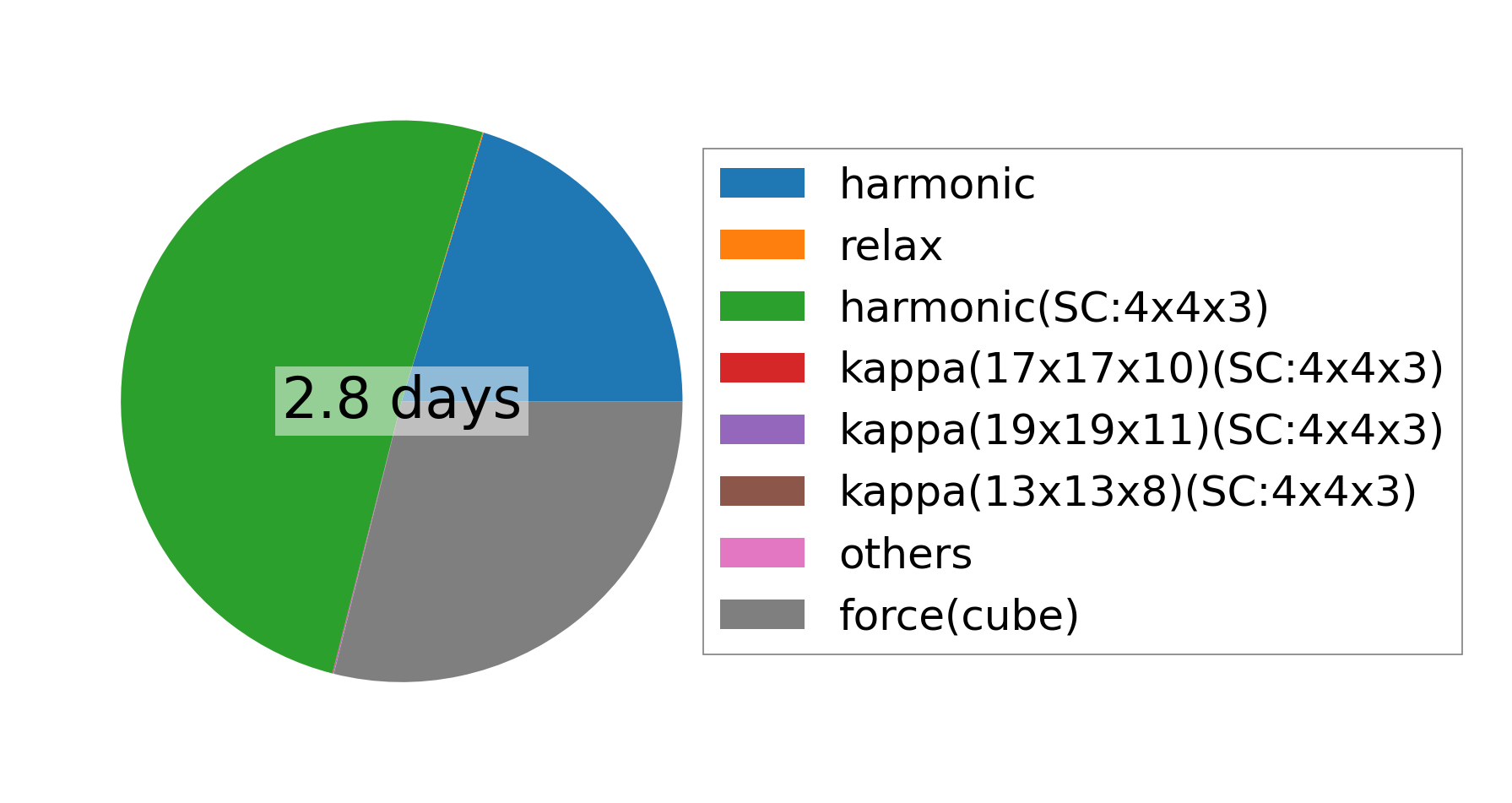

../../_images/fig_times2963.png — (a) Computation time
