mp-8892/LiInF4/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-8892.tar.gz

Harmonic properties

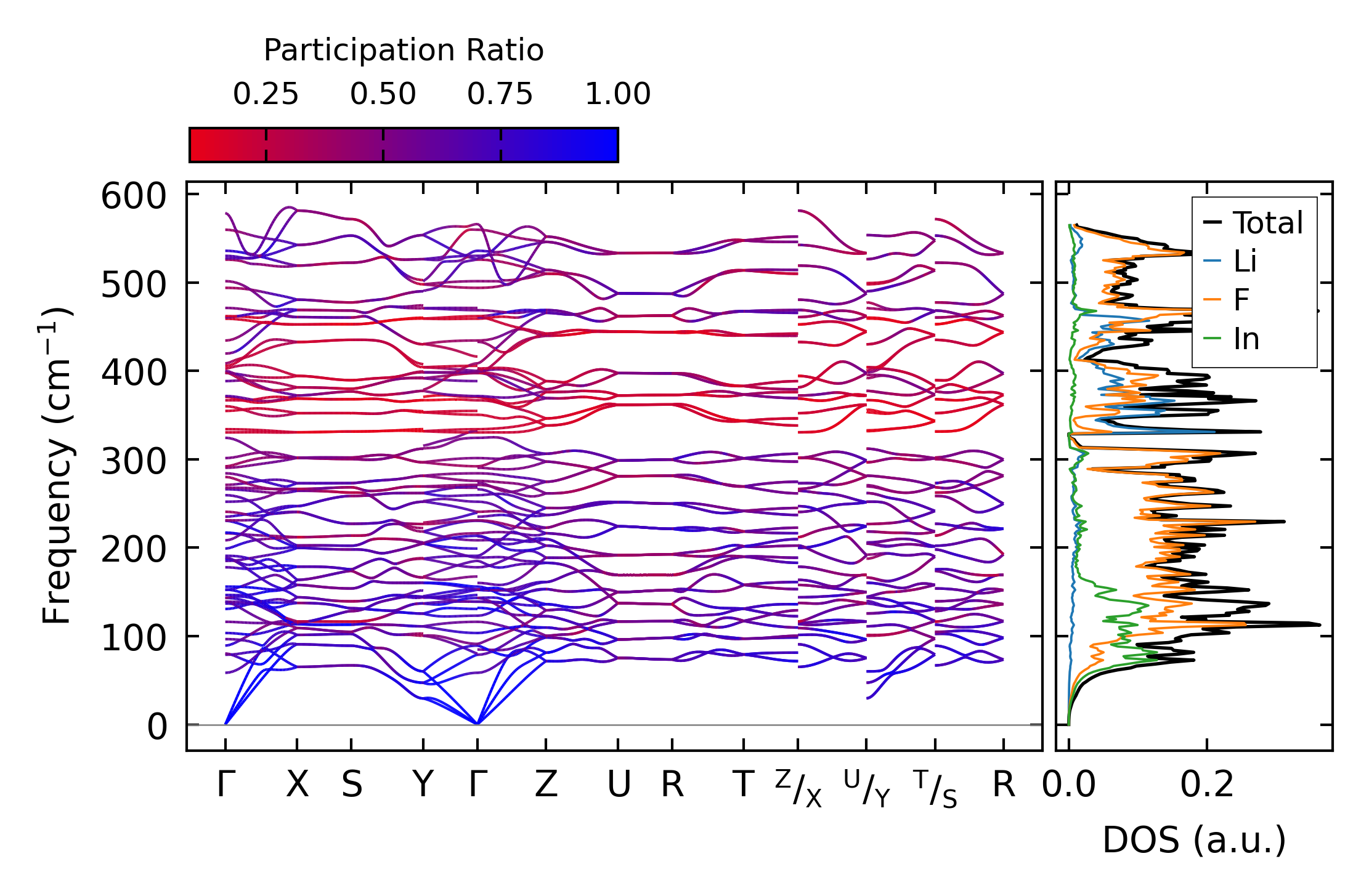

../../_images/fig_bandos_pr1957.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1957.png — (b) Thermodynamic properties

Grüneisen parameters

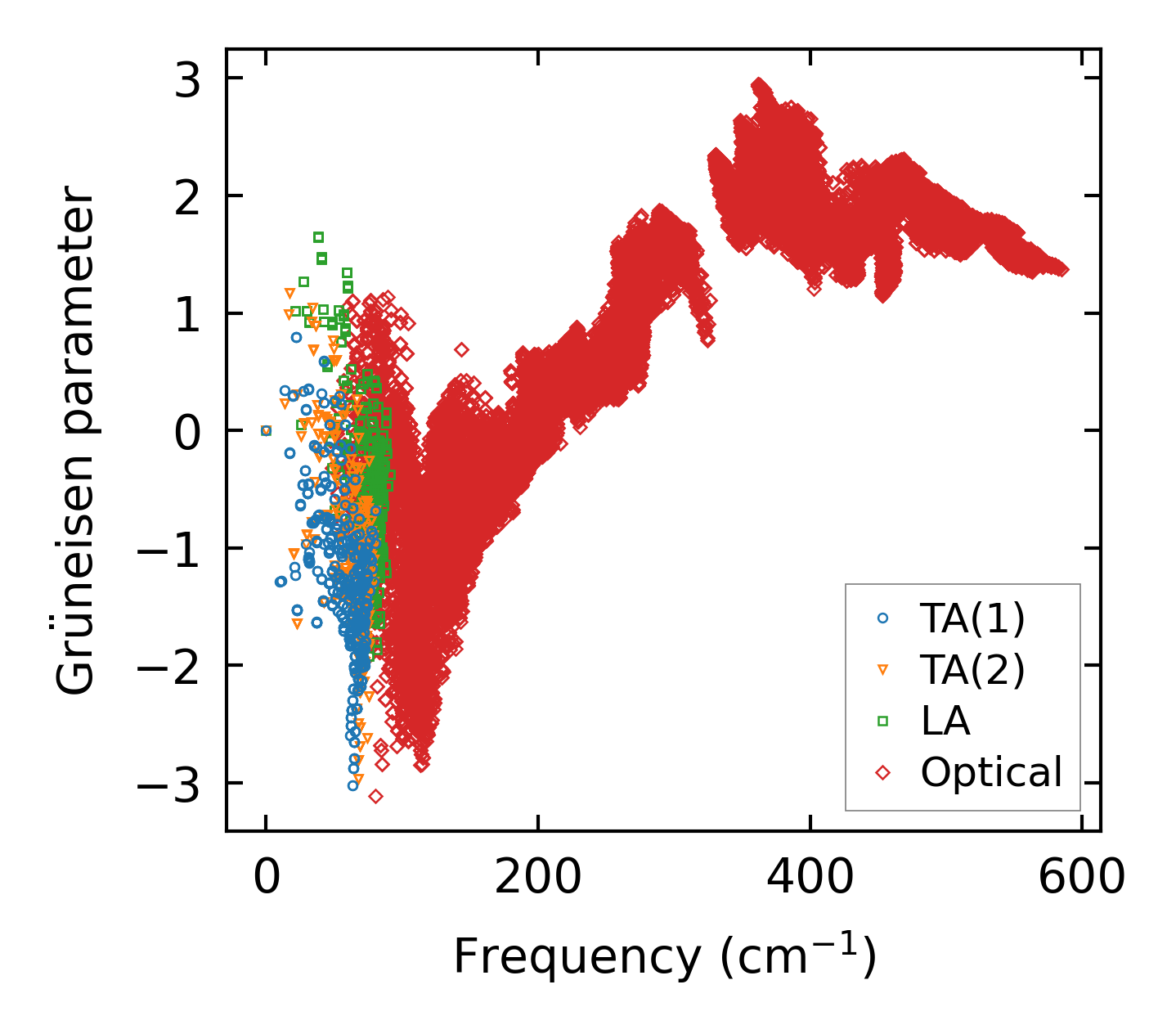

../../_images/fig_gru_all1126.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1126.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x6x14, supercell: 3x1x2

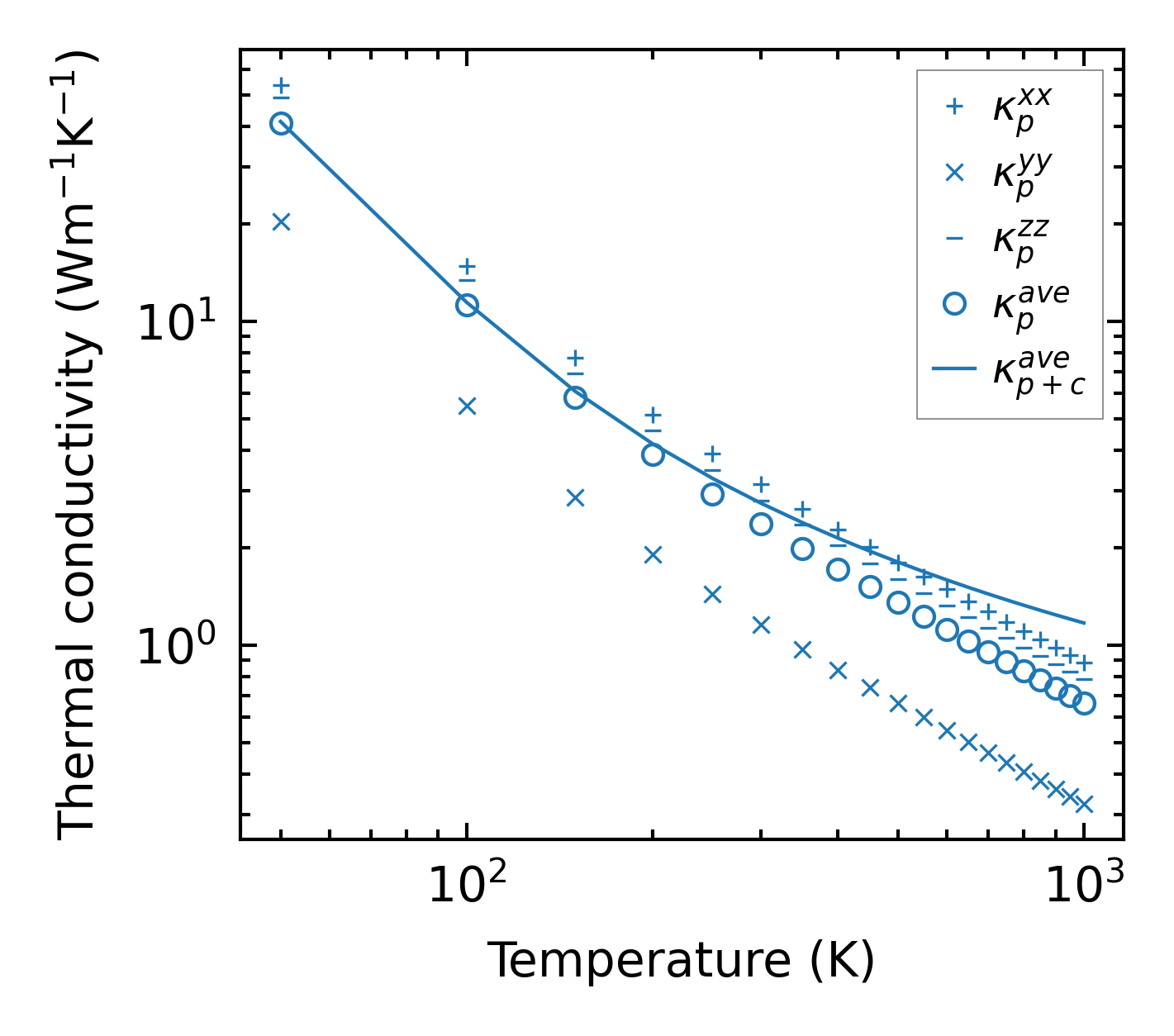

../../_images/fig_kappa2167.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1138.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

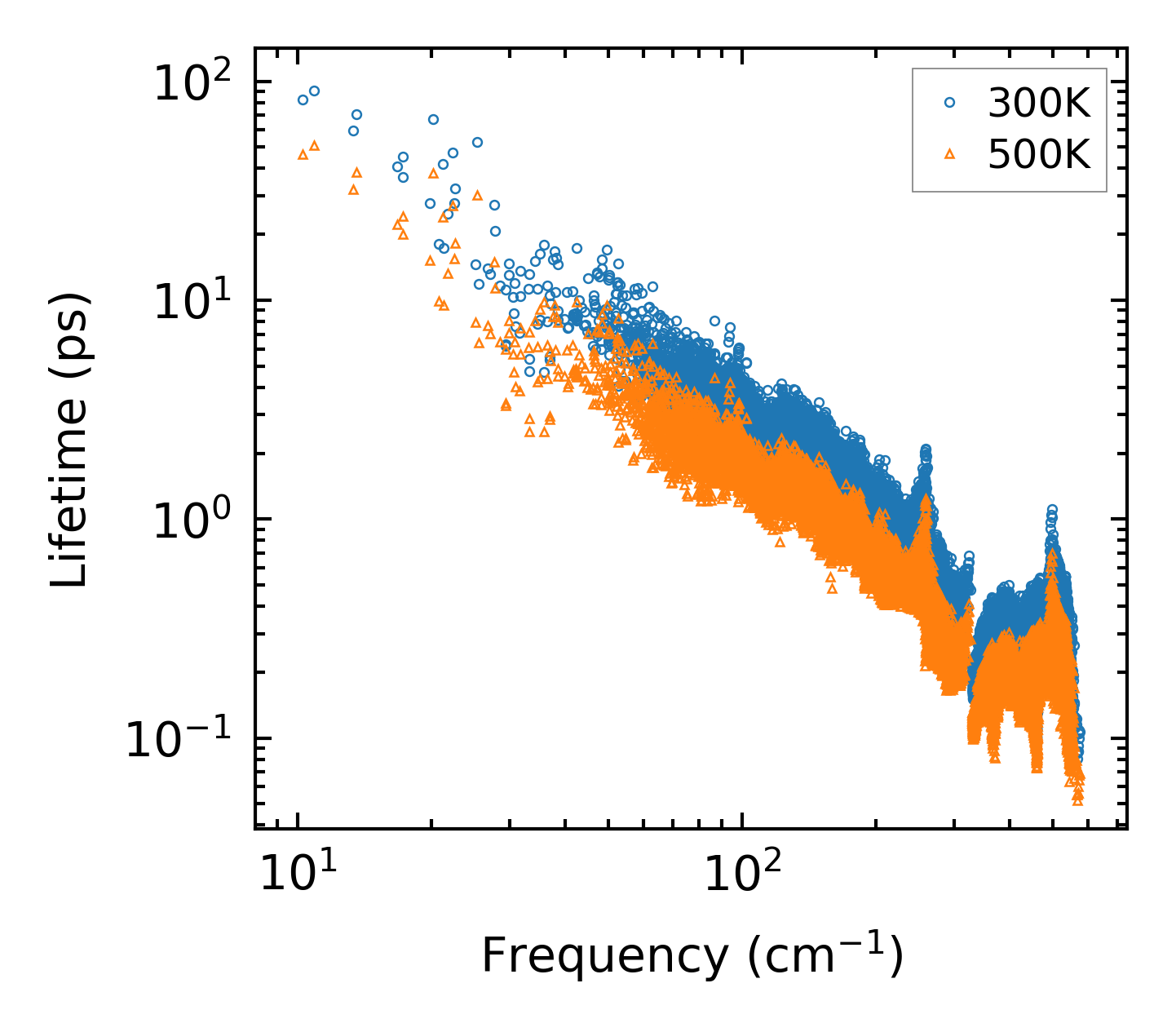

../../_images/fig_lifetime1117.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1116.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

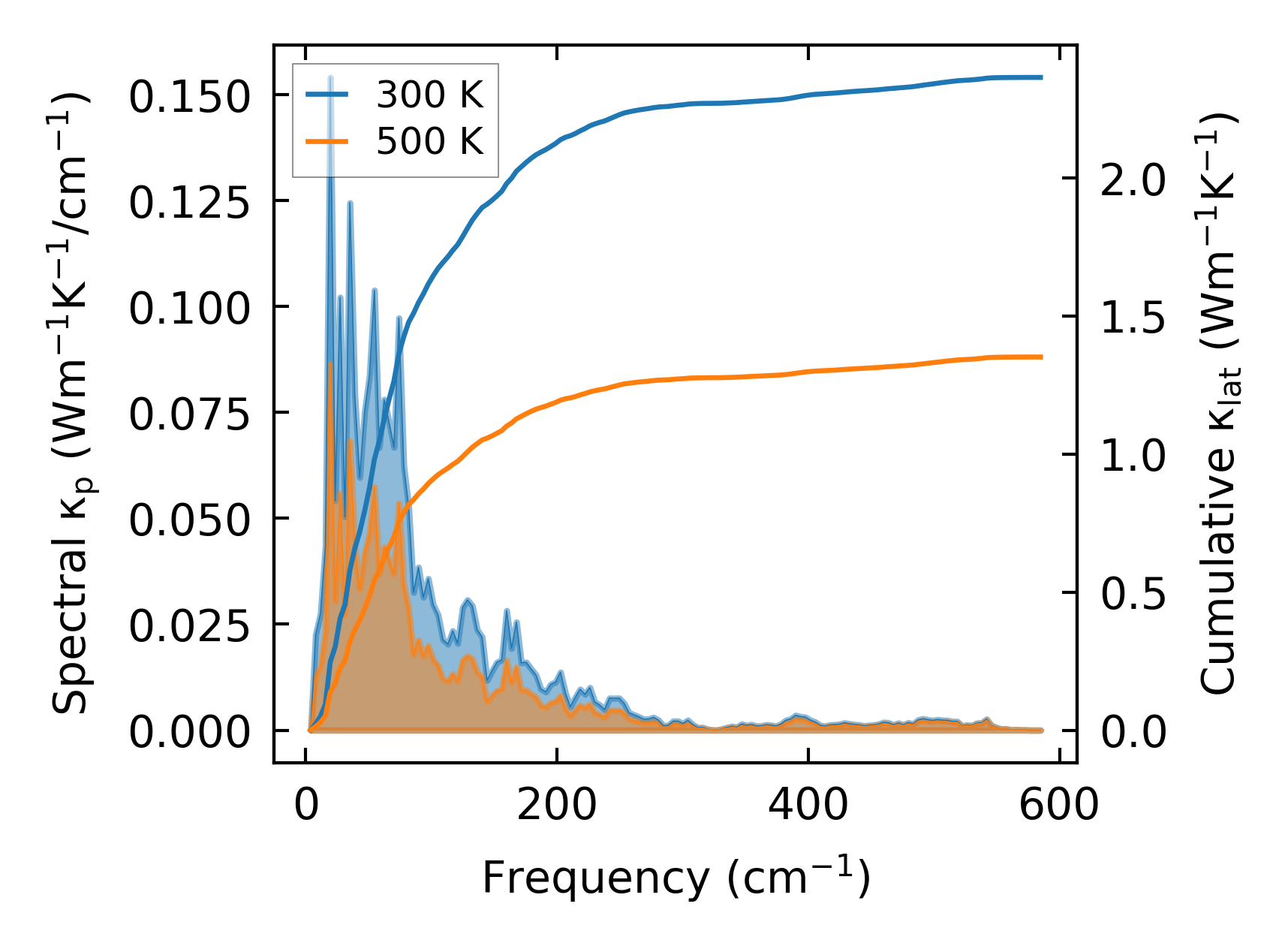

../../_images/fig_cumu_frequency1117.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

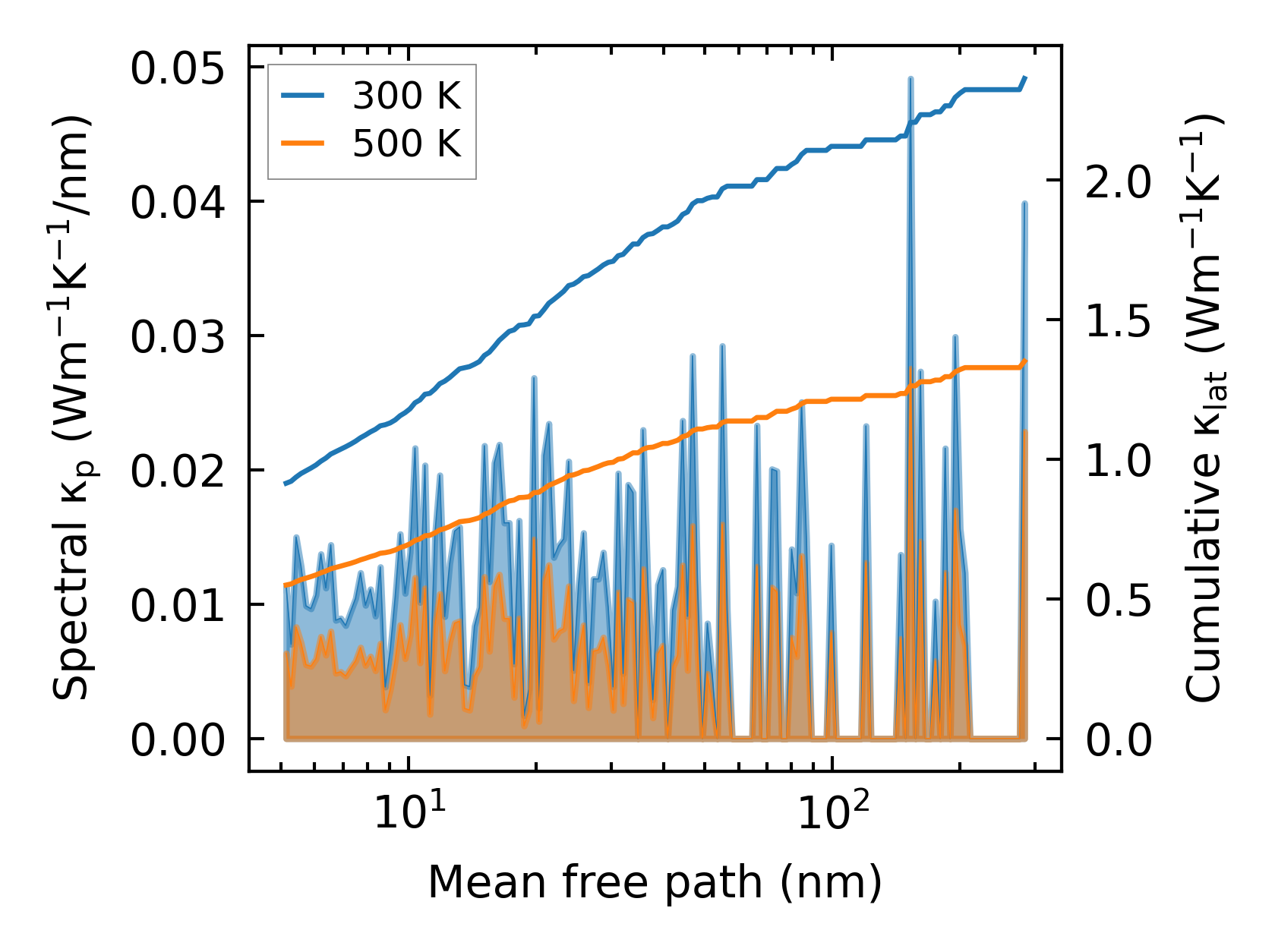

../../_images/fig_cumu_mfp1117.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

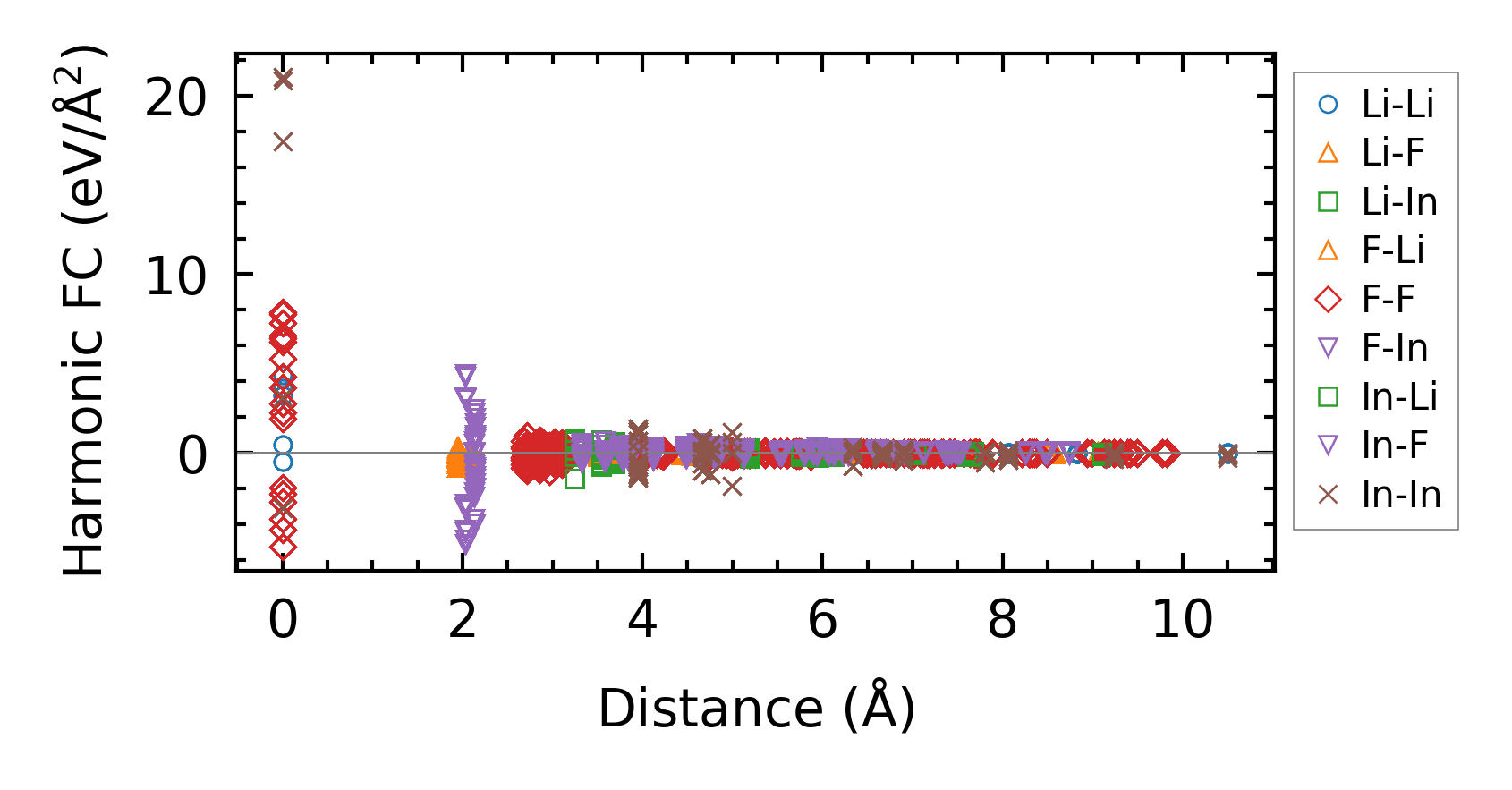

../../_images/fig_fc21780.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2168.png — (a) Temperature-dependent lattice thermal conductivity

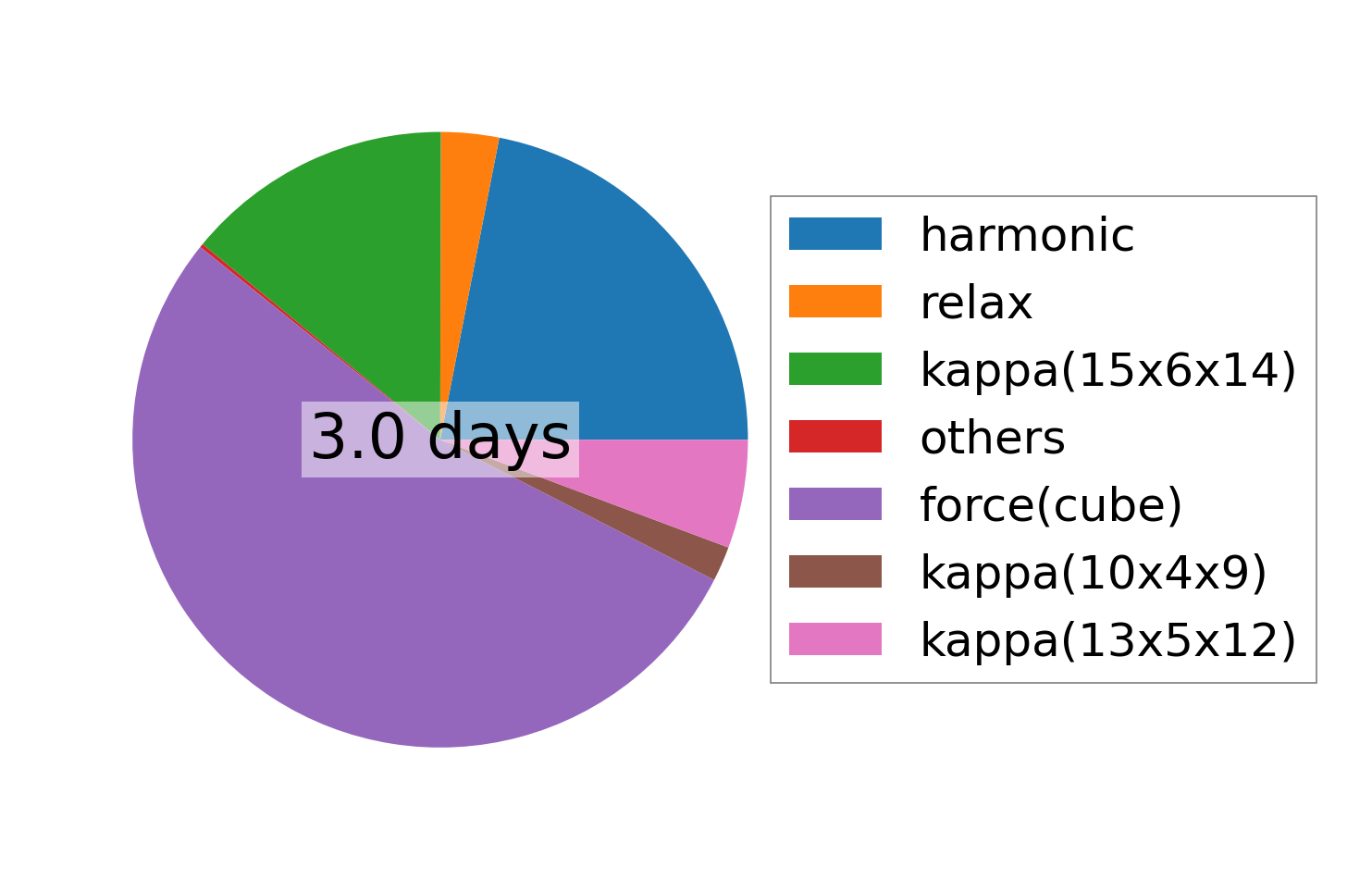

../../_images/fig_times2975.png — (b) Computation time
