mp-8134-2/UO3/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-8134-2.tar.gz

Equation of state

../../_images/fig_bm873.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr2049.png — (a) Phonon dispersion with participation ratio and DOS

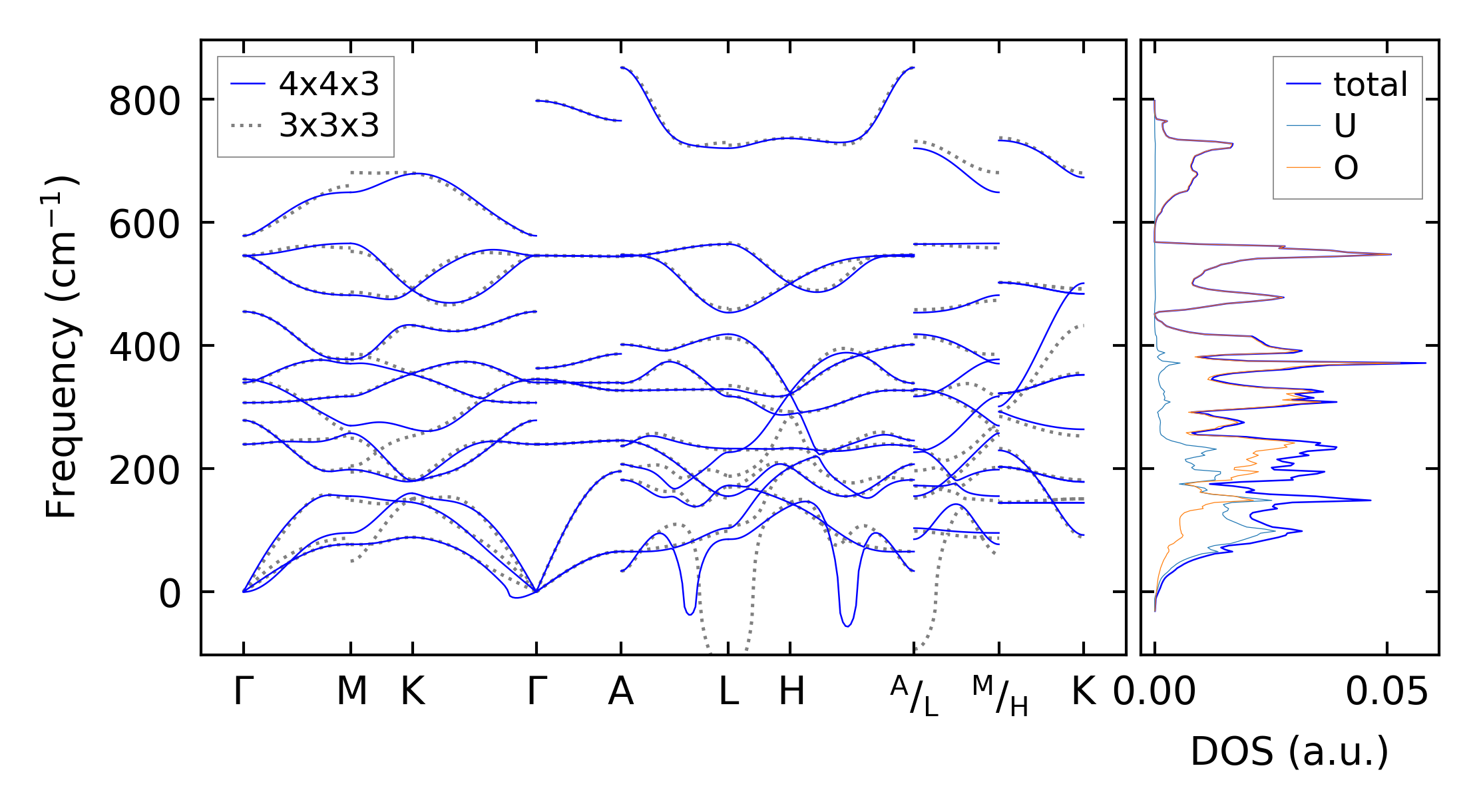

../../_images/fig_bandos2110.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo2049.png — (c) Thermodynamic properties

Grüneisen parameters

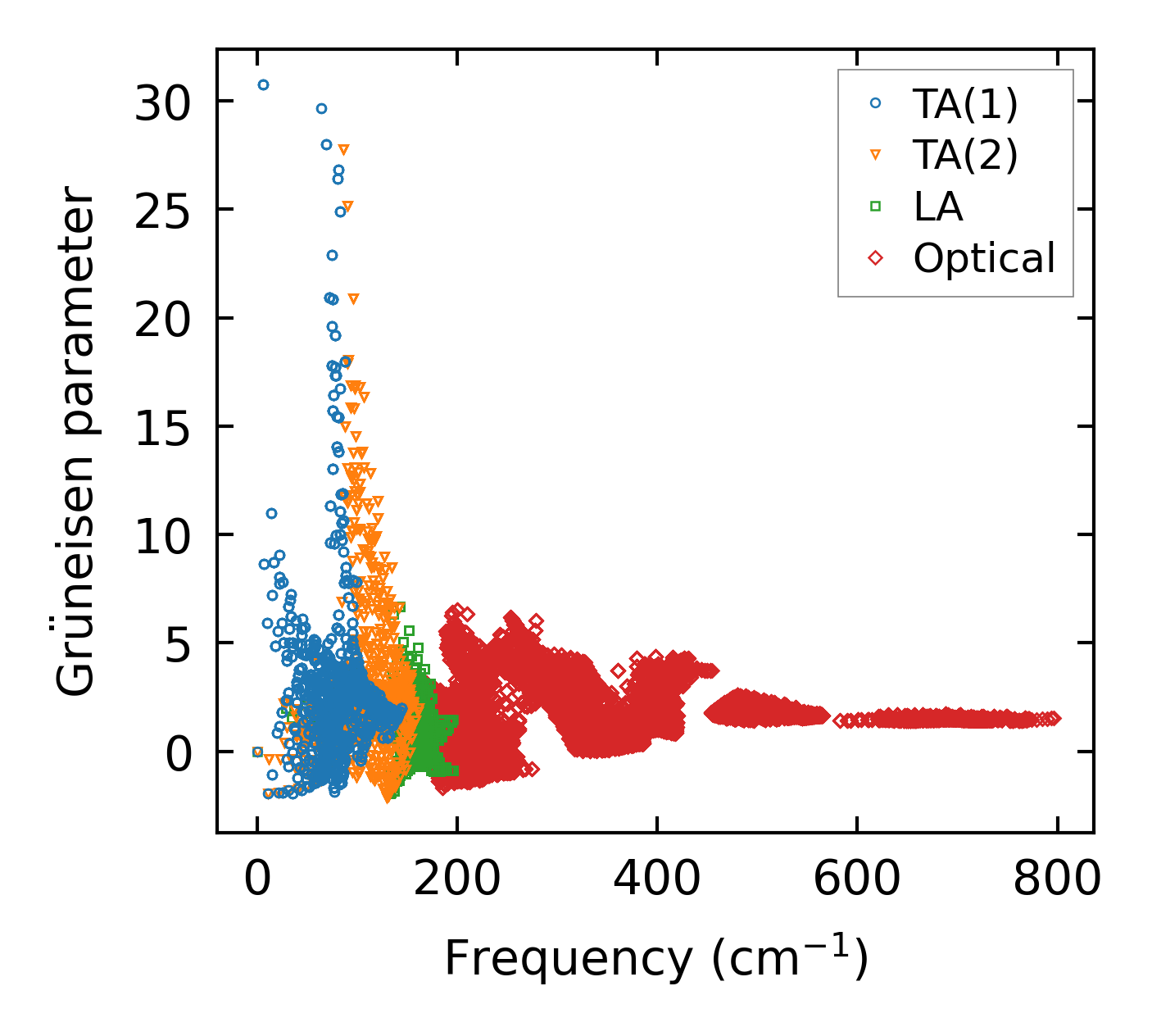

../../_images/fig_gru_all1168.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1168.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x18, supercell: 3x3x3

../../_images/fig_kappa2250.png — (a) Temperature-dependent lattice thermal conductivity

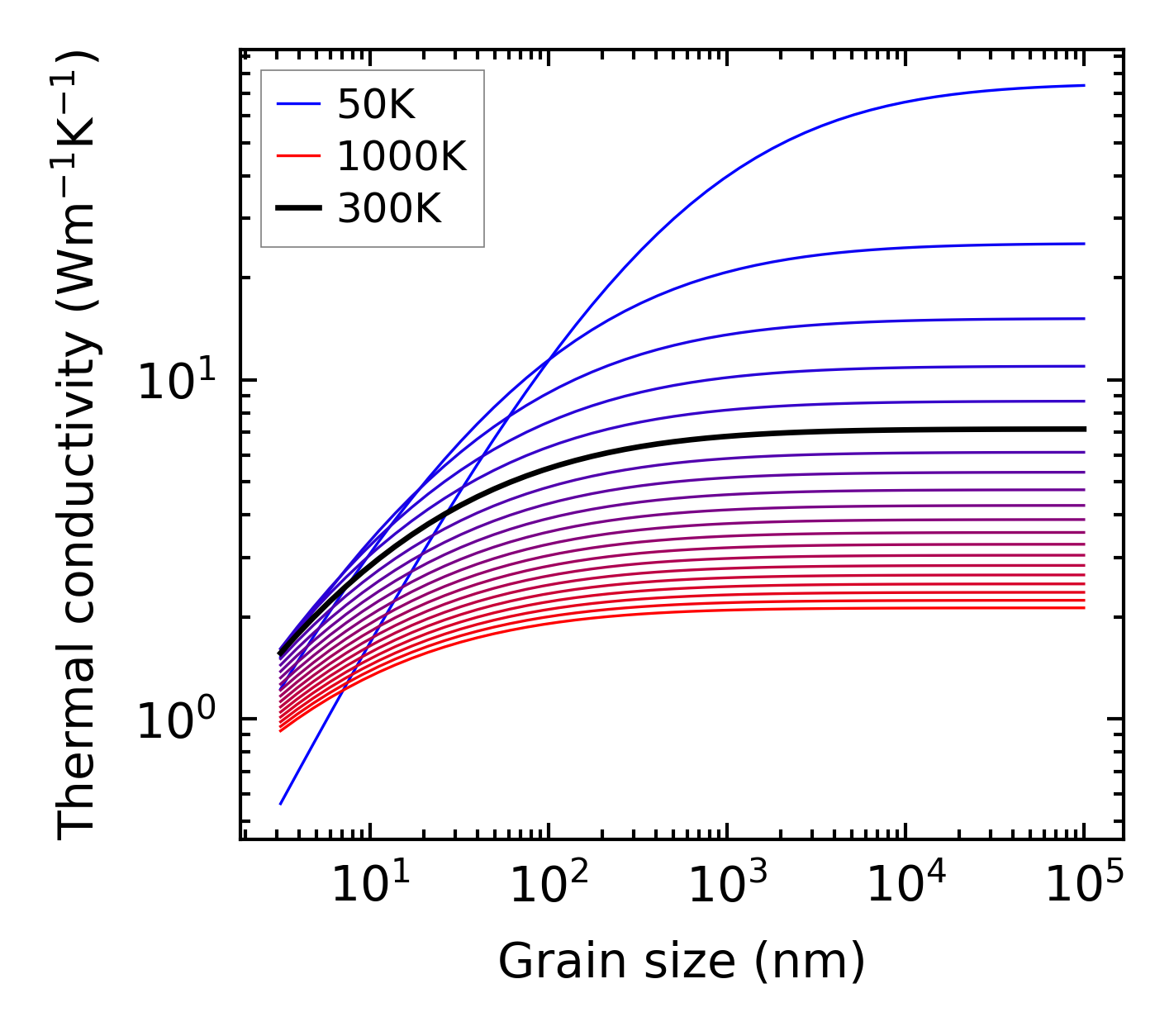

../../_images/fig_kappa_vs_grain_size1182.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

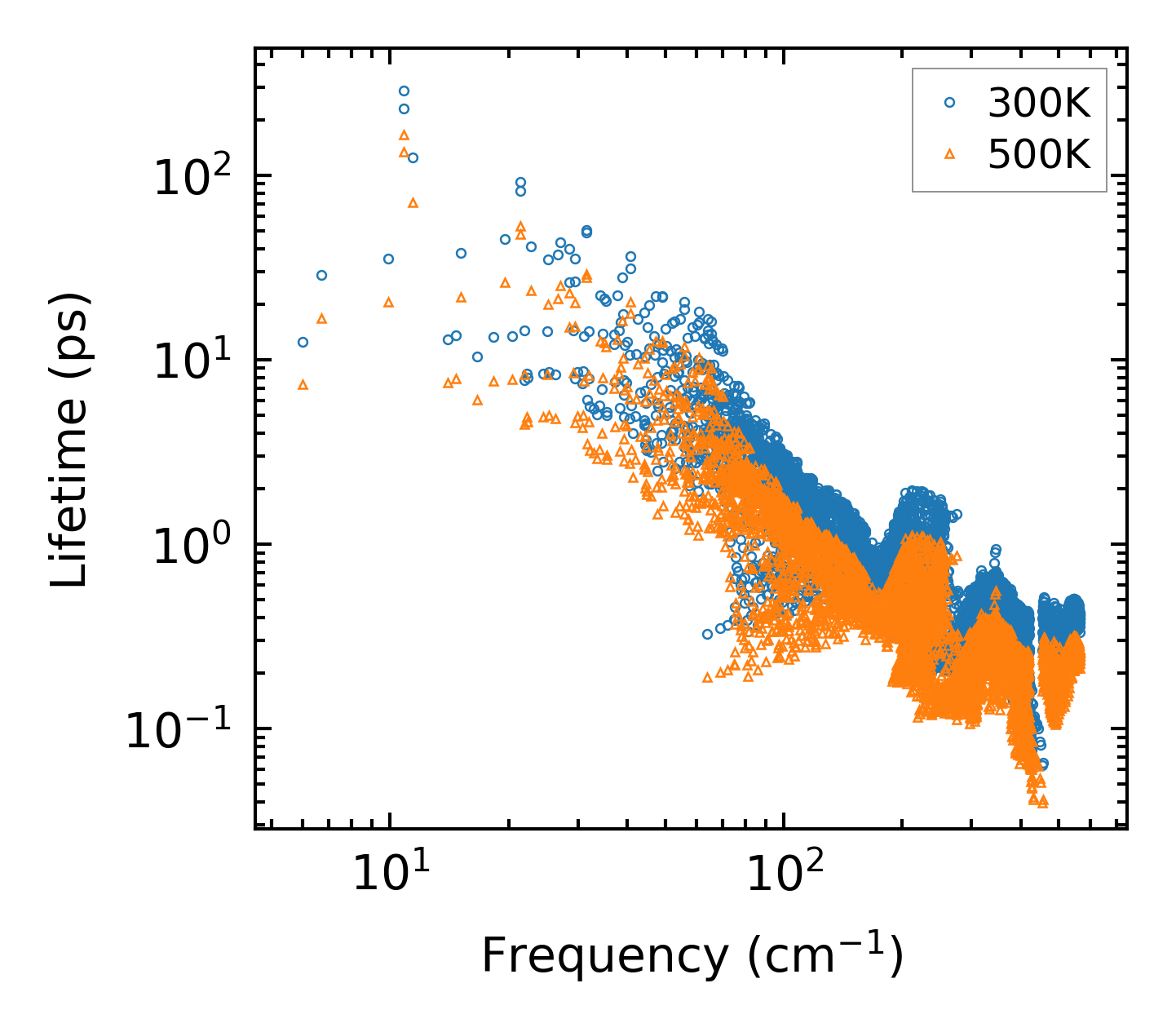

../../_images/fig_lifetime1158.png — (a) Phonon lifetime due to phonon-phonon scattering

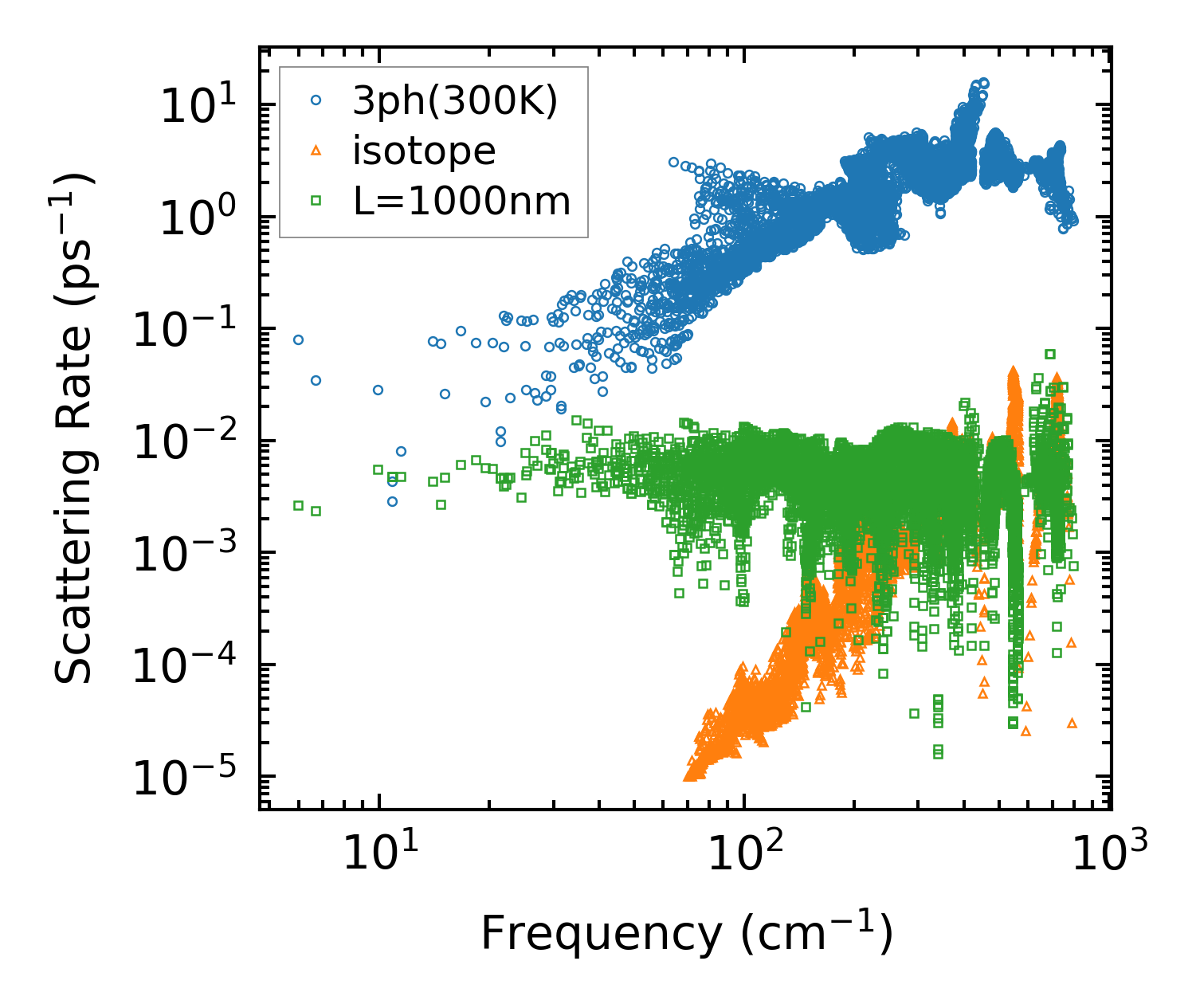

../../_images/fig_scat_rates1157.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1158.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

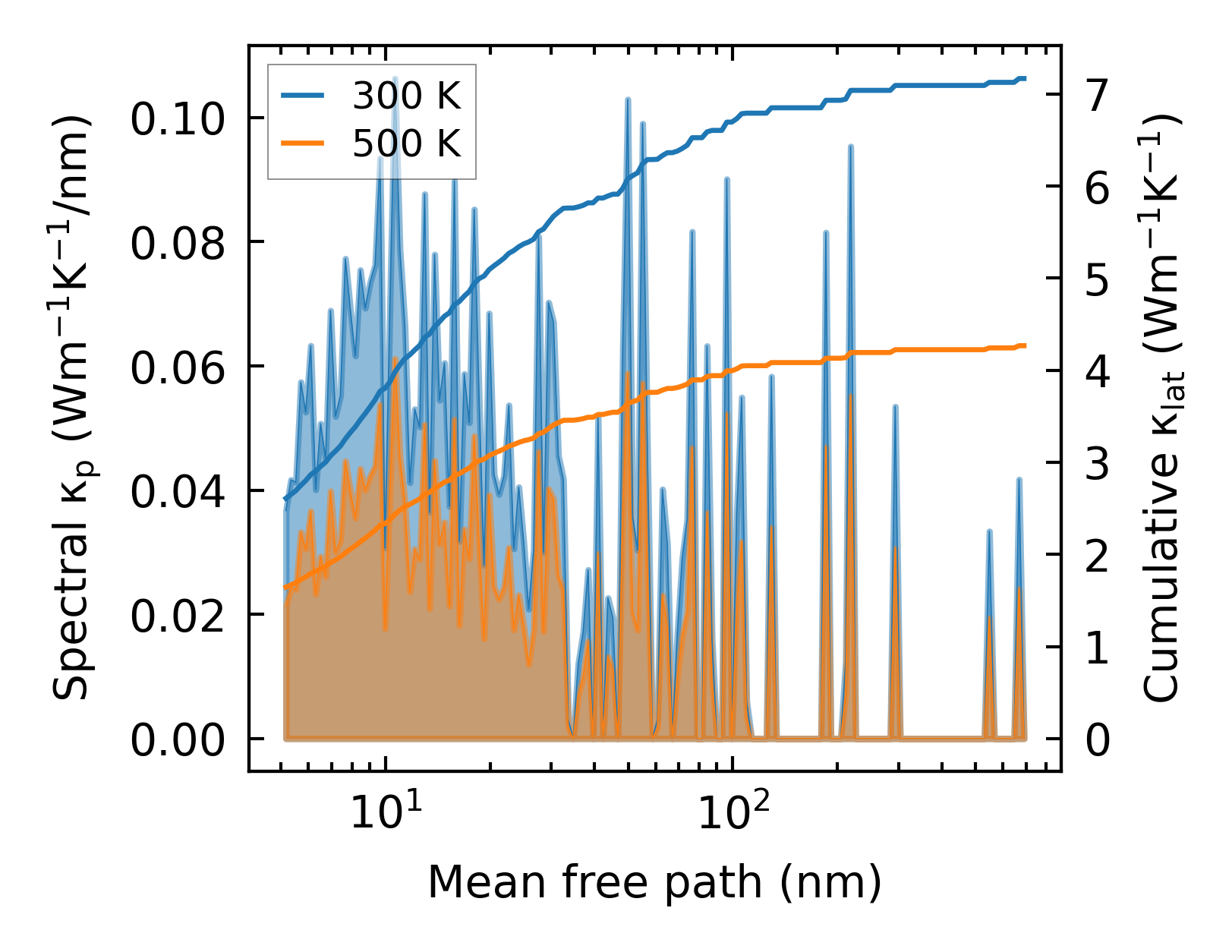

../../_images/fig_cumu_mfp1158.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

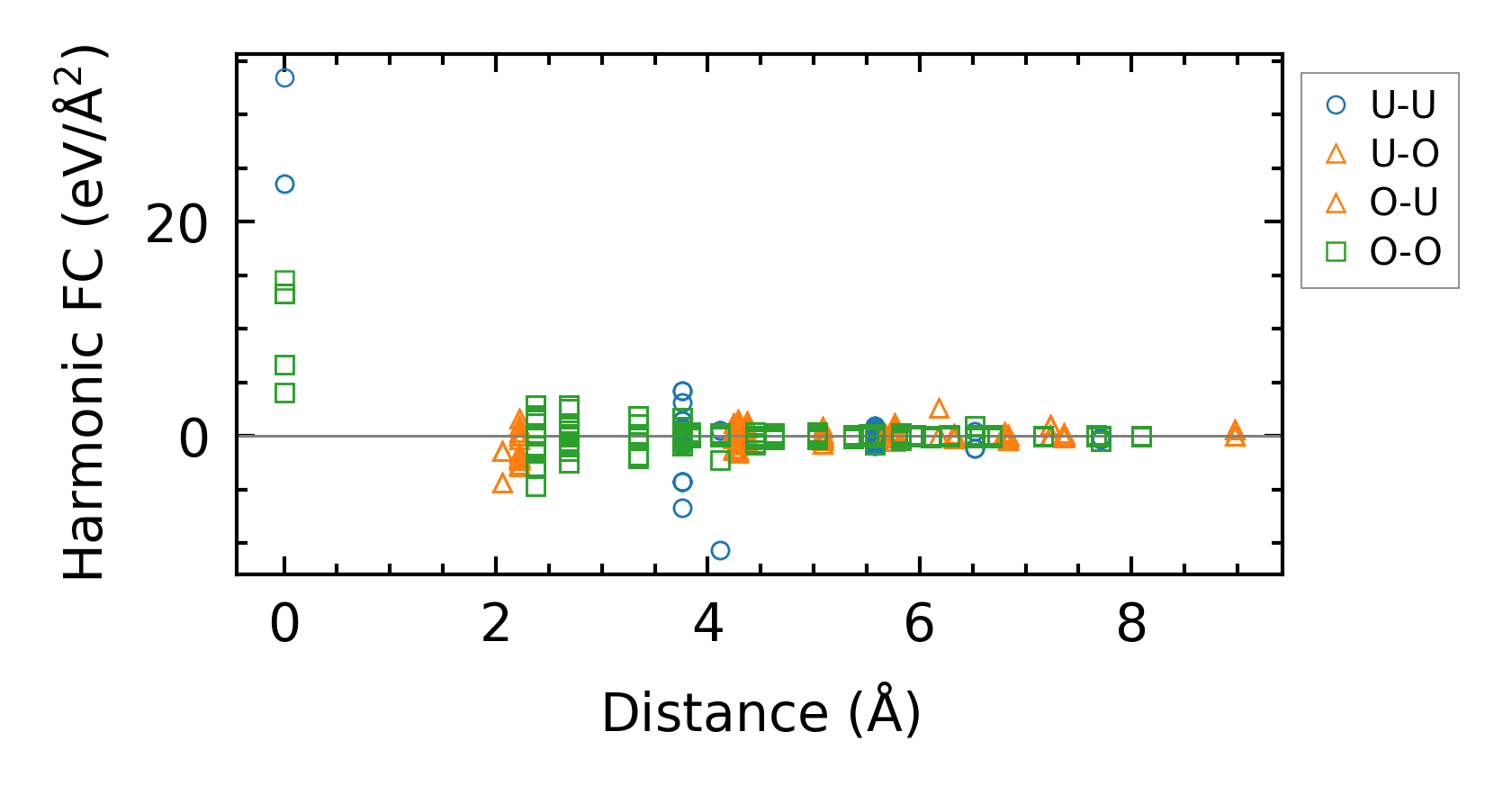

../../_images/fig_fc21870.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2251.png — (a) Temperature-dependent lattice thermal conductivity

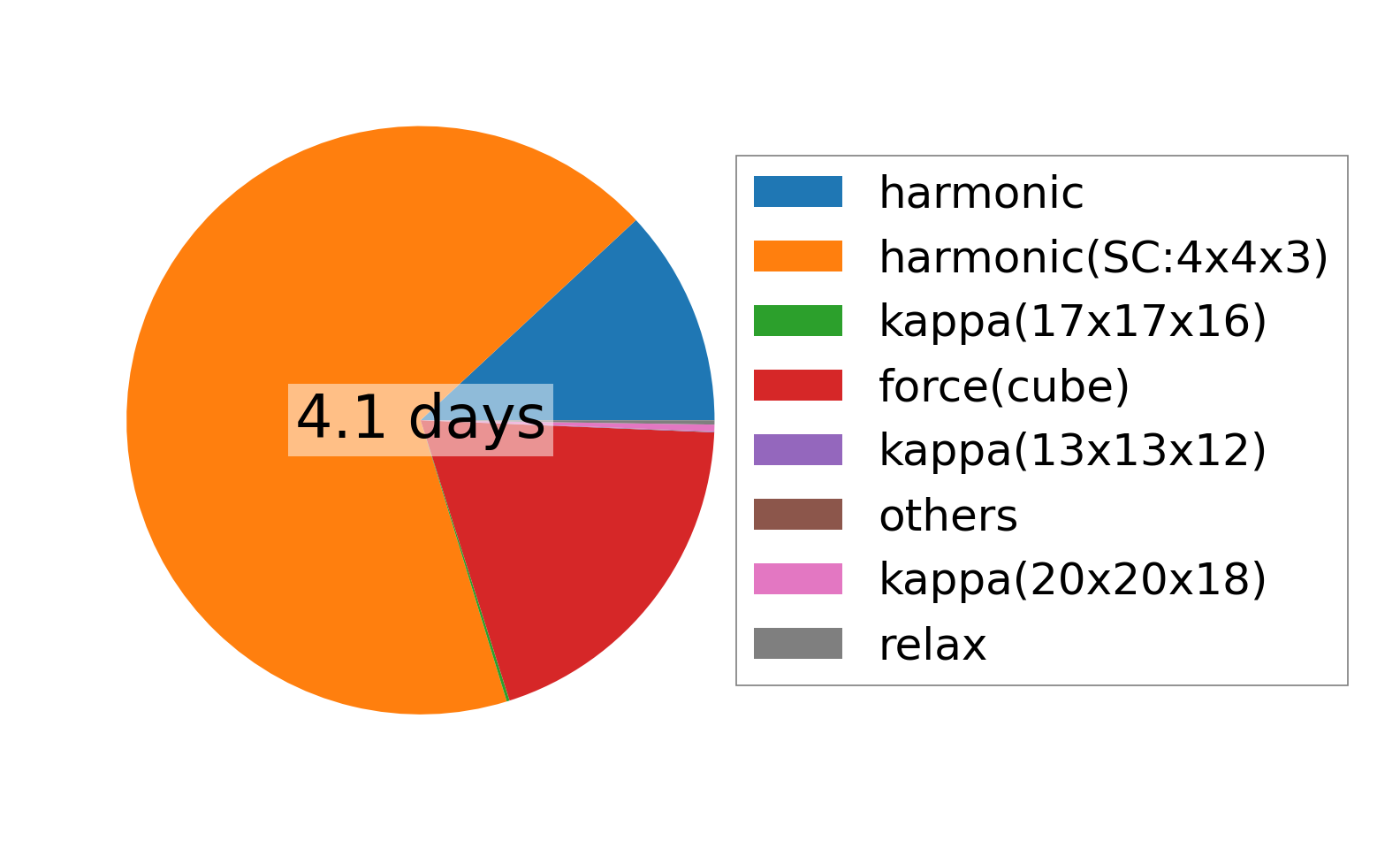

../../_images/fig_times3159.png — (b) Computation time
