mp-8056-2/CaB2O4/anharm

Space group: Pccn (56)
Link: Materials Project
Download: mp-8056-2.tar.gz

Equation of state

../../_images/fig_bm863.png — (a) Equation of state

Harmonic properties

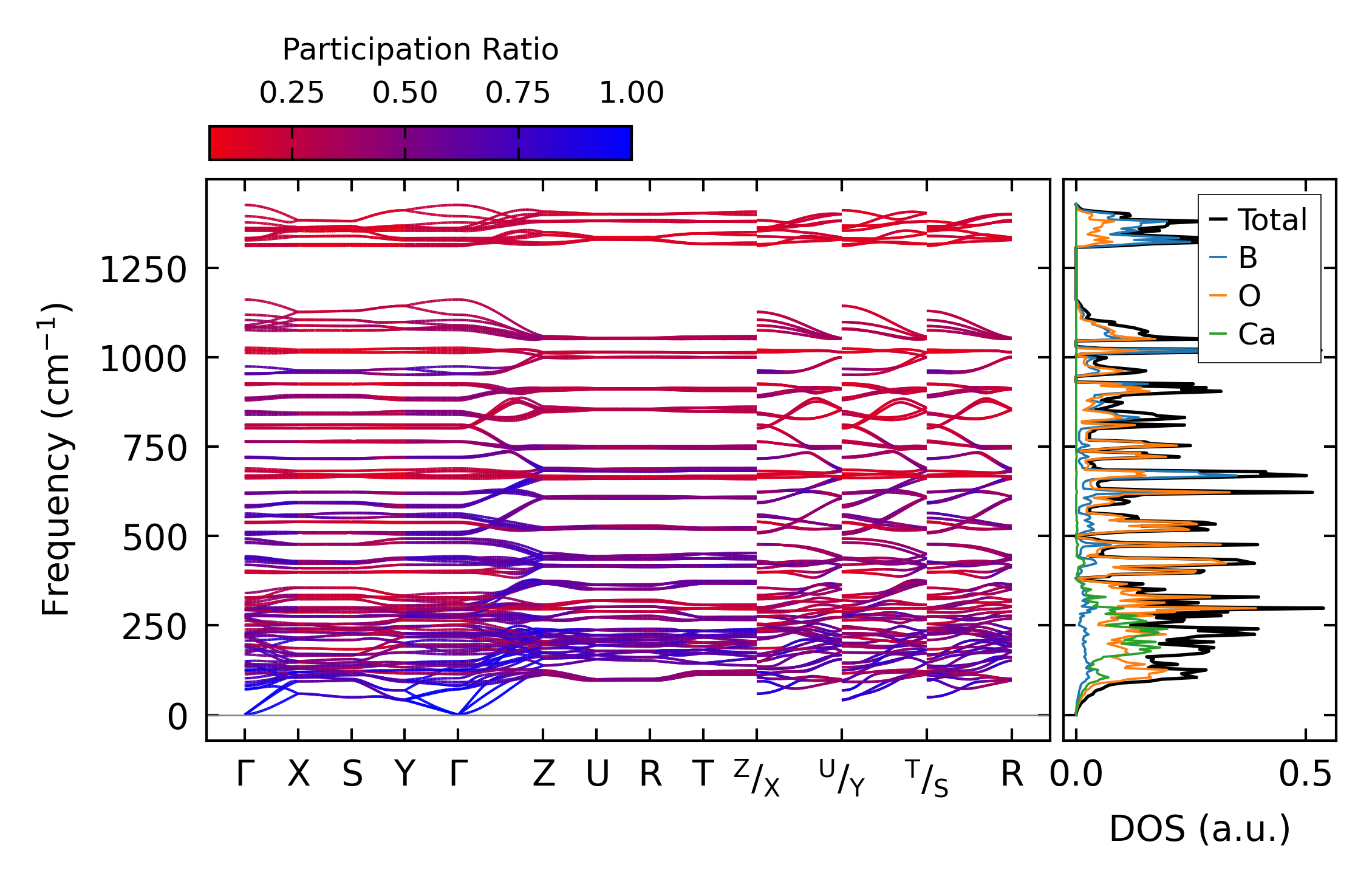

../../_images/fig_bandos_pr2029.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2029.png — (b) Thermodynamic properties

Grüneisen parameters

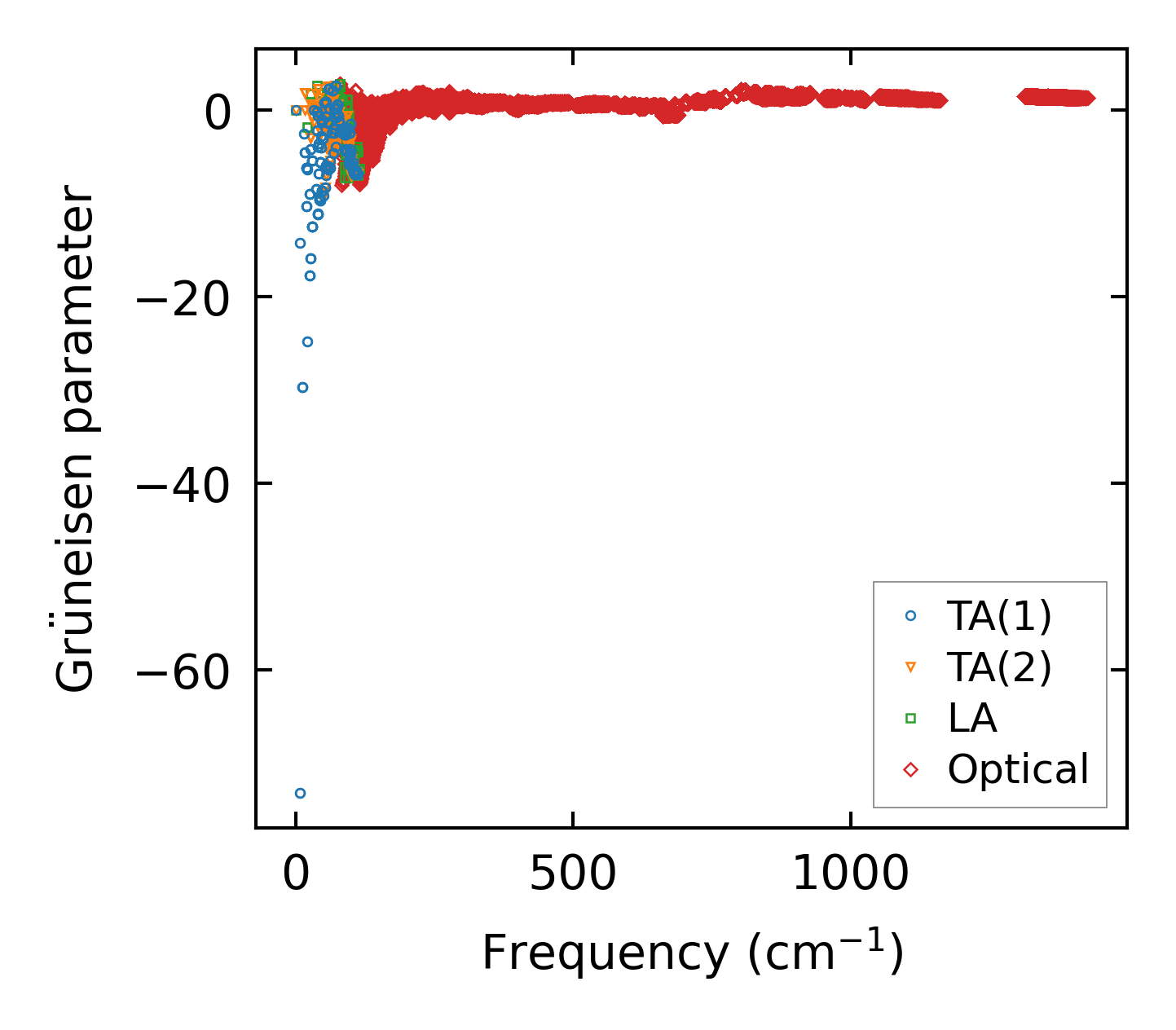

../../_images/fig_gru_all1156.png — (a) Grüneisen parameters

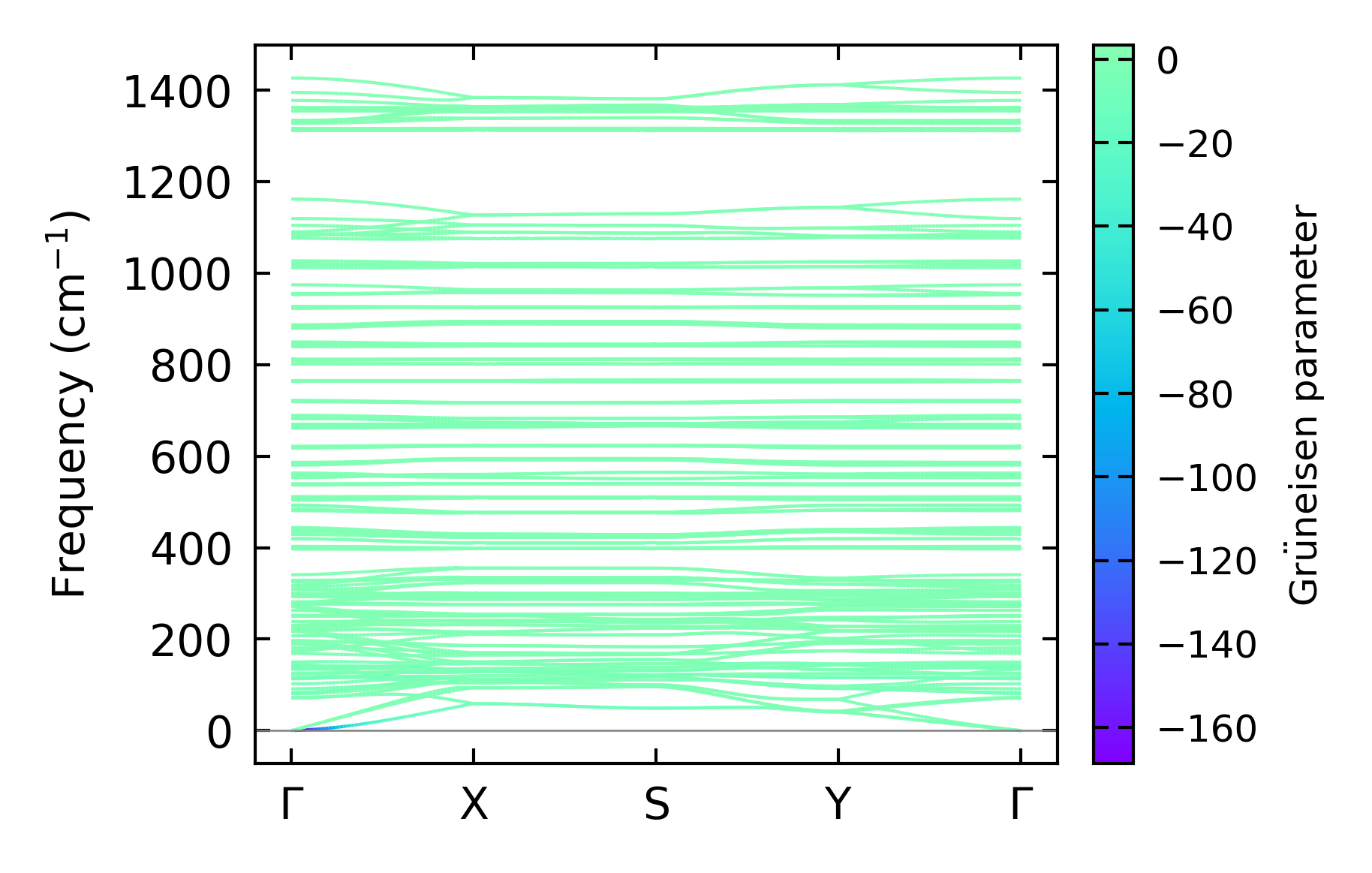

../../_images/fig_gruneisen1156.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x5x14, supercell: 1x1x2

../../_images/fig_kappa2226.png — (a) Temperature-dependent lattice thermal conductivity

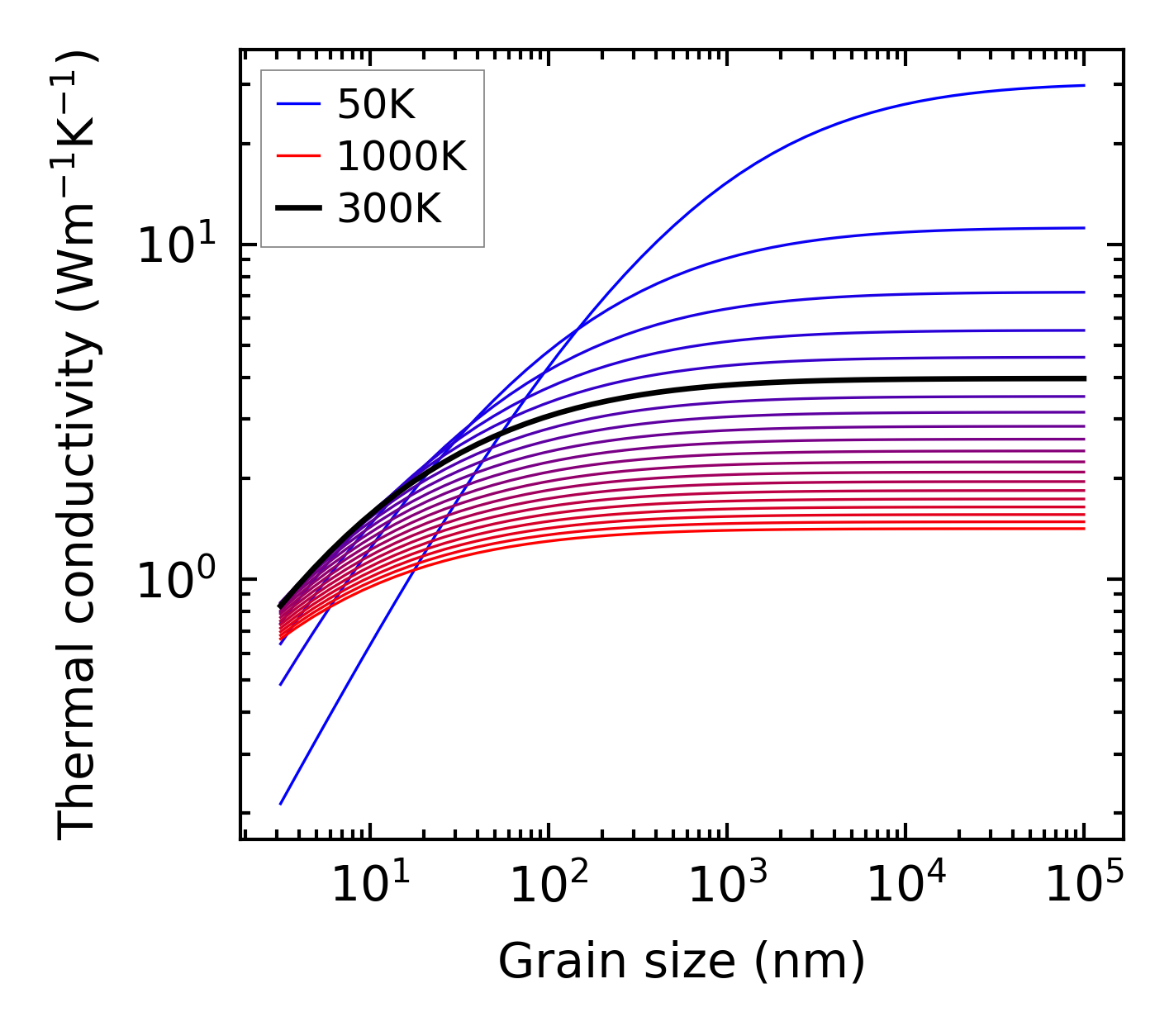

../../_images/fig_kappa_vs_grain_size1170.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

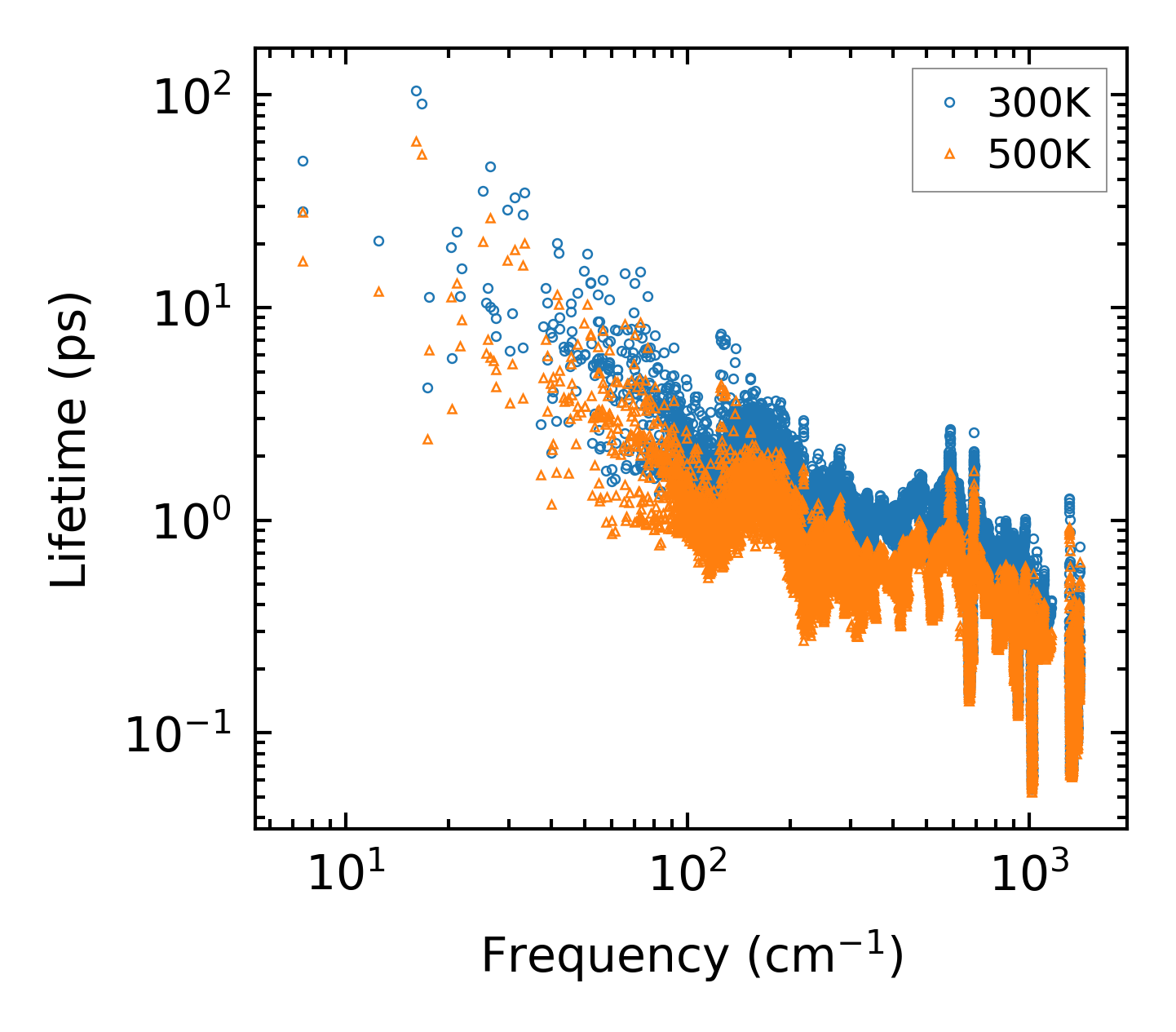

../../_images/fig_lifetime1147.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1146.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1147.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1147.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21851.png — (a) Force constants w.r.t atomic distance

Summary

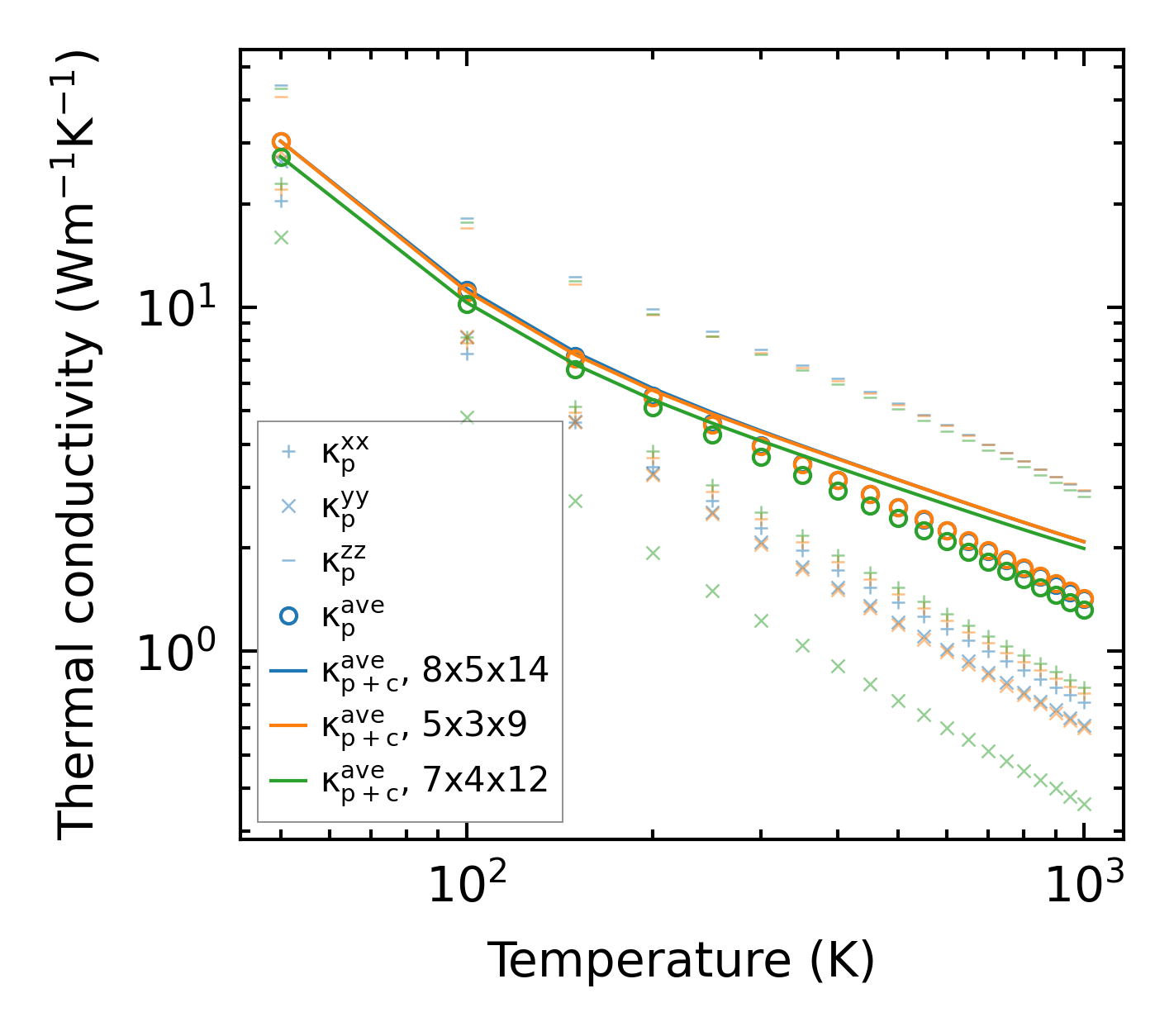

../../_images/fig_kappa2227.png — (a) Temperature-dependent lattice thermal conductivity

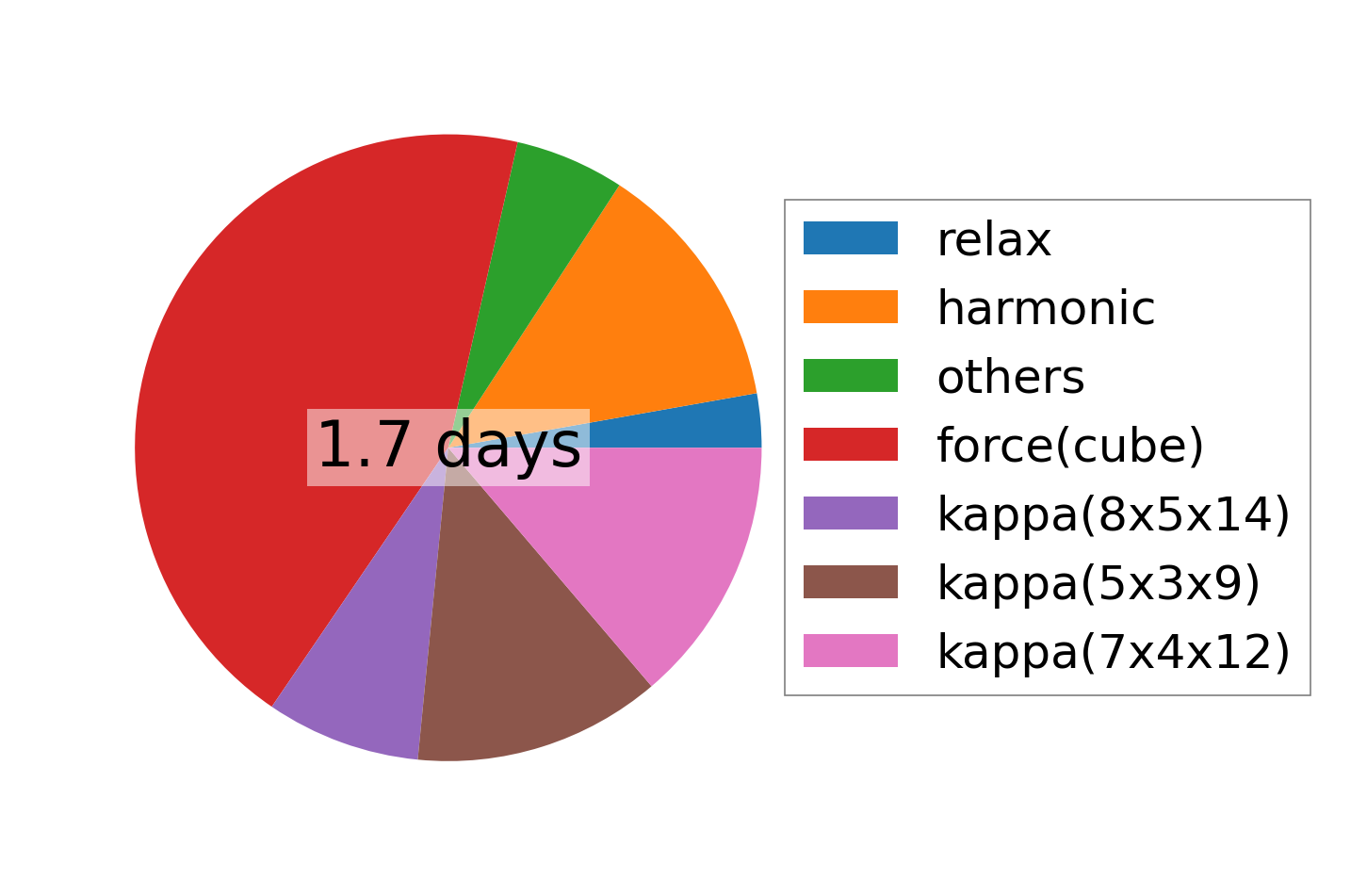

../../_images/fig_times3131.png — (b) Computation time
