mp-8204-2/LiAlB14/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-8204-2.tar.gz

Equation of state

../../_images/fig_bm888.png — (a) Equation of state

Harmonic properties

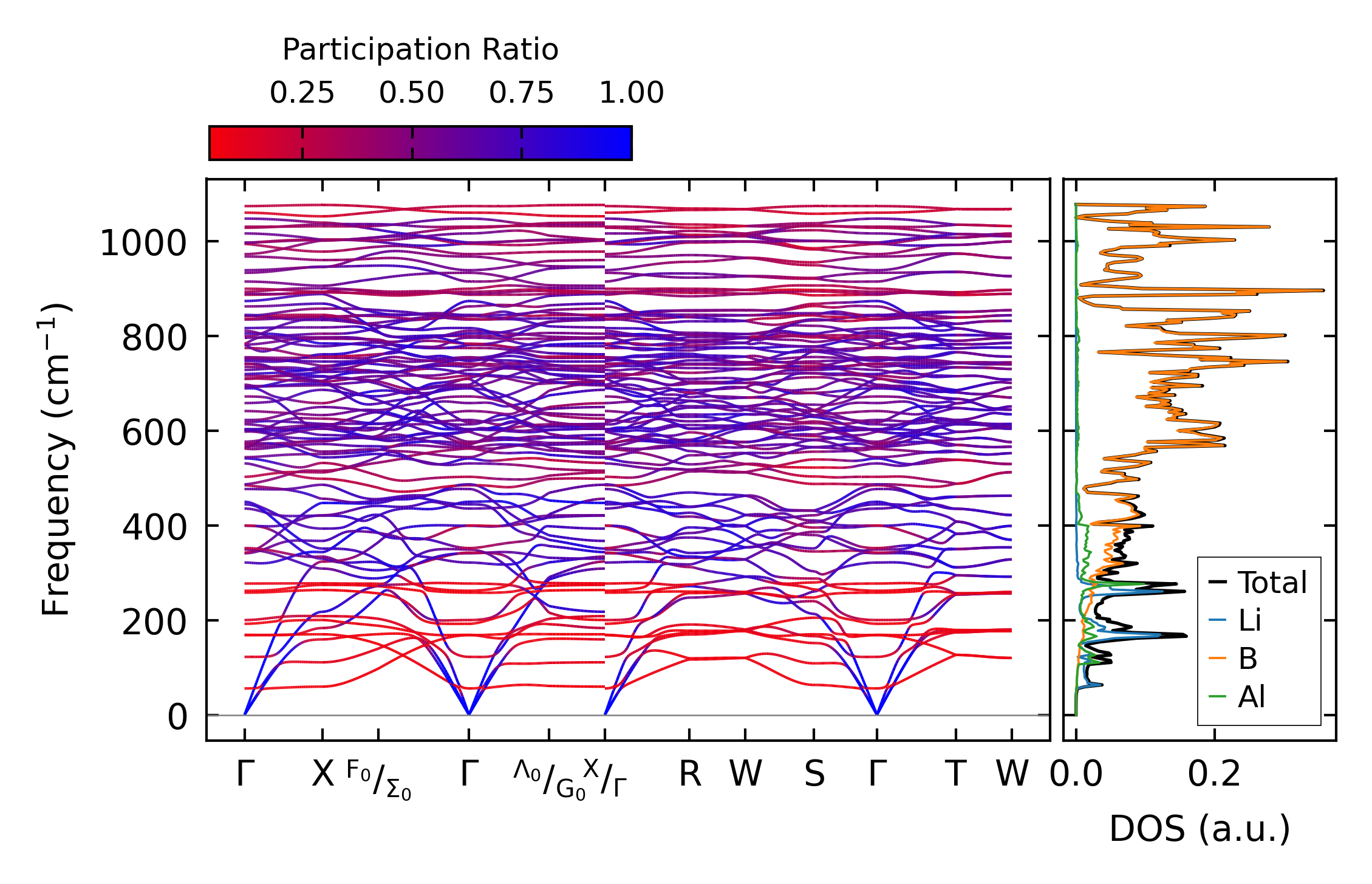

../../_images/fig_bandos_pr2082.png — (a) Phonon dispersion with participation ratio and DOS

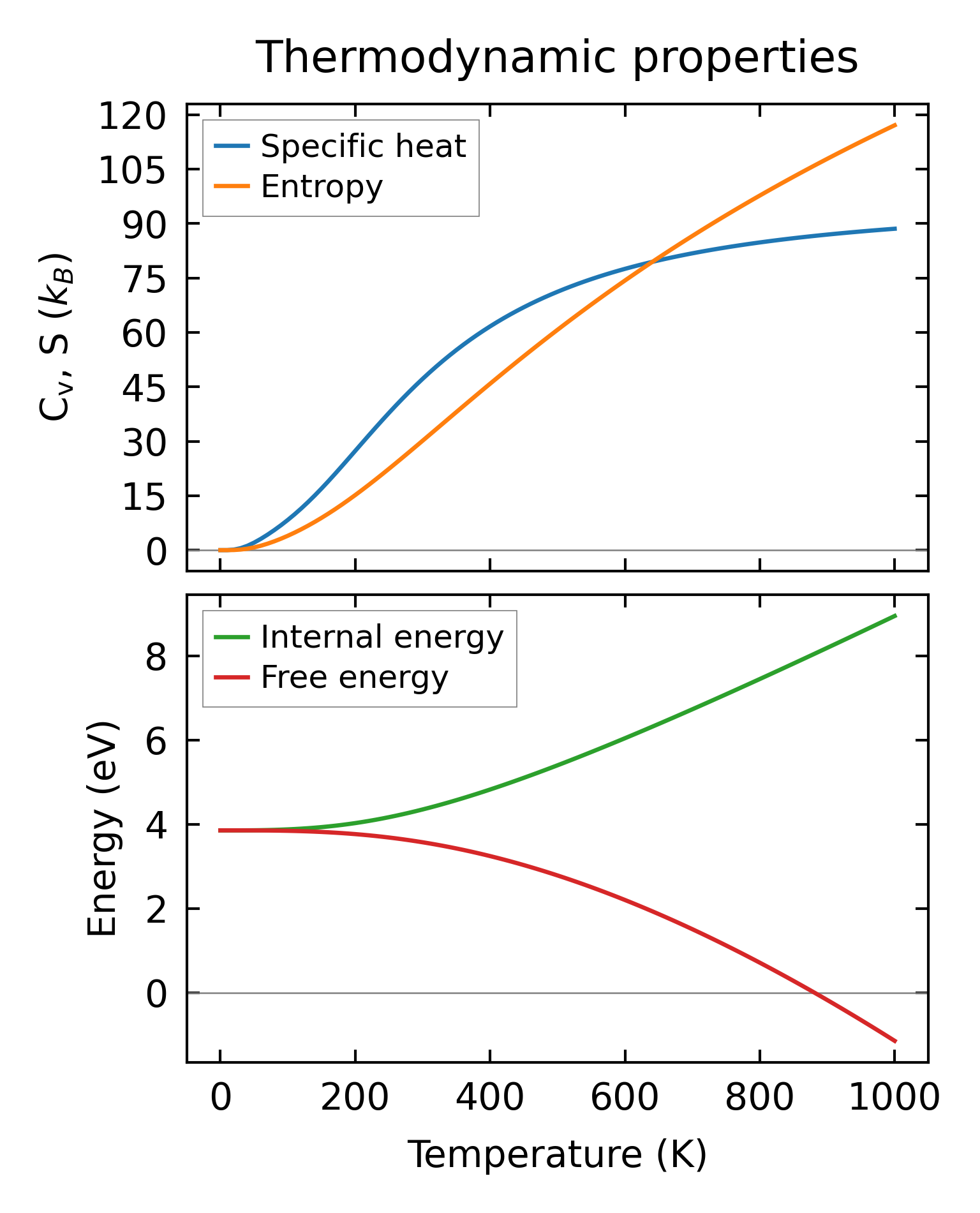

../../_images/fig_thermo2082.png — (b) Thermodynamic properties

Grüneisen parameters

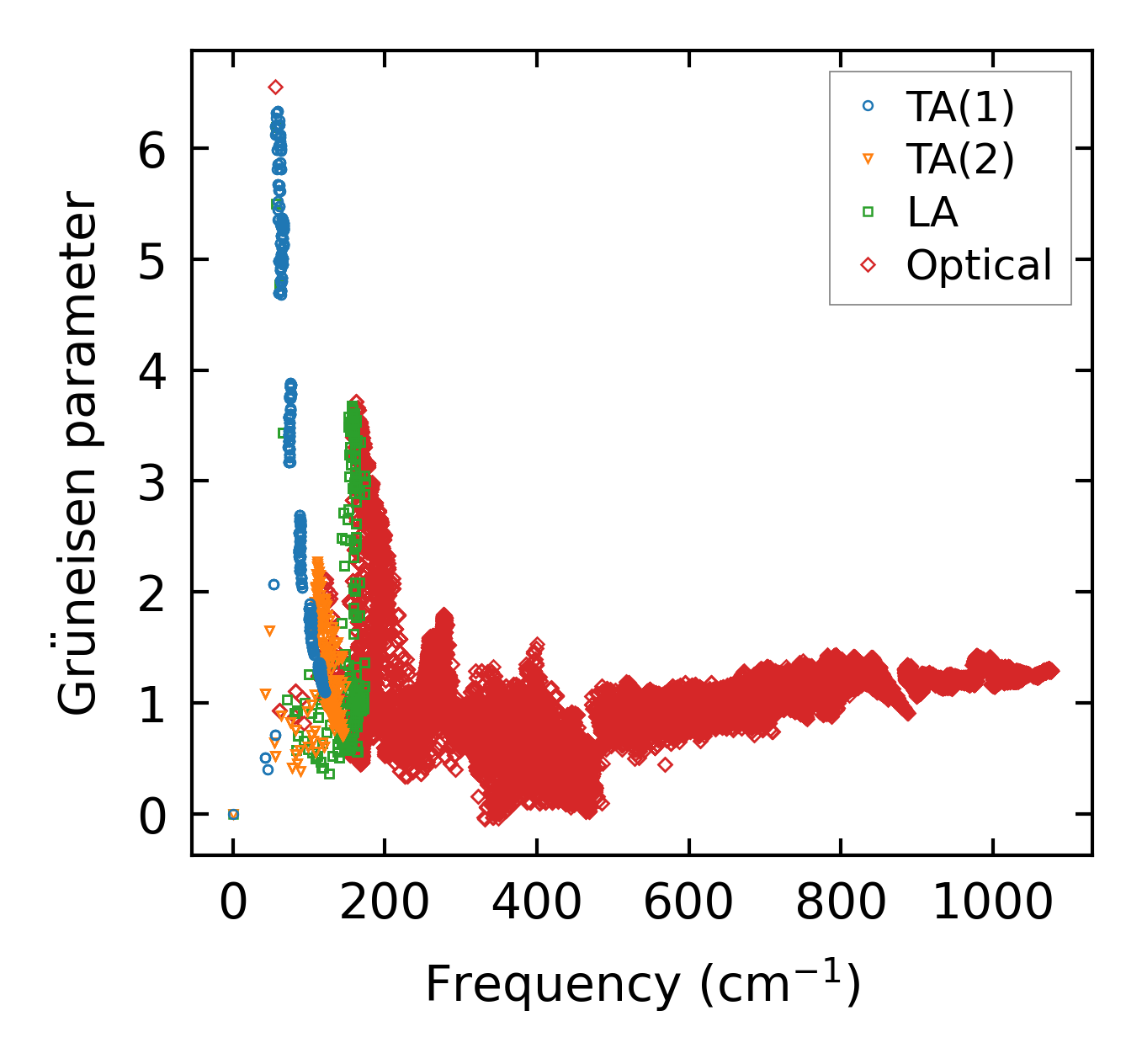

../../_images/fig_gru_all1191.png — (a) Grüneisen parameters

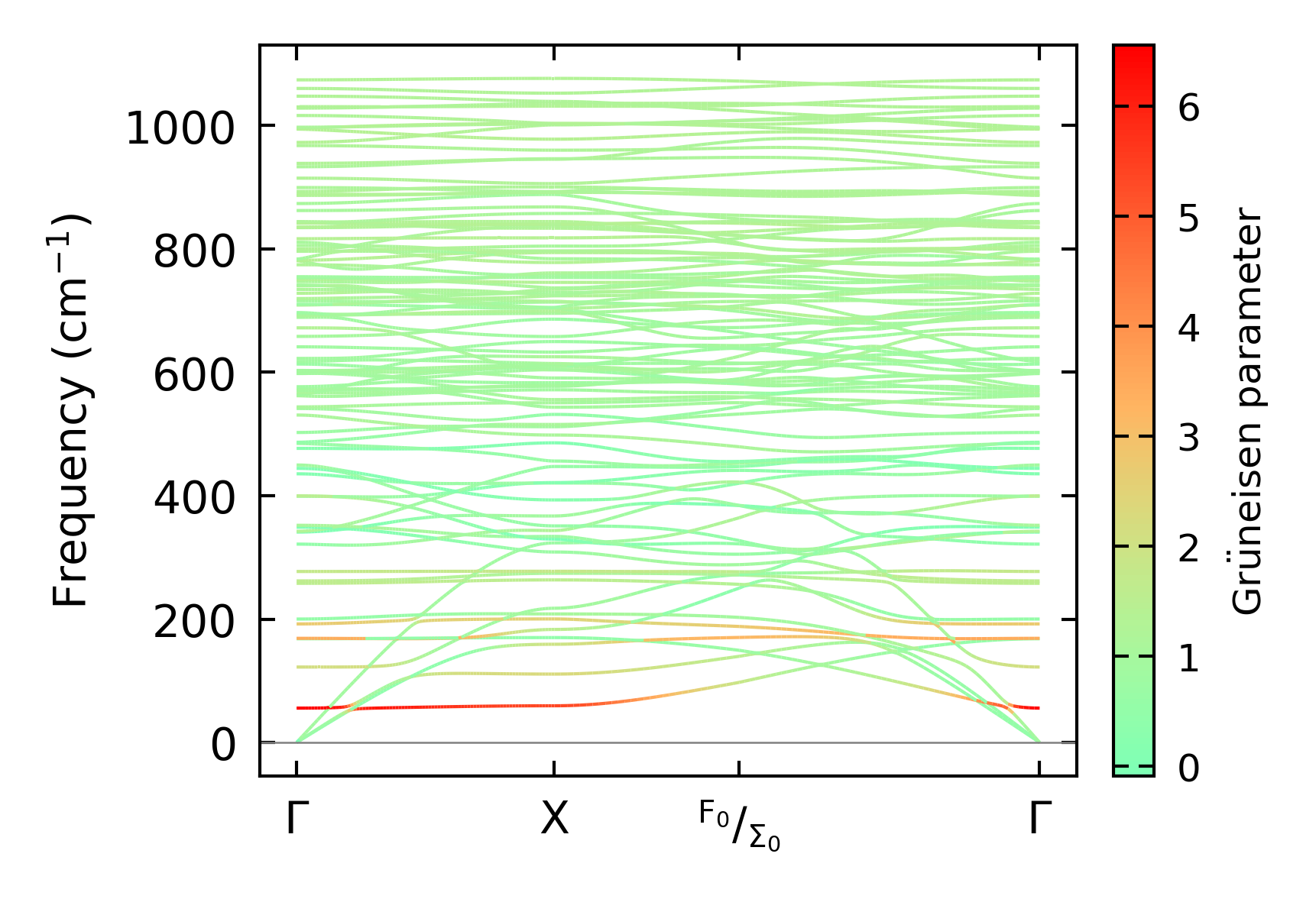

../../_images/fig_gruneisen1191.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 2x1x1

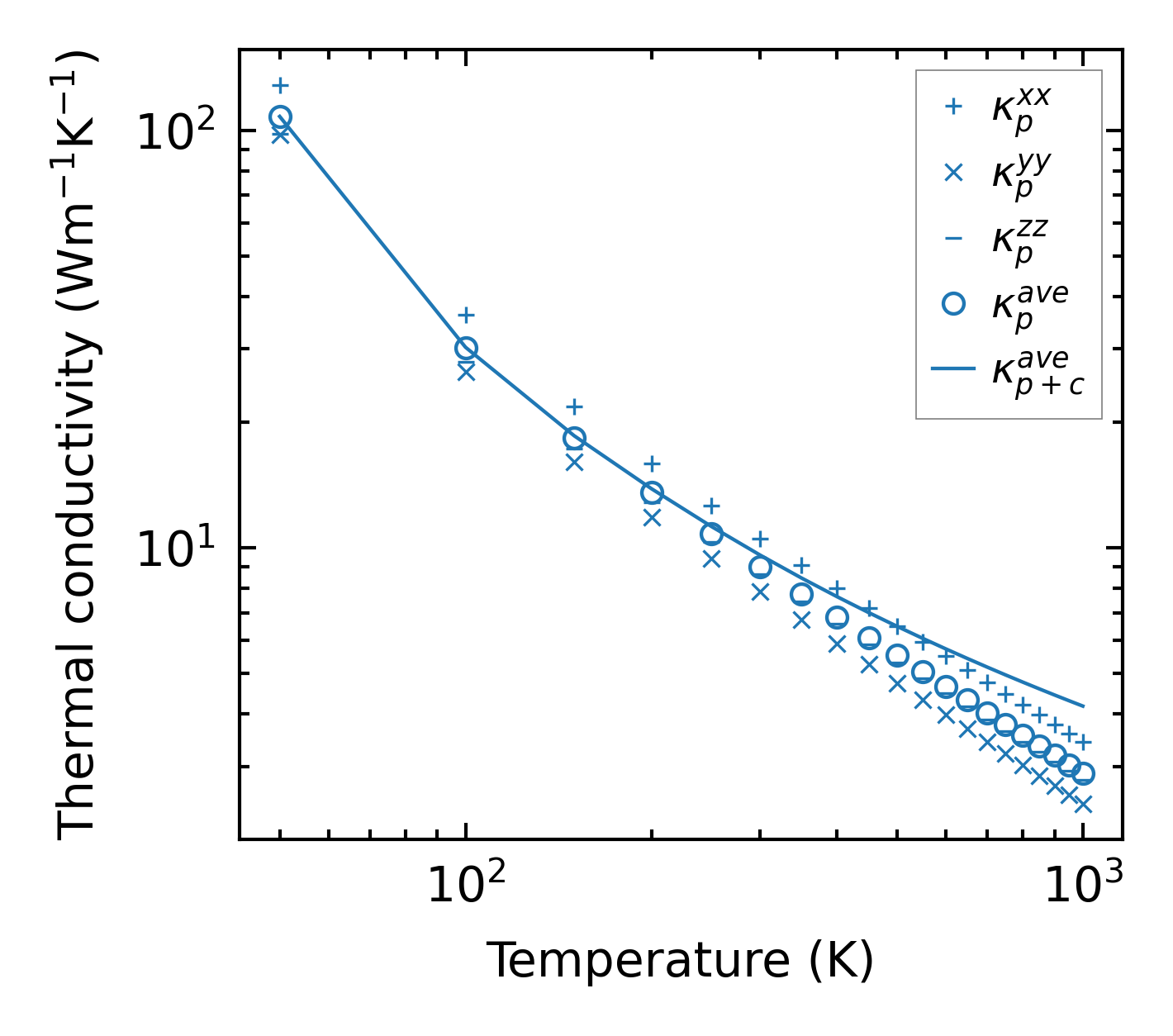

../../_images/fig_kappa2296.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1205.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

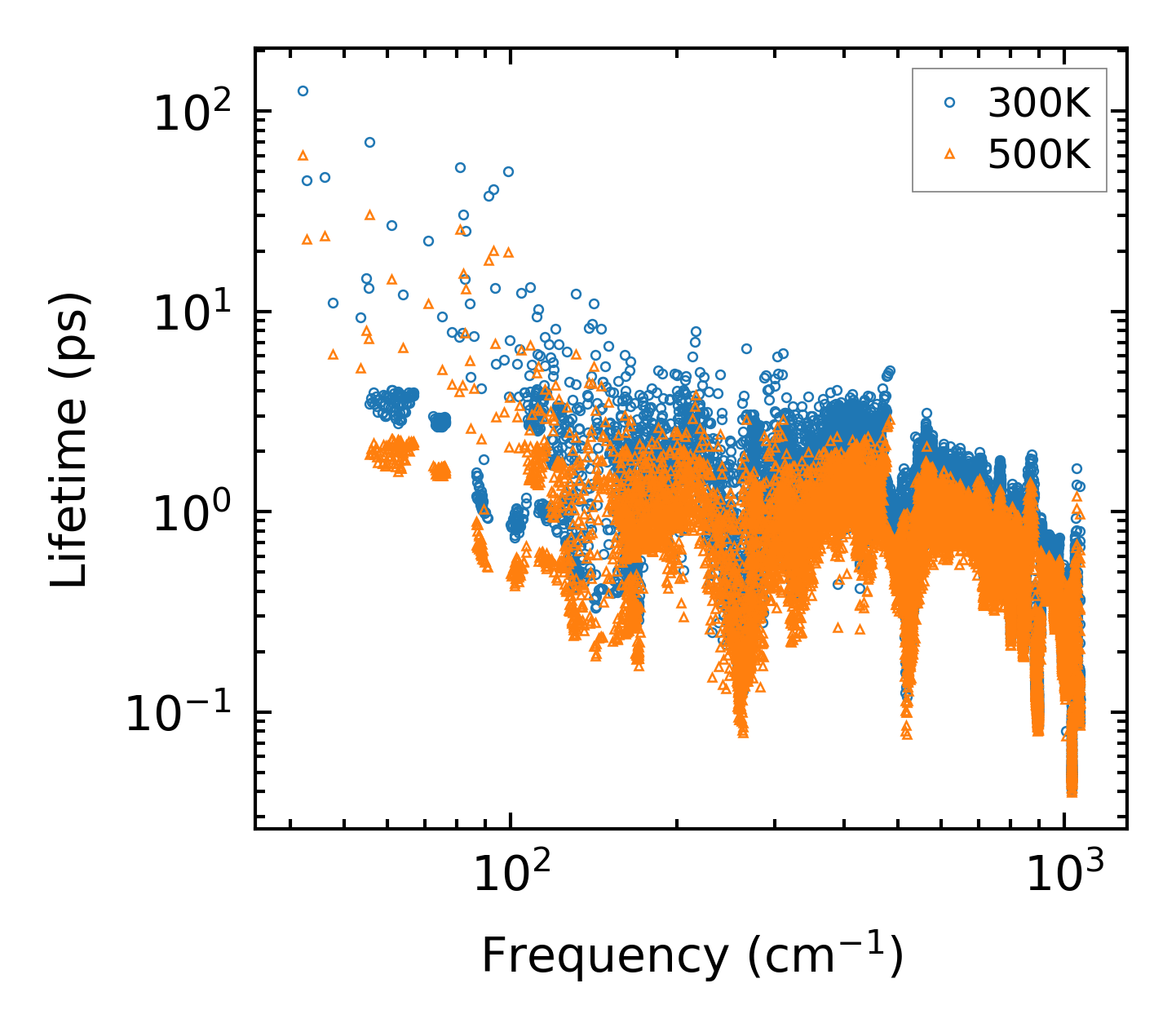

../../_images/fig_lifetime1181.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1180.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

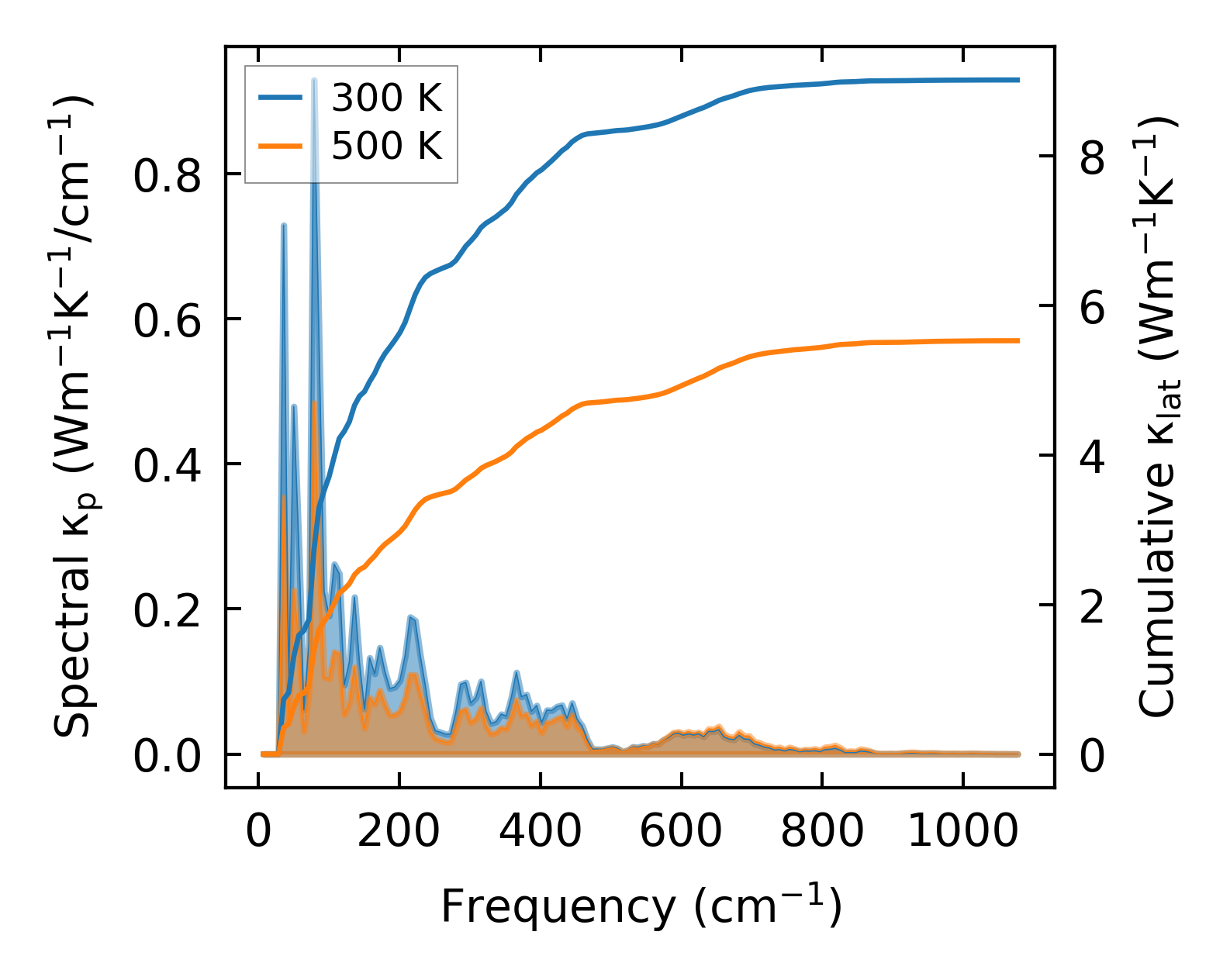

../../_images/fig_cumu_frequency1181.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1181.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21903.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2297.png — (a) Temperature-dependent lattice thermal conductivity

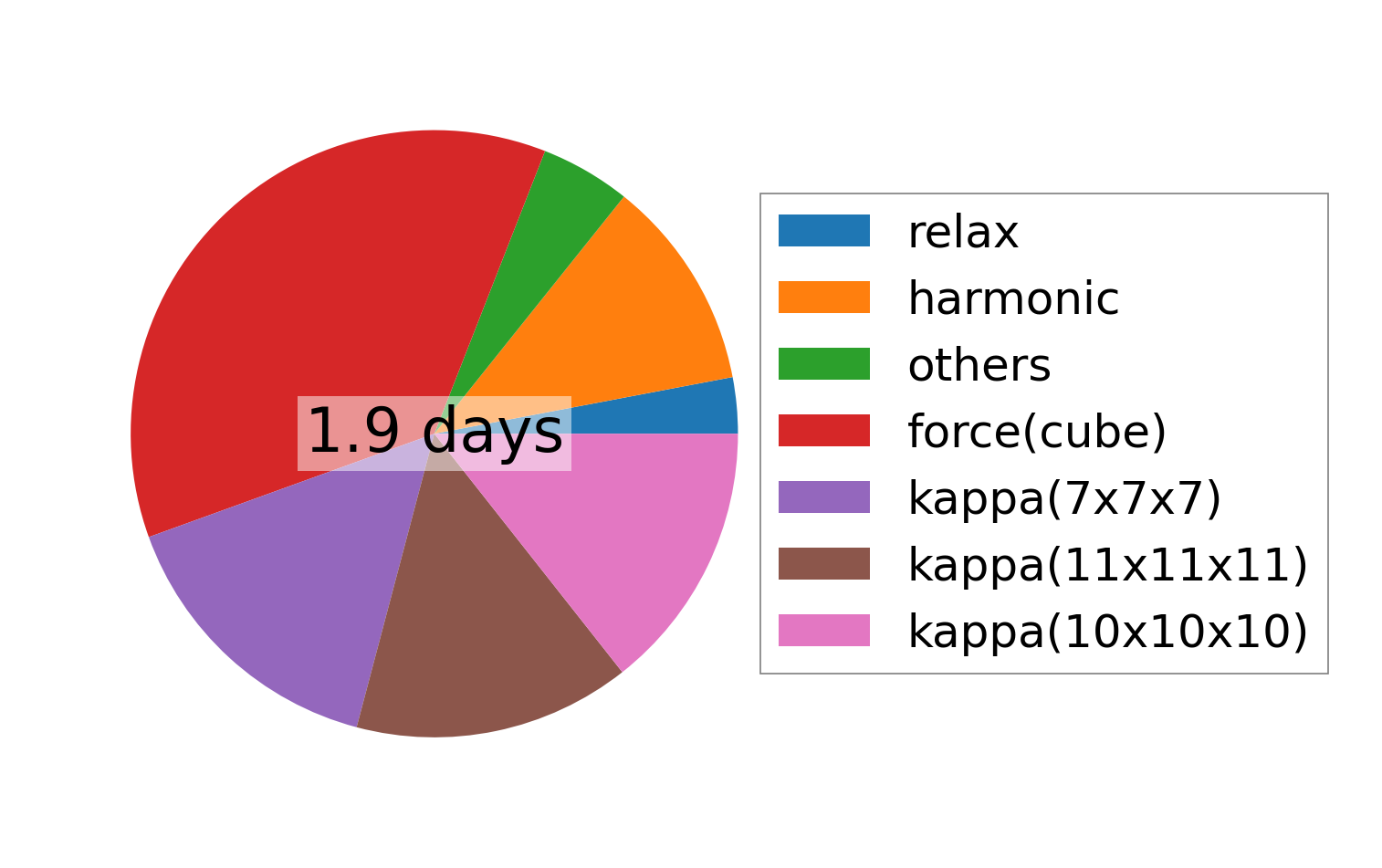

../../_images/fig_times3200.png — (b) Computation time
