mp-8277/SrCd2P2/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-8277.tar.gz

Harmonic properties

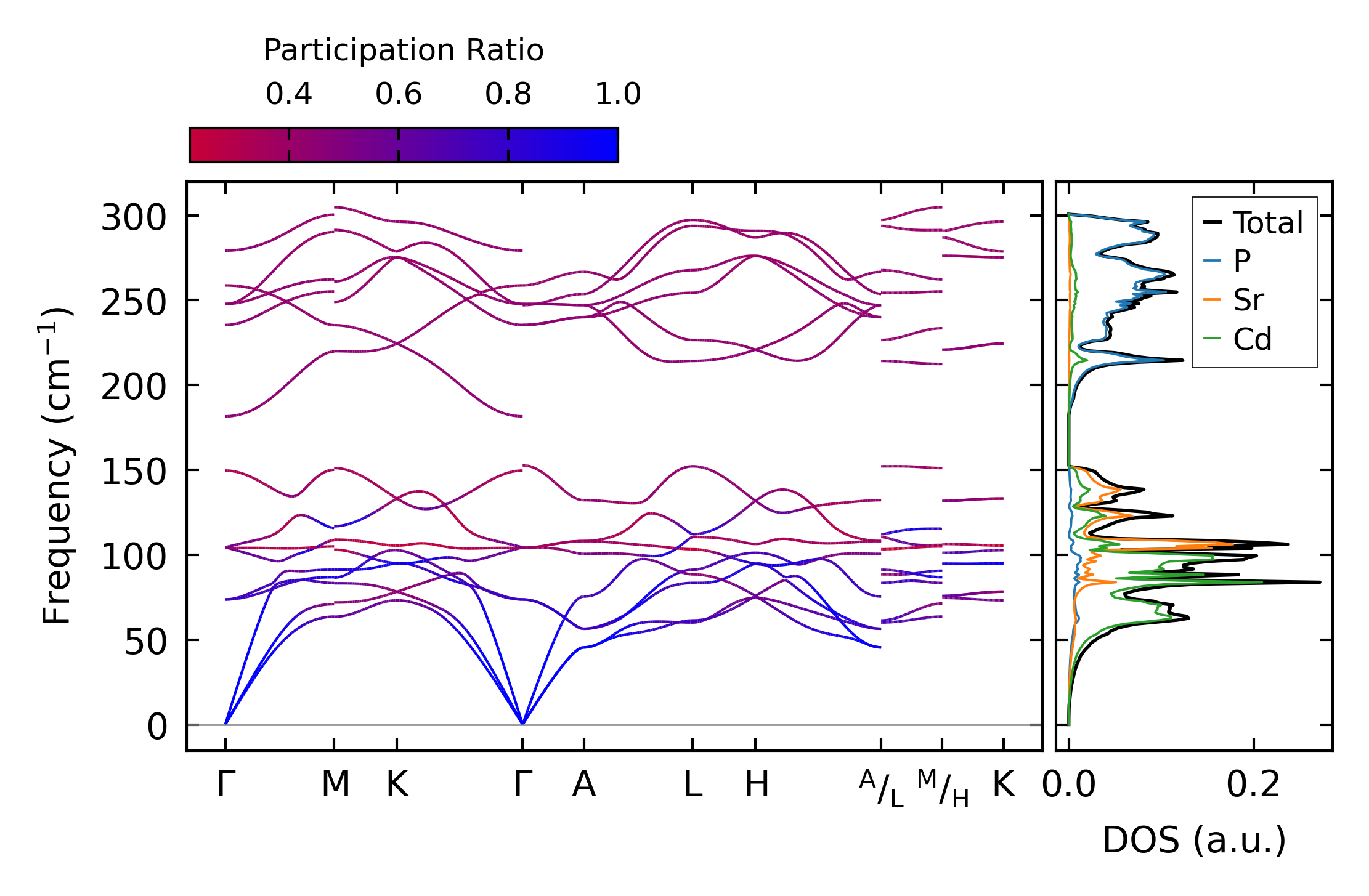

../../_images/fig_bandos_pr2115.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2115.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1215.png — (a) Grüneisen parameters

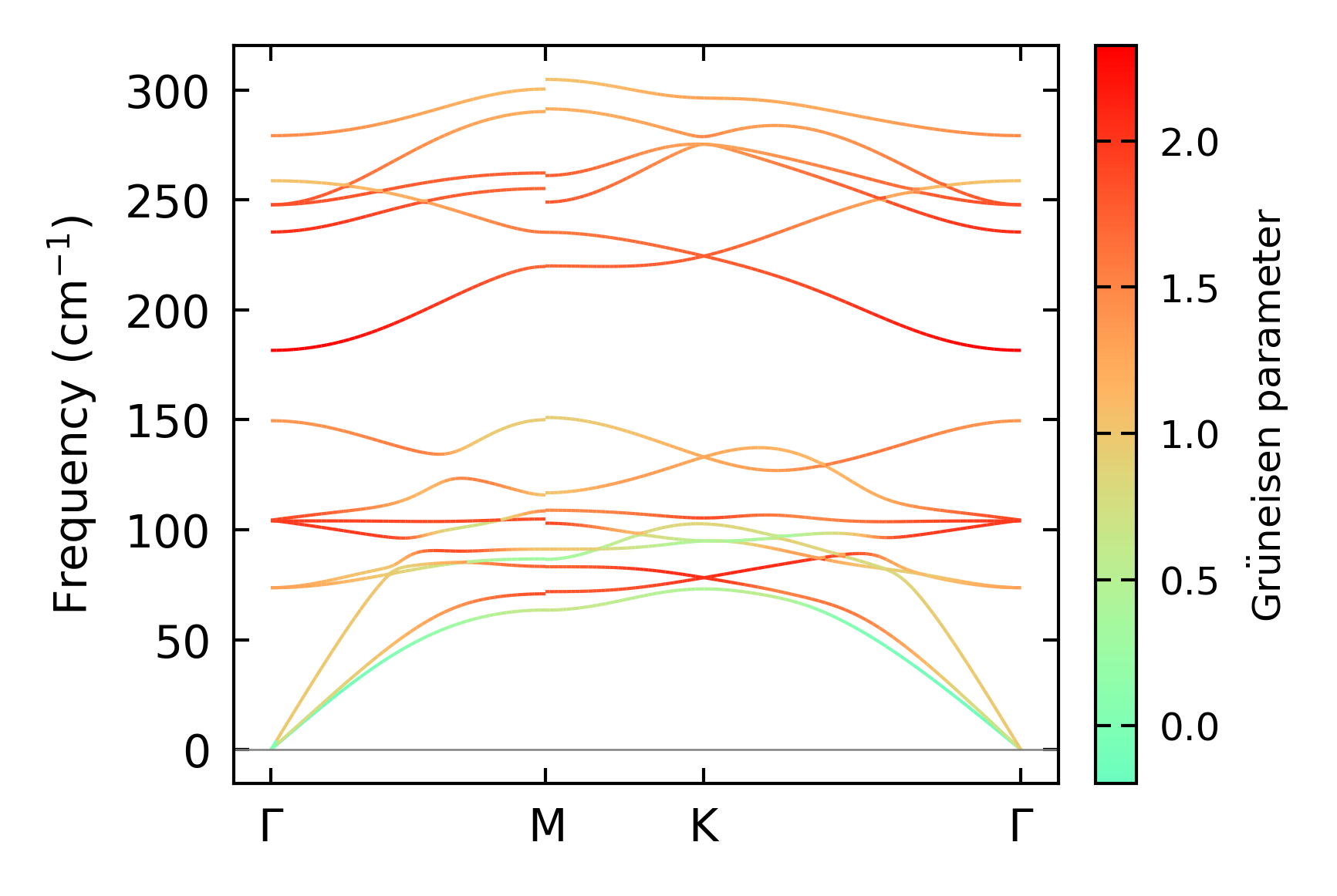

../../_images/fig_gruneisen1215.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x10, supercell: 3x3x2

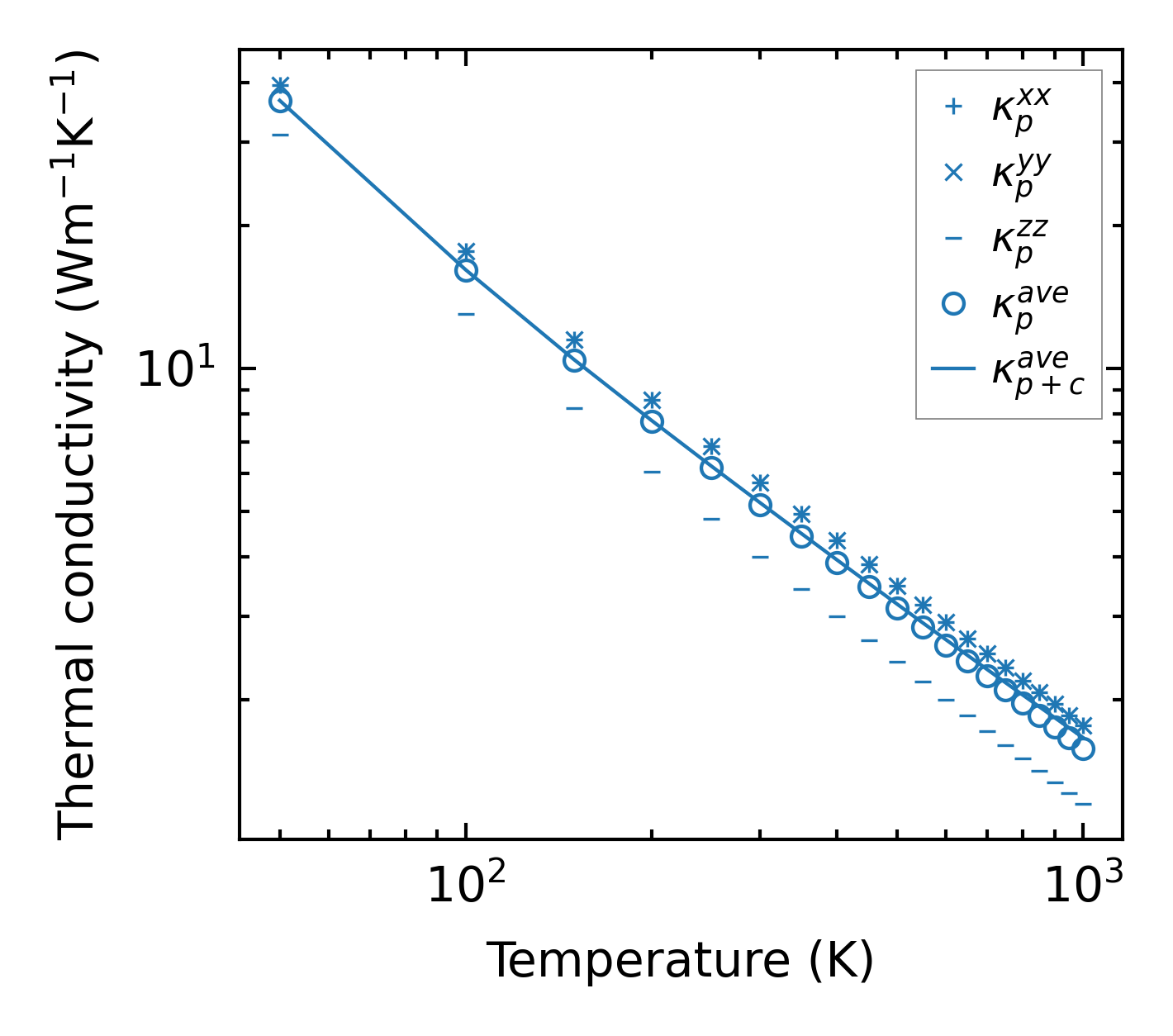

../../_images/fig_kappa2342.png — (a) Temperature-dependent lattice thermal conductivity

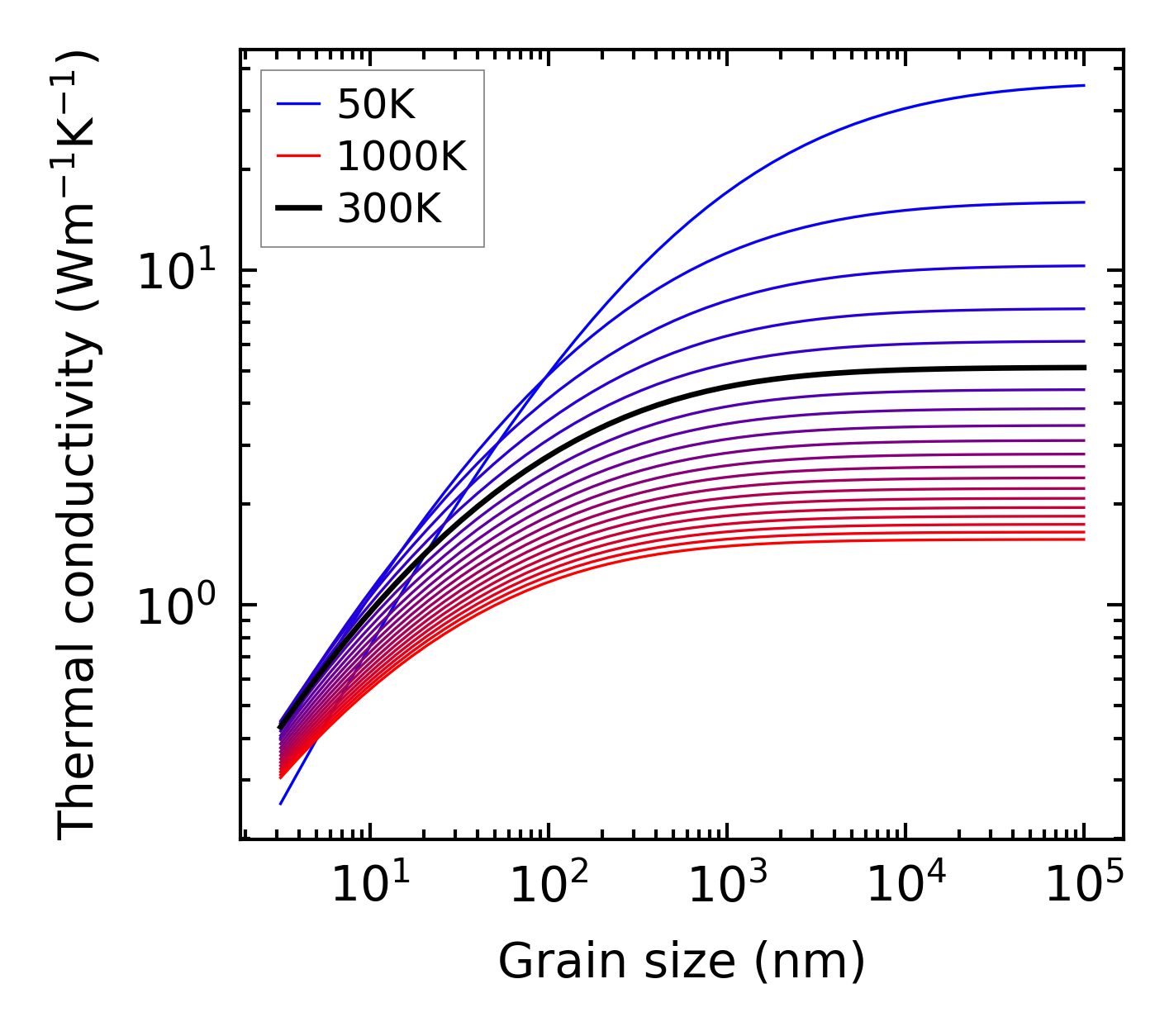

../../_images/fig_kappa_vs_grain_size1229.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1205.png — (a) Phonon lifetime due to phonon-phonon scattering

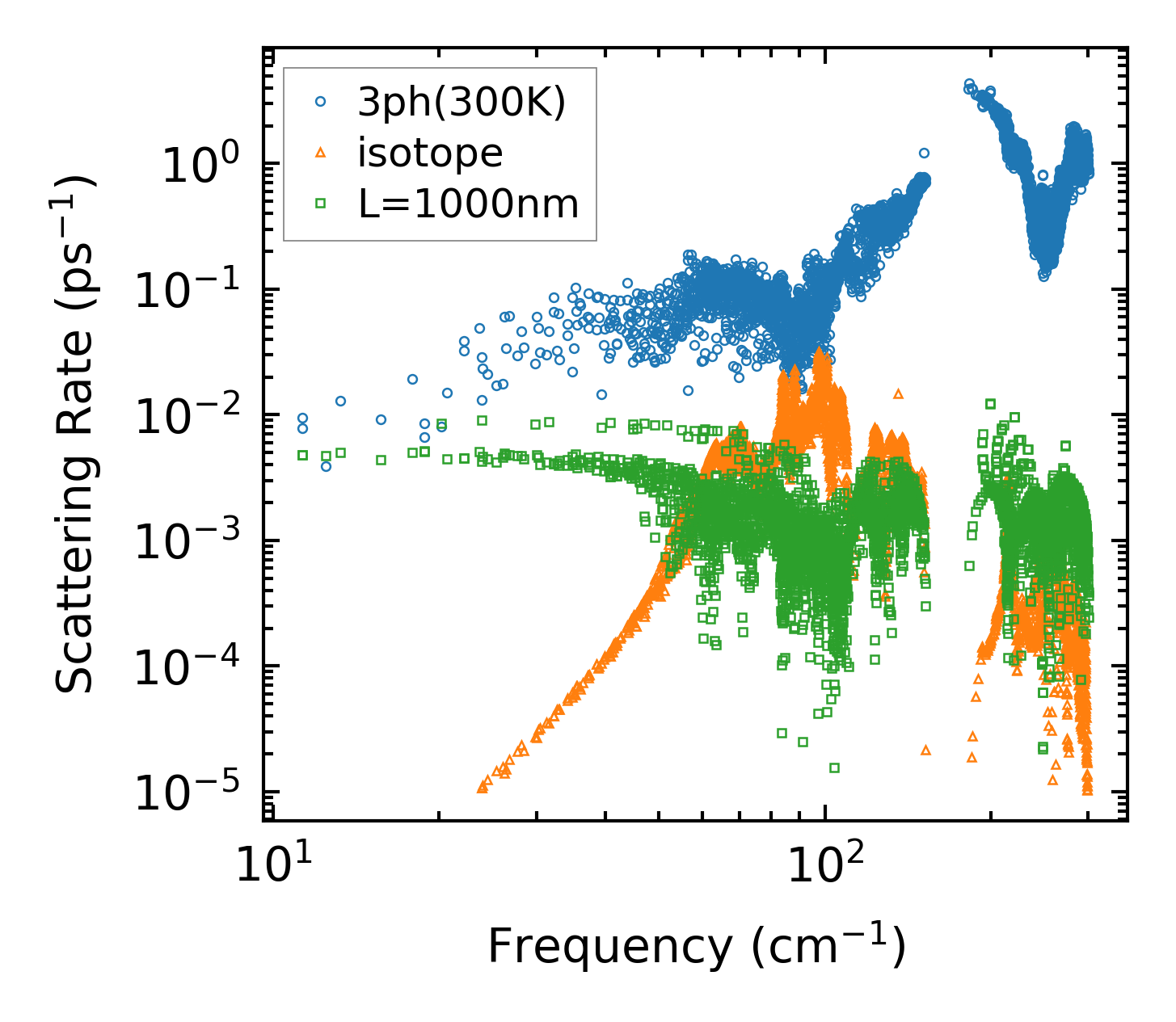

../../_images/fig_scat_rates1204.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1205.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1205.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

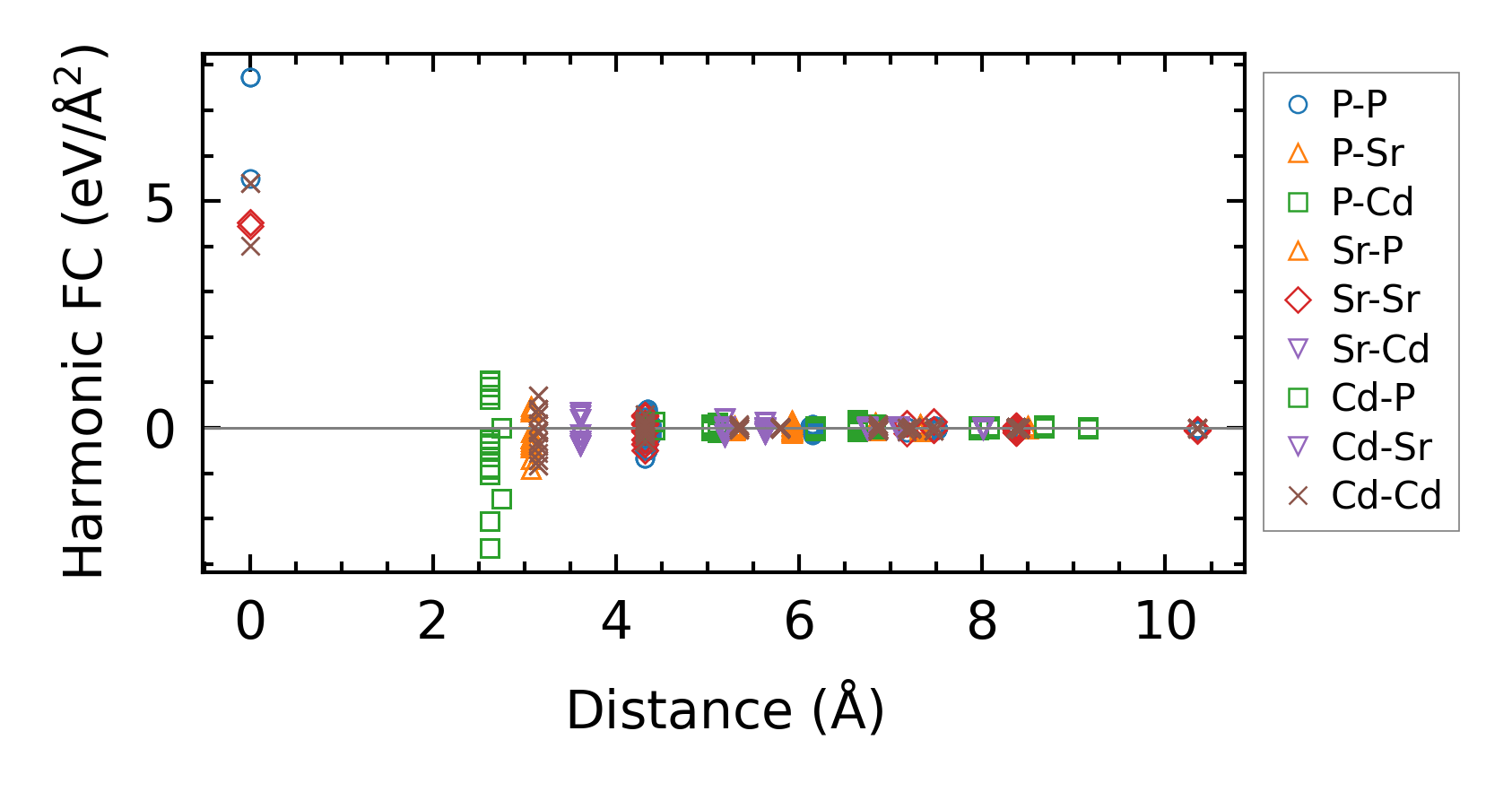

../../_images/fig_fc21936.png — (a) Force constants w.r.t atomic distance

Summary

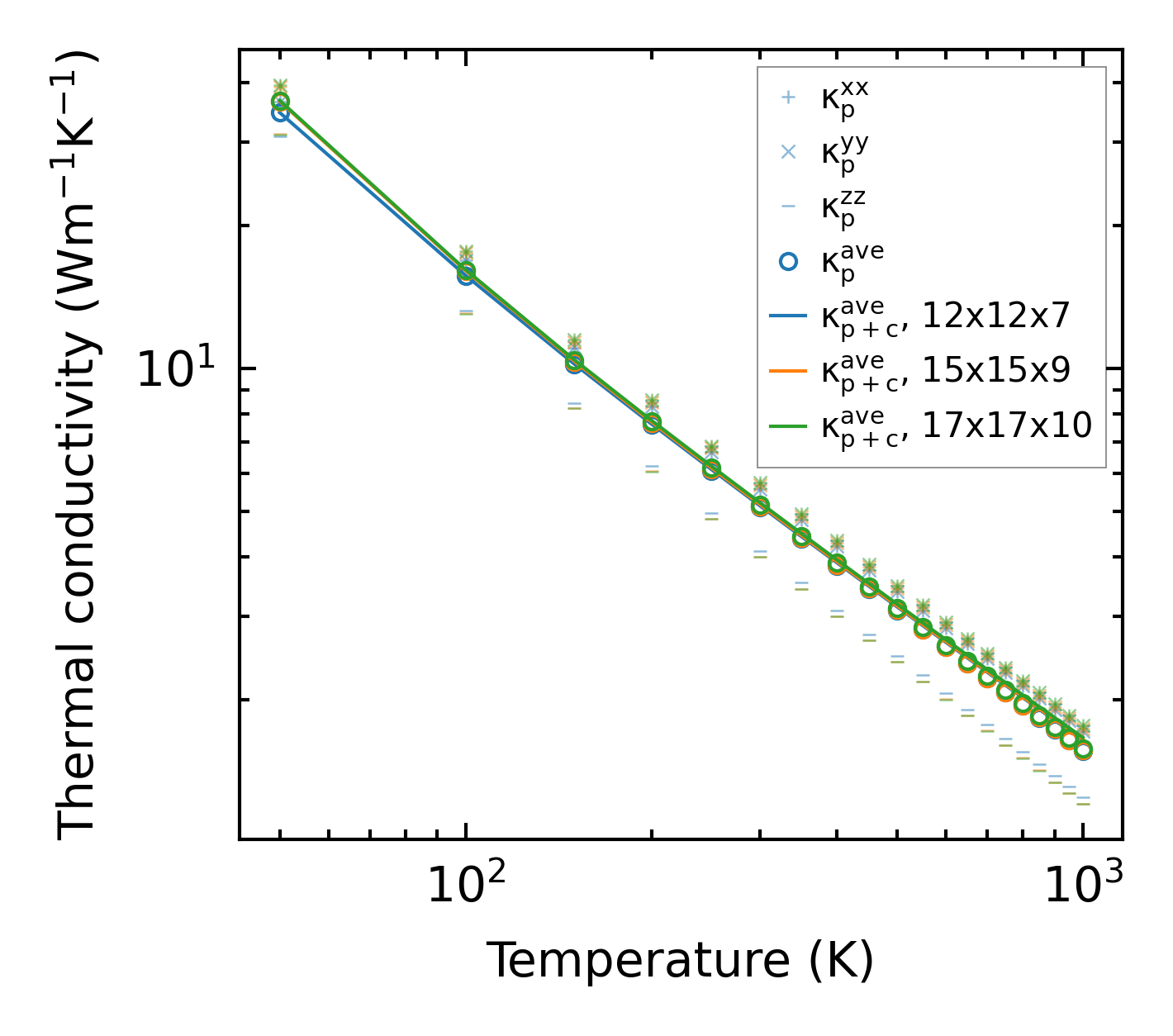

../../_images/fig_kappa2343.png — (a) Temperature-dependent lattice thermal conductivity

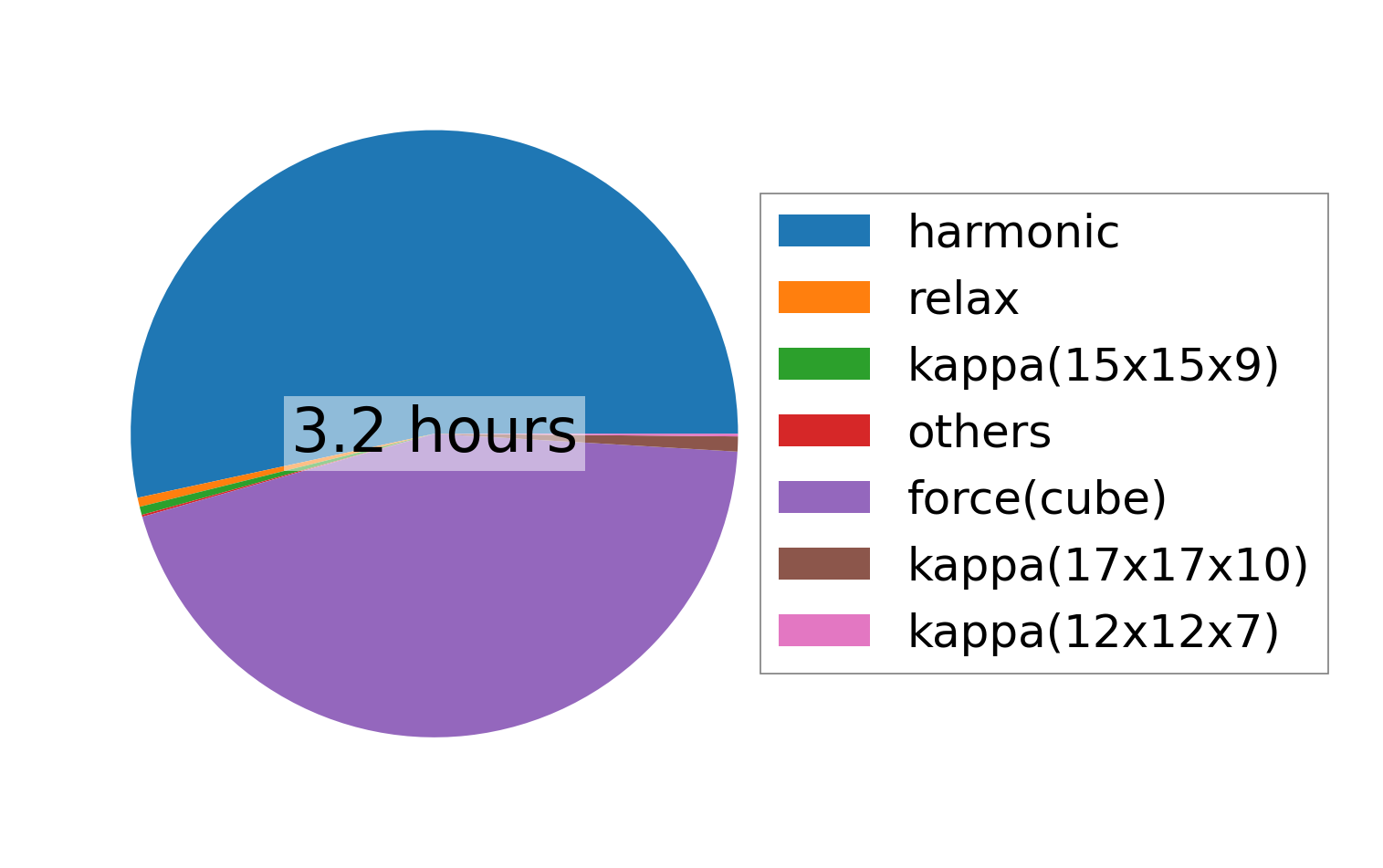

../../_images/fig_times3238.png — (b) Computation time
