mp-8127-2/K2MgC2O6/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-8127-2.tar.gz

Equation of state

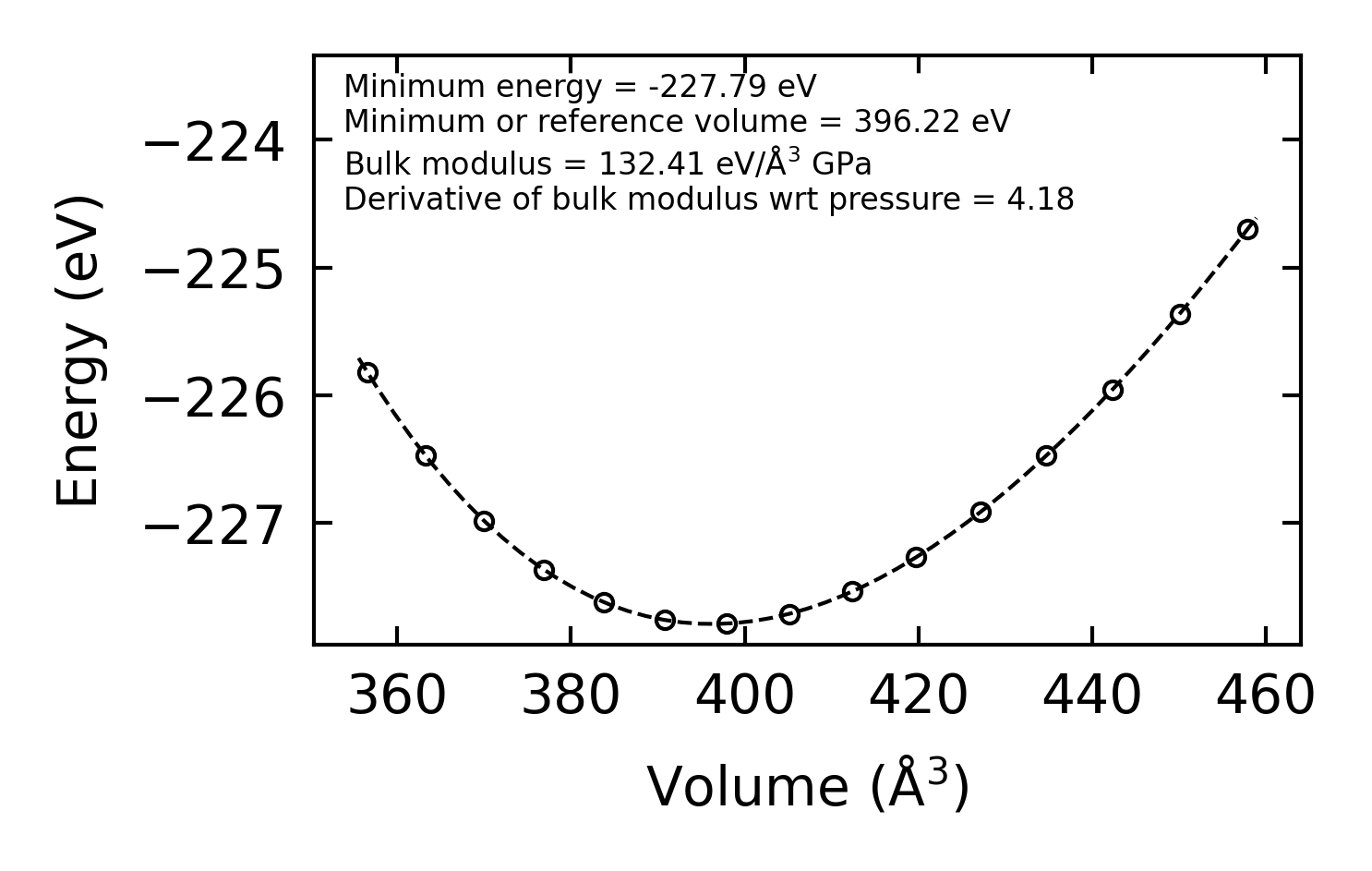

../../_images/fig_bm871.png — (a) Equation of state

Harmonic properties

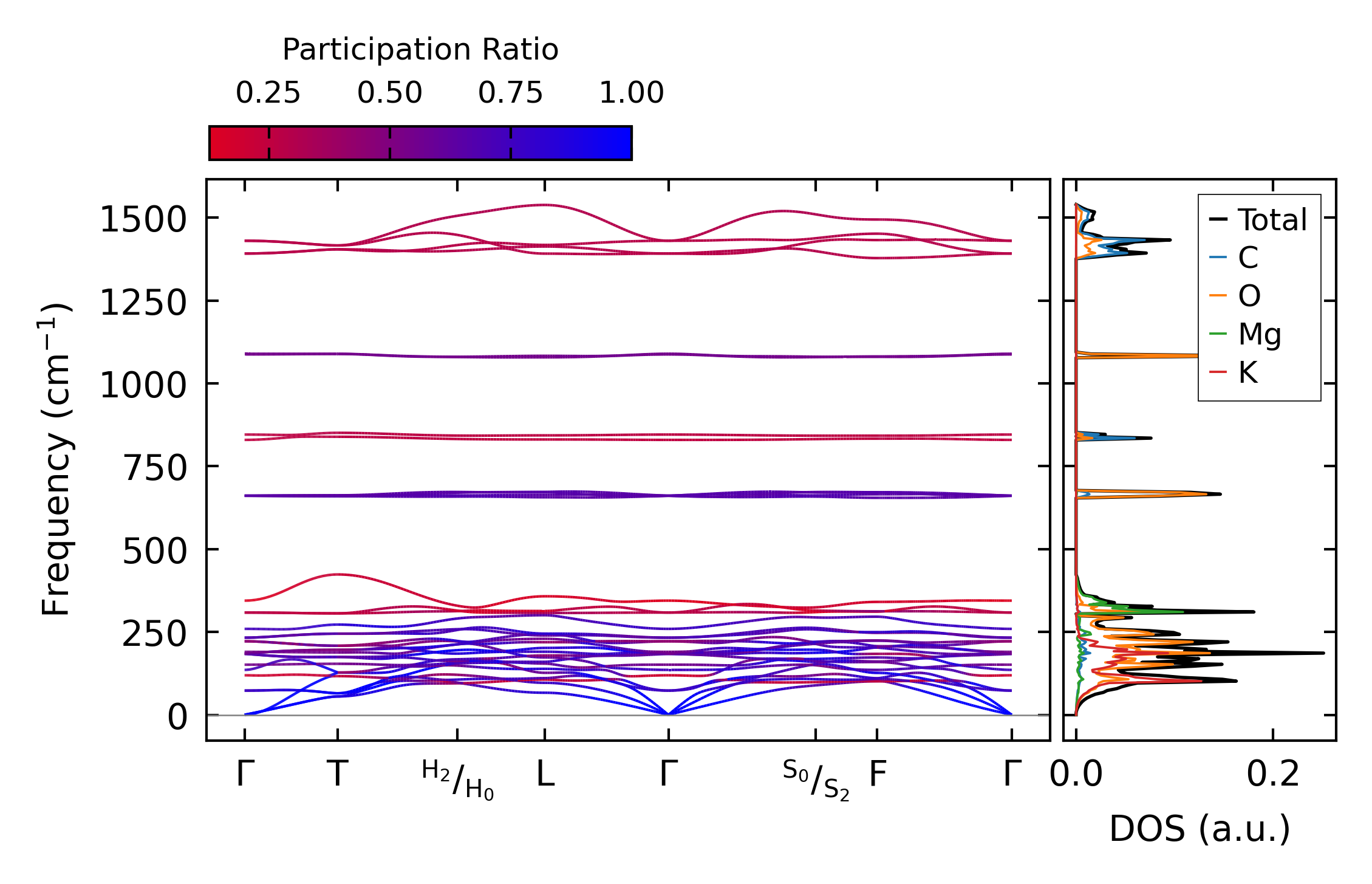

../../_images/fig_bandos_pr2044.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2044.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1165.png — (a) Grüneisen parameters

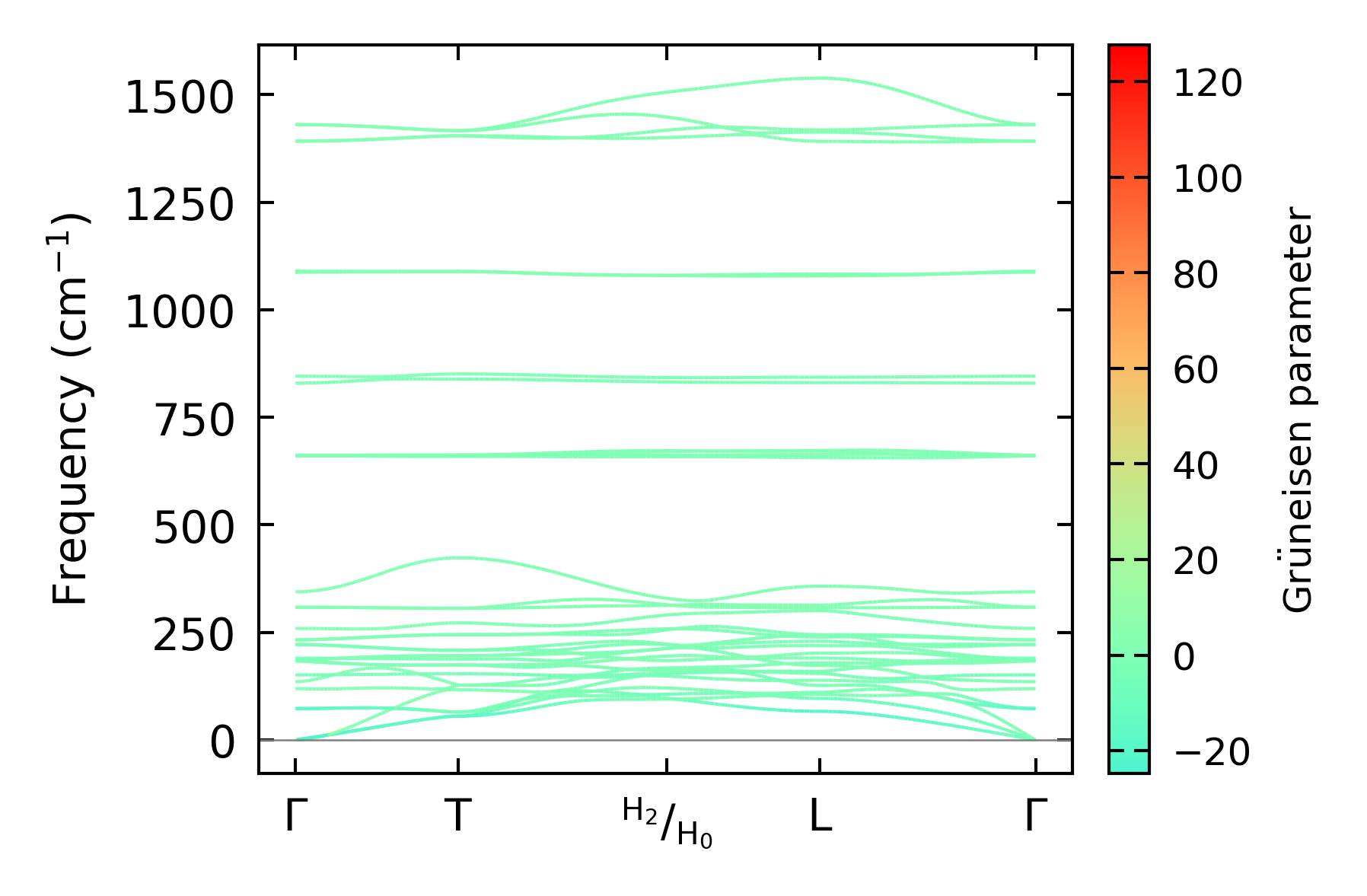

../../_images/fig_gruneisen1165.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 2x2x1

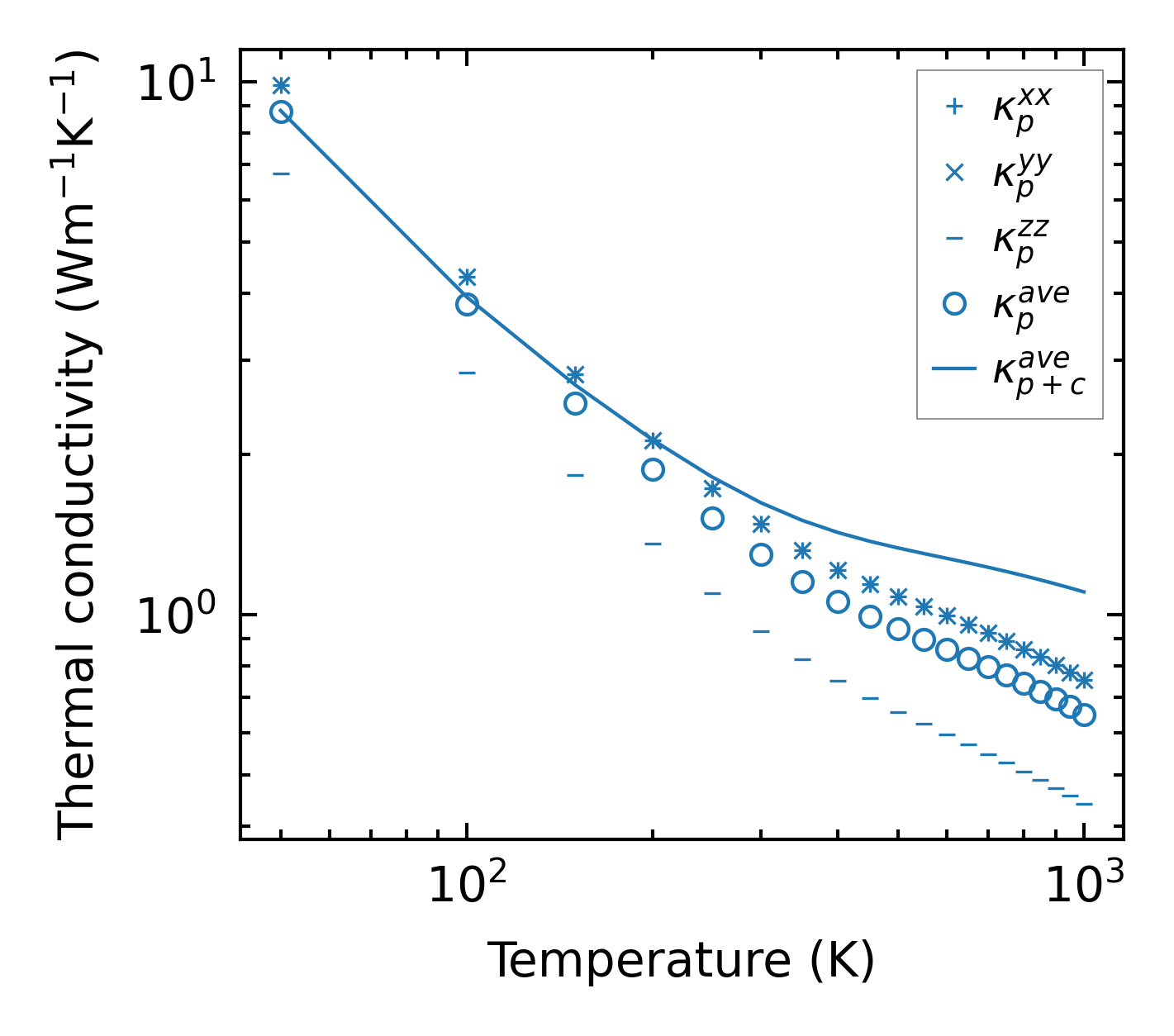

../../_images/fig_kappa2244.png — (a) Temperature-dependent lattice thermal conductivity

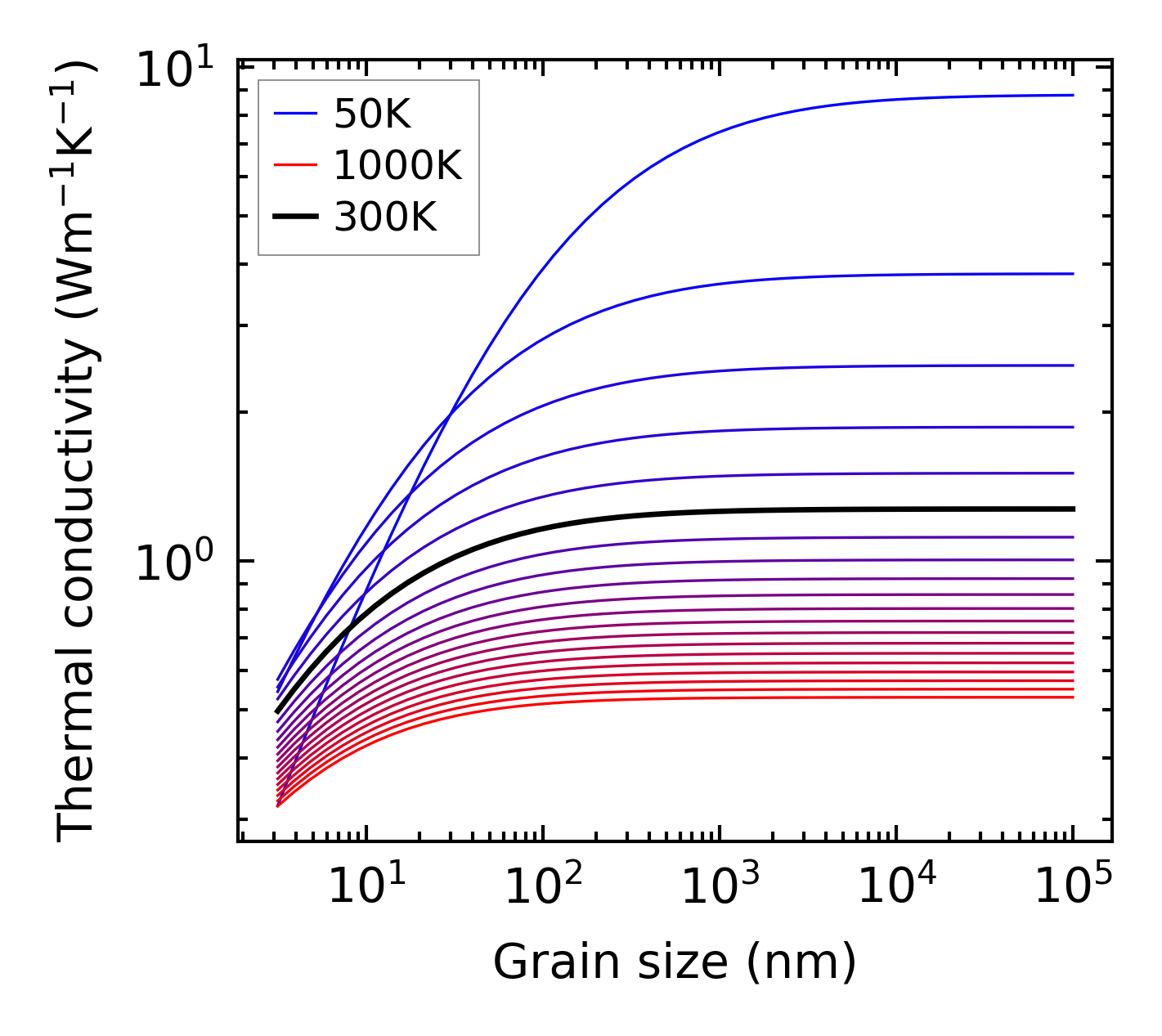

../../_images/fig_kappa_vs_grain_size1179.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

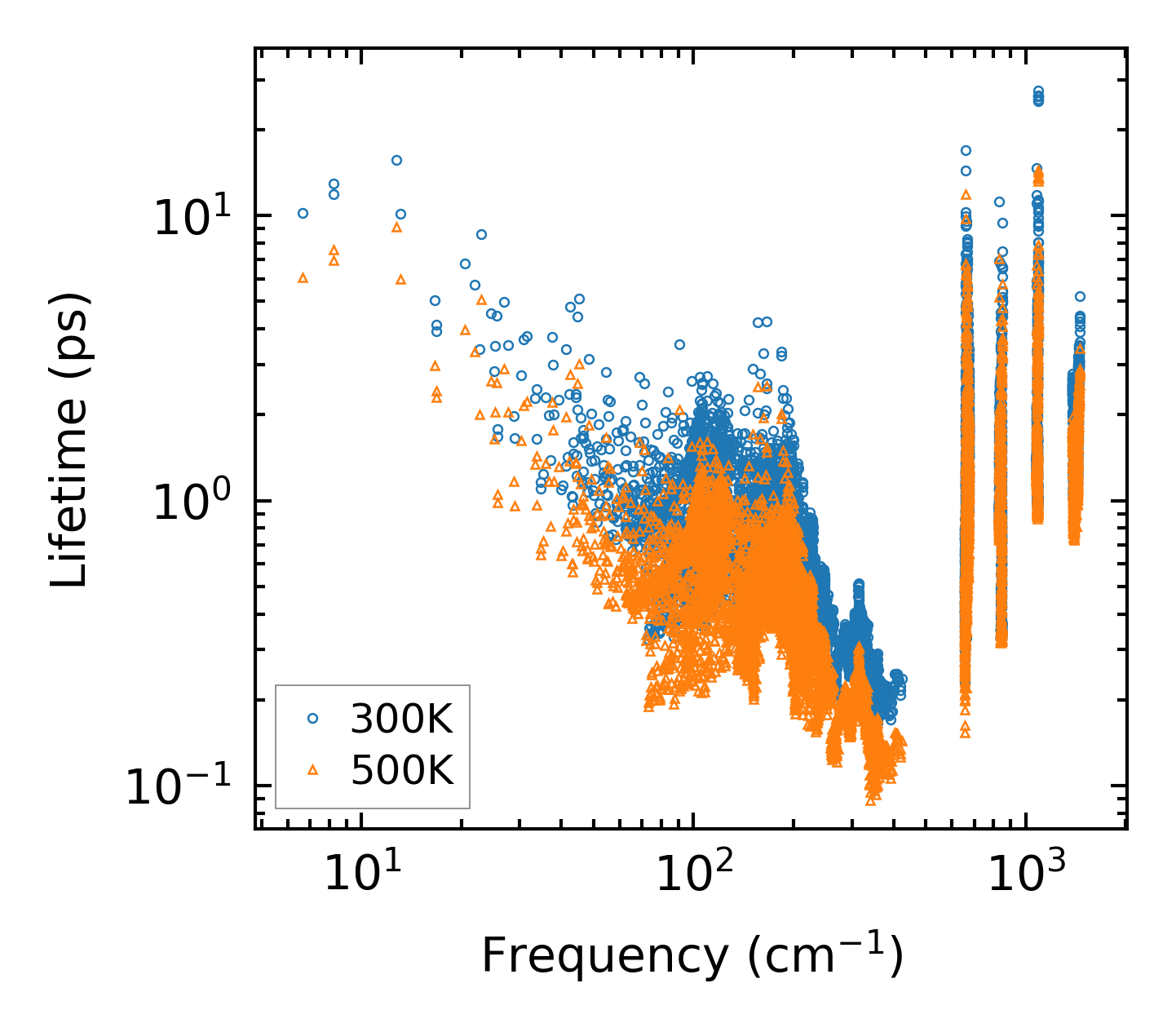

../../_images/fig_lifetime1155.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1154.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1155.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

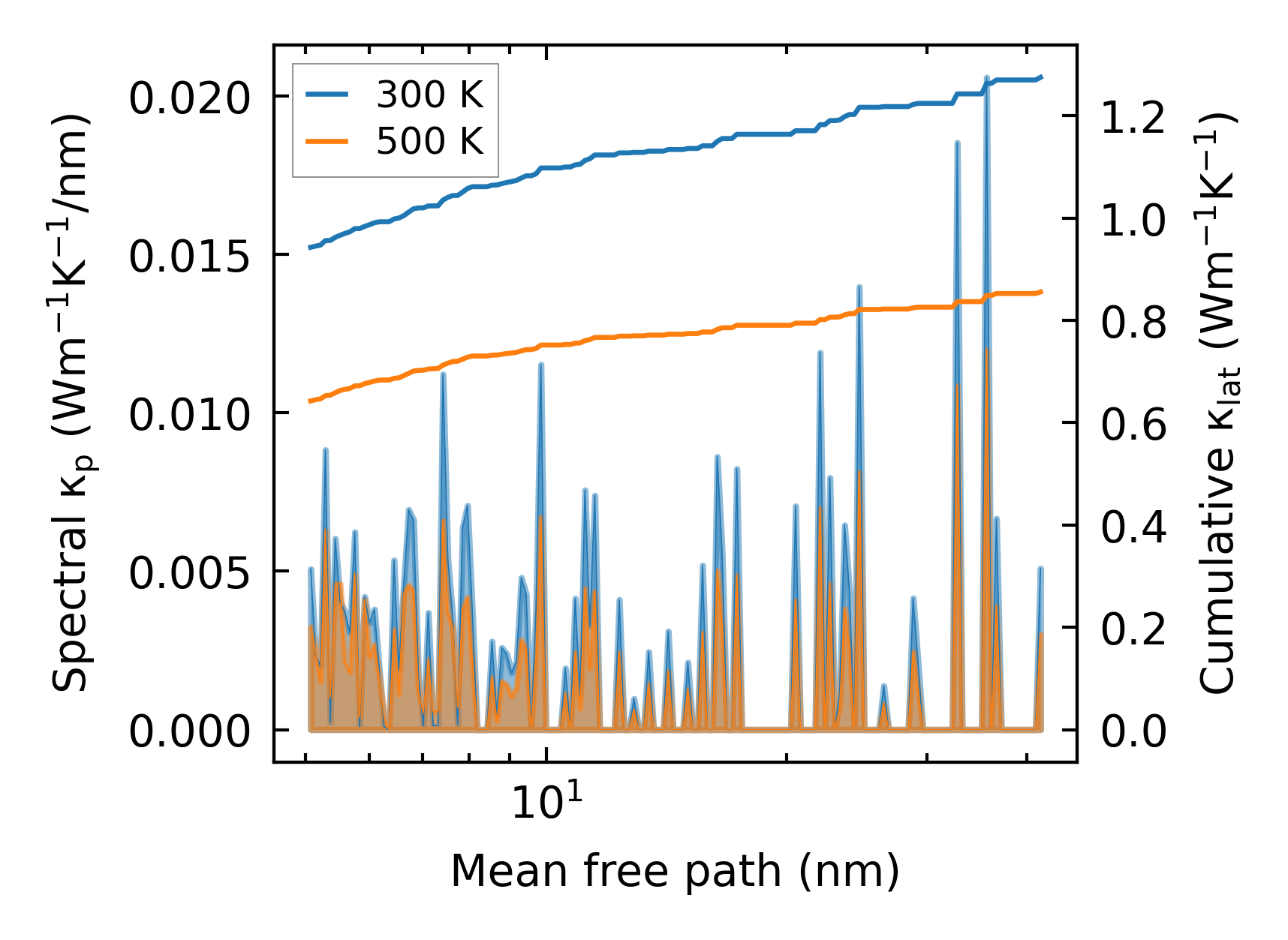

../../_images/fig_cumu_mfp1155.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21865.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2245.png — (a) Temperature-dependent lattice thermal conductivity

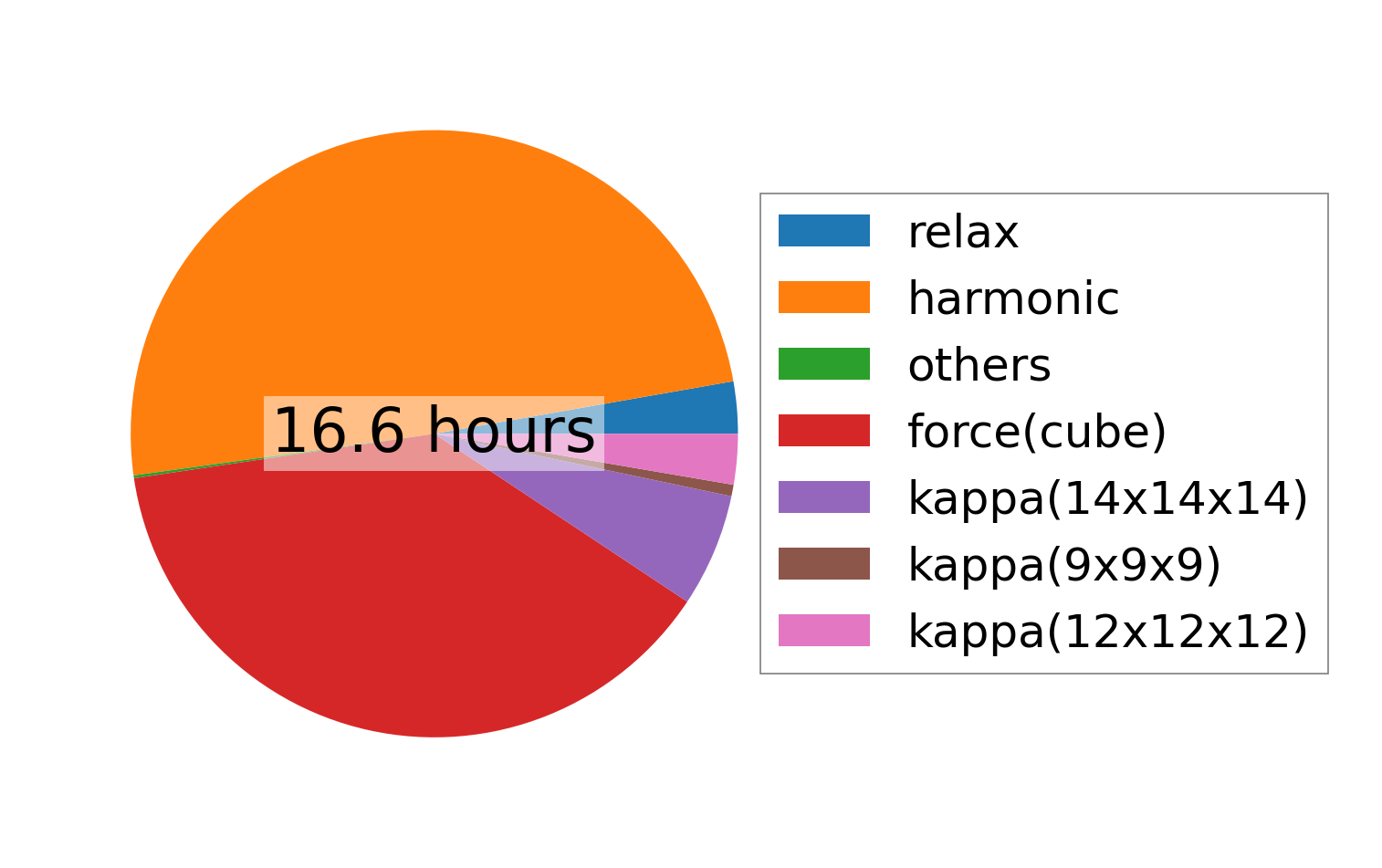

../../_images/fig_times3153.png — (b) Computation time
