mp-8615/NbBO4/anharm

Space group: I4_1/amd (141)
Link: Materials Project
Download: mp-8615.tar.gz

Equation of state

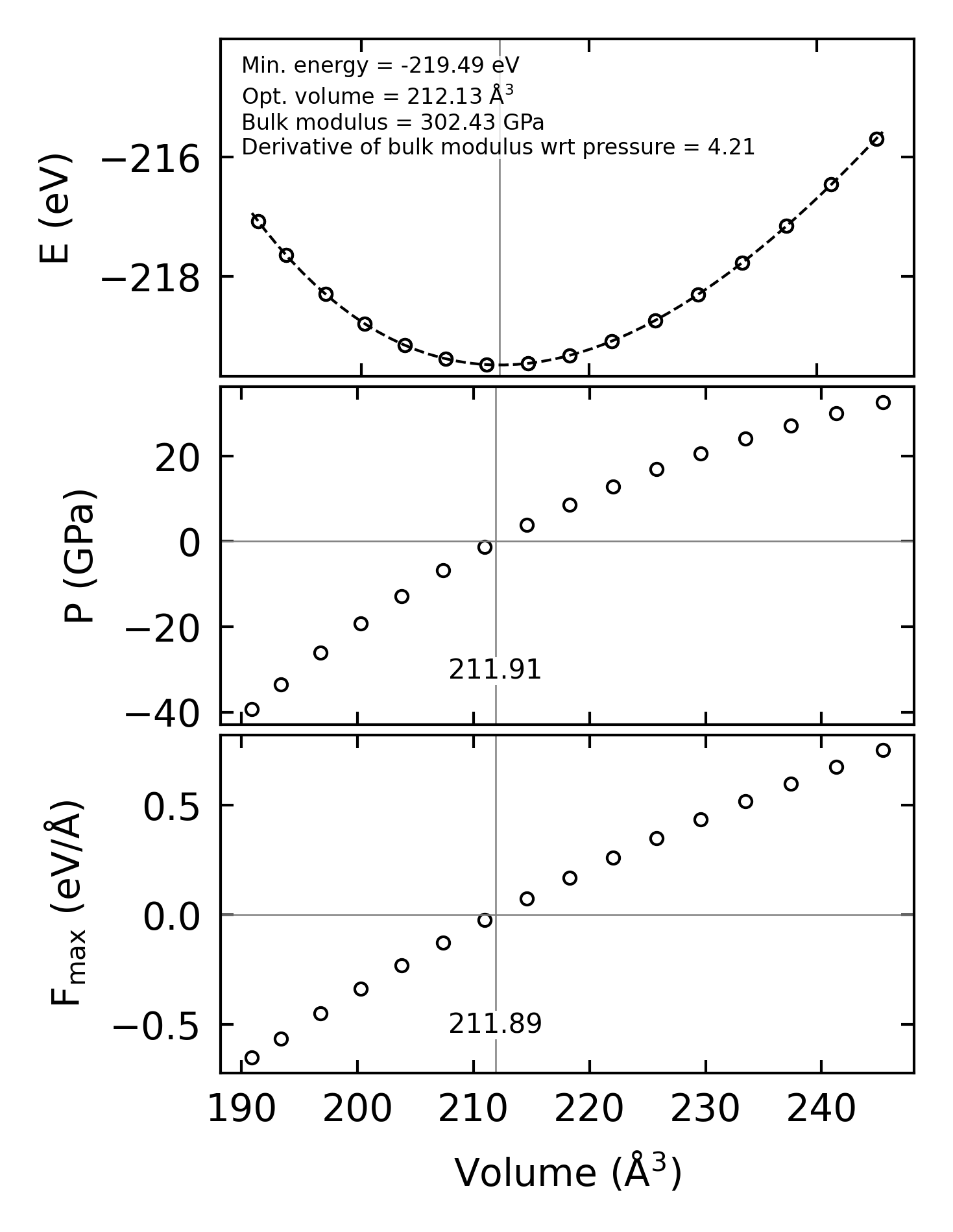

../../_images/fig_bm752.png — (a) Equation of state

Harmonic properties

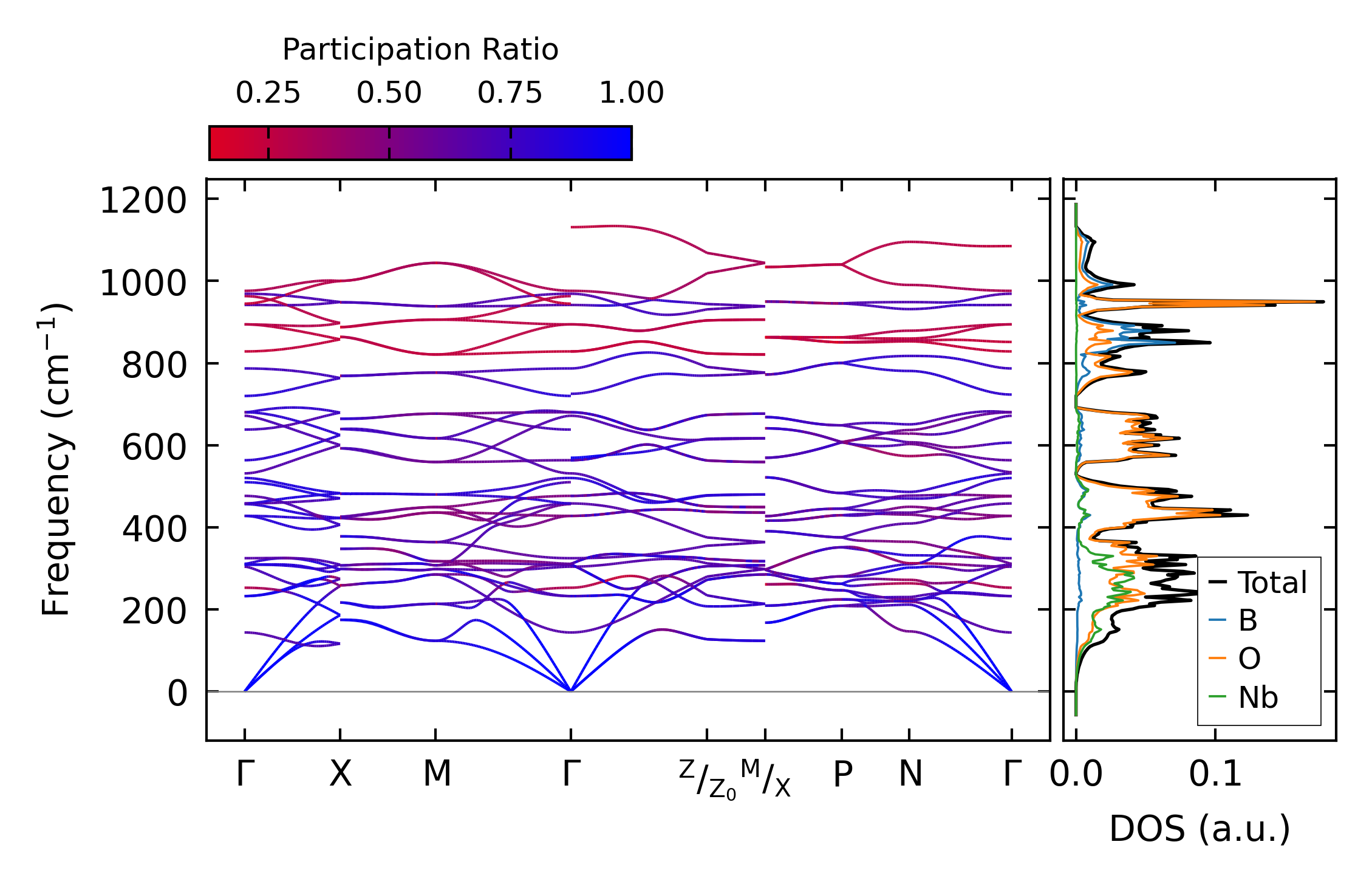

../../_images/fig_bandos_pr1855.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1855.png — (b) Thermodynamic properties

Grüneisen parameters

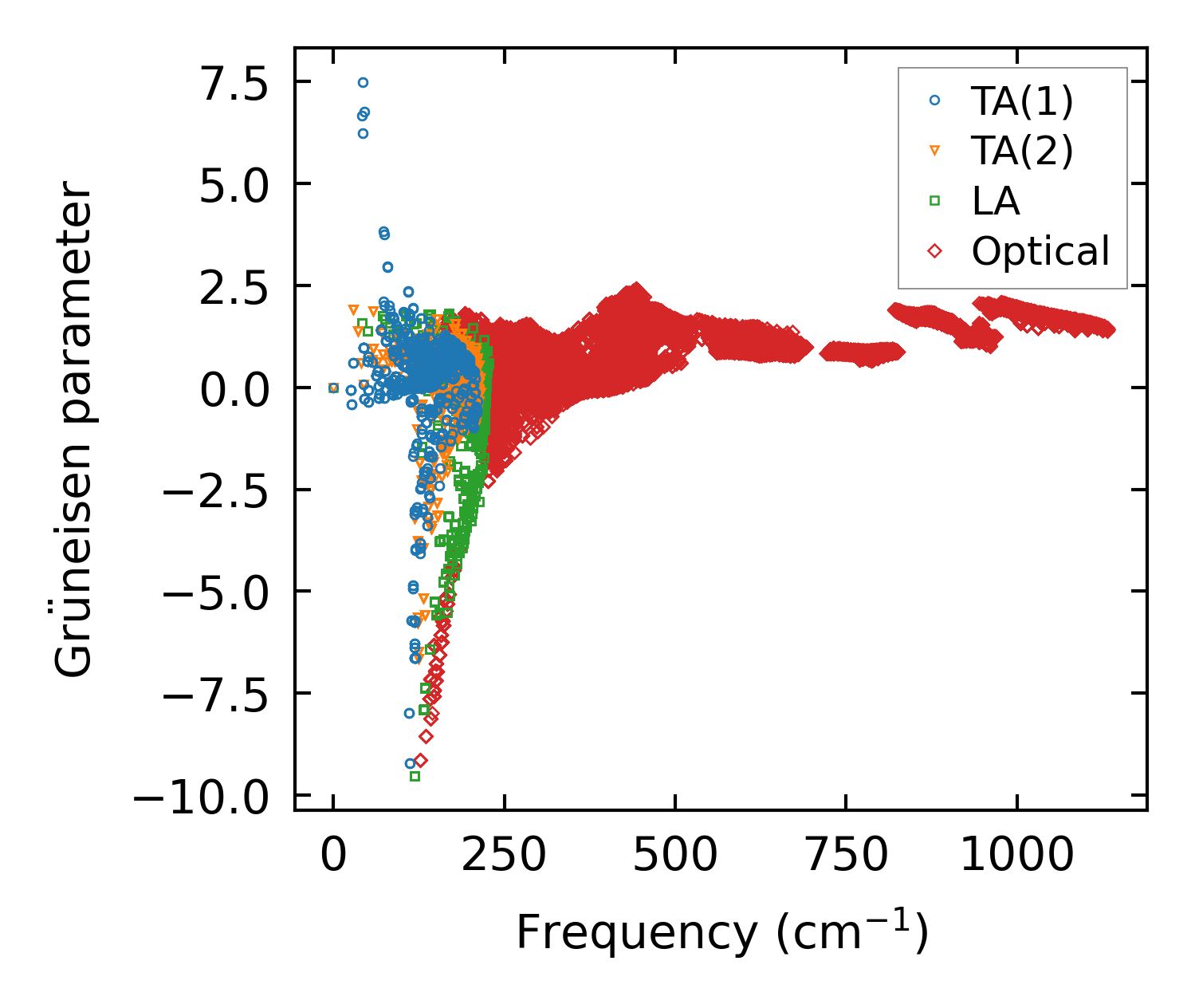

../../_images/fig_gru_all1056.png — (a) Grüneisen parameters

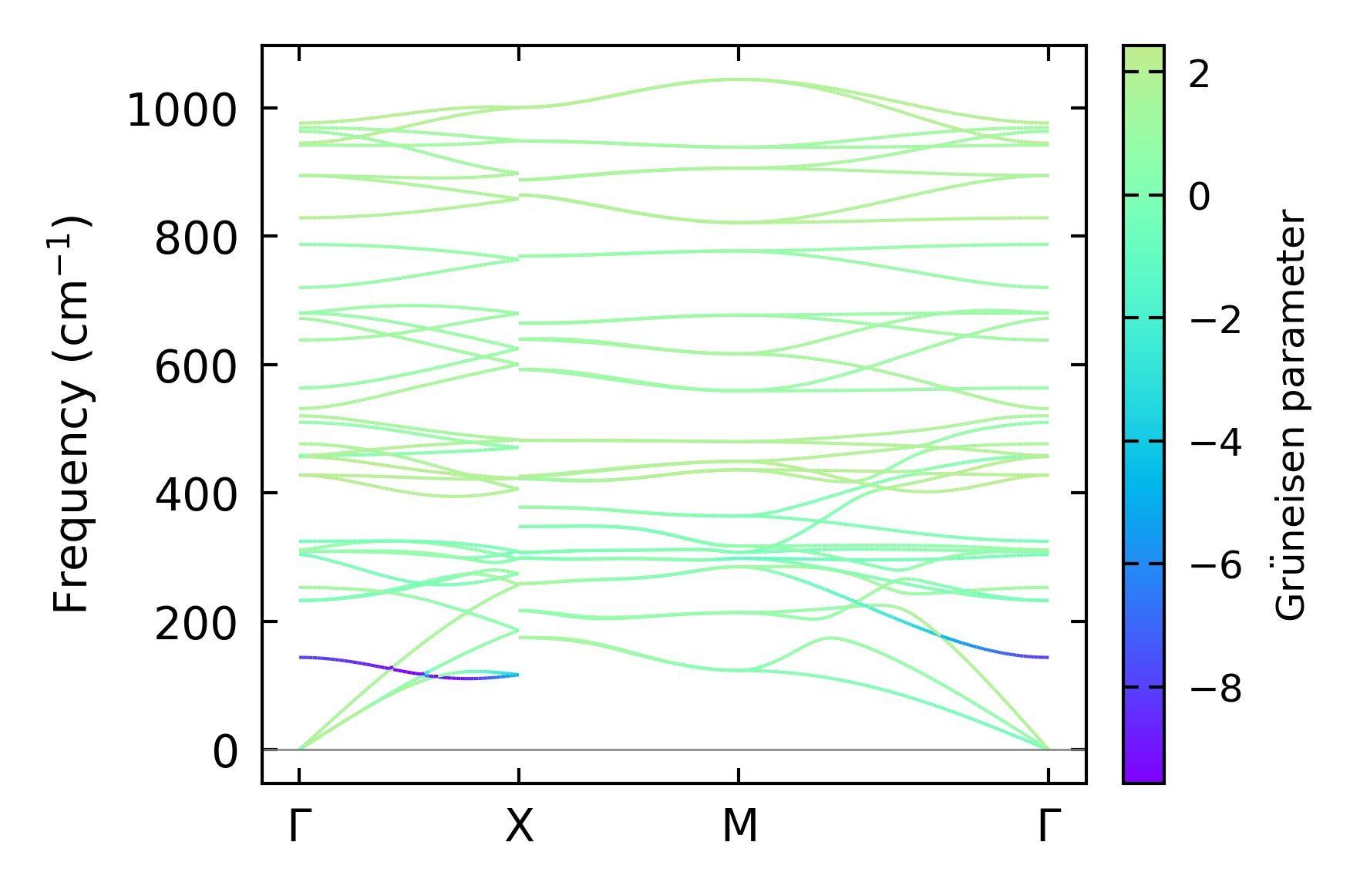

../../_images/fig_gruneisen1056.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 1x1x2

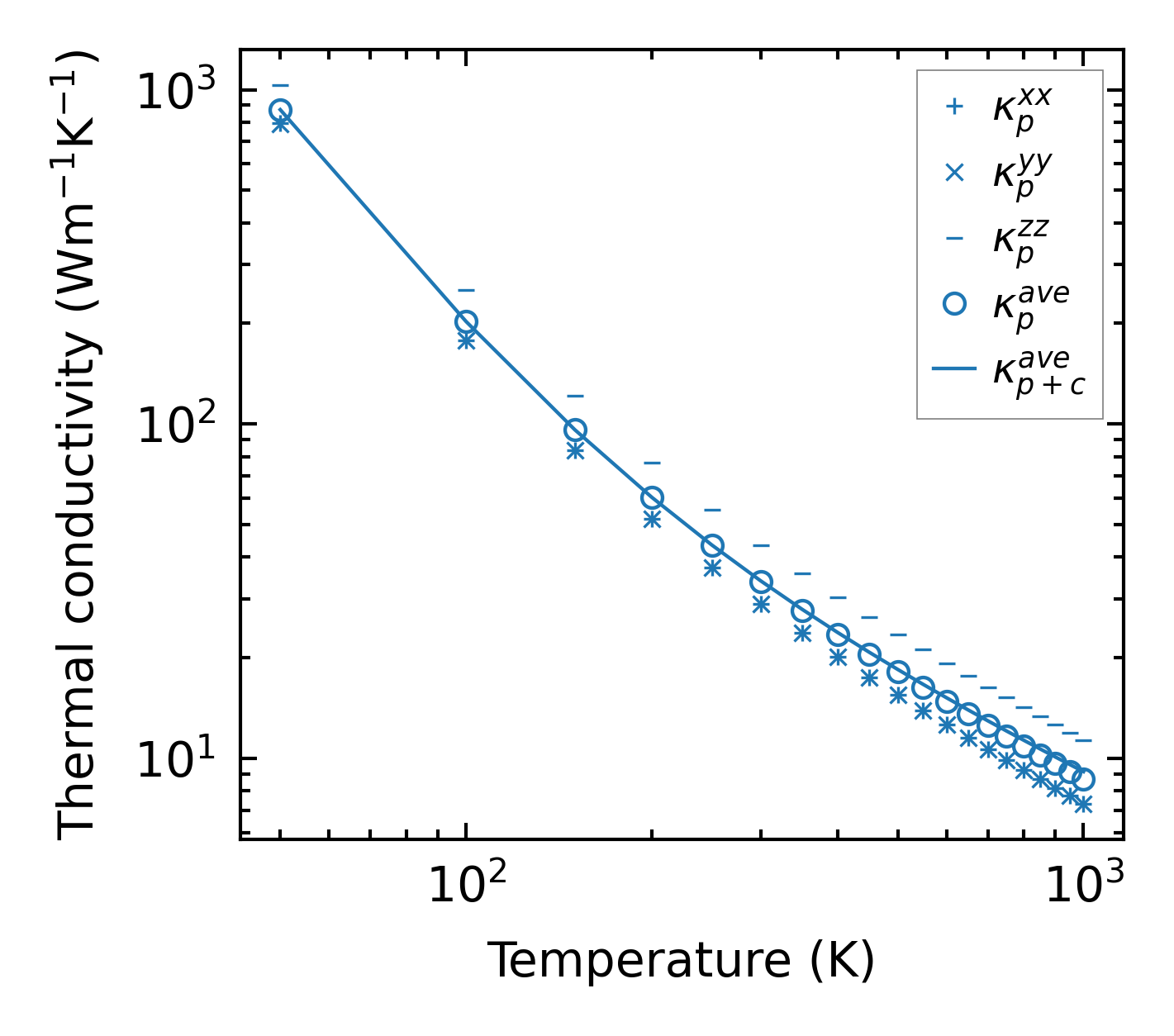

../../_images/fig_kappa2041.png — (a) Temperature-dependent lattice thermal conductivity

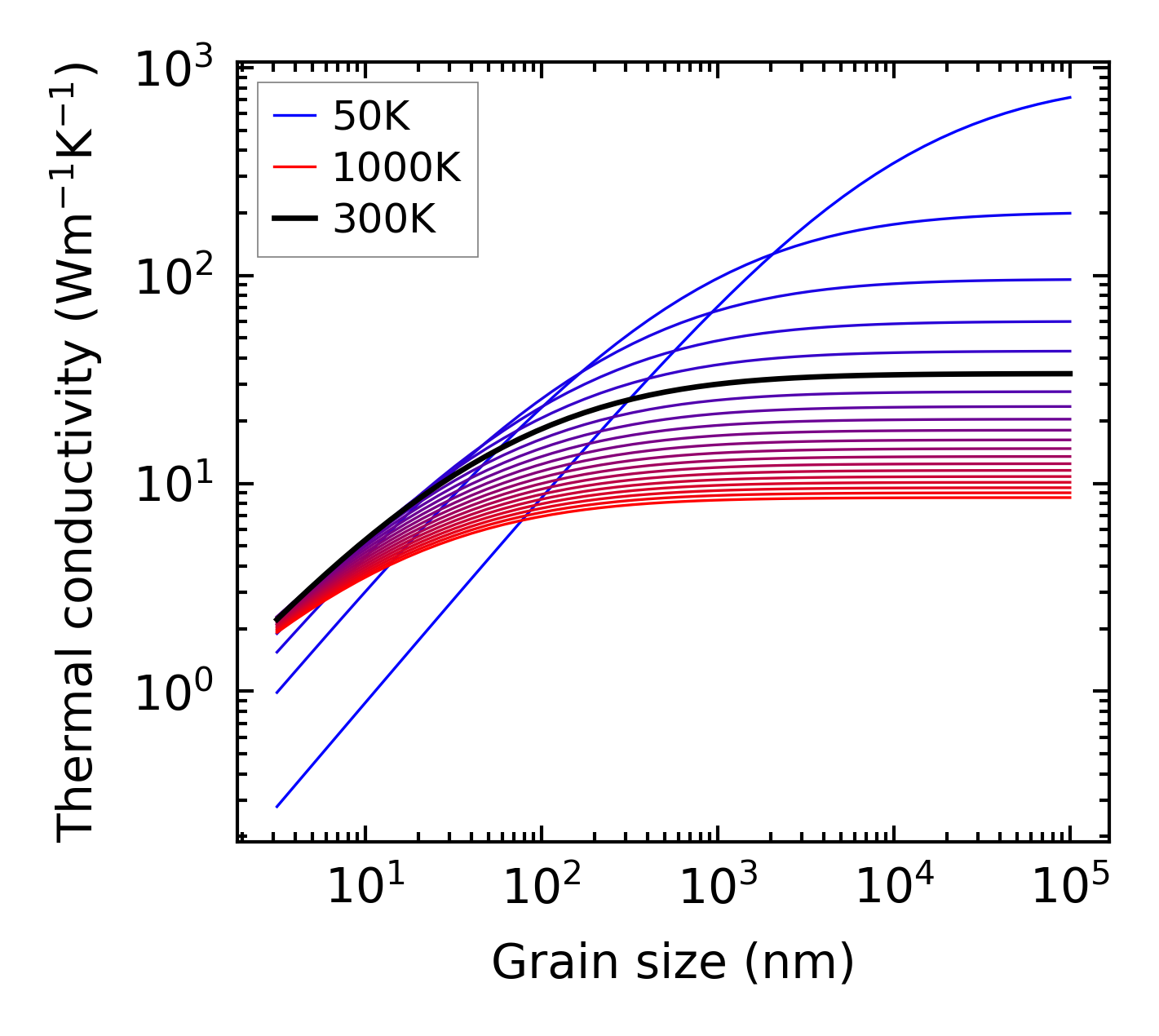

../../_images/fig_kappa_vs_grain_size1067.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

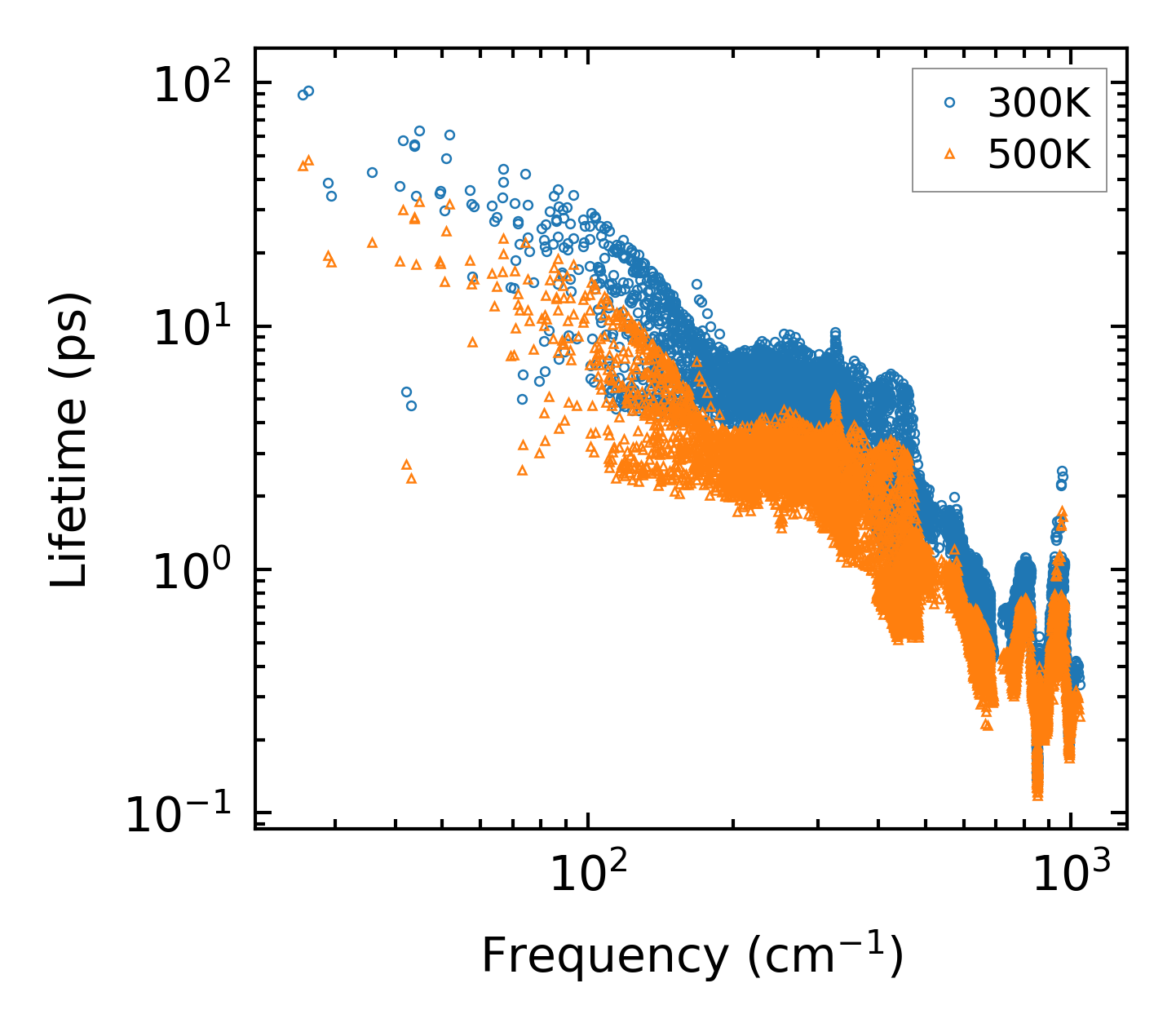

../../_images/fig_lifetime1047.png — (a) Phonon lifetime due to phonon-phonon scattering

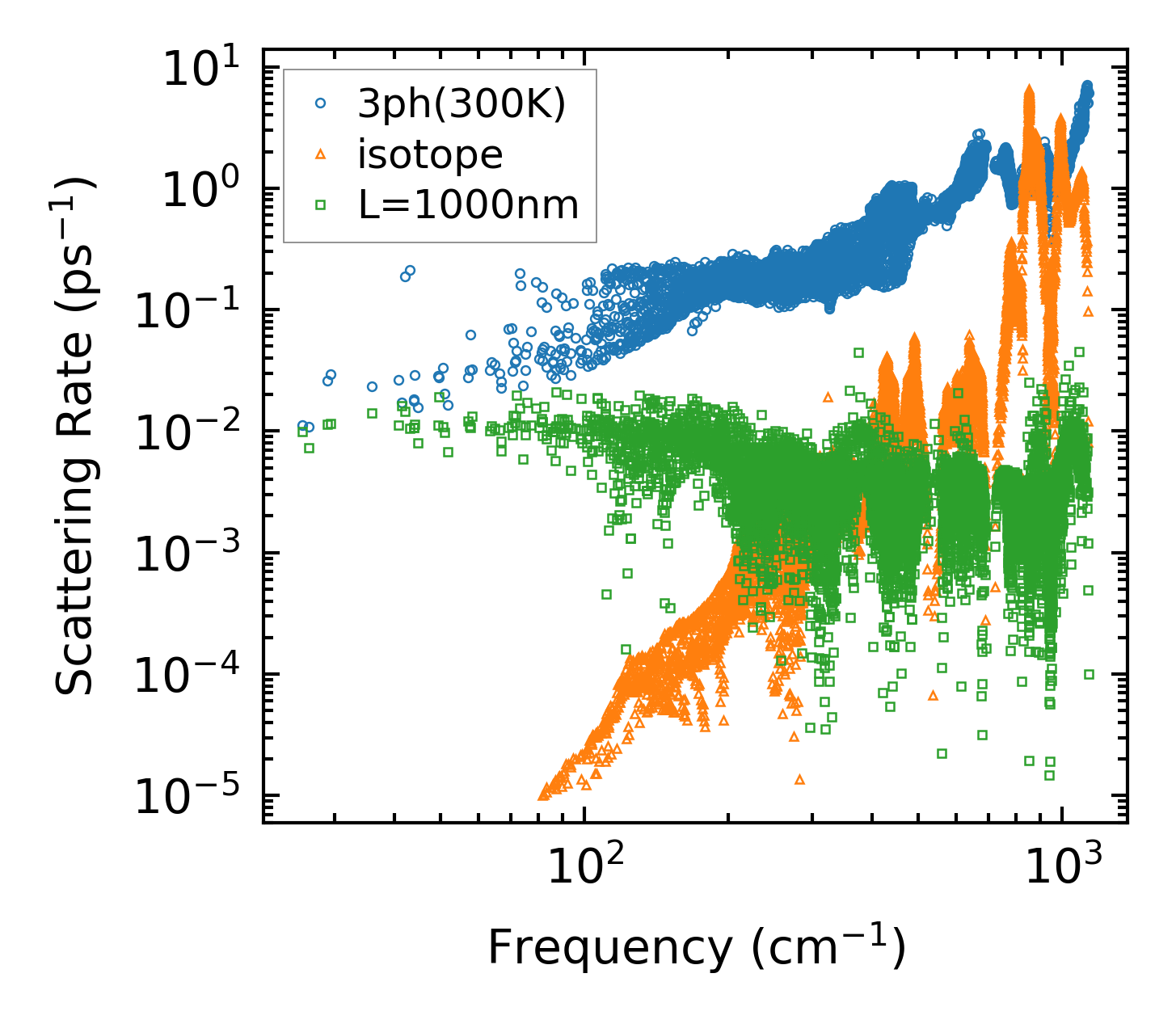

../../_images/fig_scat_rates1046.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

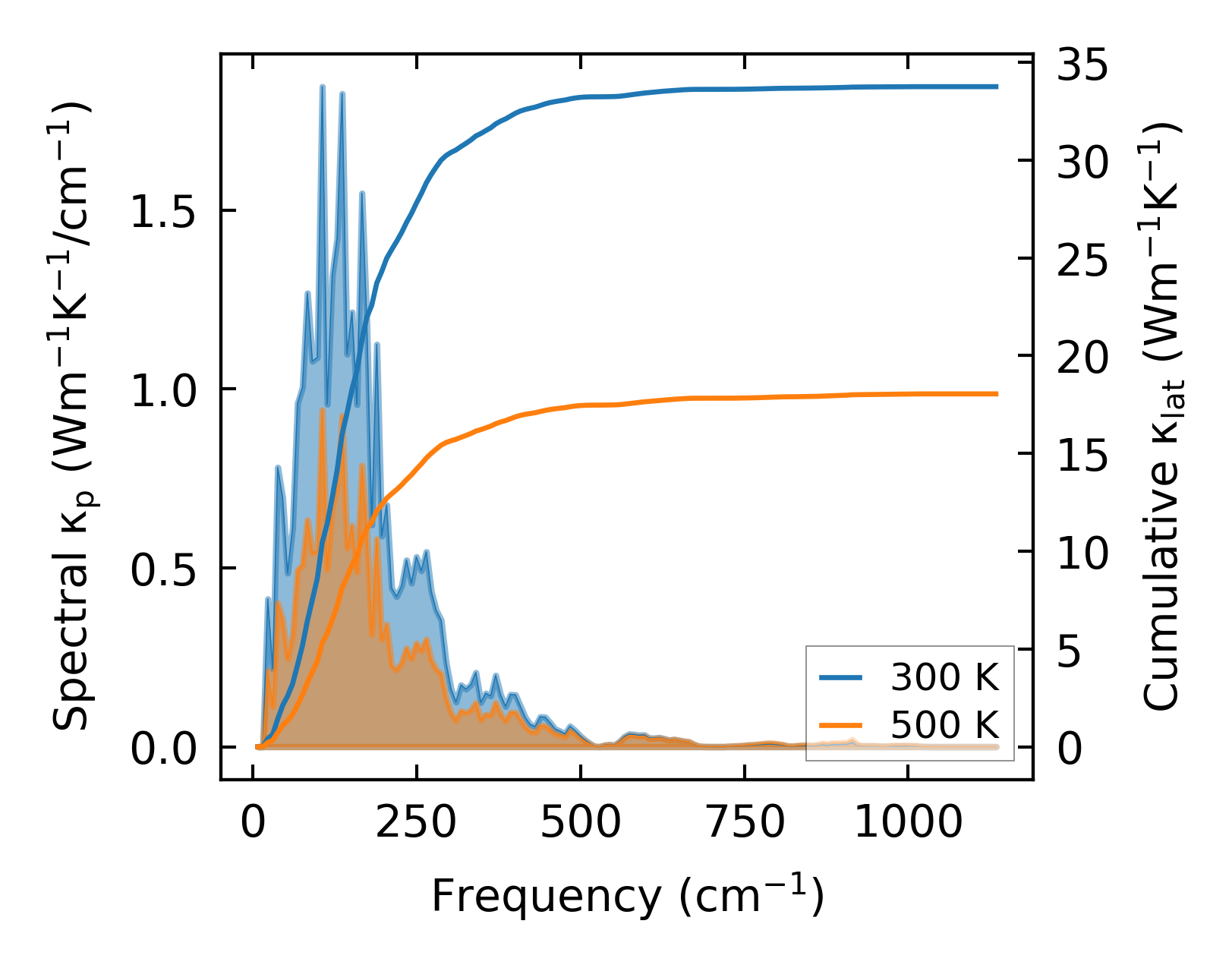

../../_images/fig_cumu_frequency1047.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

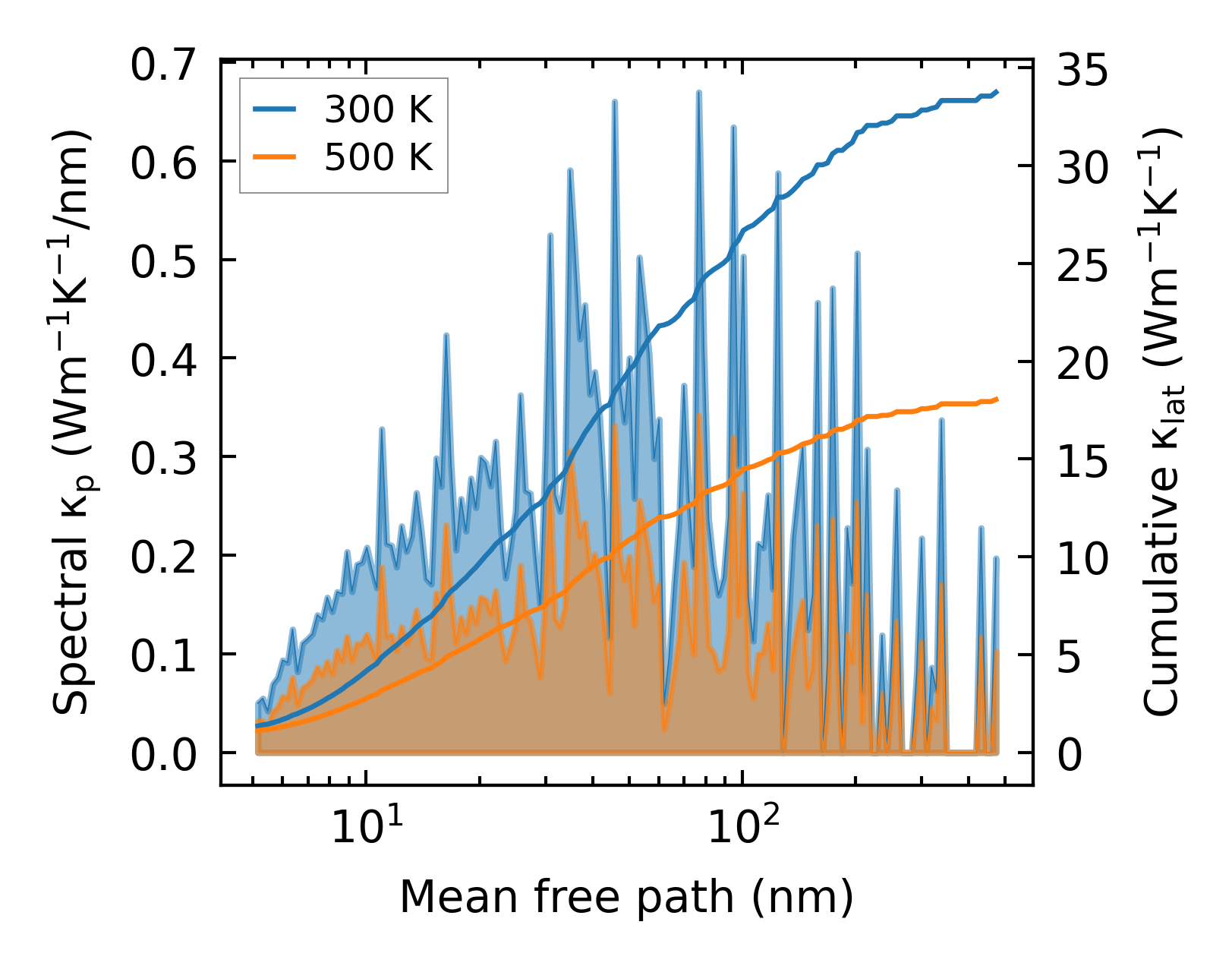

../../_images/fig_cumu_mfp1047.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

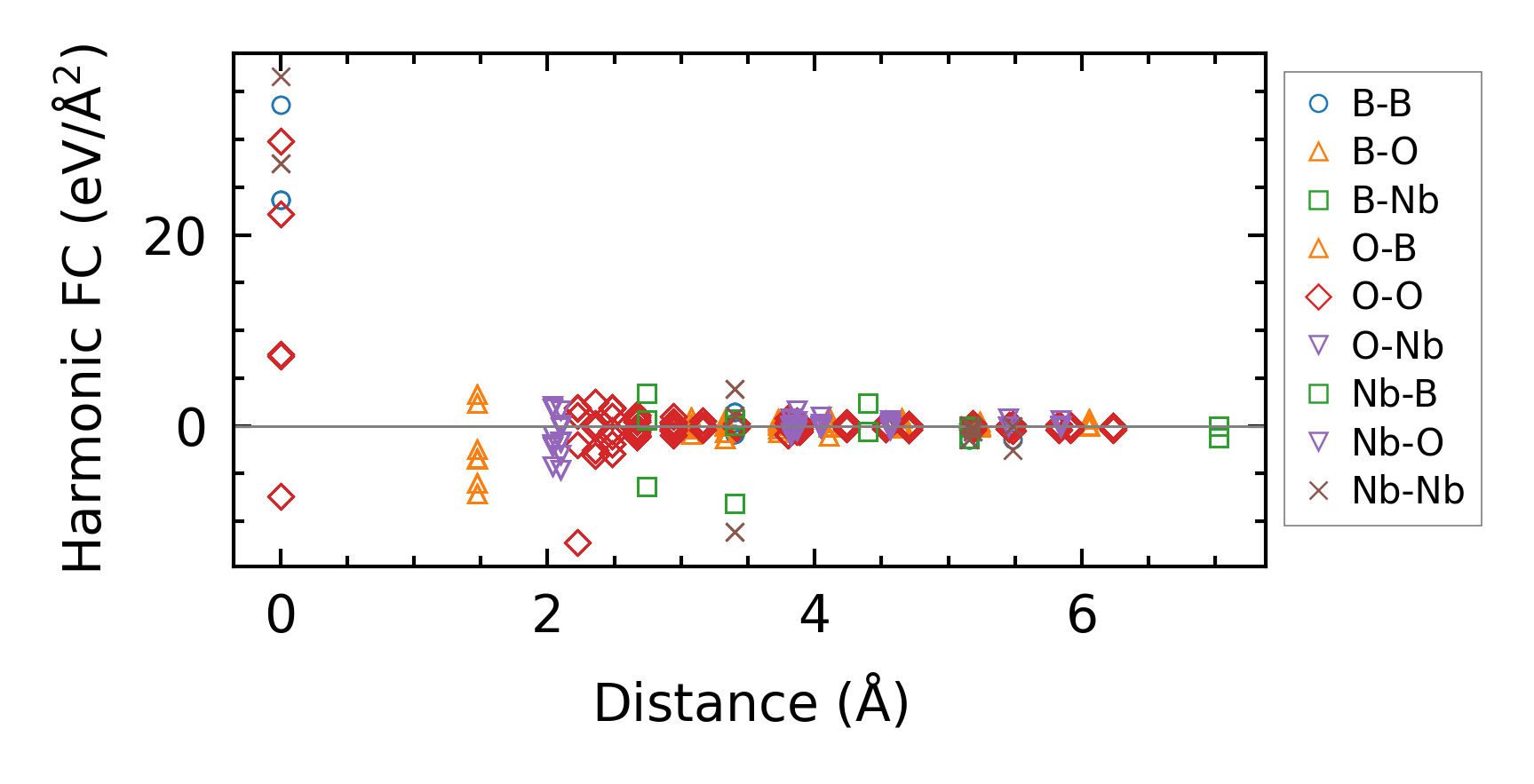

../../_images/fig_fc21678.png — (a) Force constants w.r.t atomic distance

Summary

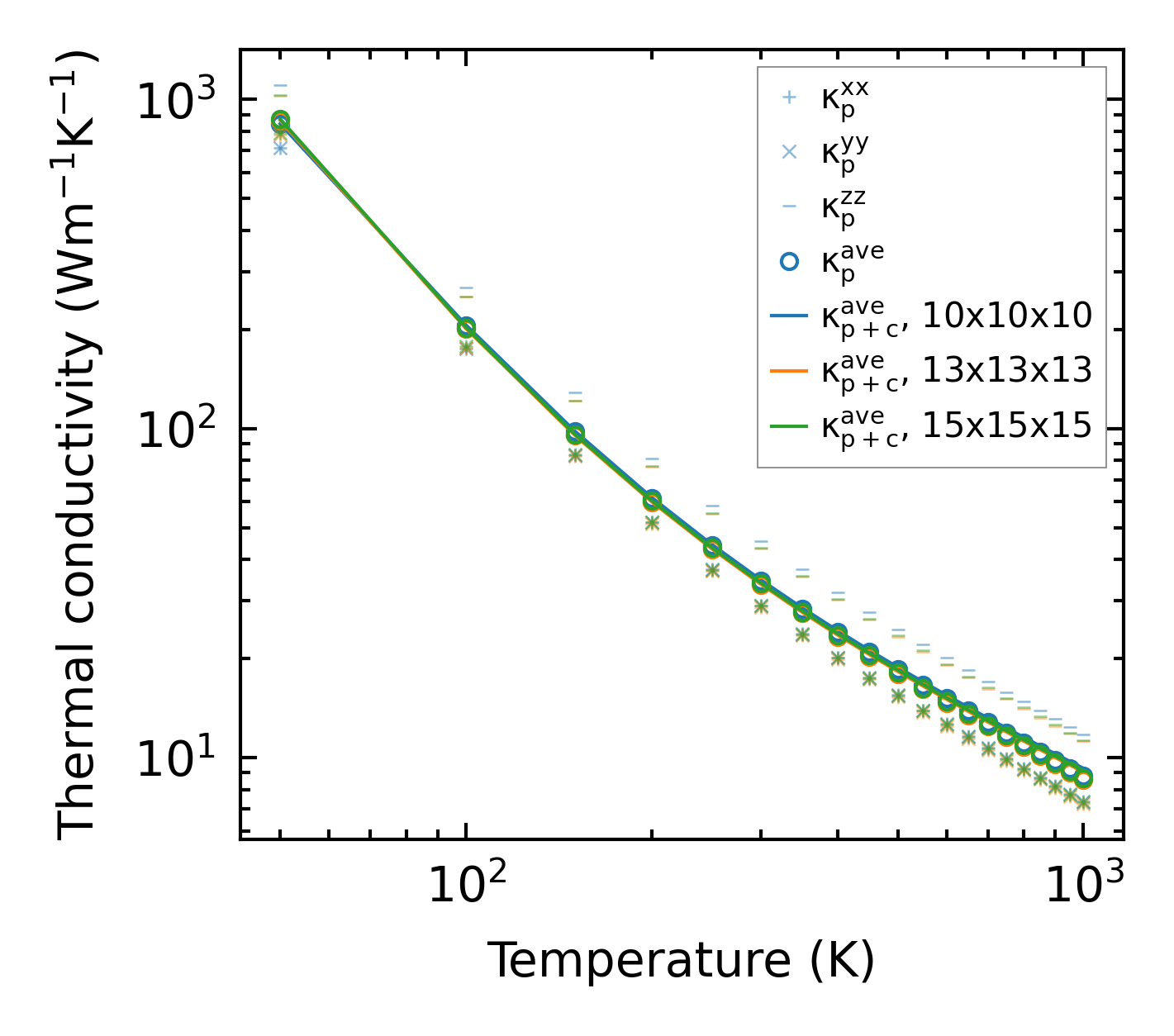

../../_images/fig_kappa2042.png — (a) Temperature-dependent lattice thermal conductivity

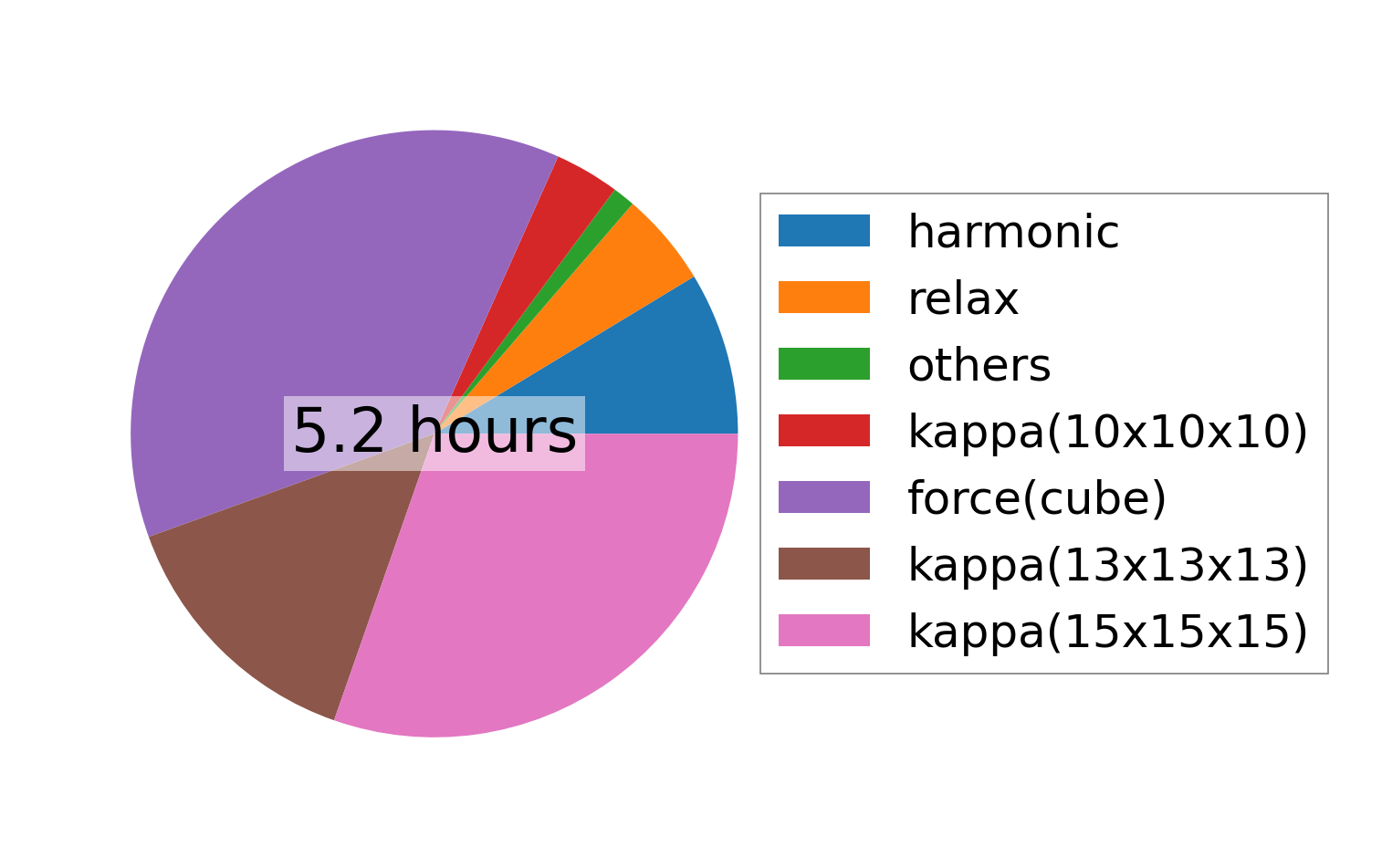

../../_images/fig_times2840.png — (b) Computation time
