mp-8269-2/Lu2CdS4/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-8269-2.tar.gz

Equation of state

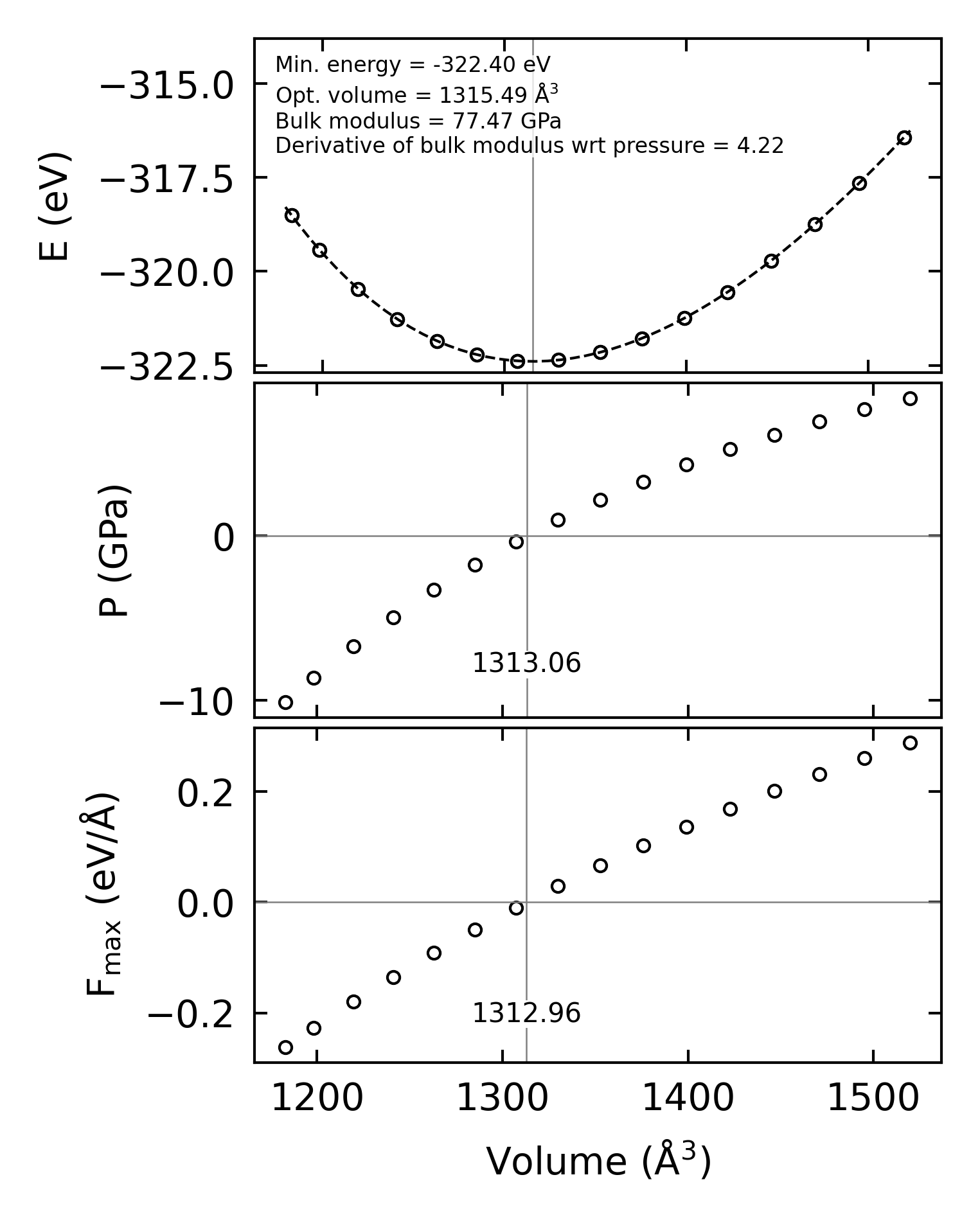

../../_images/fig_bm899.png — (a) Equation of state

Harmonic properties

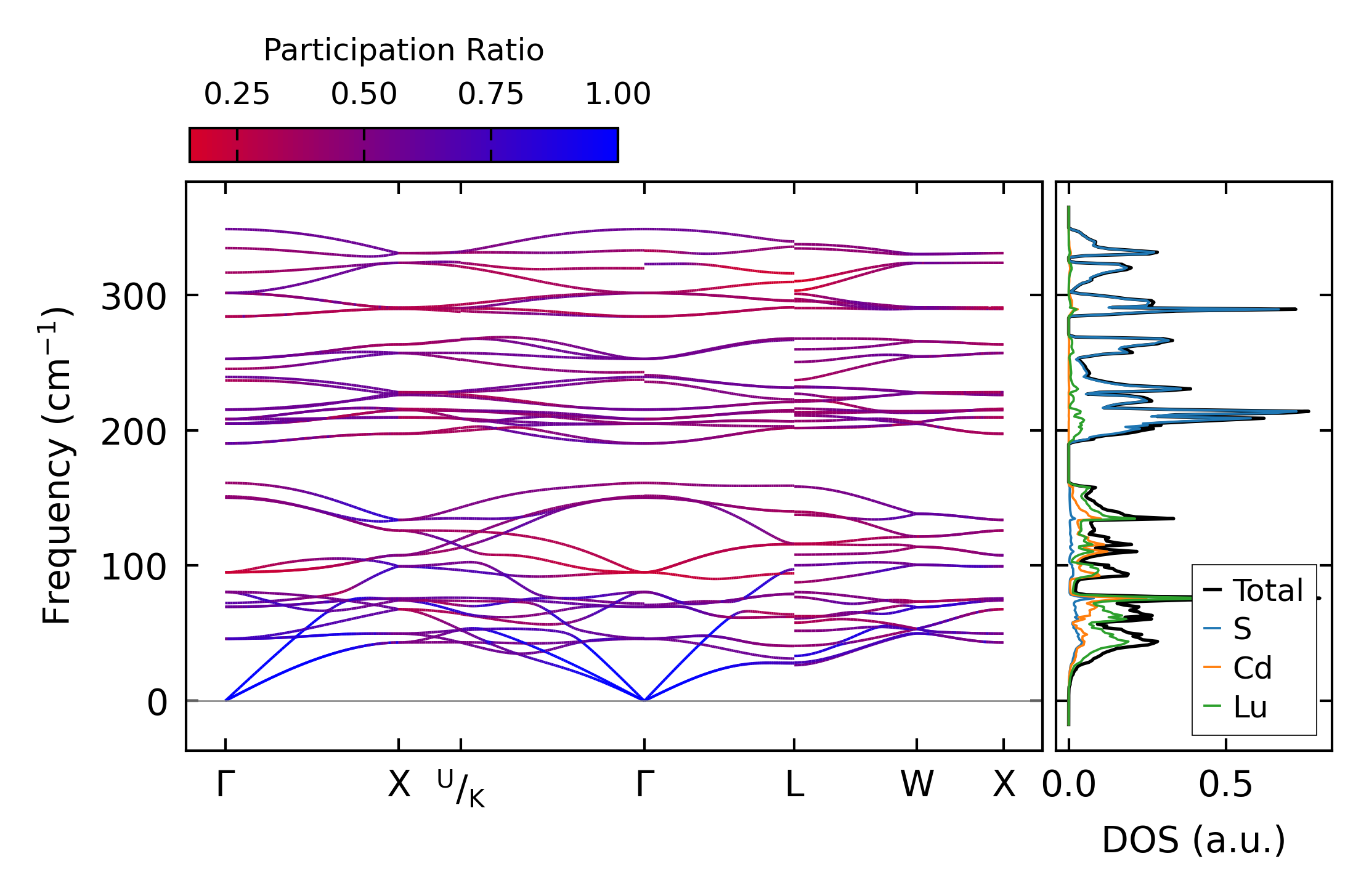

../../_images/fig_bandos_pr2111.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2111.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1211.png — (a) Grüneisen parameters

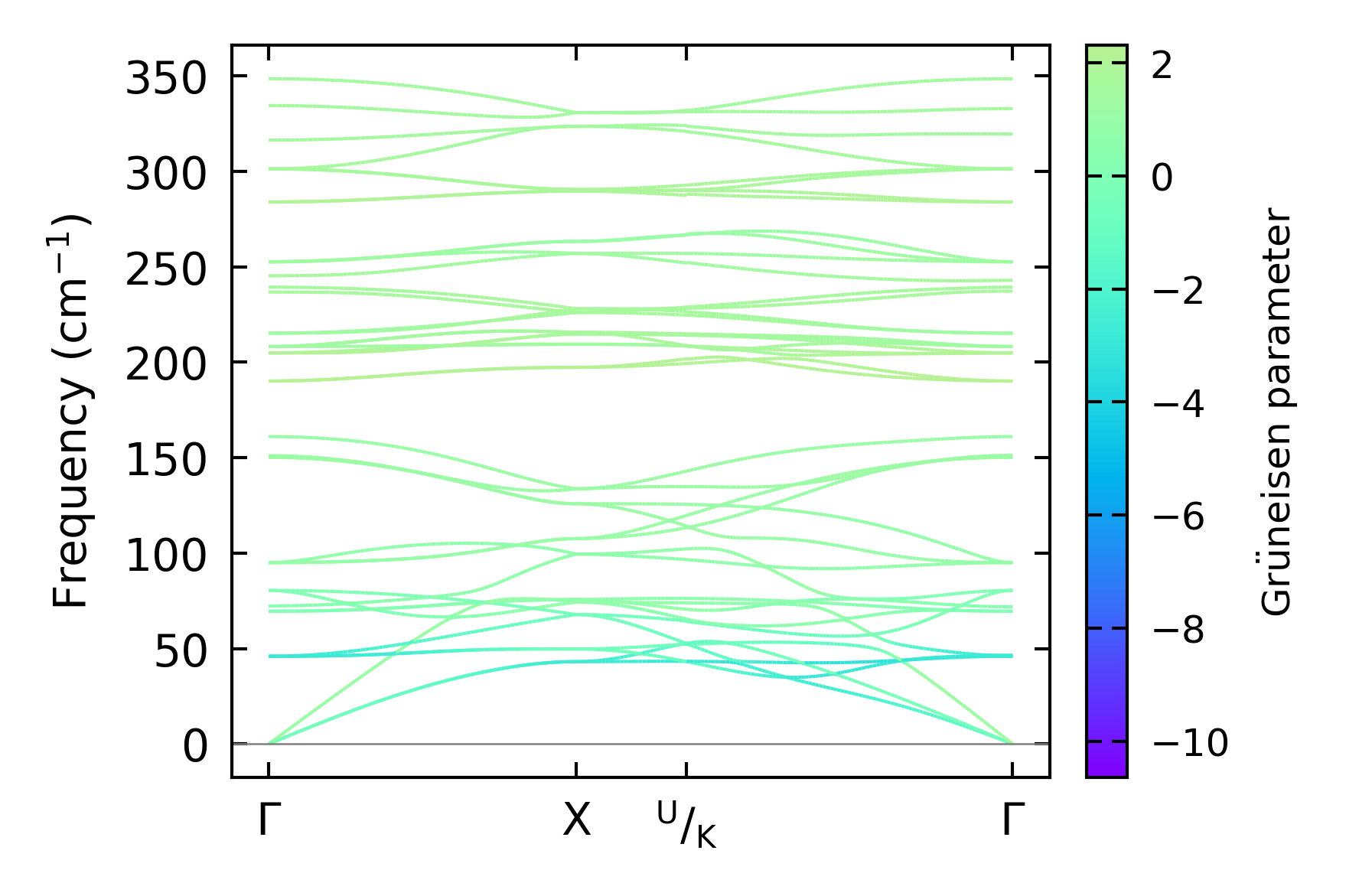

../../_images/fig_gruneisen1211.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

../../_images/fig_kappa2334.png — (a) Temperature-dependent lattice thermal conductivity

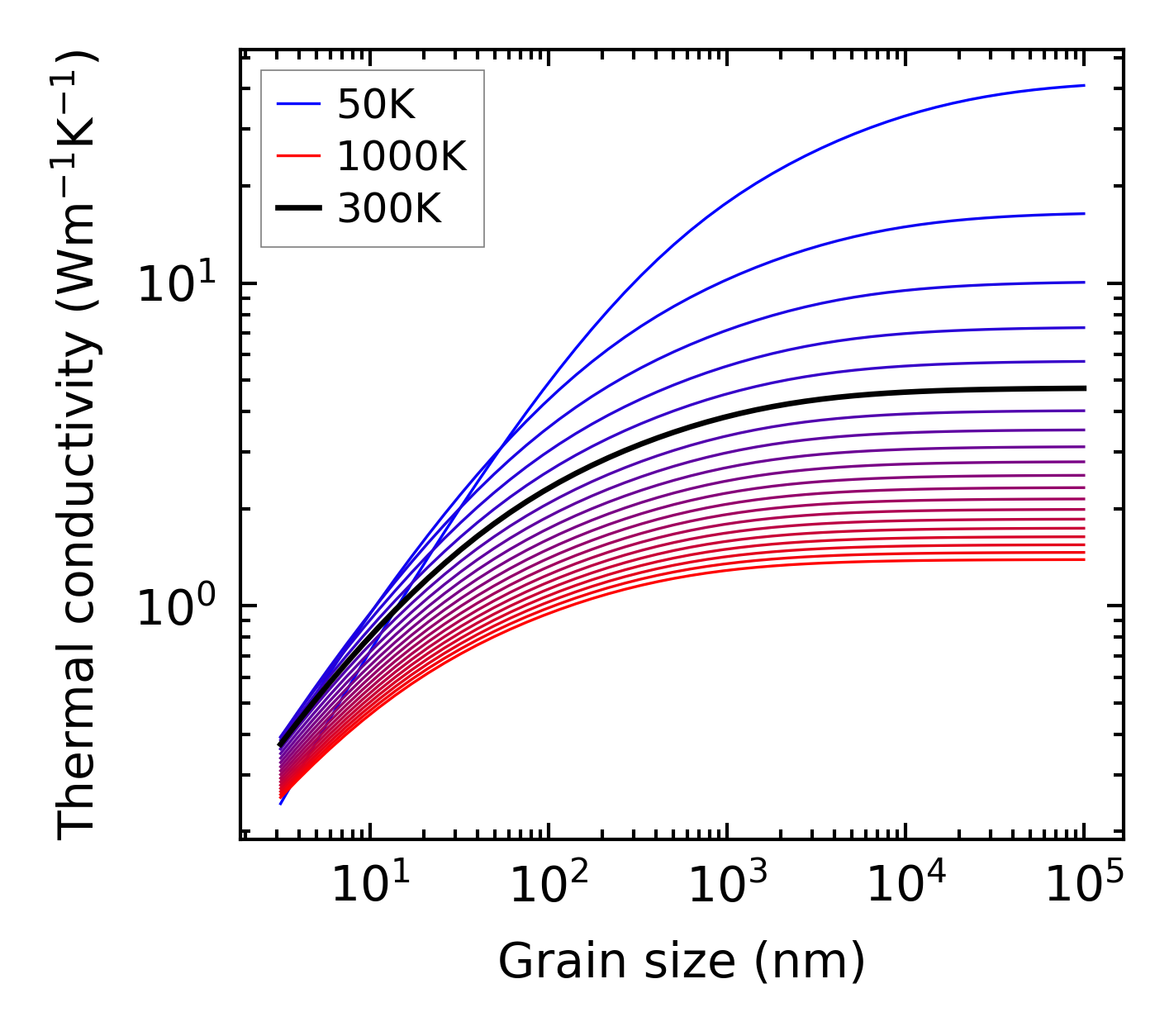

../../_images/fig_kappa_vs_grain_size1225.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

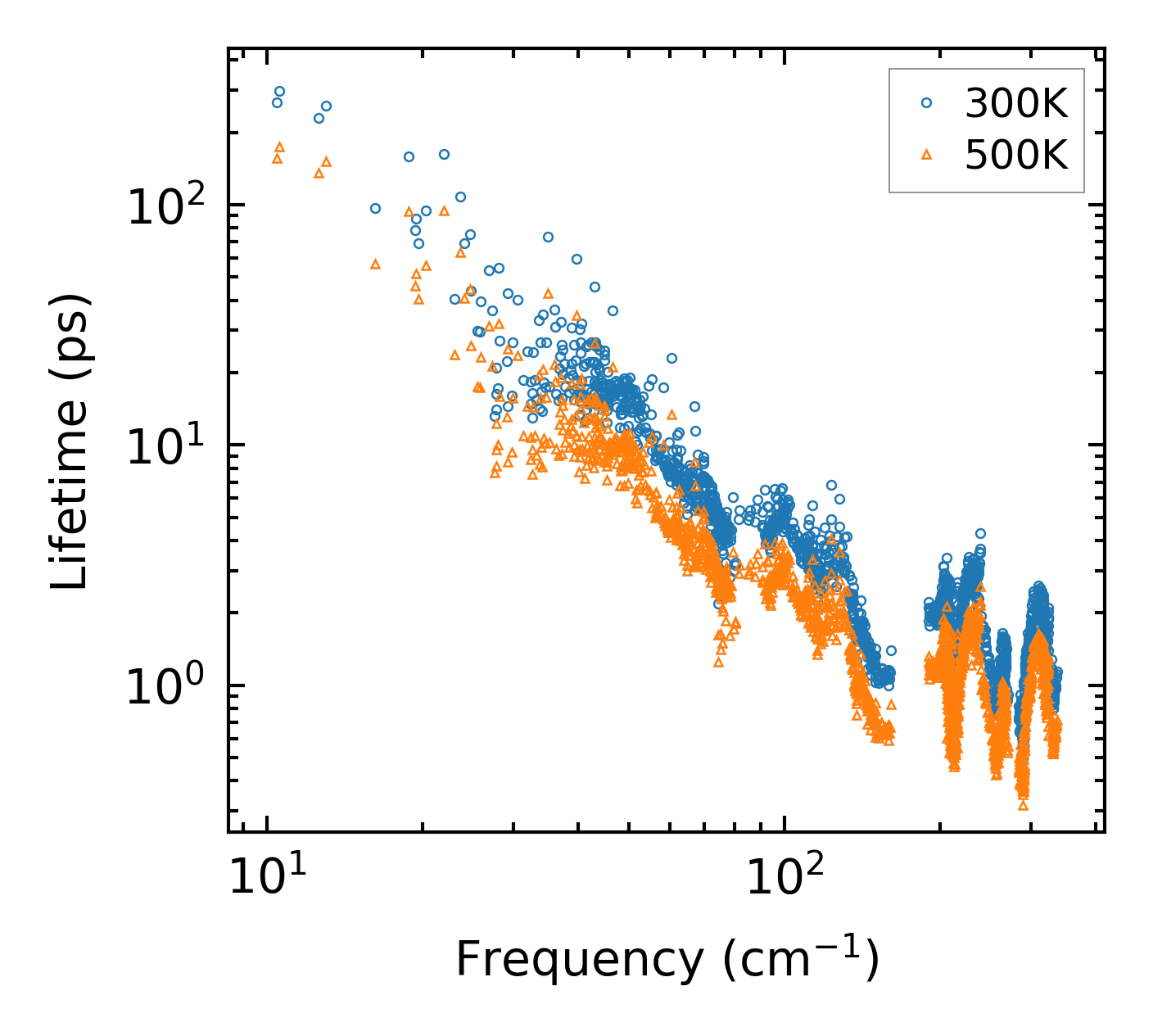

../../_images/fig_lifetime1201.png — (a) Phonon lifetime due to phonon-phonon scattering

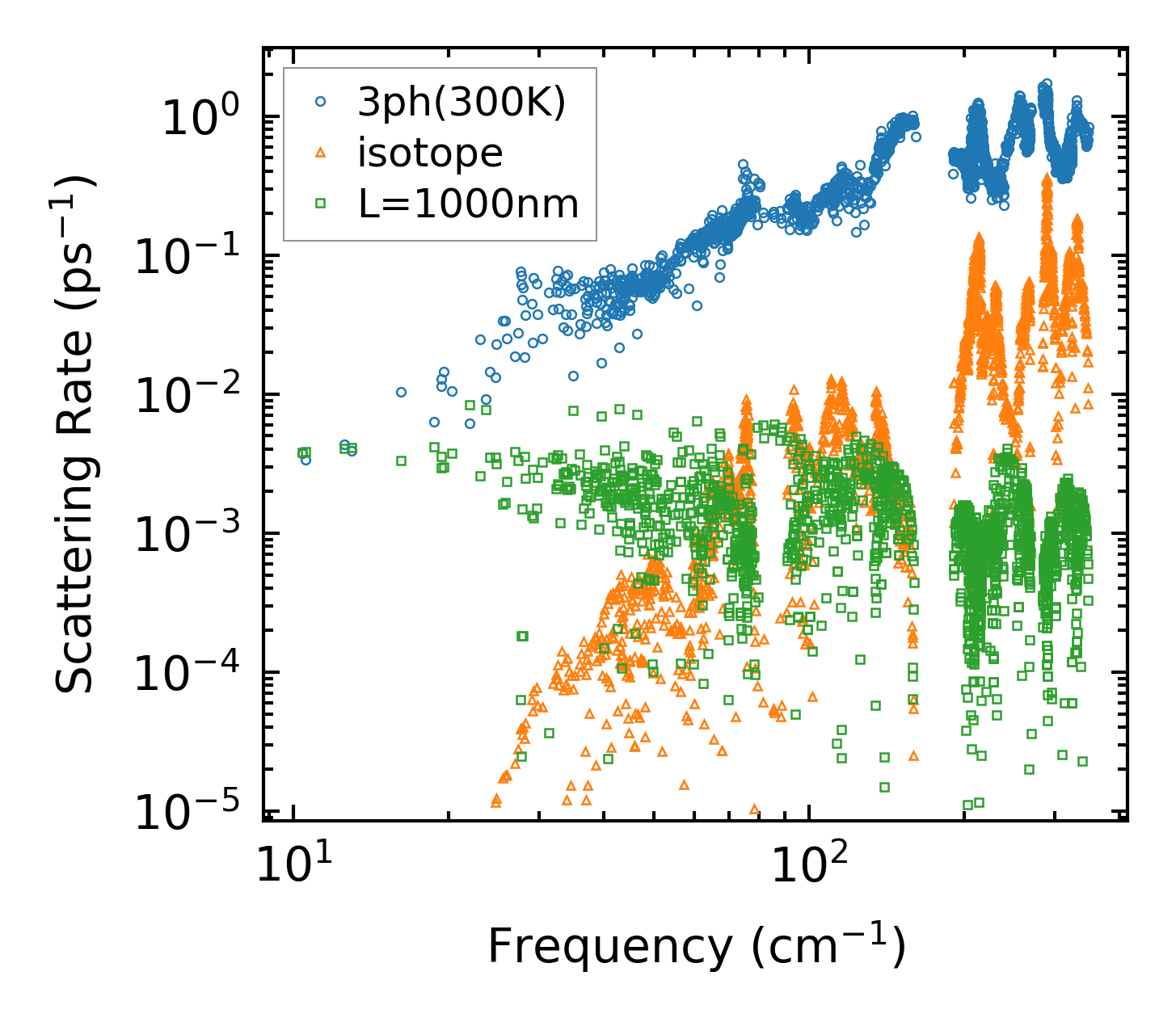

../../_images/fig_scat_rates1200.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

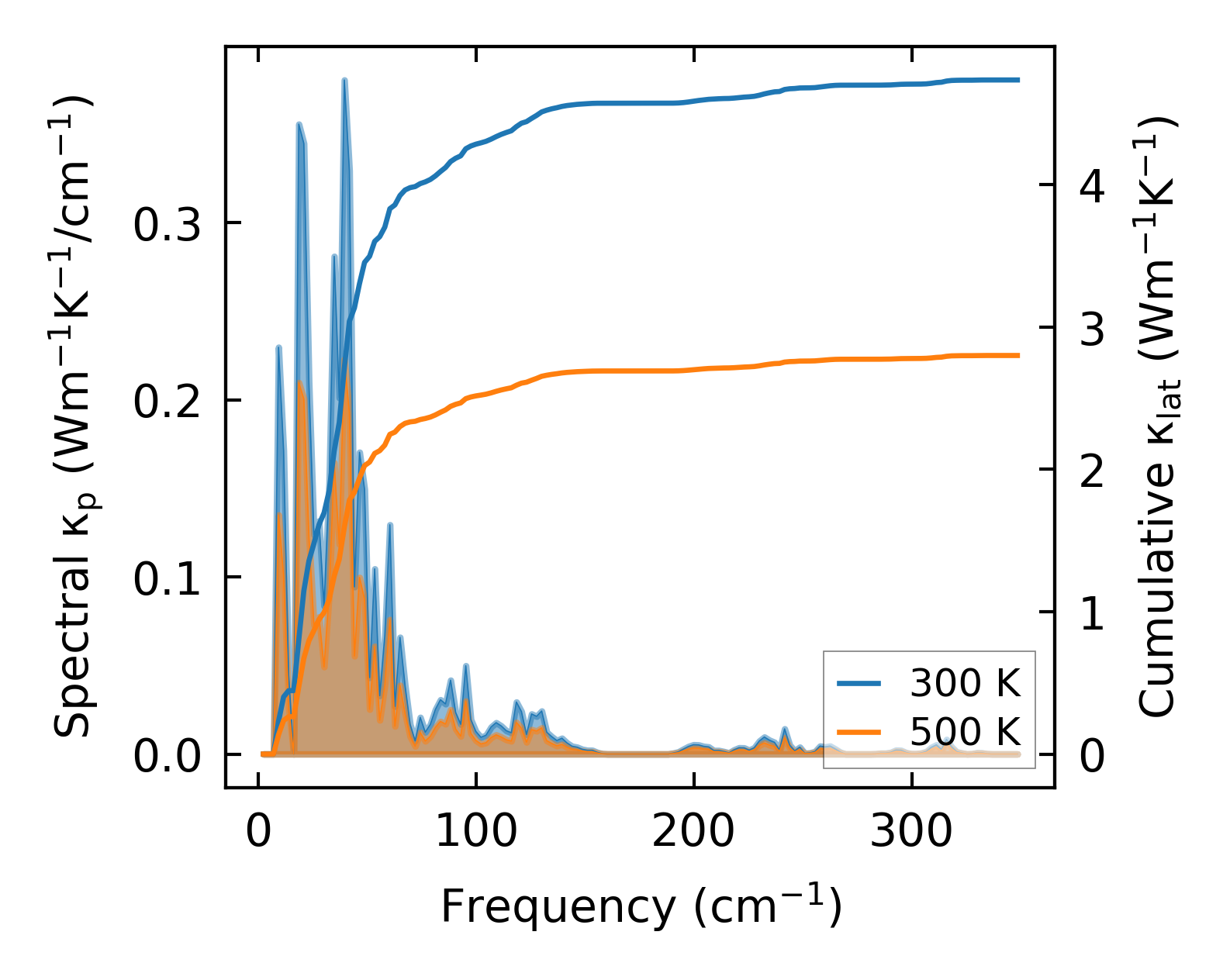

../../_images/fig_cumu_frequency1201.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1201.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21932.png — (a) Force constants w.r.t atomic distance

Summary

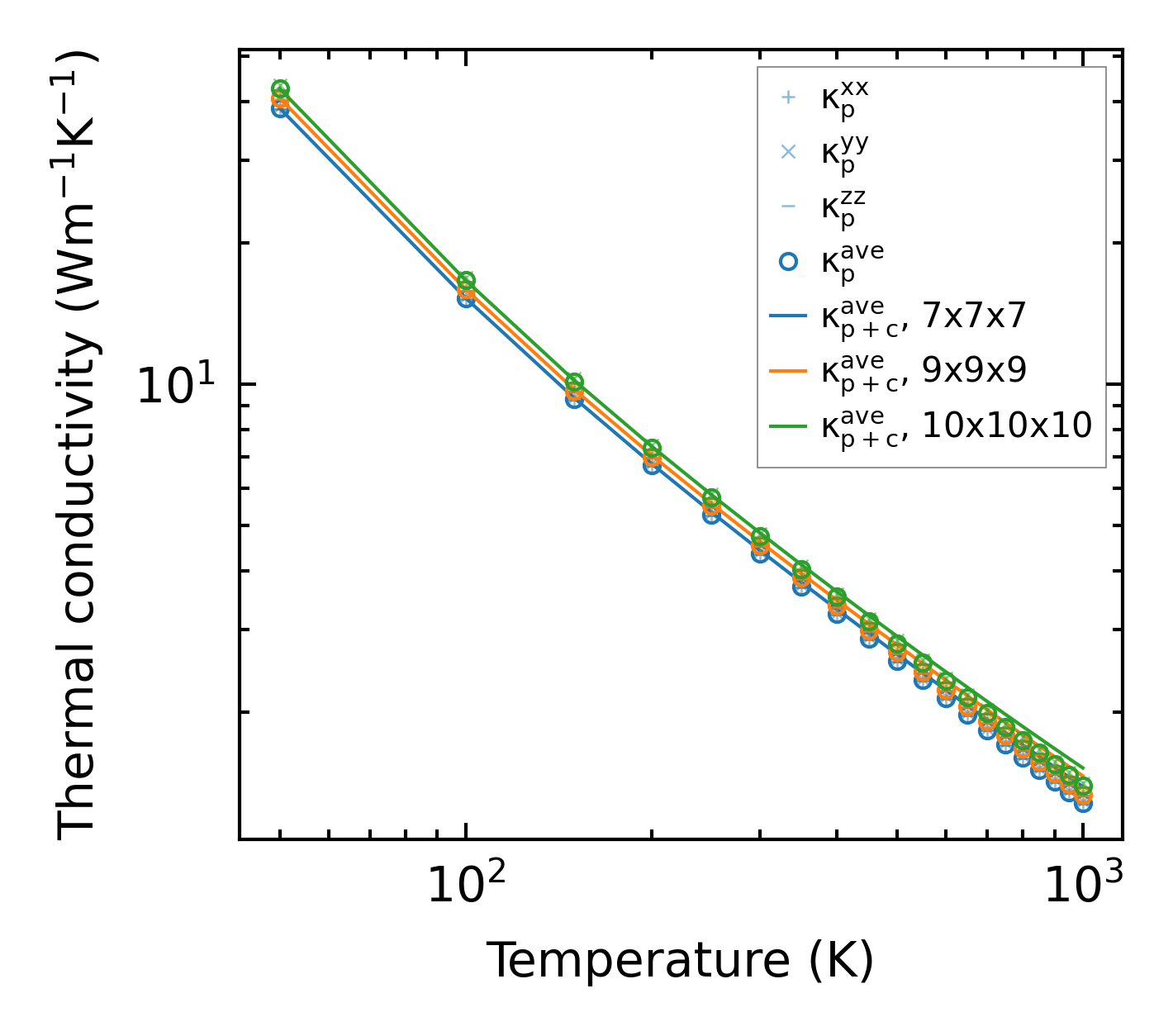

../../_images/fig_kappa2335.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times3232.png — (b) Computation time
