mp-8564/CsK2ScP2O8/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-8564.tar.gz

Harmonic properties

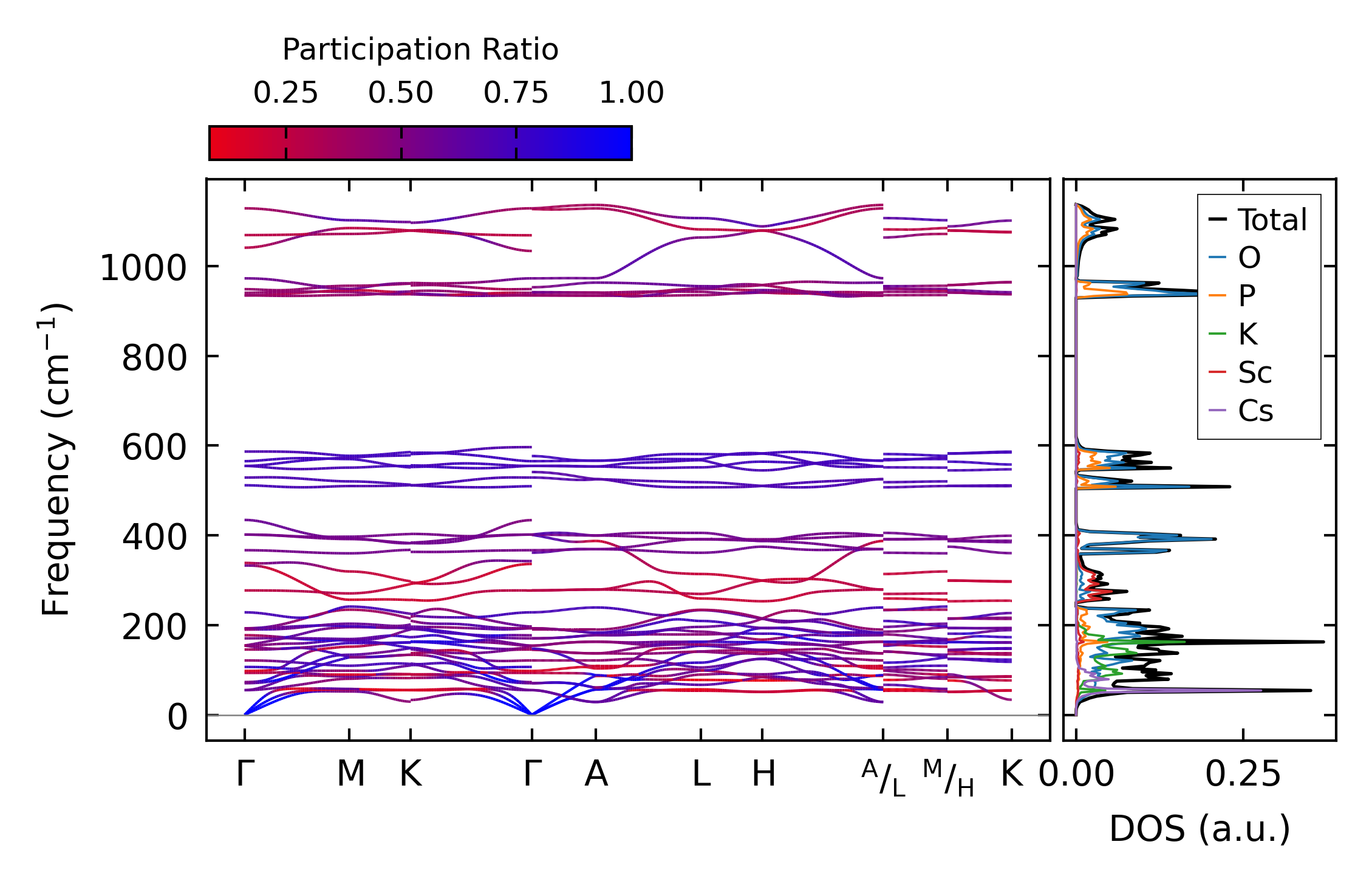

../../_images/fig_bandos_pr1842.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1842.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1046.png — (a) Grüneisen parameters

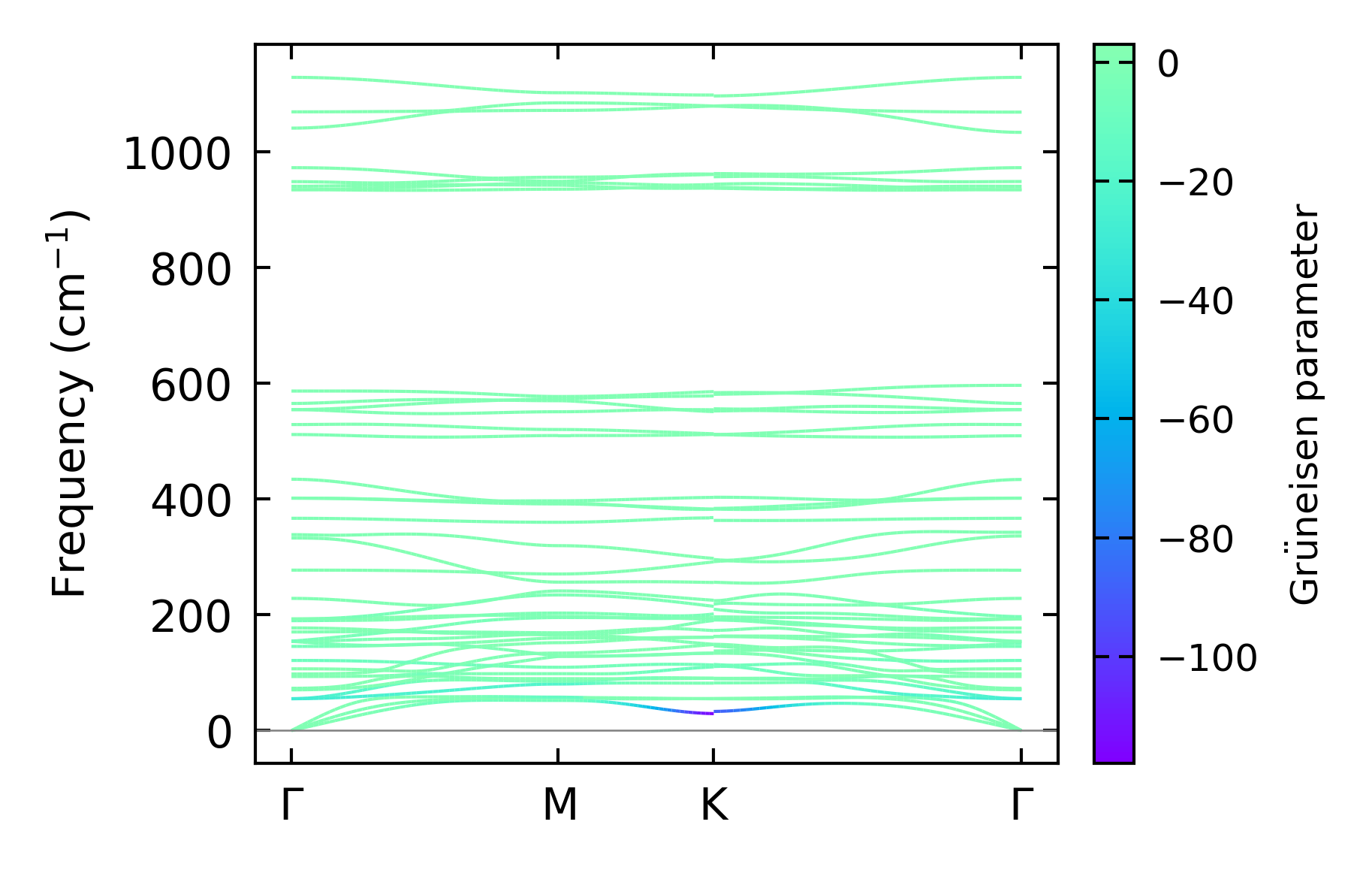

../../_images/fig_gruneisen1046.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x9, supercell: 2x2x2

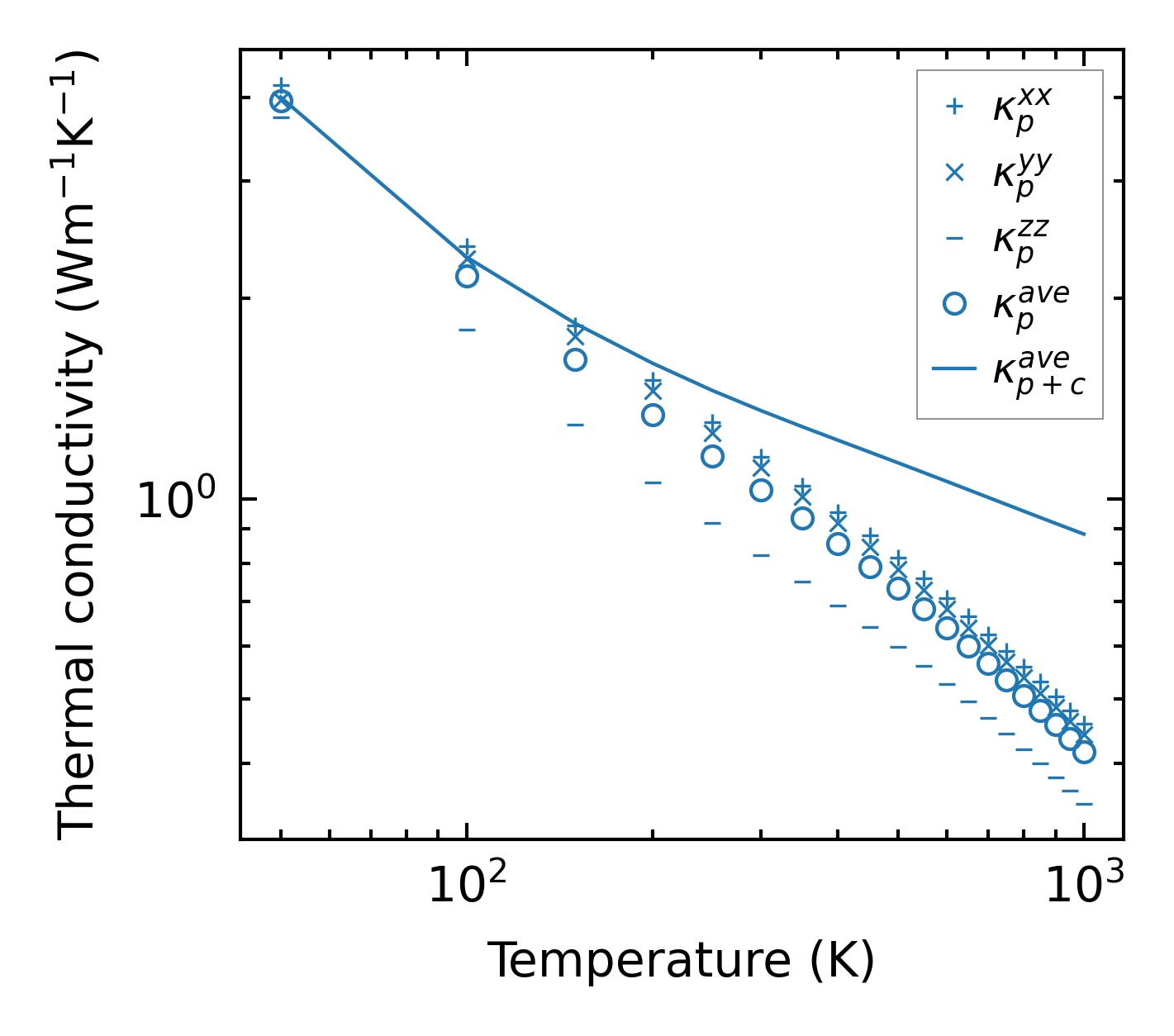

../../_images/fig_kappa2025.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1058.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

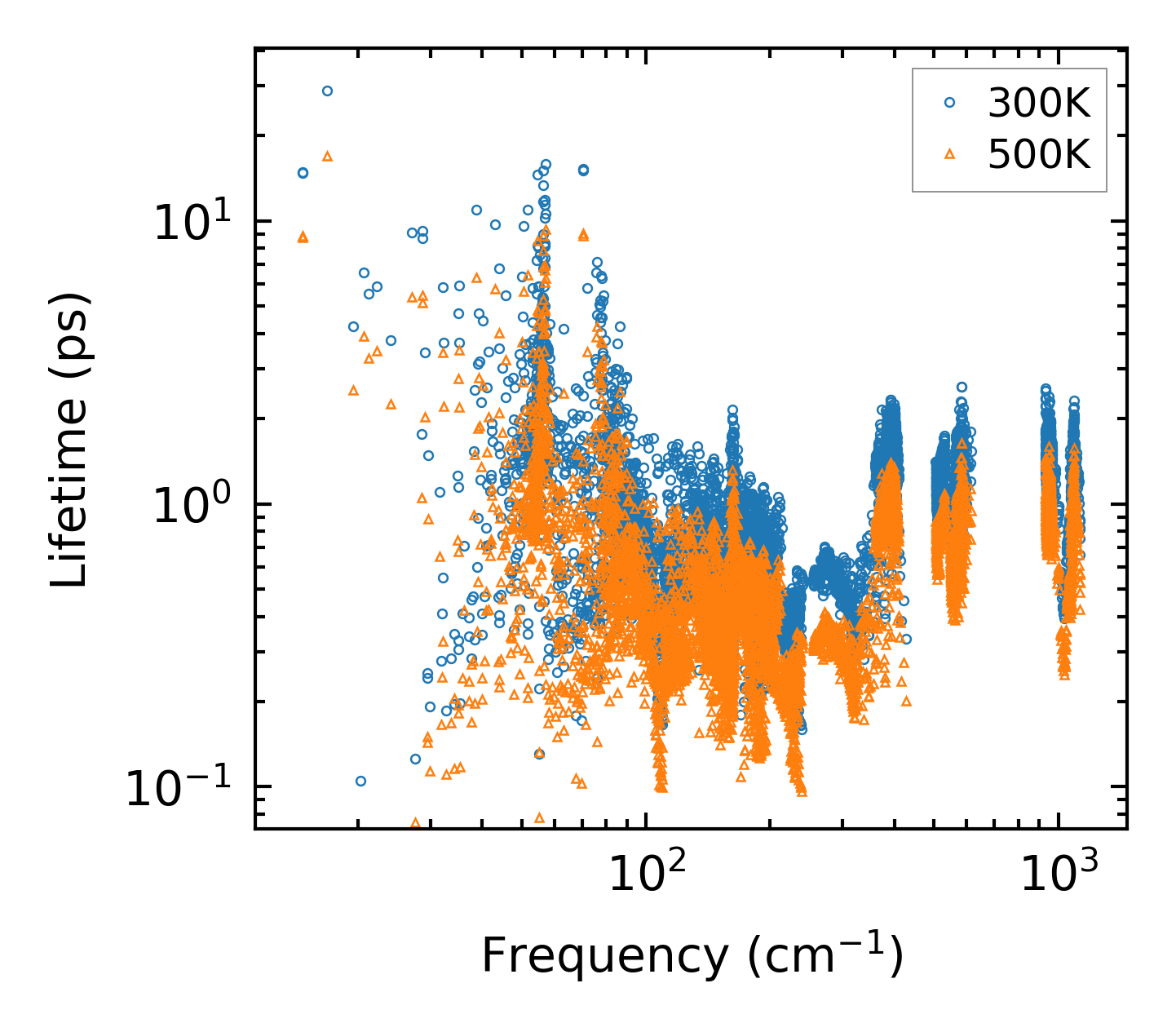

../../_images/fig_lifetime1038.png — (a) Phonon lifetime due to phonon-phonon scattering

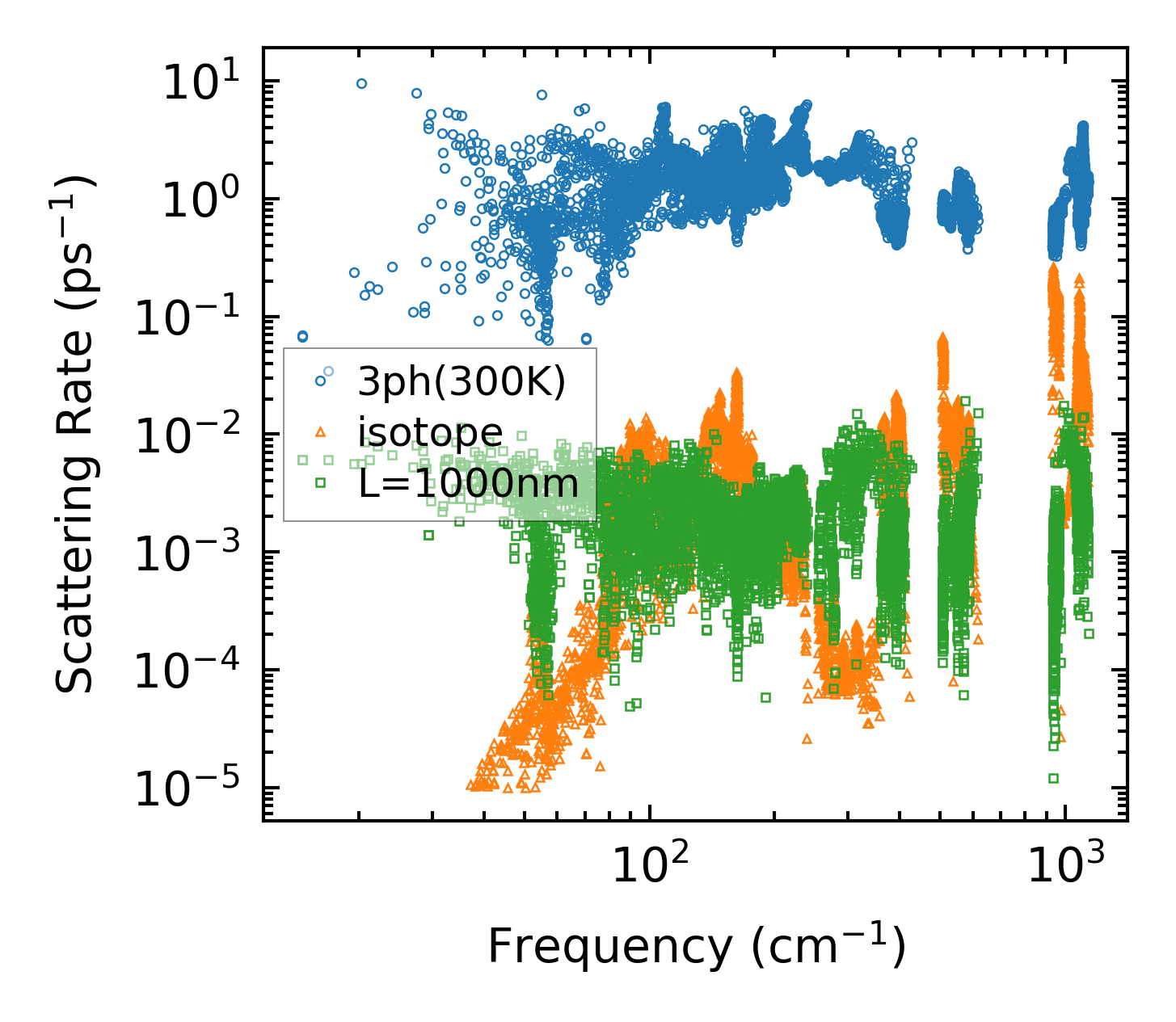

../../_images/fig_scat_rates1037.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

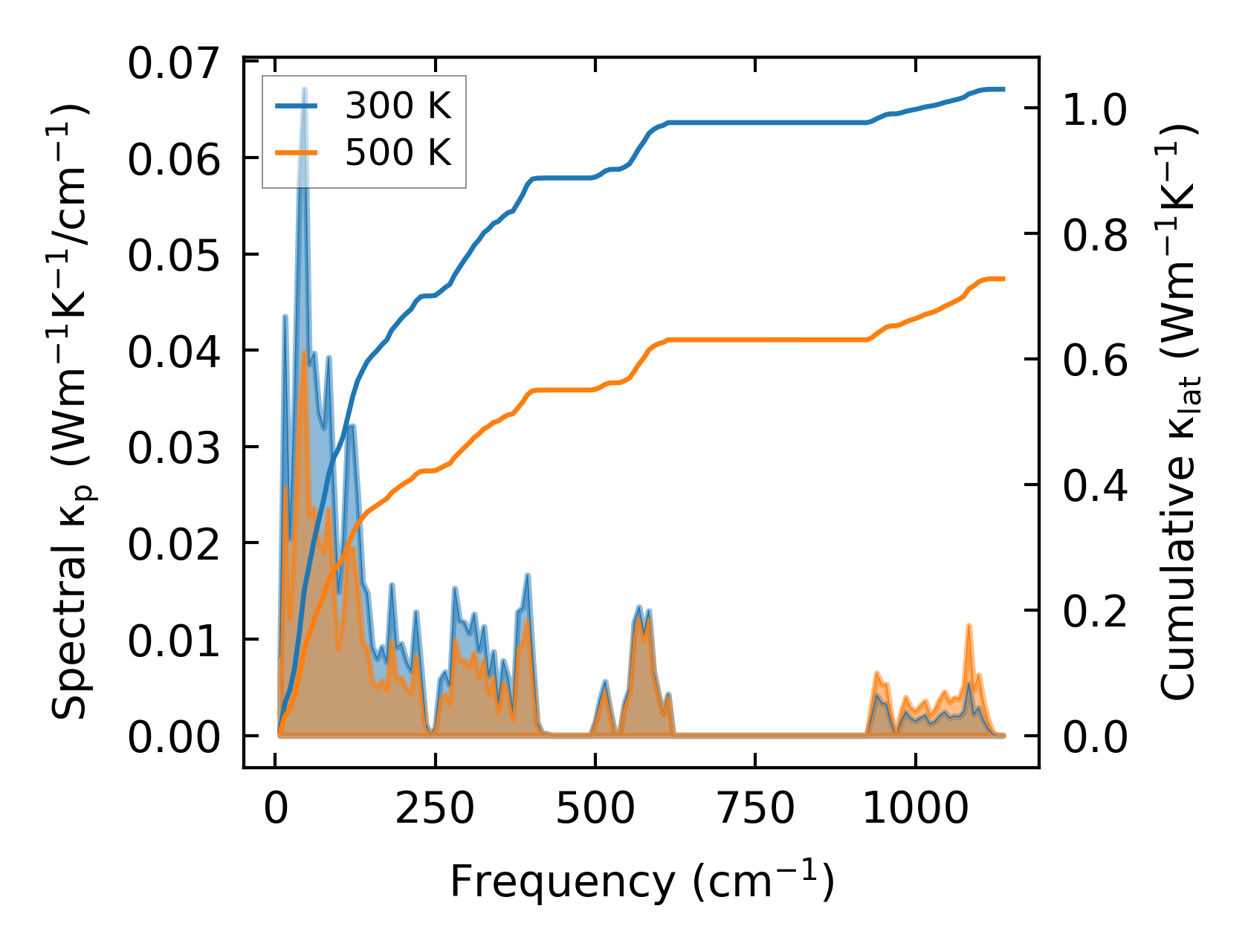

../../_images/fig_cumu_frequency1038.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1038.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21665.png — (a) Force constants w.r.t atomic distance

Summary

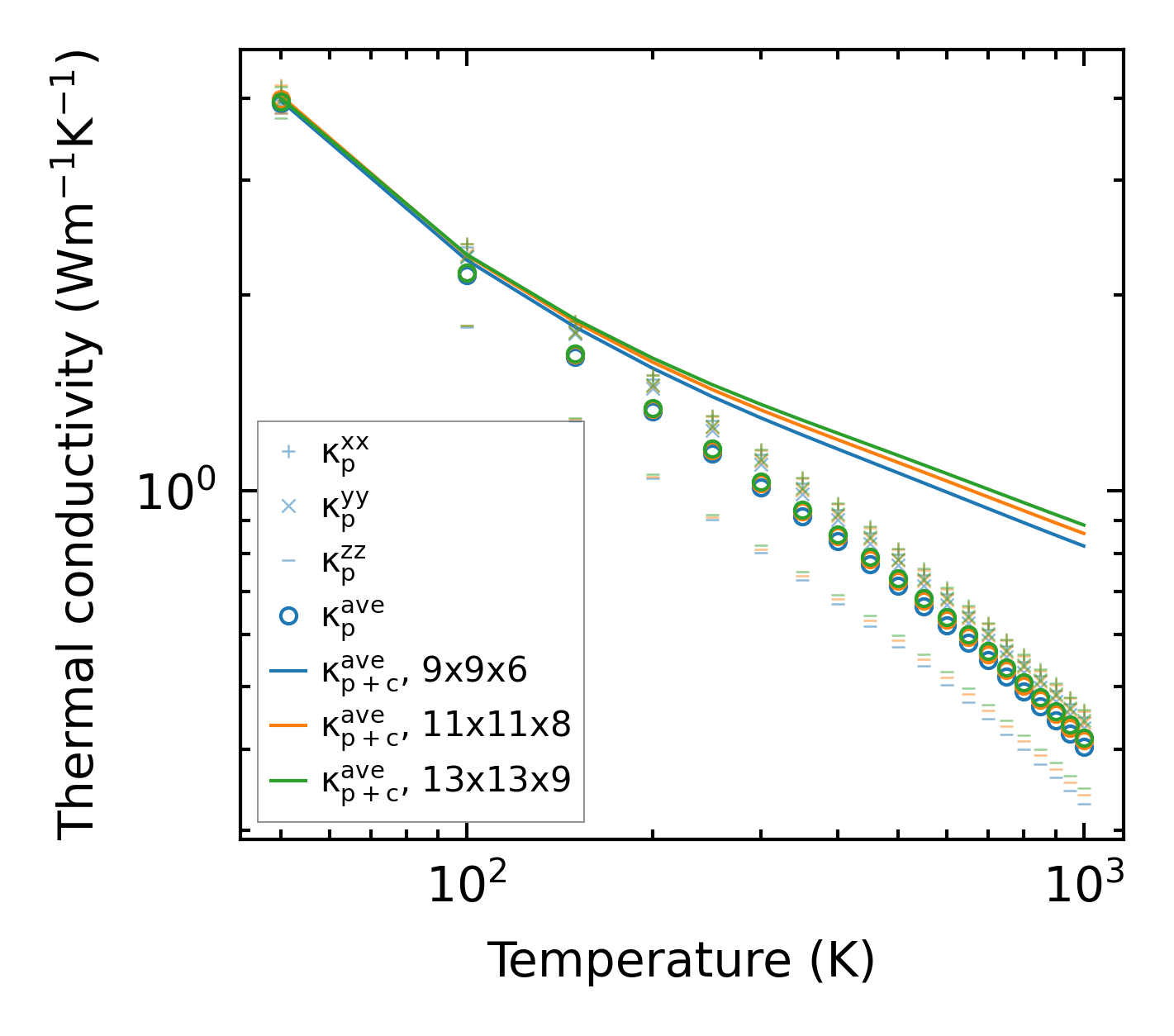

../../_images/fig_kappa2026.png — (a) Temperature-dependent lattice thermal conductivity

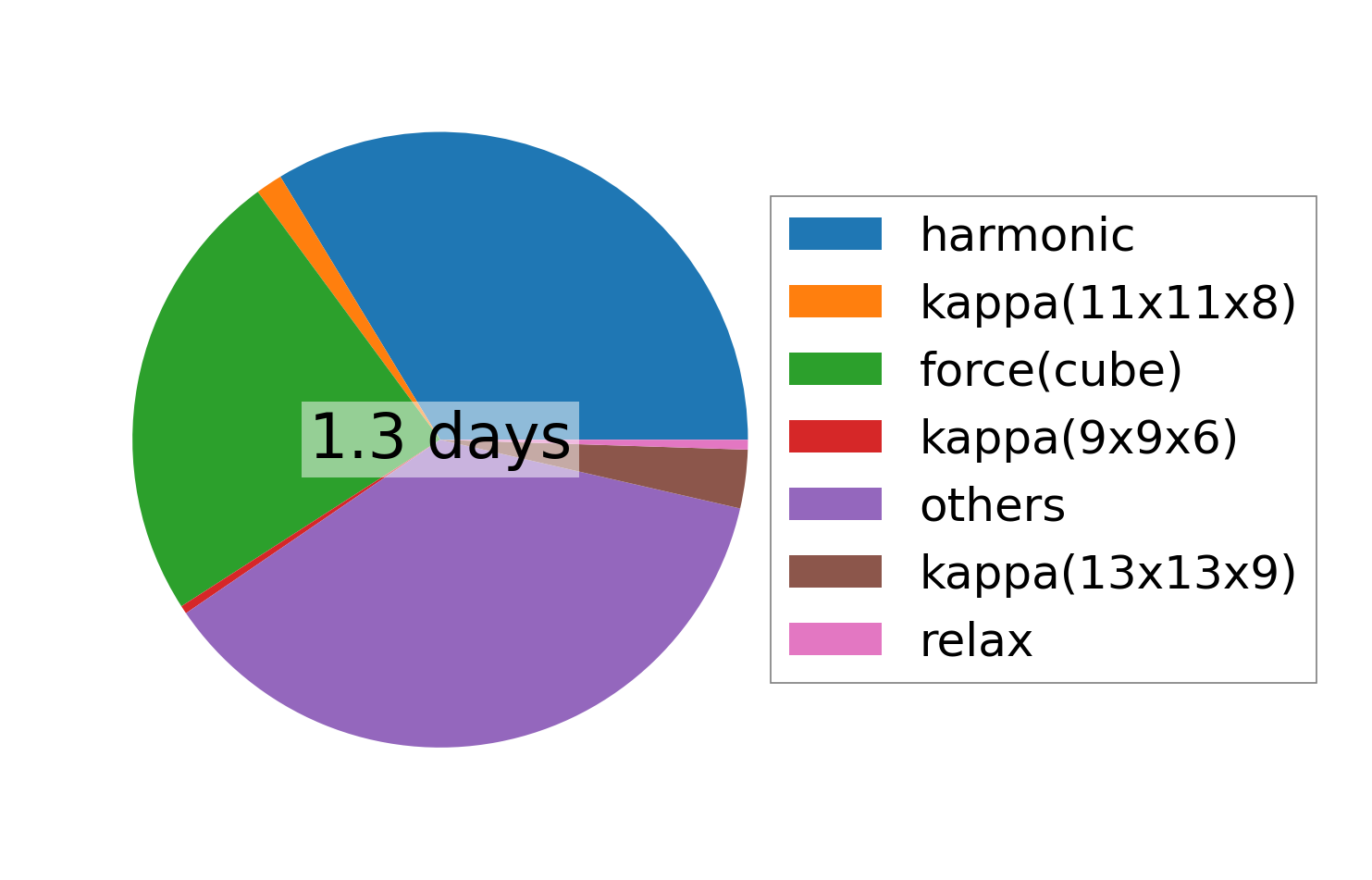

../../_images/fig_times2819.png — (b) Computation time
