mp-8511/PF5/anharm

Space group: P6_3/mmc (194)
Link: Materials Project
Download: mp-8511.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1835.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1835.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1043.png — (a) Grüneisen parameters

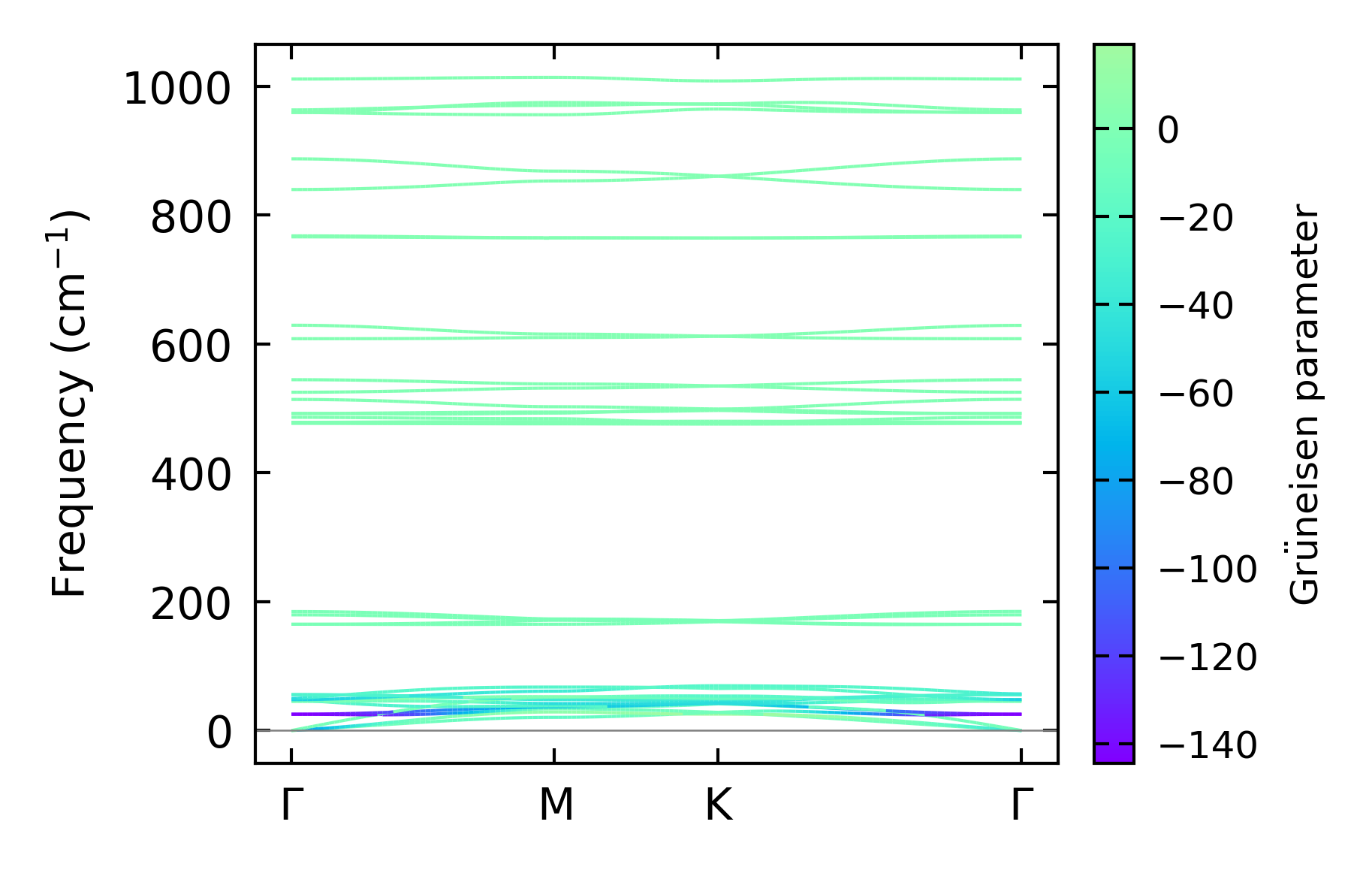

../../_images/fig_gruneisen1043.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x12, supercell: 2x2x2

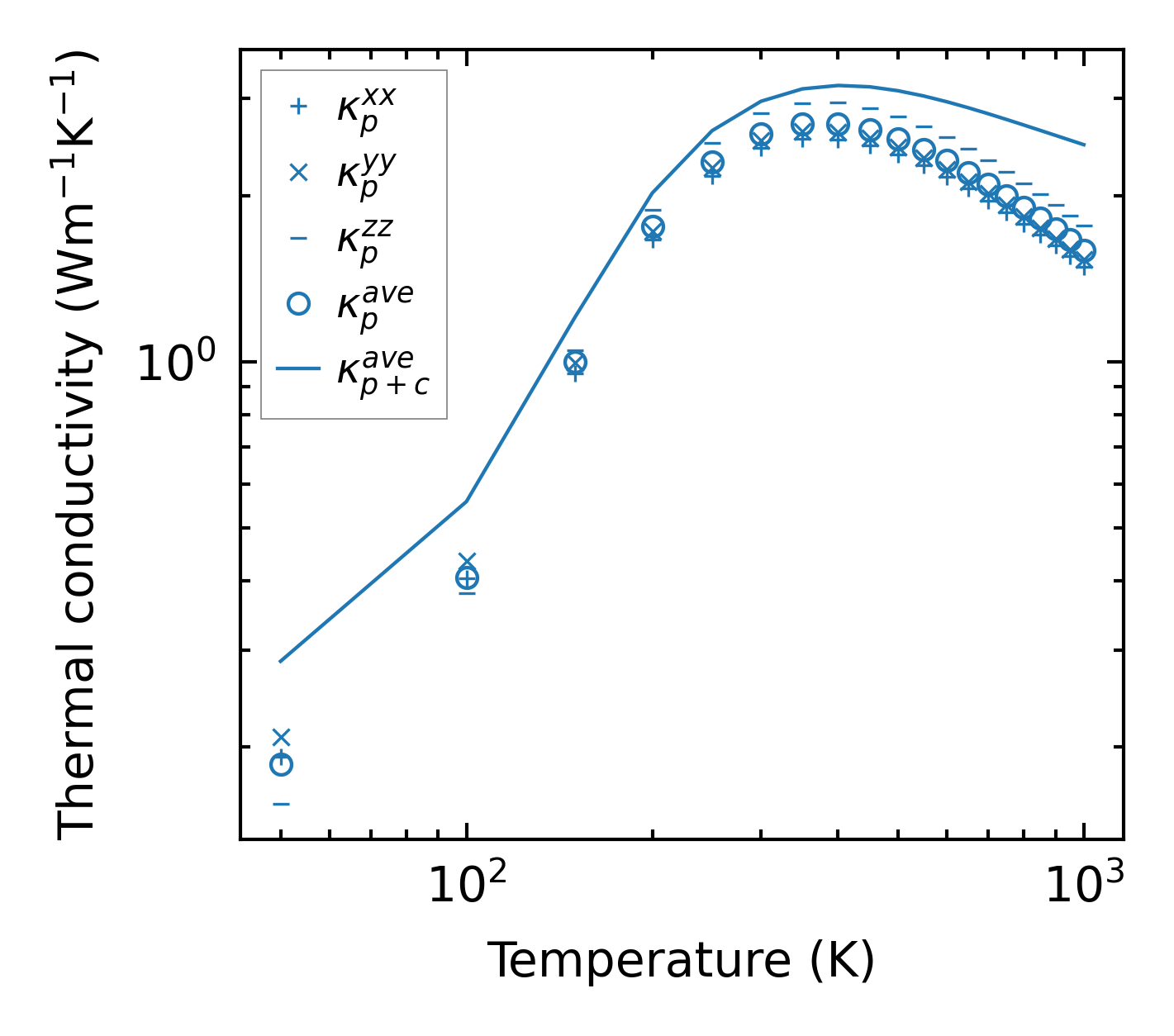

../../_images/fig_kappa2020.png — (a) Temperature-dependent lattice thermal conductivity

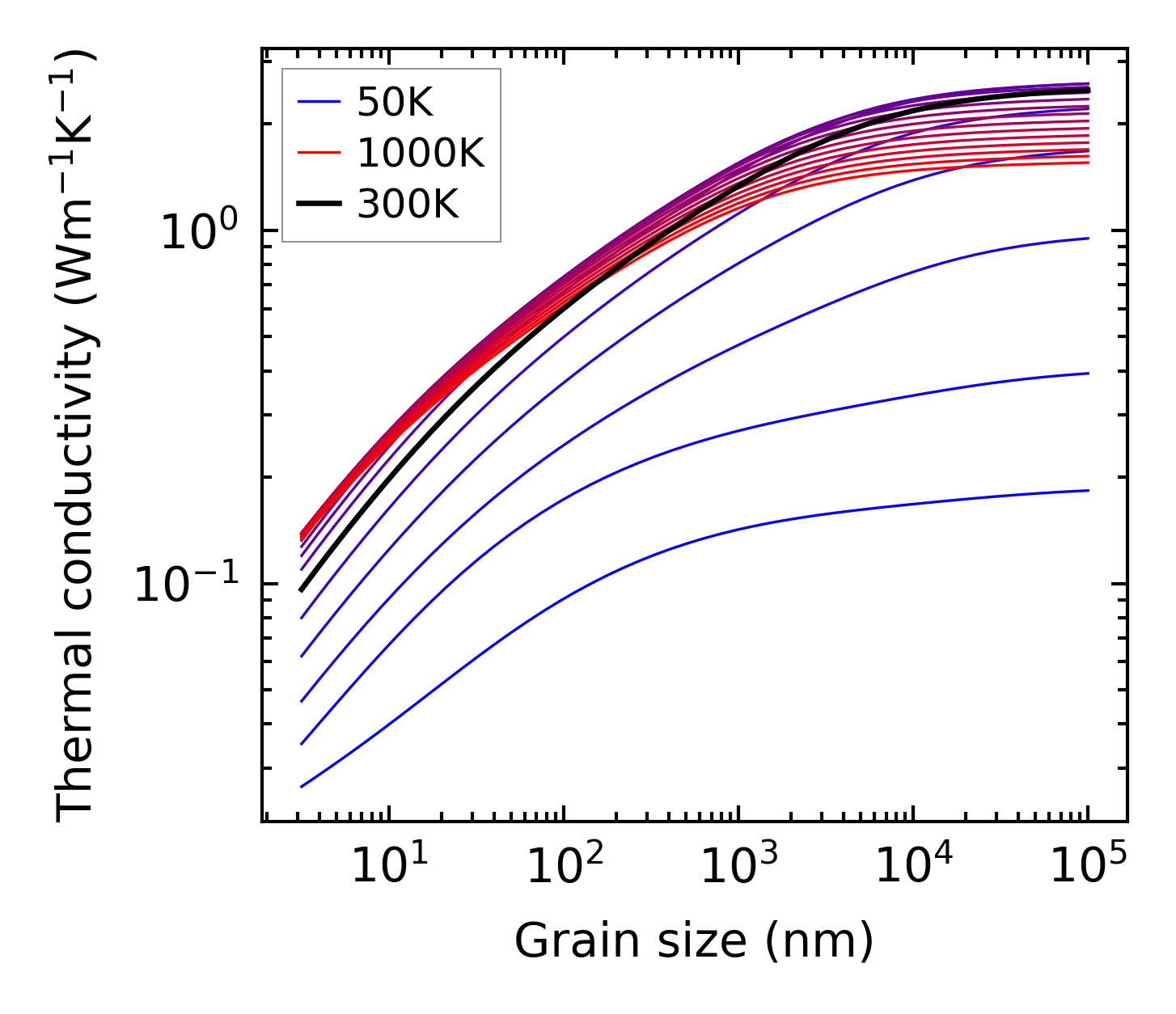

../../_images/fig_kappa_vs_grain_size1055.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

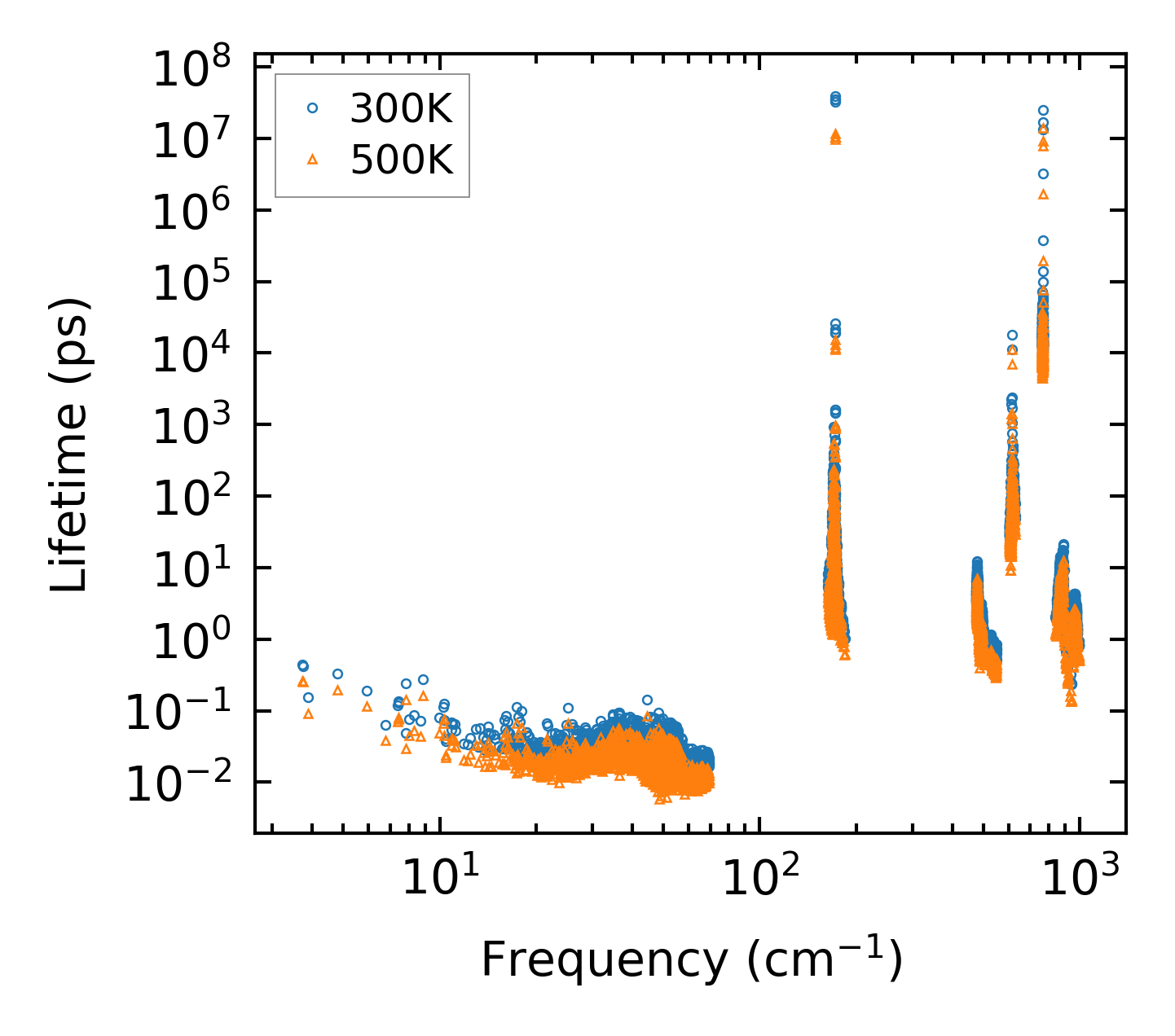

../../_images/fig_lifetime1035.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1034.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

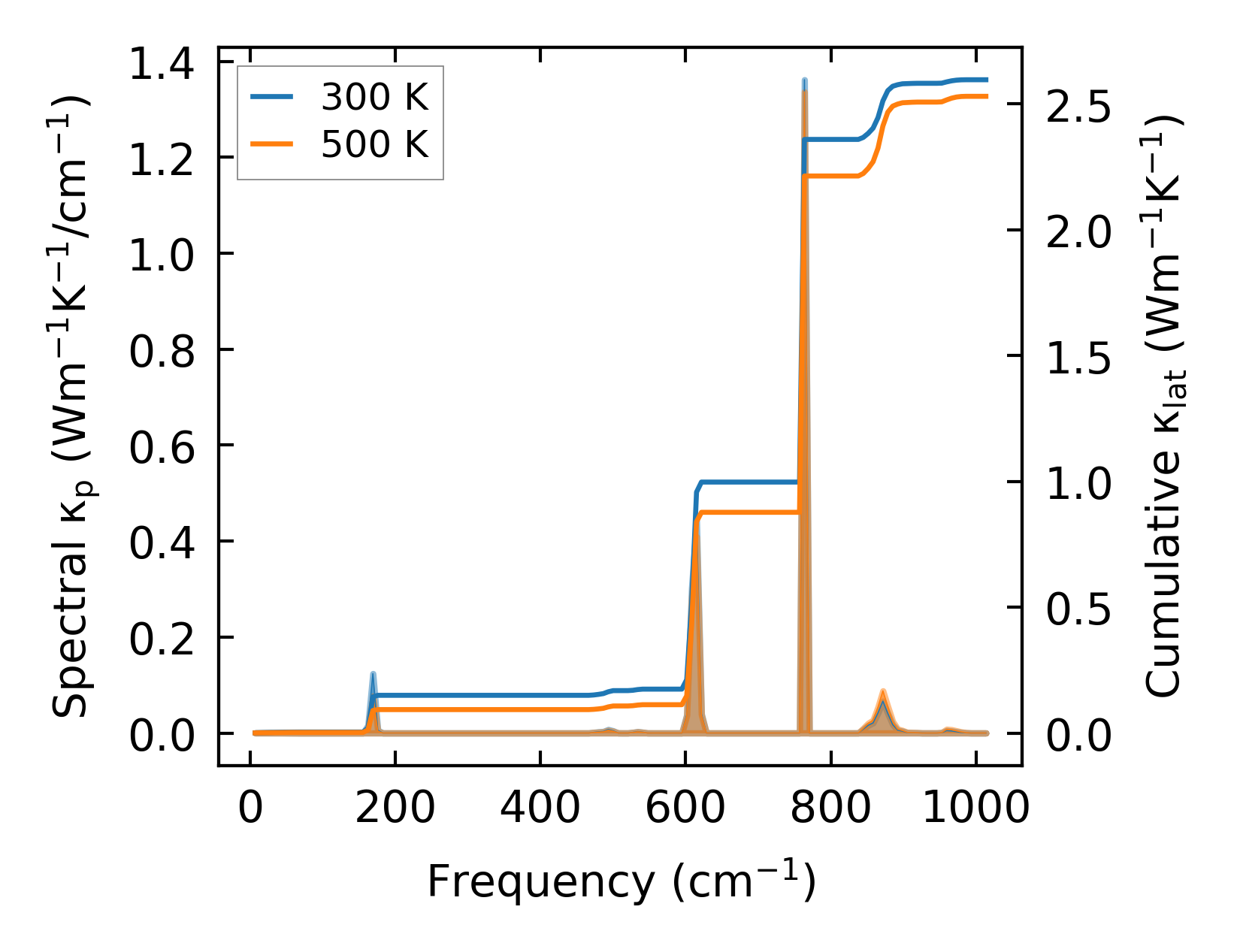

../../_images/fig_cumu_frequency1035.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

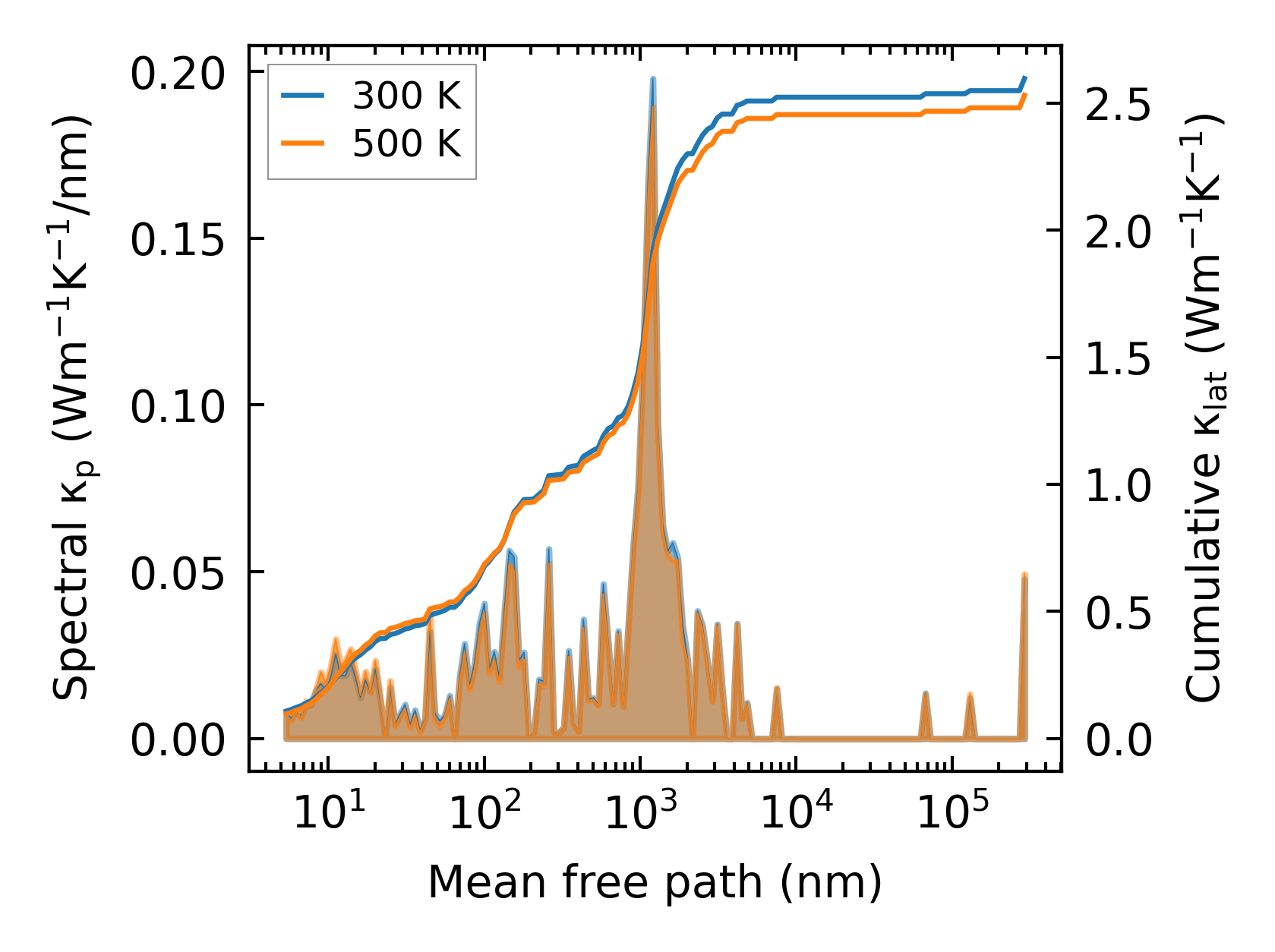

../../_images/fig_cumu_mfp1035.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21658.png — (a) Force constants w.r.t atomic distance

Summary

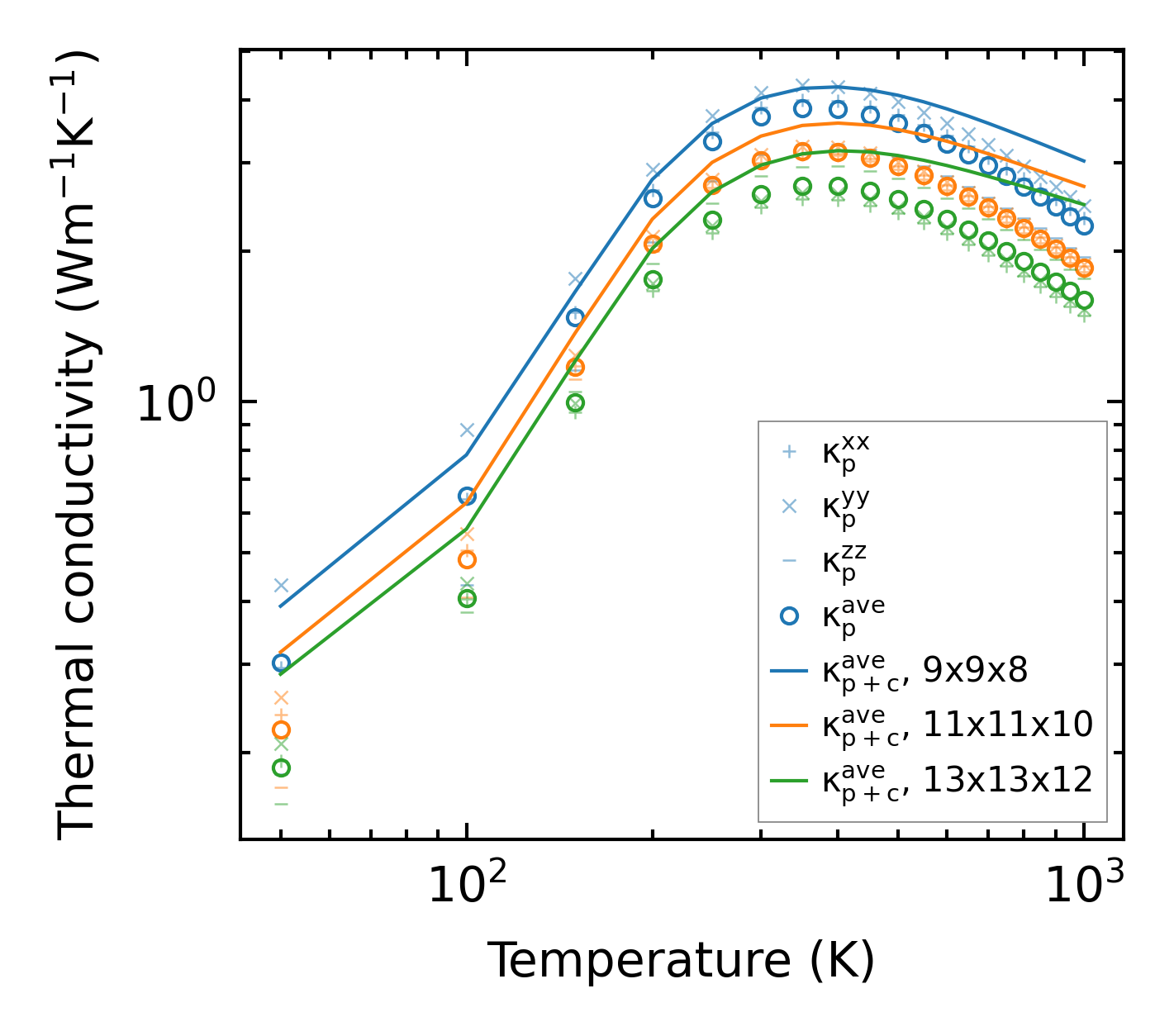

../../_images/fig_kappa2021.png — (a) Temperature-dependent lattice thermal conductivity

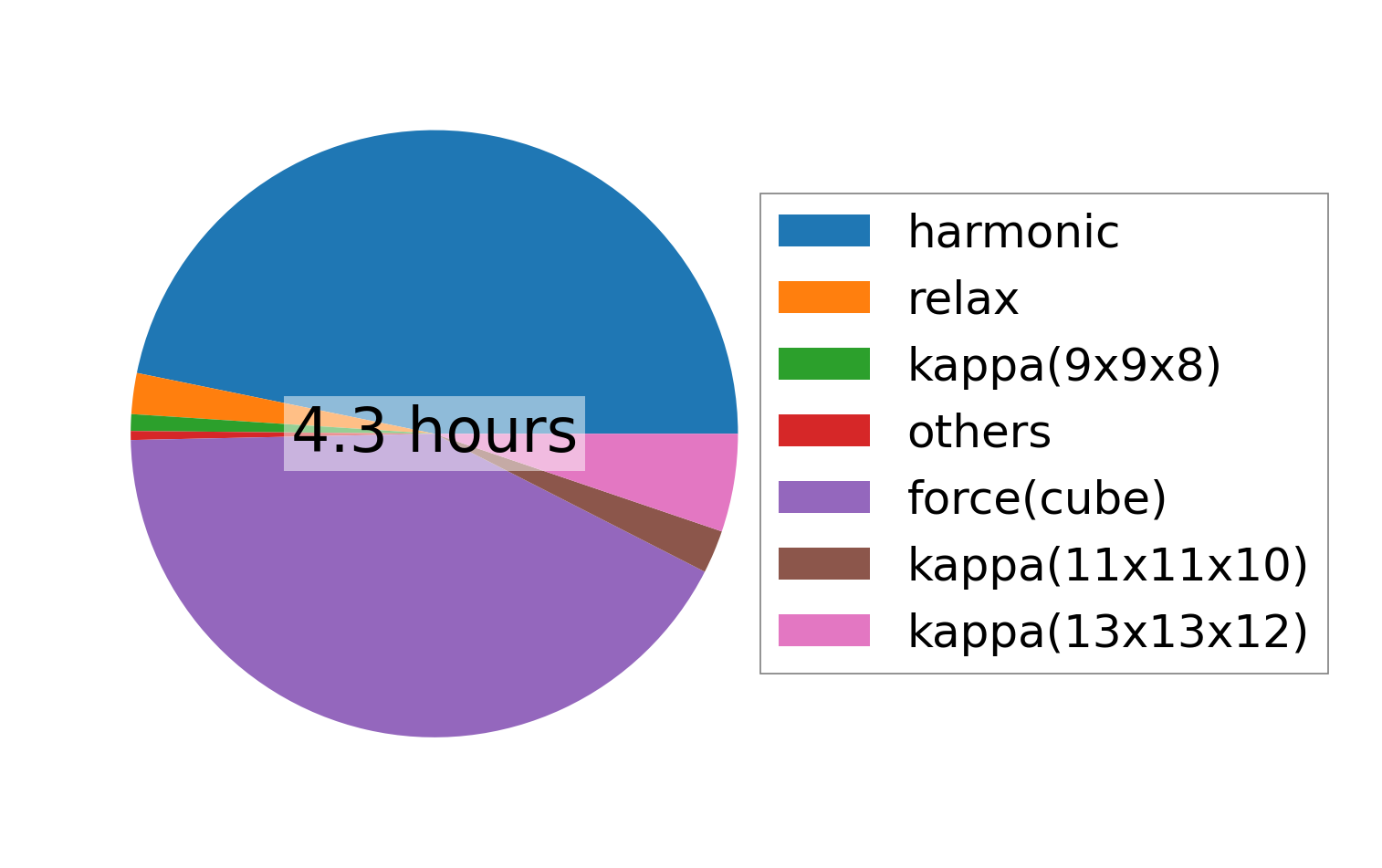

../../_images/fig_times2807.png — (b) Computation time
