mp-8453-2/RbNaO/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-8453-2.tar.gz

Equation of state

../../_images/fig_bm730.png — (a) Equation of state

Harmonic properties

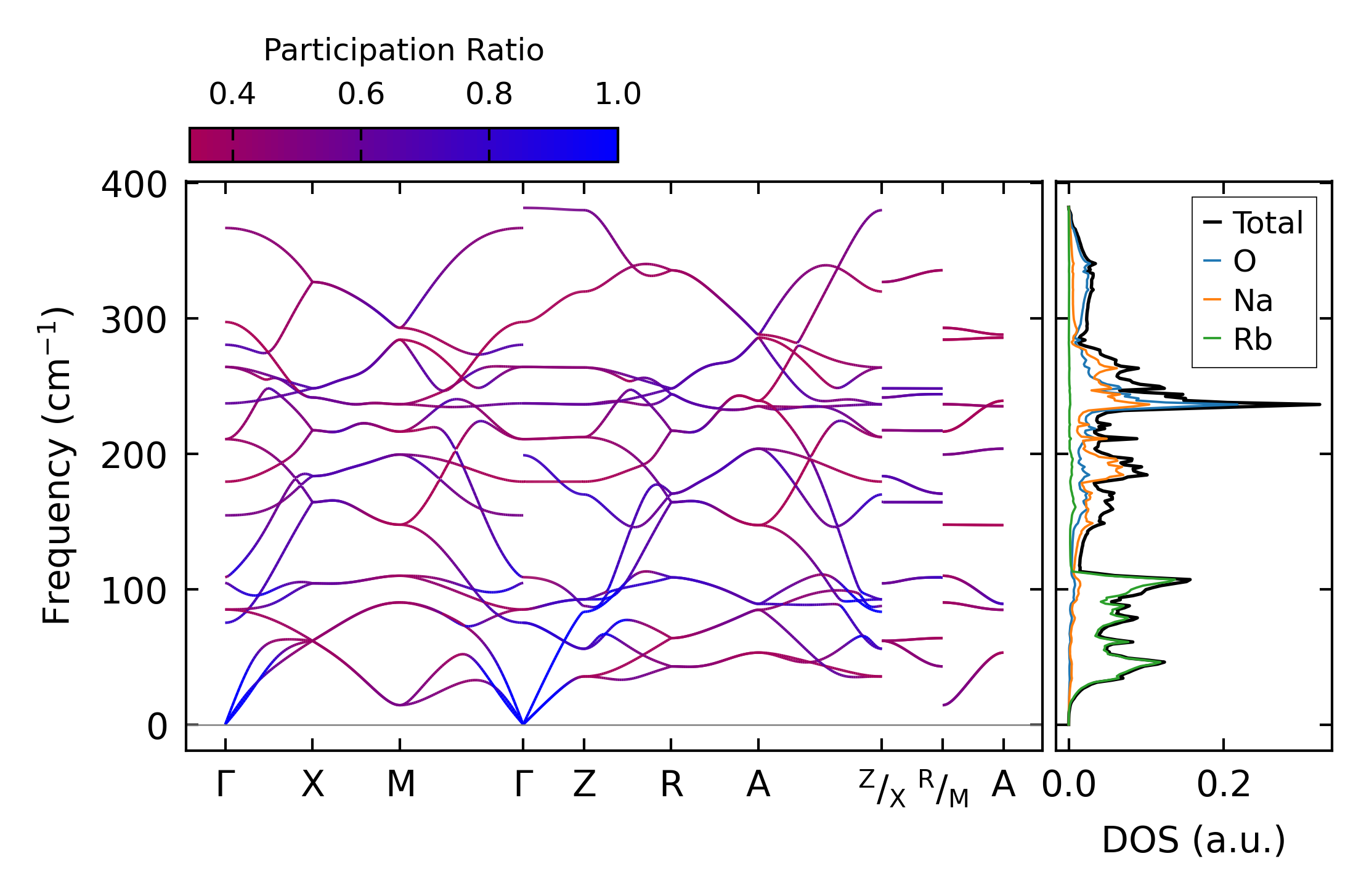

../../_images/fig_bandos_pr1822.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1822.png — (b) Thermodynamic properties

Grüneisen parameters

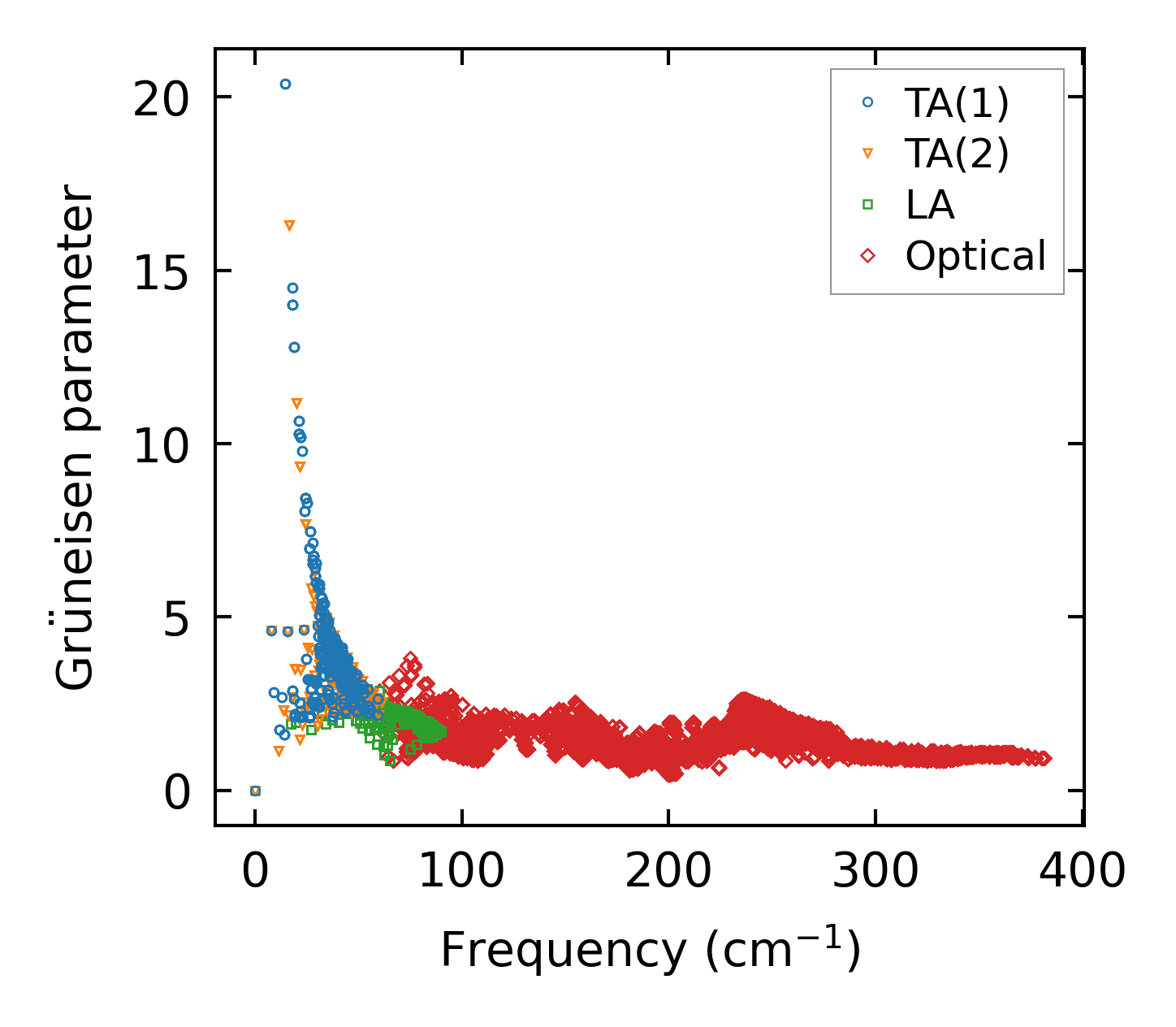

../../_images/fig_gru_all1036.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1036.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 17x17x11, supercell: 3x3x2

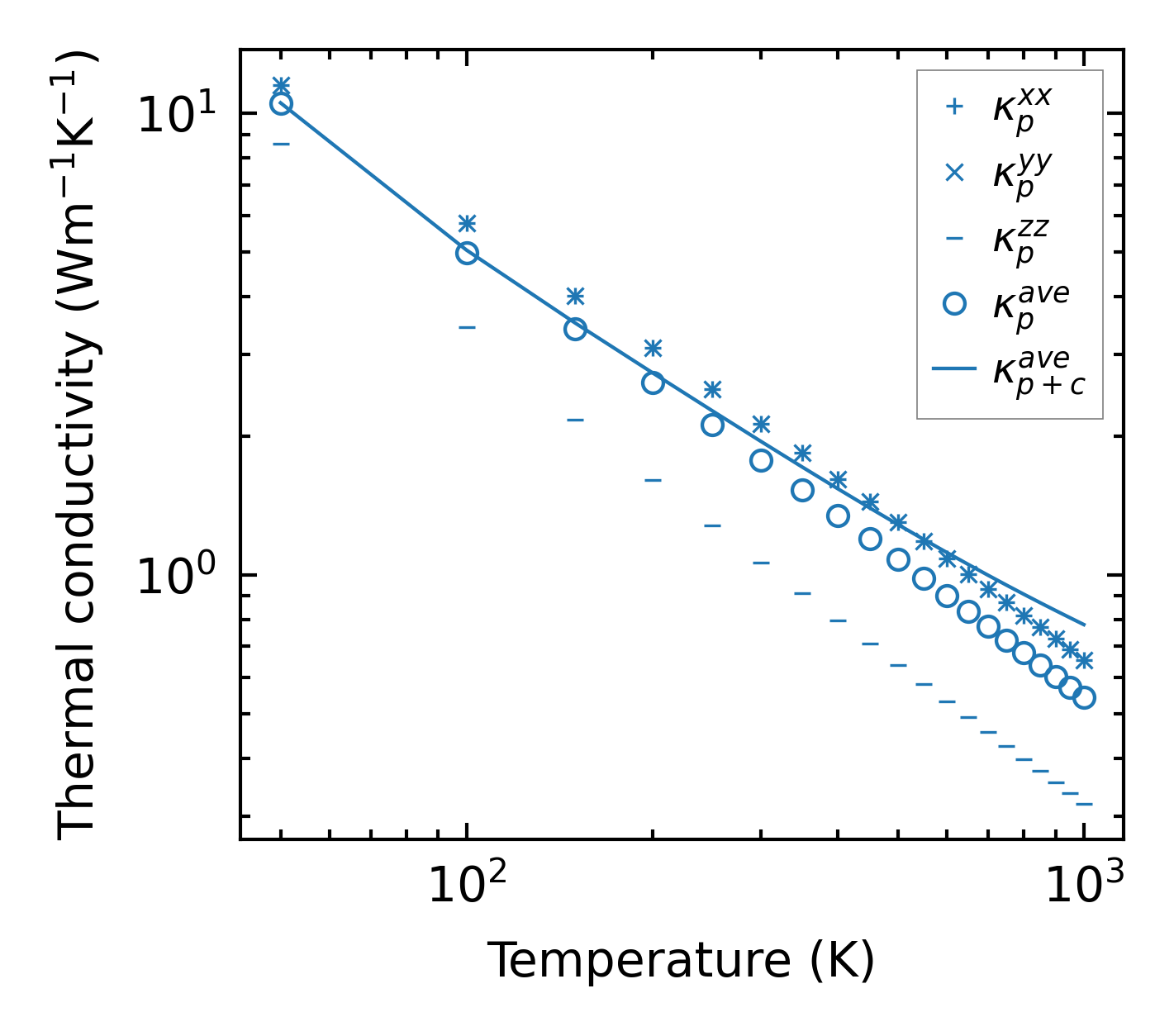

../../_images/fig_kappa2005.png — (a) Temperature-dependent lattice thermal conductivity

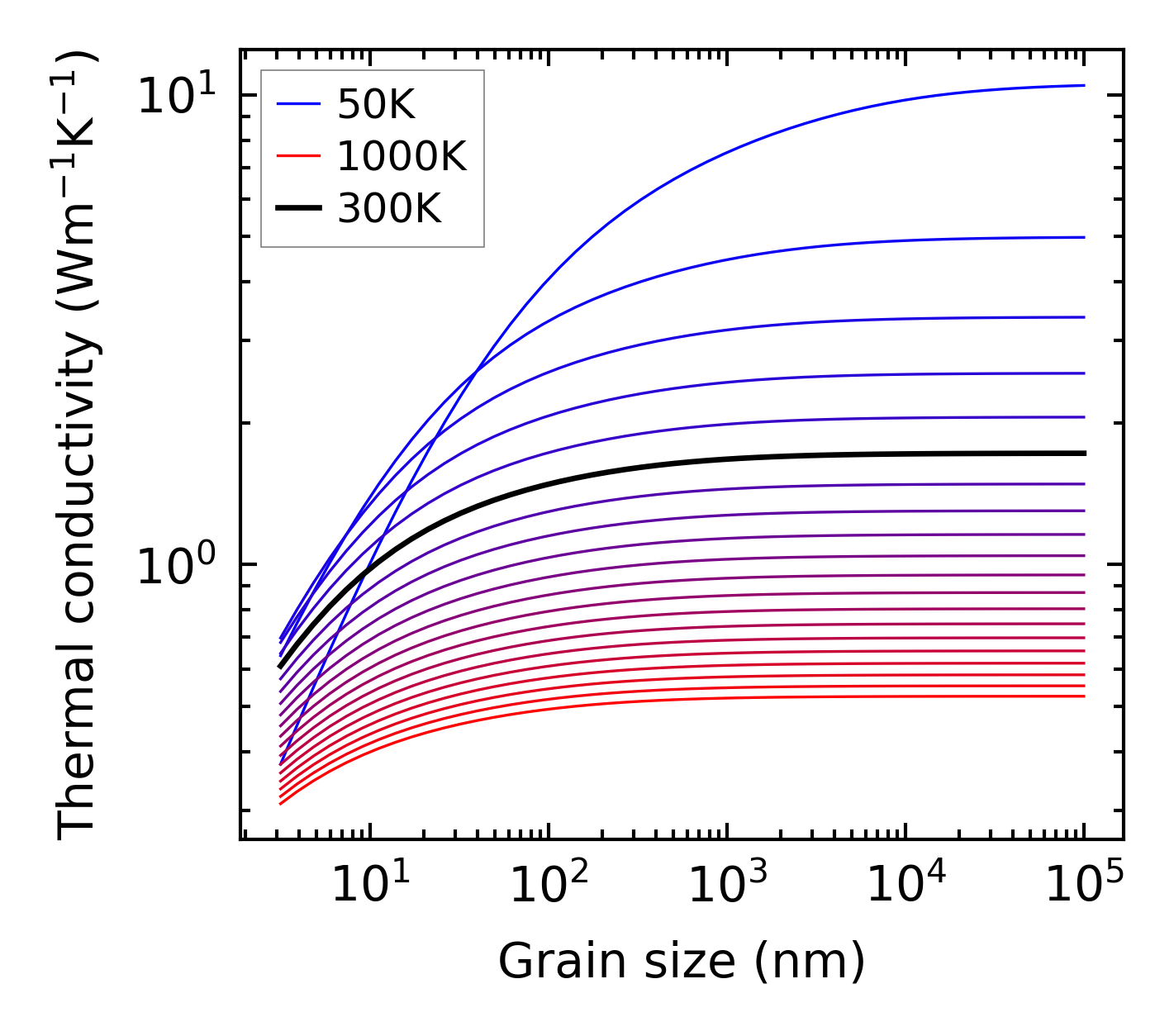

../../_images/fig_kappa_vs_grain_size1047.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 4x4x2 — q-mesh: 17x17x11, supercell: 4x4x2

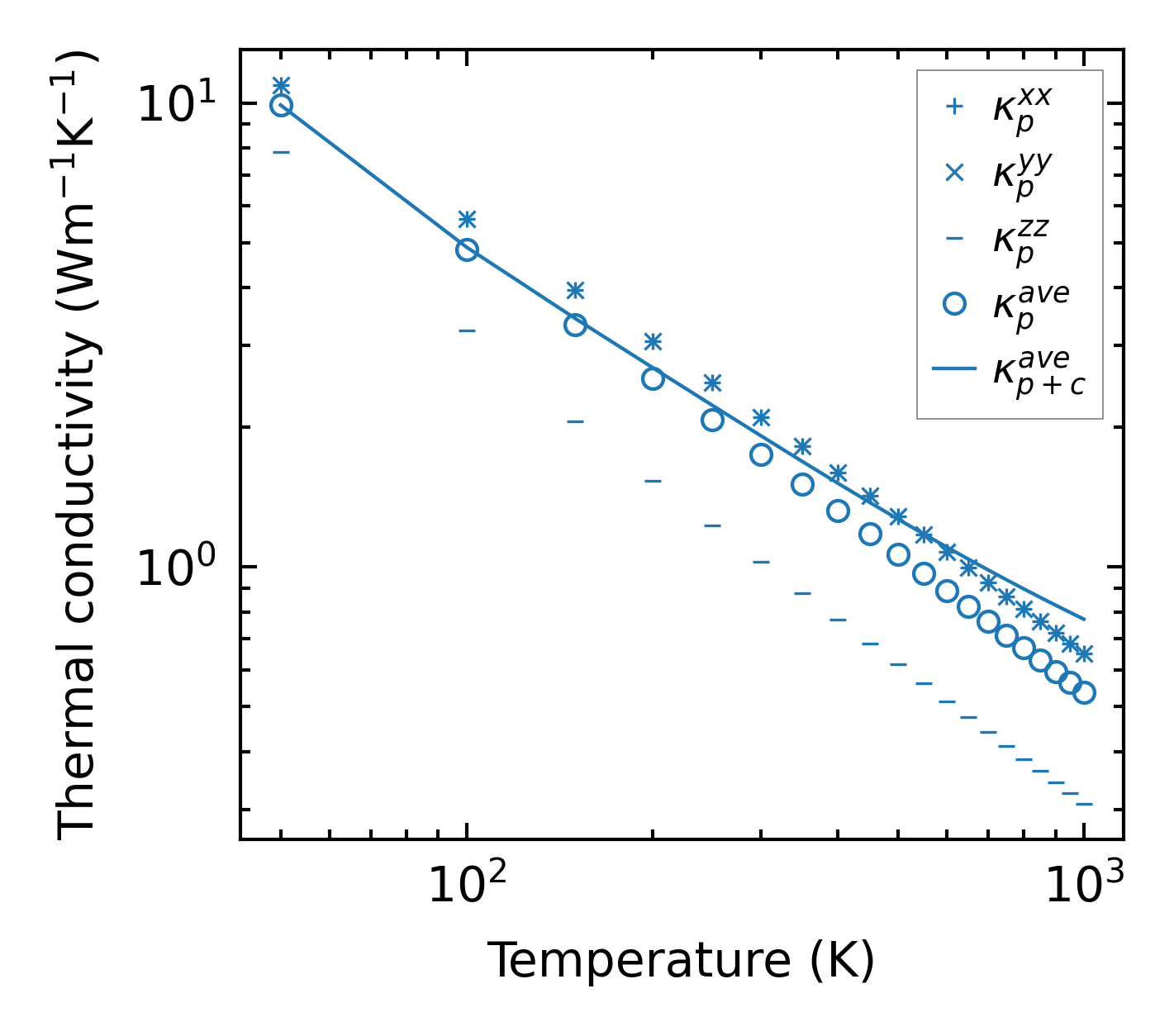

../../_images/fig_kappa2006.png — (a) Temperature-dependent lattice thermal conductivity

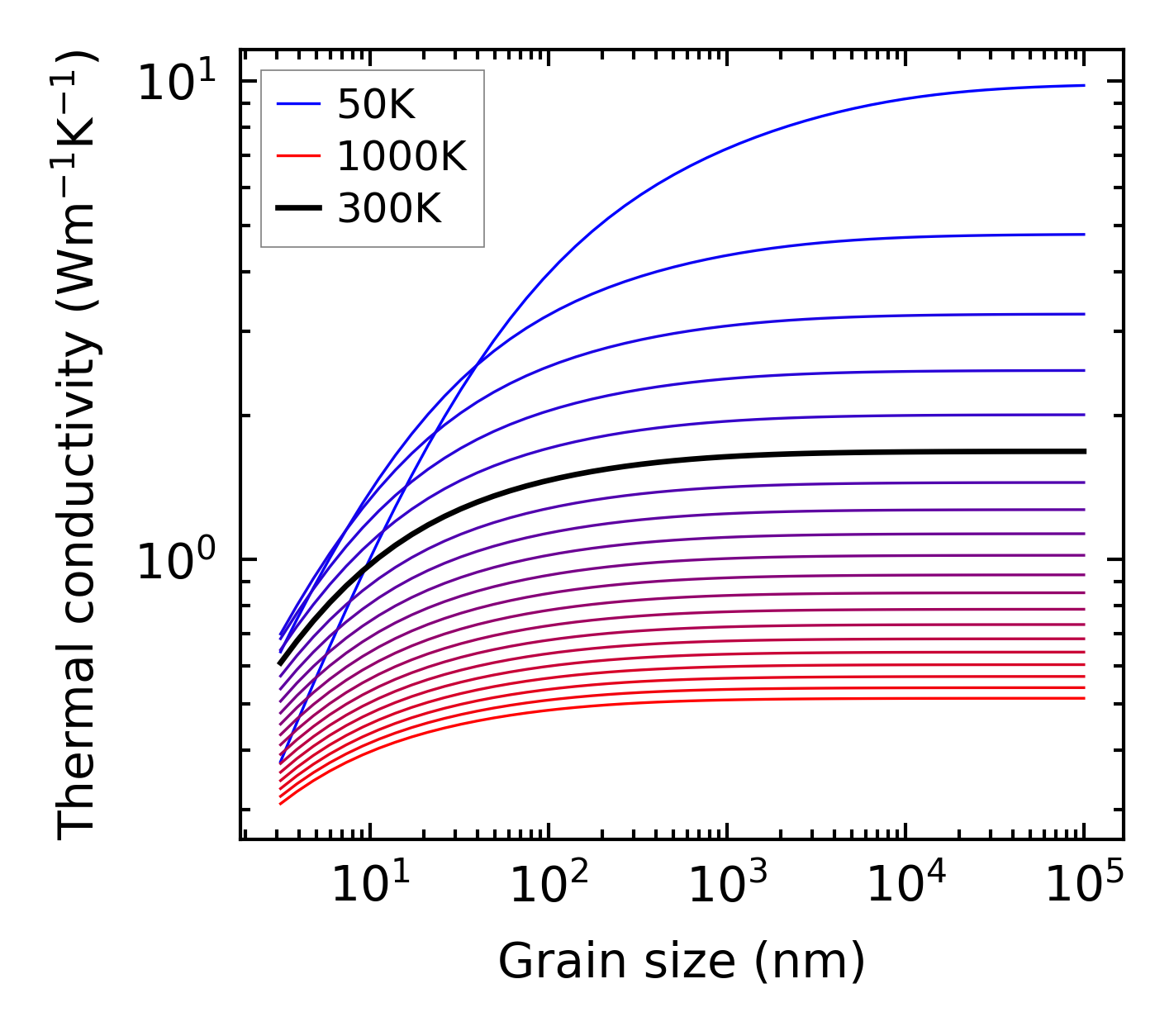

../../_images/fig_kappa_vs_grain_size1048.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1028.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1027.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1028.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

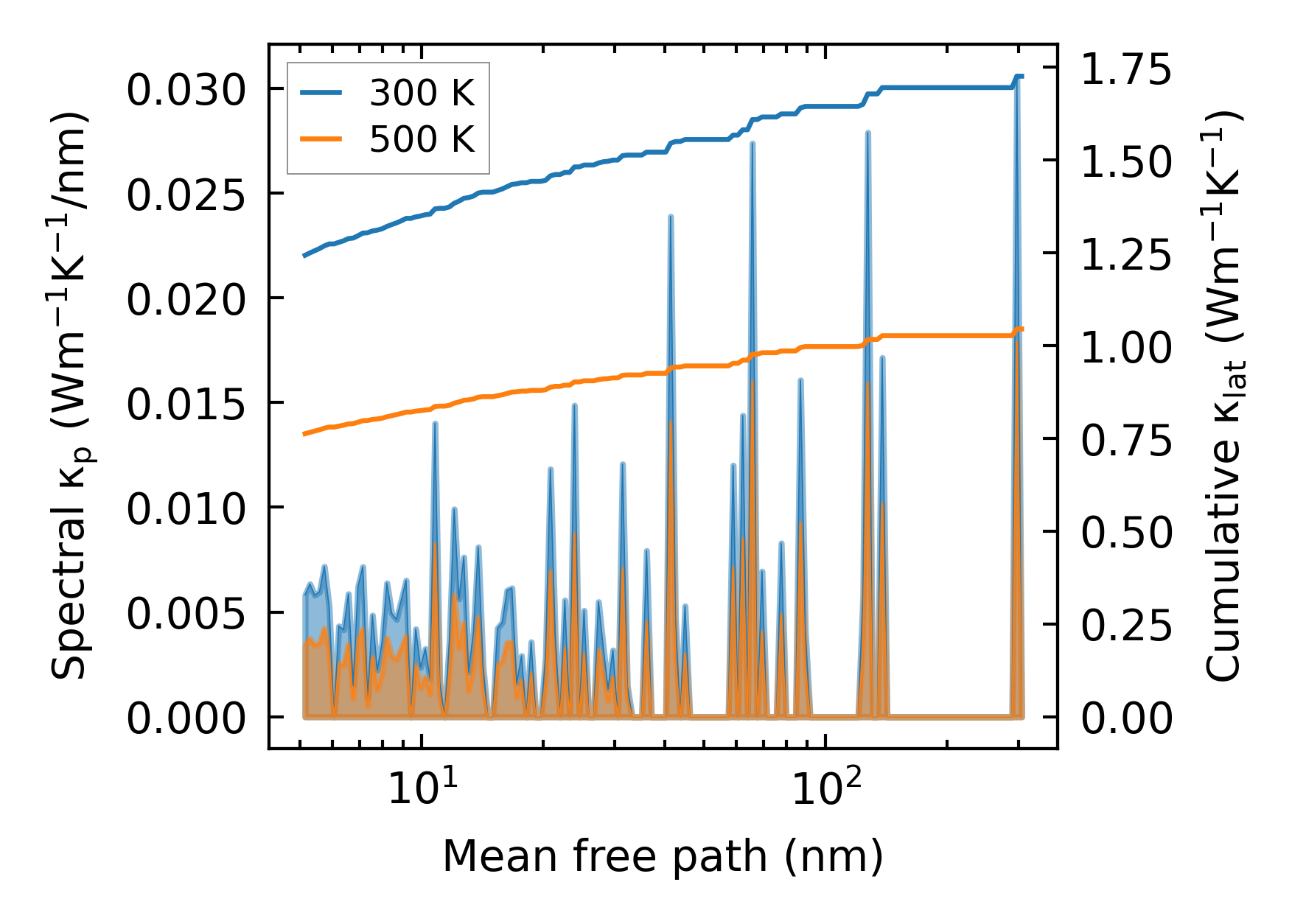

../../_images/fig_cumu_mfp1028.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21647.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2007.png — (a) Temperature-dependent lattice thermal conductivity

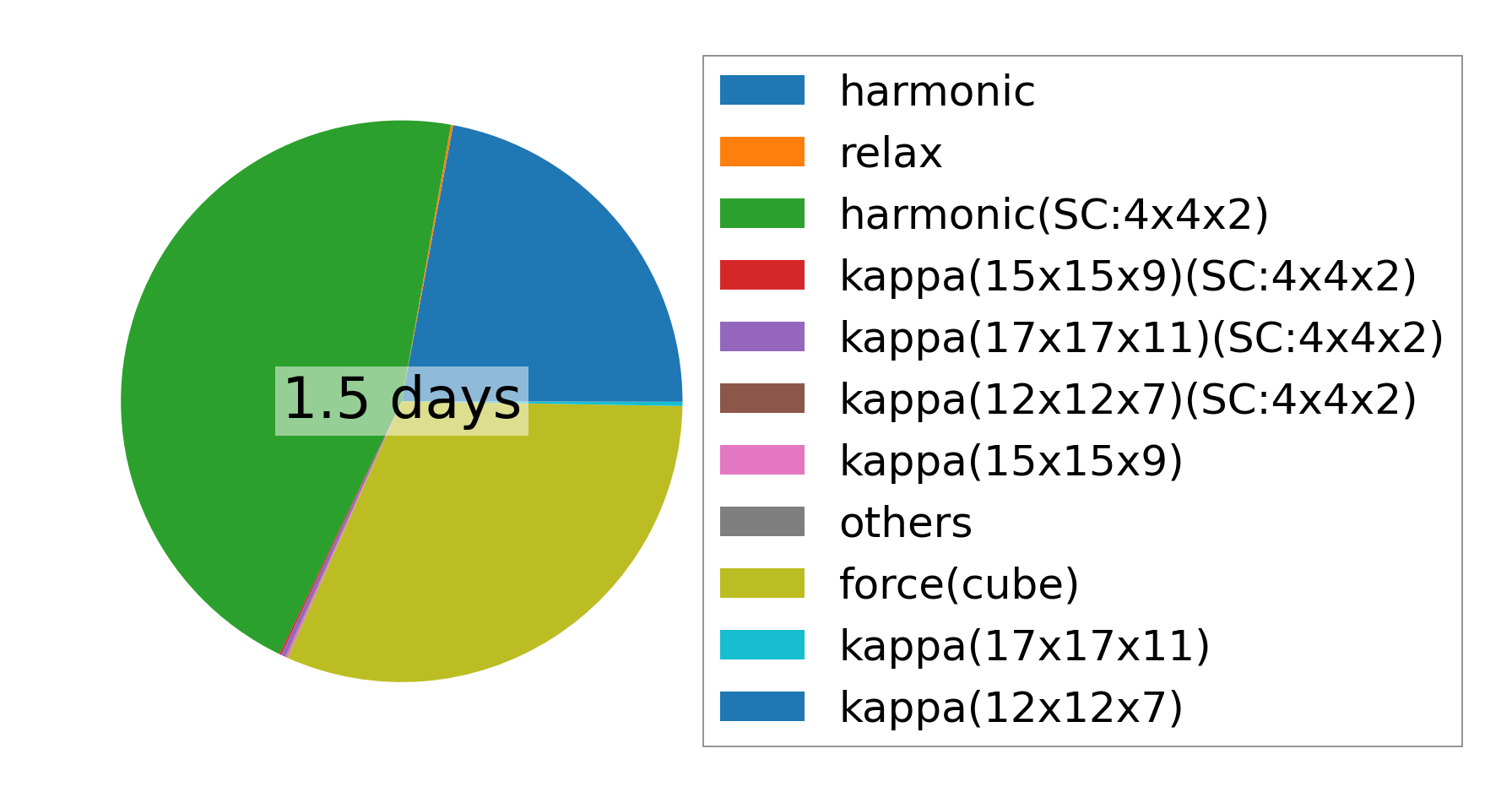

../../_images/fig_times2789.png — (b) Computation time
