mp-8622/Rb2PtSe2/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-8622.tar.gz

Harmonic properties

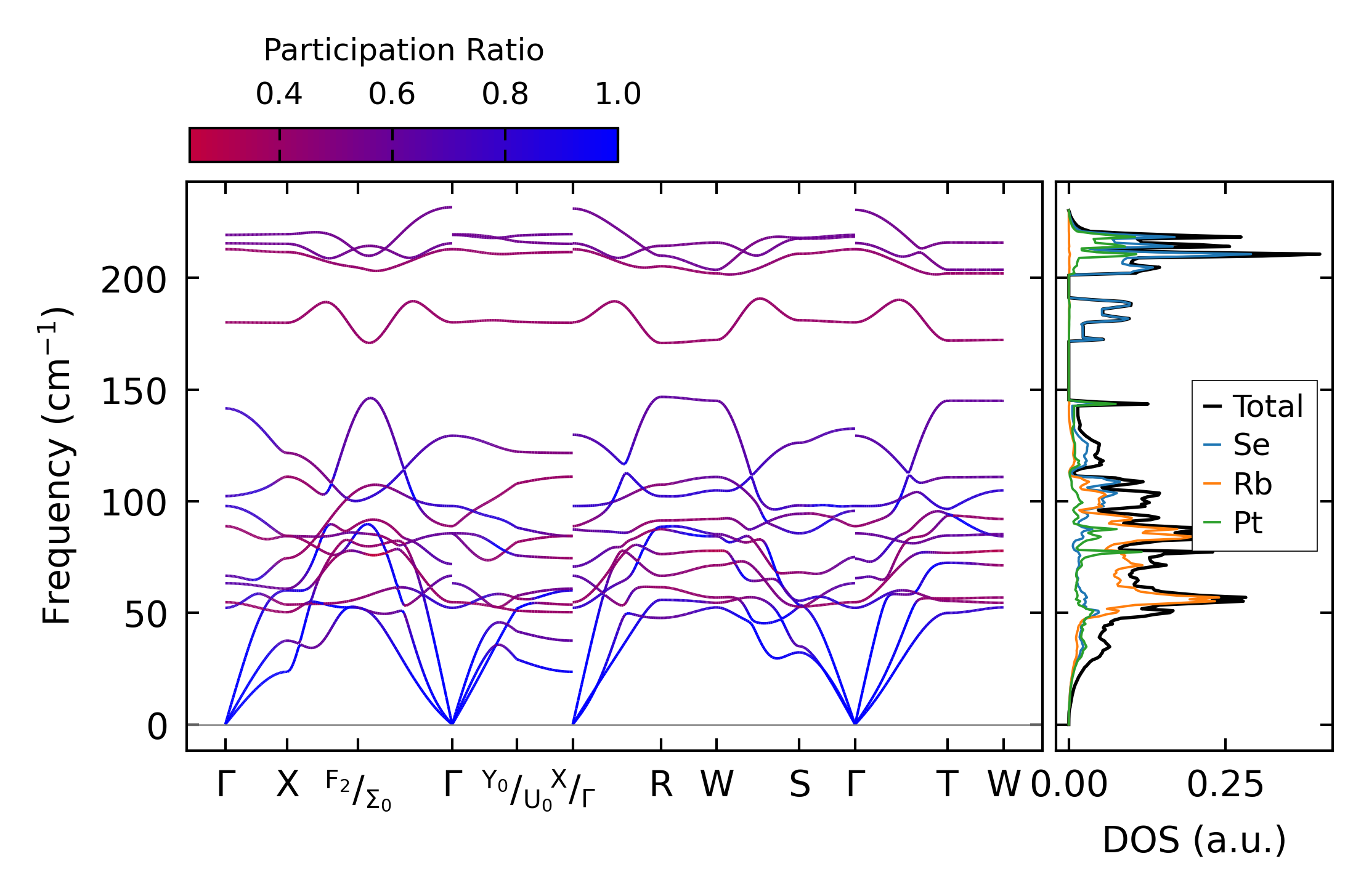

../../_images/fig_bandos_pr1859.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1859.png — (b) Thermodynamic properties

Grüneisen parameters

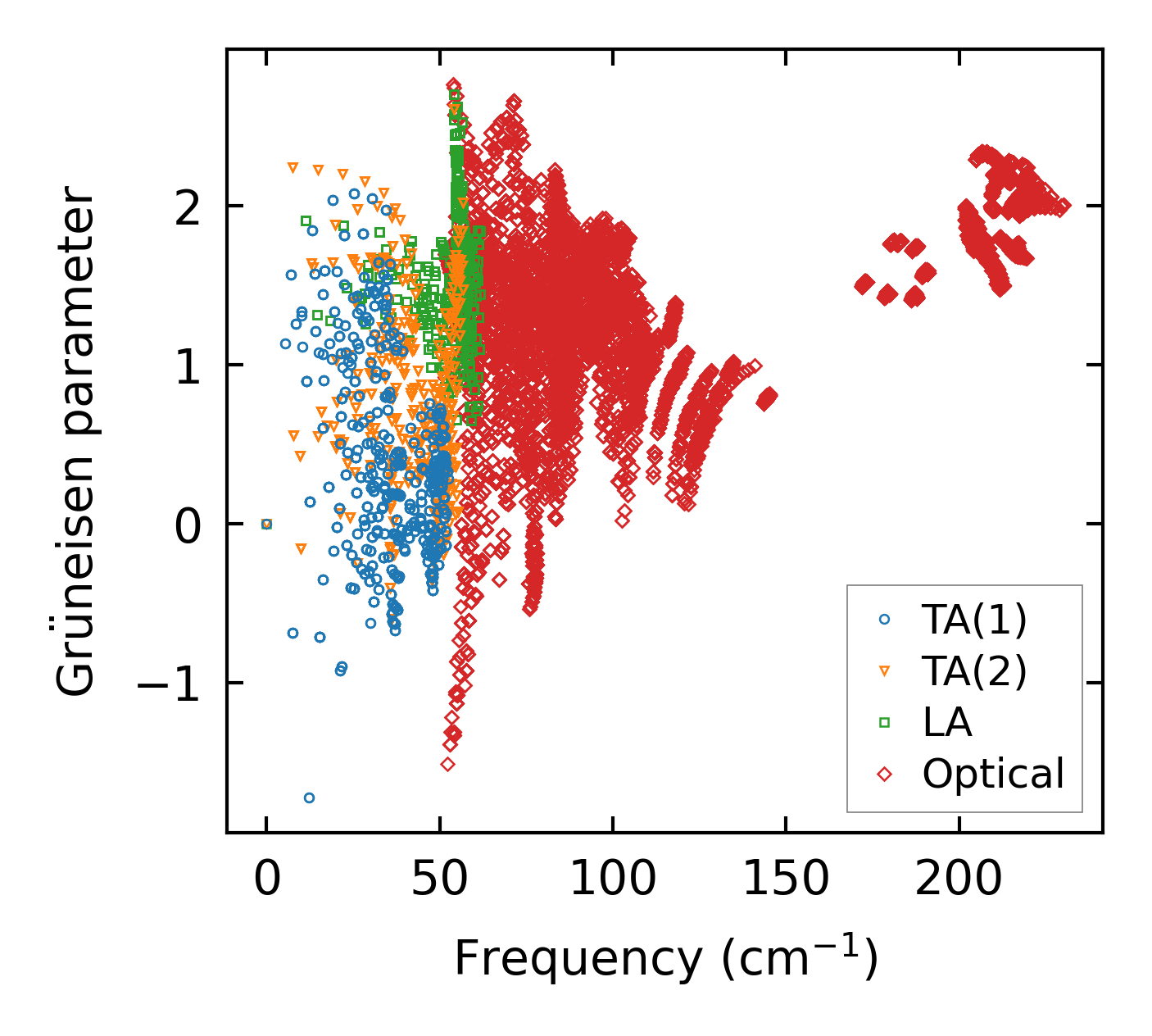

../../_images/fig_gru_all1060.png — (a) Grüneisen parameters

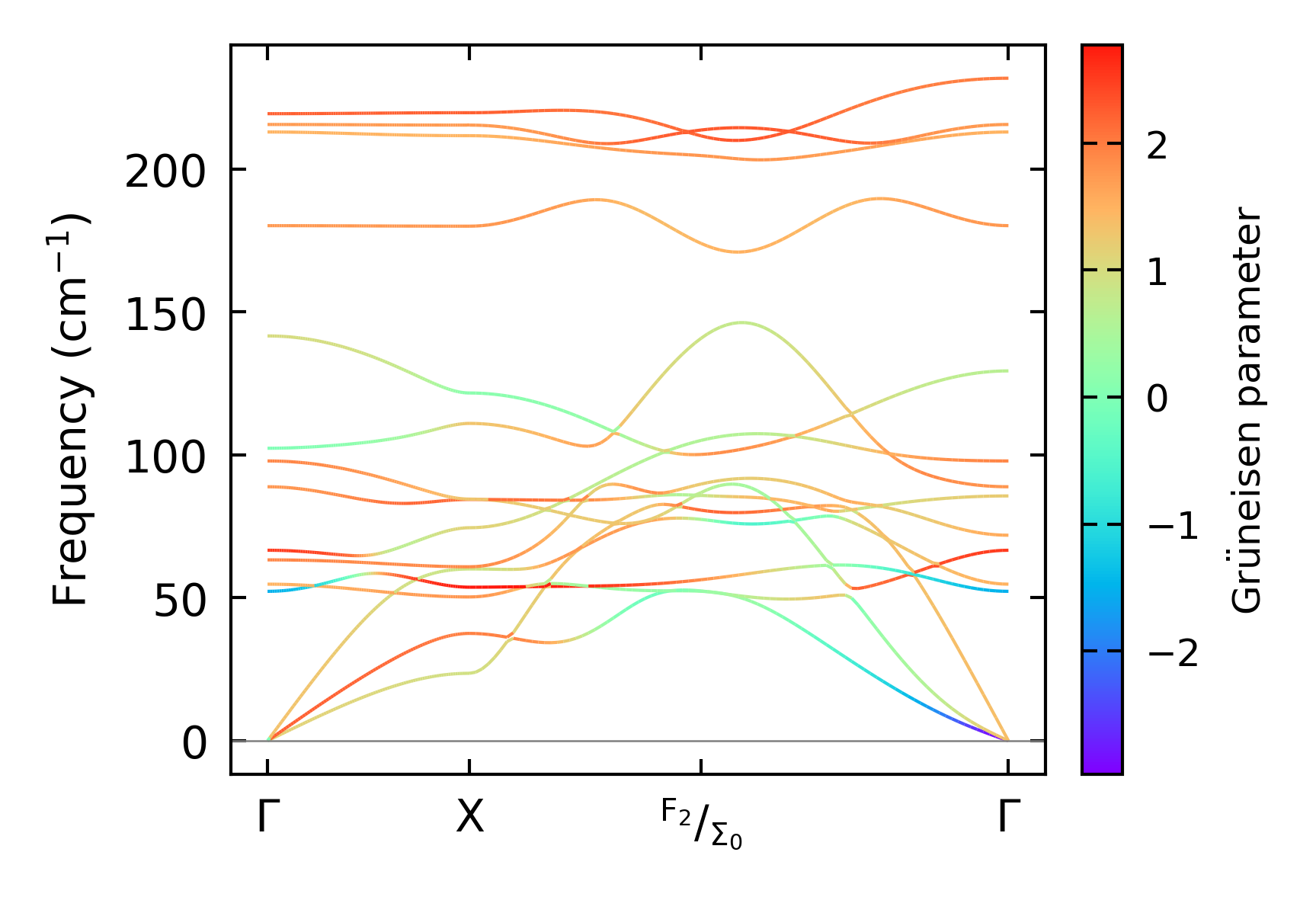

../../_images/fig_gruneisen1060.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x2x2

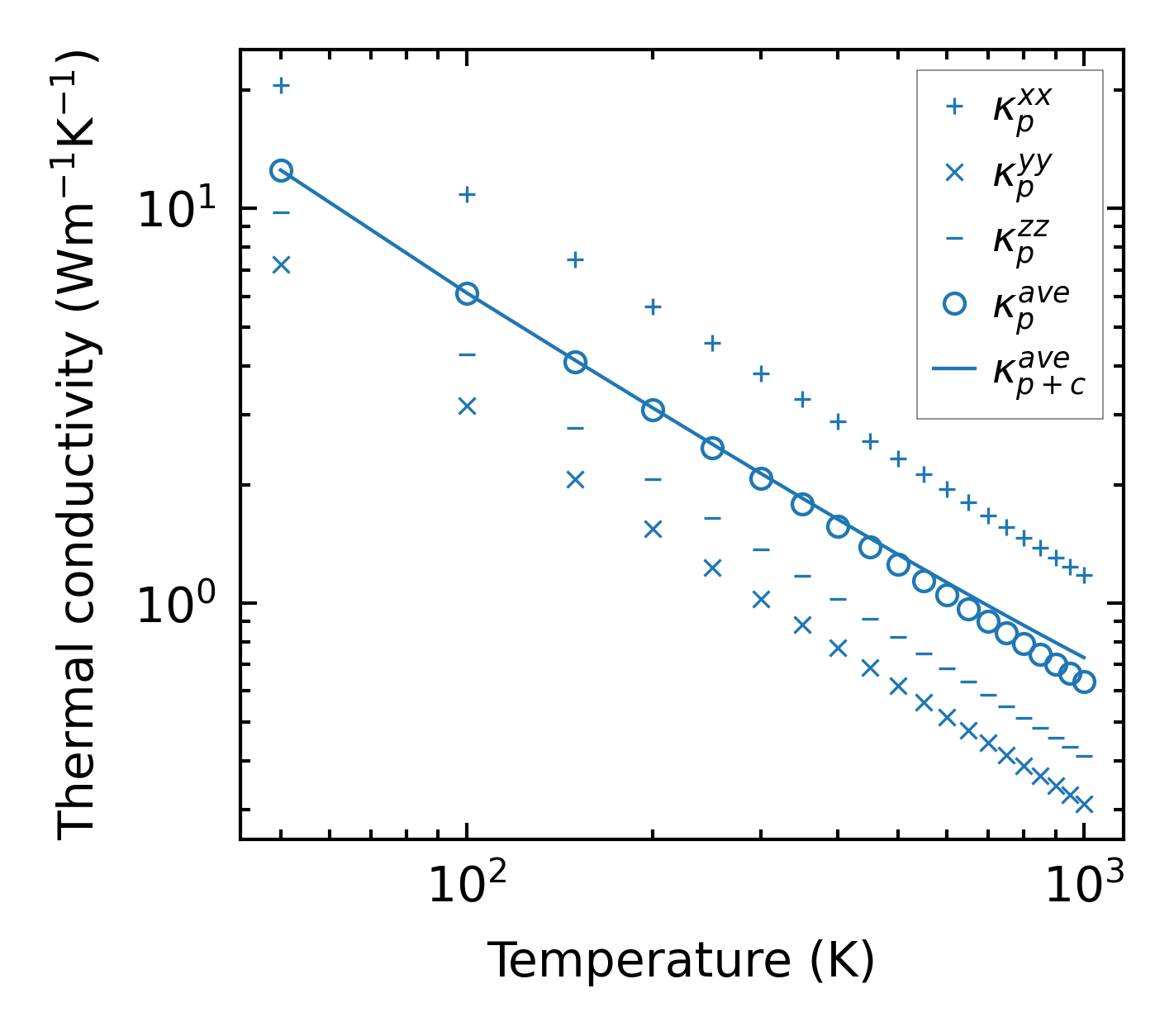

../../_images/fig_kappa2048.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1071.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

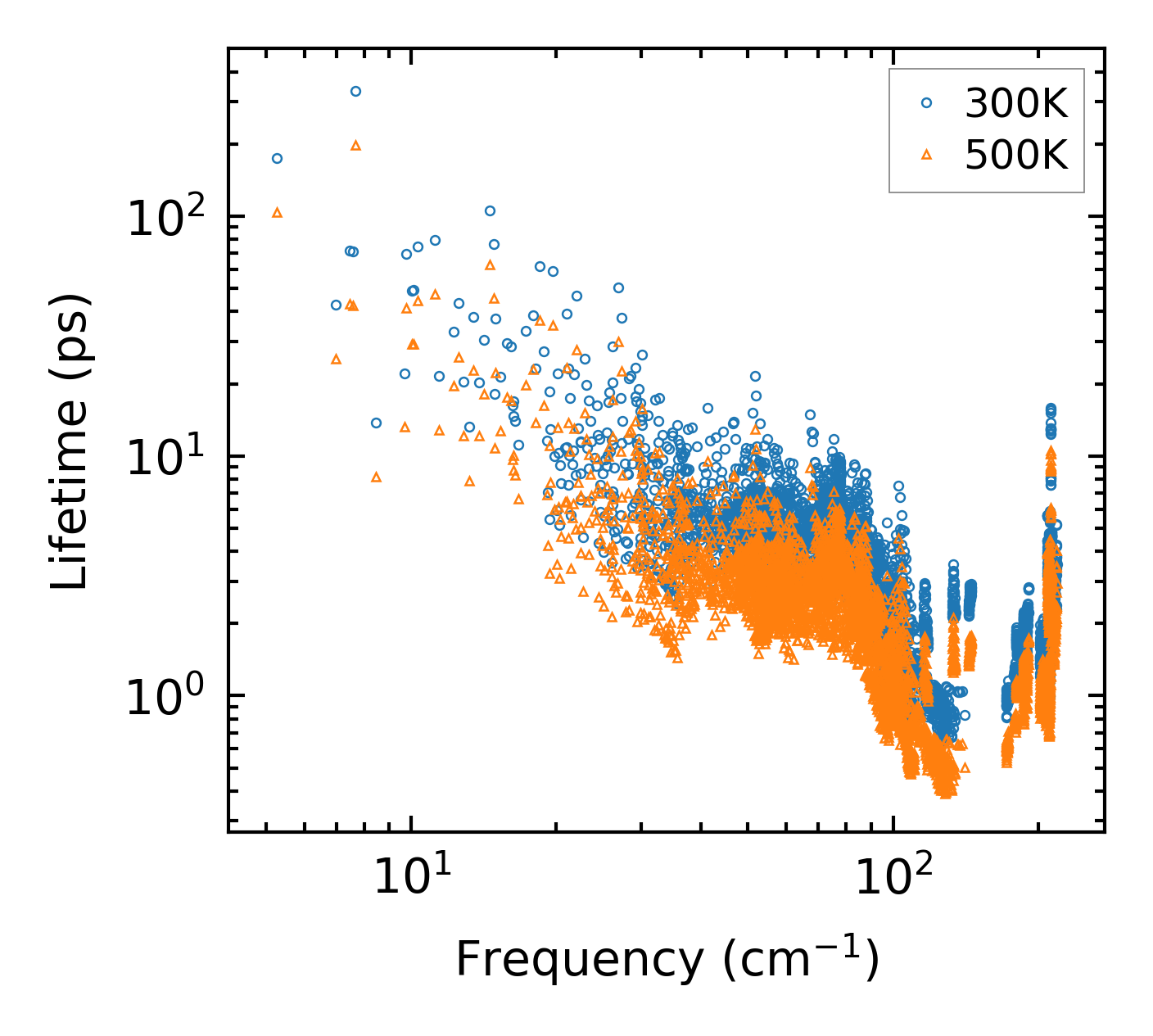

../../_images/fig_lifetime1051.png — (a) Phonon lifetime due to phonon-phonon scattering

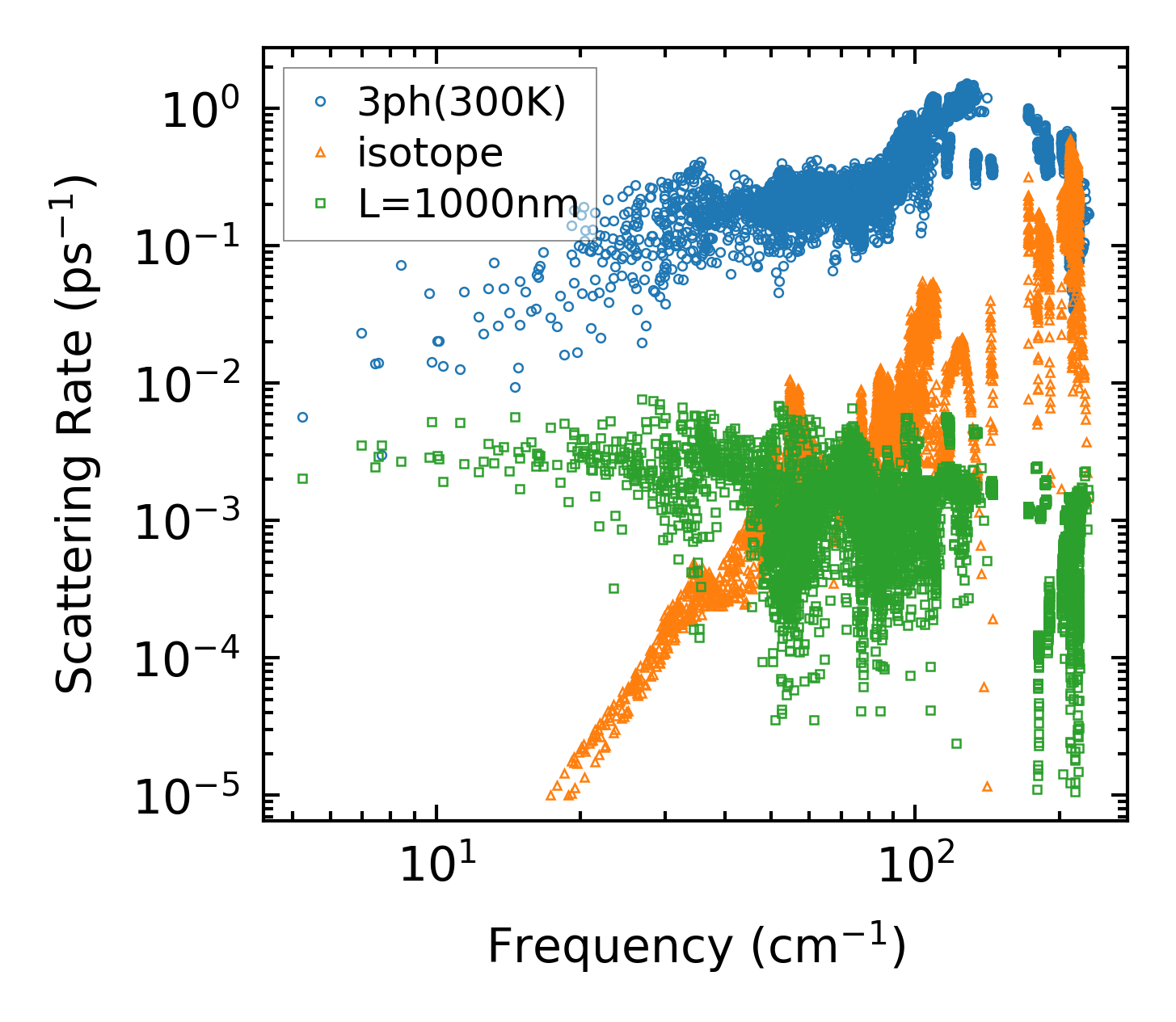

../../_images/fig_scat_rates1050.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1051.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

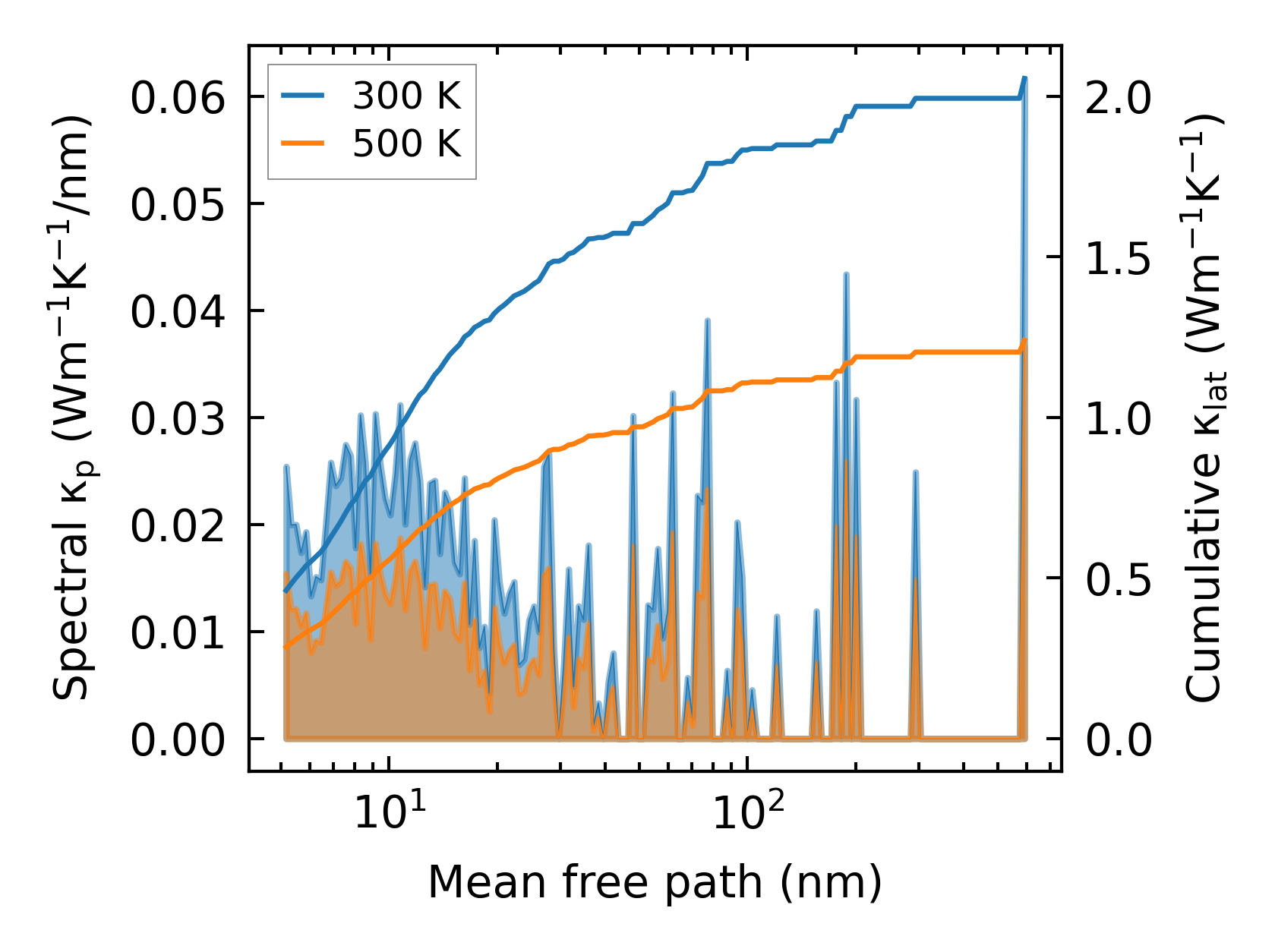

../../_images/fig_cumu_mfp1051.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

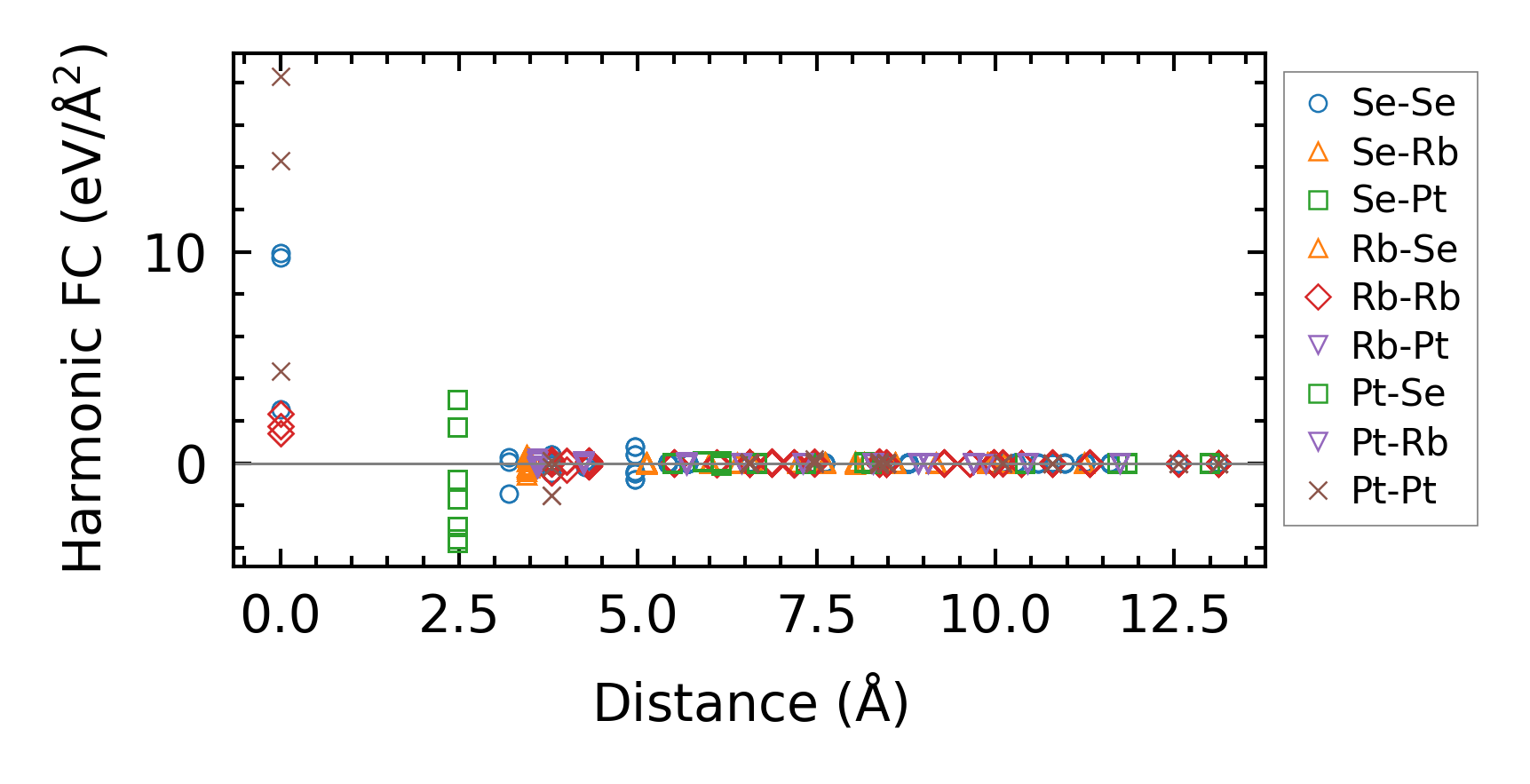

../../_images/fig_fc21682.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2049.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times2845.png — (b) Computation time
