mp-8603-2/RbAgO/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-8603-2.tar.gz

Equation of state

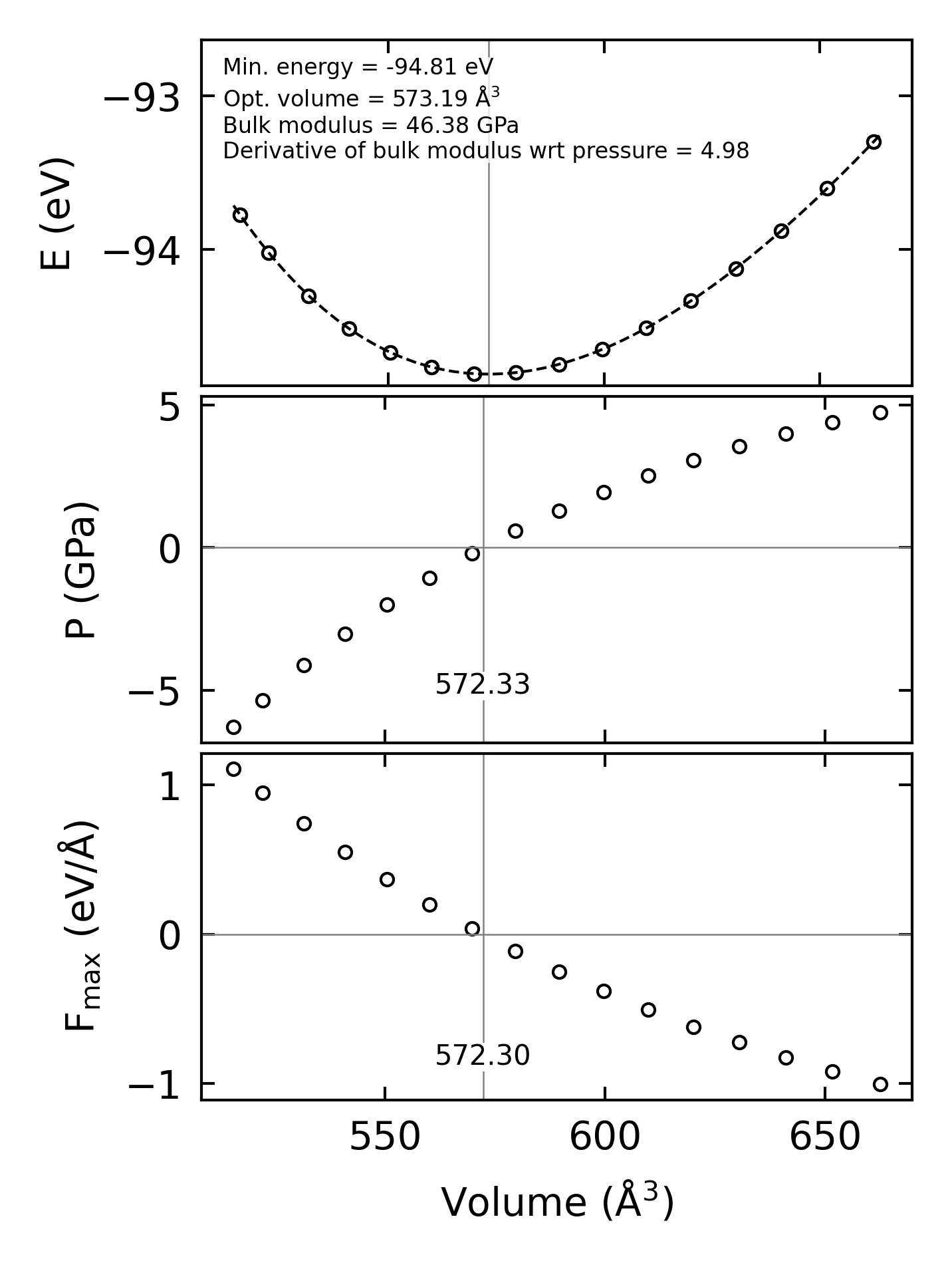

../../_images/fig_bm746.png — (a) Equation of state

Harmonic properties

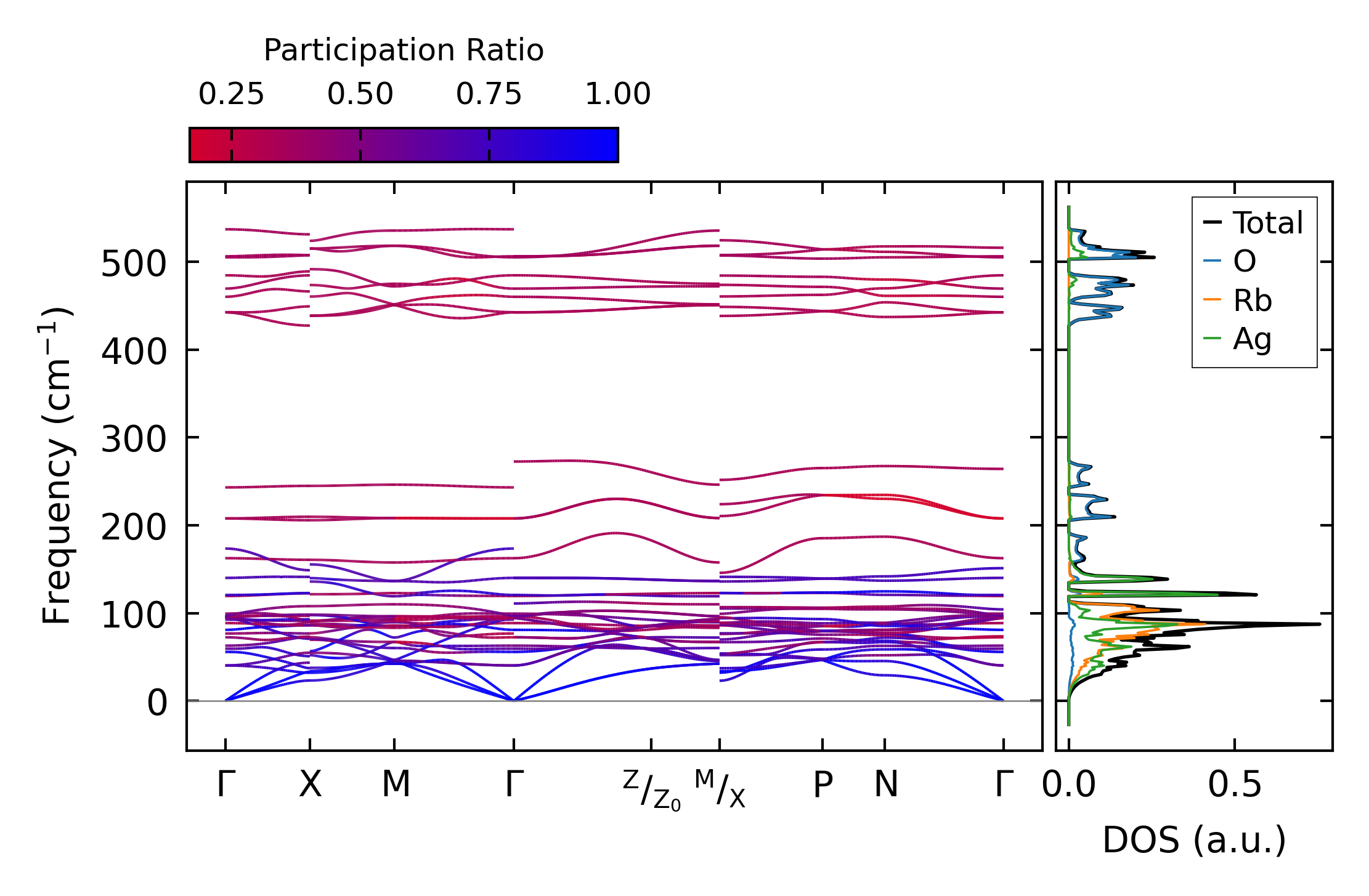

../../_images/fig_bandos_pr1849.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1849.png — (b) Thermodynamic properties

Grüneisen parameters

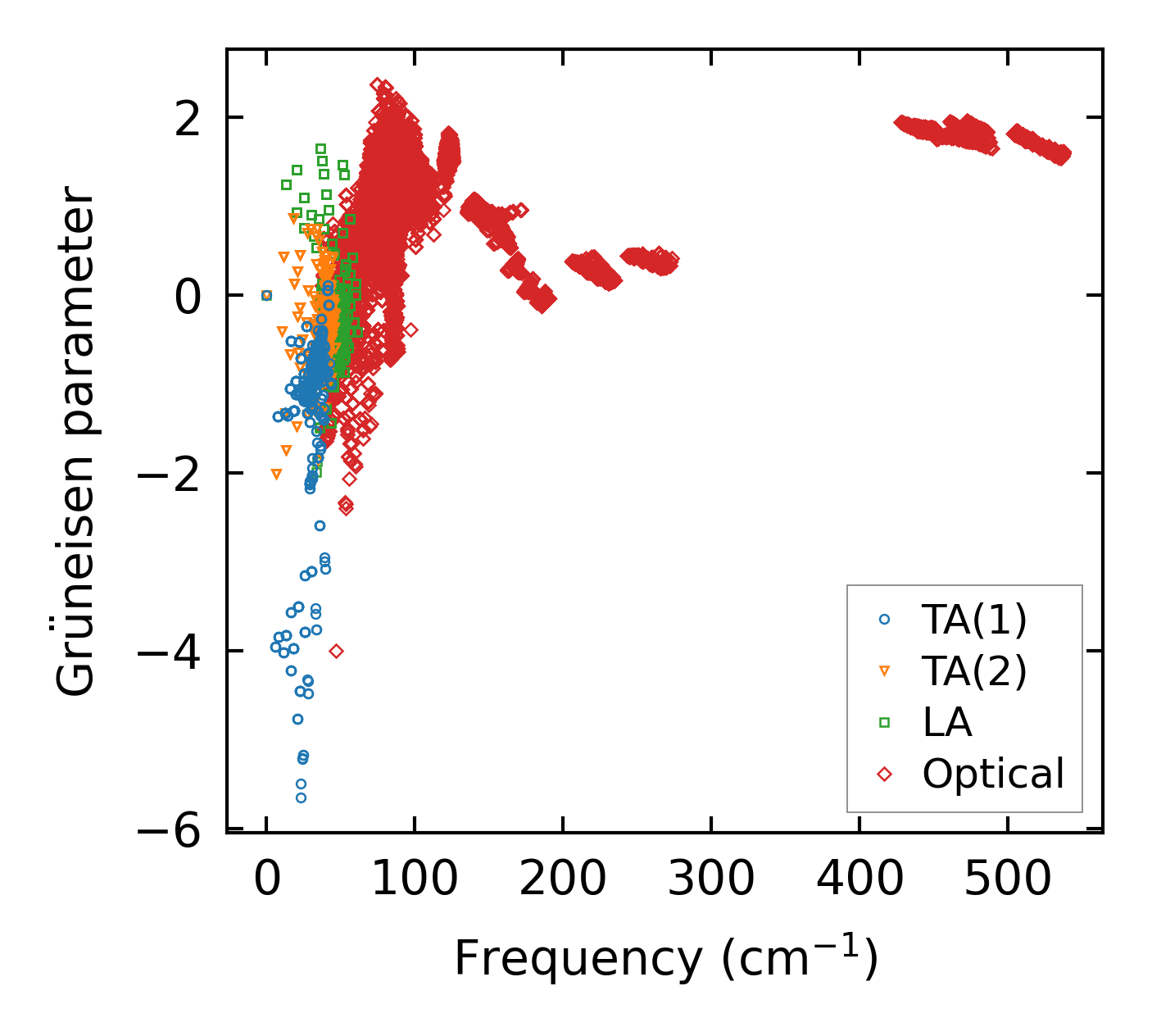

../../_images/fig_gru_all1052.png — (a) Grüneisen parameters

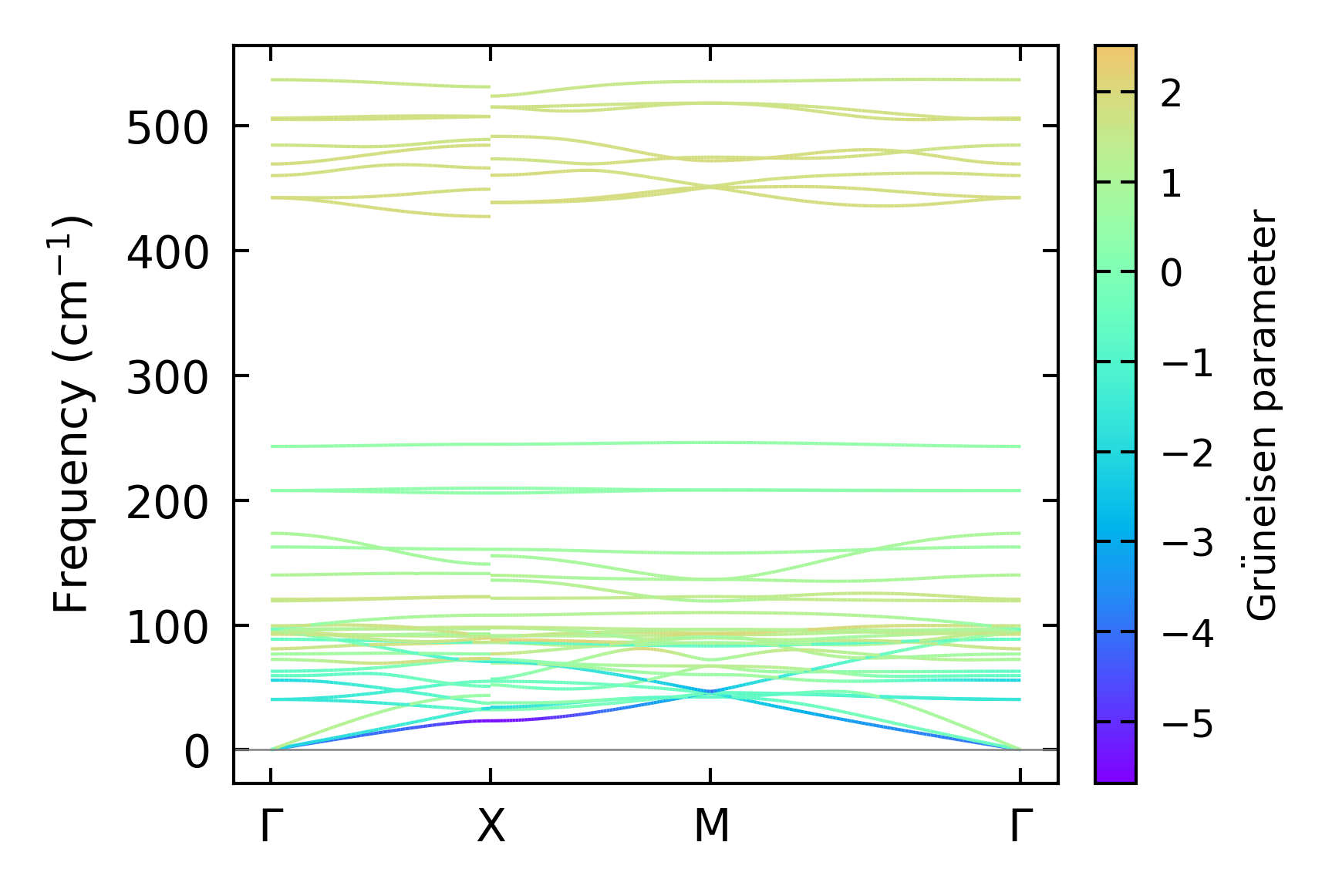

../../_images/fig_gruneisen1052.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x2

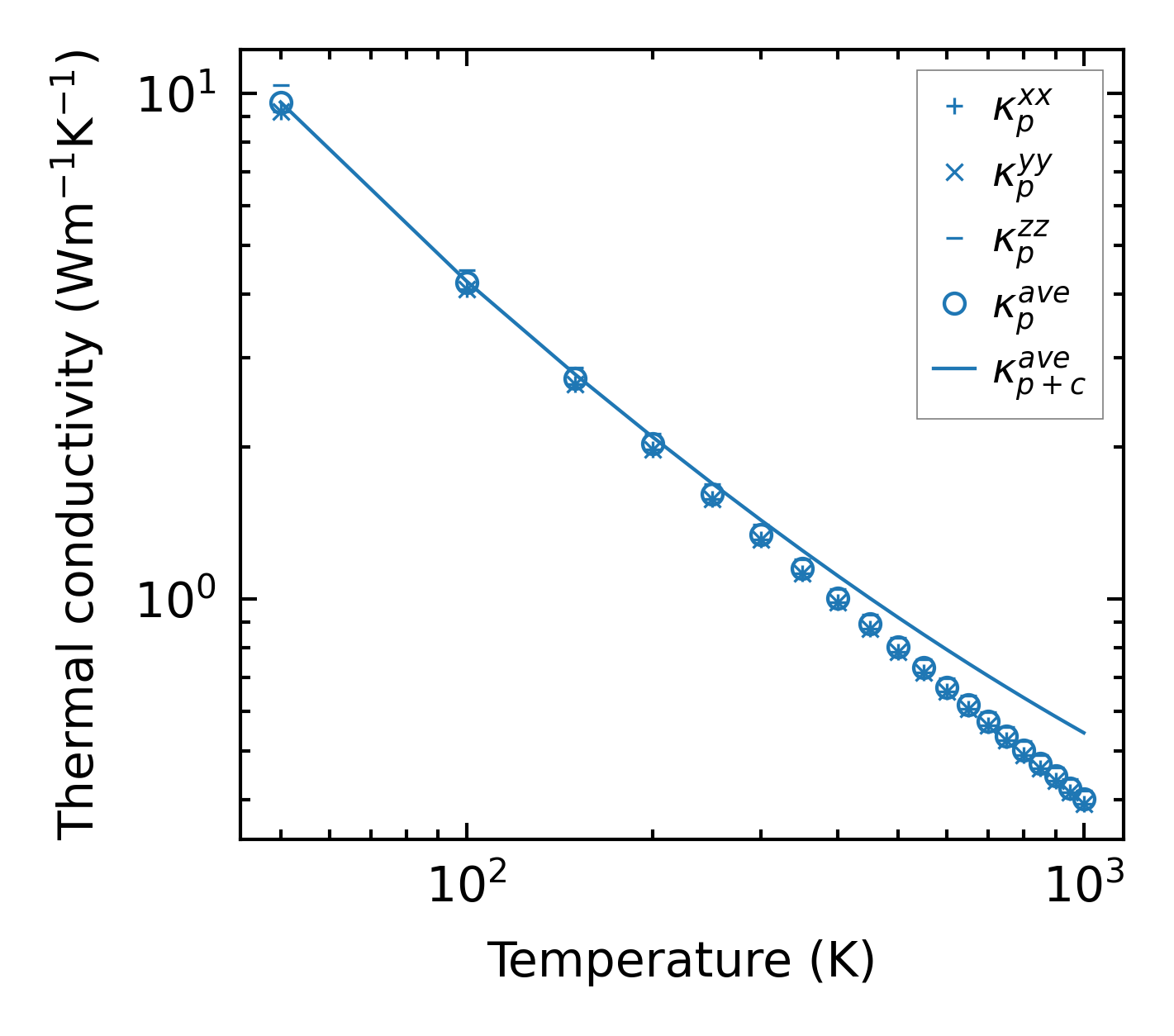

../../_images/fig_kappa2036.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1063.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

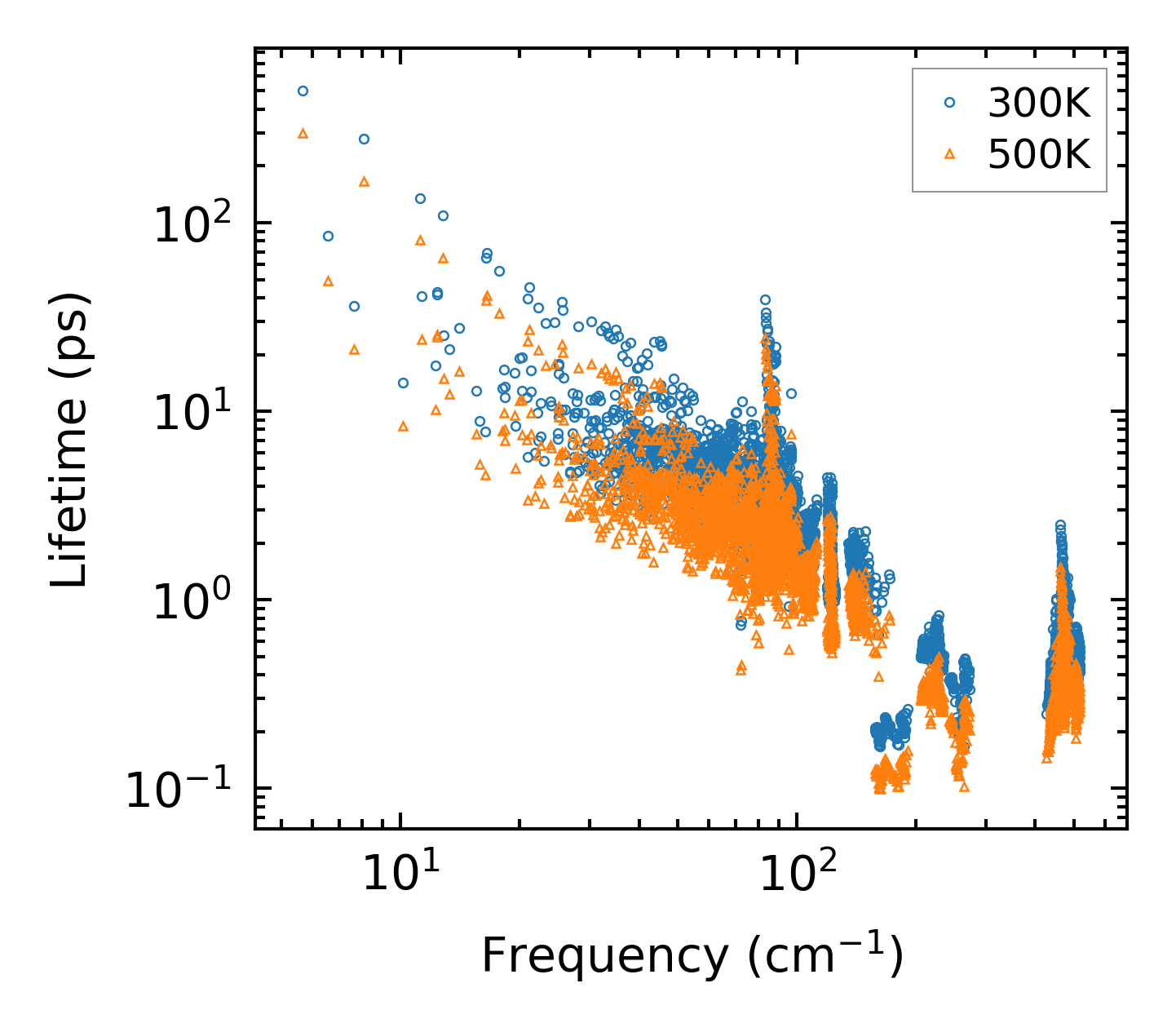

../../_images/fig_lifetime1043.png — (a) Phonon lifetime due to phonon-phonon scattering

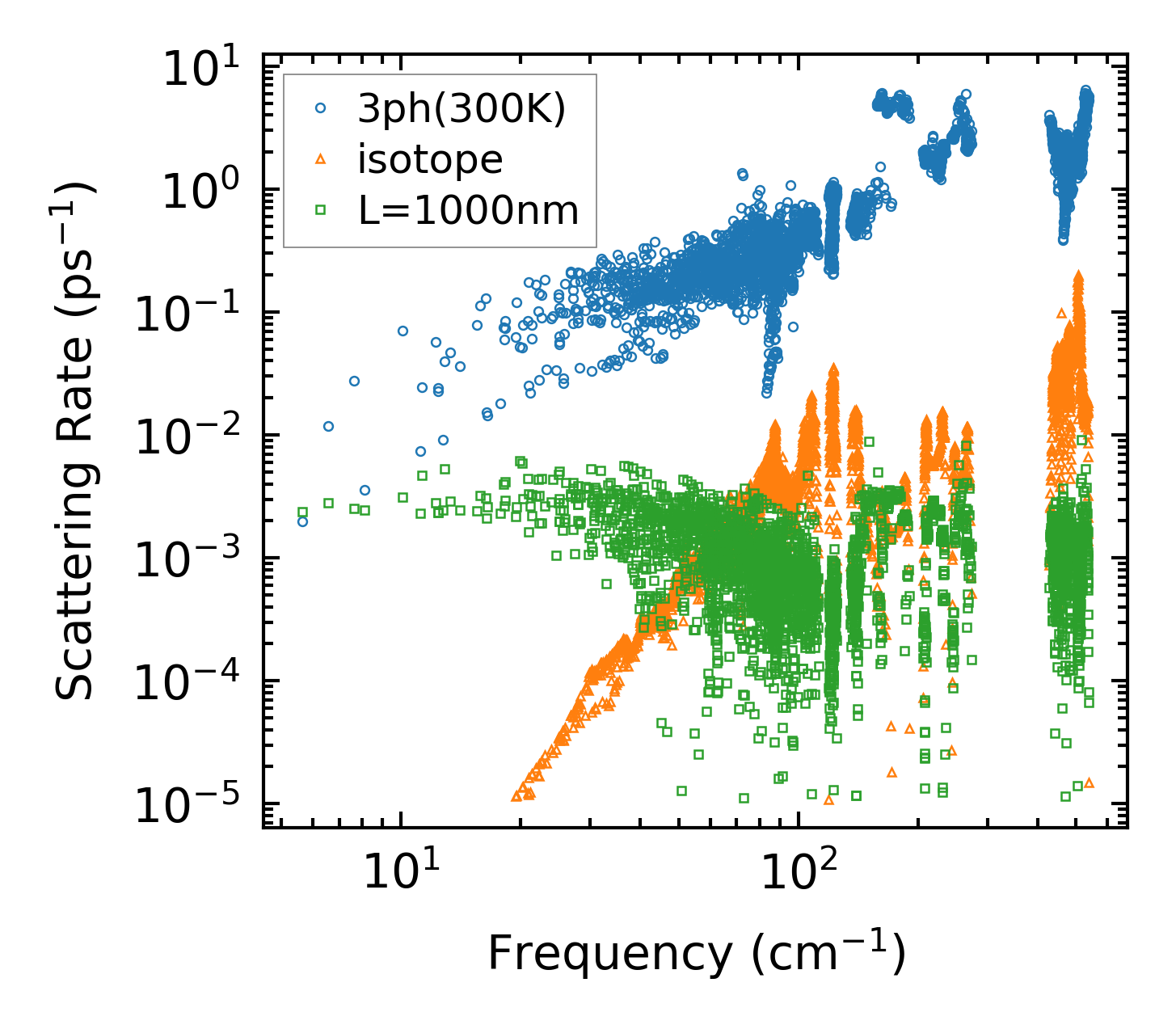

../../_images/fig_scat_rates1042.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

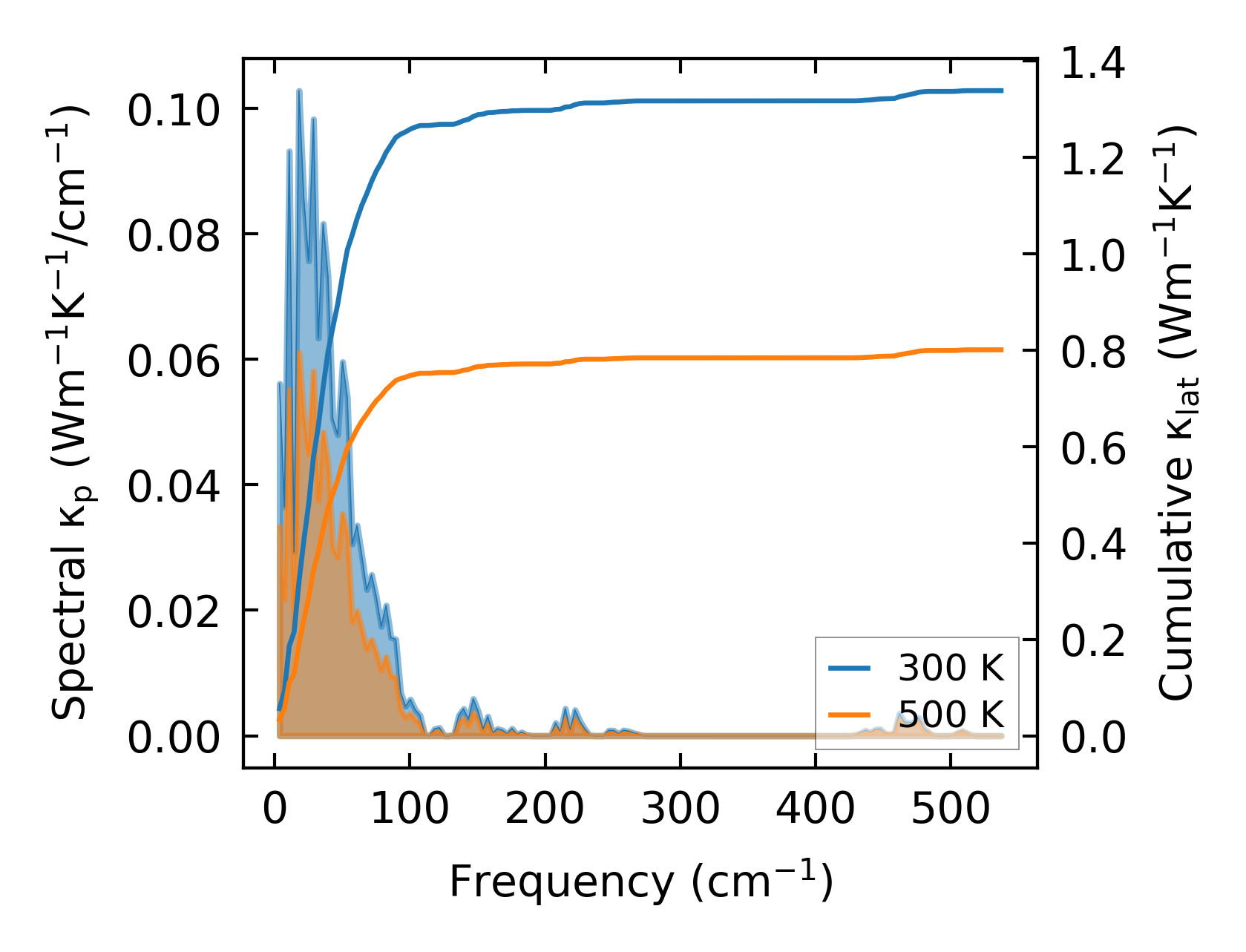

../../_images/fig_cumu_frequency1043.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

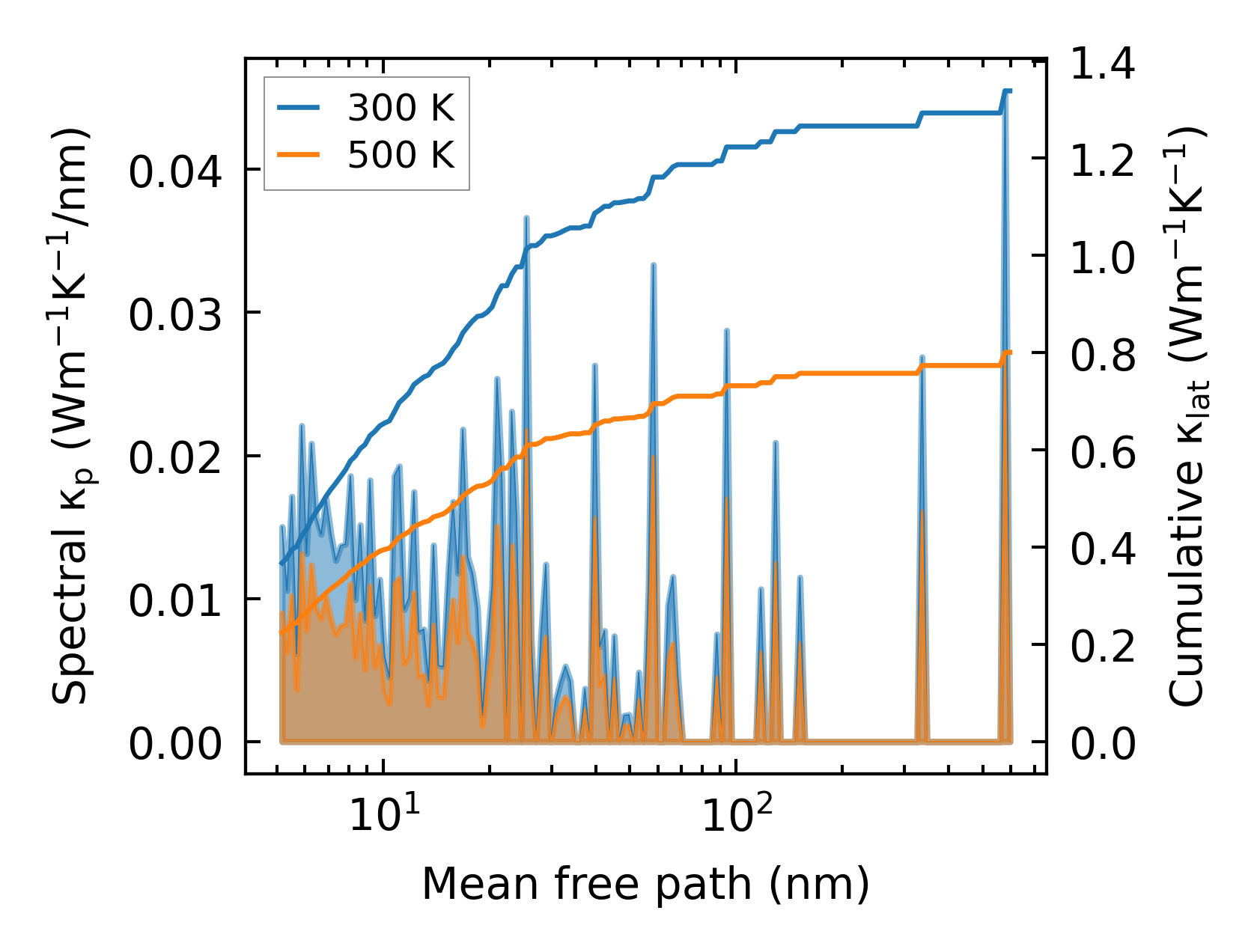

../../_images/fig_cumu_mfp1043.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

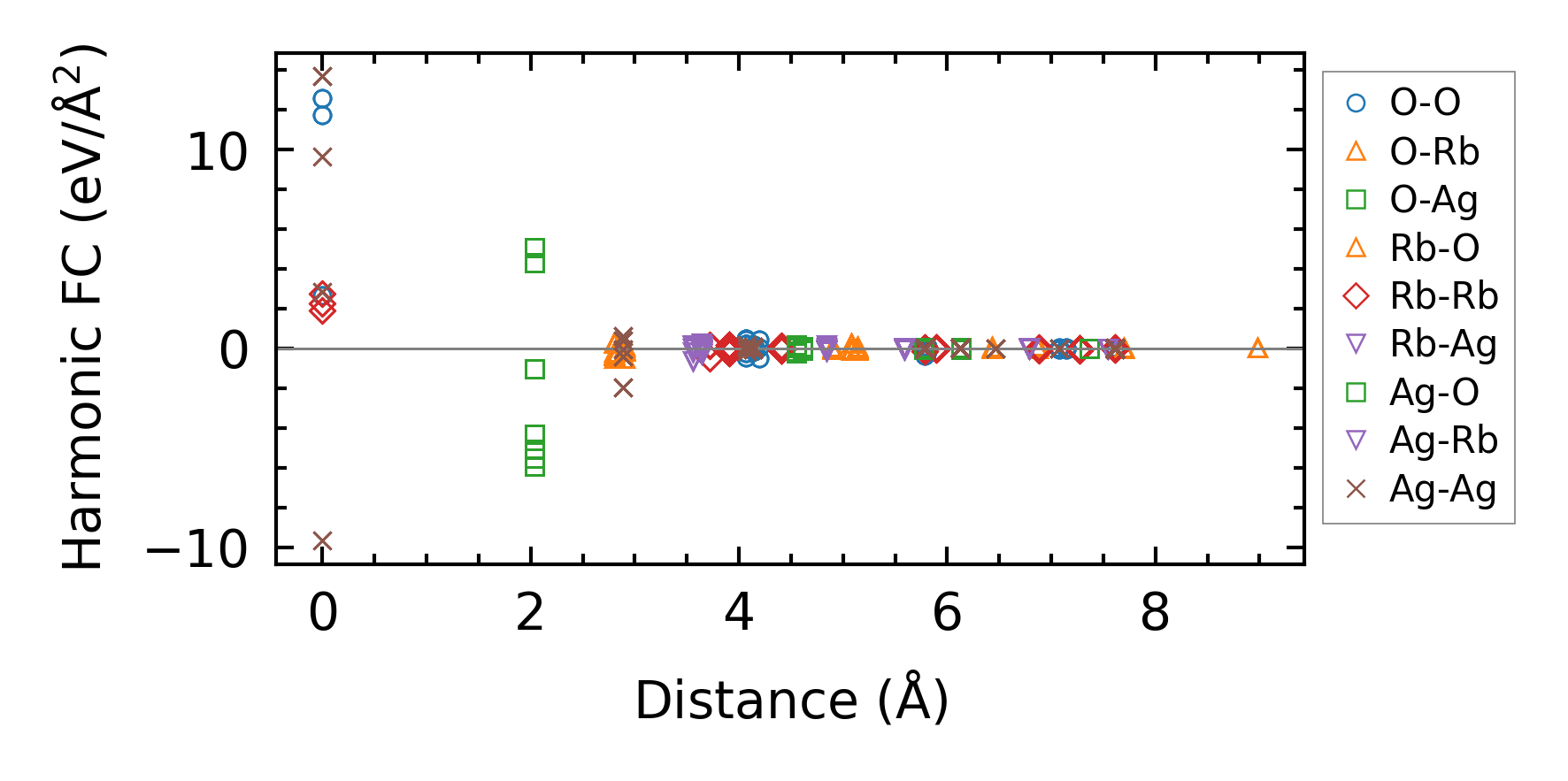

../../_images/fig_fc21672.png — (a) Force constants w.r.t atomic distance

Summary

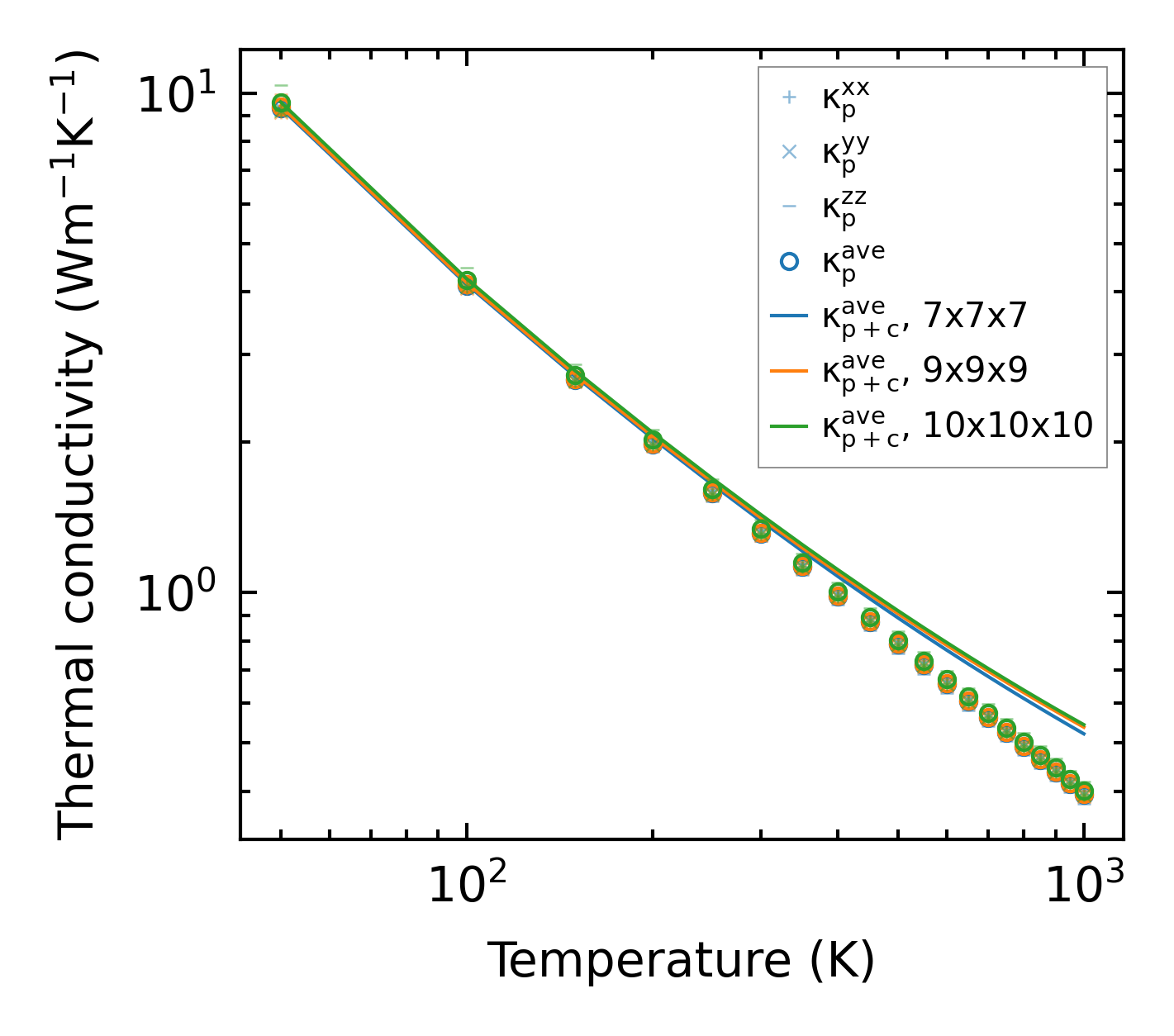

../../_images/fig_kappa2037.png — (a) Temperature-dependent lattice thermal conductivity

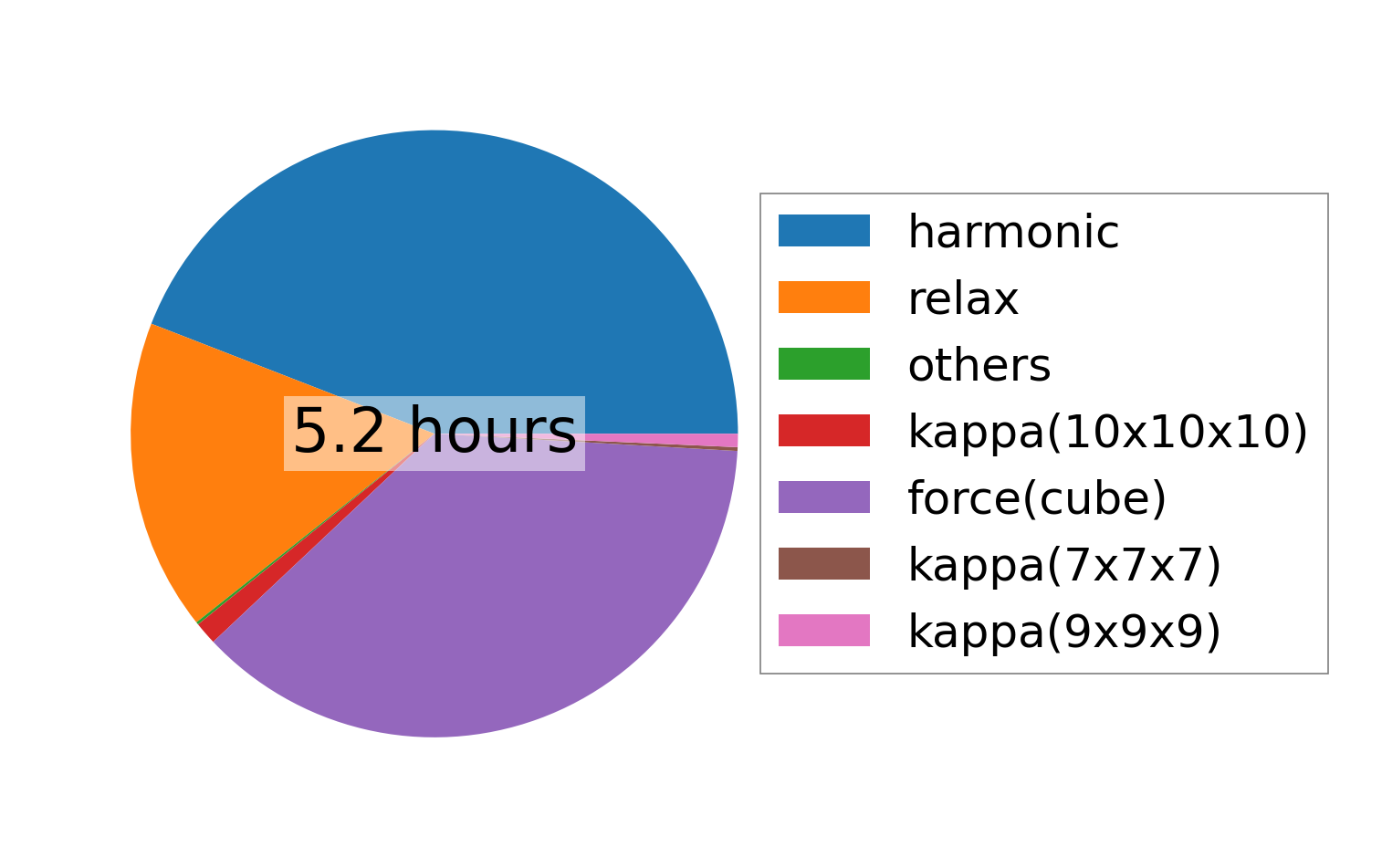

../../_images/fig_times2831.png — (b) Computation time
