mp-8324-2/Dy2S2O/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-8324-2.tar.gz

Equation of state

../../_images/fig_bm708.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr1784.png — (a) Phonon dispersion with participation ratio and DOS

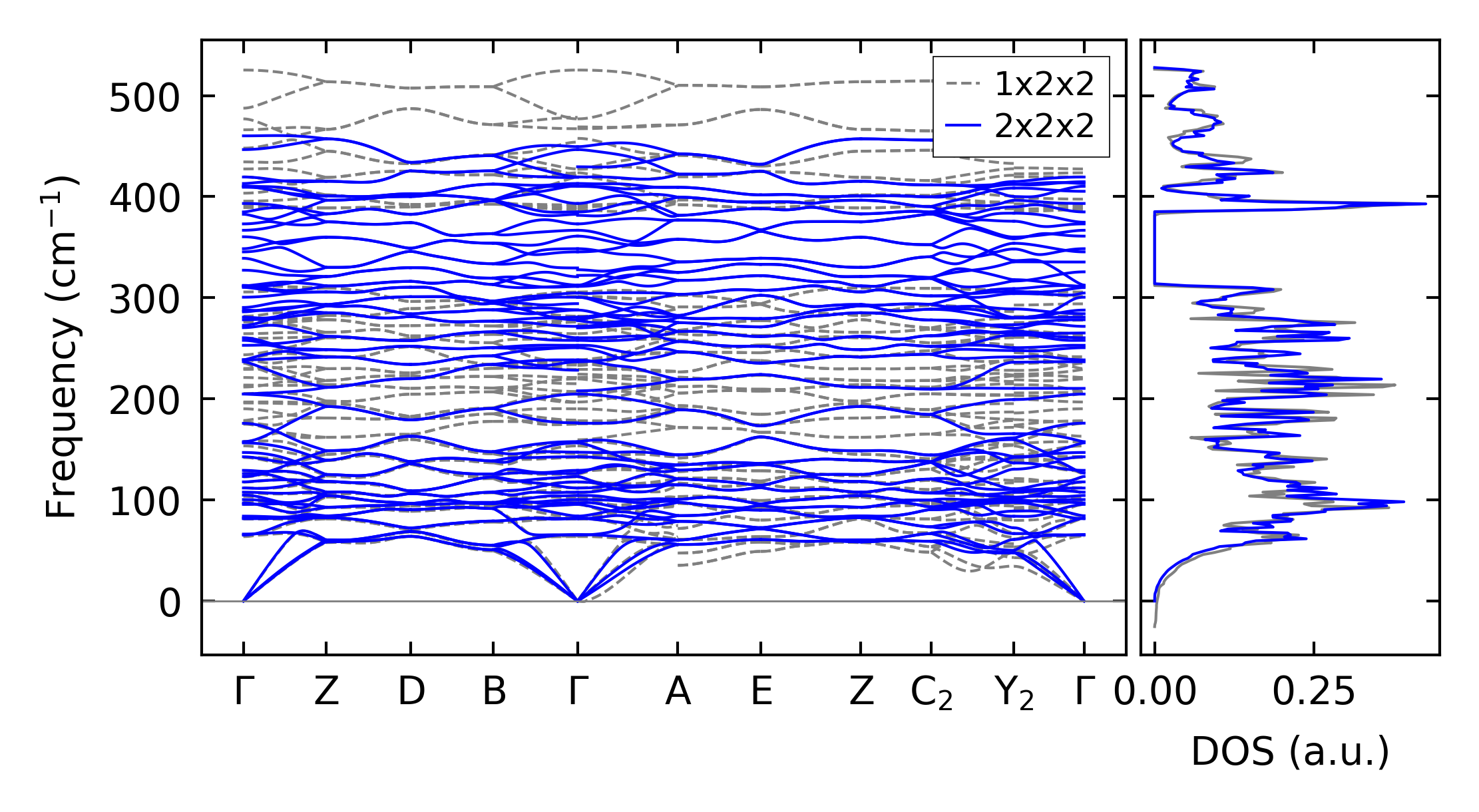

../../_images/fig_bandos1807.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo1784.png — (c) Thermodynamic properties

Grüneisen parameters

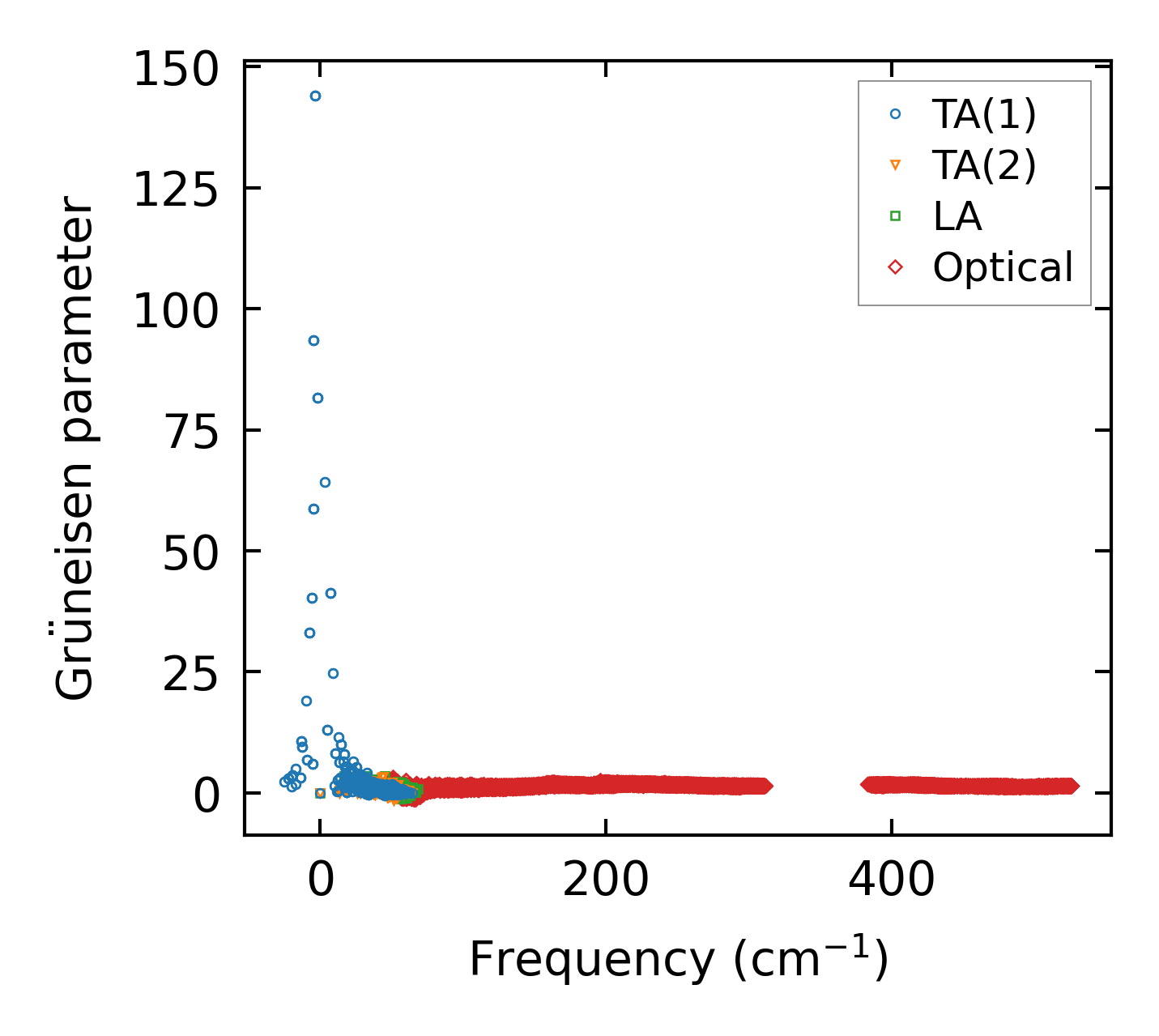

../../_images/fig_gru_all1014.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1014.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x10x10, supercell: 2x2x2

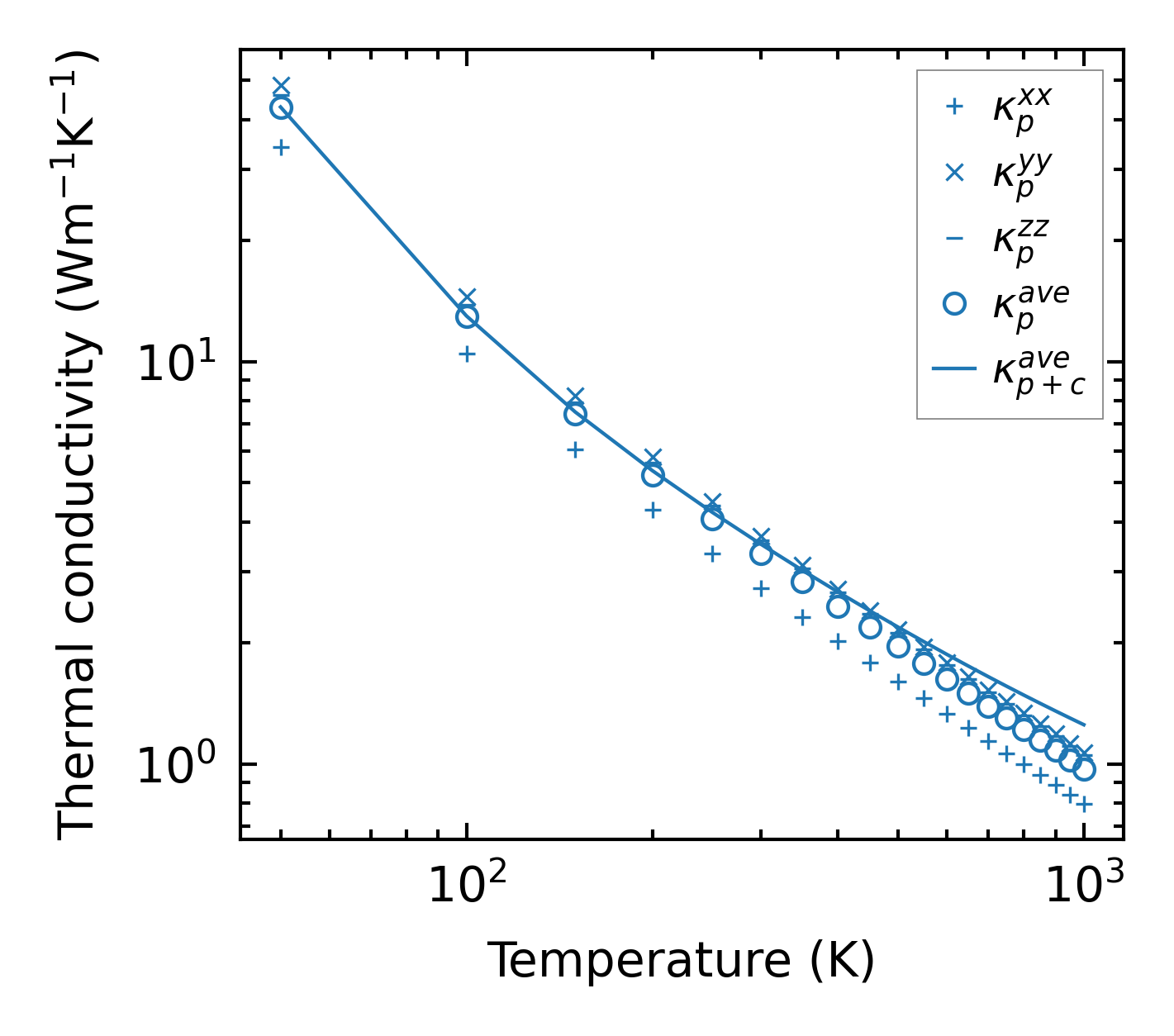

../../_images/fig_kappa1965.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1025.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

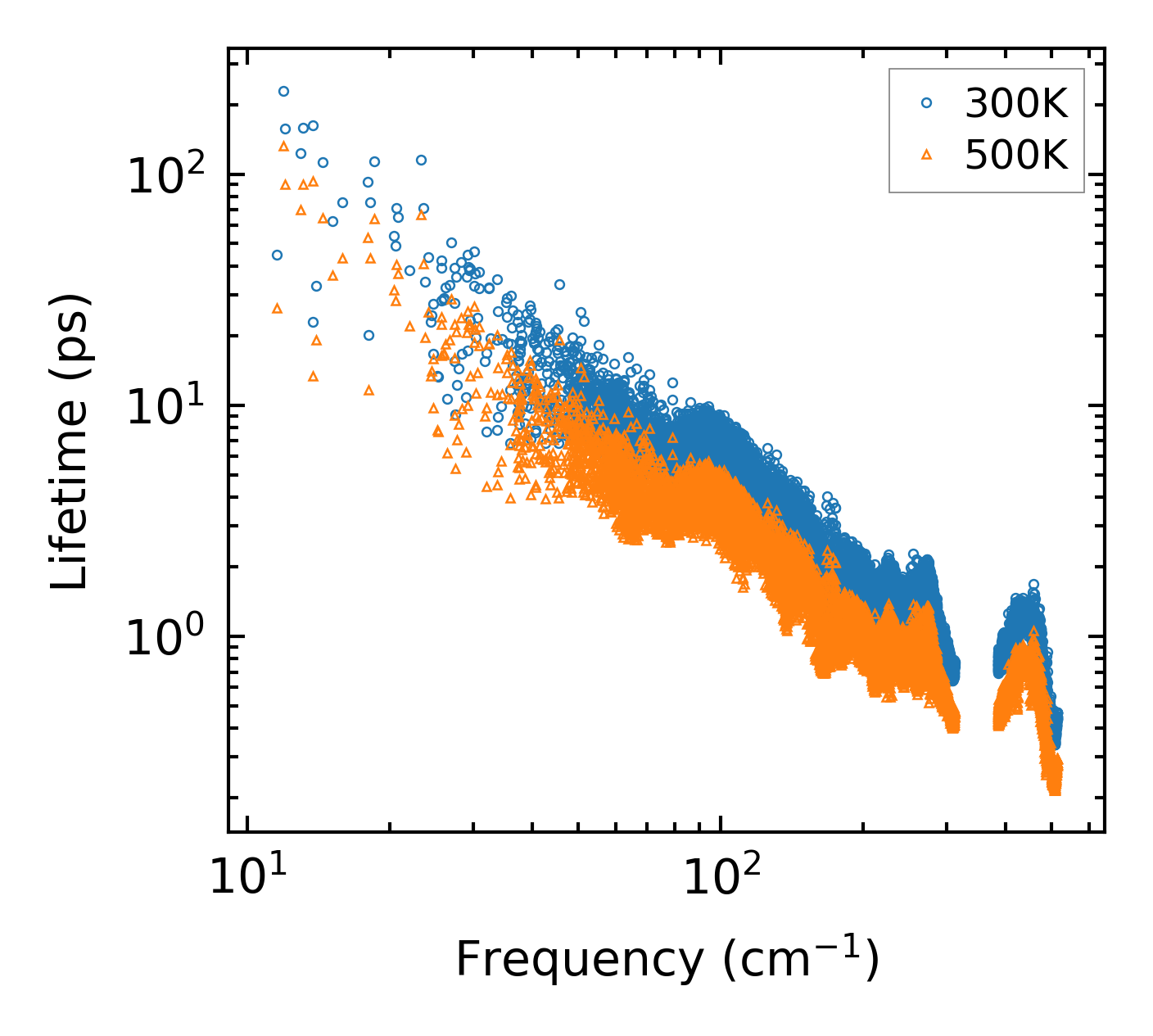

../../_images/fig_lifetime1006.png — (a) Phonon lifetime due to phonon-phonon scattering

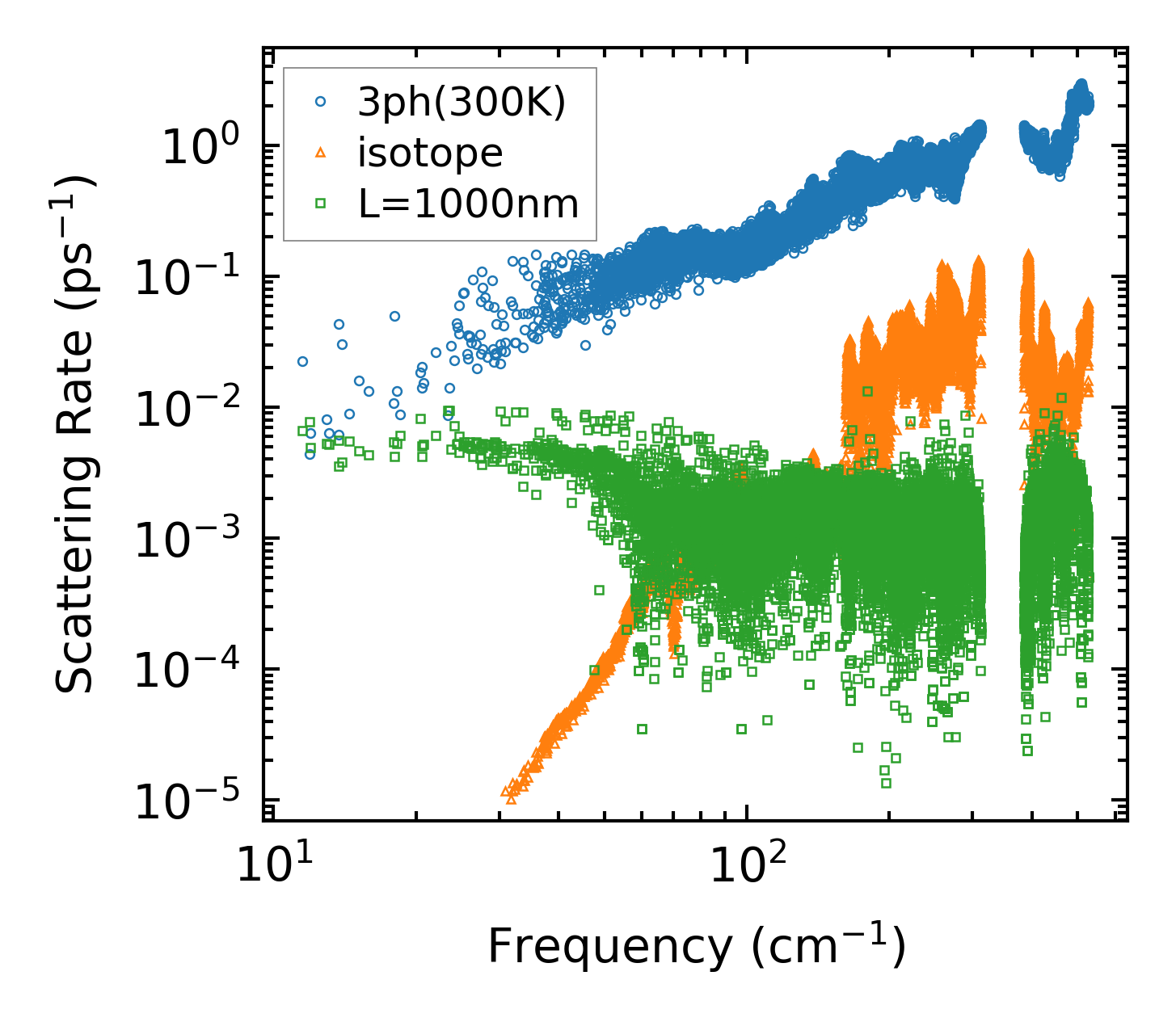

../../_images/fig_scat_rates1005.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1006.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

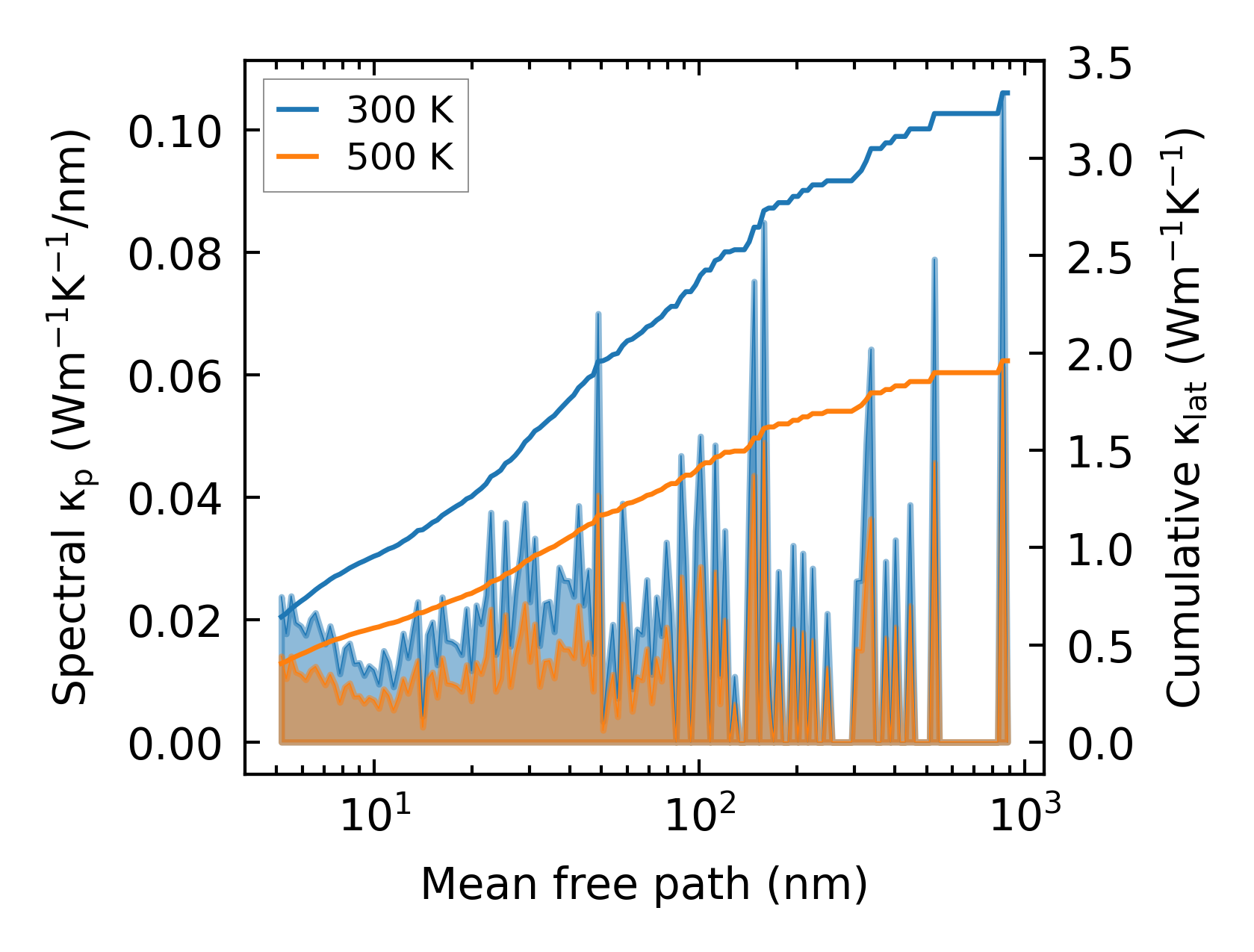

../../_images/fig_cumu_mfp1006.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

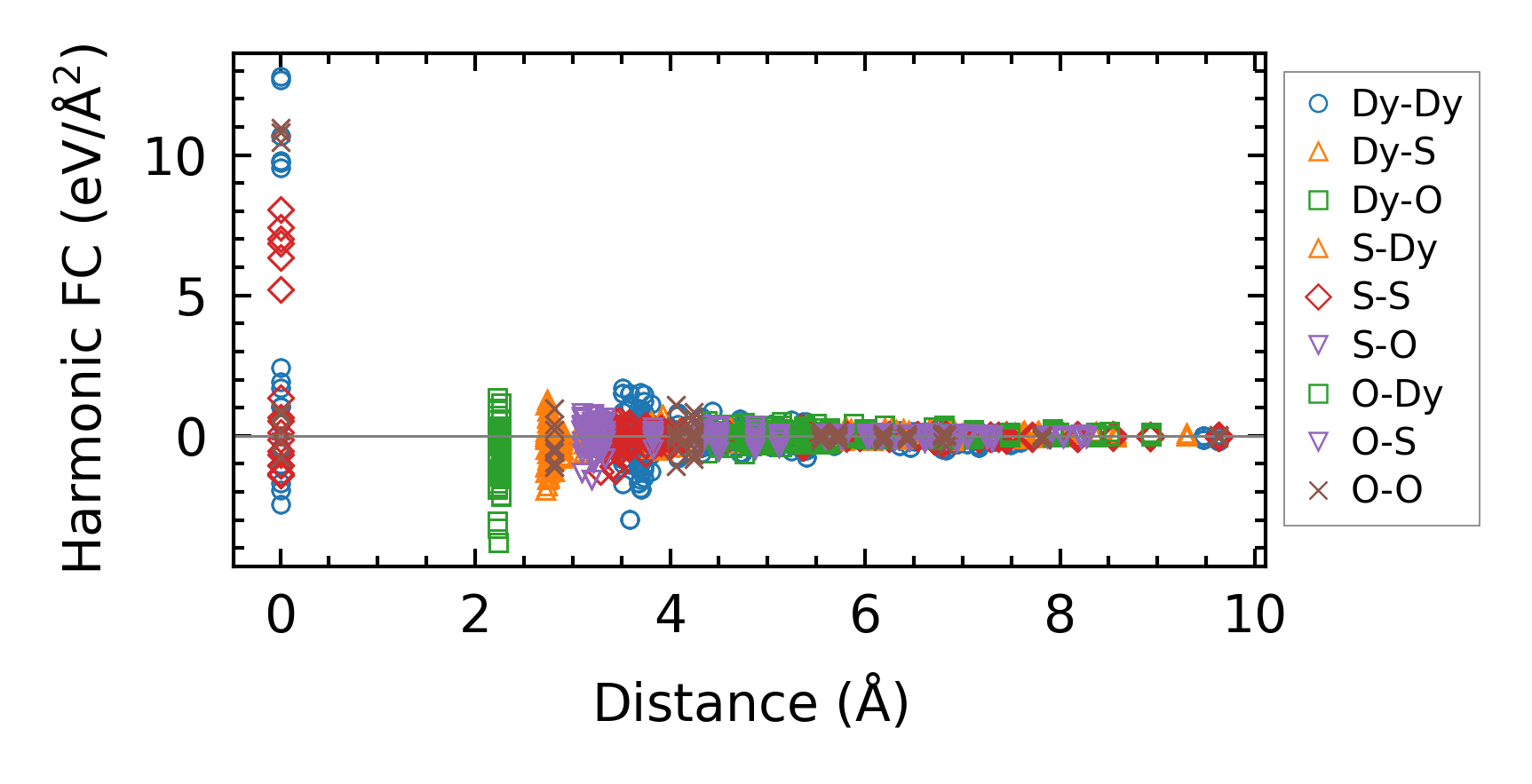

../../_images/fig_fc21613.png — (a) Force constants w.r.t atomic distance

Summary

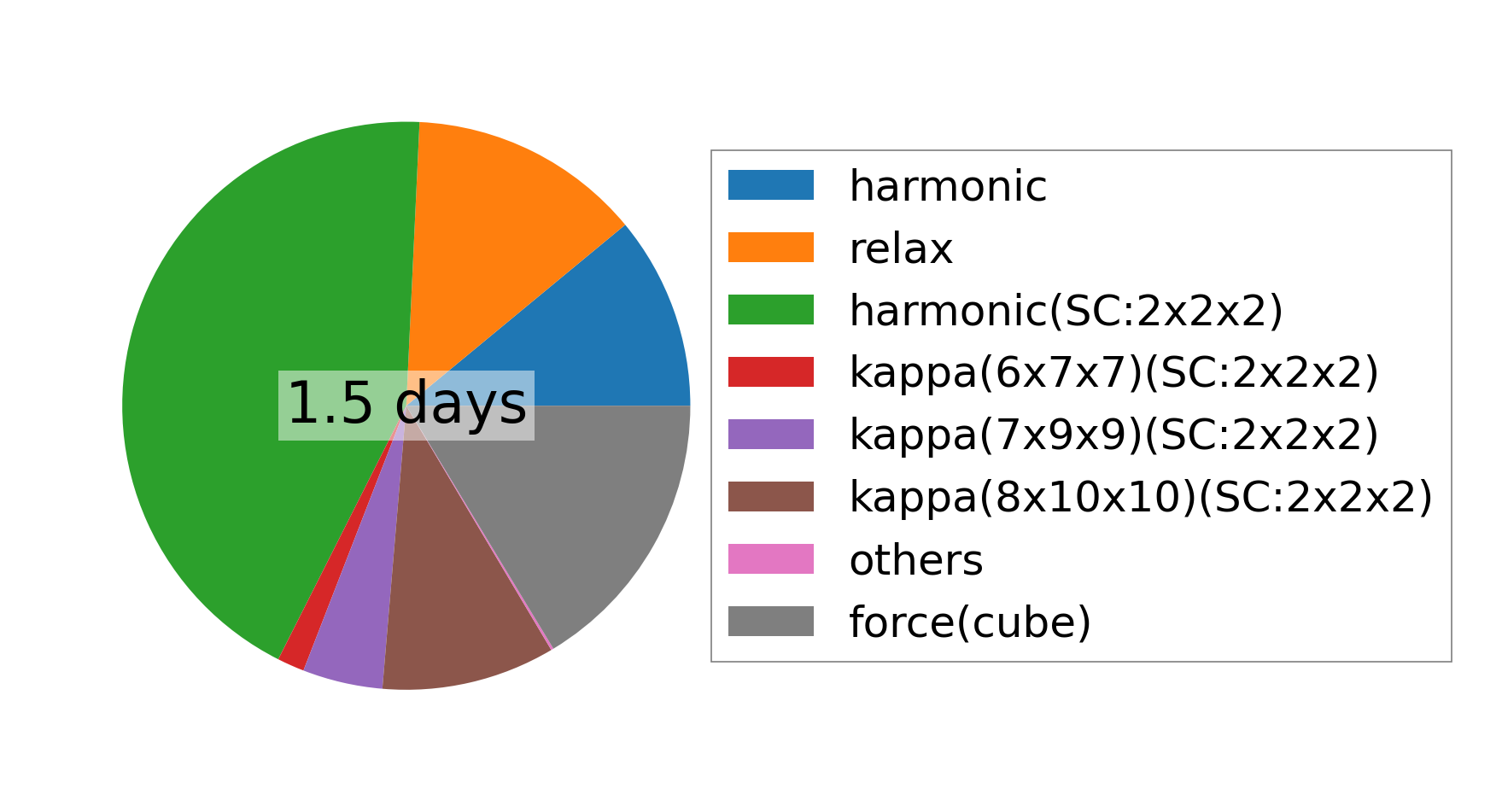

../../_images/fig_times2732.png — (a) Computation time
