mp-8754/NaLiTe/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-8754.tar.gz

Harmonic properties

../../_images/fig_bandos_pr1910.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1910.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1089.png — (a) Grüneisen parameters

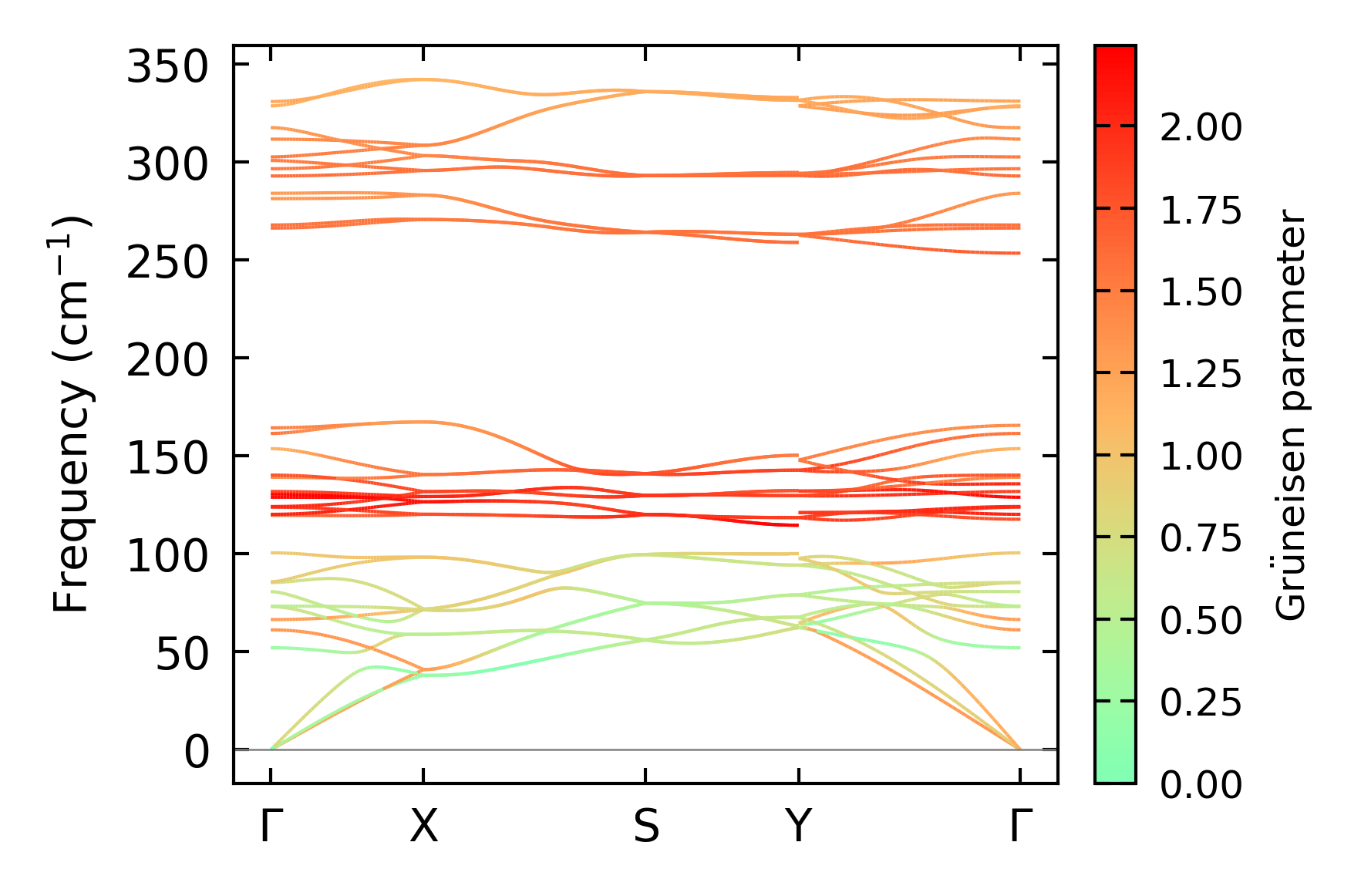

../../_images/fig_gruneisen1089.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x15x8, supercell: 2x3x2

../../_images/fig_kappa2101.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1100.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

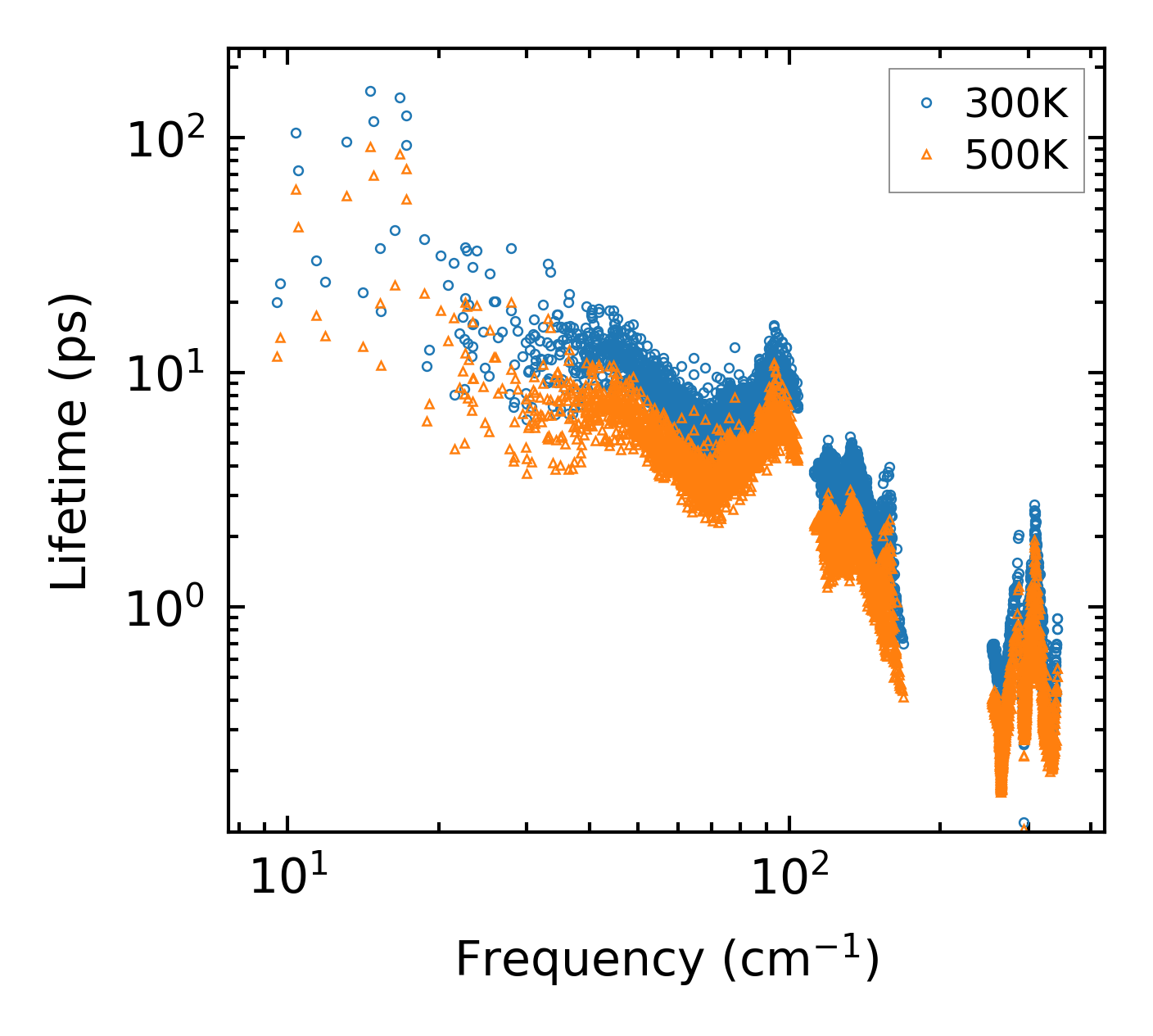

../../_images/fig_lifetime1080.png — (a) Phonon lifetime due to phonon-phonon scattering

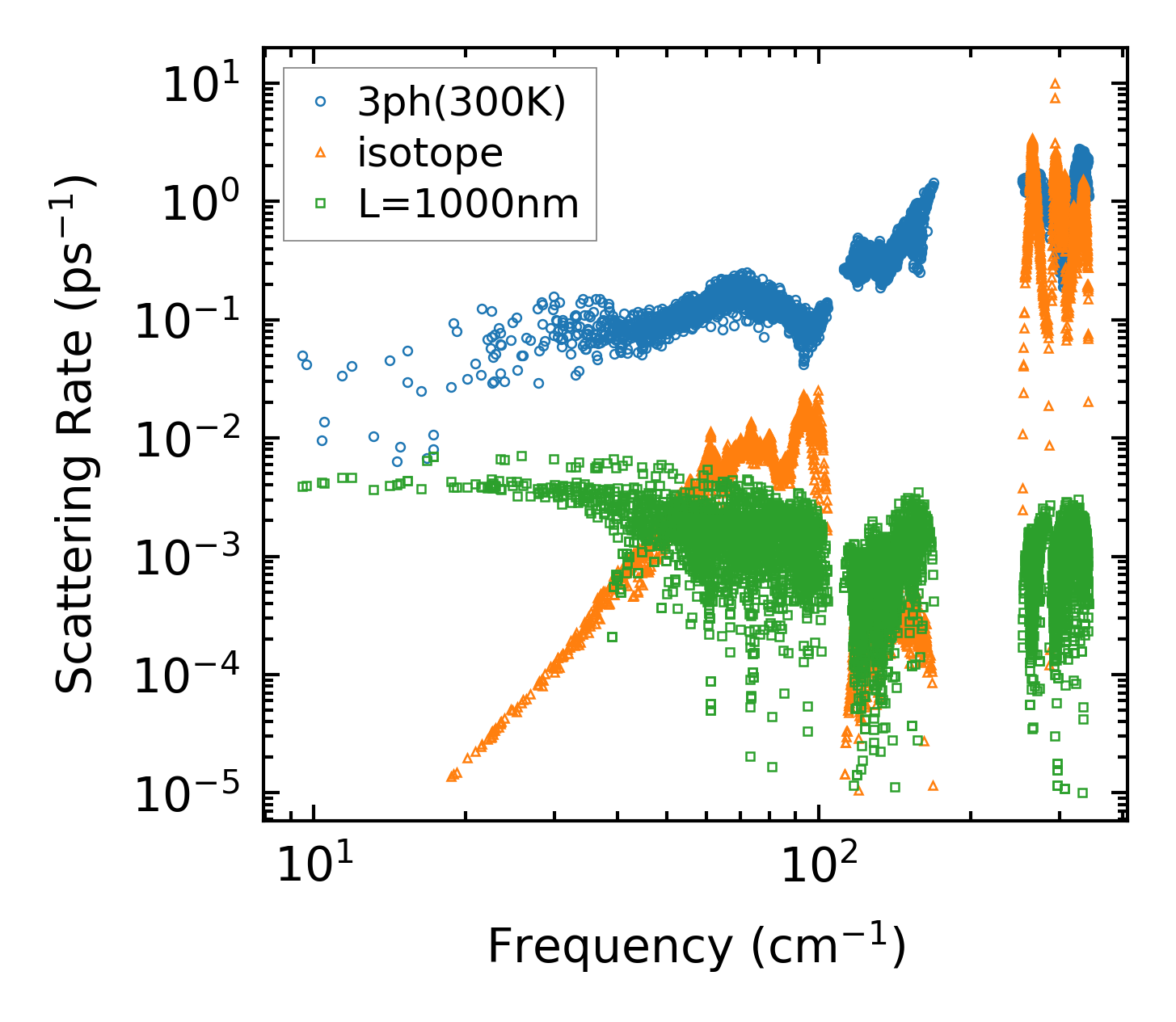

../../_images/fig_scat_rates1079.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

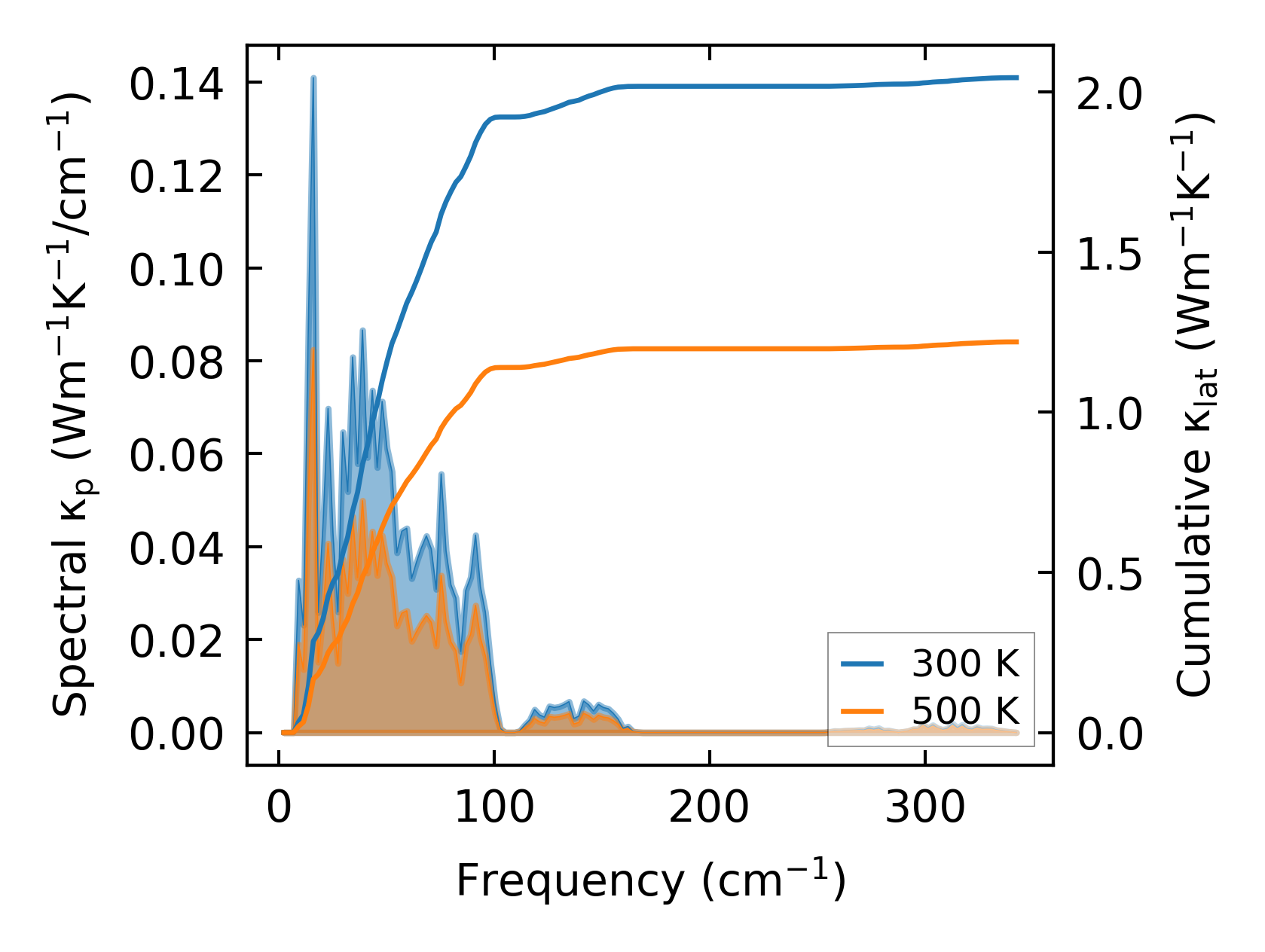

../../_images/fig_cumu_frequency1080.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

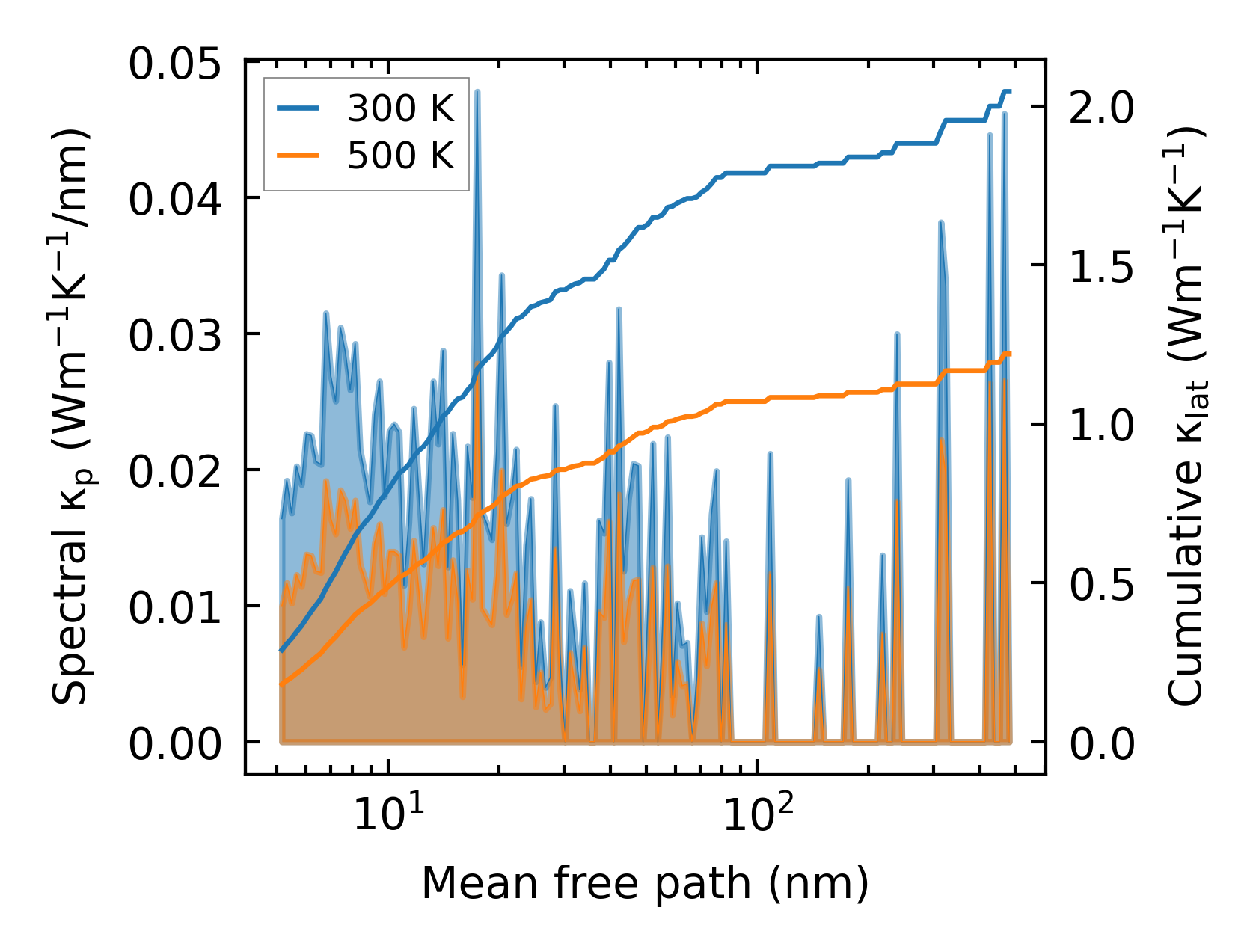

../../_images/fig_cumu_mfp1080.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

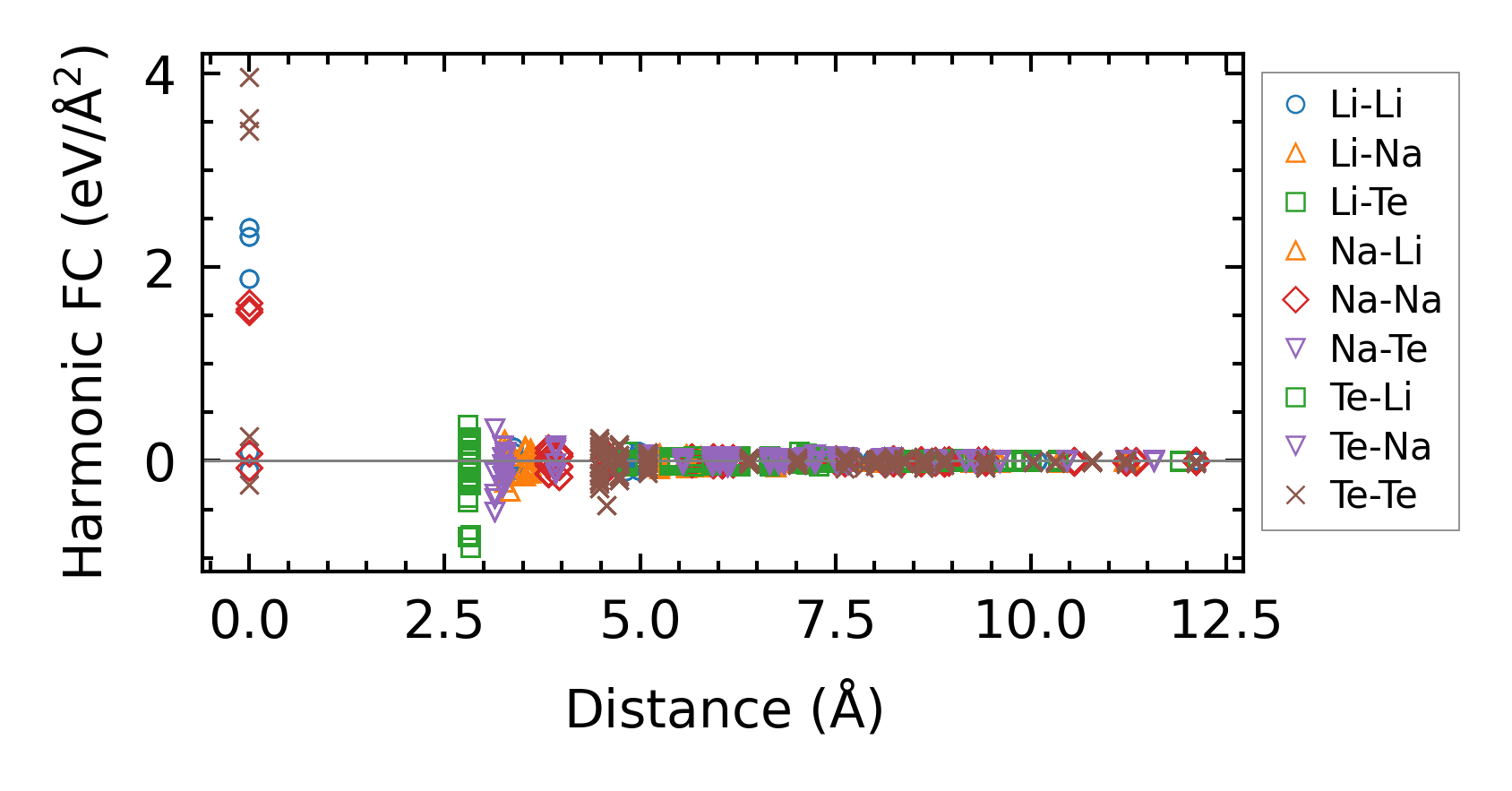

../../_images/fig_fc21733.png — (a) Force constants w.r.t atomic distance

Summary

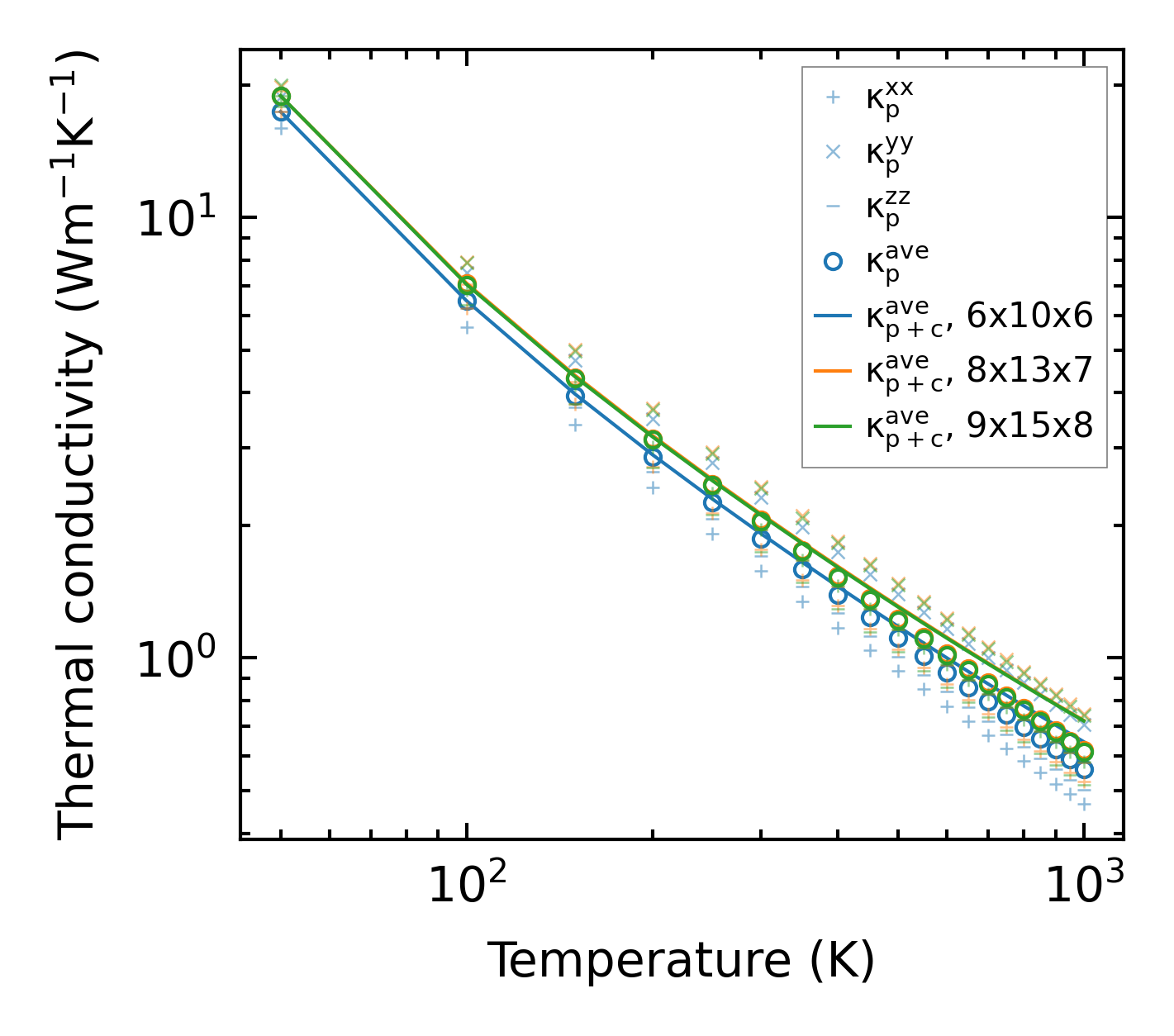

../../_images/fig_kappa2102.png — (a) Temperature-dependent lattice thermal conductivity

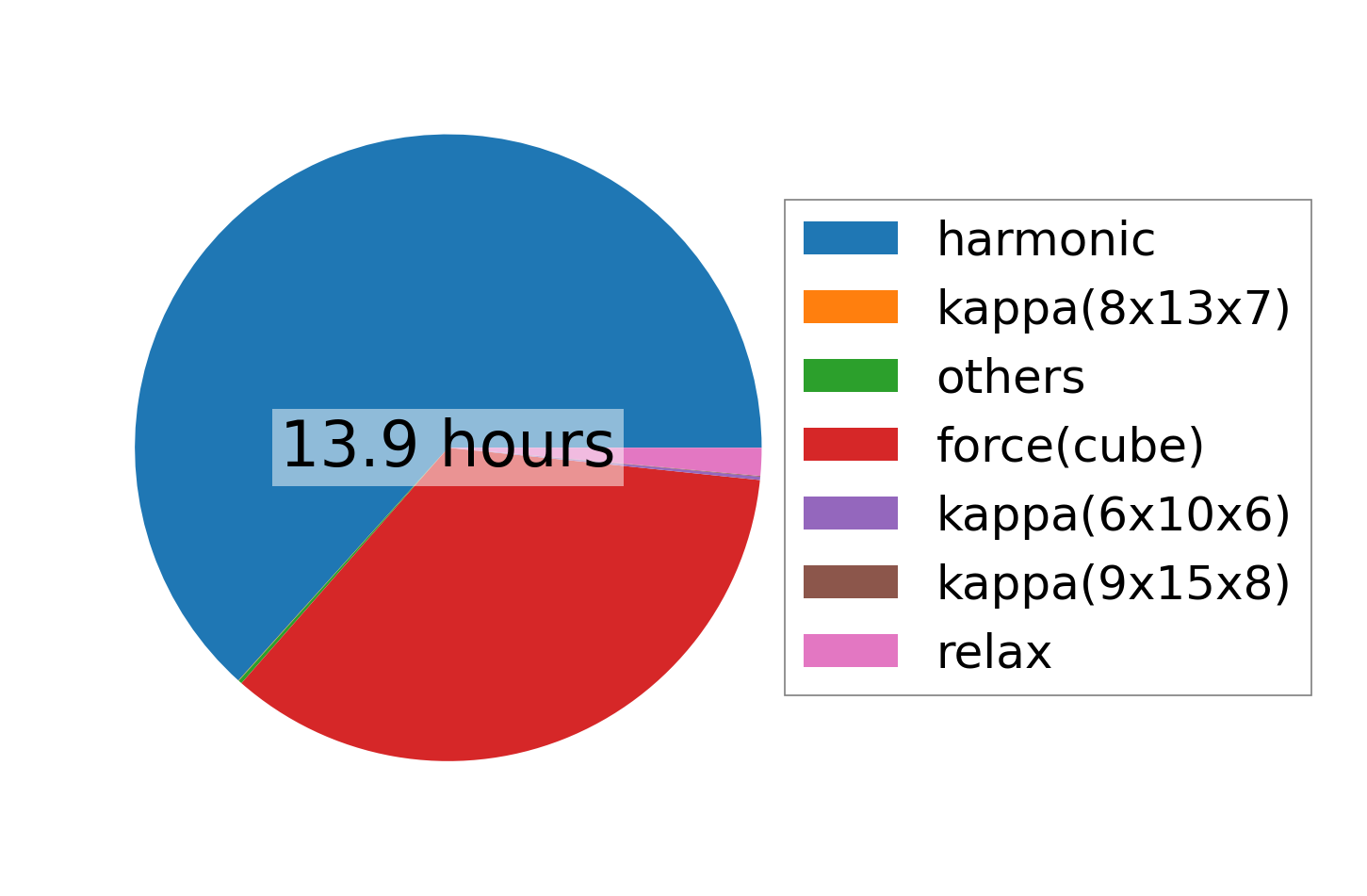

../../_images/fig_times2901.png — (b) Computation time
