mp-8759/Cs2ZrO3/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-8759.tar.gz

Harmonic properties

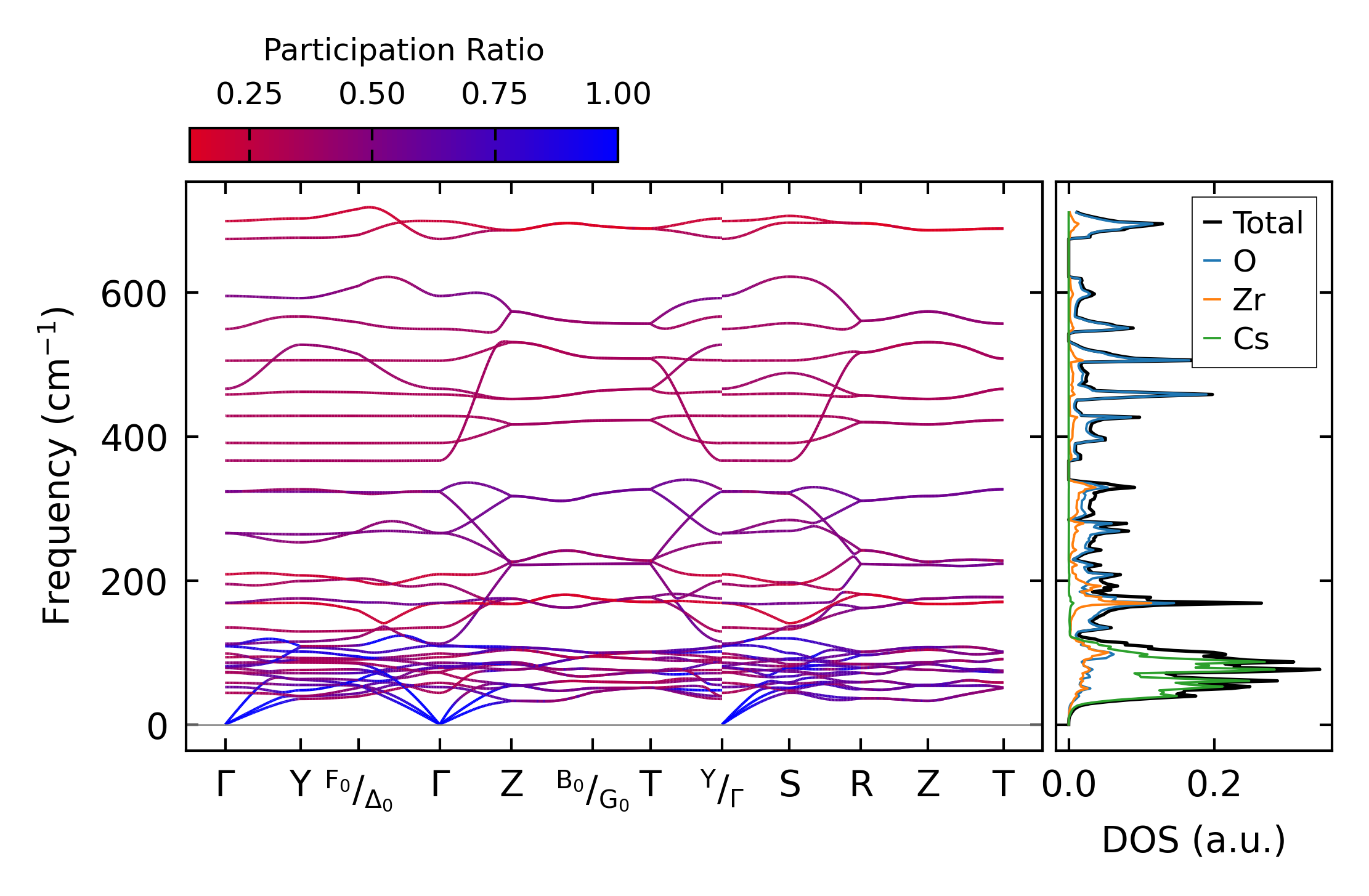

../../_images/fig_bandos_pr1913.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1913.png — (b) Thermodynamic properties

Grüneisen parameters

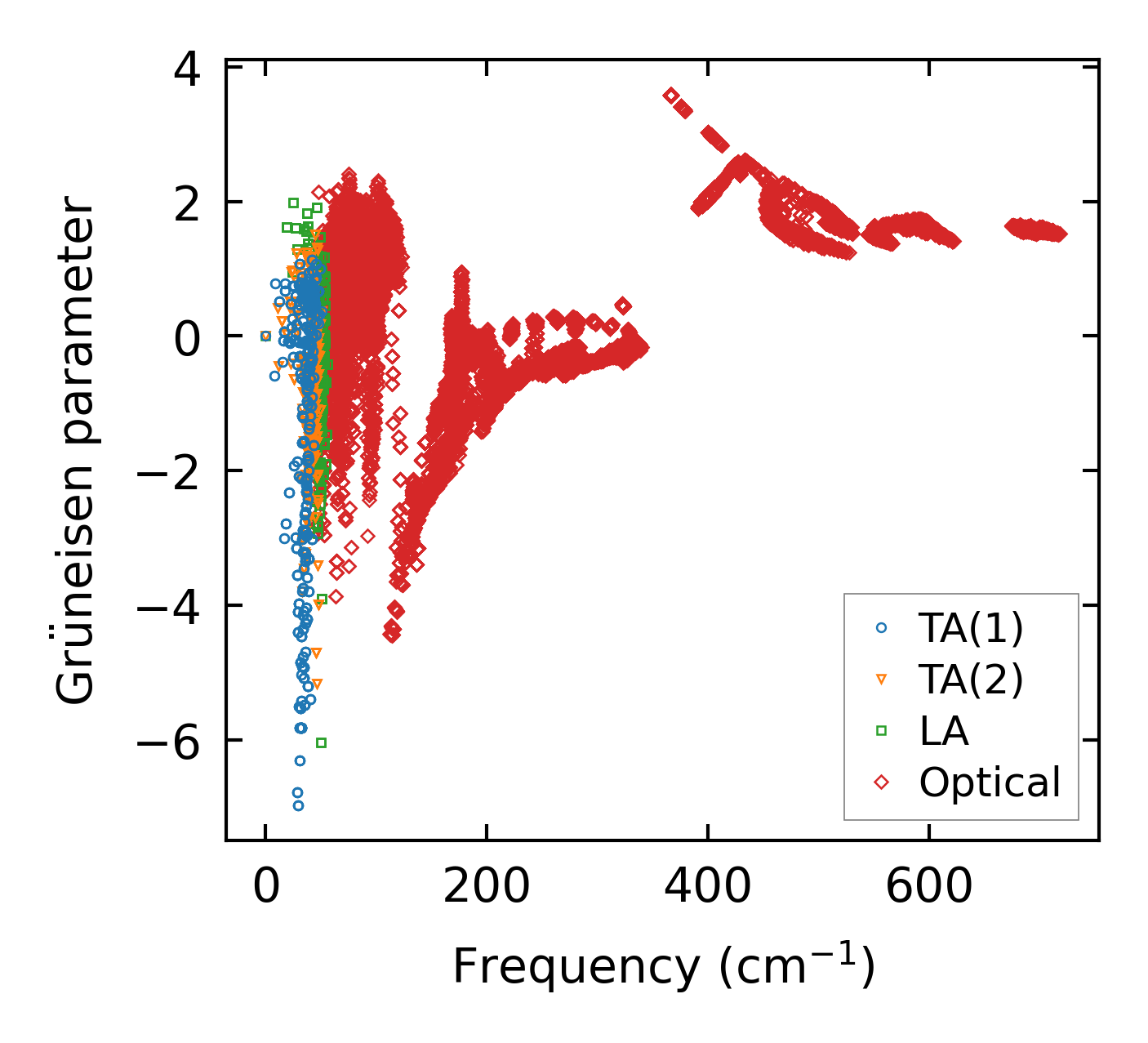

../../_images/fig_gru_all1092.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1092.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x12, supercell: 1x2x2

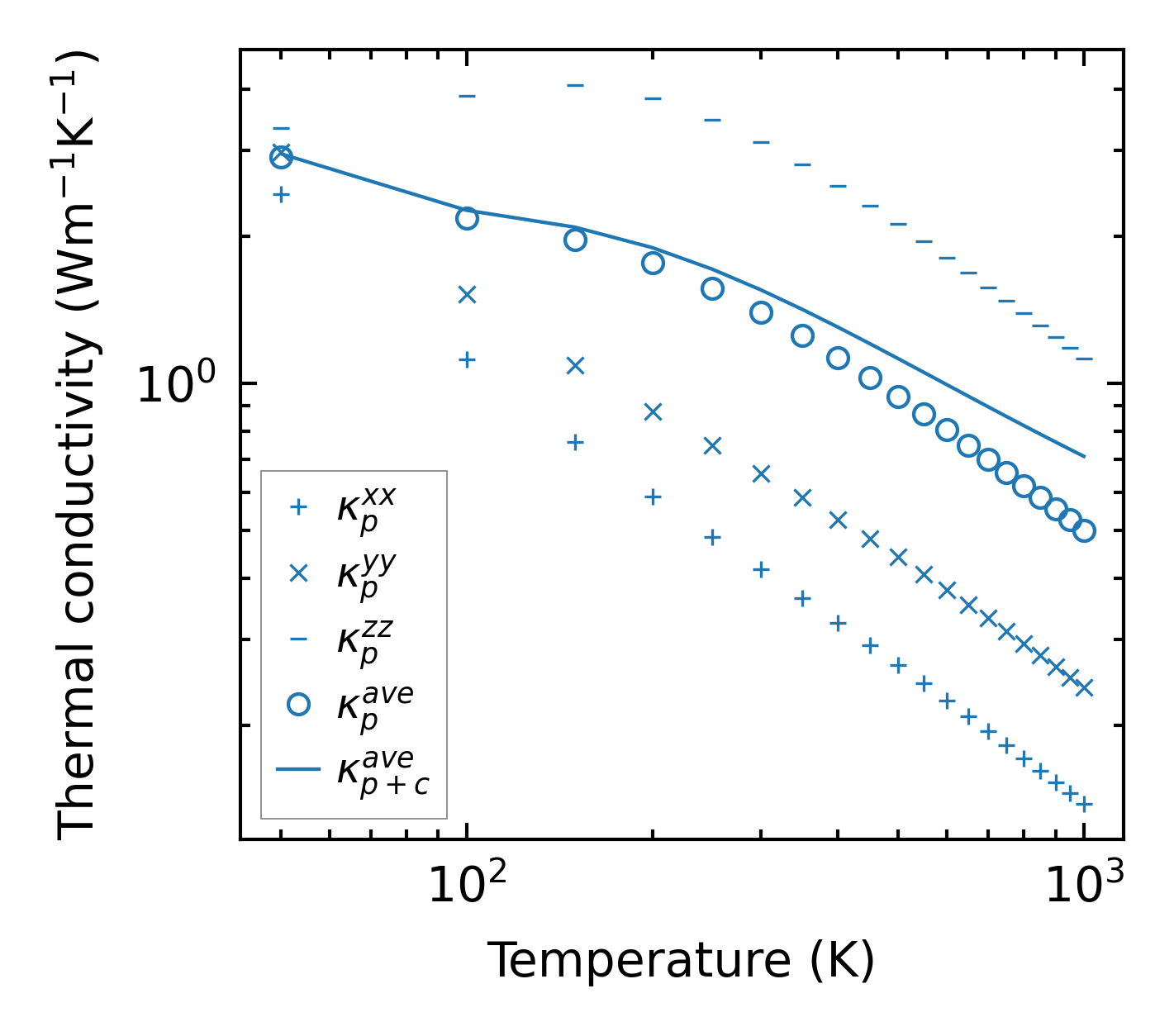

../../_images/fig_kappa2107.png — (a) Temperature-dependent lattice thermal conductivity

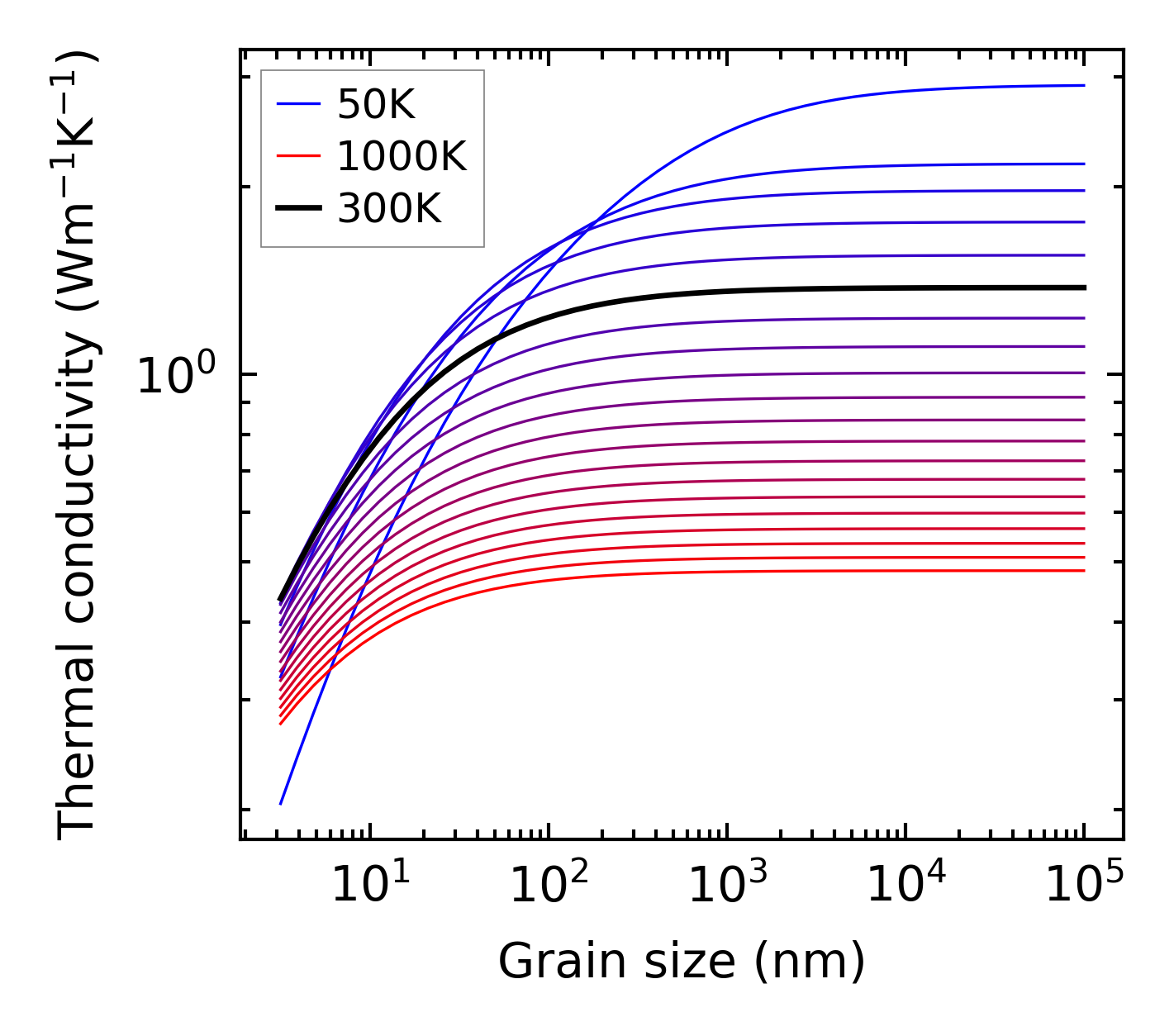

../../_images/fig_kappa_vs_grain_size1103.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1083.png — (a) Phonon lifetime due to phonon-phonon scattering

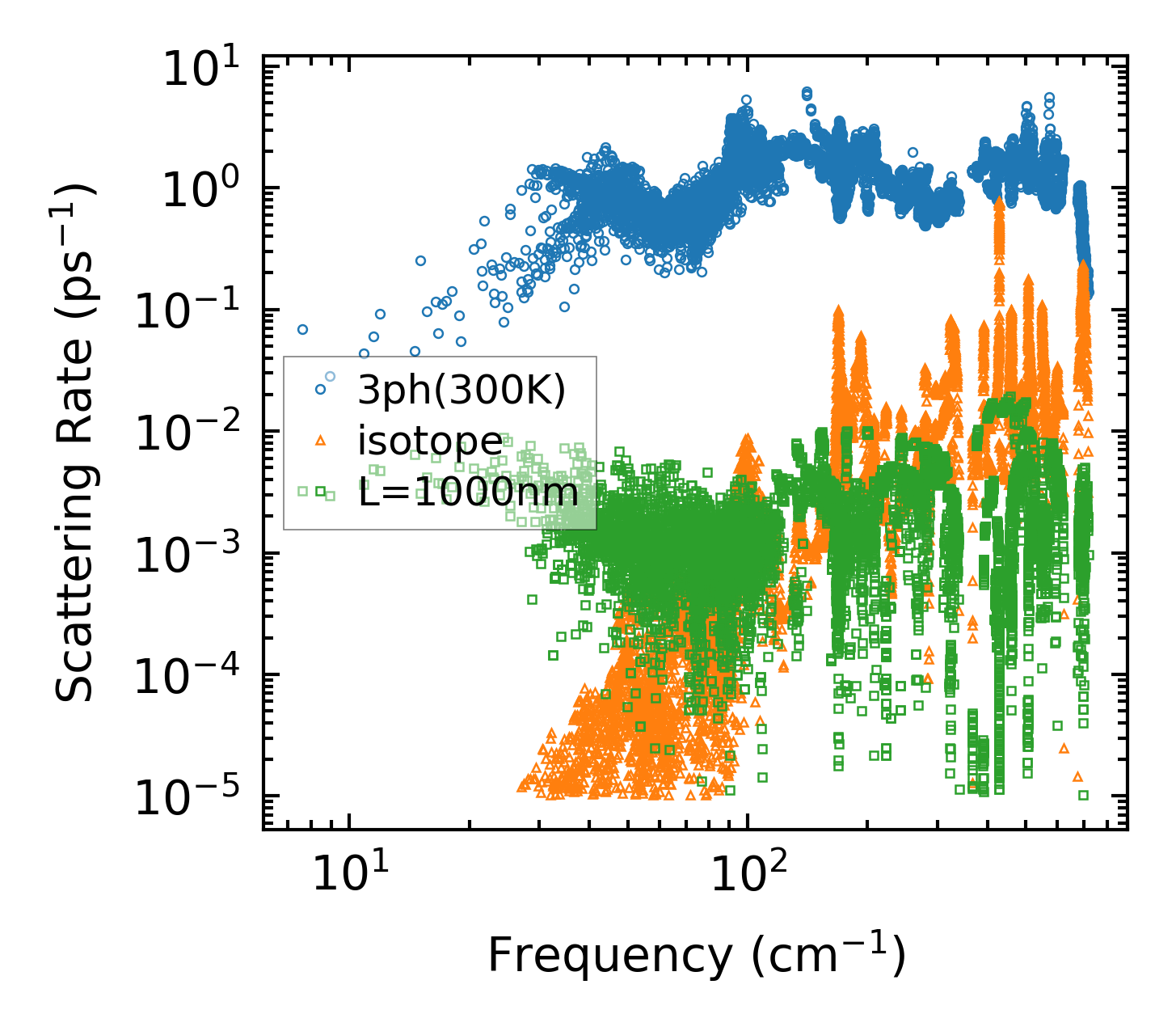

../../_images/fig_scat_rates1082.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1083.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

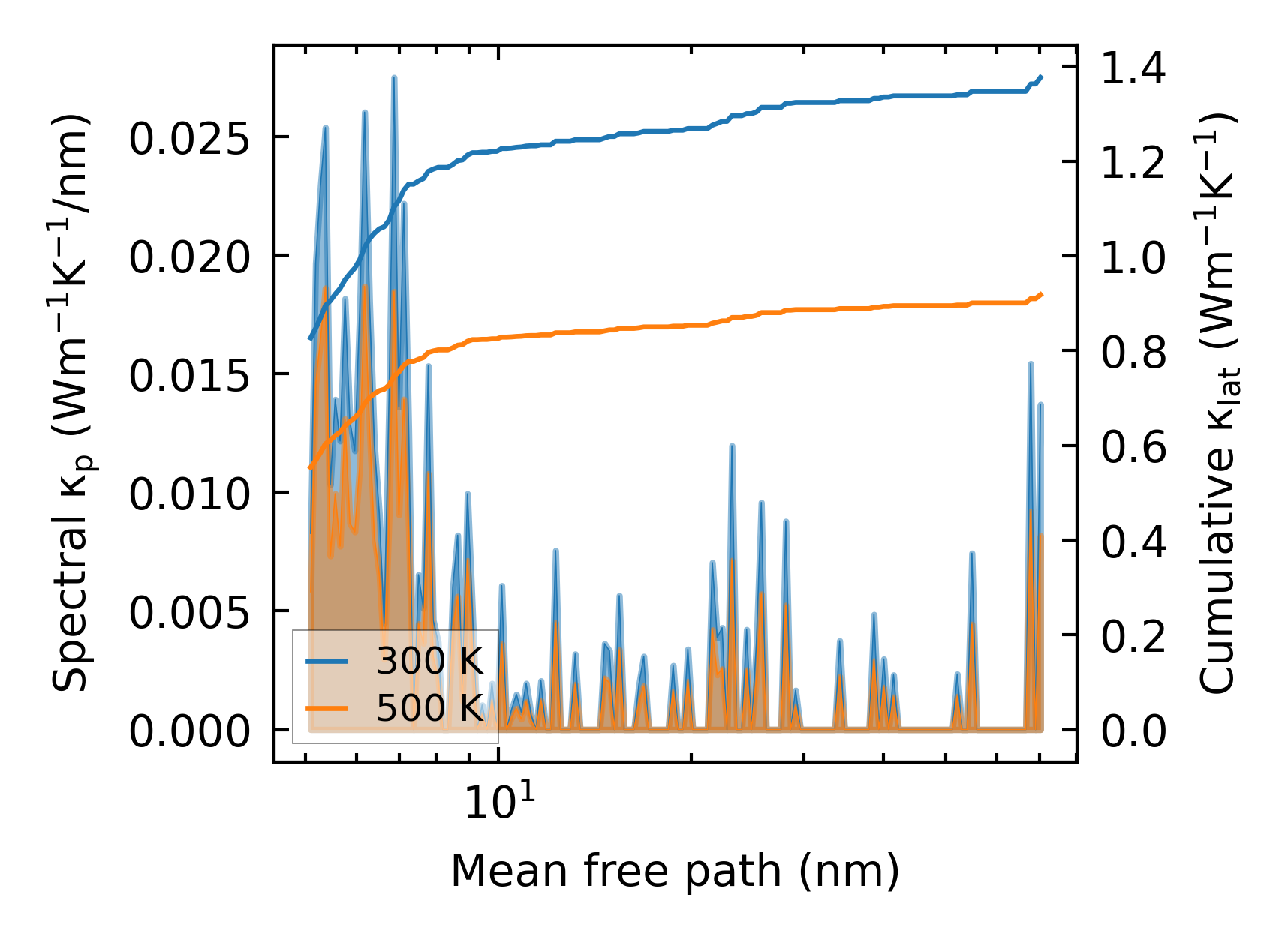

../../_images/fig_cumu_mfp1083.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21736.png — (a) Force constants w.r.t atomic distance

Summary

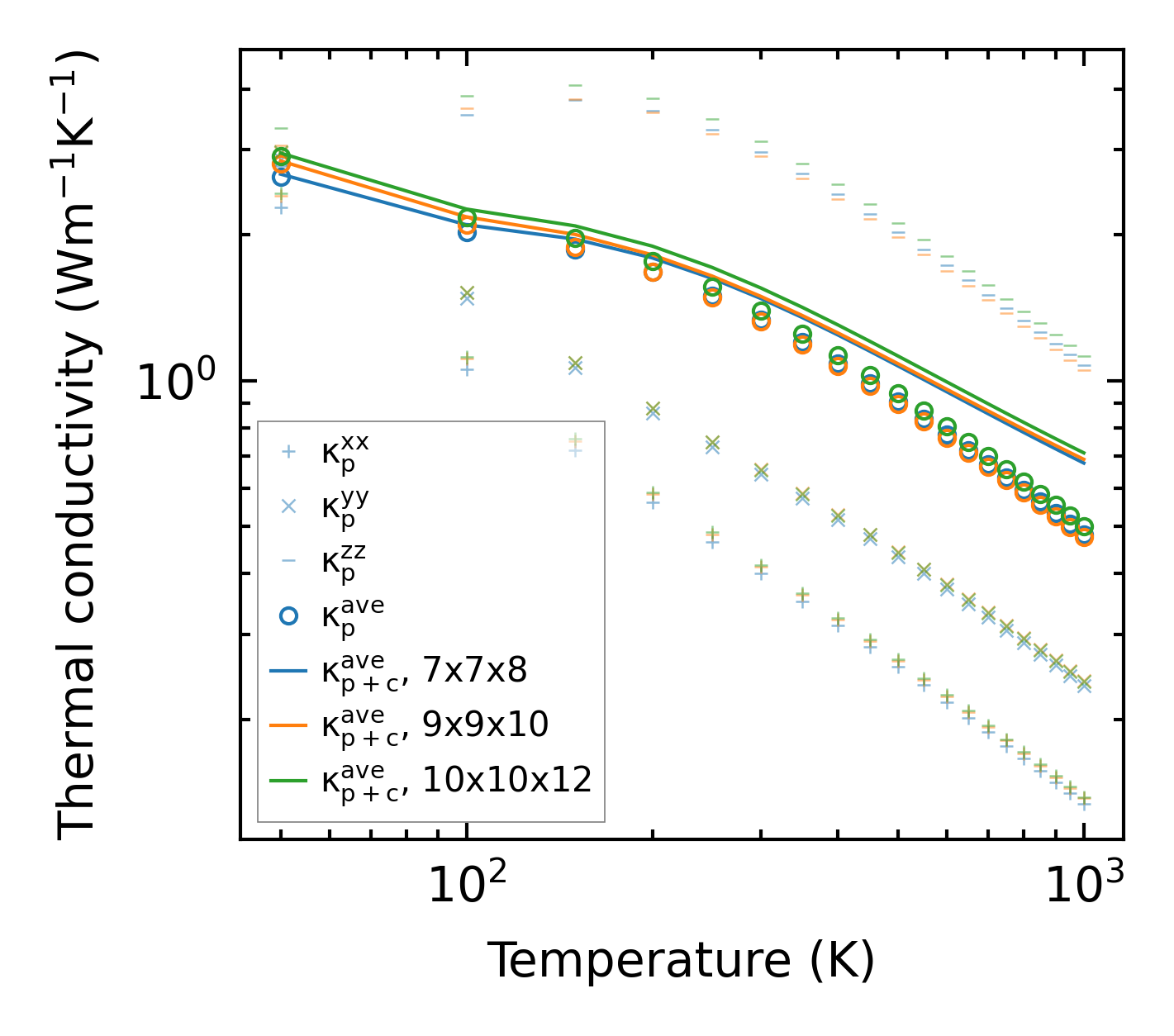

../../_images/fig_kappa2108.png — (a) Temperature-dependent lattice thermal conductivity

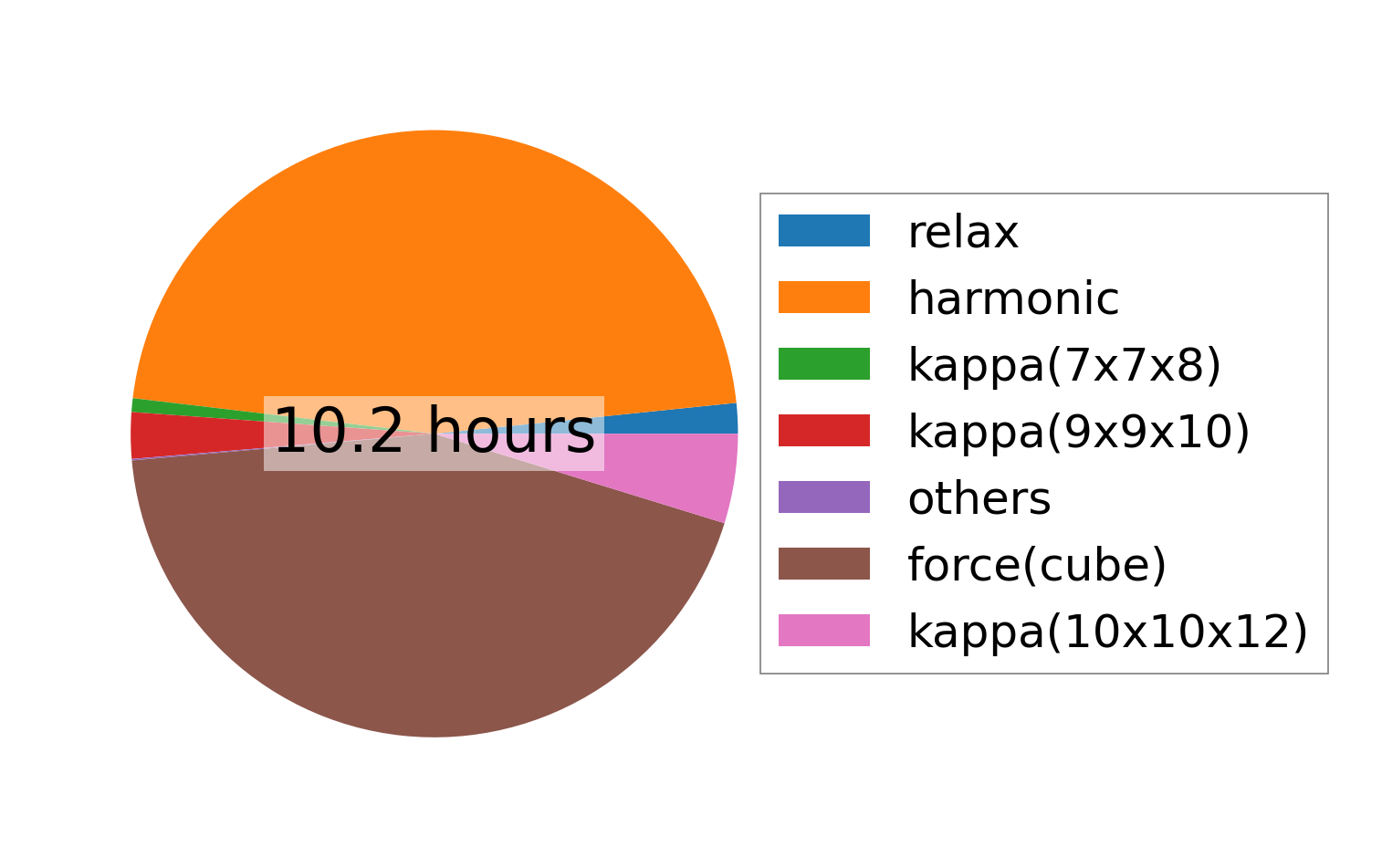

../../_images/fig_times2904.png — (b) Computation time
