mp-8062/SiC/anharm

Space group: F-43m (216)
Link: Materials Project
Download: mp-8062.tar.gz

Harmonic properties

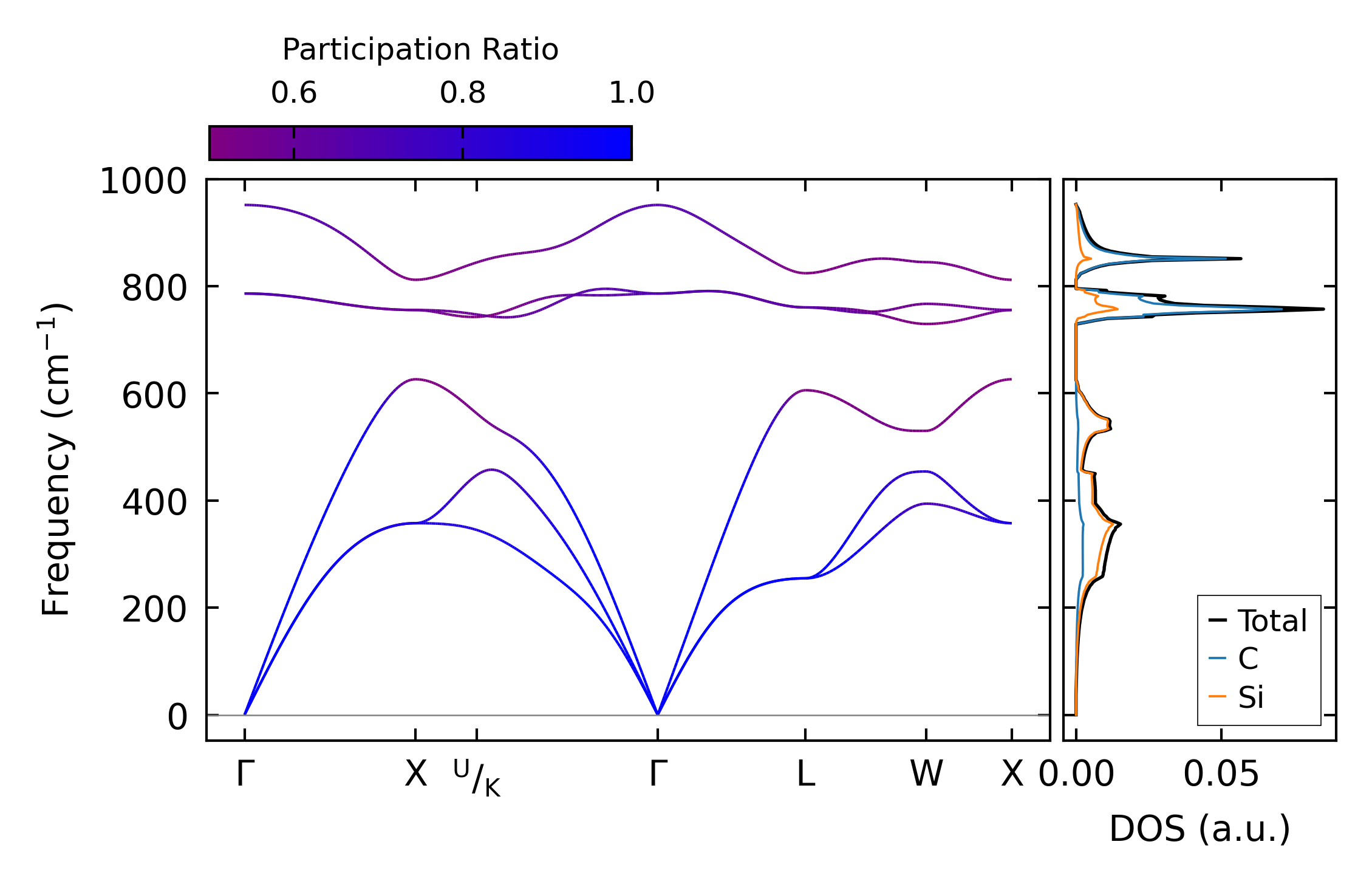

../../_images/fig_bandos_pr2033.png — (a) Phonon dispersion with participation ratio and DOS

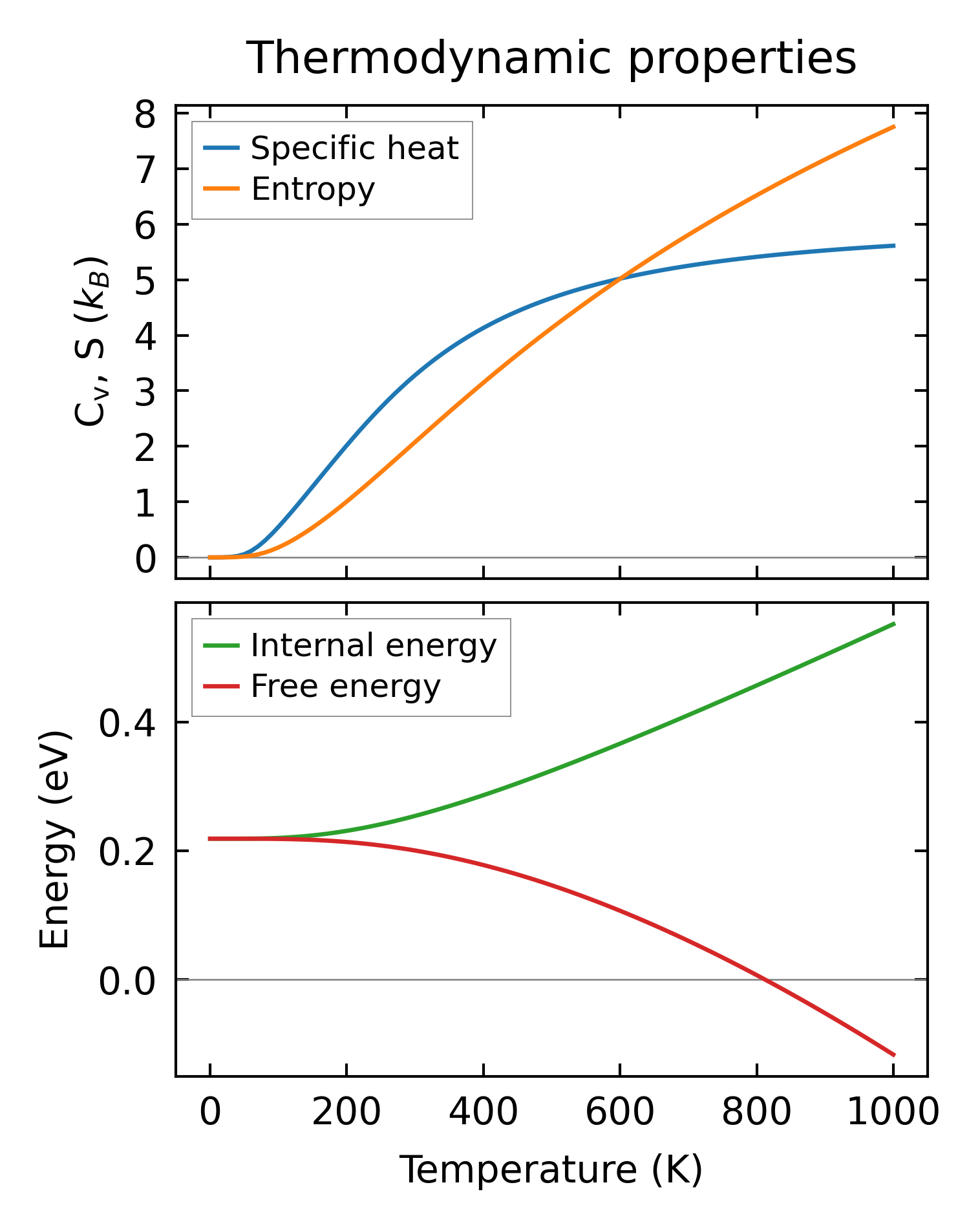

../../_images/fig_thermo2033.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1158.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1158.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 26x26x26, supercell: 2x2x2

../../_images/fig_kappa2230.png — (a) Temperature-dependent lattice thermal conductivity

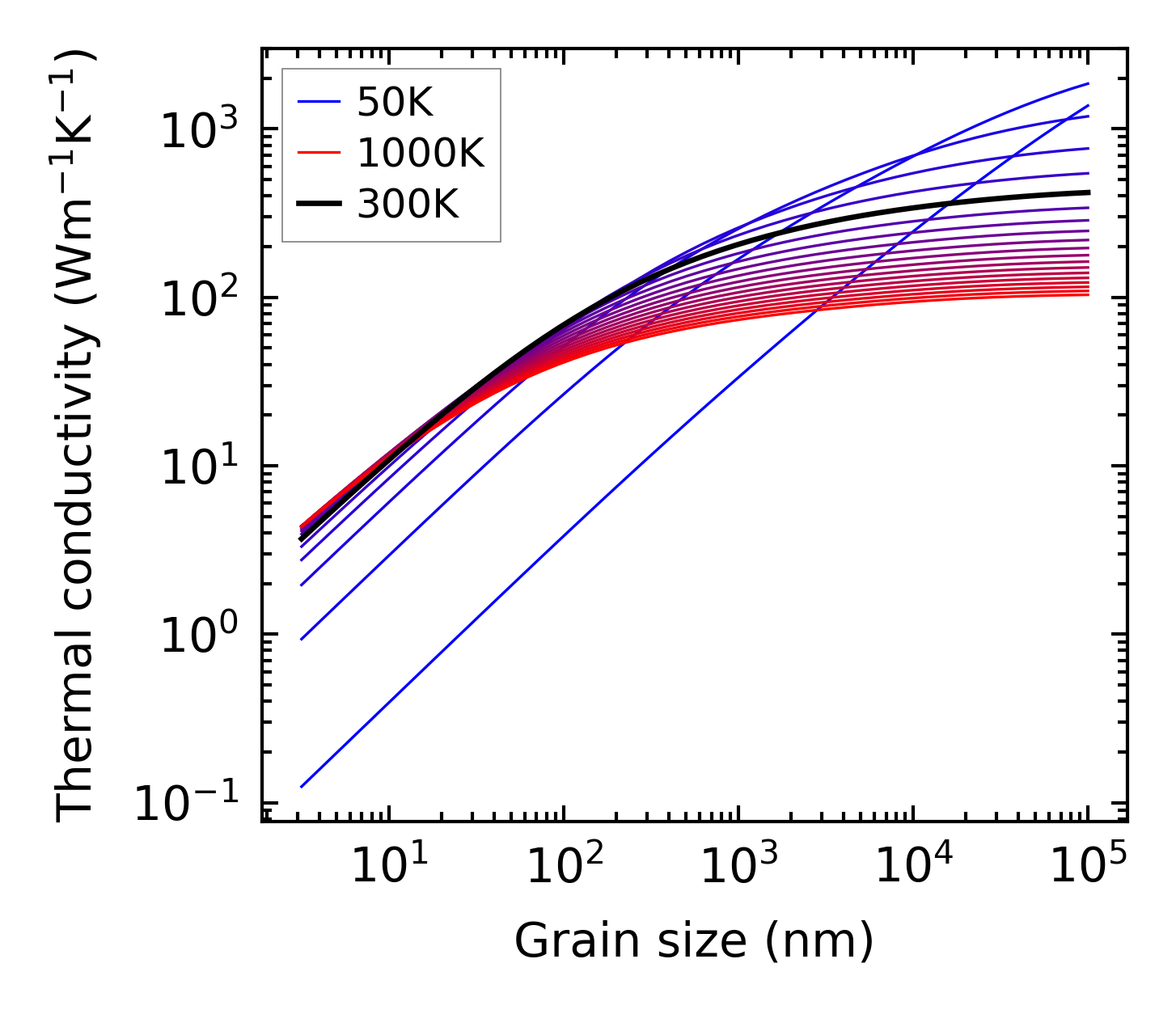

../../_images/fig_kappa_vs_grain_size1172.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

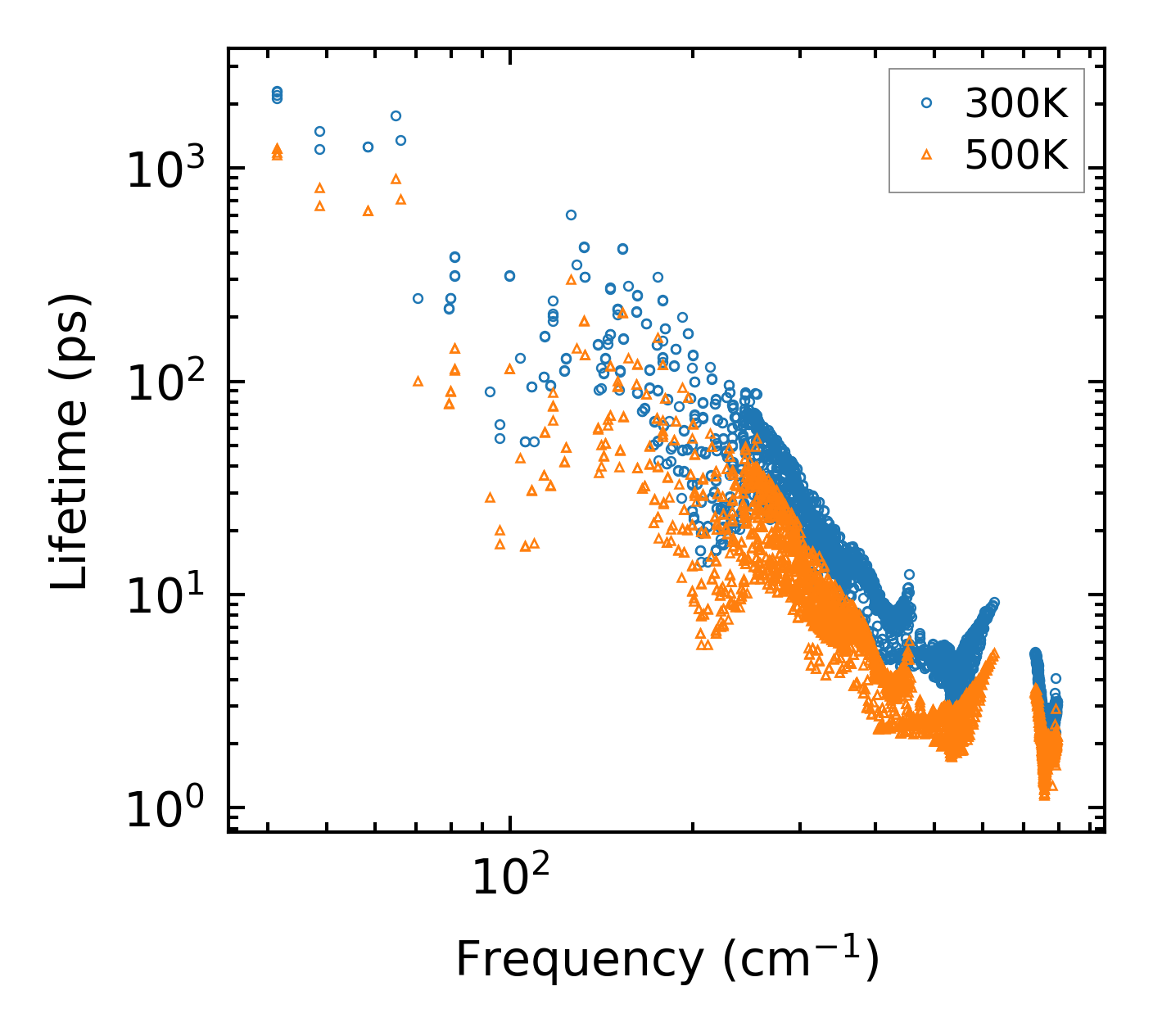

../../_images/fig_lifetime1149.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1148.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

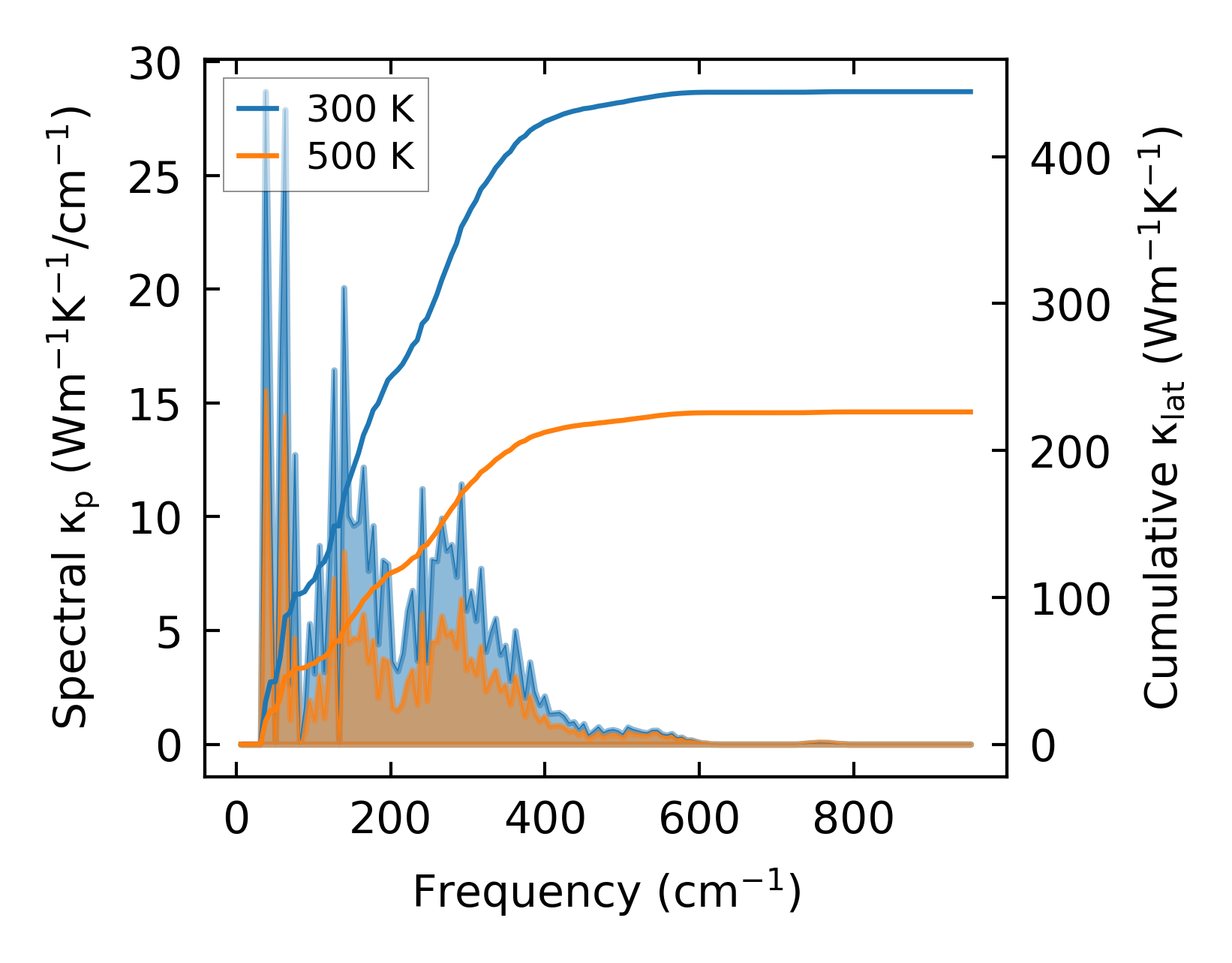

../../_images/fig_cumu_frequency1149.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

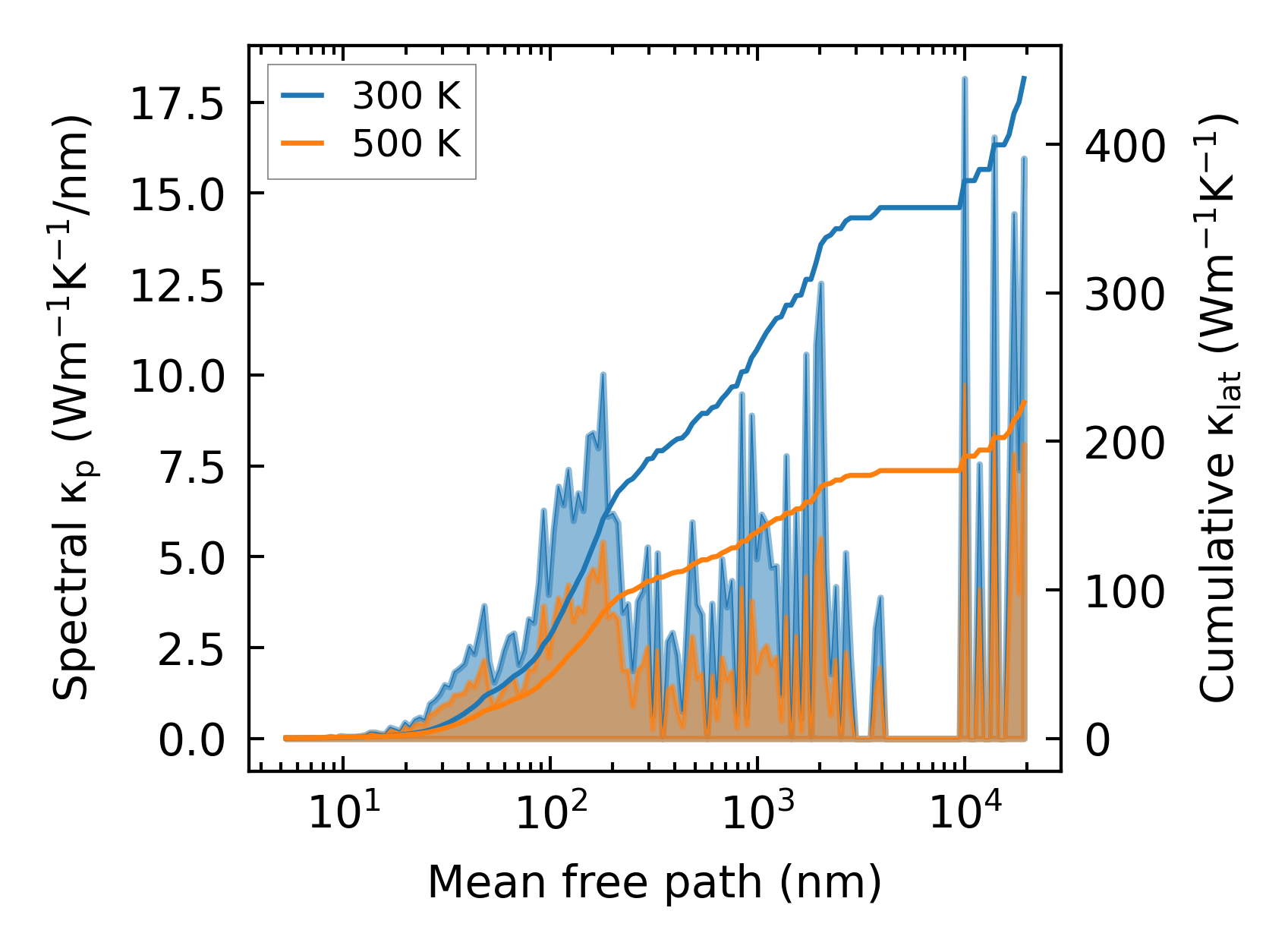

../../_images/fig_cumu_mfp1149.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

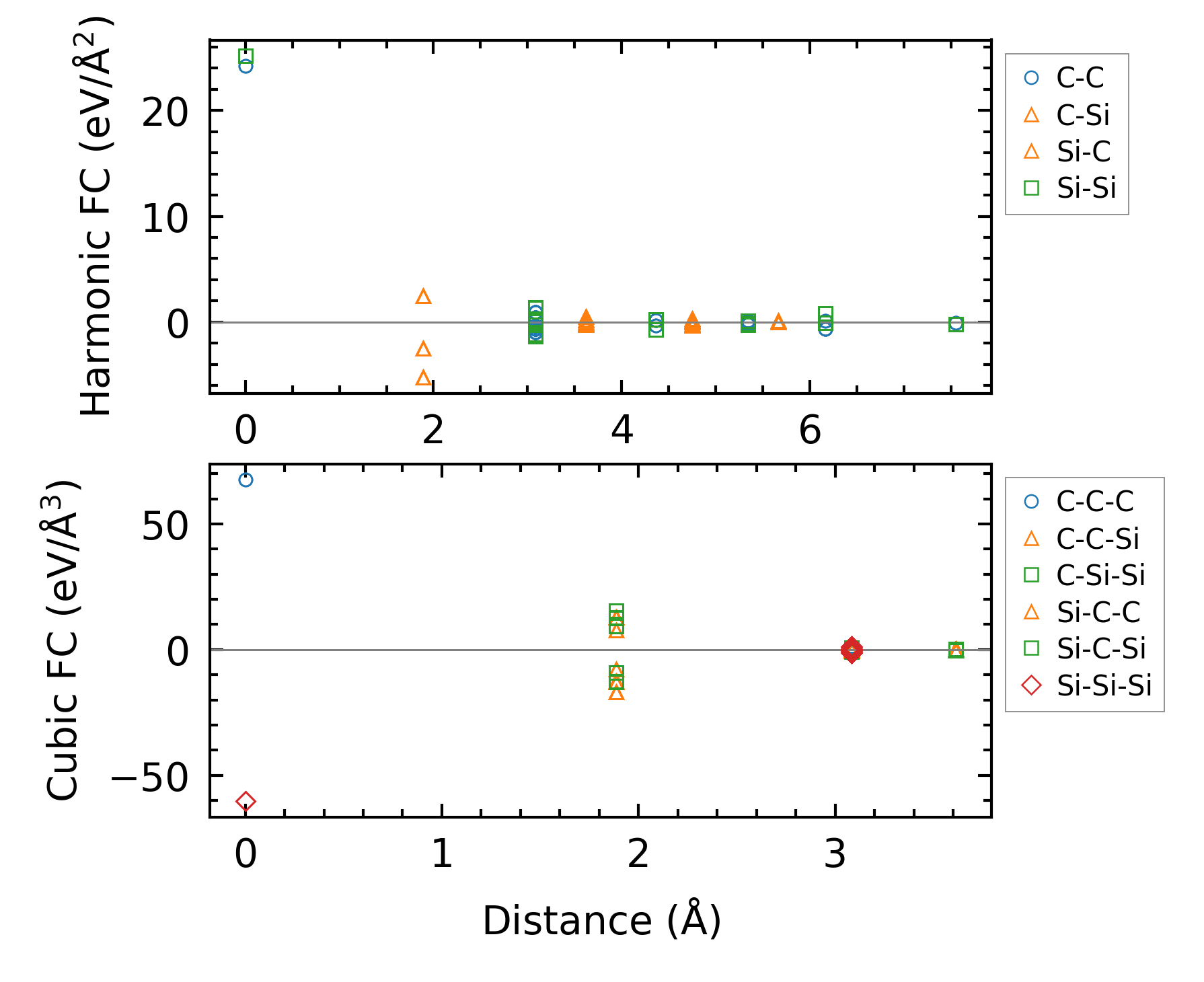

../../_images/fig_fc3178.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2231.png — (a) Temperature-dependent lattice thermal conductivity

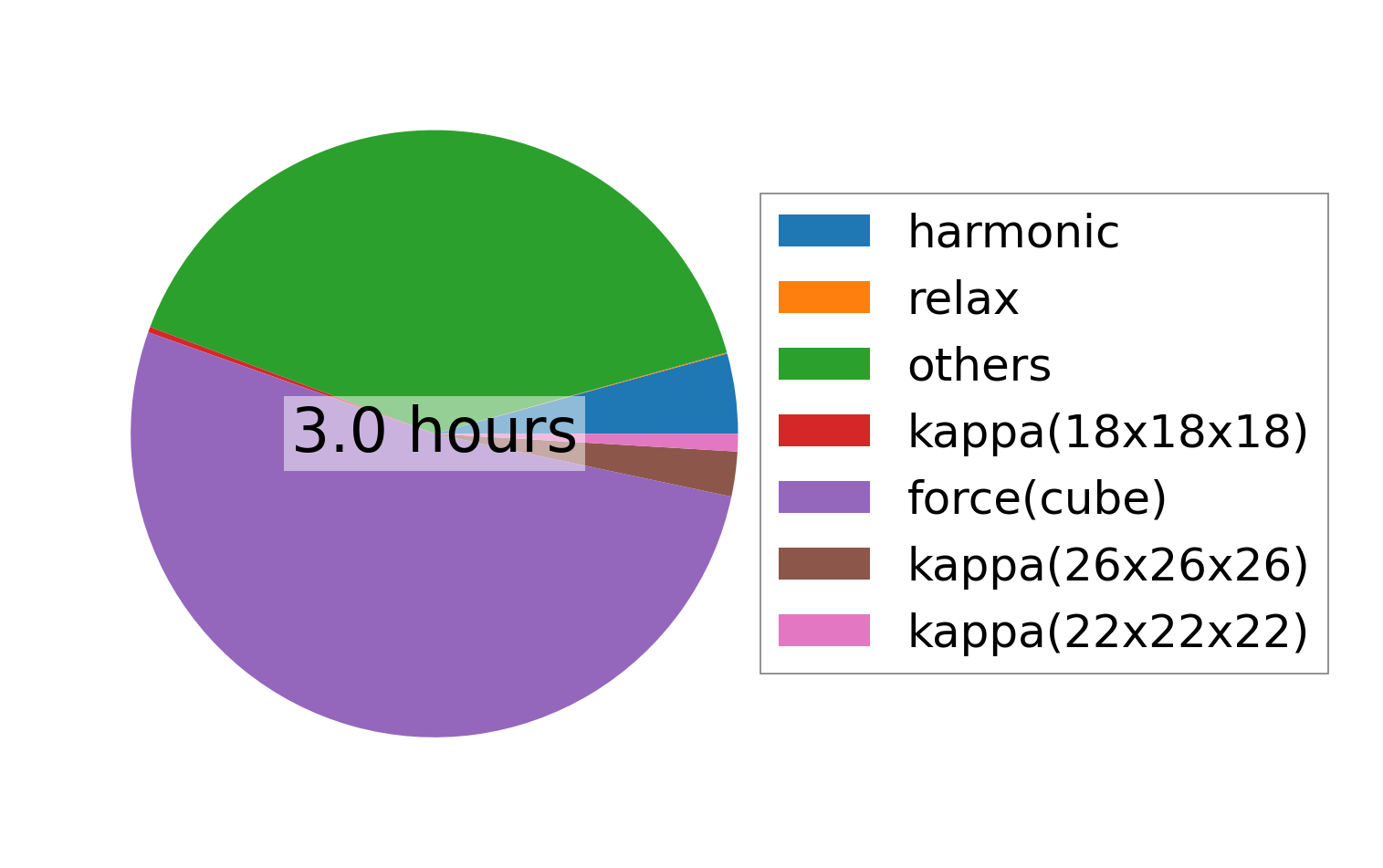

../../_images/fig_times3135.png — (b) Computation time
