mp-8042/ZrGeO4/anharm

Space group: I4_1/a (88)
Link: Materials Project
Download: mp-8042.tar.gz

Harmonic properties

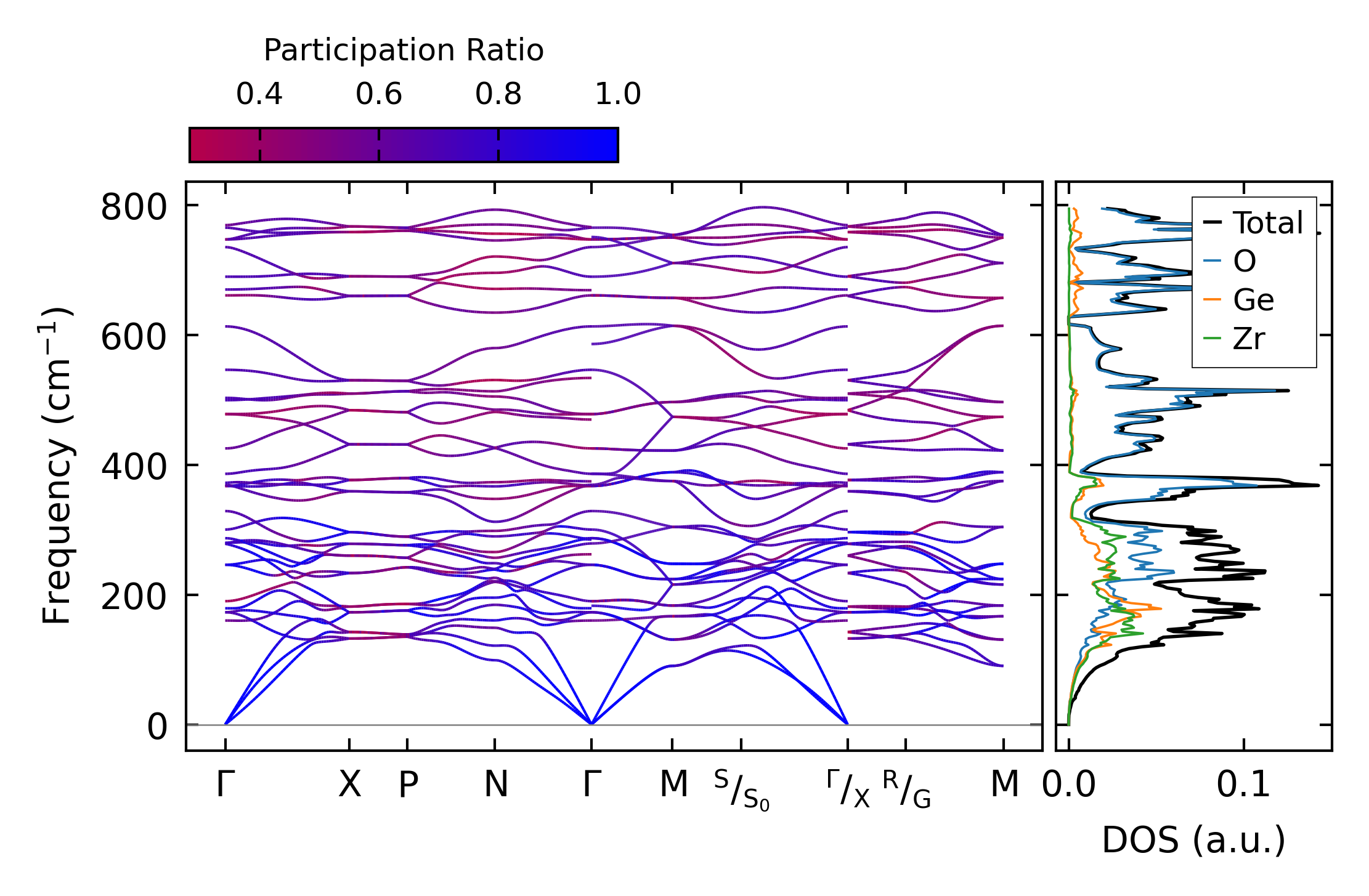

../../_images/fig_bandos_pr2025.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2025.png — (b) Thermodynamic properties

Grüneisen parameters

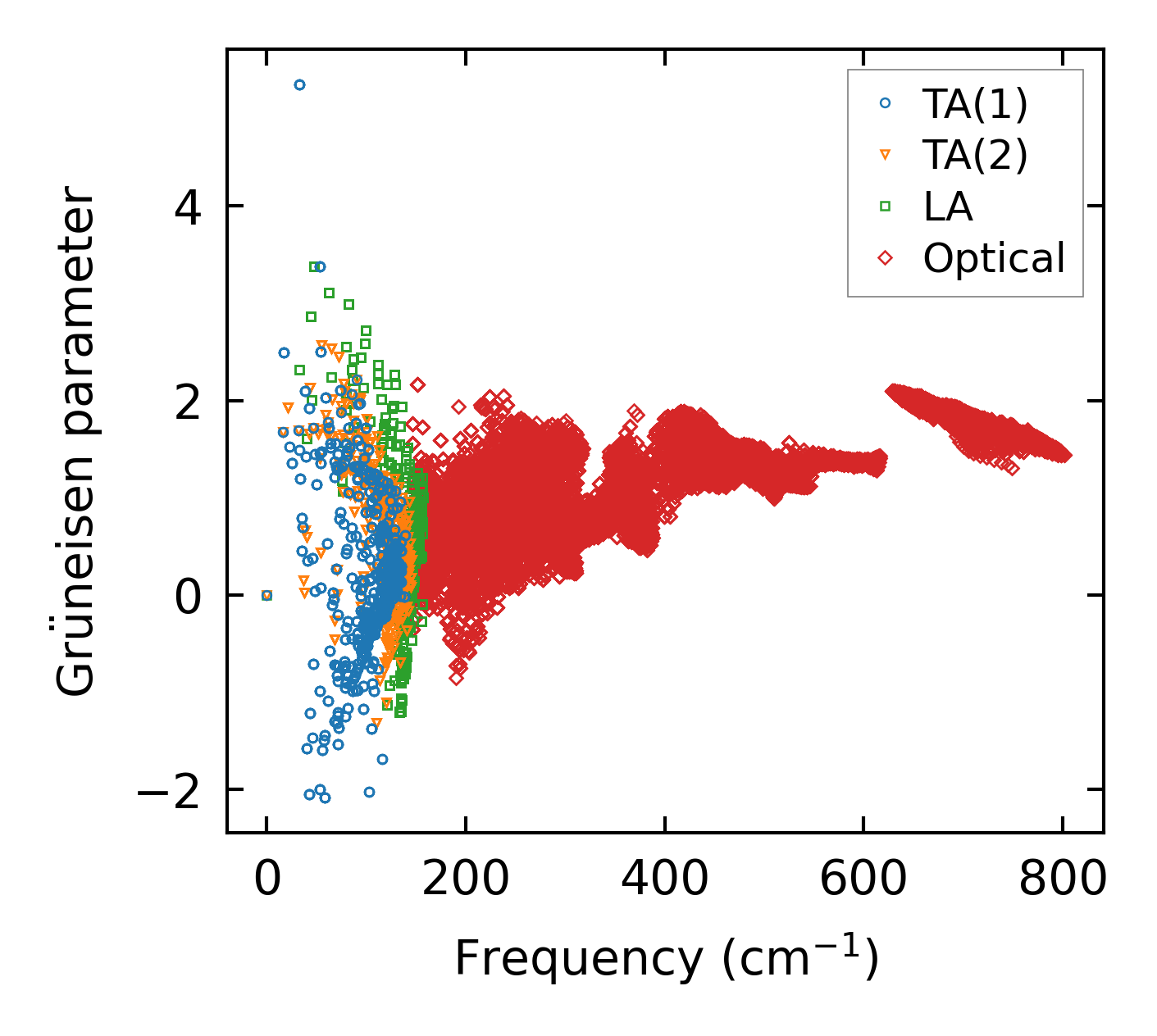

../../_images/fig_gru_all1154.png — (a) Grüneisen parameters

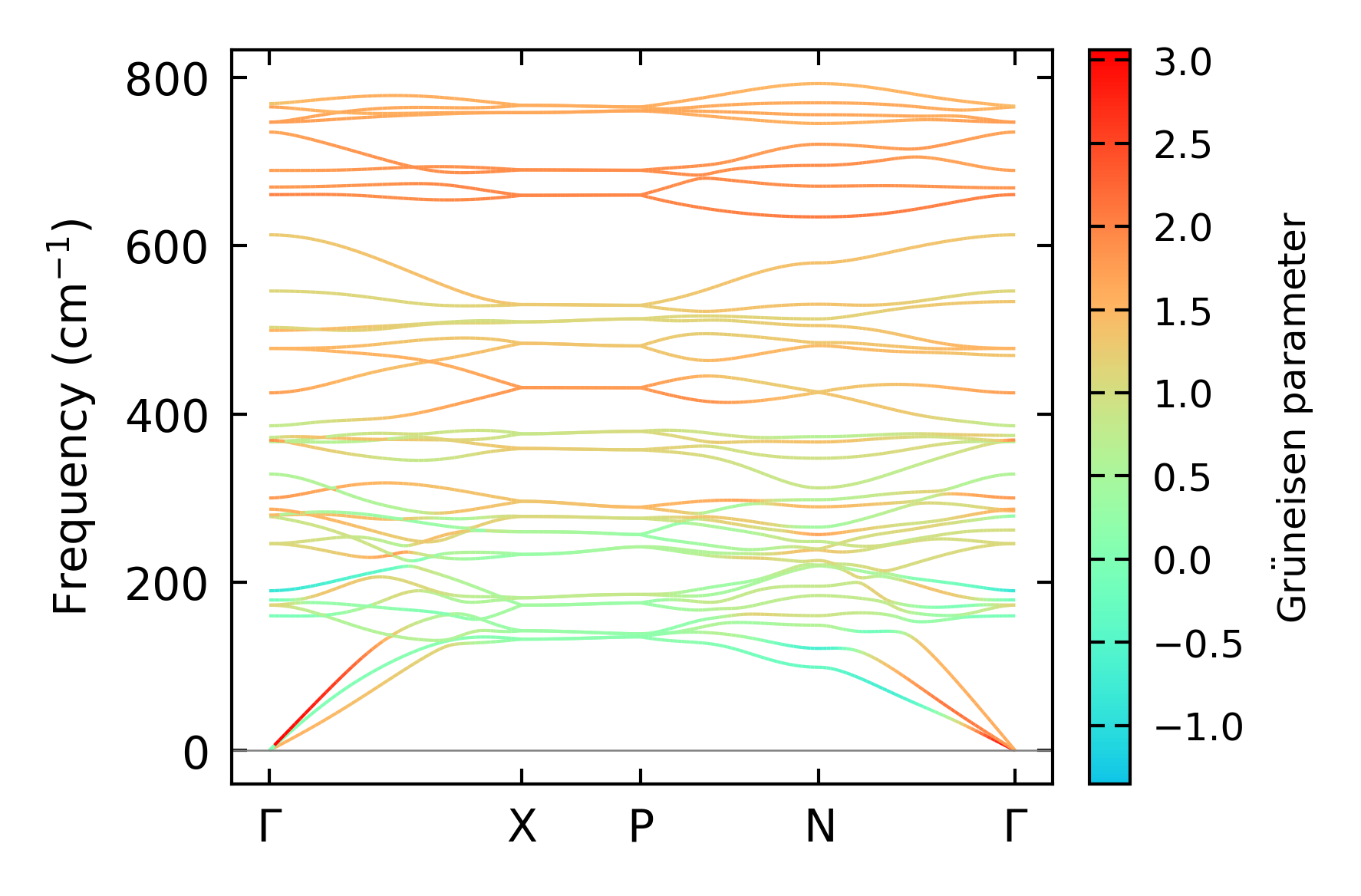

../../_images/fig_gruneisen1154.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 2x2x1

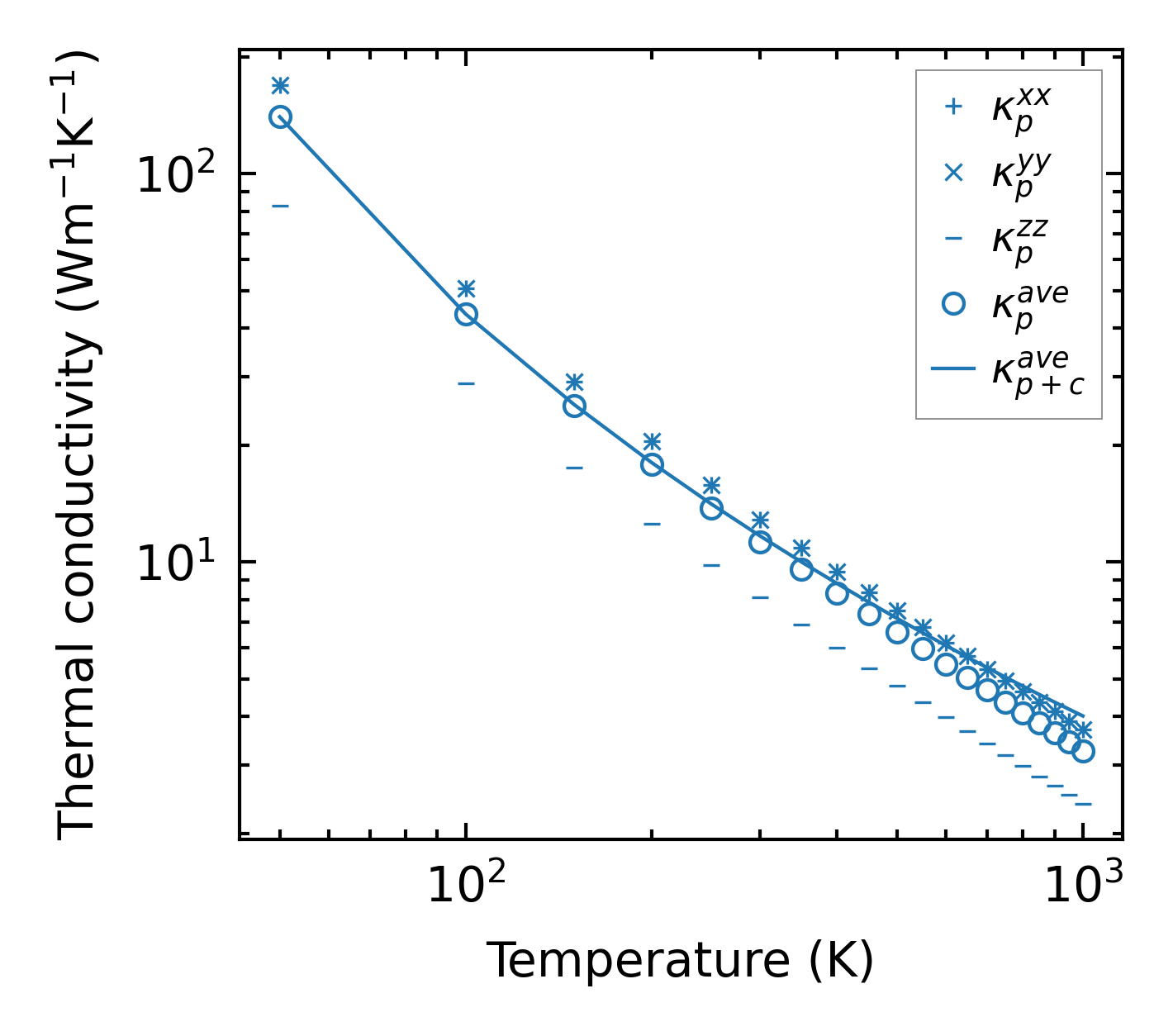

../../_images/fig_kappa2222.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1168.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

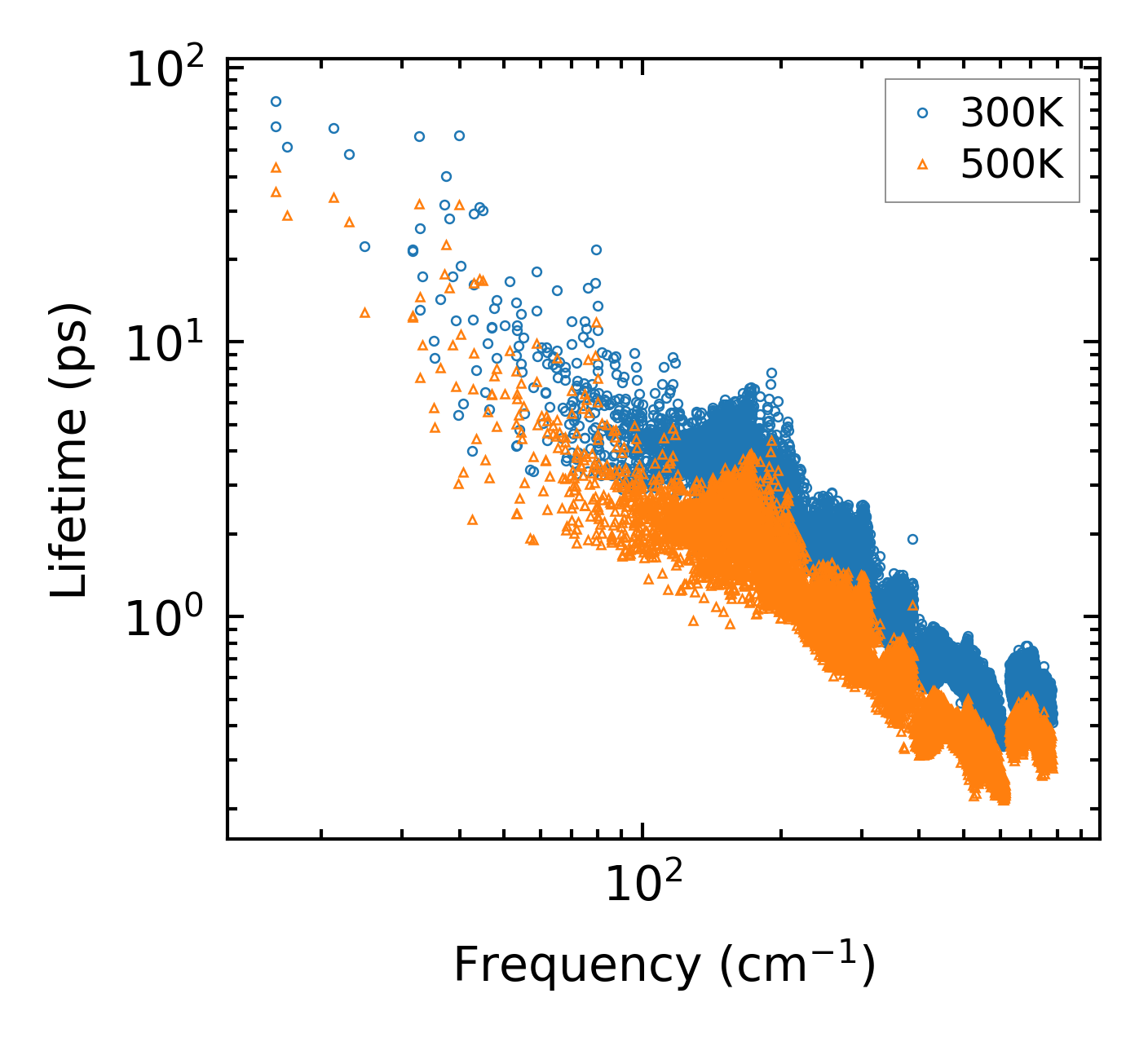

../../_images/fig_lifetime1145.png — (a) Phonon lifetime due to phonon-phonon scattering

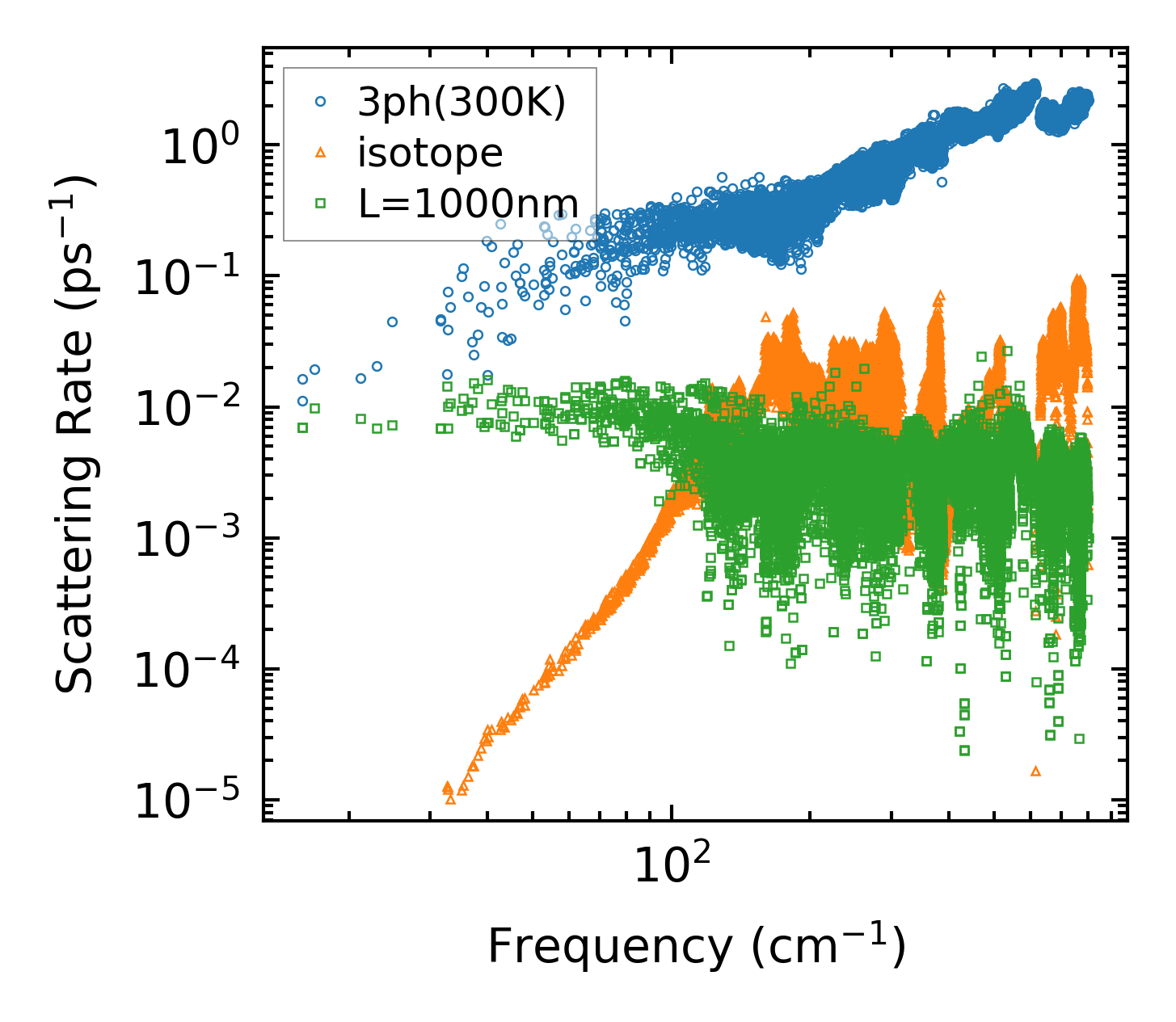

../../_images/fig_scat_rates1144.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

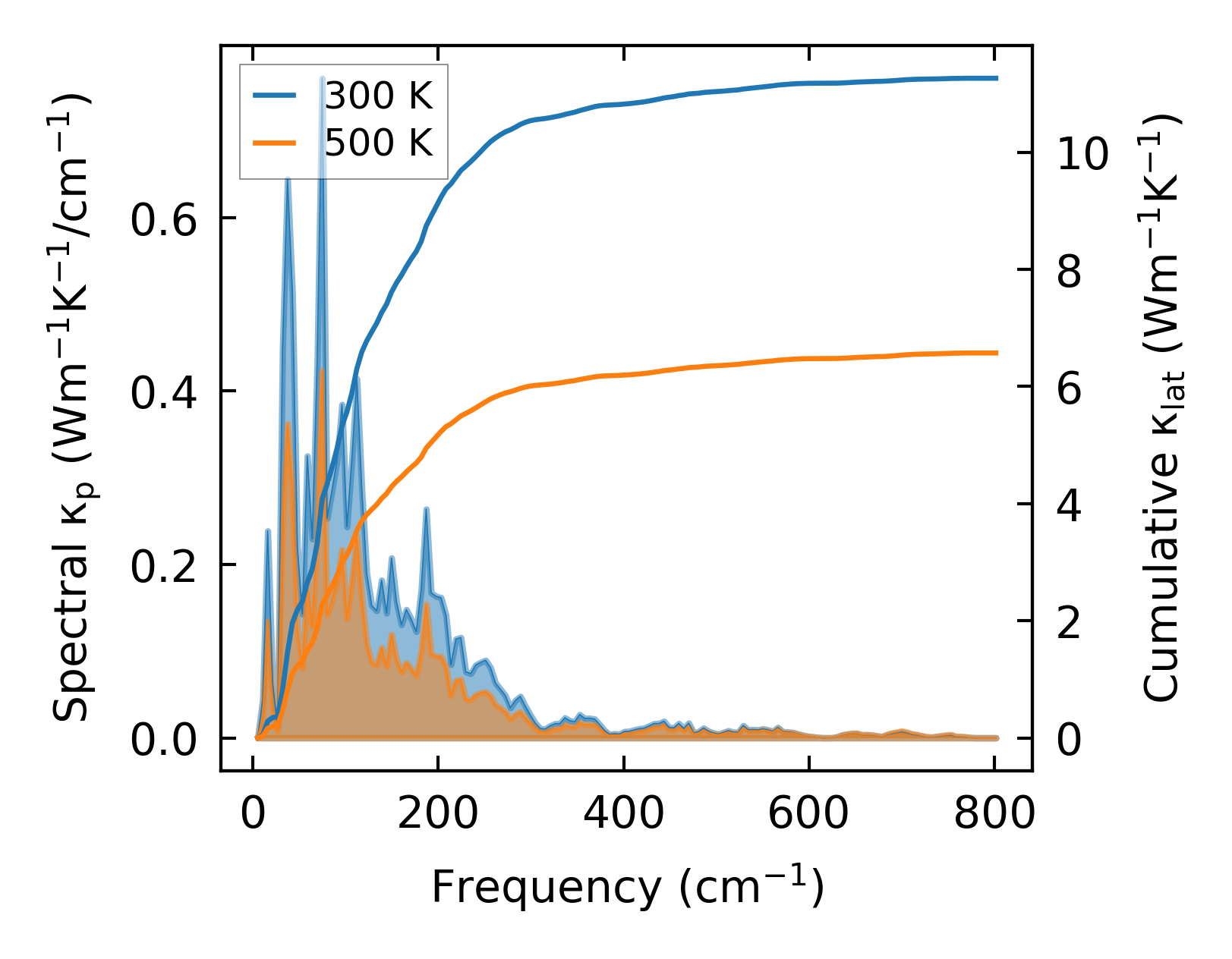

../../_images/fig_cumu_frequency1145.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1145.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21847.png — (a) Force constants w.r.t atomic distance

Summary

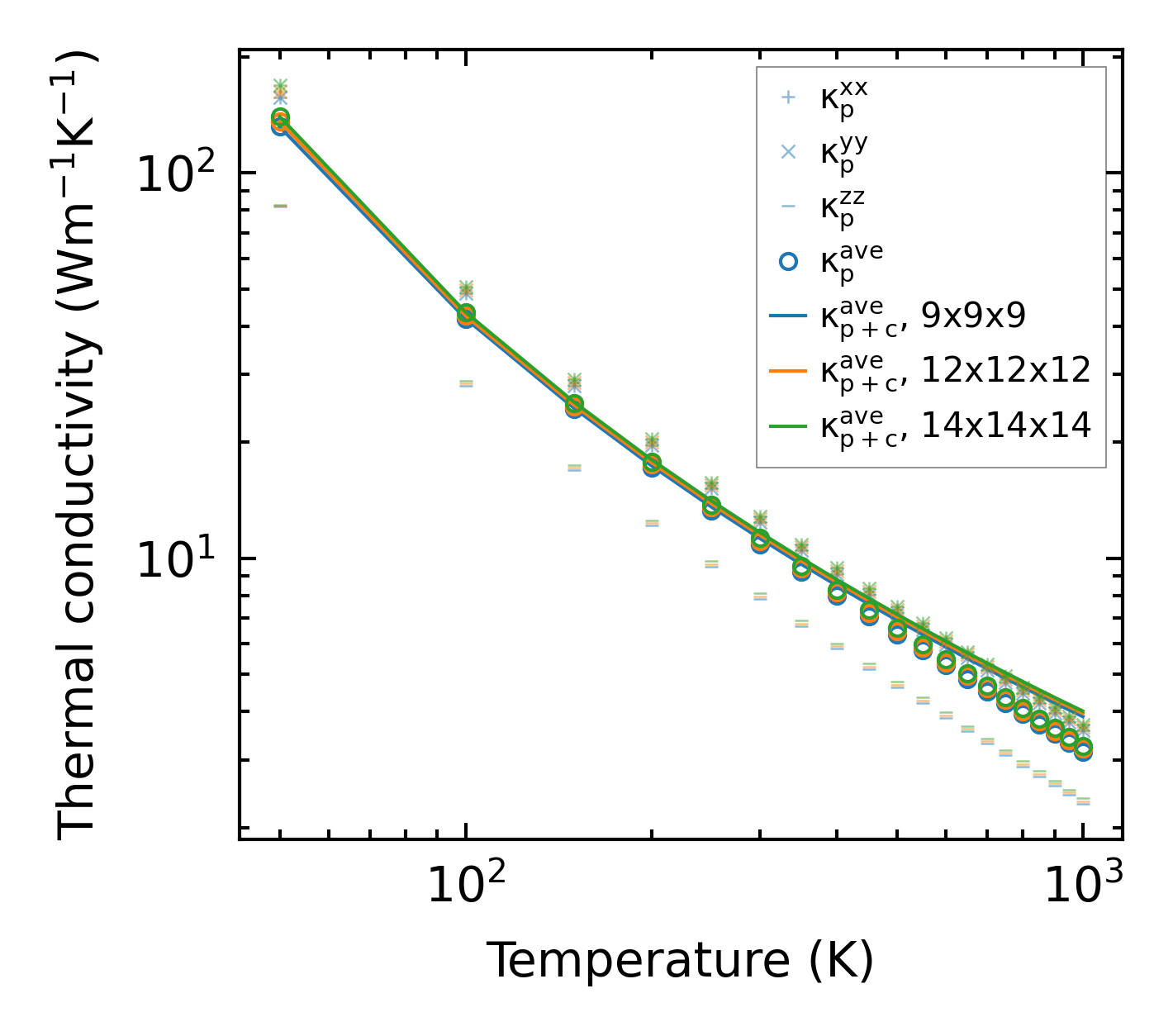

../../_images/fig_kappa2223.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times3127.png — (b) Computation time
