mp-8207/ZnPt3O6/anharm

Space group: Cmmm (65)
Link: Materials Project
Download: mp-8207.tar.gz

Harmonic properties

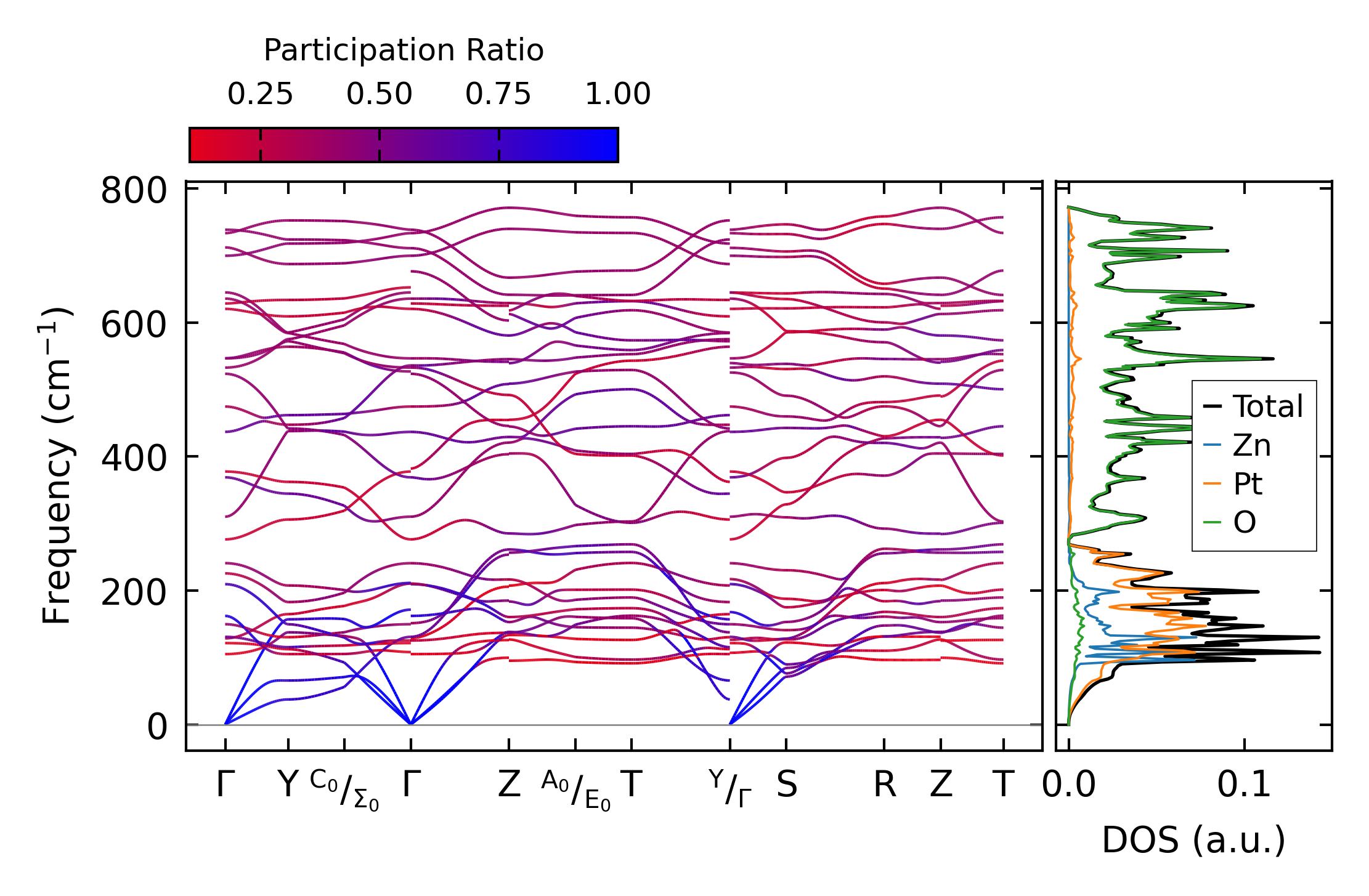

../../_images/fig_bandos_pr2083.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2083.png — (b) Thermodynamic properties

Grüneisen parameters

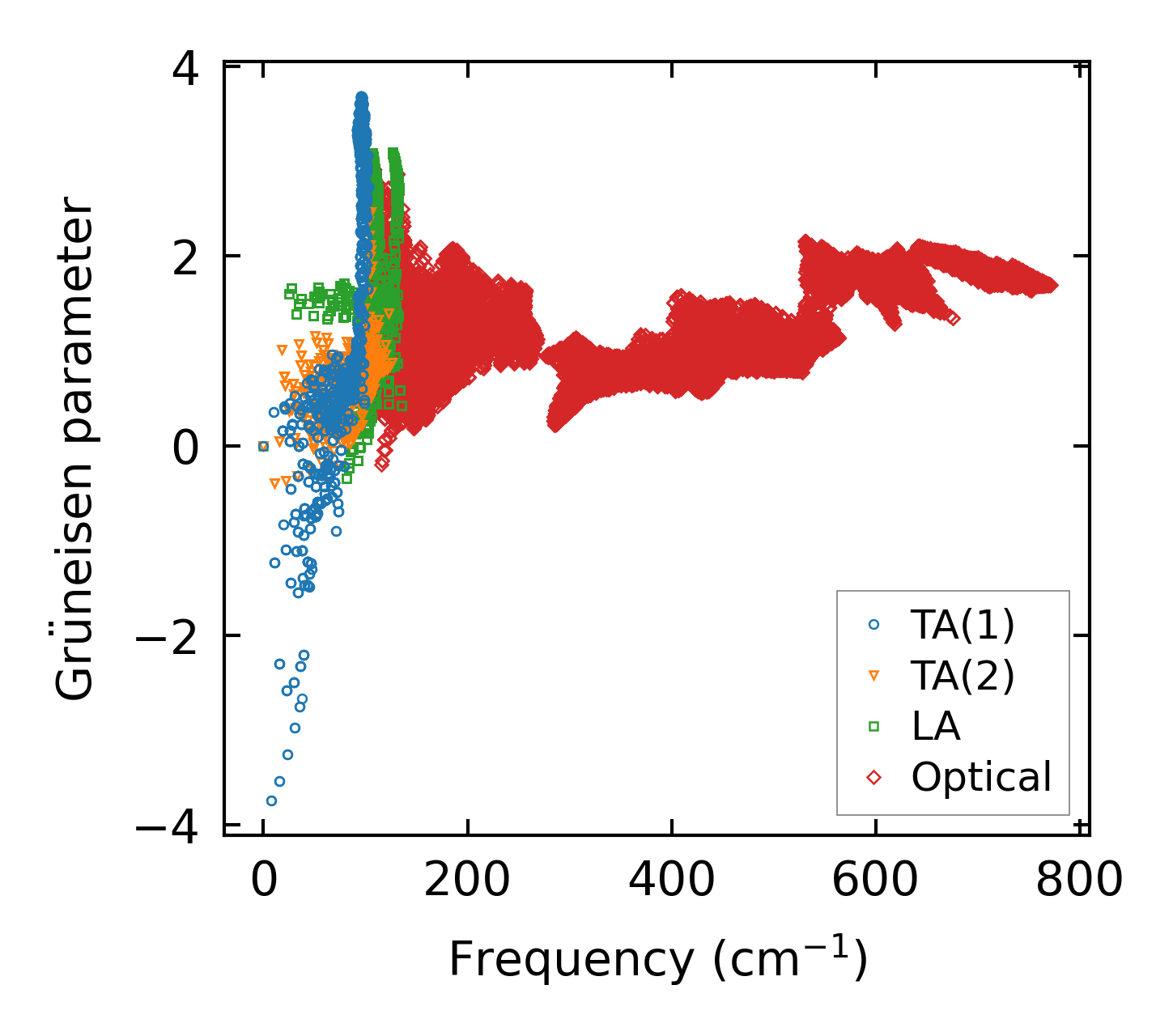

../../_images/fig_gru_all1192.png — (a) Grüneisen parameters

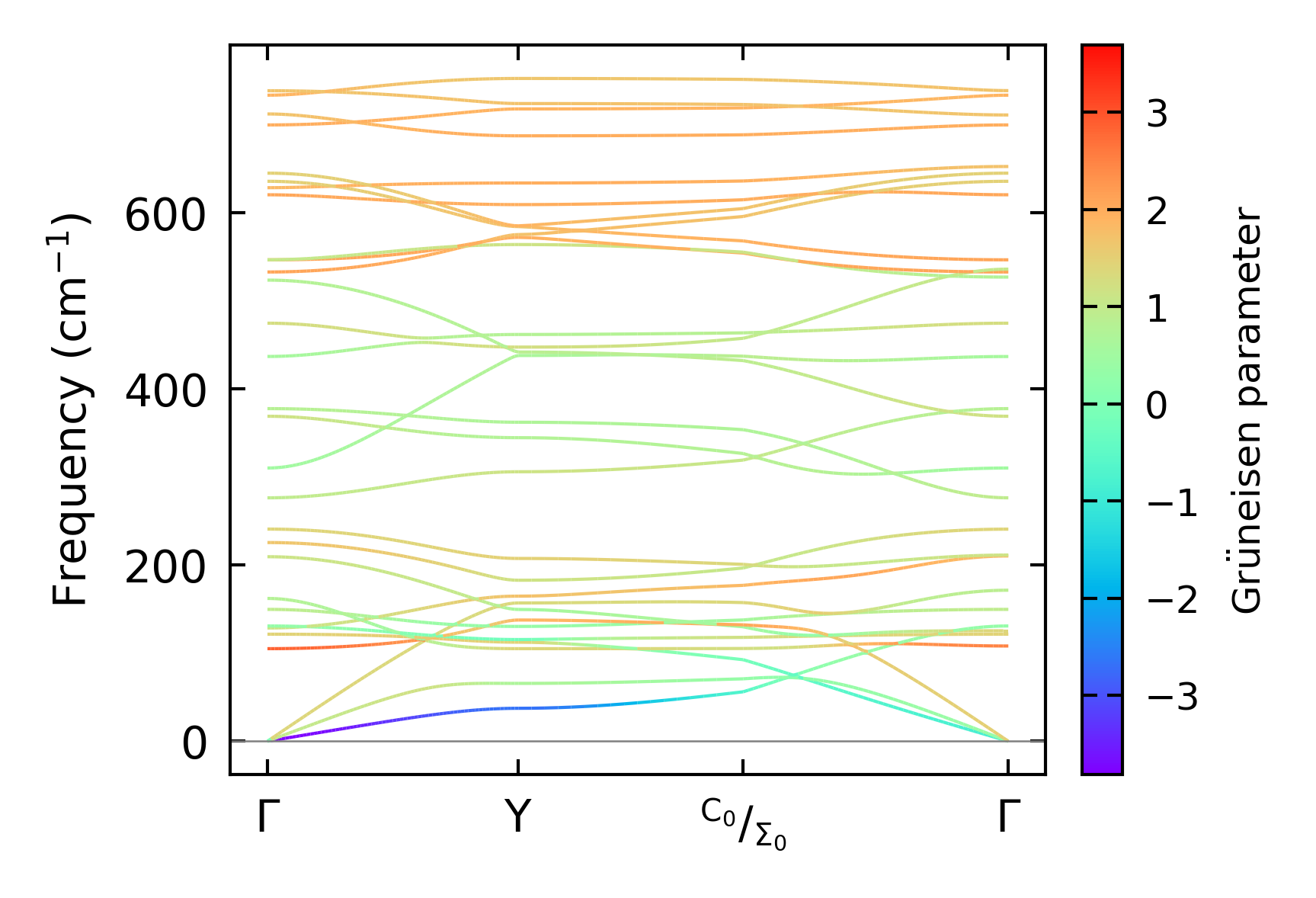

../../_images/fig_gruneisen1192.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x23, supercell: 2x1x3

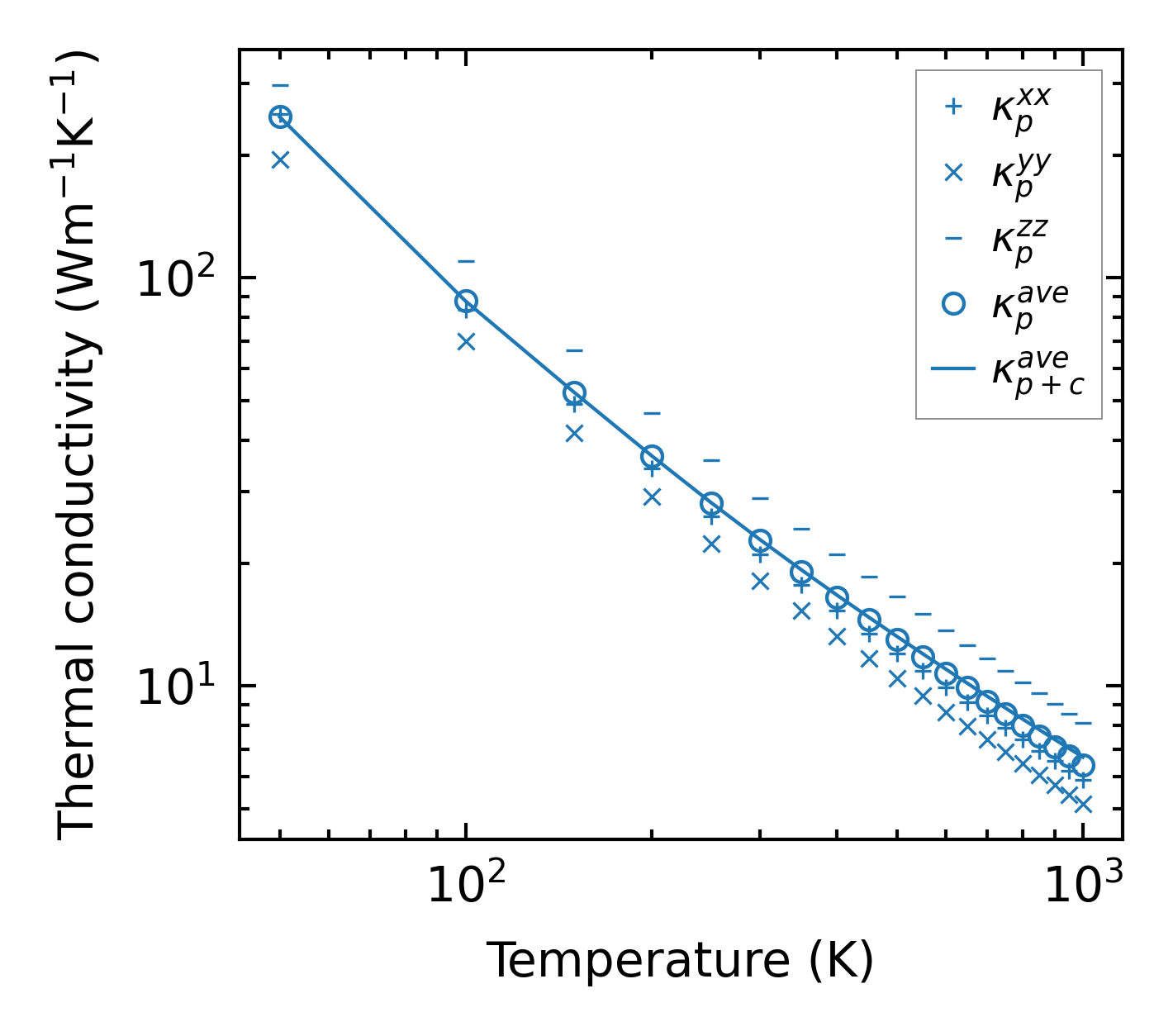

../../_images/fig_kappa2298.png — (a) Temperature-dependent lattice thermal conductivity

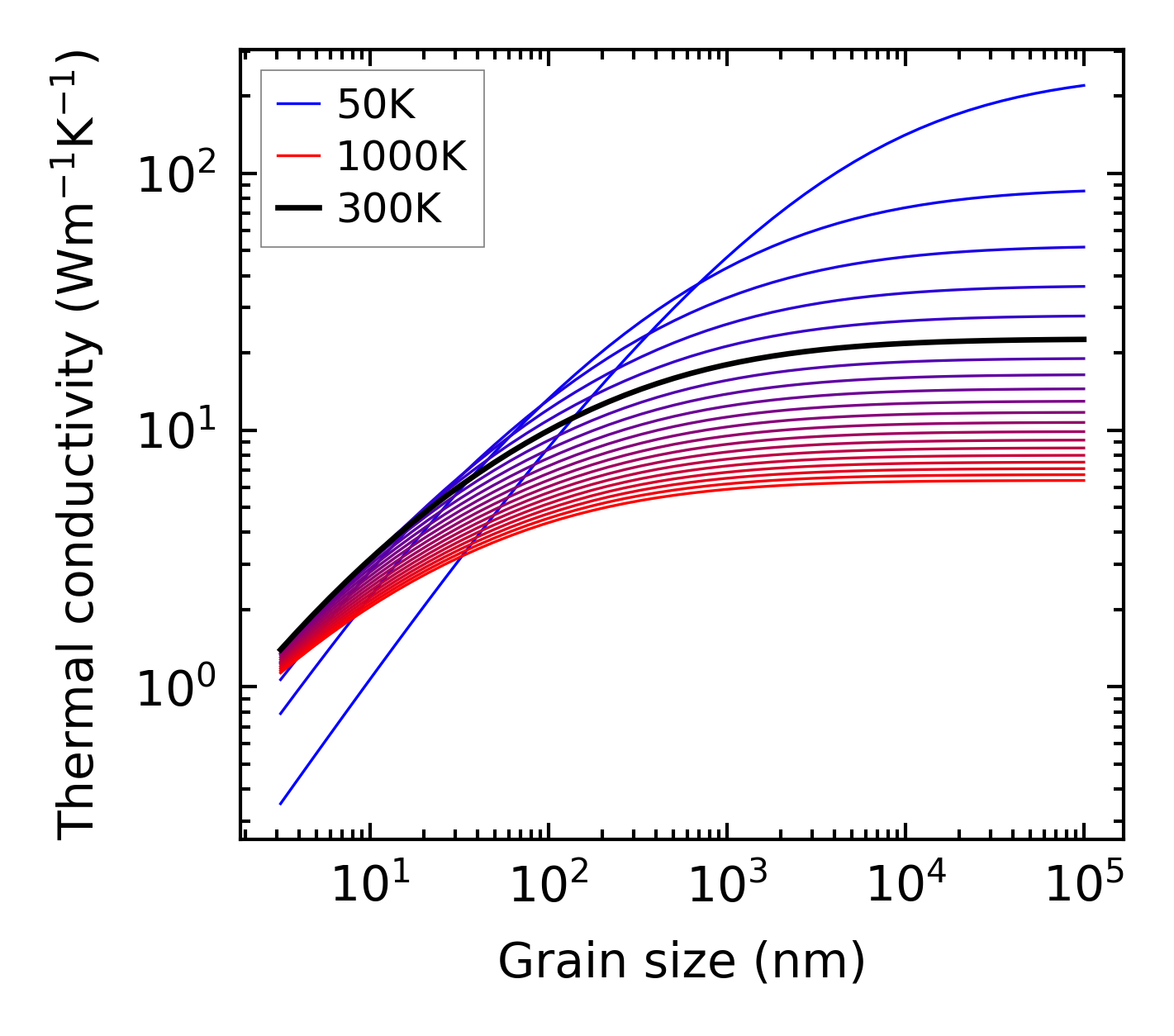

../../_images/fig_kappa_vs_grain_size1206.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

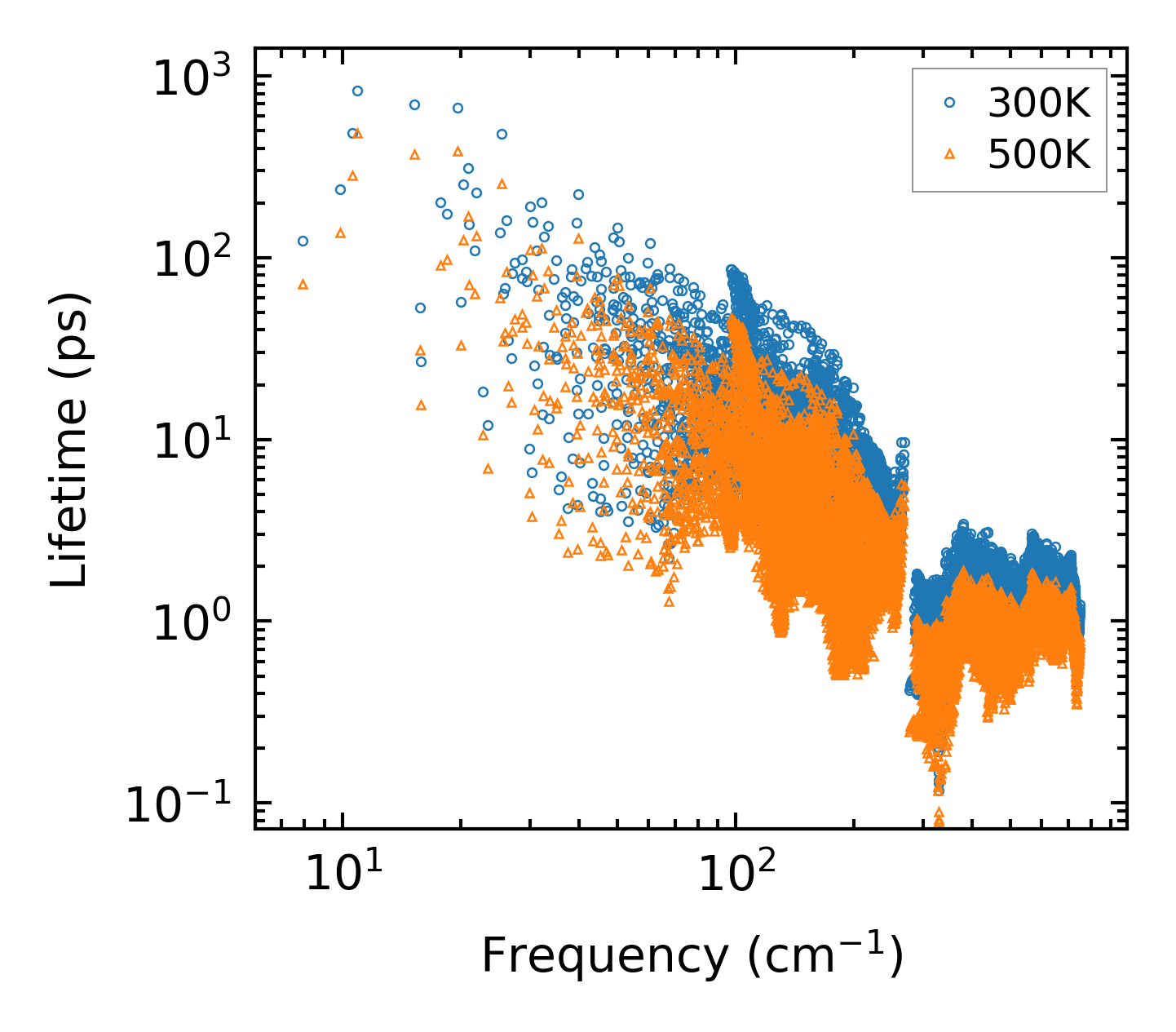

../../_images/fig_lifetime1182.png — (a) Phonon lifetime due to phonon-phonon scattering

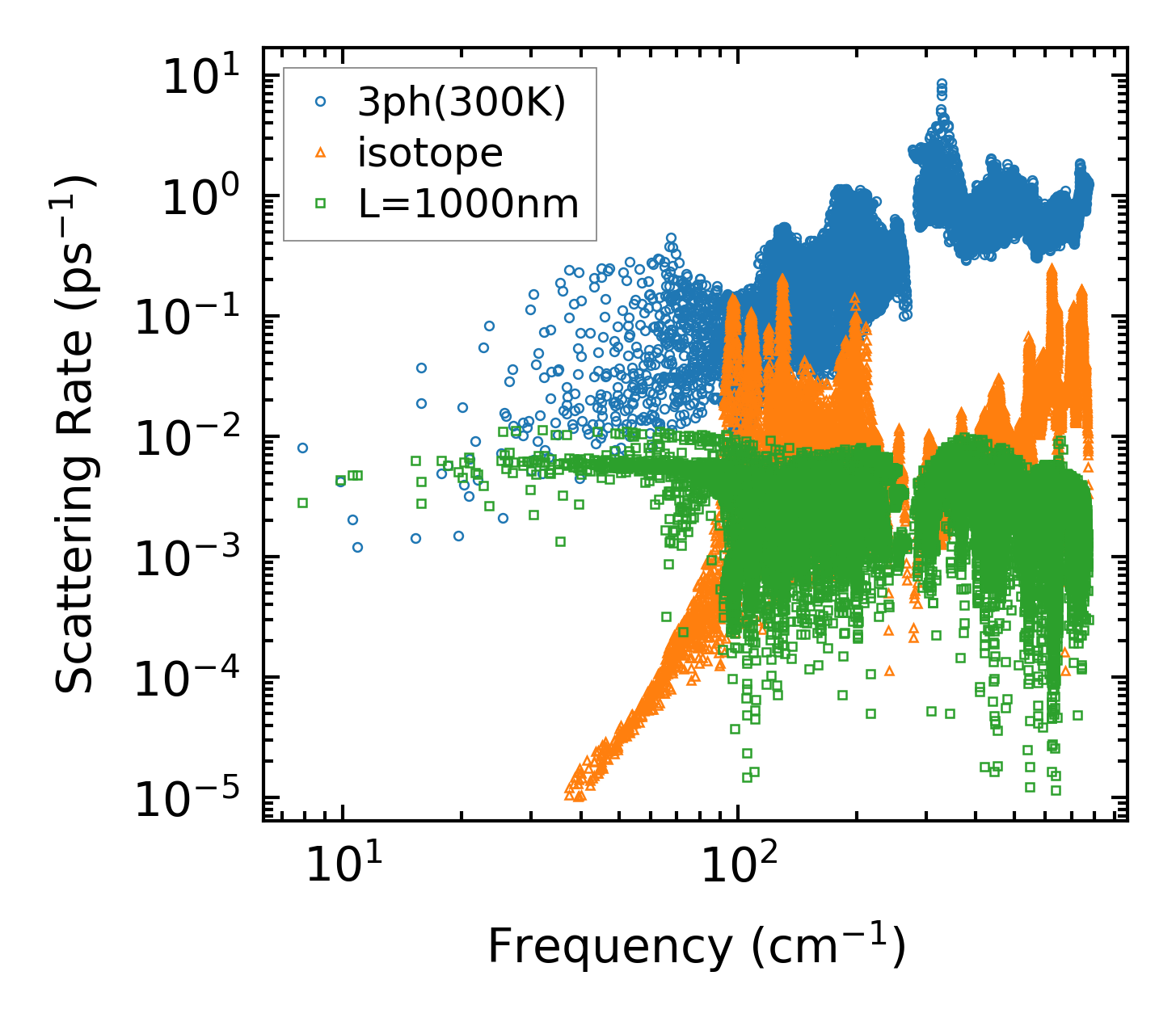

../../_images/fig_scat_rates1181.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1182.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1182.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc21904.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2299.png — (a) Temperature-dependent lattice thermal conductivity

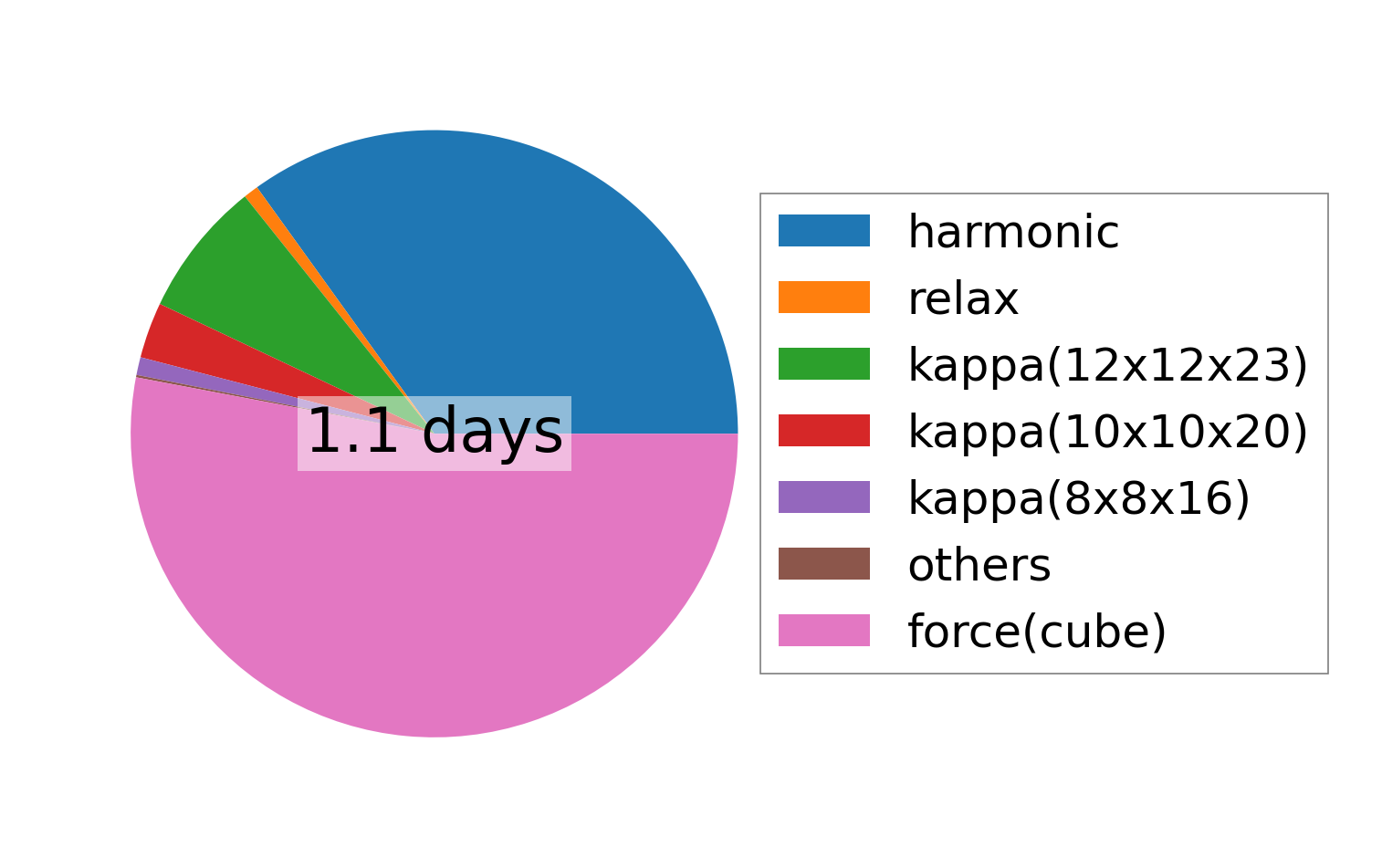

../../_images/fig_times3201.png — (b) Computation time
