mp-8866-3/La10Se19/anharm

Space group: P4_2/n (86)
Link: Materials Project
Download: mp-8866-3.tar.gz

Equation of state

../../_images/fig_bm794.png — (a) Equation of state

Harmonic properties

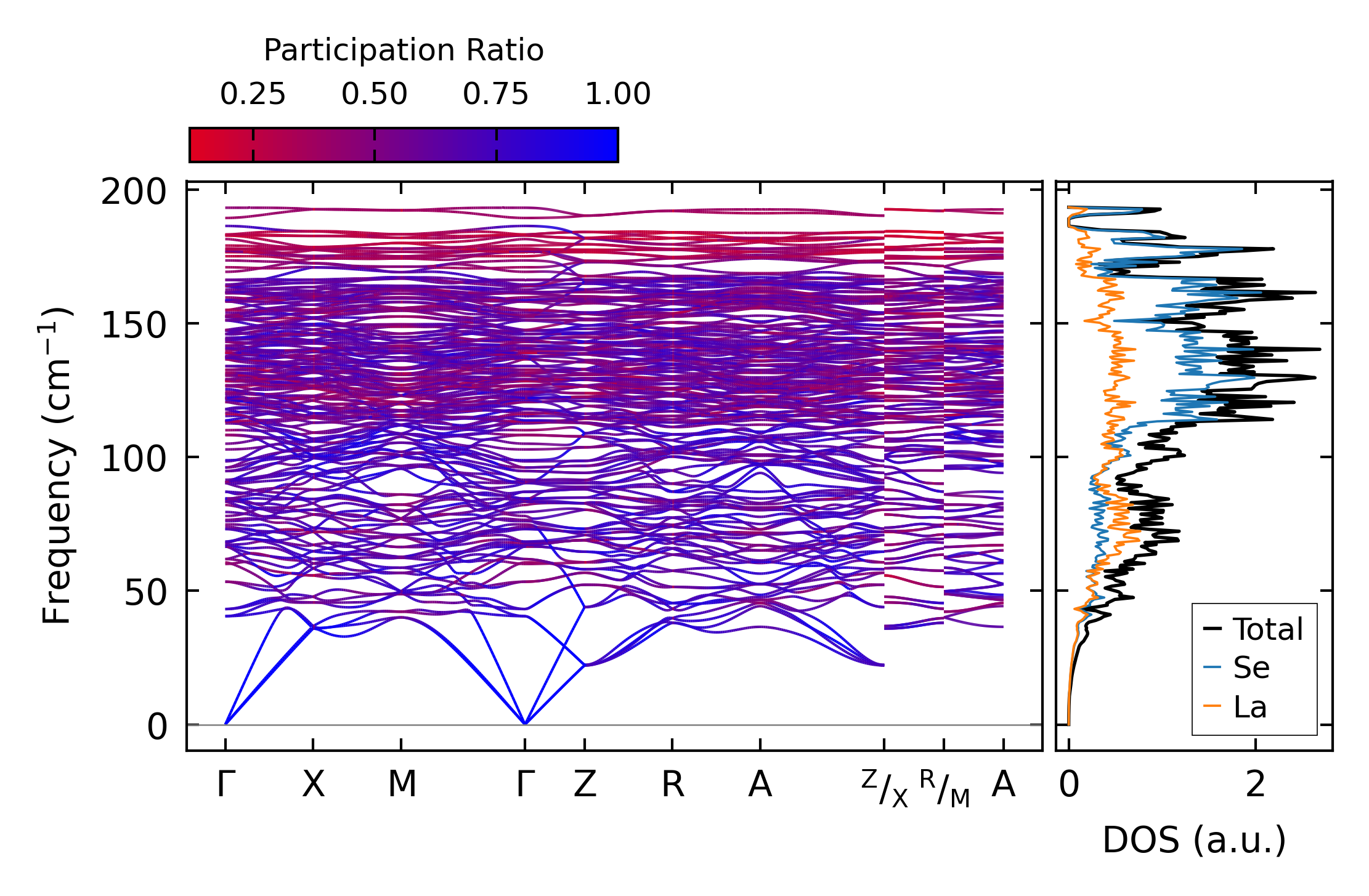

../../_images/fig_bandos_pr1939.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo1939.png — (b) Thermodynamic properties

Grüneisen parameters

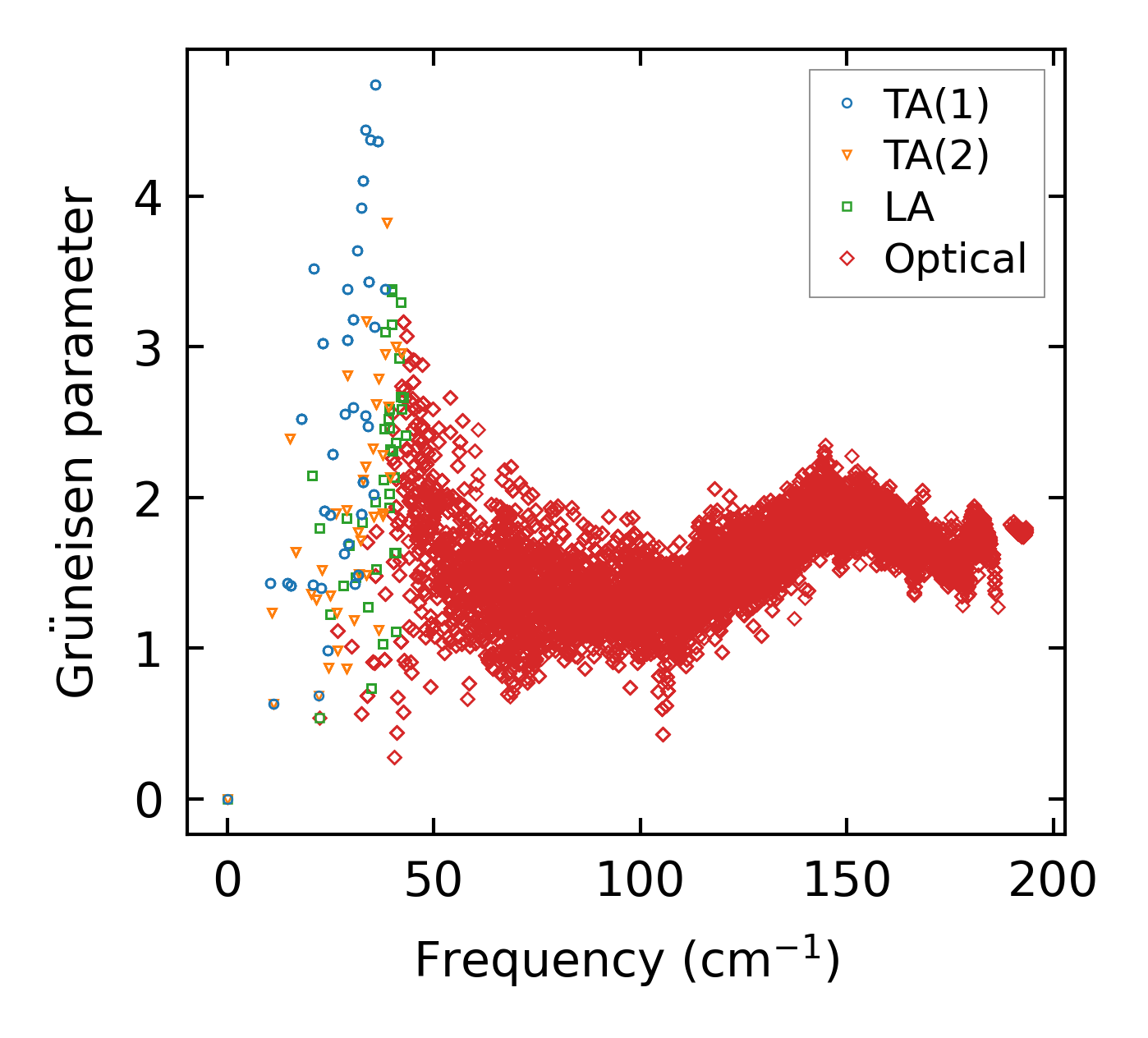

../../_images/fig_gru_all1113.png — (a) Grüneisen parameters

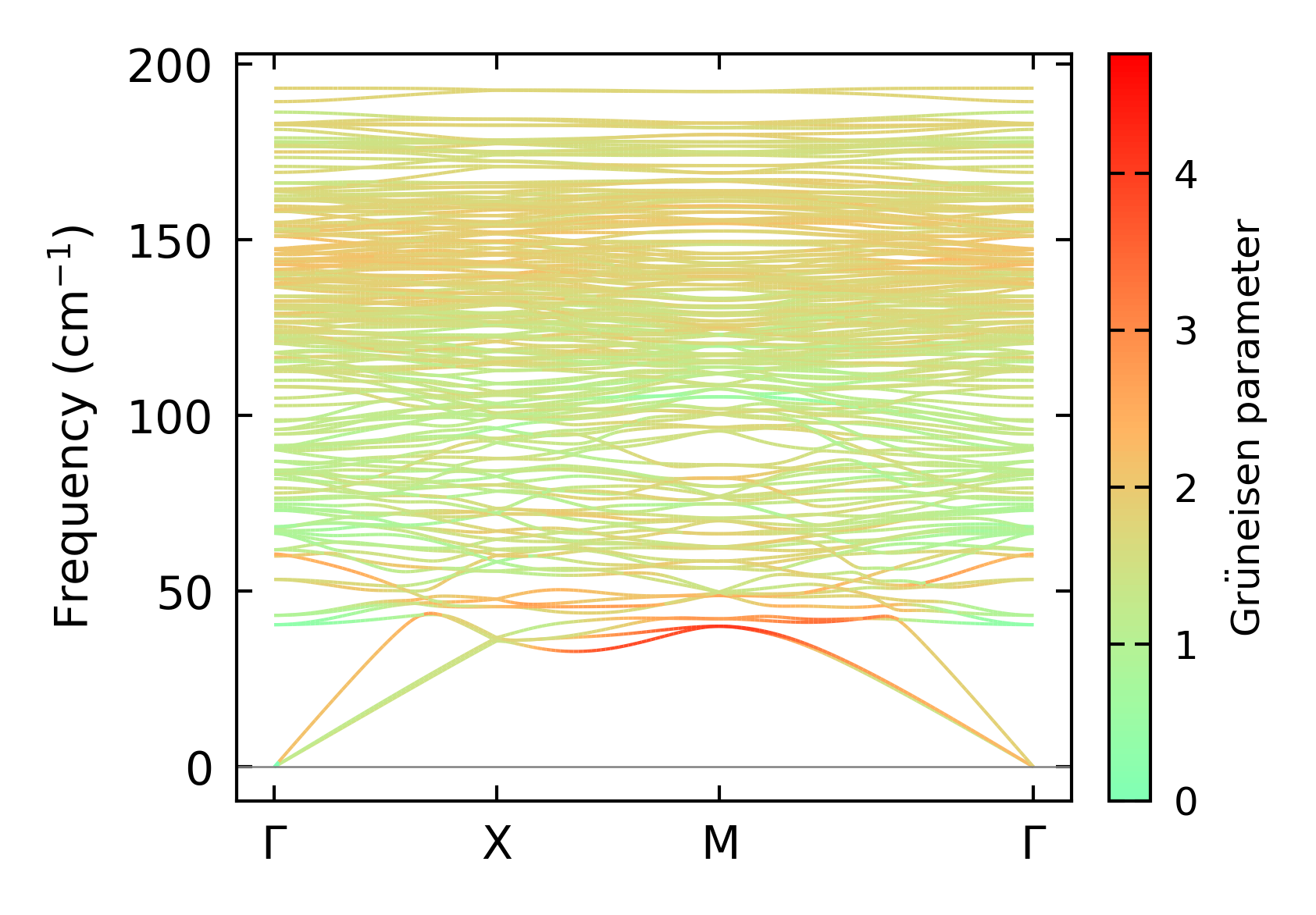

../../_images/fig_gruneisen1113.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x4, supercell: 1x1x1

../../_images/fig_kappa2144.png — (a) Temperature-dependent lattice thermal conductivity

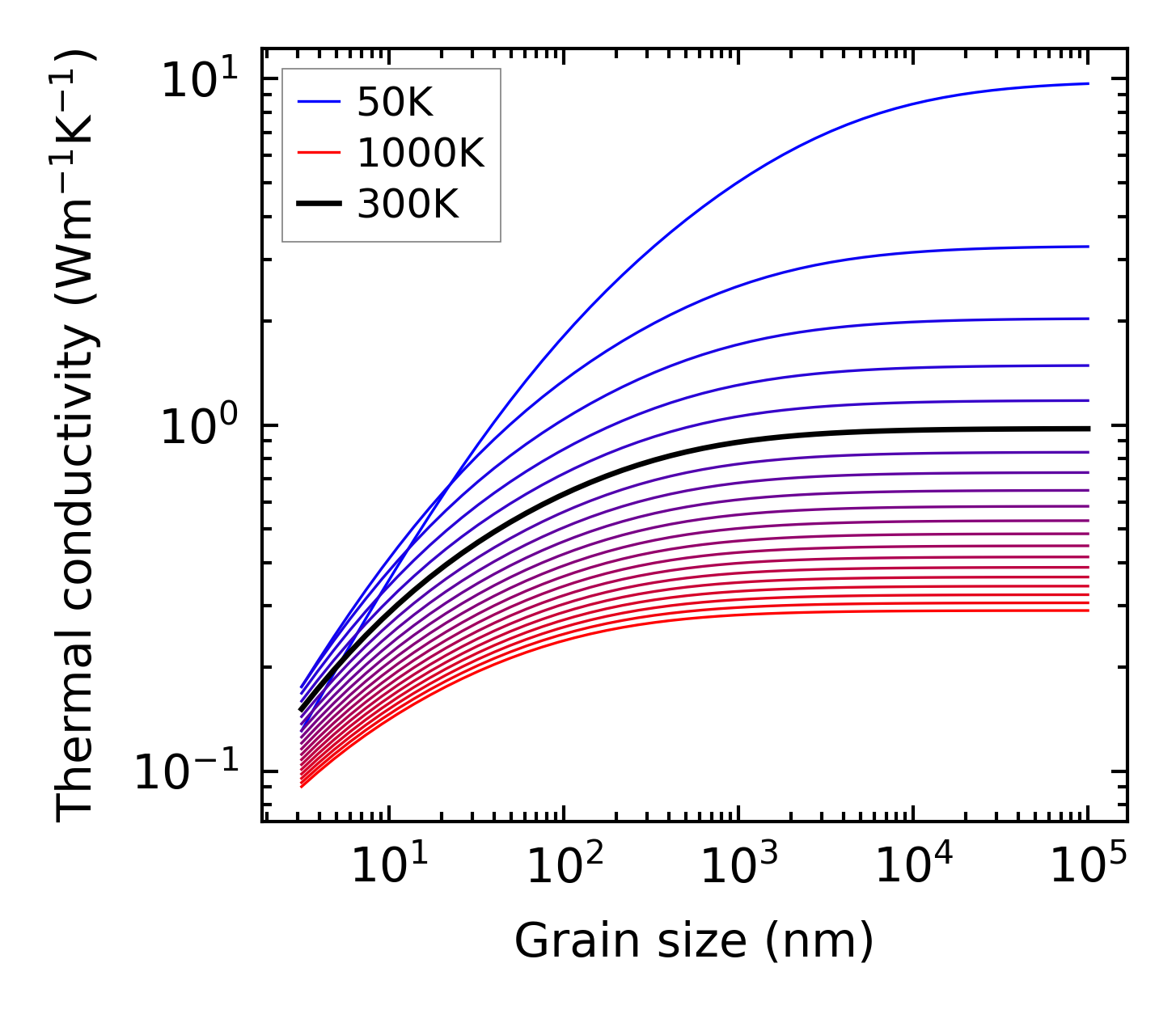

../../_images/fig_kappa_vs_grain_size1124.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1104.png — (a) Phonon lifetime due to phonon-phonon scattering

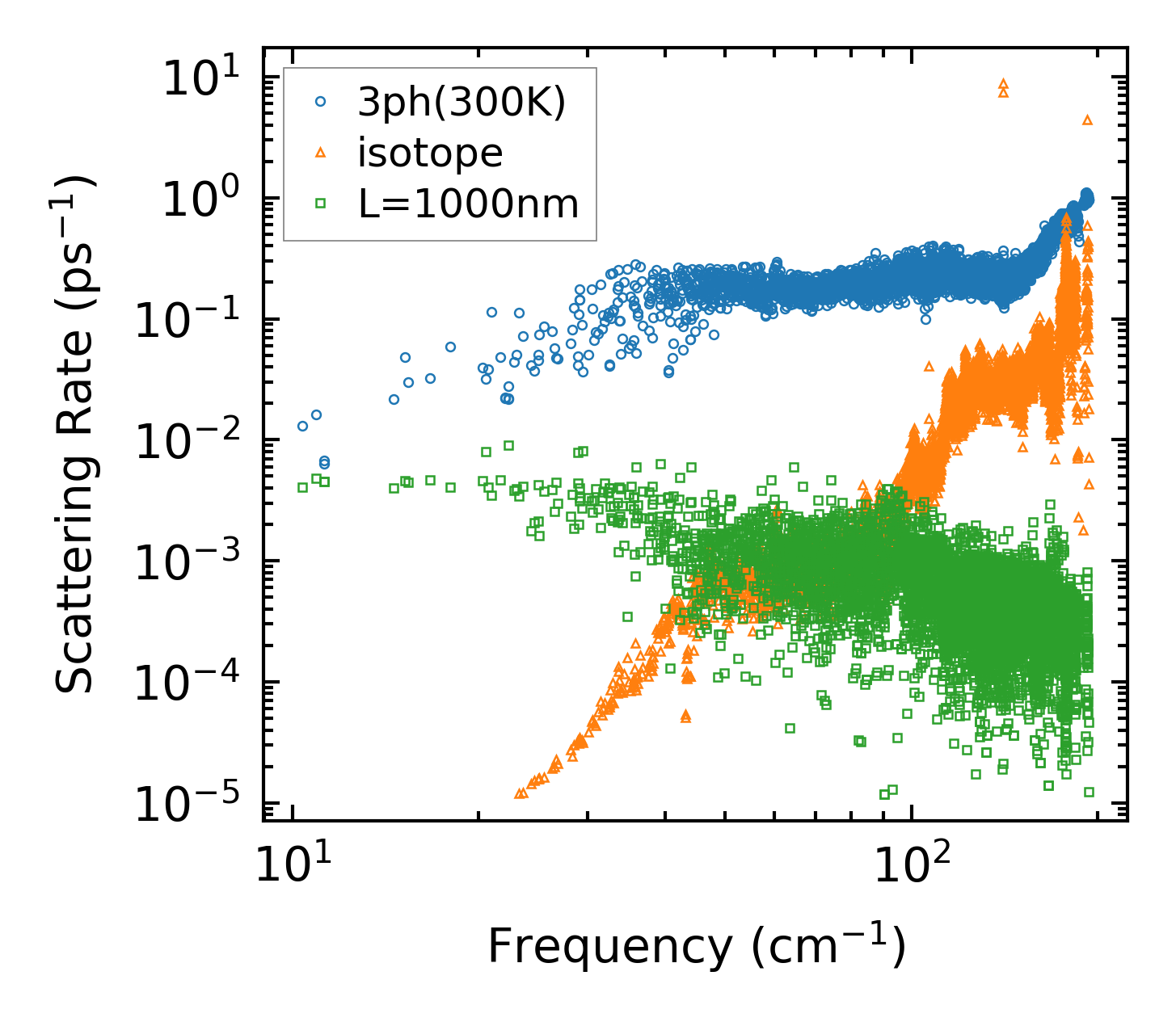

../../_images/fig_scat_rates1103.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

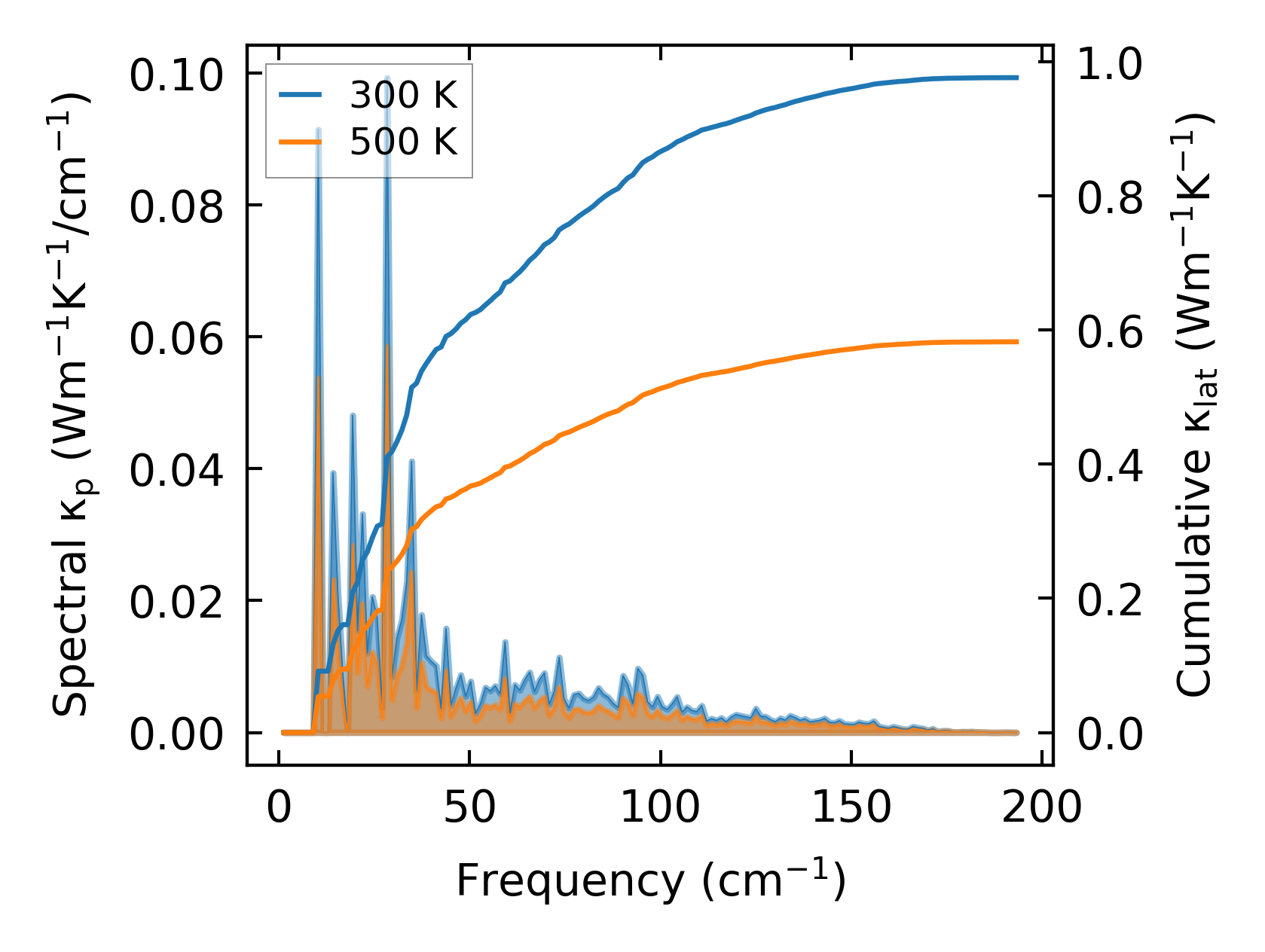

../../_images/fig_cumu_frequency1104.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

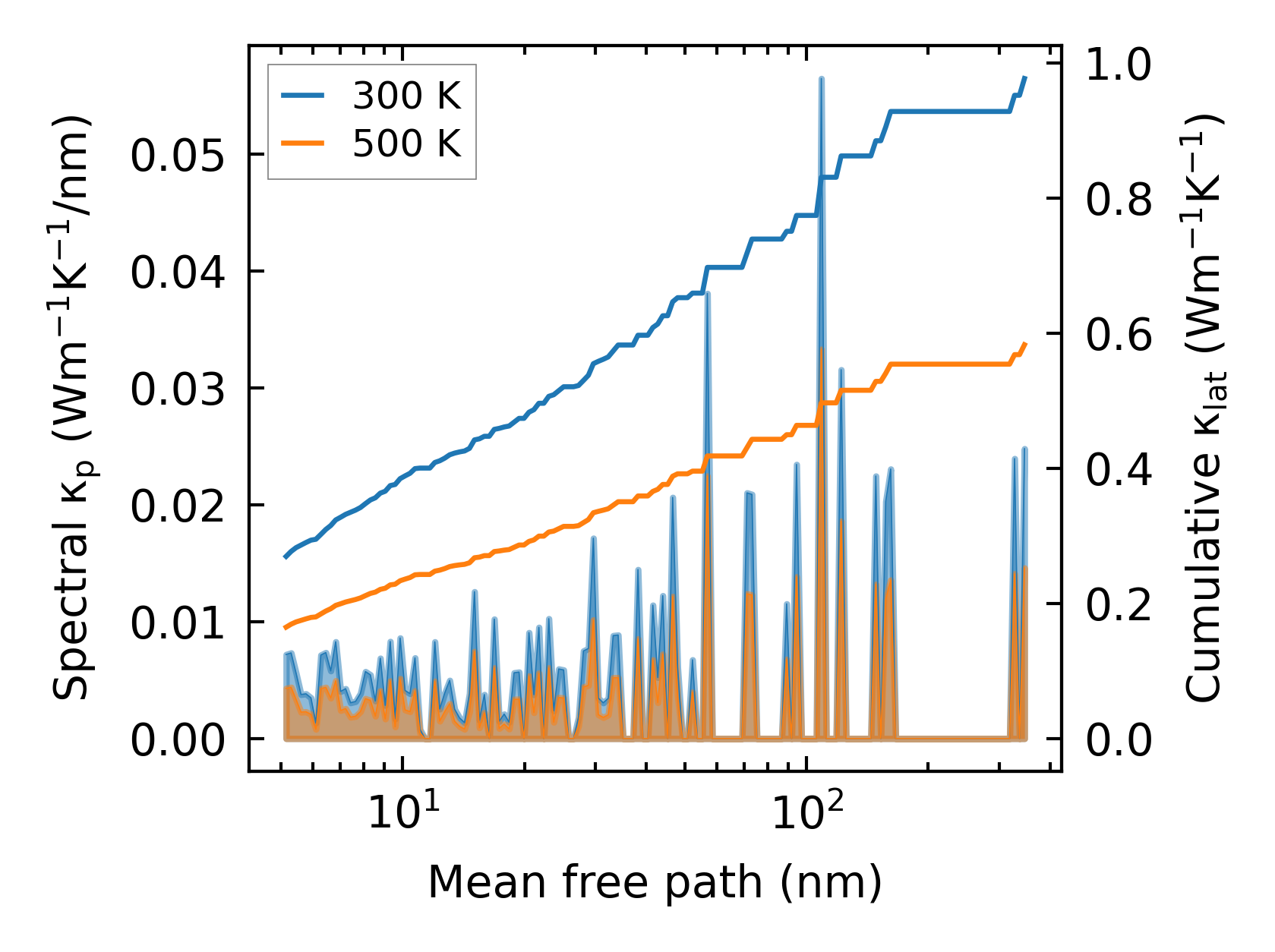

../../_images/fig_cumu_mfp1104.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

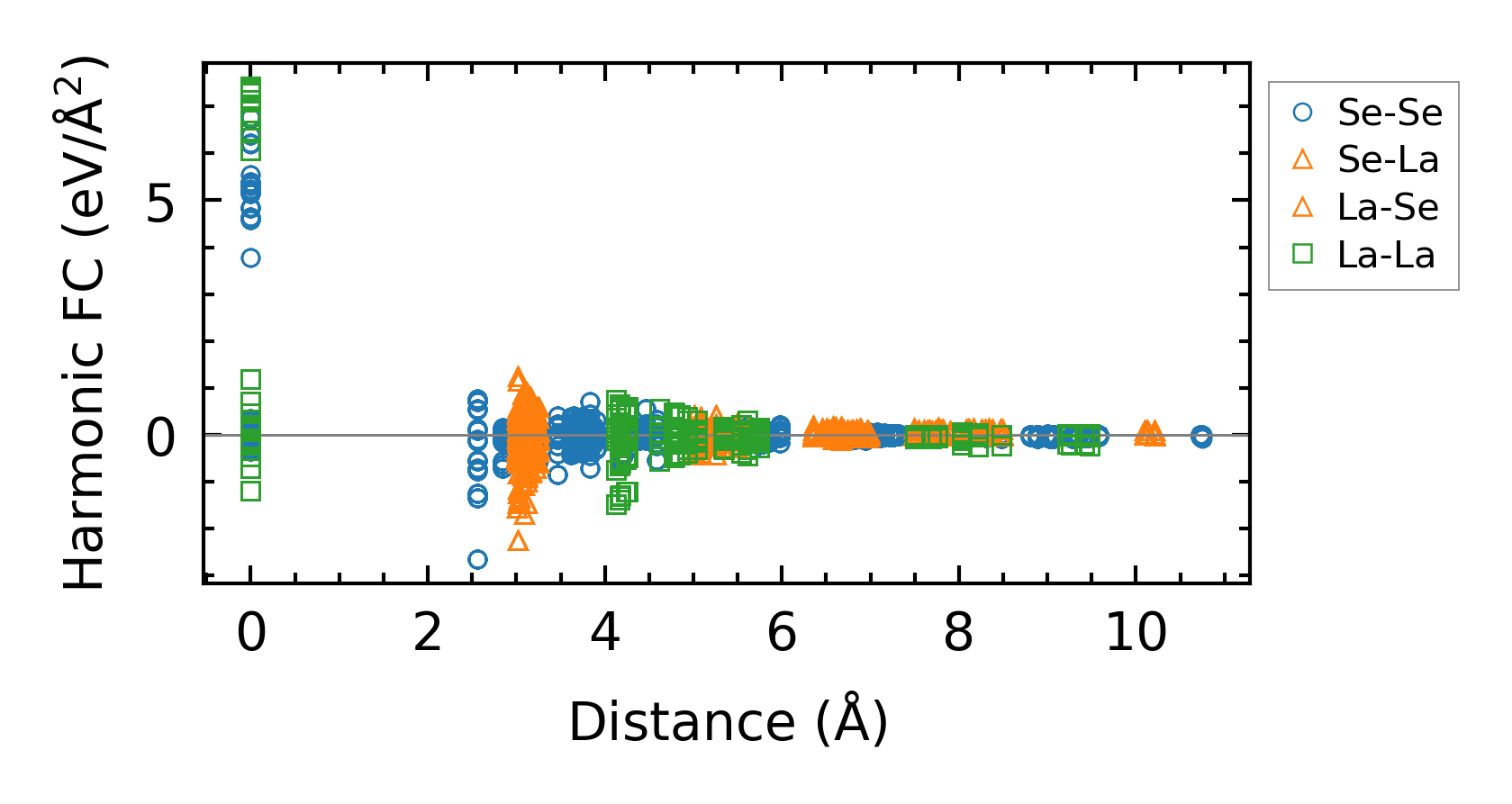

../../_images/fig_fc21762.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa2145.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times2945.png — (b) Computation time
