mp-8056/CaB2O4/anharm

Space group: Pccn (56)
Link: Materials Project
Download: mp-8056.tar.gz

Harmonic properties

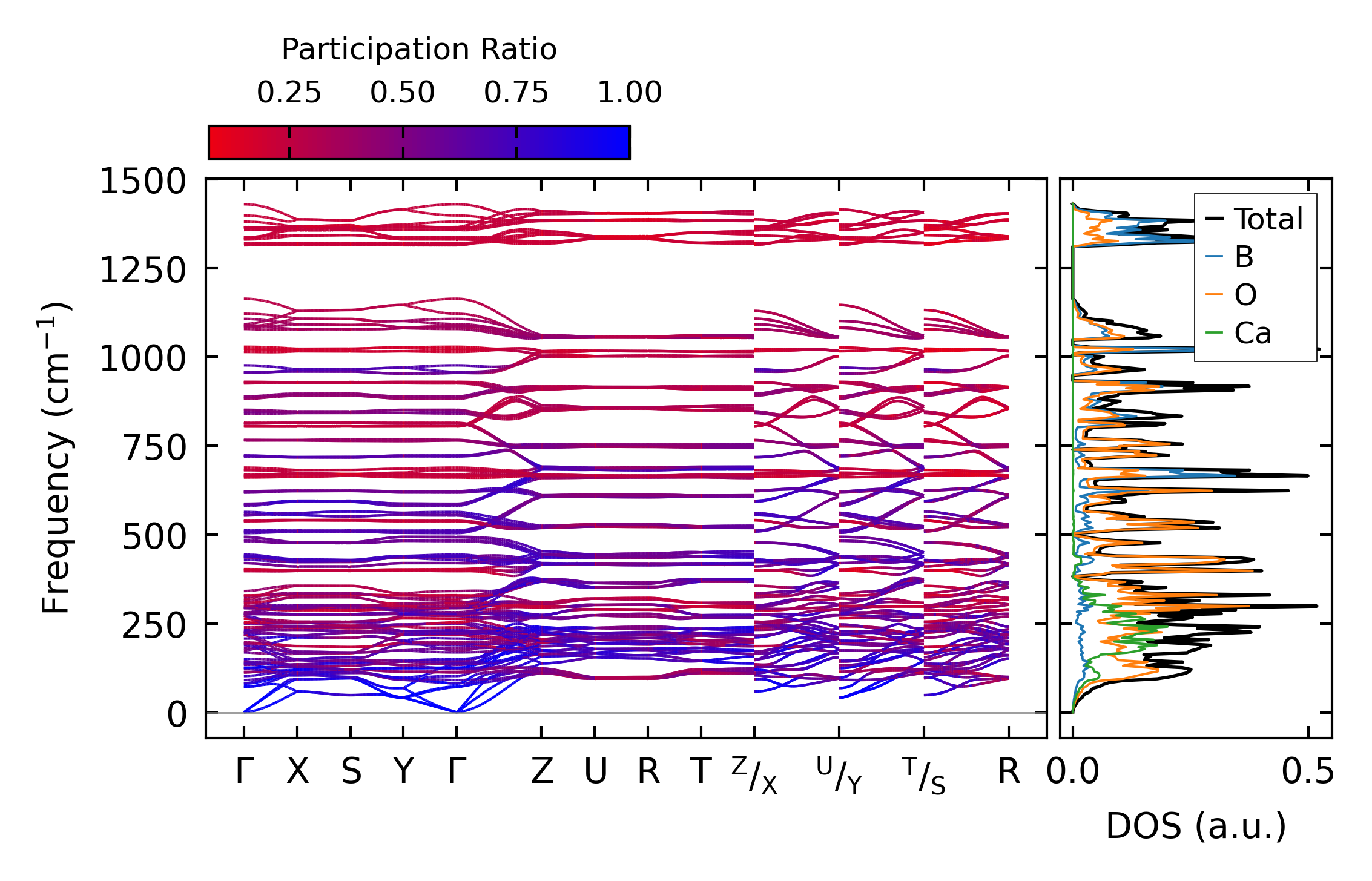

../../_images/fig_bandos_pr2028.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo2028.png — (b) Thermodynamic properties

Grüneisen parameters

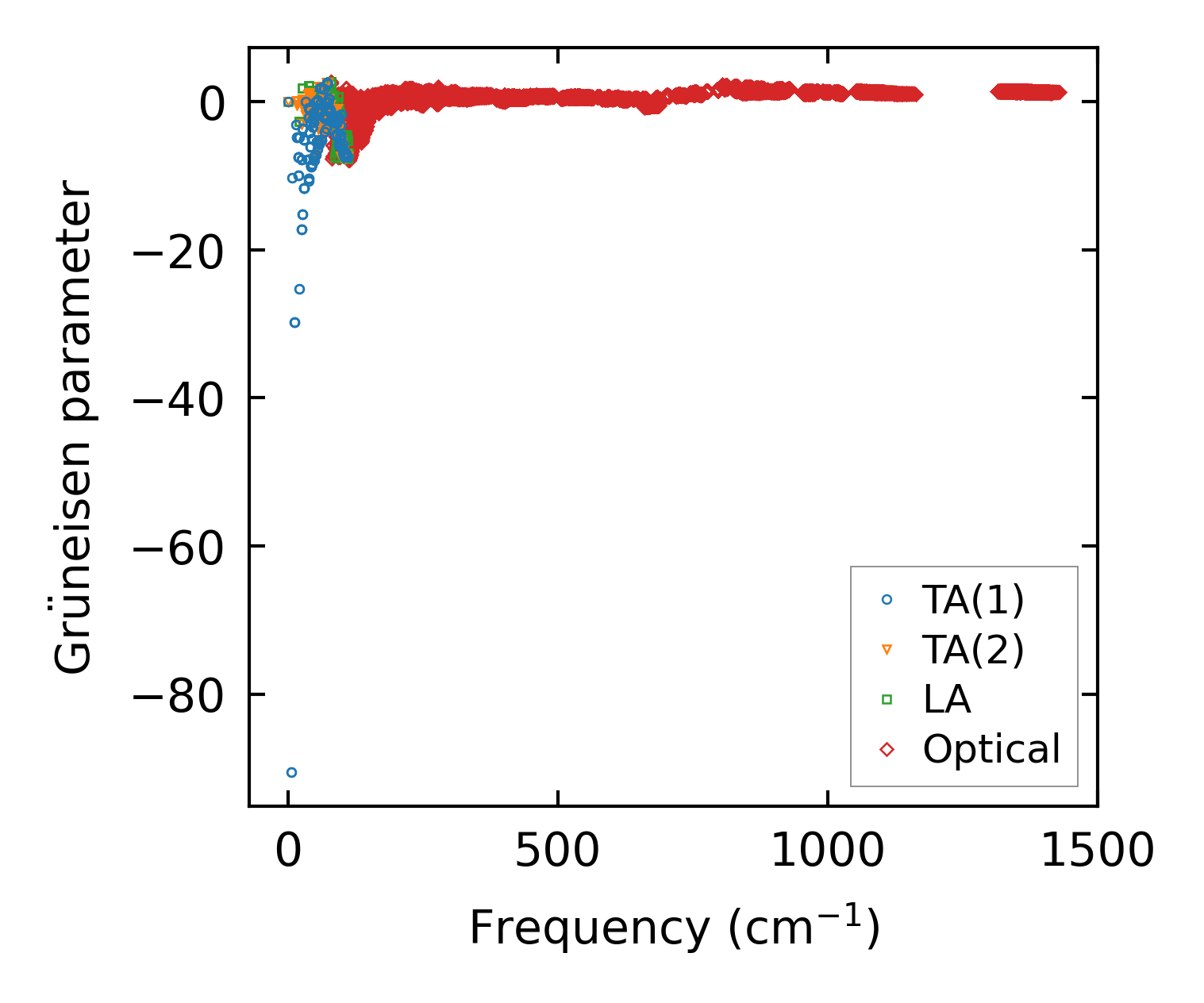

../../_images/fig_gru_all1155.png — (a) Grüneisen parameters

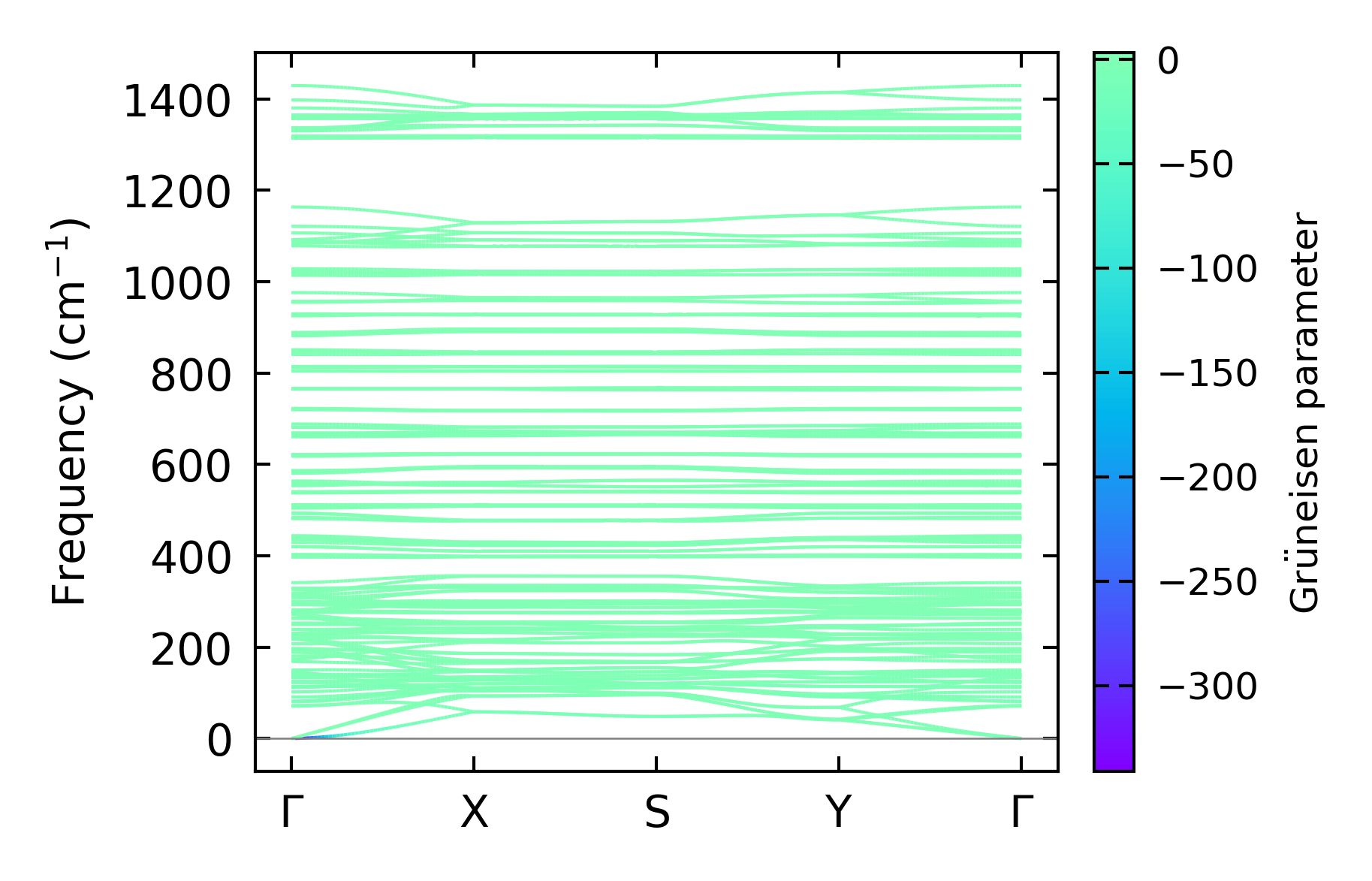

../../_images/fig_gruneisen1155.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x5x14, supercell: 1x1x2

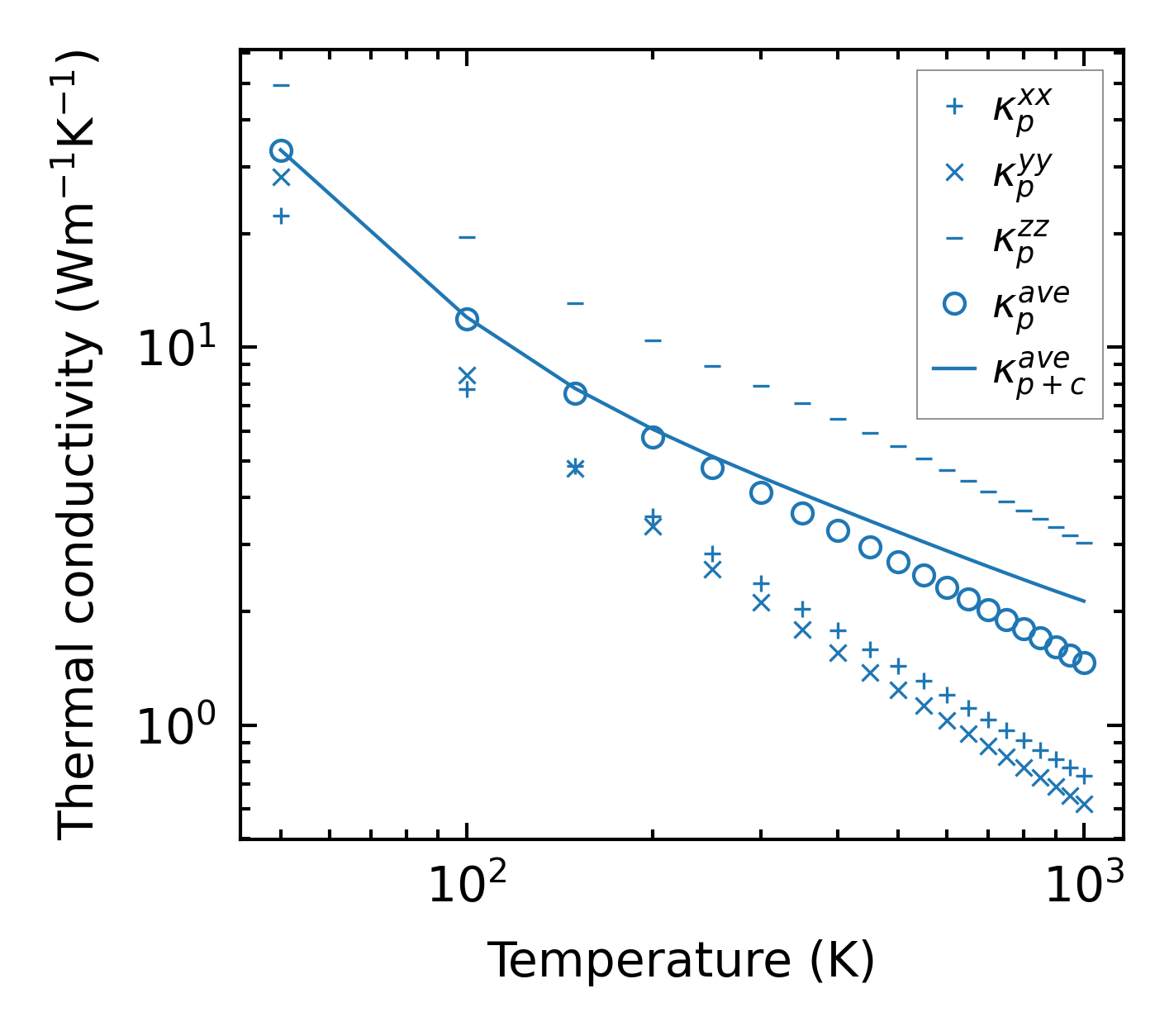

../../_images/fig_kappa2224.png — (a) Temperature-dependent lattice thermal conductivity

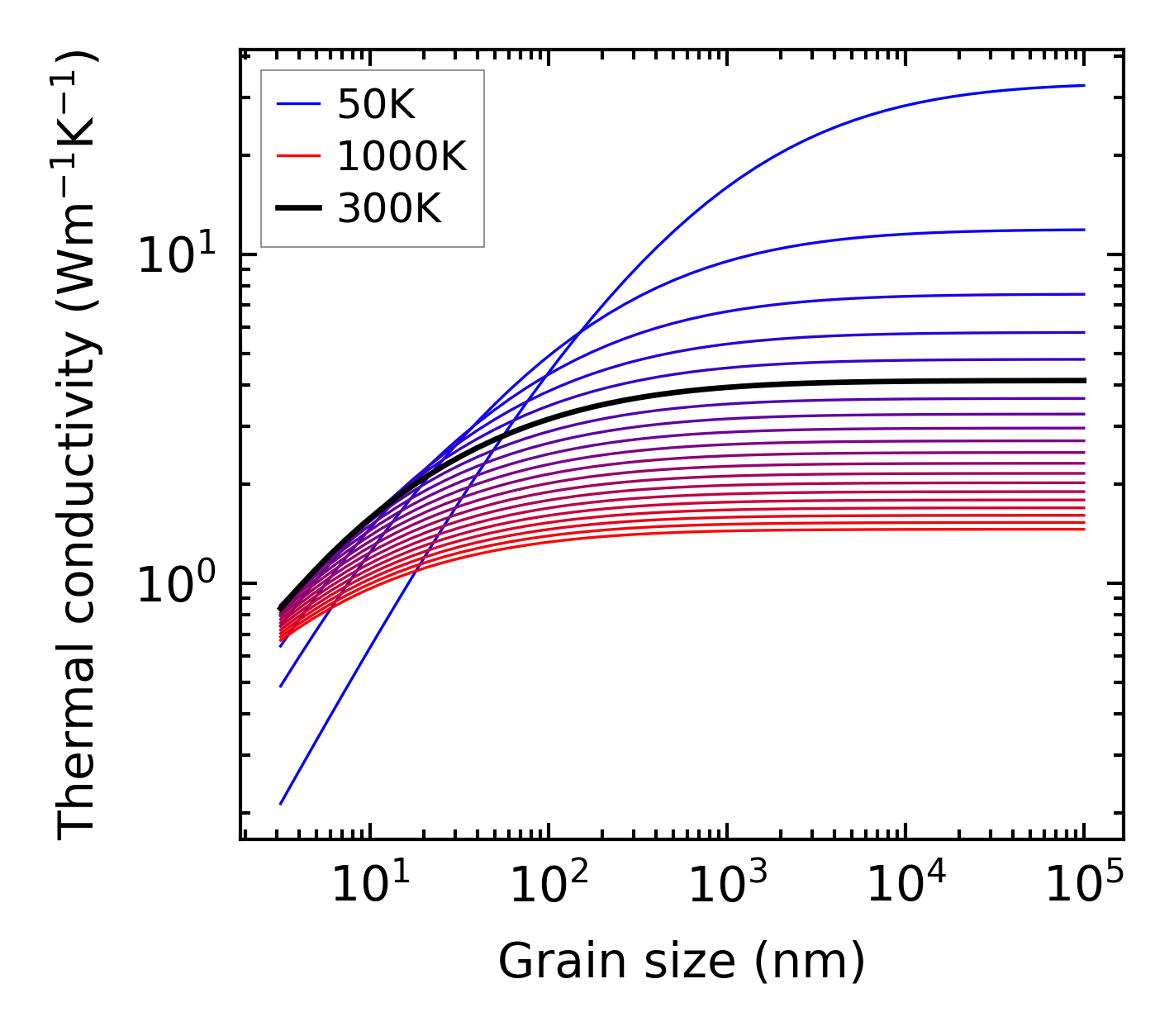

../../_images/fig_kappa_vs_grain_size1169.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

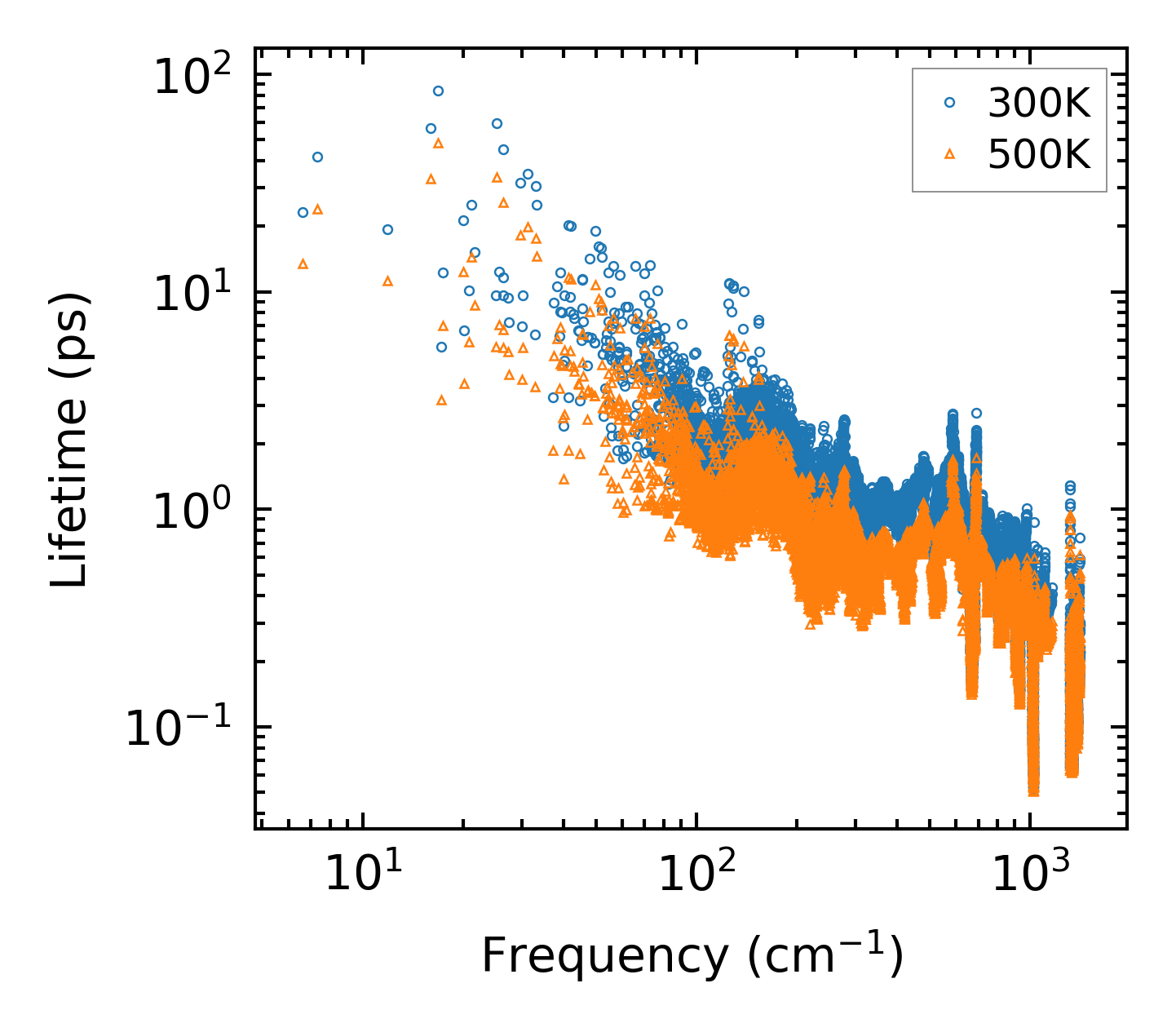

../../_images/fig_lifetime1146.png — (a) Phonon lifetime due to phonon-phonon scattering

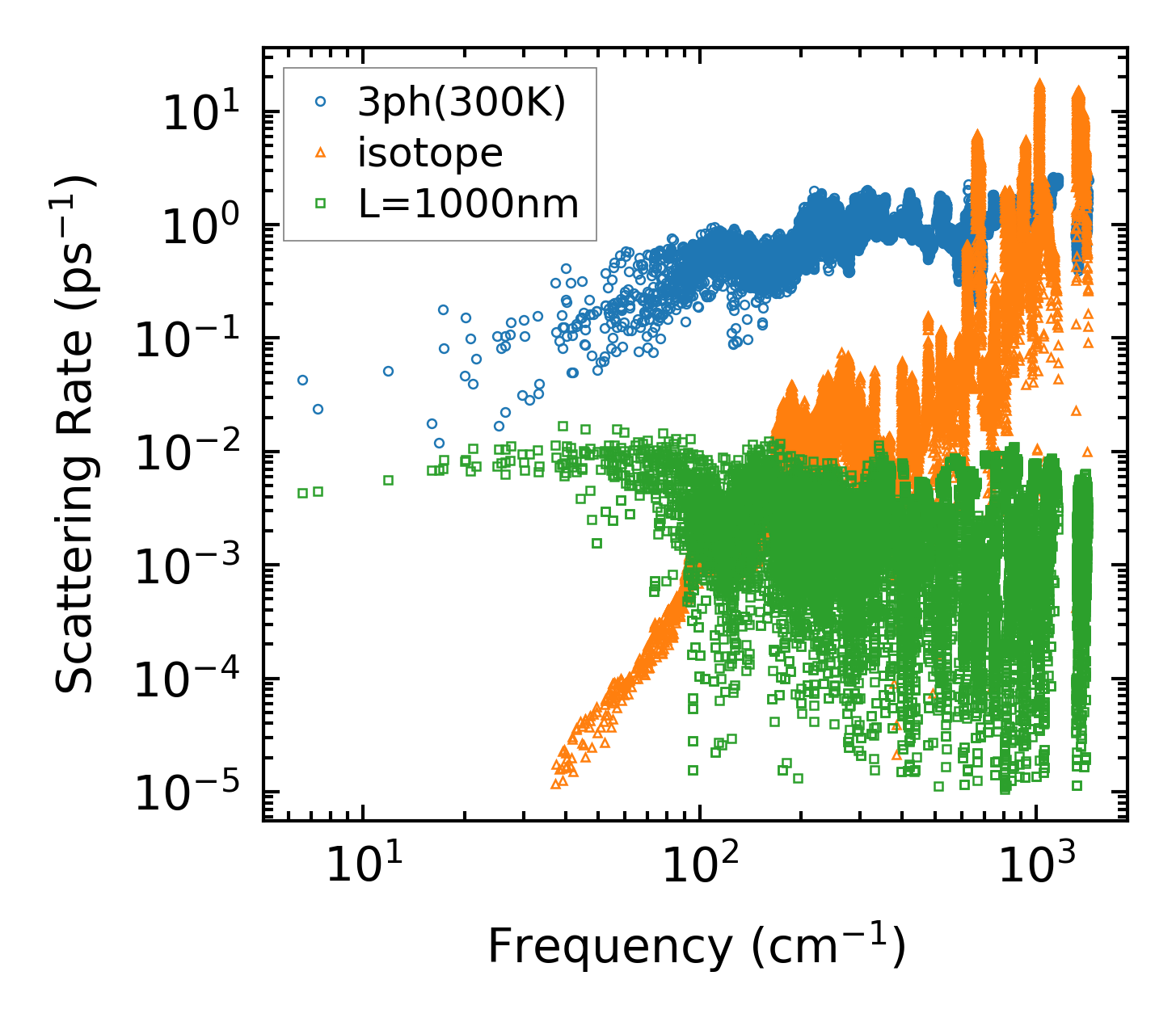

../../_images/fig_scat_rates1145.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

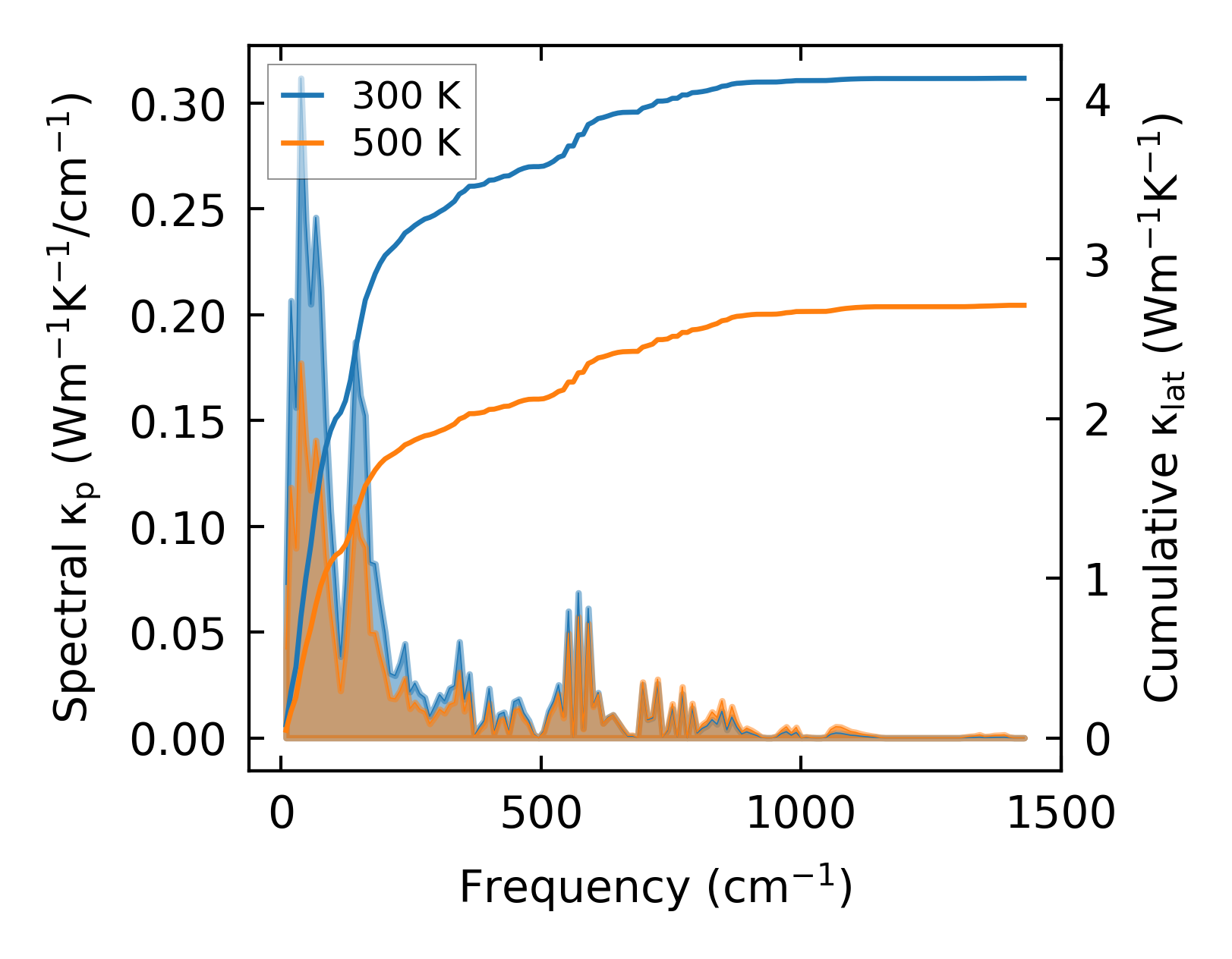

../../_images/fig_cumu_frequency1146.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

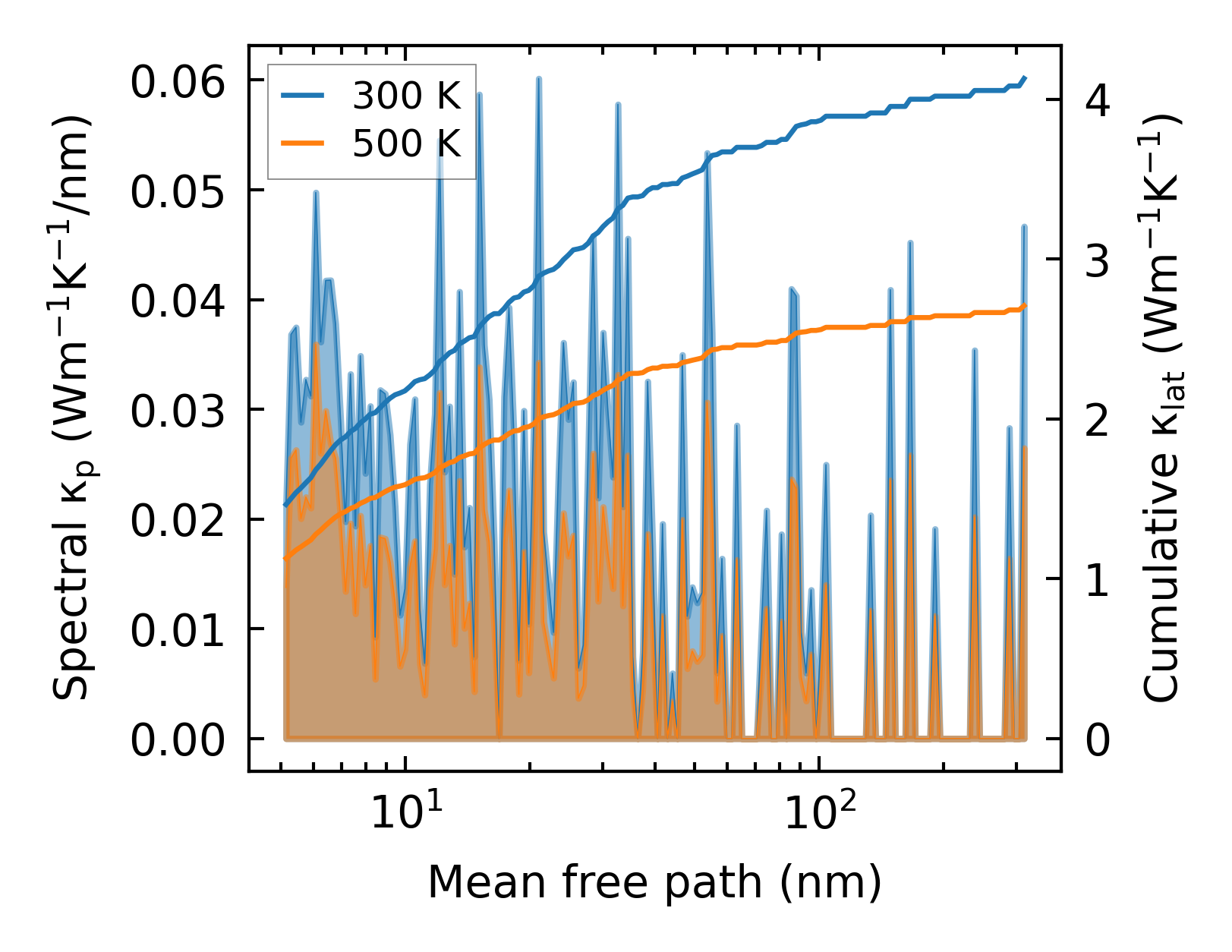

../../_images/fig_cumu_mfp1146.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

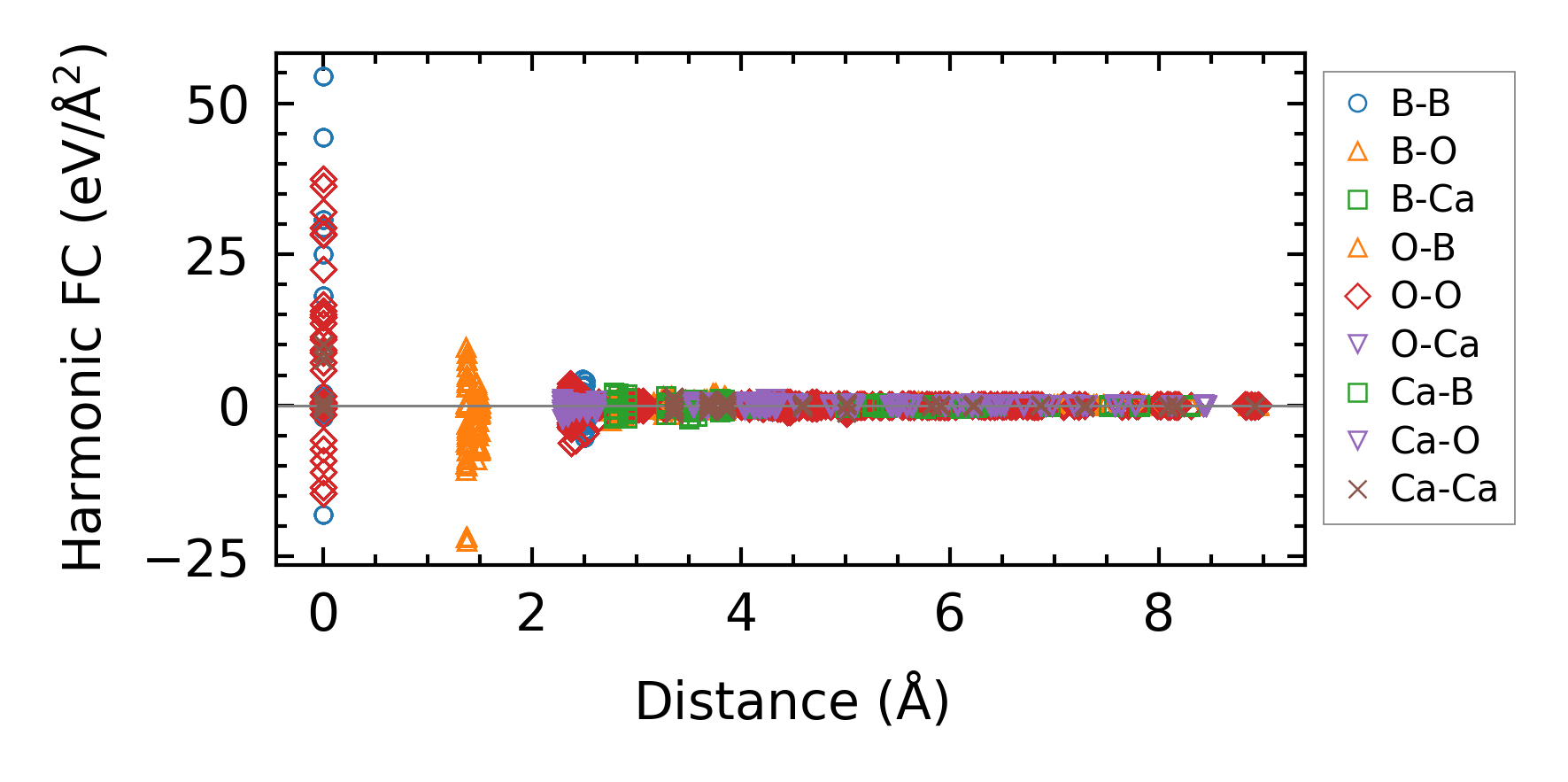

../../_images/fig_fc21850.png — (a) Force constants w.r.t atomic distance

Summary

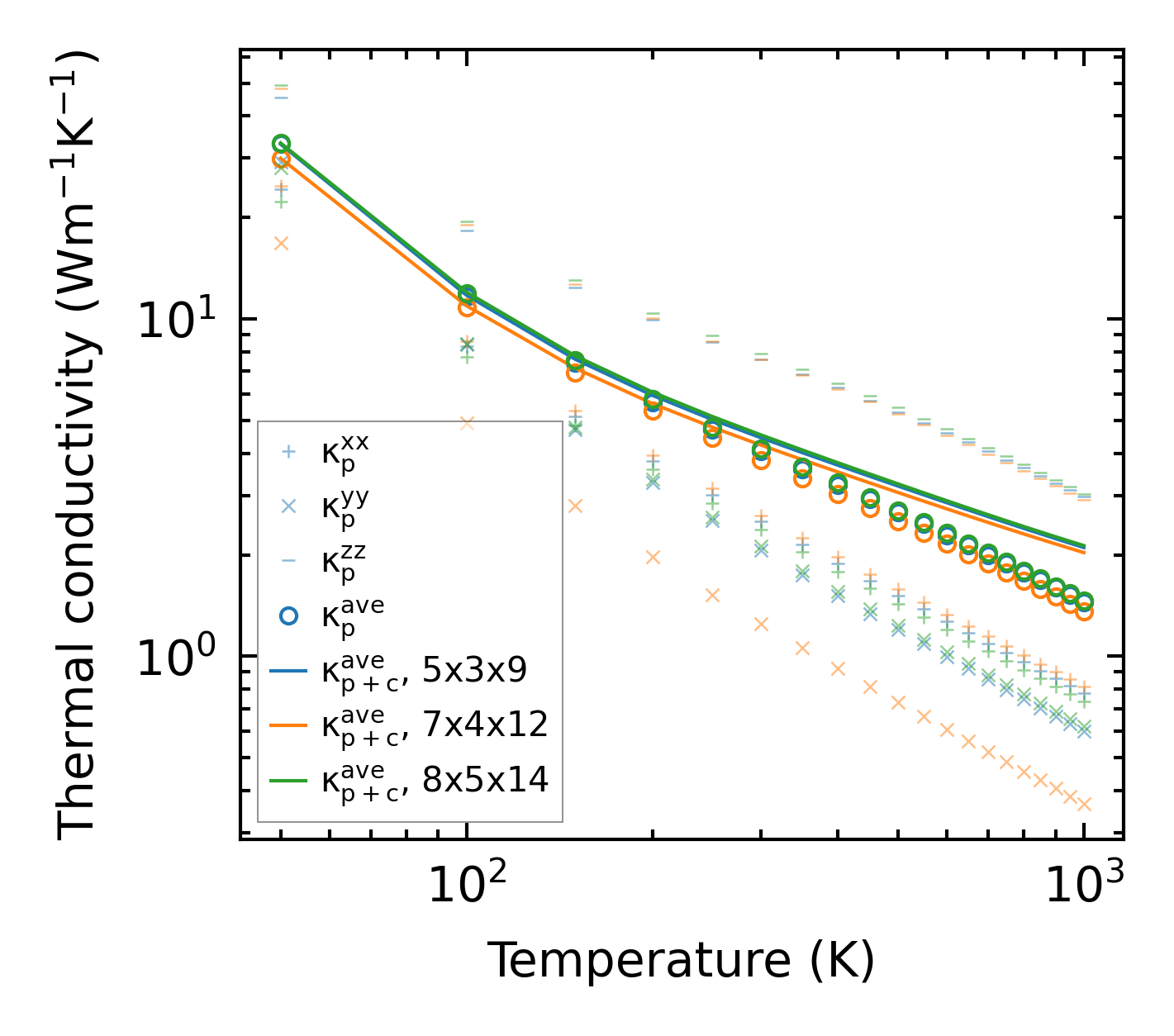

../../_images/fig_kappa2225.png — (a) Temperature-dependent lattice thermal conductivity

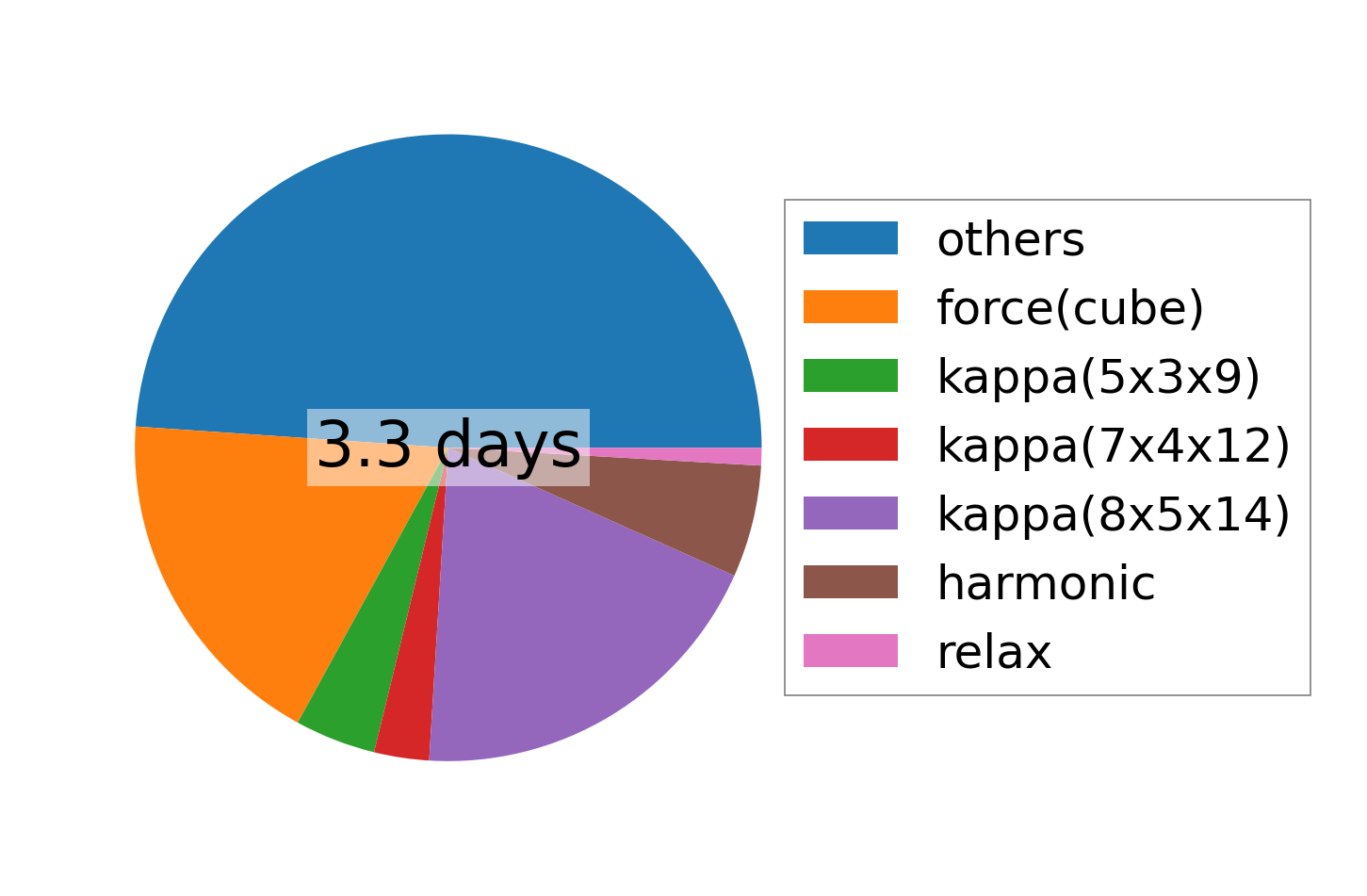

../../_images/fig_times3130.png — (b) Computation time
