mp-8191-2/Cs2PtF6/anharm

Space group: P-3m1 (164)
Link: Materials Project
Download: mp-8191-2.tar.gz

Equation of state

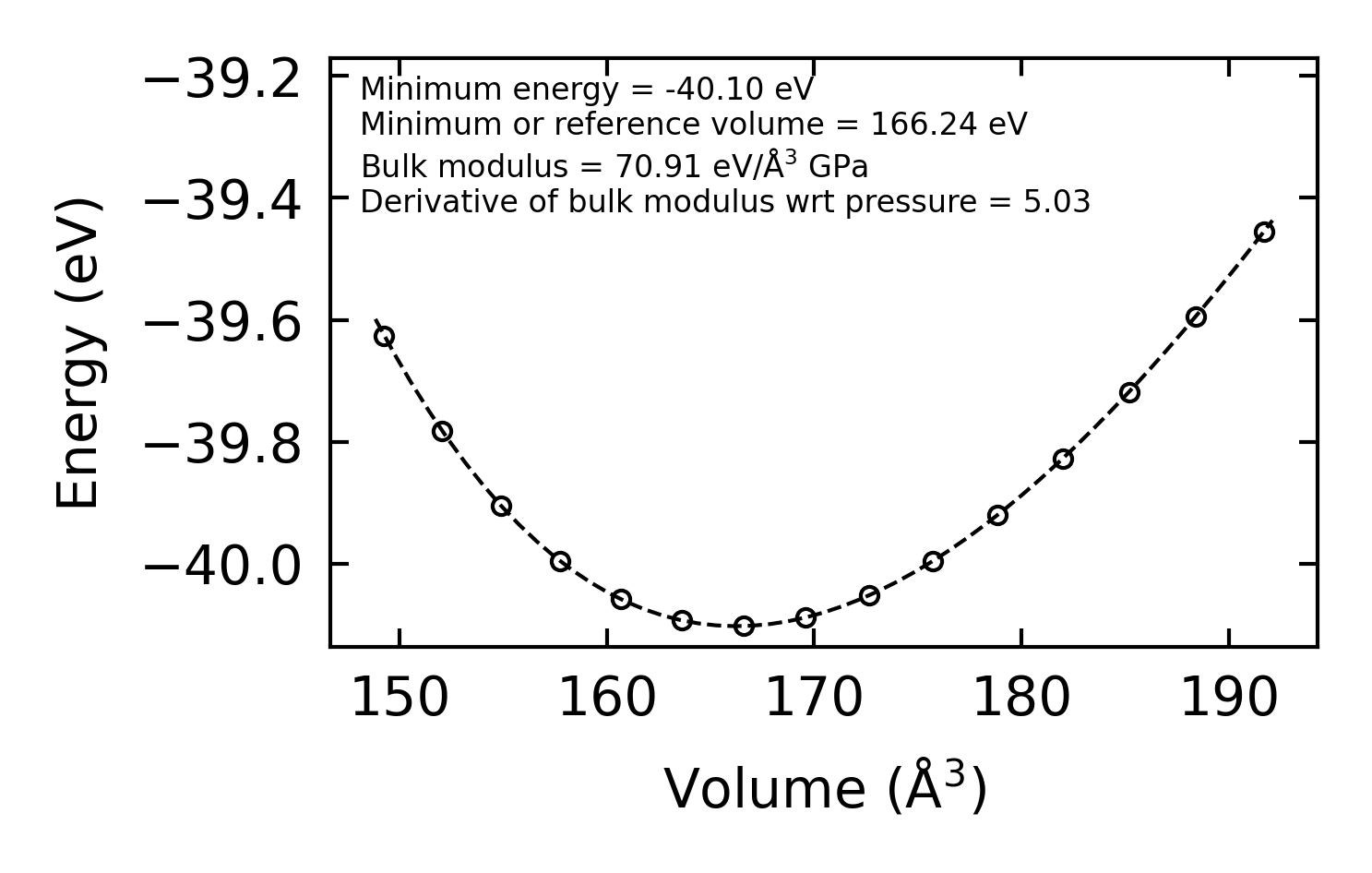

../../_images/fig_bm882.png — (a) Equation of state

Harmonic properties

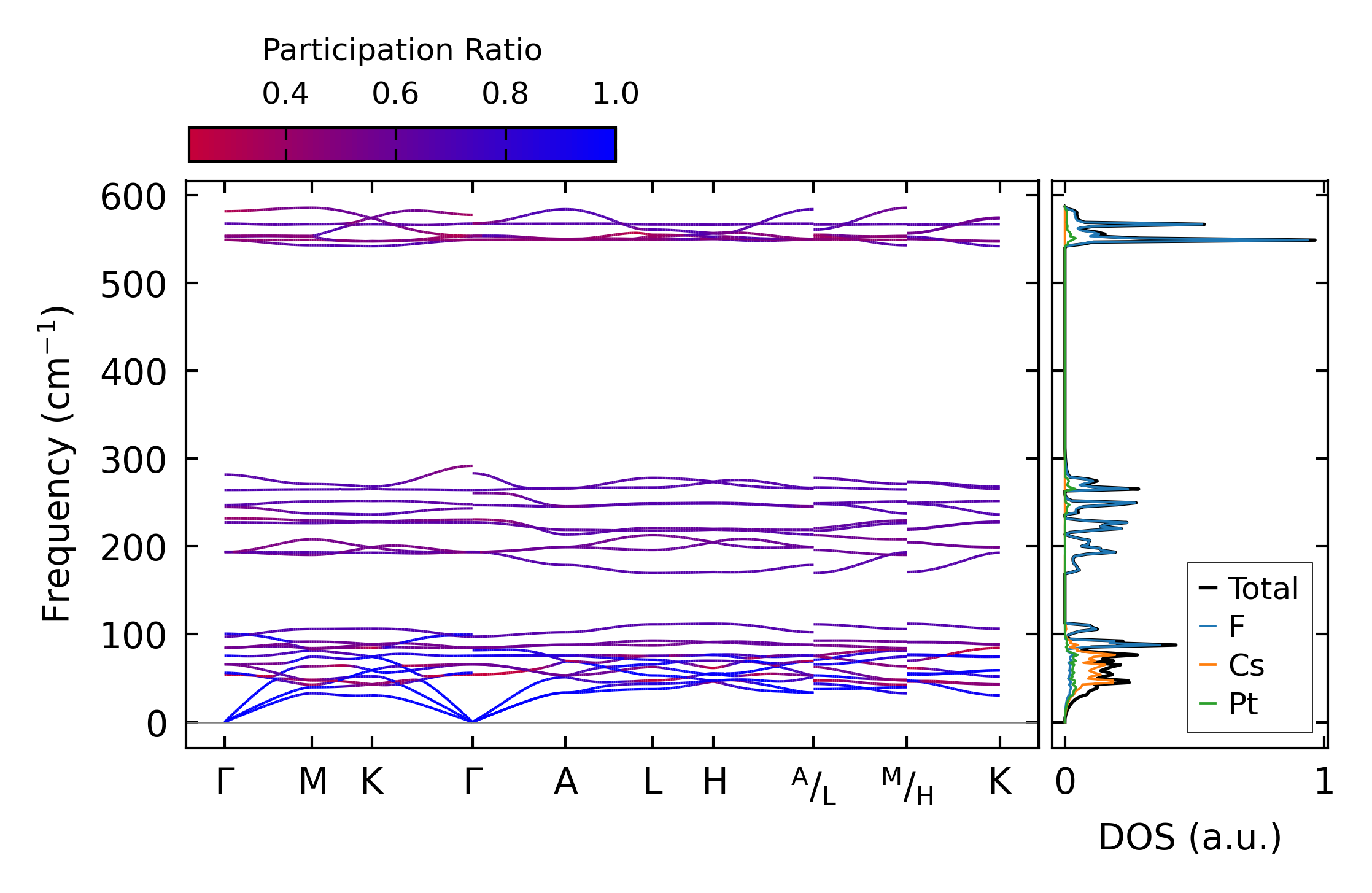

../../_images/fig_bandos_pr2069.png — (a) Phonon dispersion with participation ratio and DOS

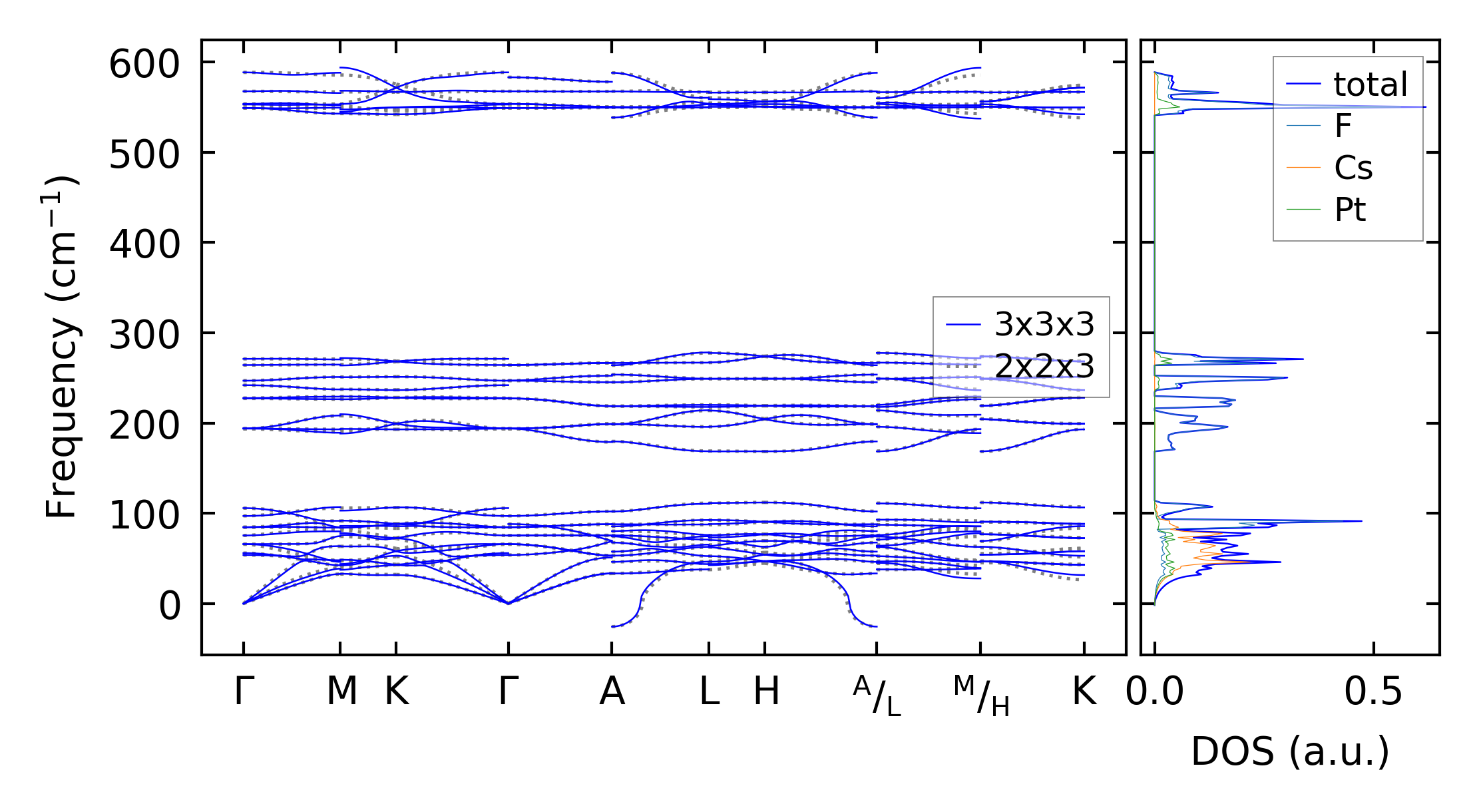

../../_images/fig_bandos2124.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo2069.png — (c) Thermodynamic properties

Grüneisen parameters

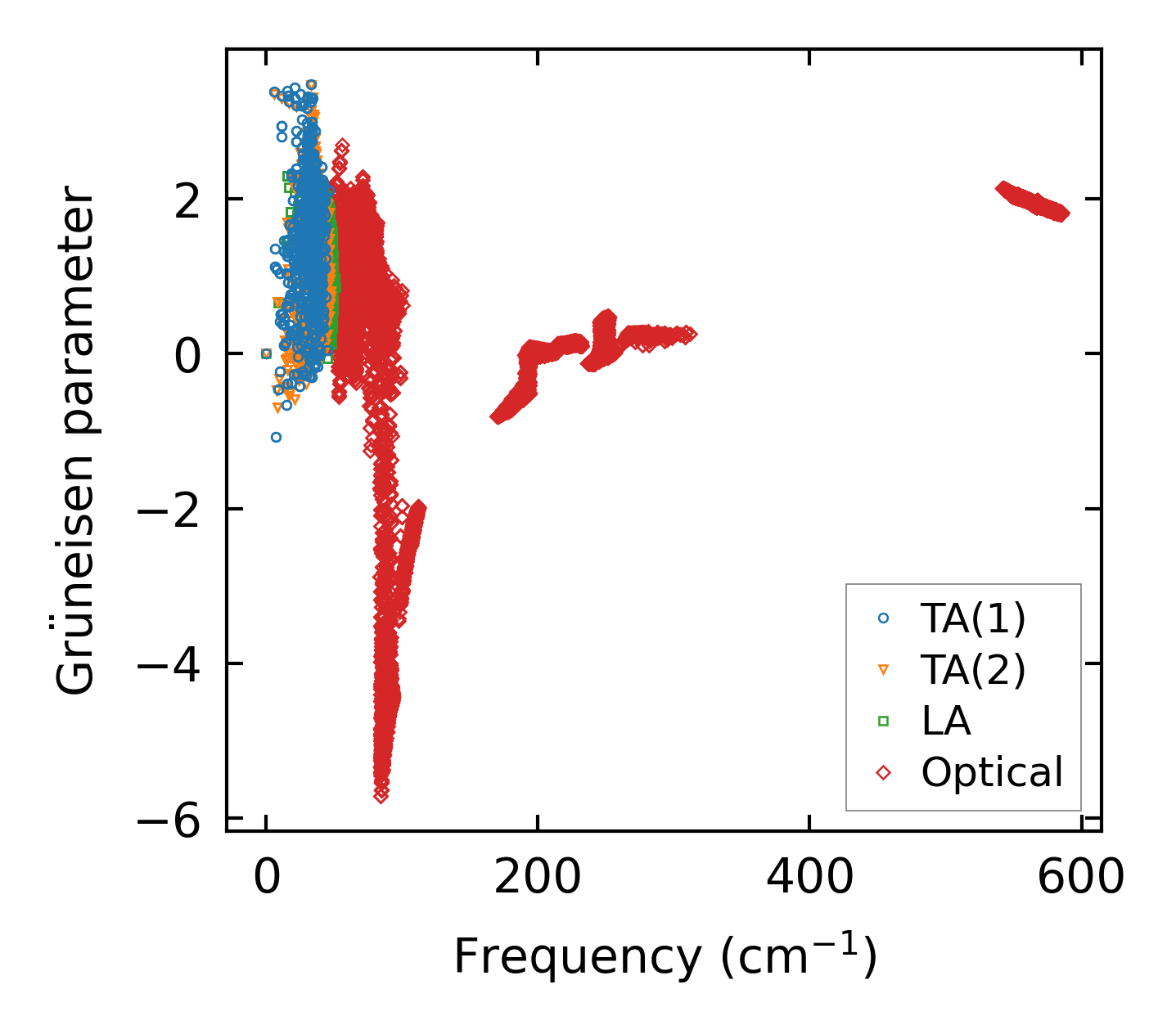

../../_images/fig_gru_all1181.png — (a) Grüneisen parameters

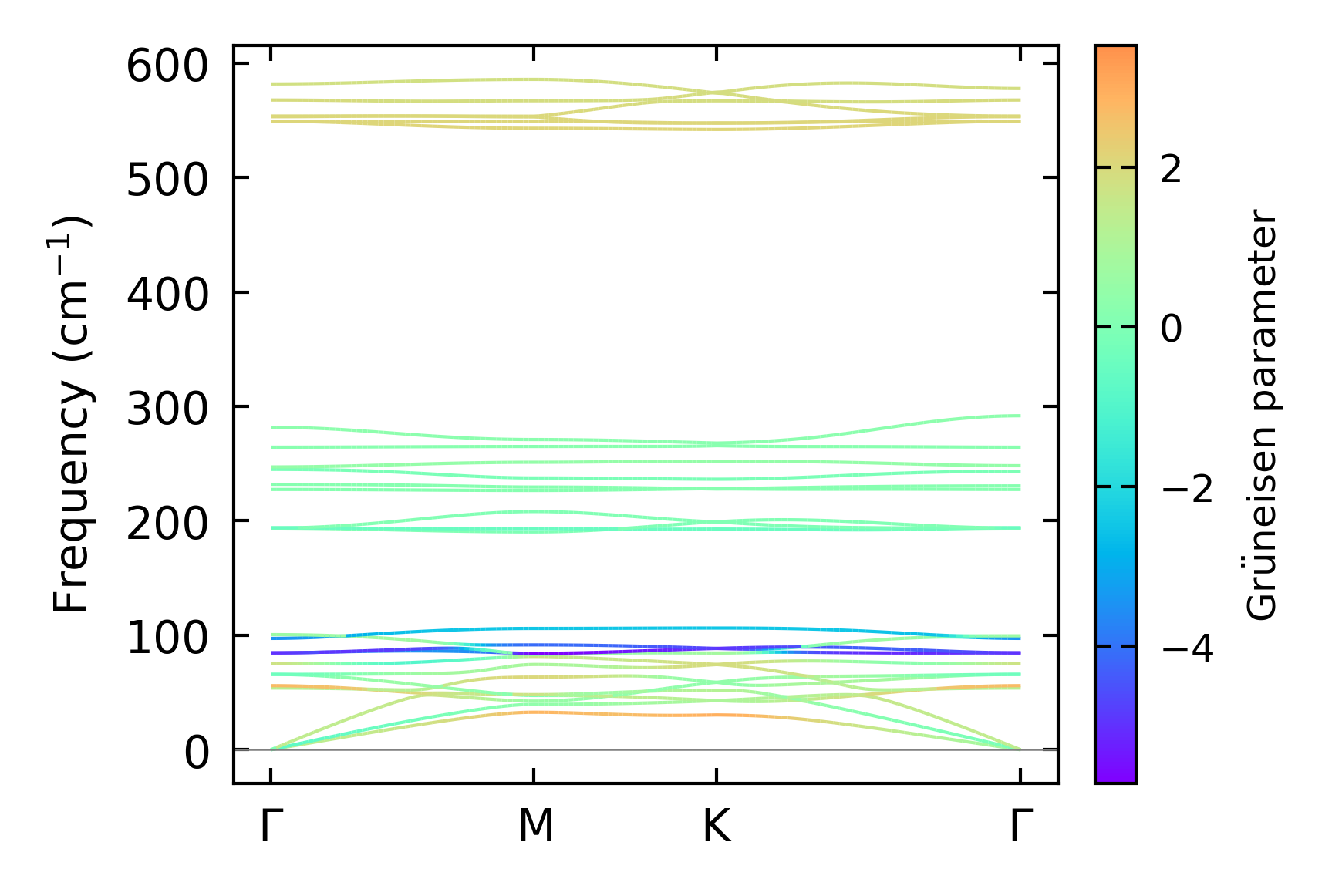

../../_images/fig_gruneisen1181.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x15, supercell: 2x2x3

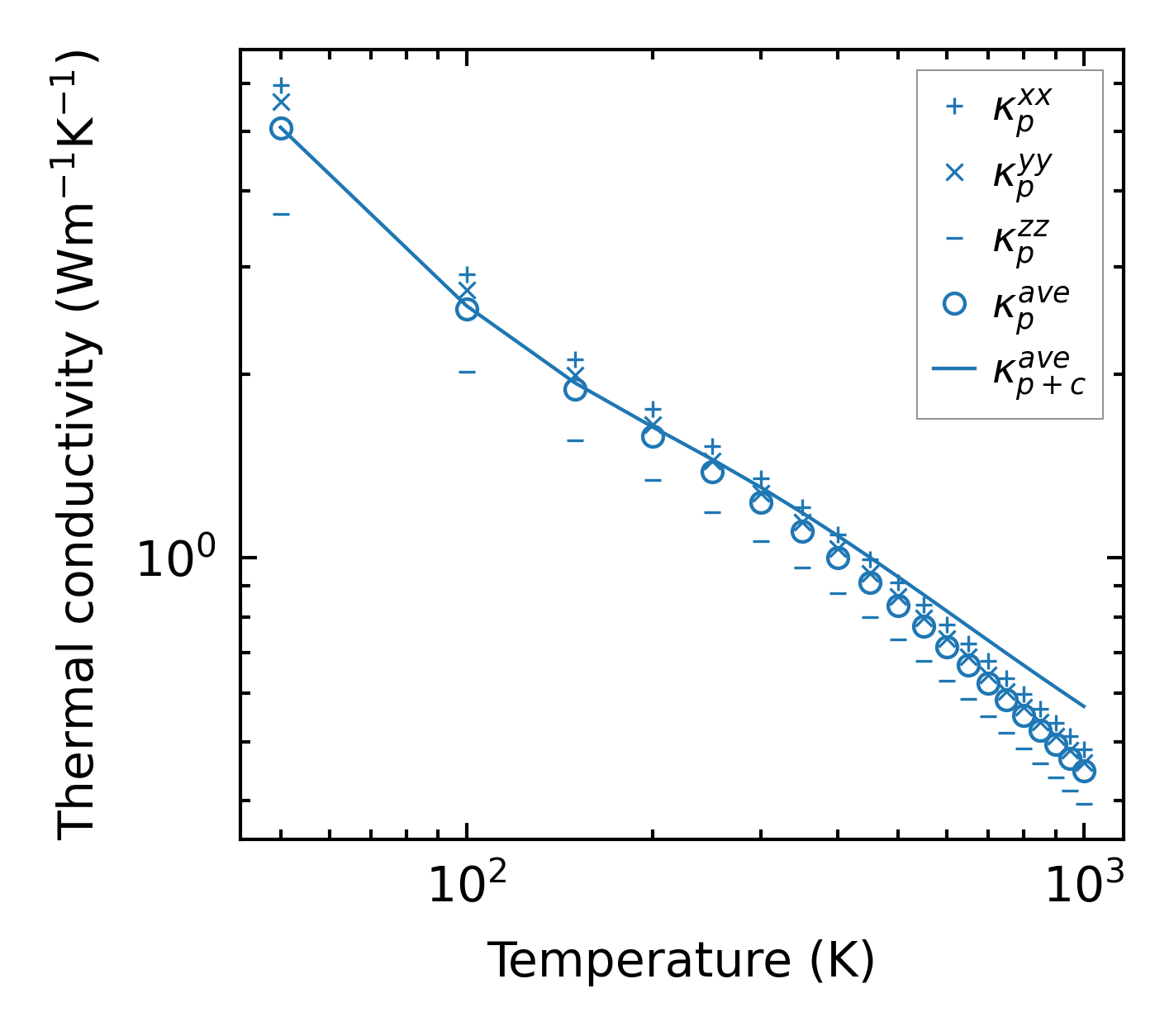

../../_images/fig_kappa2276.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1195.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1171.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1170.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1171.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1171.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

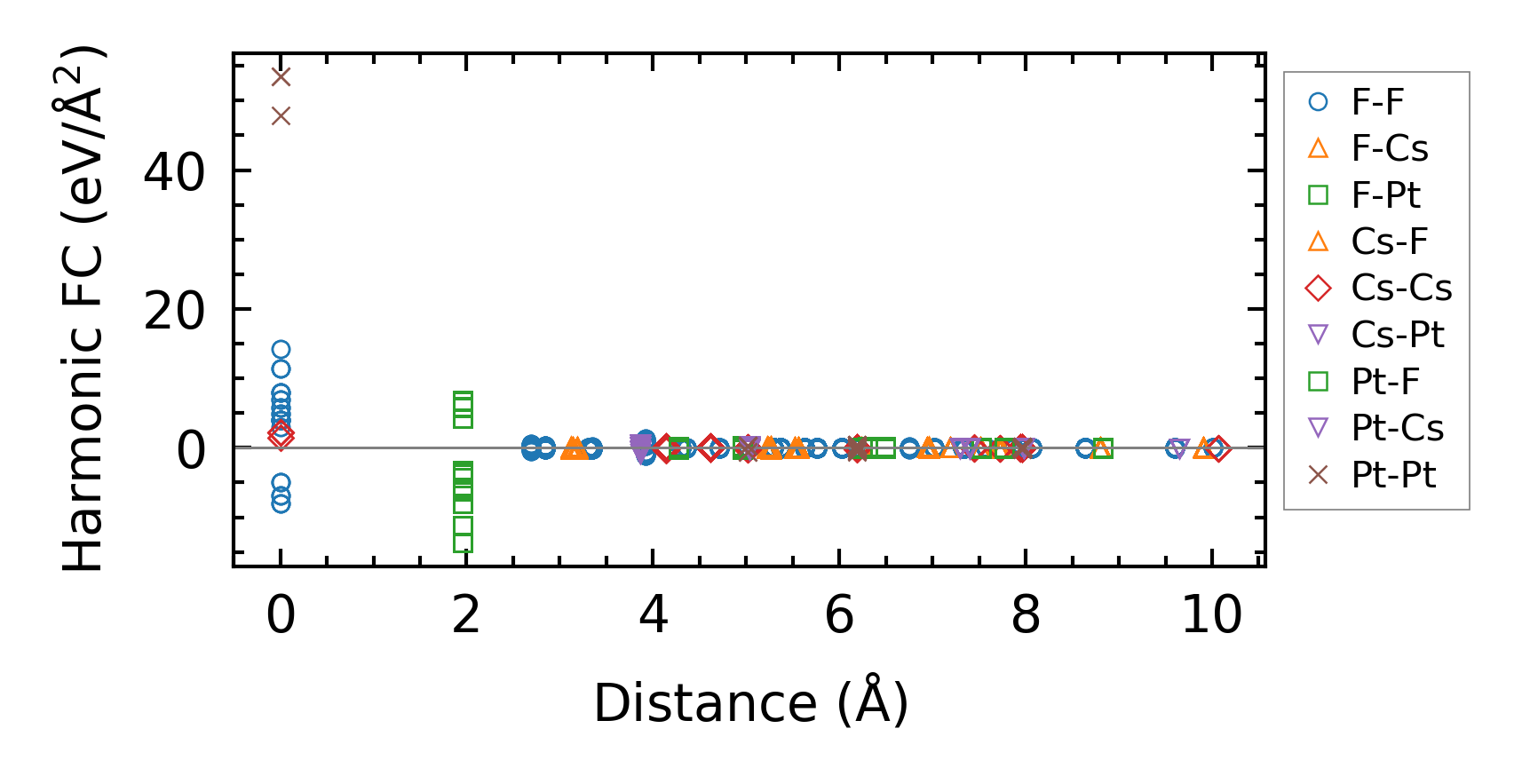

../../_images/fig_fc21890.png — (a) Force constants w.r.t atomic distance

Summary

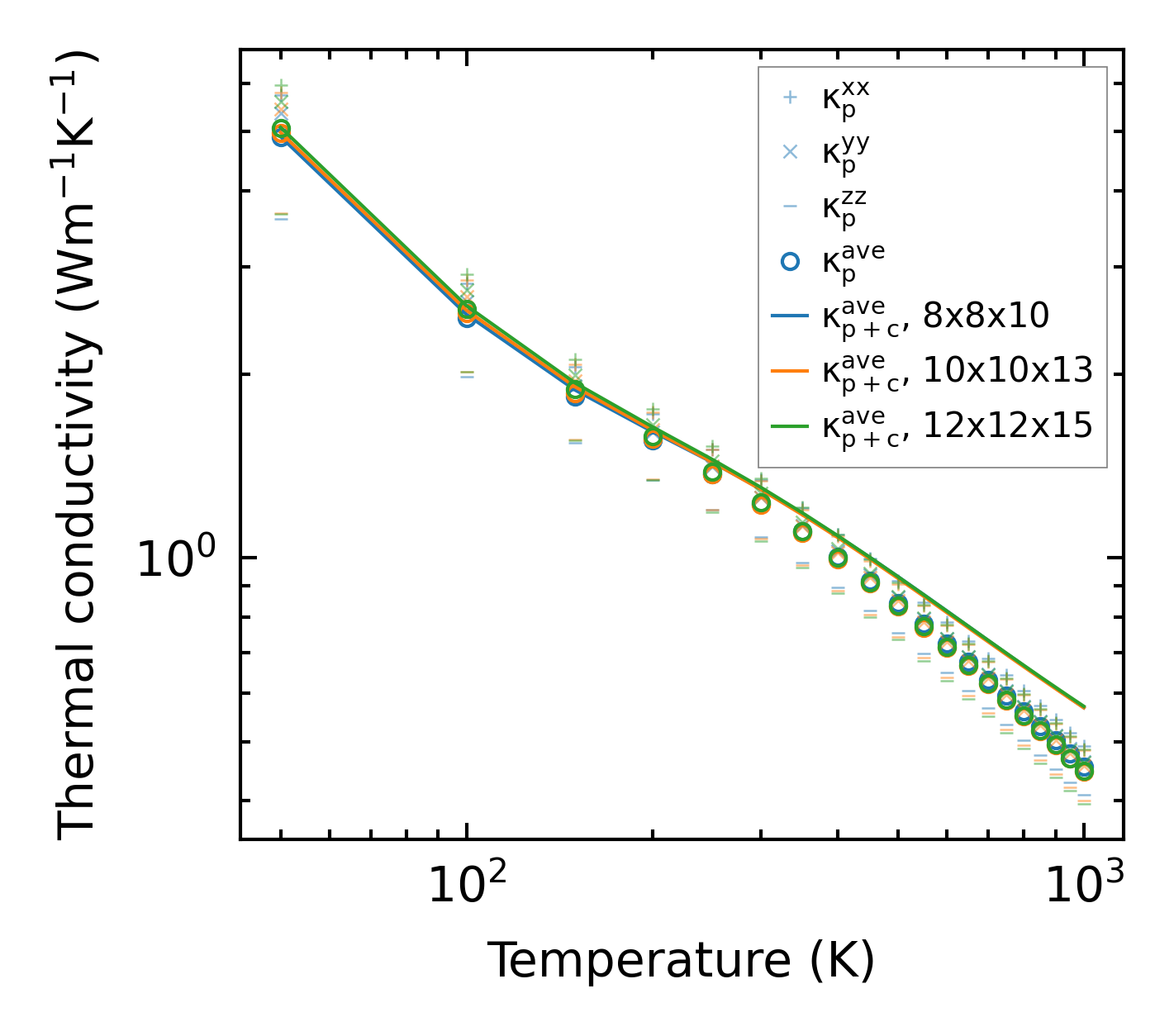

../../_images/fig_kappa2277.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times3185.png — (b) Computation time
