mp-29988/CsPd2Cl5/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-29988.tar.gz

Harmonic properties

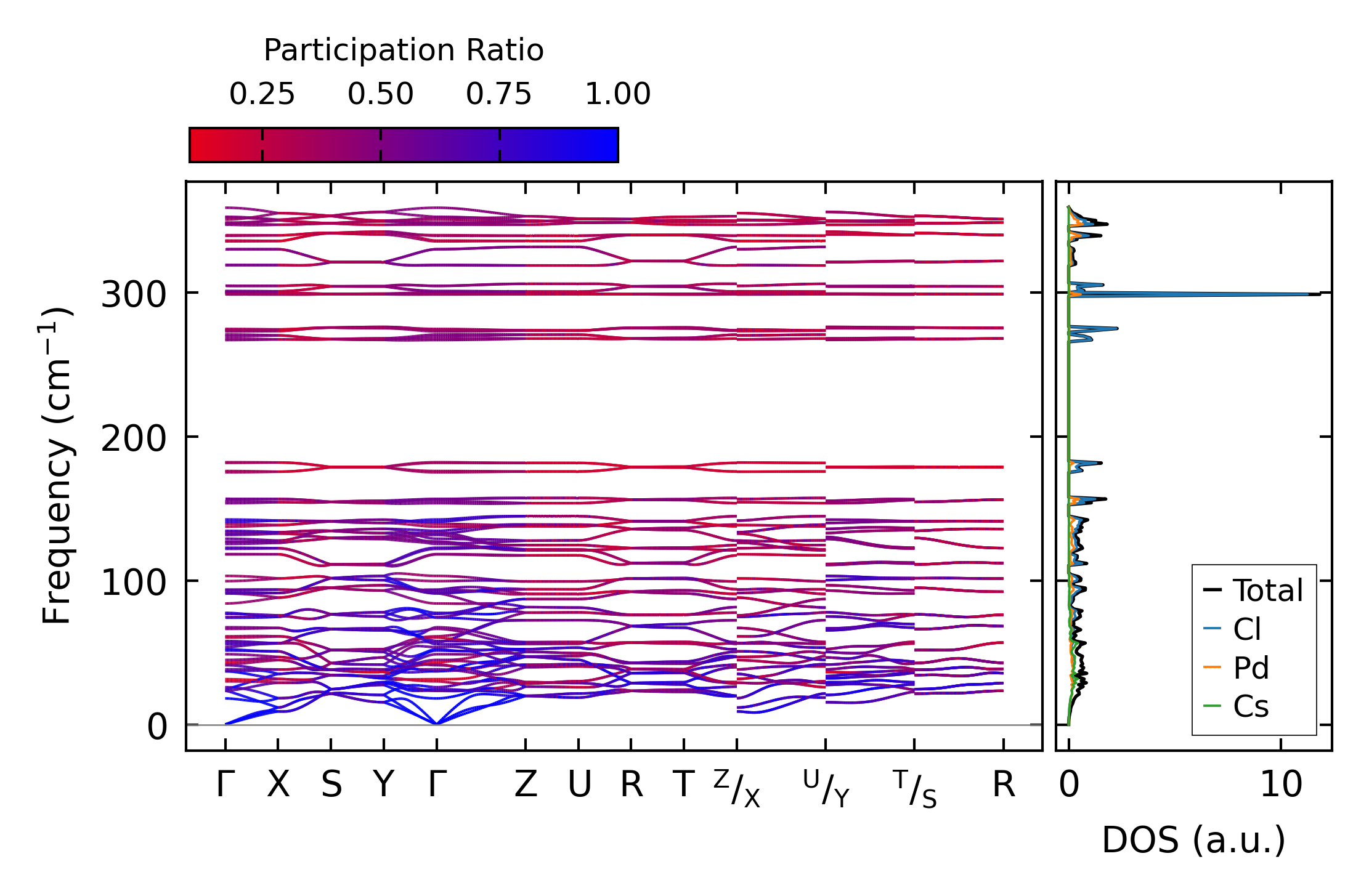

../../_images/fig_bandos_pr11056.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11056.png — (b) Thermodynamic properties

Grüneisen parameters

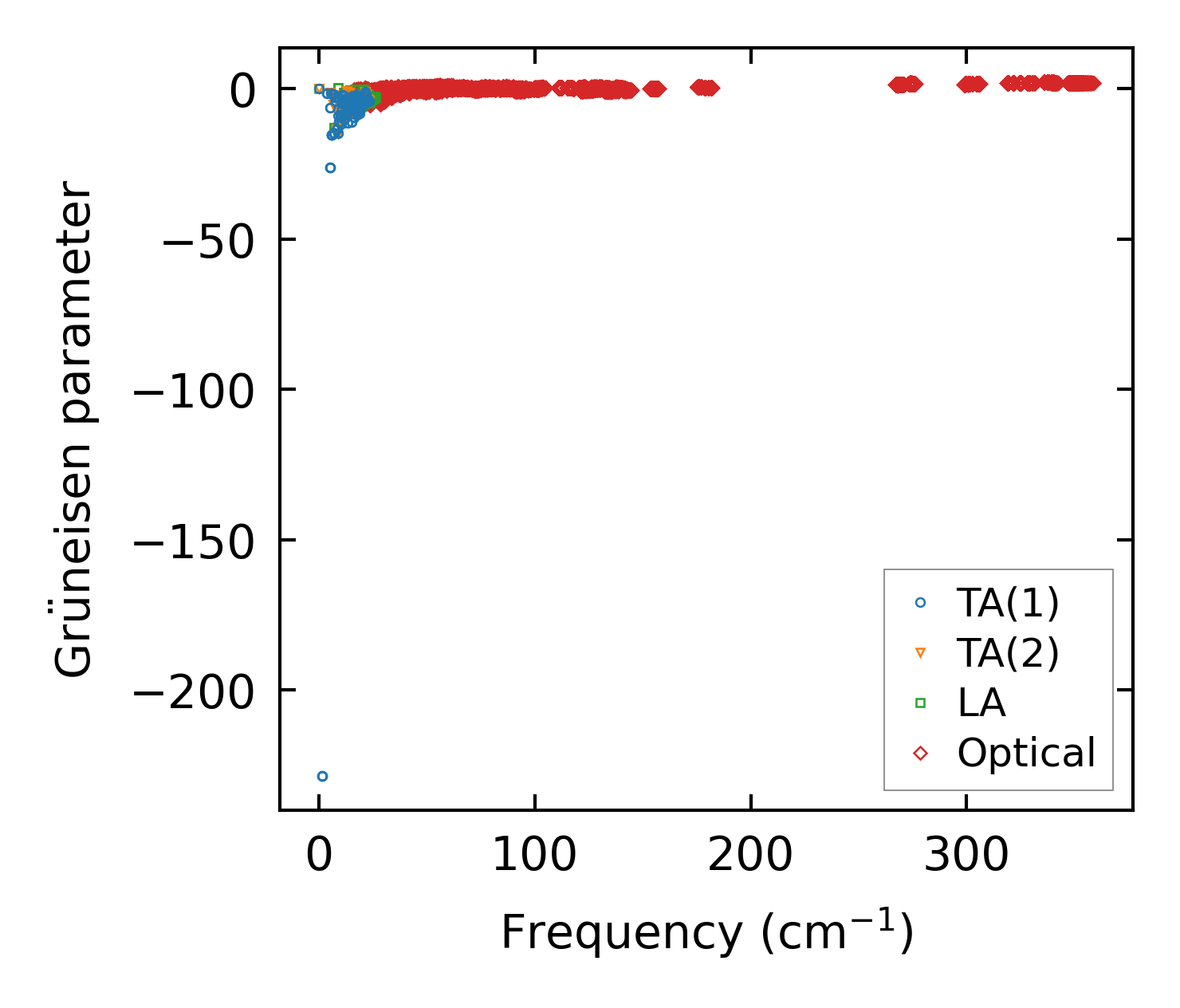

../../_images/fig_gru_all4544.png — (a) Grüneisen parameters

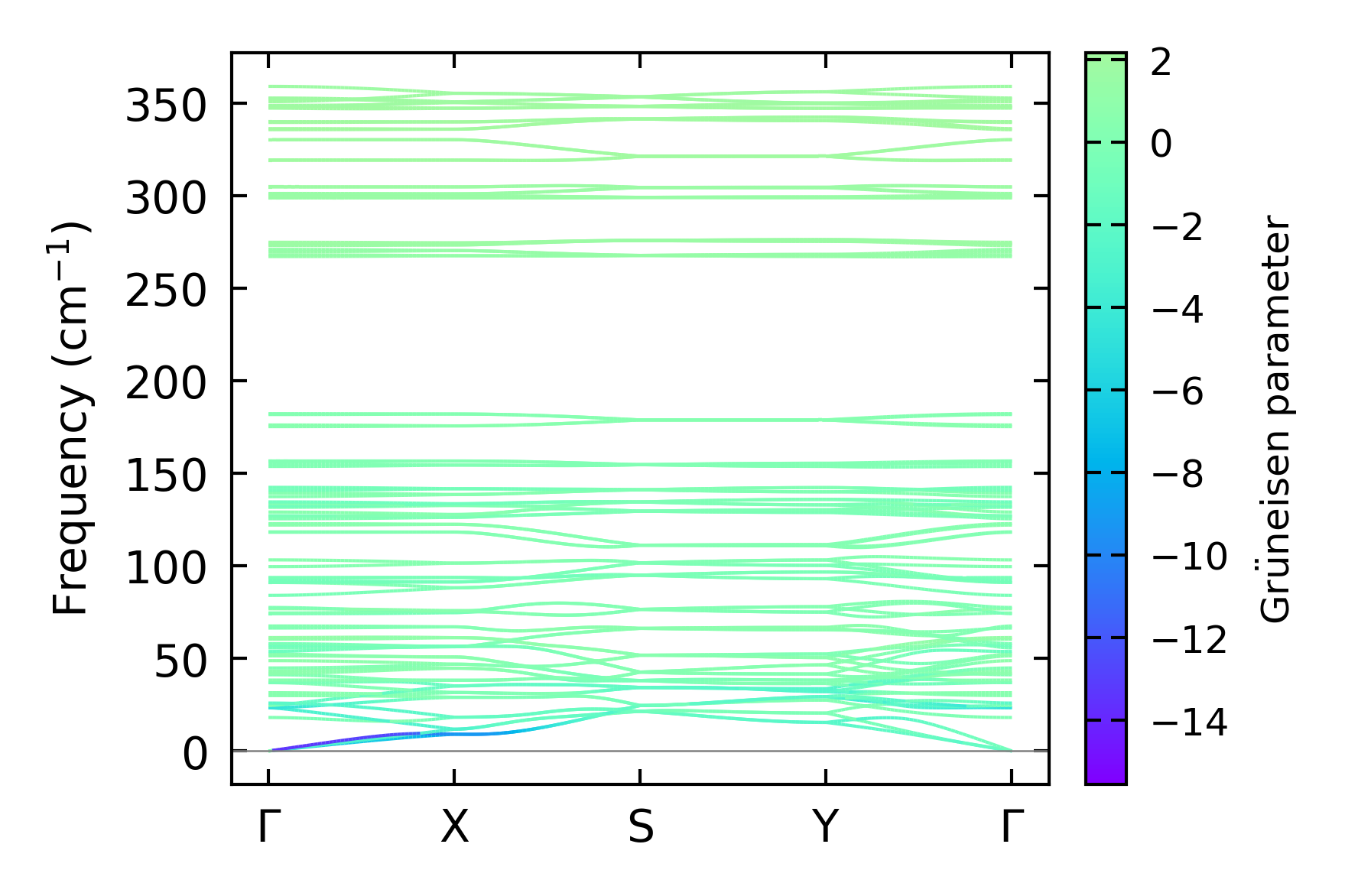

../../_images/fig_gruneisen4544.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x6x13, supercell: 1x2x2

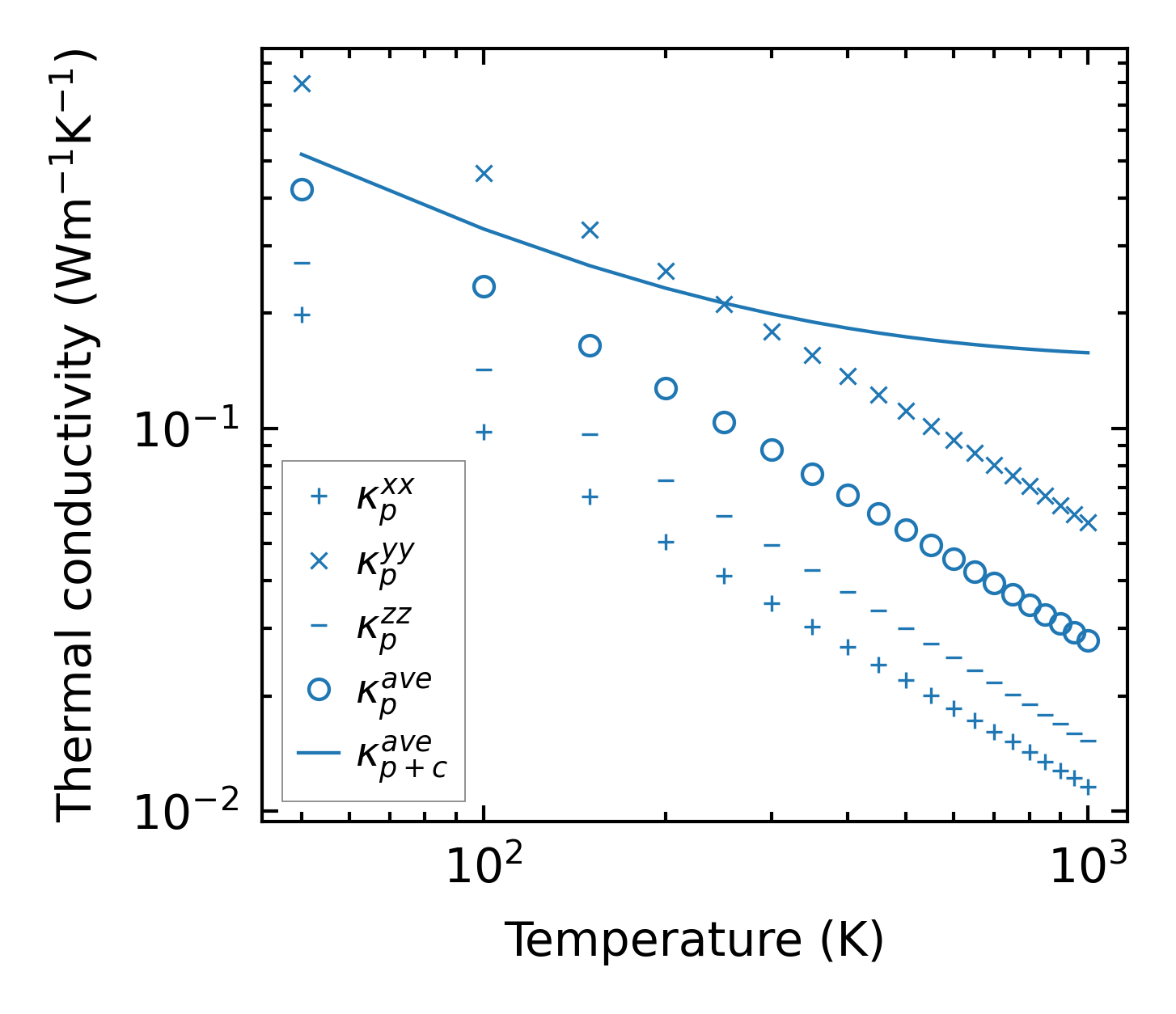

../../_images/fig_kappa8573.png — (a) Temperature-dependent lattice thermal conductivity

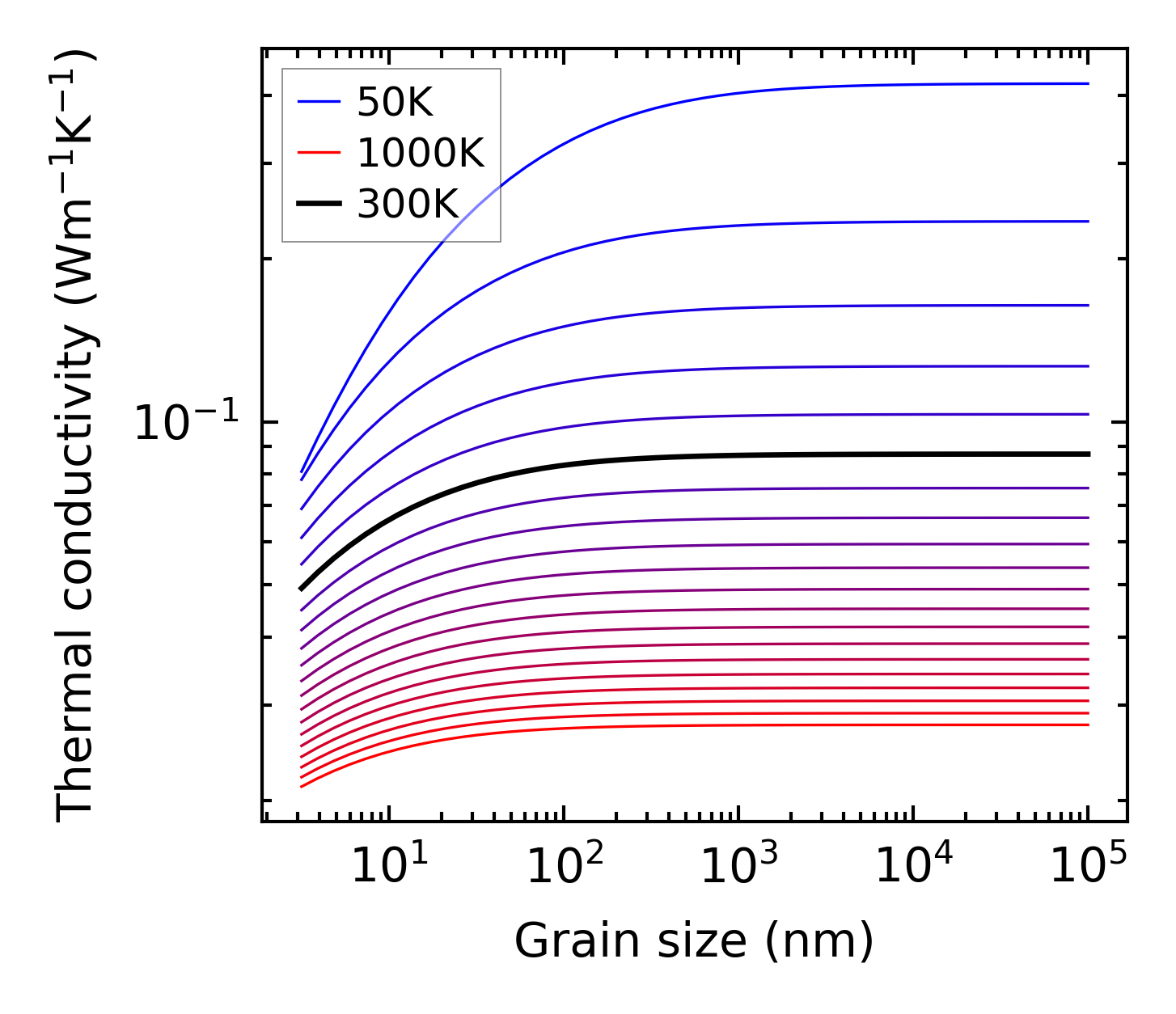

../../_images/fig_kappa_vs_grain_size4599.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

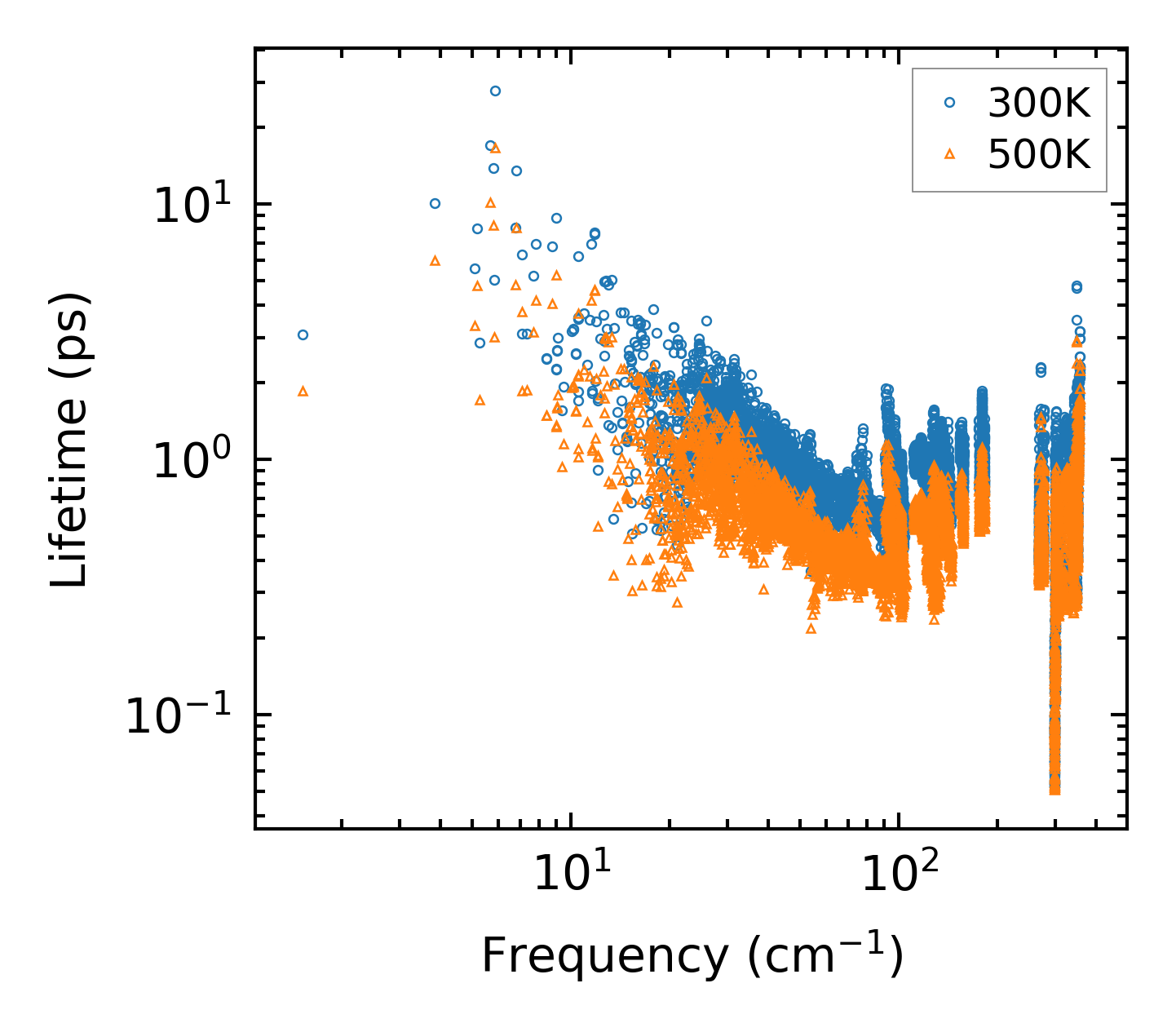

../../_images/fig_lifetime4500.png — (a) Phonon lifetime due to phonon-phonon scattering

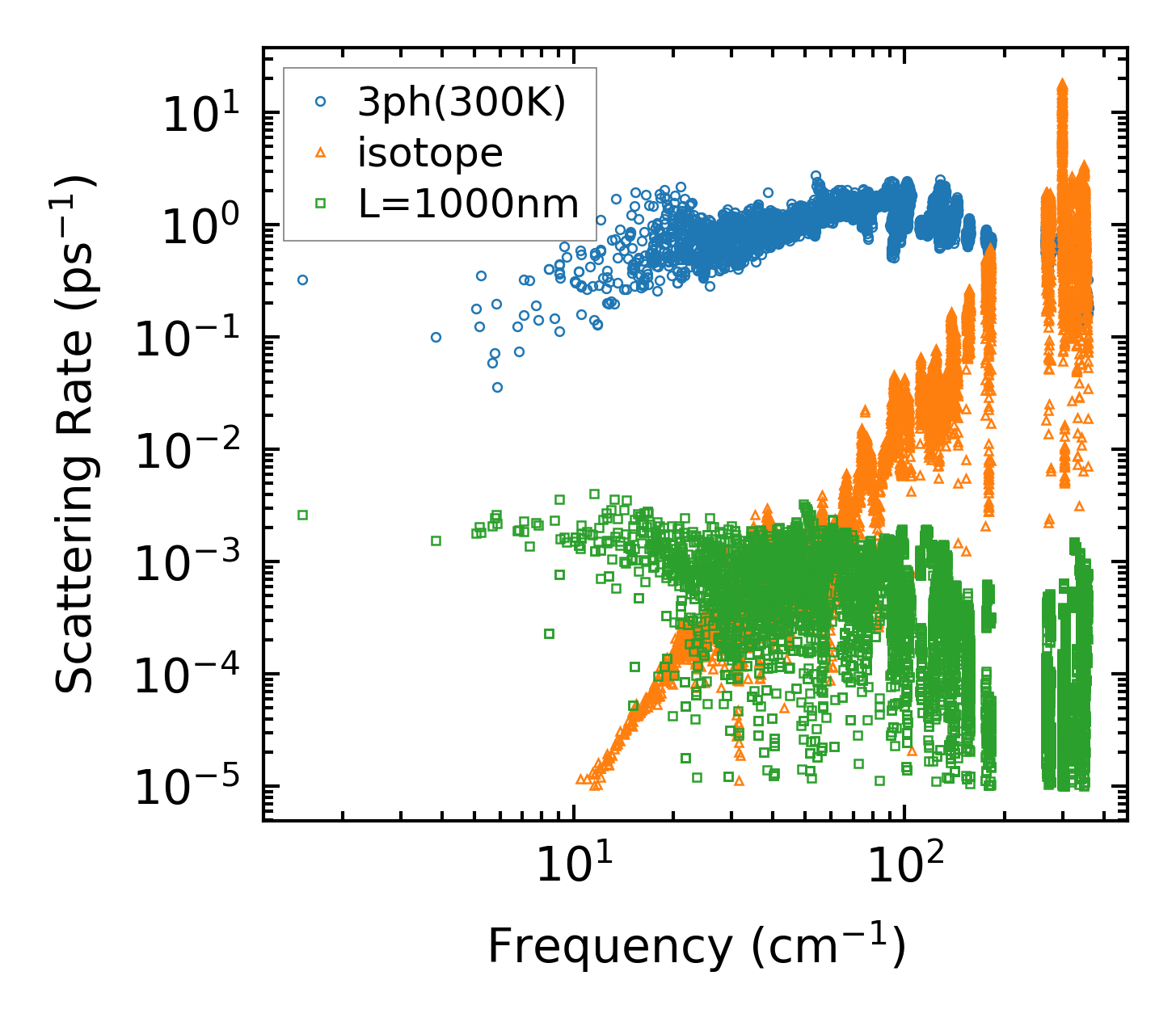

../../_images/fig_scat_rates4499.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

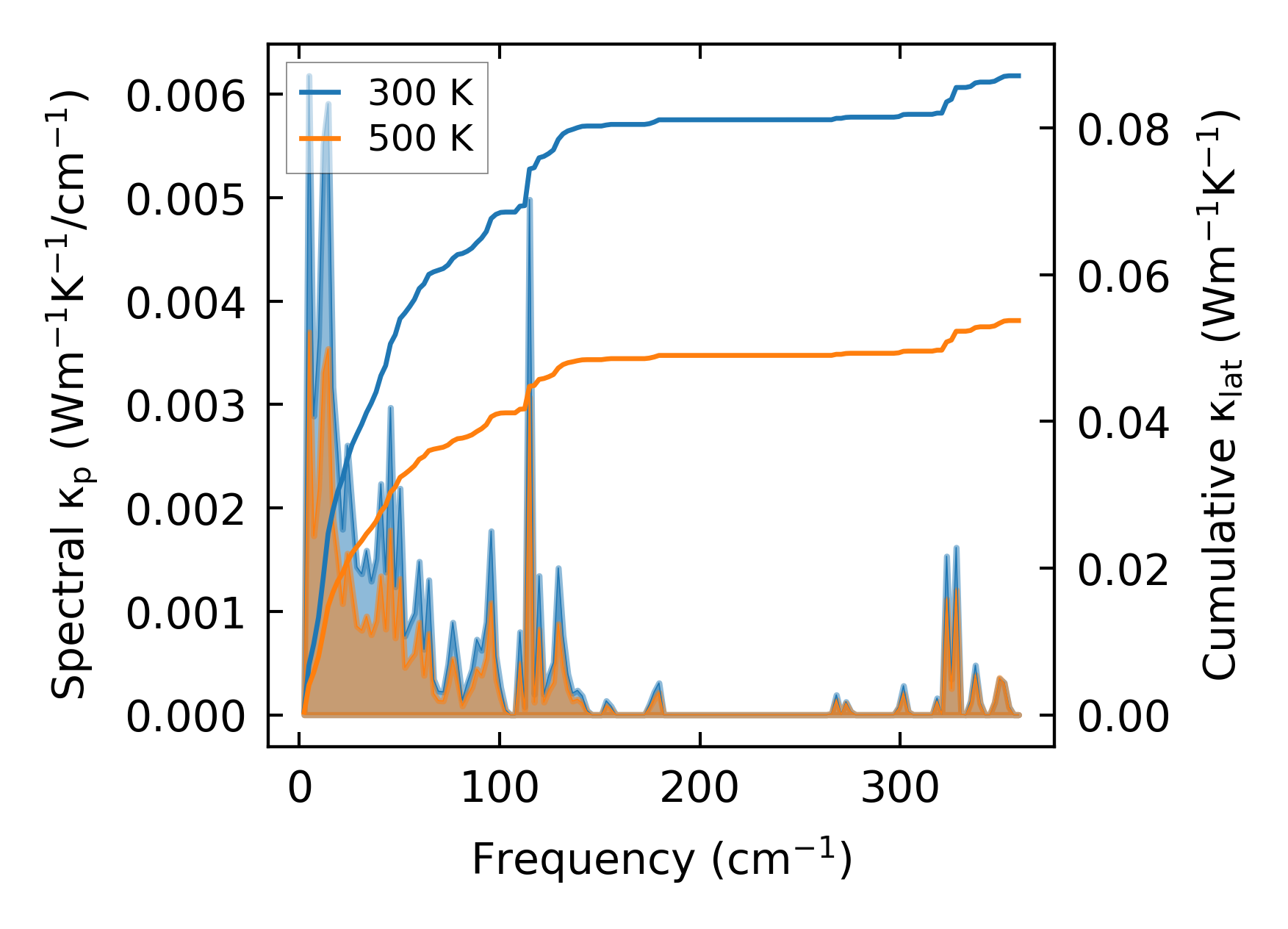

../../_images/fig_cumu_frequency4500.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

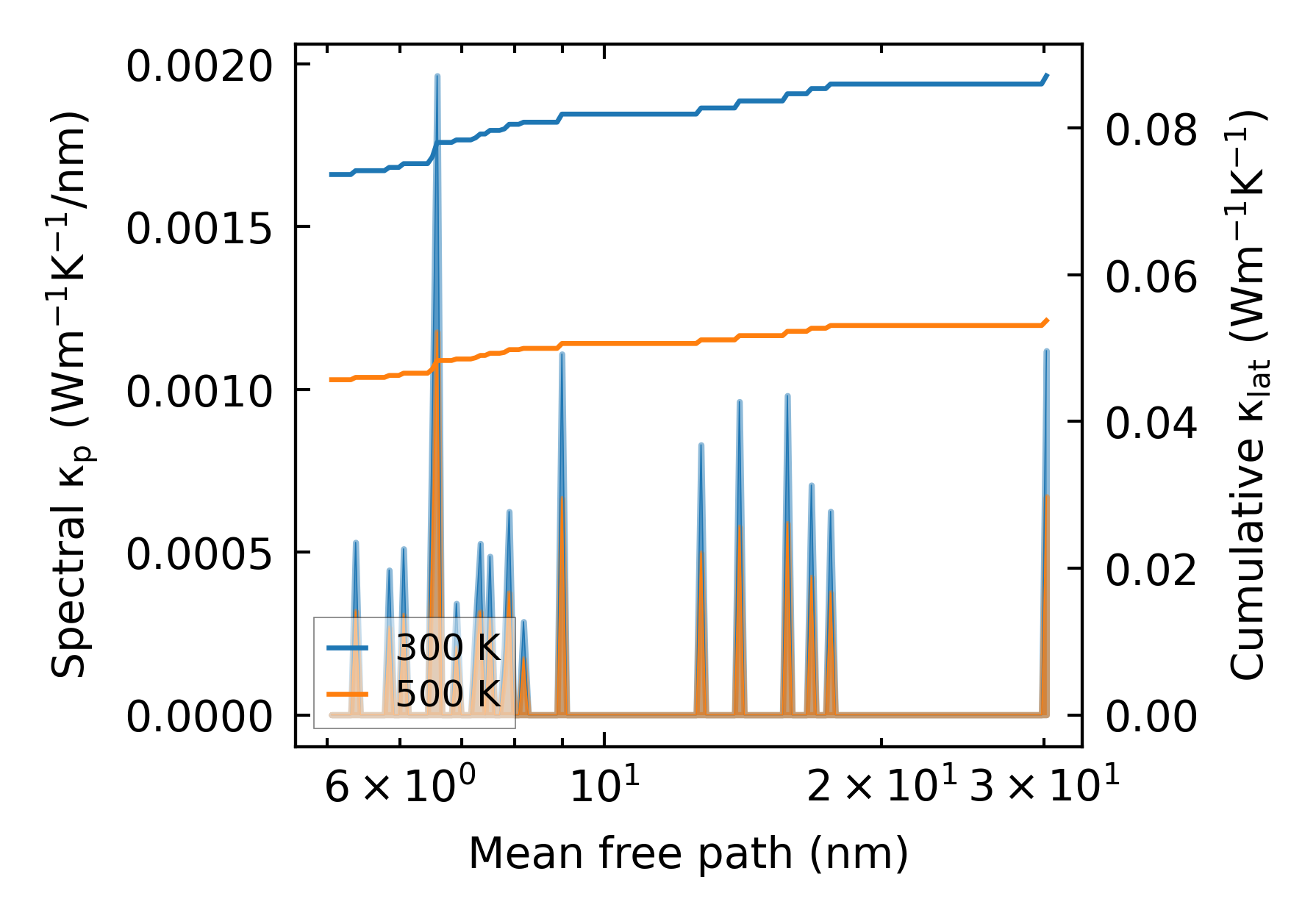

../../_images/fig_cumu_mfp4499.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

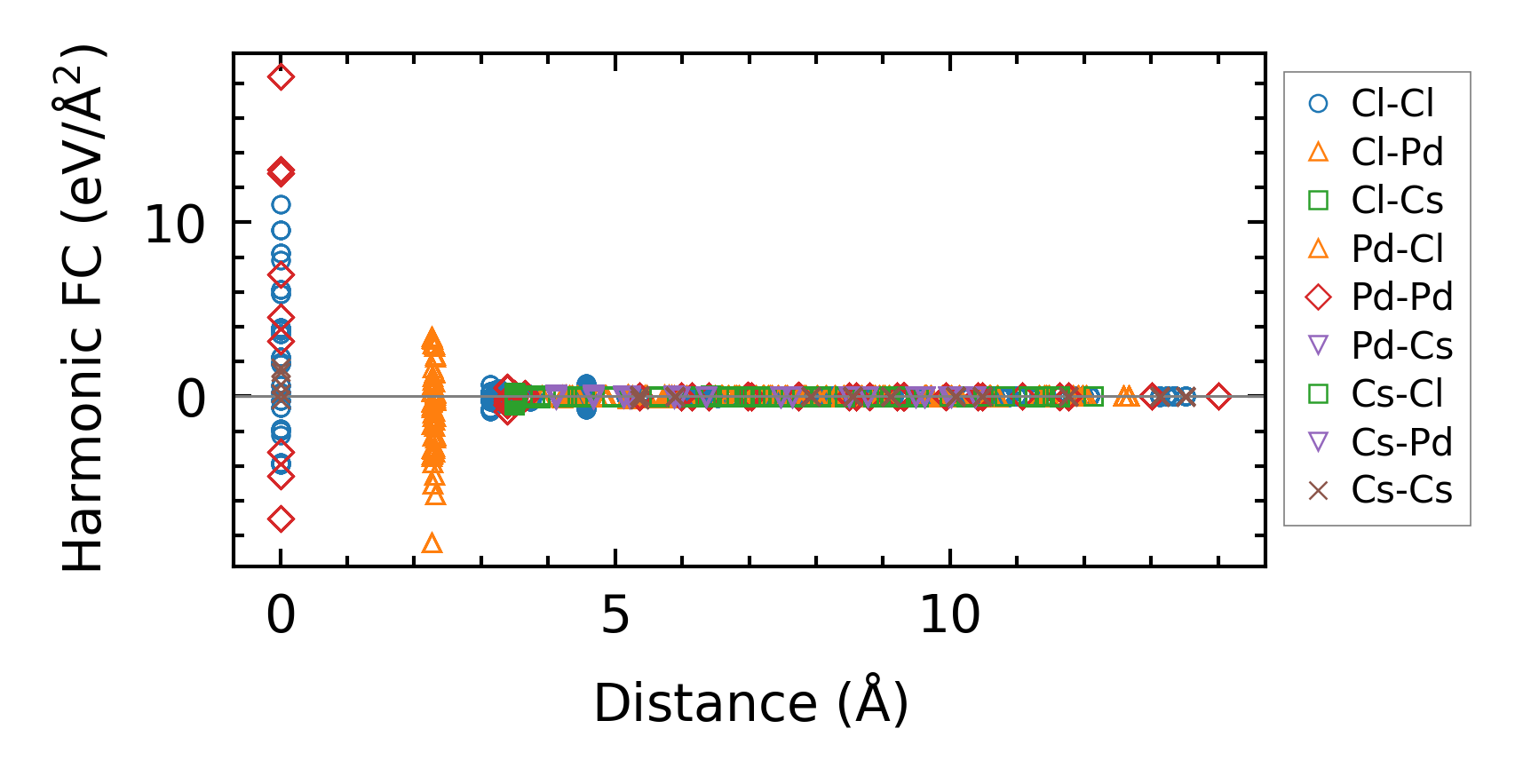

../../_images/fig_fc210780.png — (a) Force constants w.r.t atomic distance

Summary

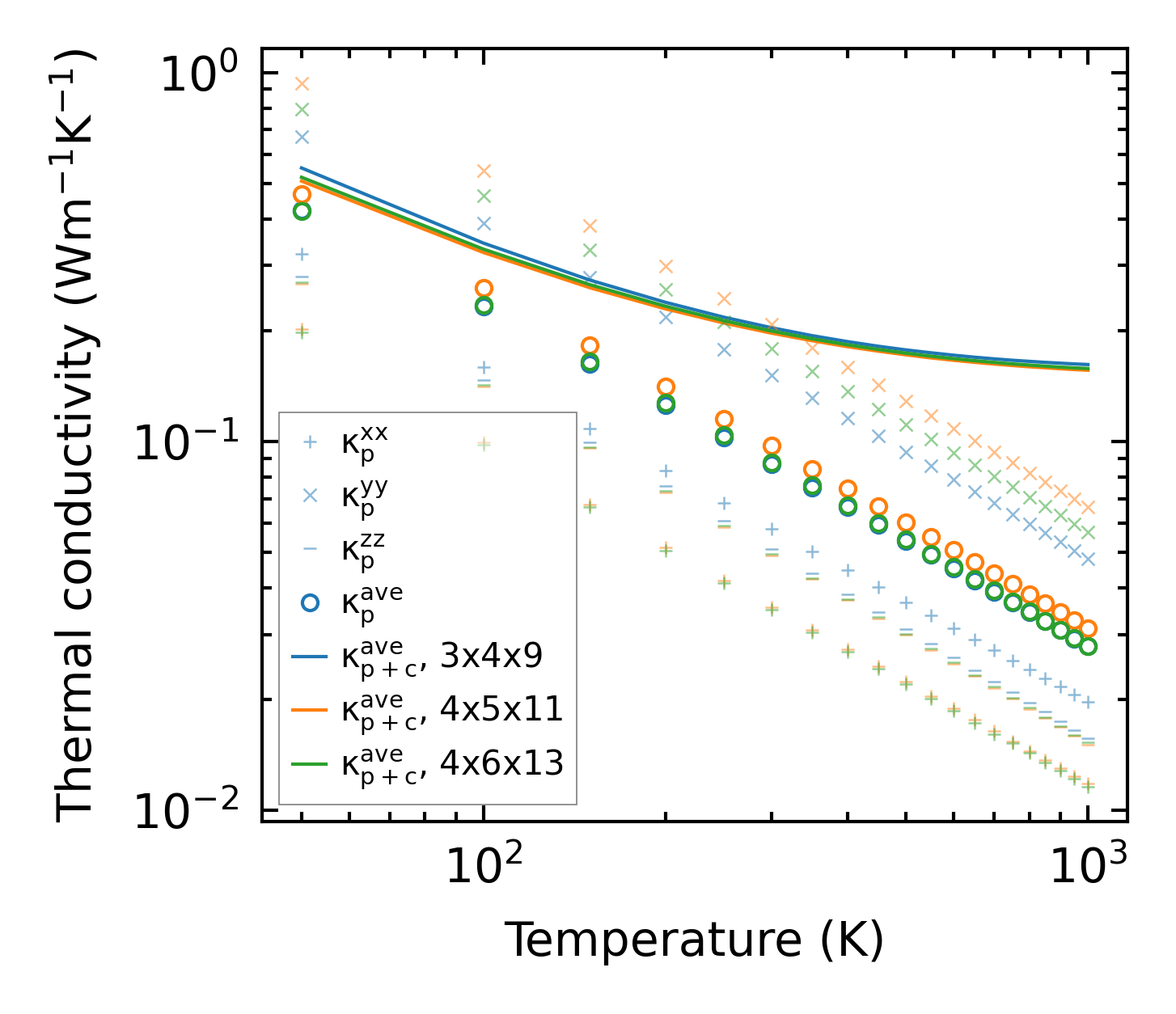

../../_images/fig_kappa8574.png — (a) Temperature-dependent lattice thermal conductivity

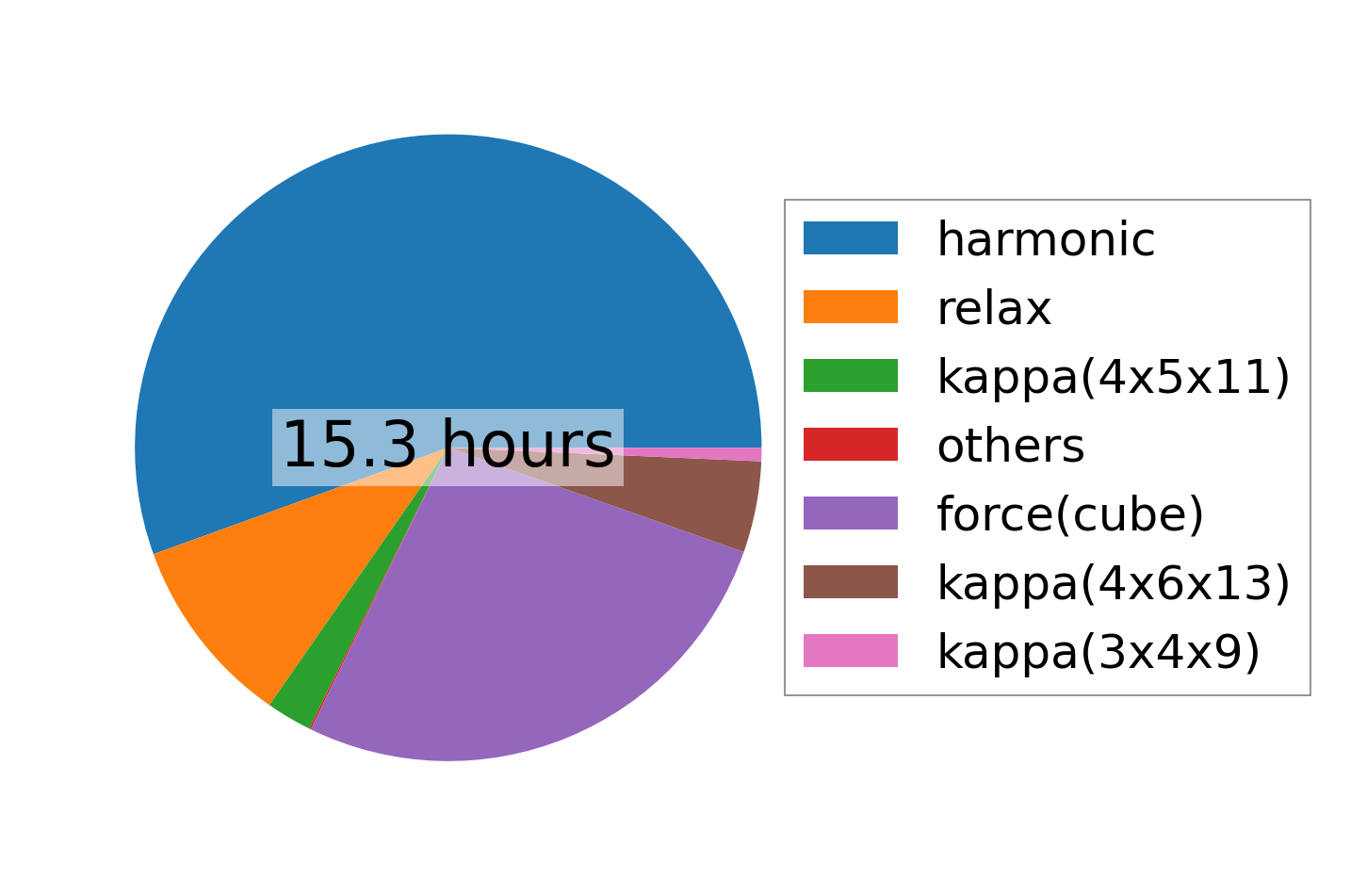

../../_images/fig_times18881.png — (b) Computation time
