mp-29468/Rb6Cl4O/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-29468.tar.gz

Harmonic properties

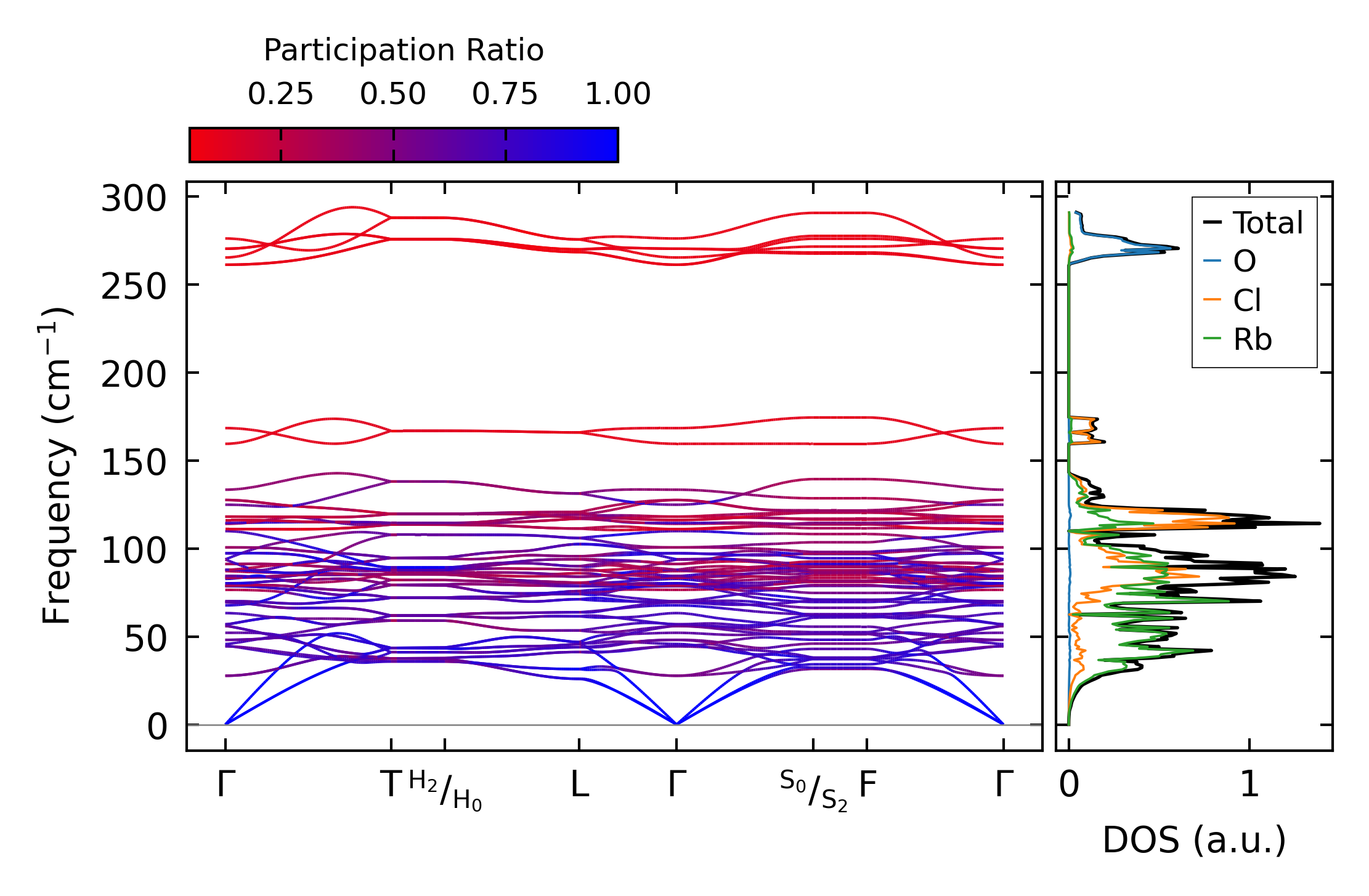

../../_images/fig_bandos_pr11215.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11215.png — (b) Thermodynamic properties

Grüneisen parameters

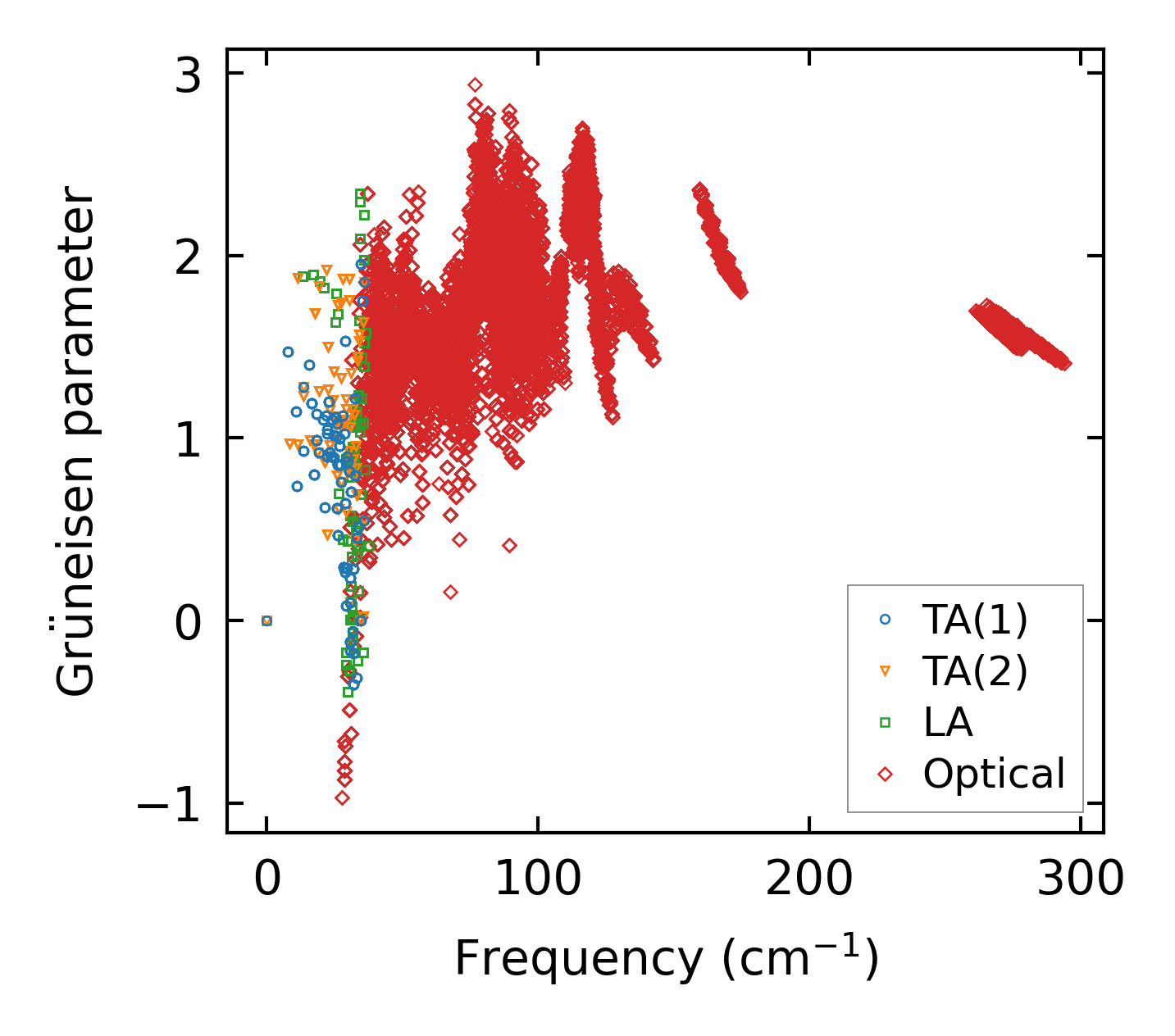

../../_images/fig_gru_all4634.png — (a) Grüneisen parameters

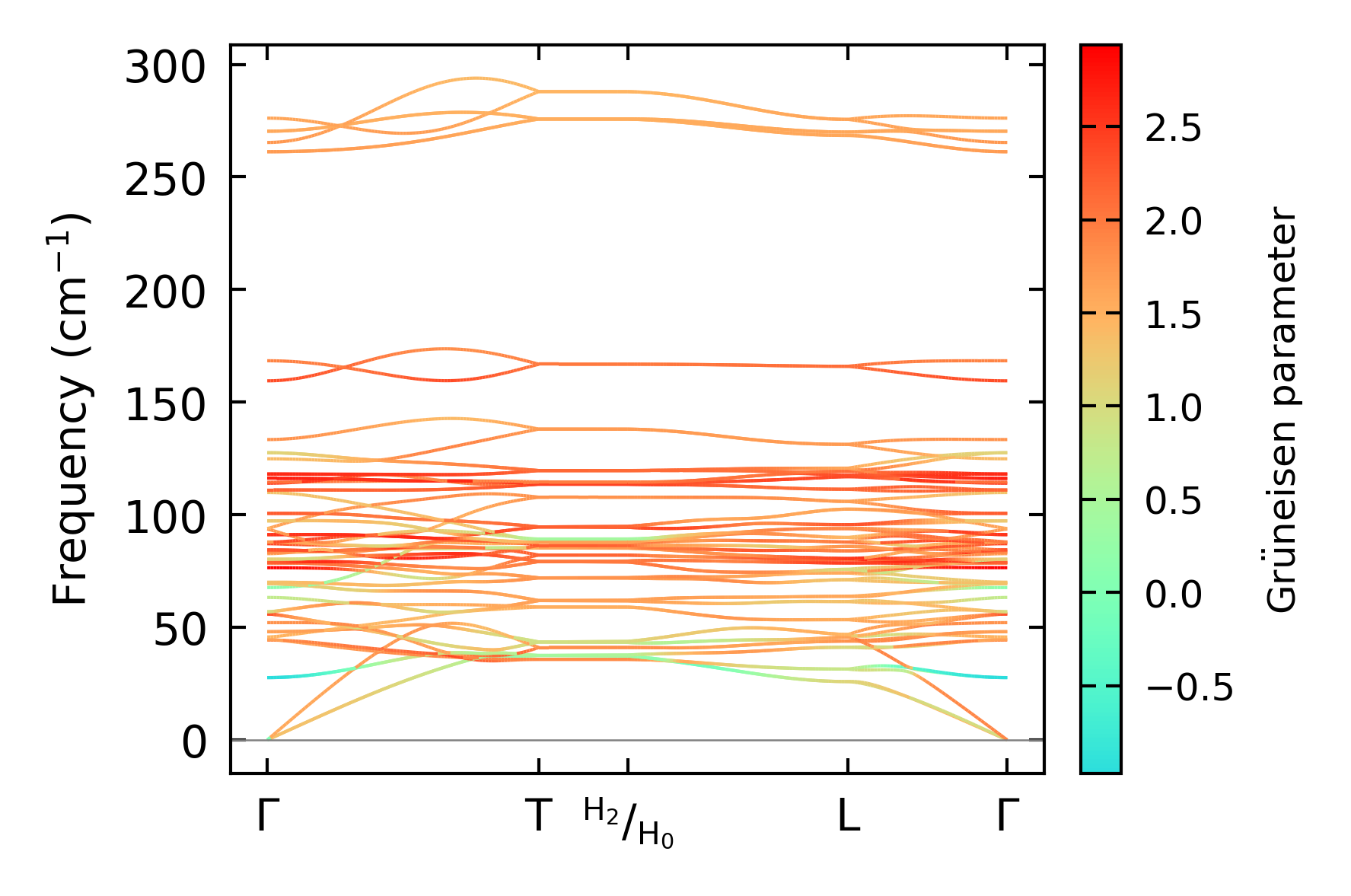

../../_images/fig_gruneisen4634.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x8, supercell: 1x1x1

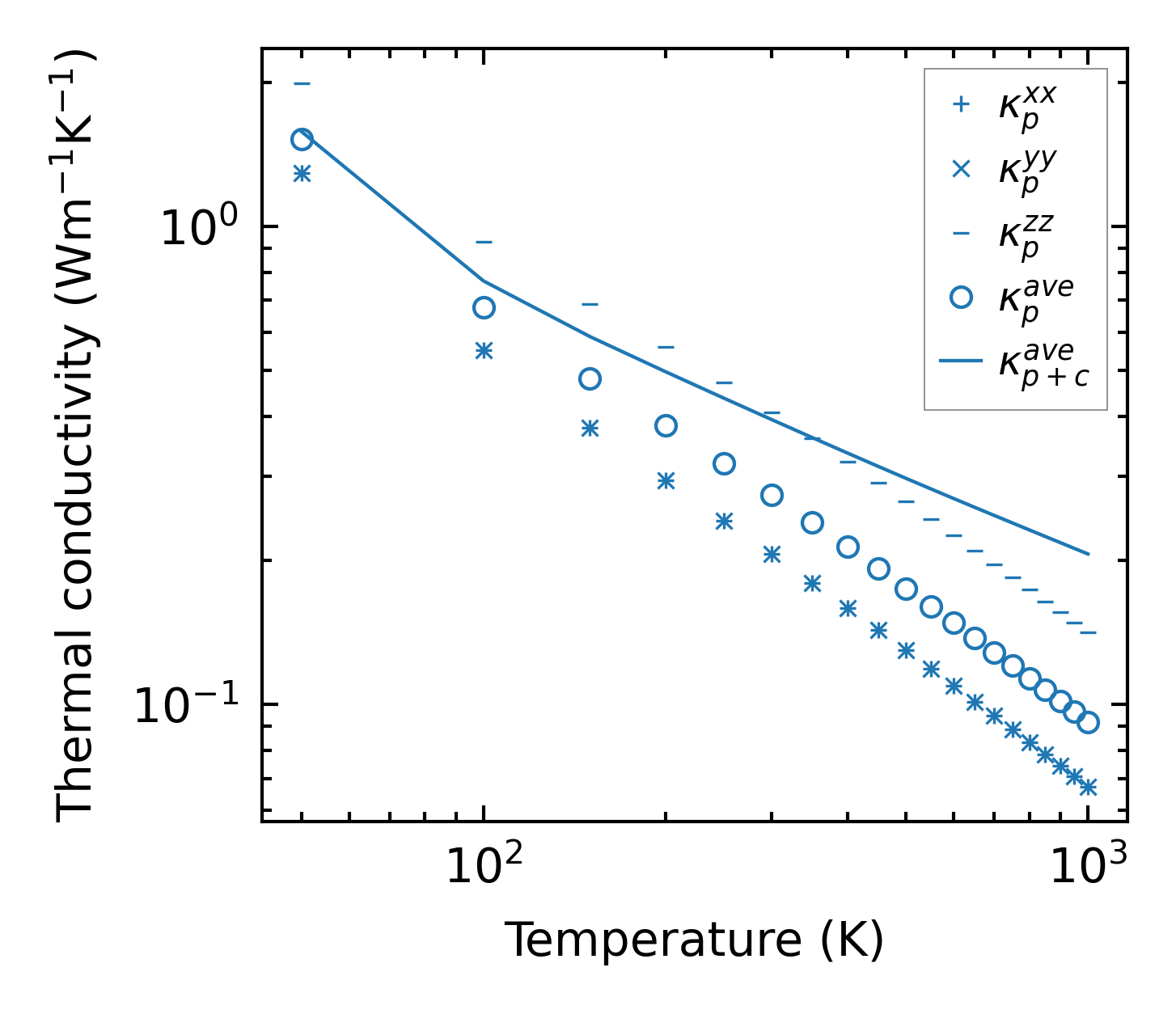

../../_images/fig_kappa8745.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4691.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4590.png — (a) Phonon lifetime due to phonon-phonon scattering

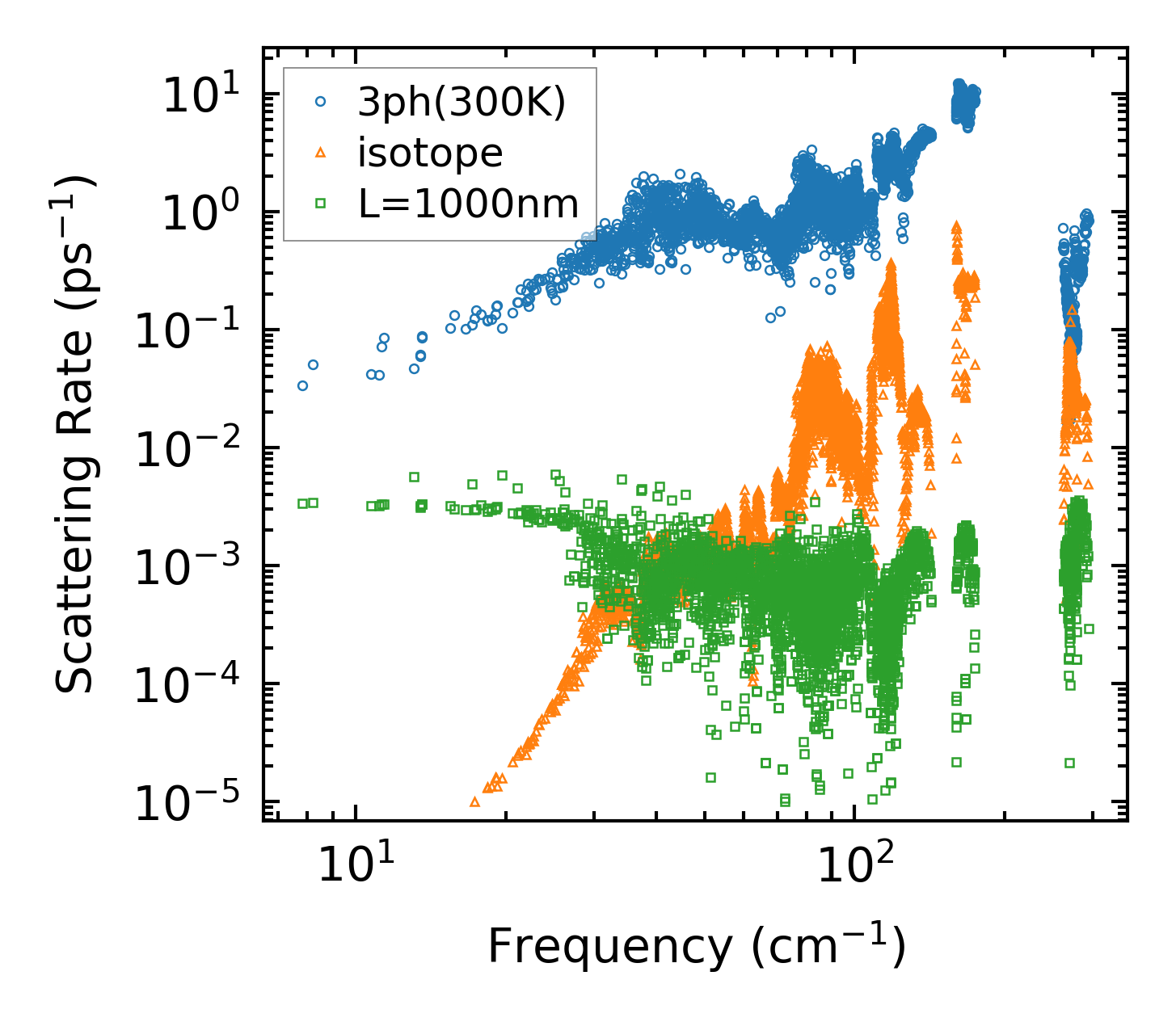

../../_images/fig_scat_rates4589.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

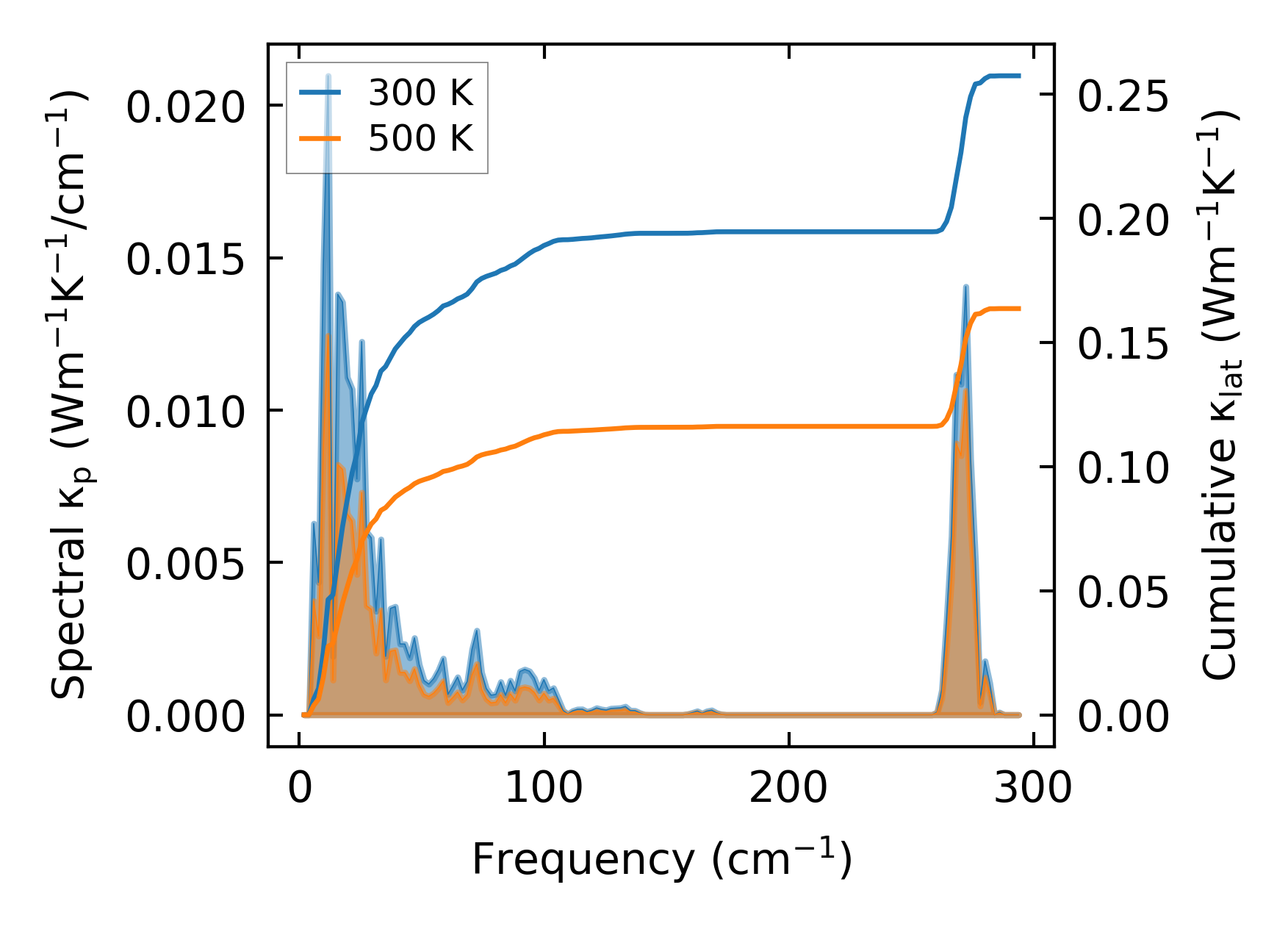

../../_images/fig_cumu_frequency4590.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

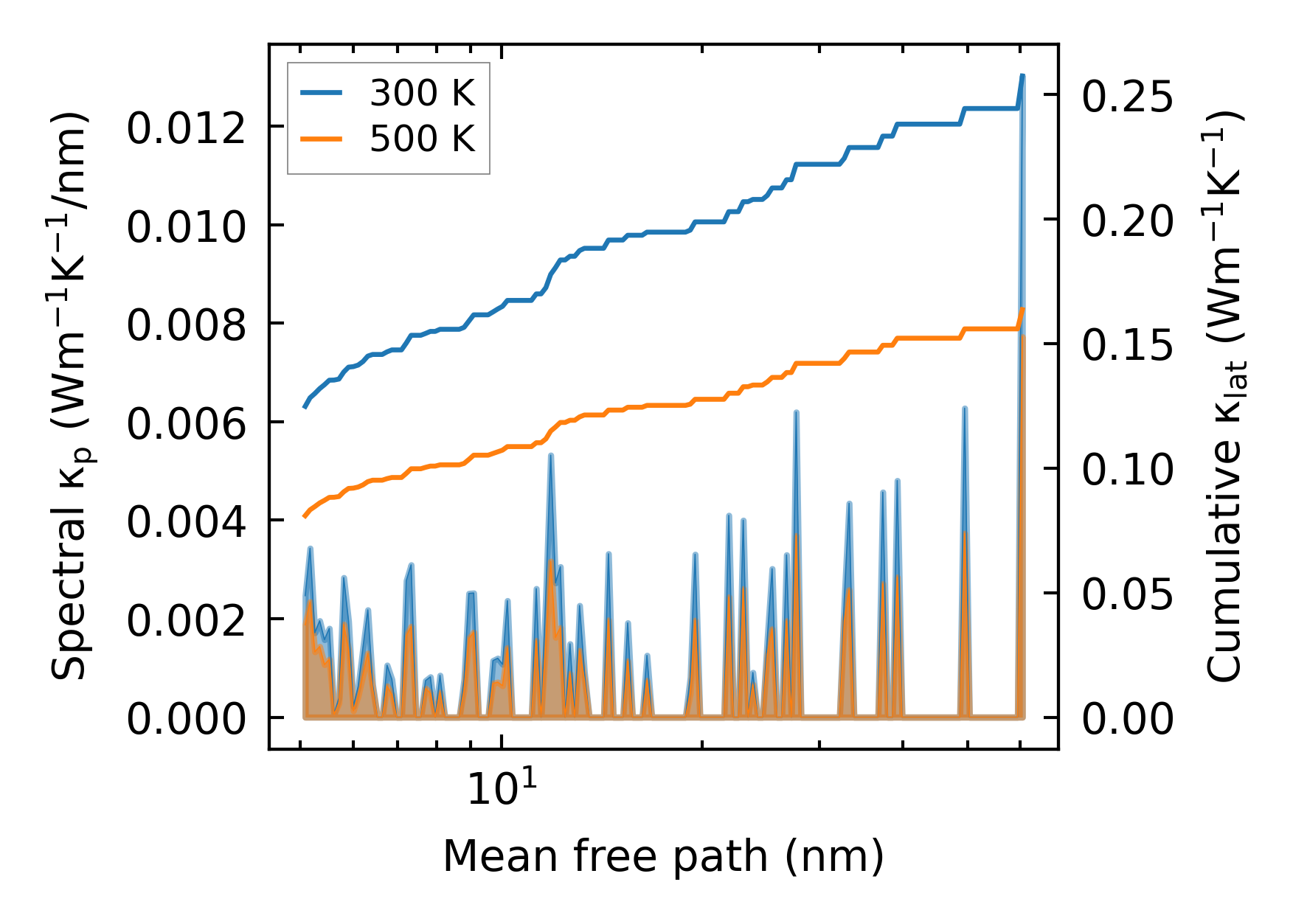

../../_images/fig_cumu_mfp4589.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc210931.png — (a) Force constants w.r.t atomic distance

Summary

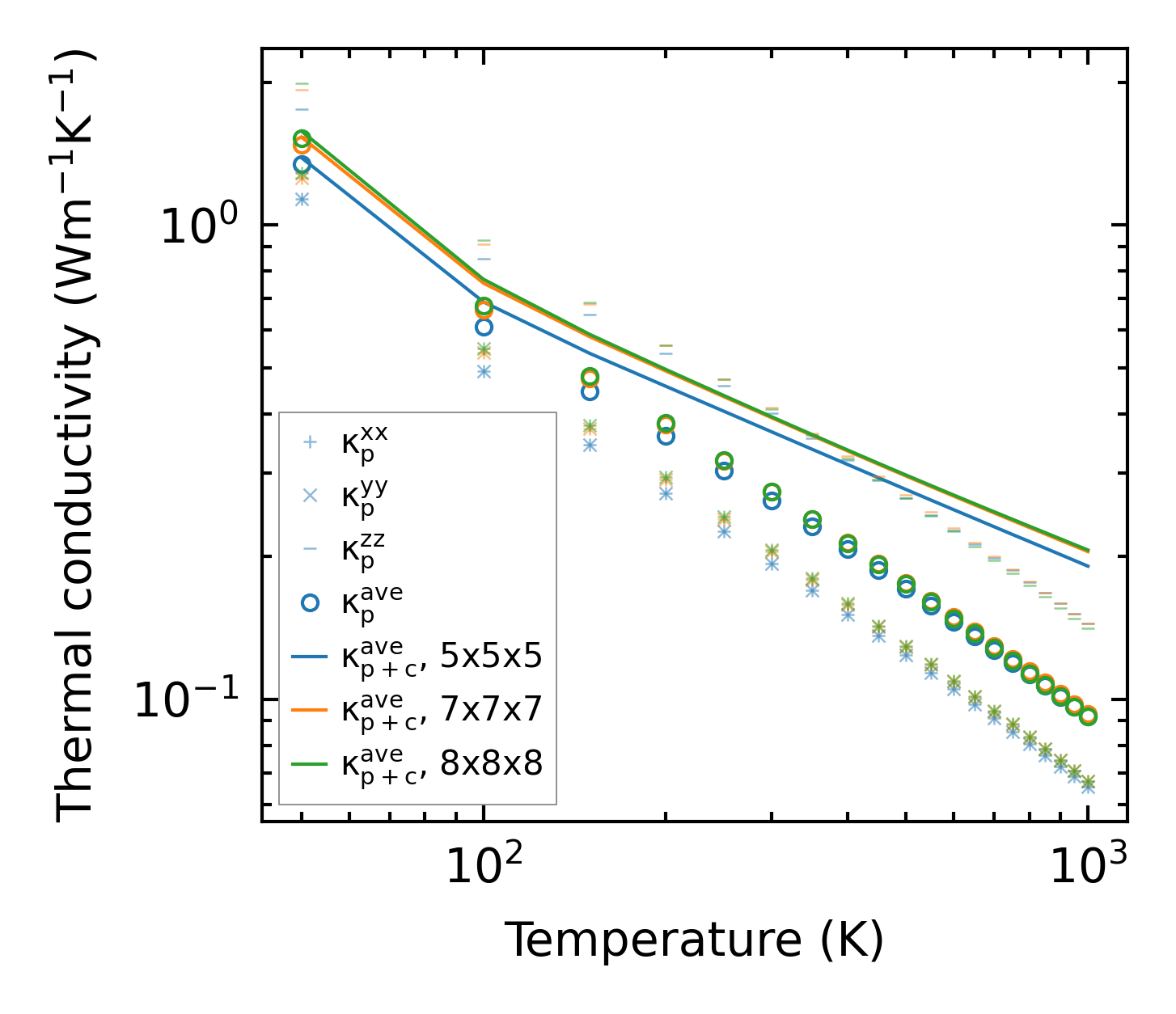

../../_images/fig_kappa8746.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19154.png — (b) Computation time
