mp-29212-2/Tl4PbI6/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-29212-2.tar.gz

Equation of state

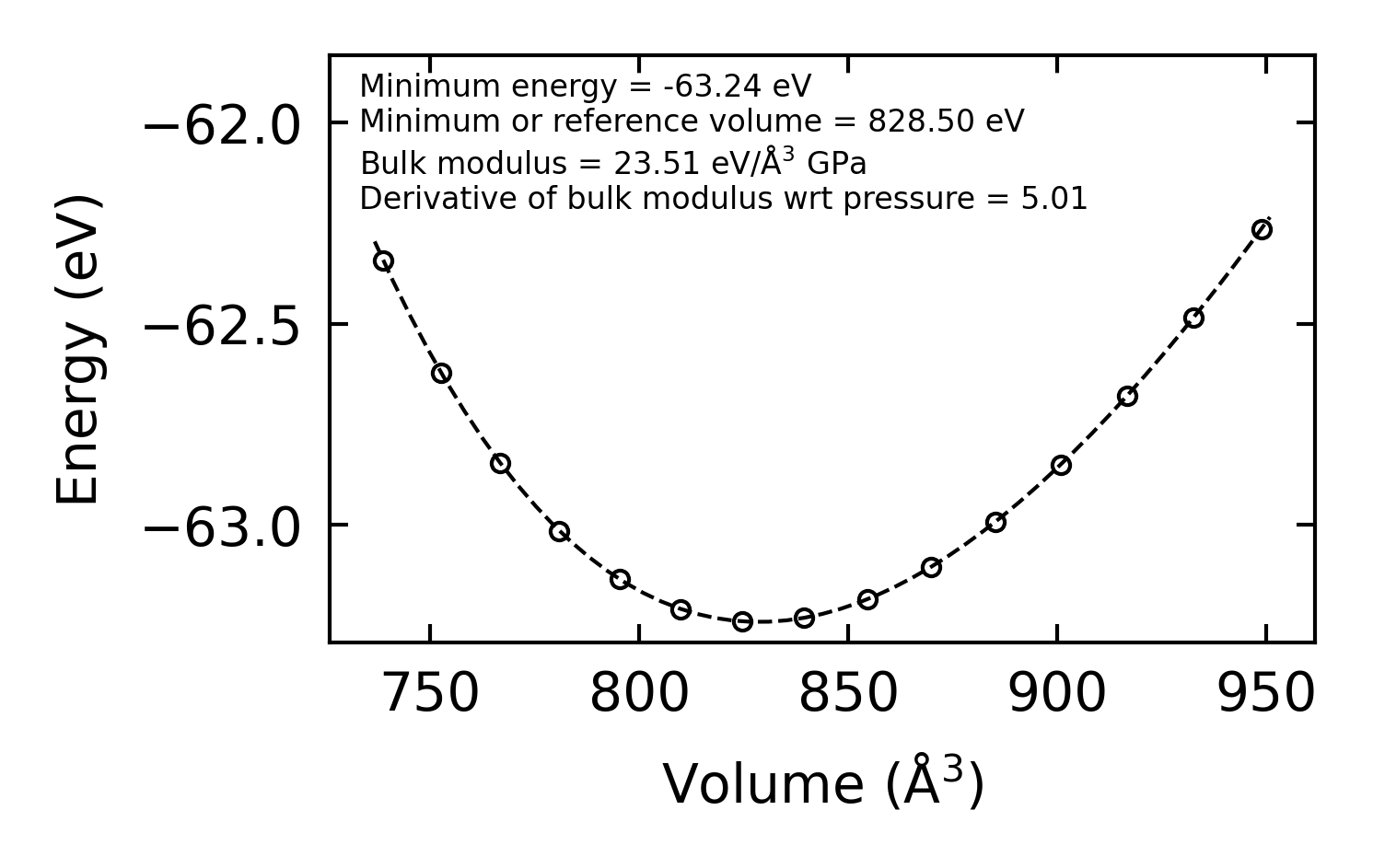

../../_images/fig_bm5585.png — (a) Equation of state

Harmonic properties

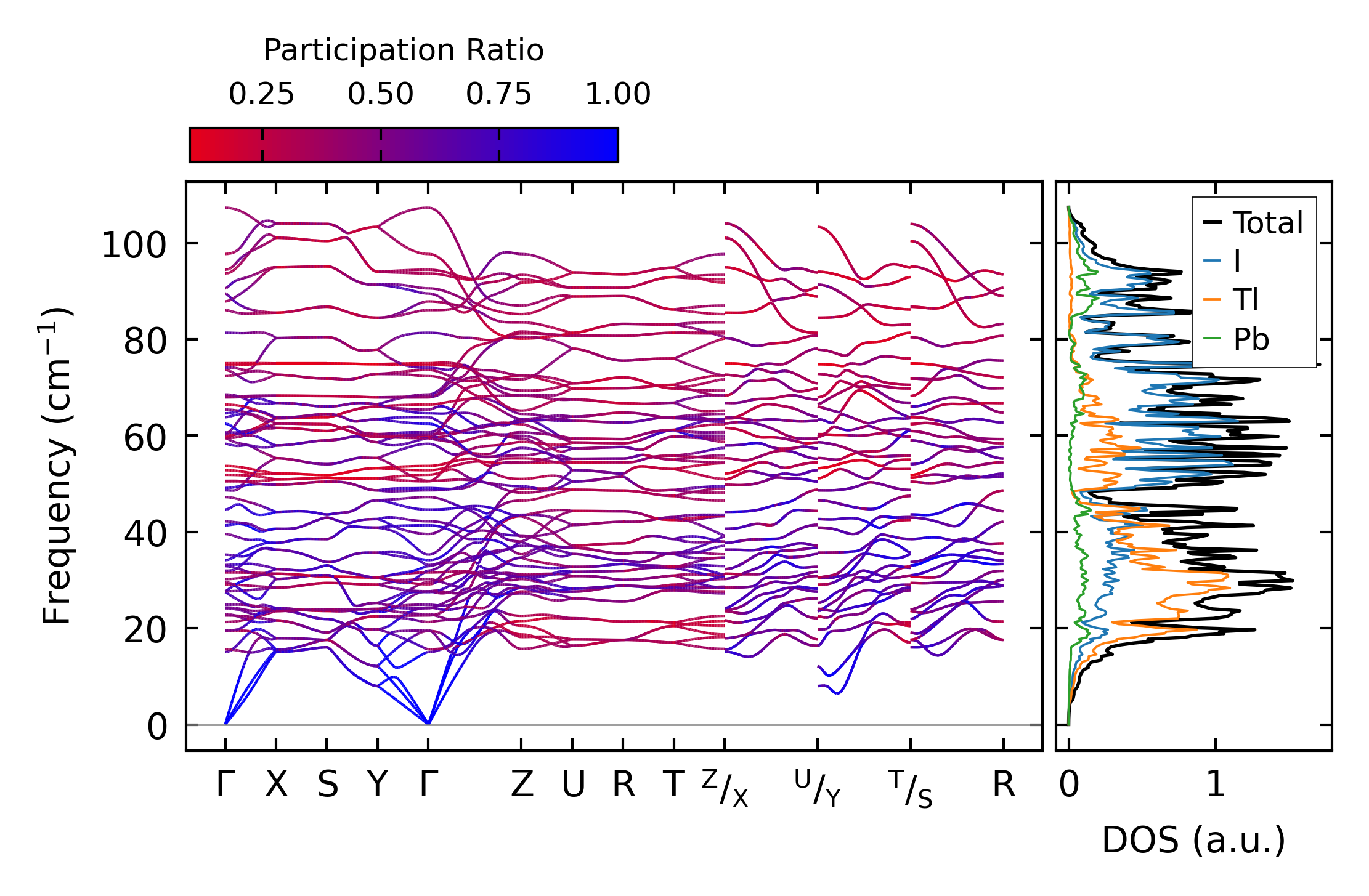

../../_images/fig_bandos_pr11443.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11443.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4741.png — (a) Grüneisen parameters

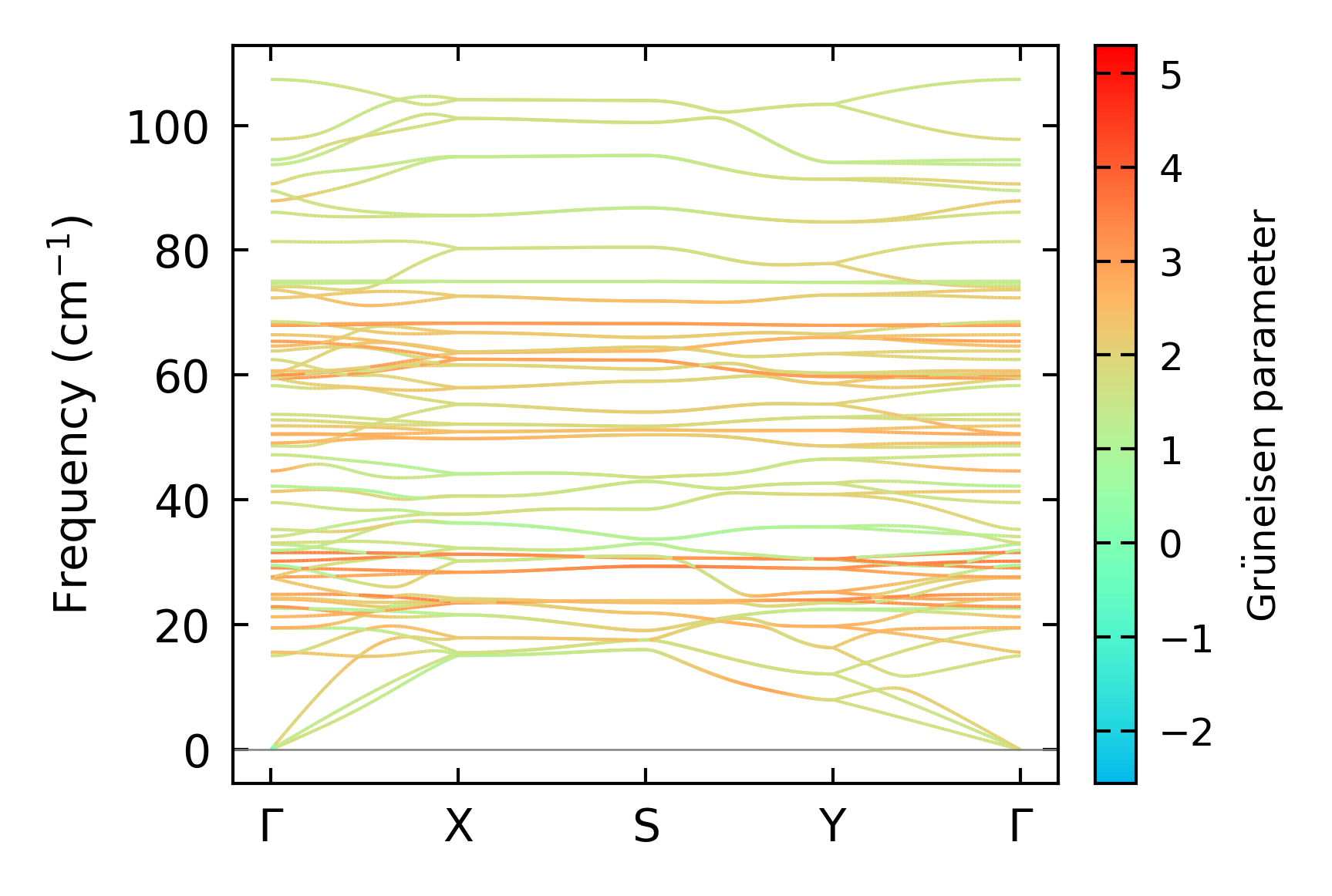

../../_images/fig_gruneisen4741.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x3x15, supercell: 2x1x3

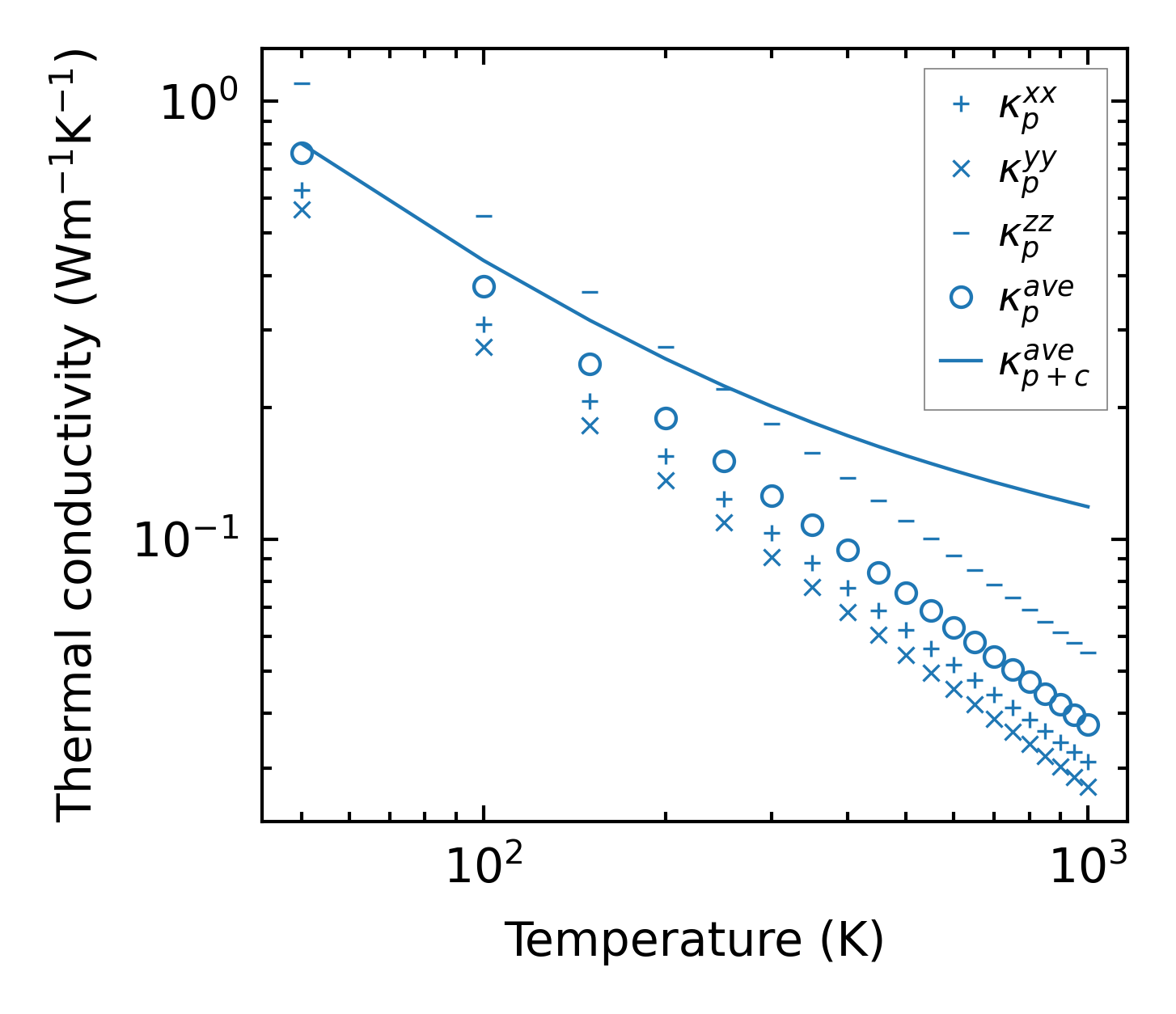

../../_images/fig_kappa8947.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4799.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4696.png — (a) Phonon lifetime due to phonon-phonon scattering

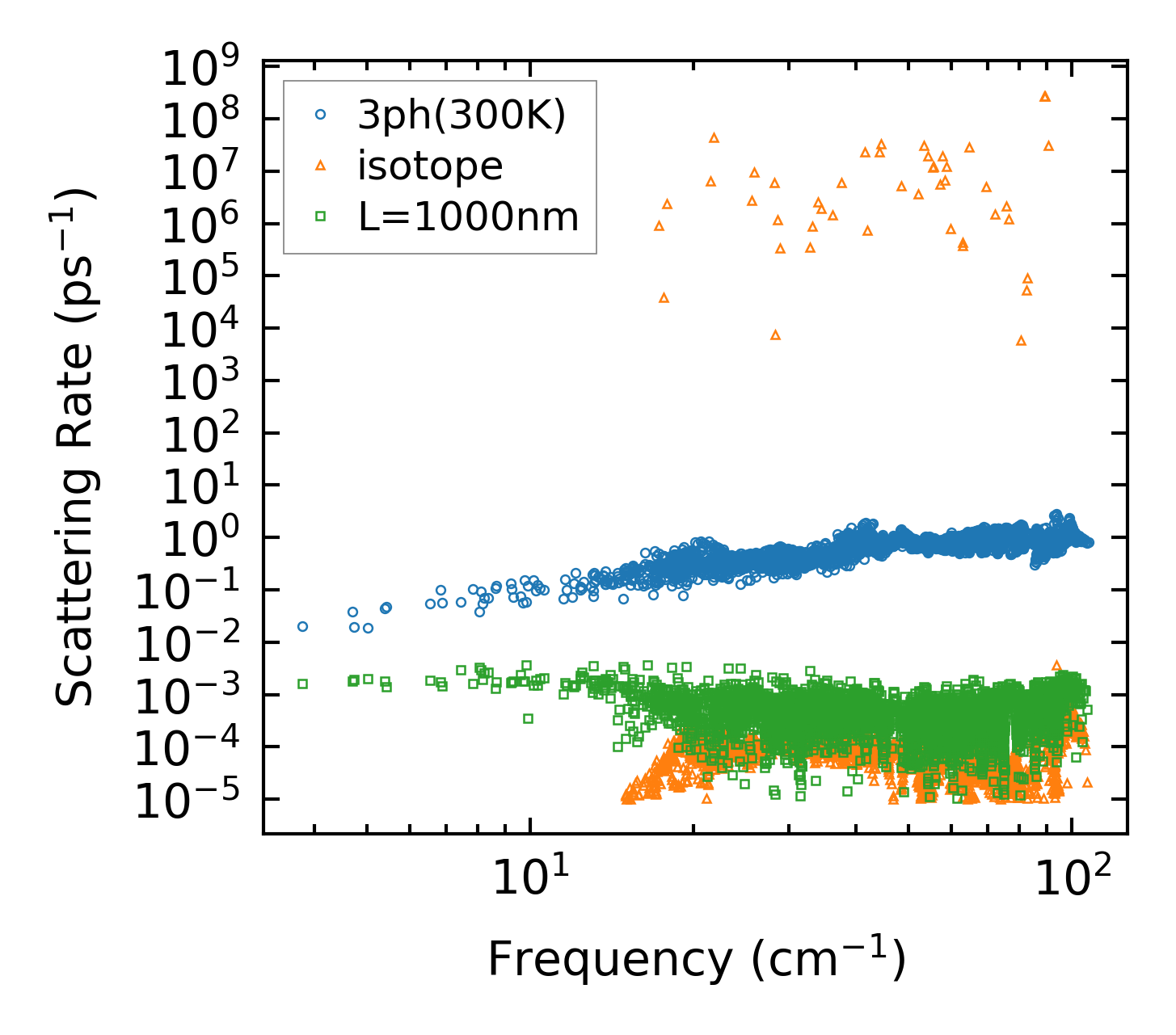

../../_images/fig_scat_rates4695.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

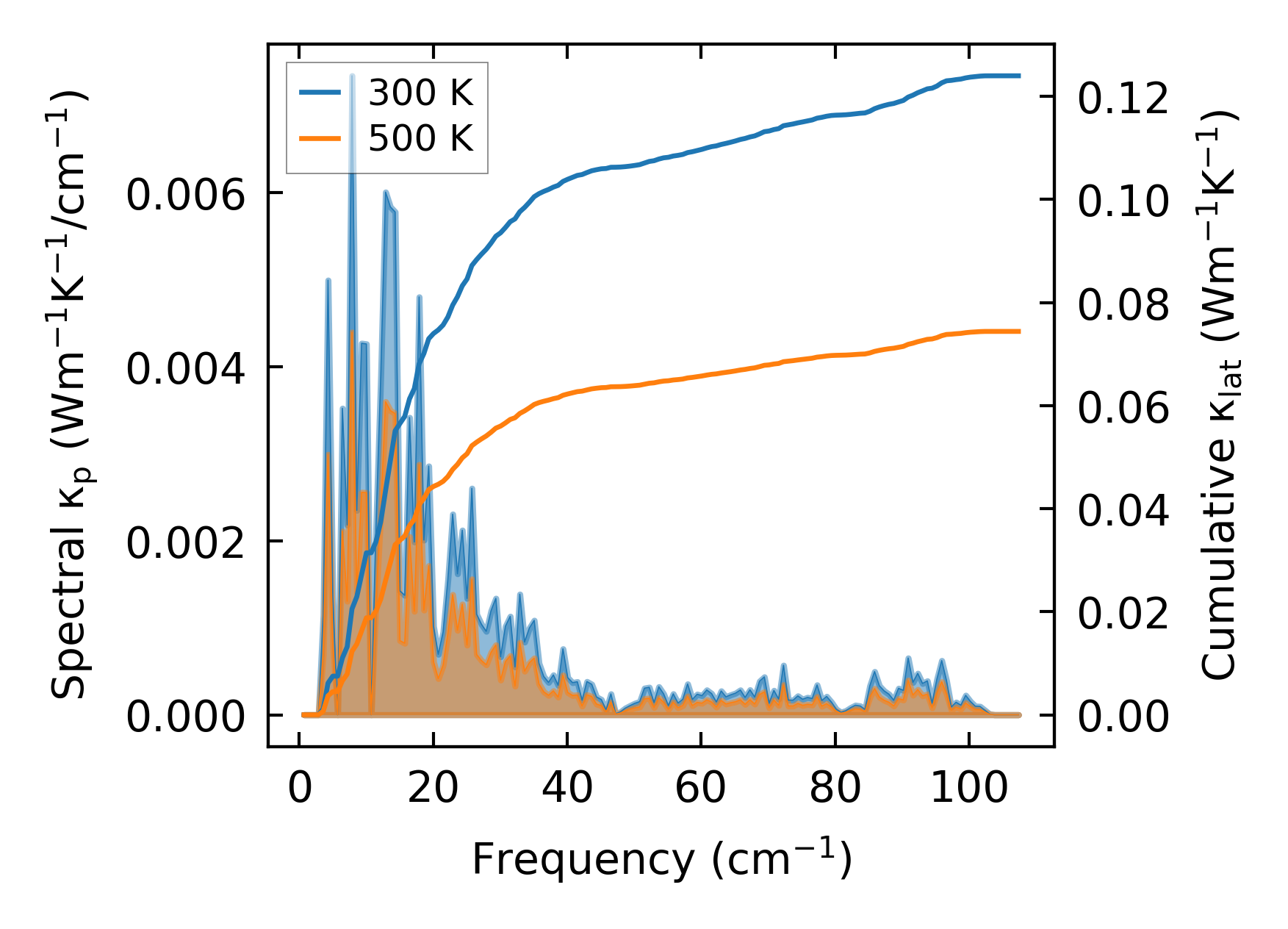

../../_images/fig_cumu_frequency4696.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

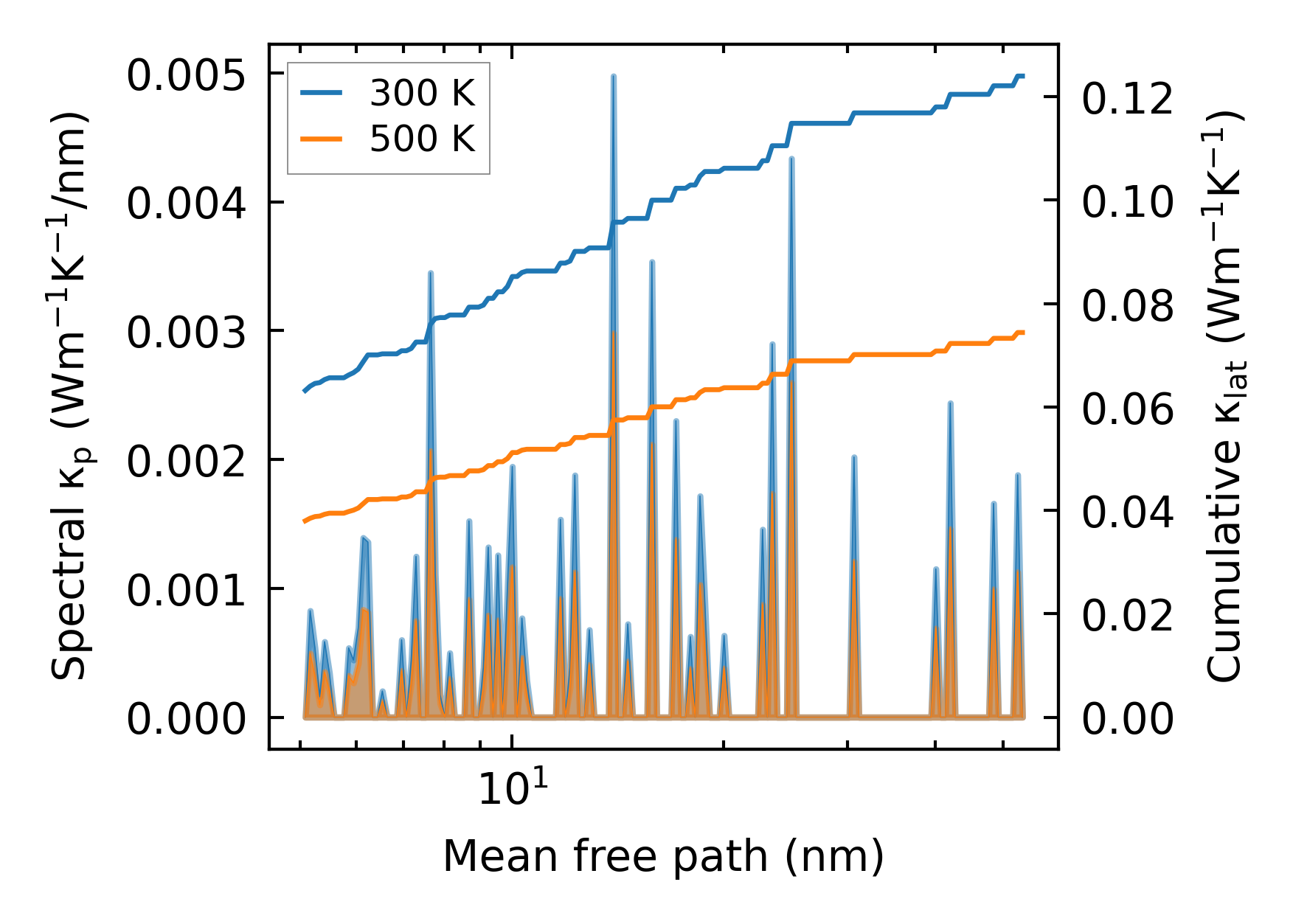

../../_images/fig_cumu_mfp4695.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211159.png — (a) Force constants w.r.t atomic distance

Summary

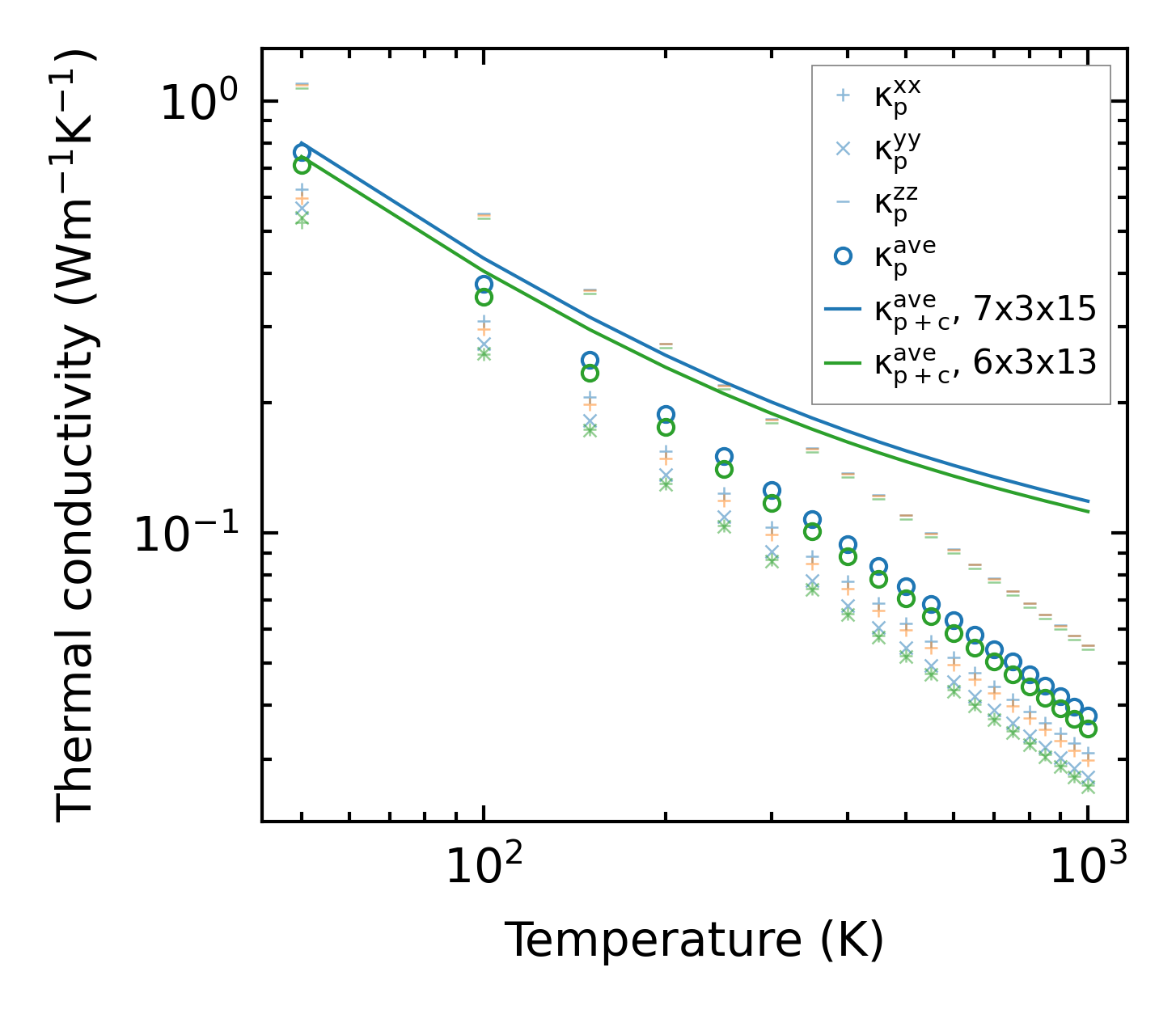

../../_images/fig_kappa8948.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19506.png — (b) Computation time
