mp-29090/Rb4Au6S5/anharm

Space group: P-62c (190)
Link: Materials Project
Download: mp-29090.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11389.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11389.png — (b) Thermodynamic properties

Grüneisen parameters

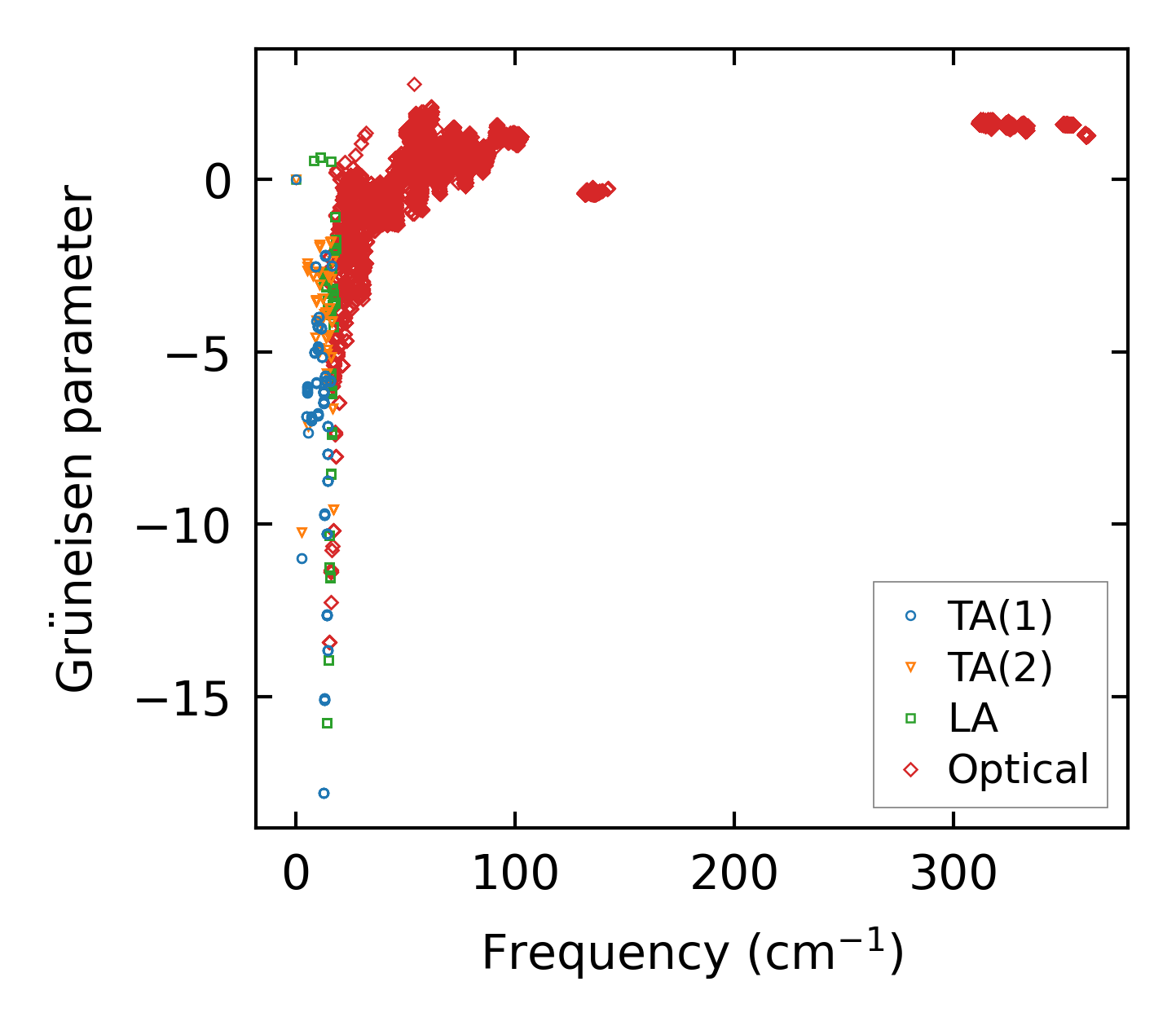

../../_images/fig_gru_all4717.png — (a) Grüneisen parameters

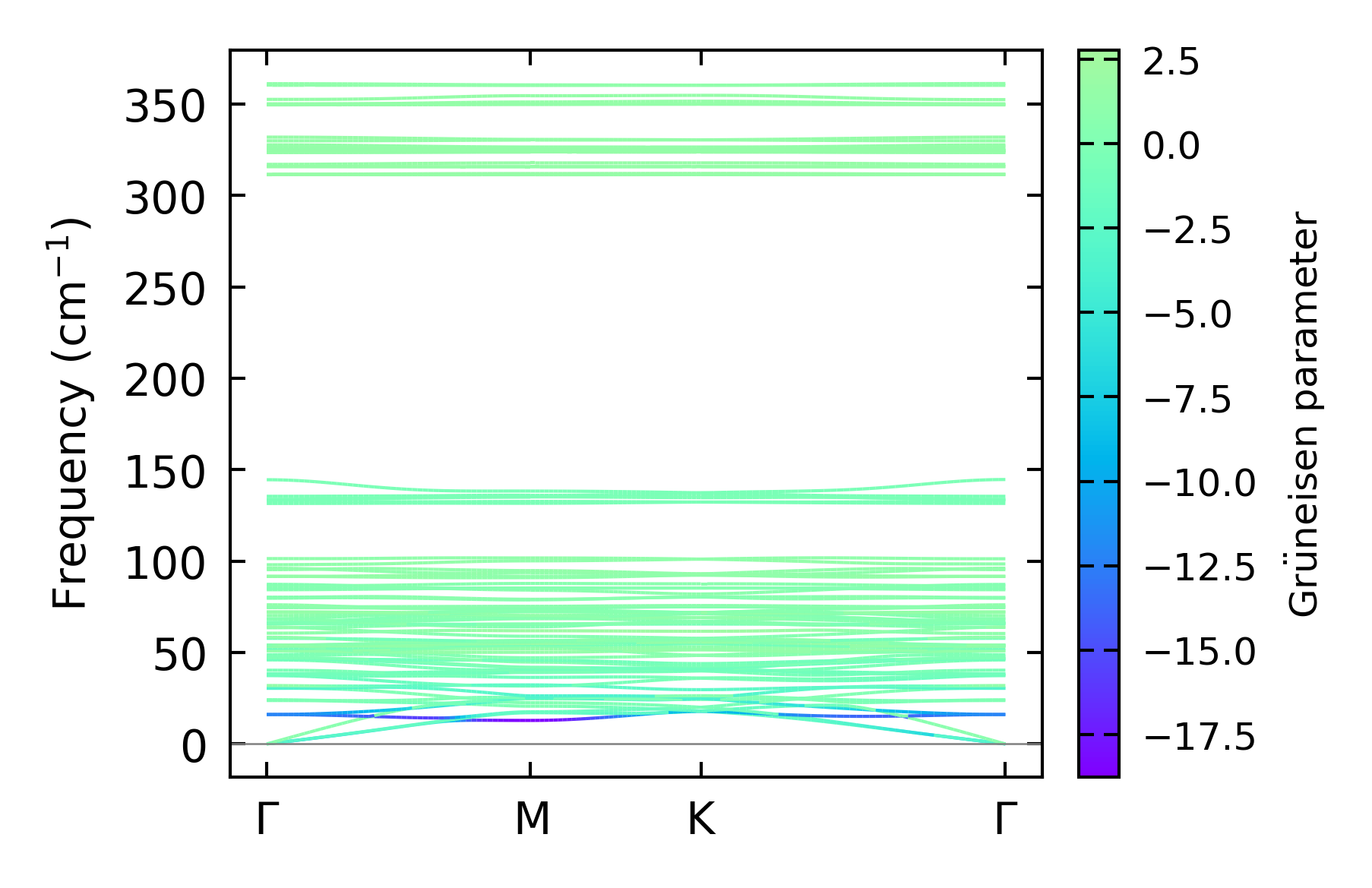

../../_images/fig_gruneisen4717.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 2x2x1

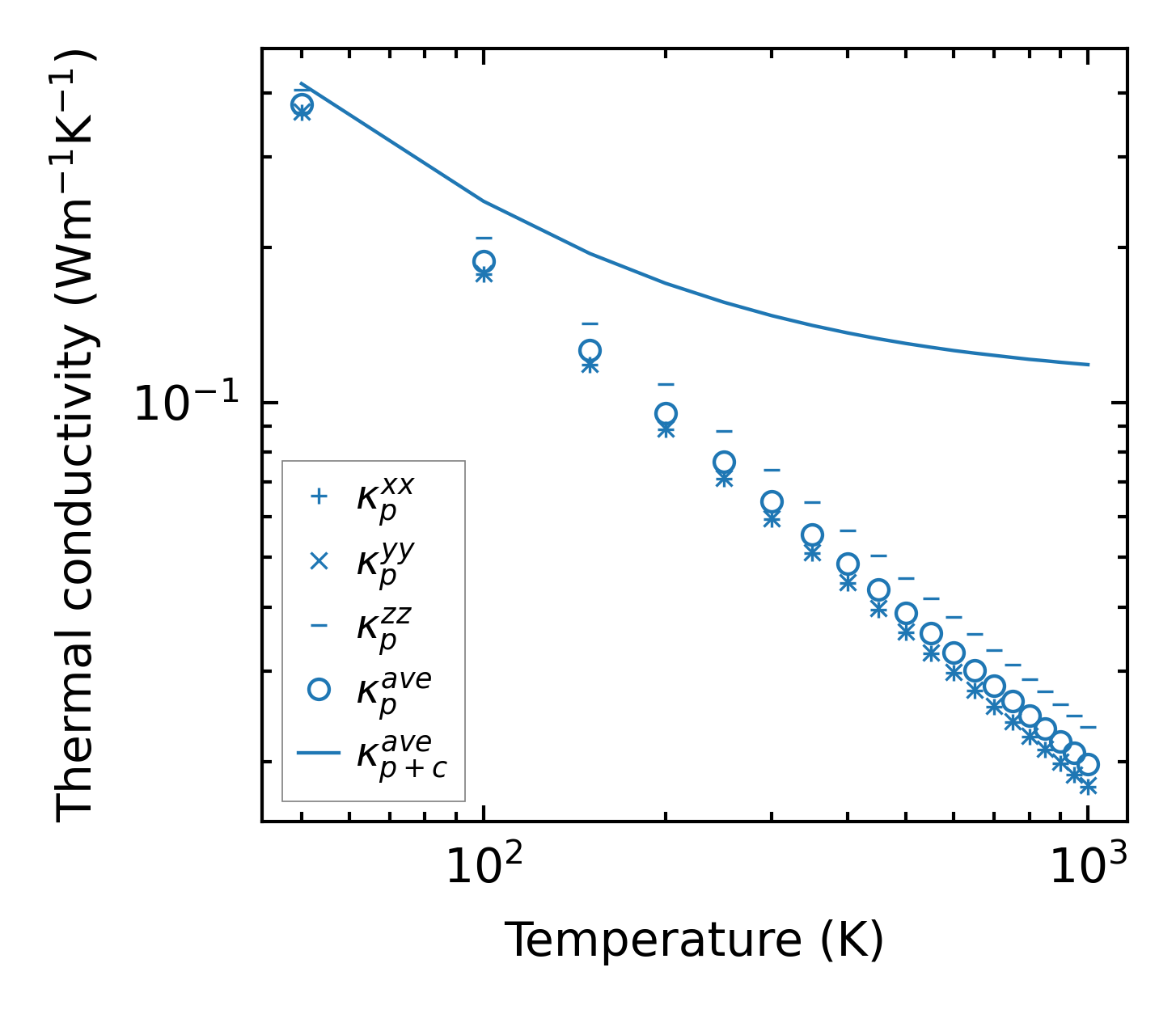

../../_images/fig_kappa8903.png — (a) Temperature-dependent lattice thermal conductivity

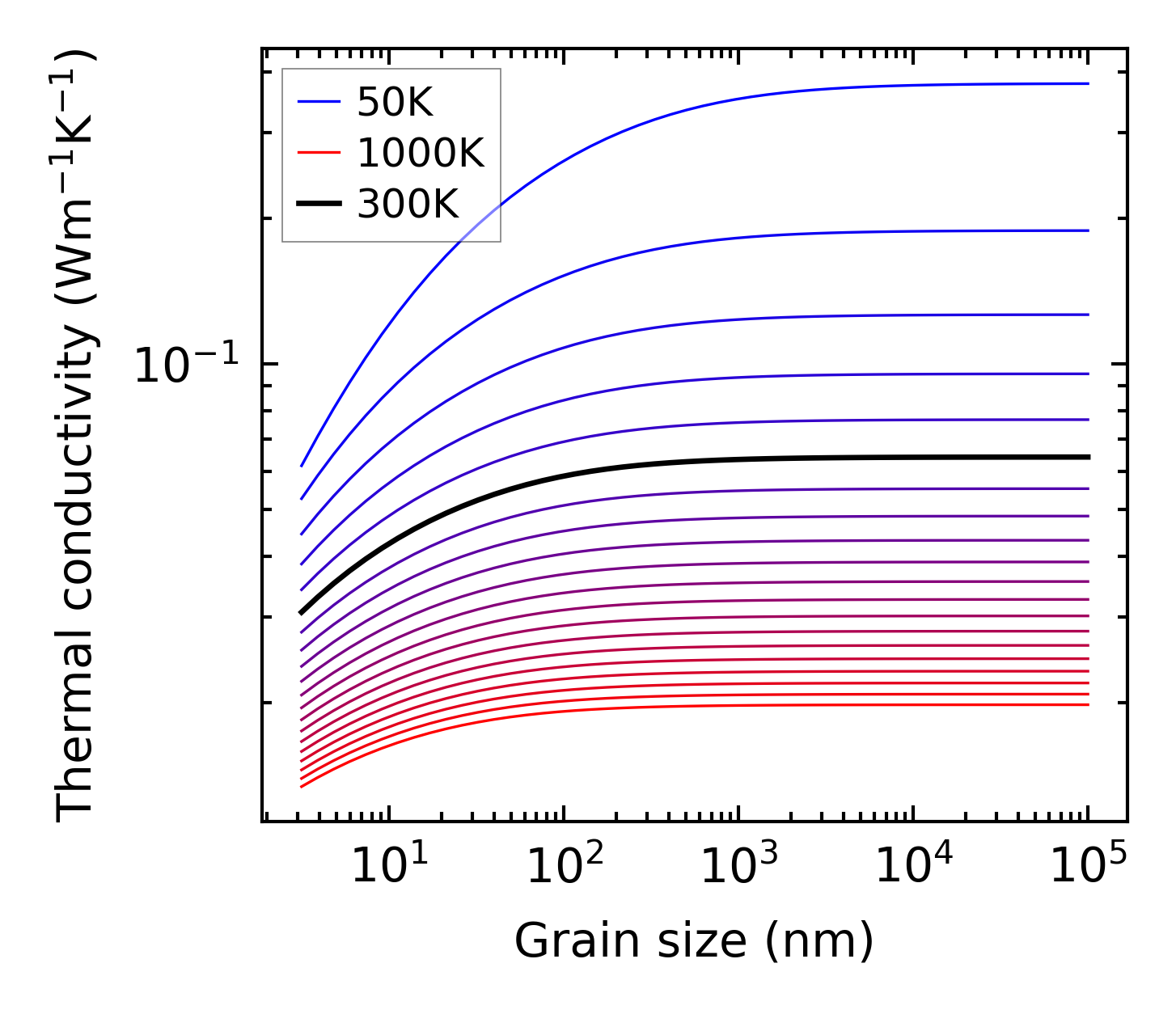

../../_images/fig_kappa_vs_grain_size4776.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4673.png — (a) Phonon lifetime due to phonon-phonon scattering

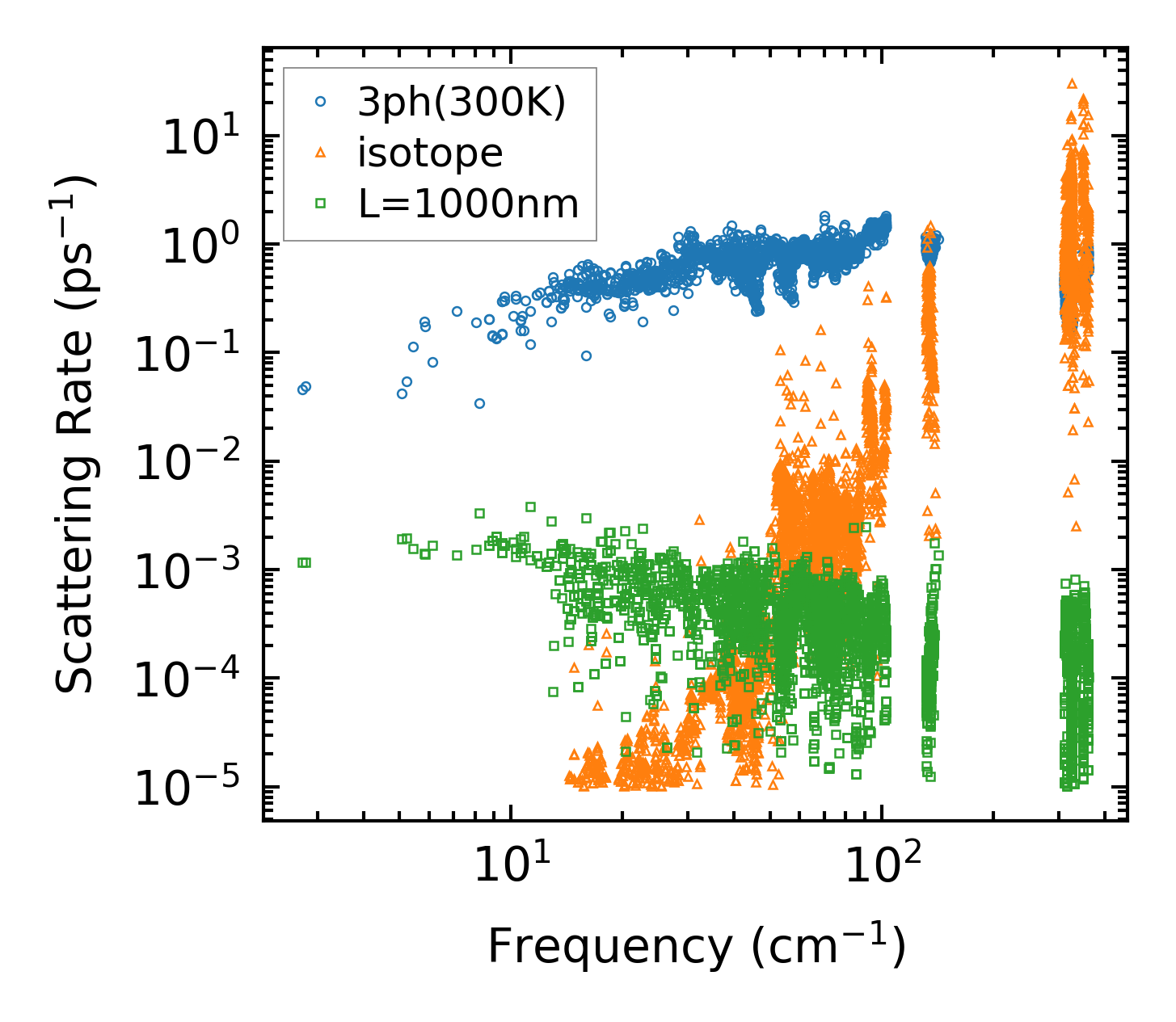

../../_images/fig_scat_rates4672.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

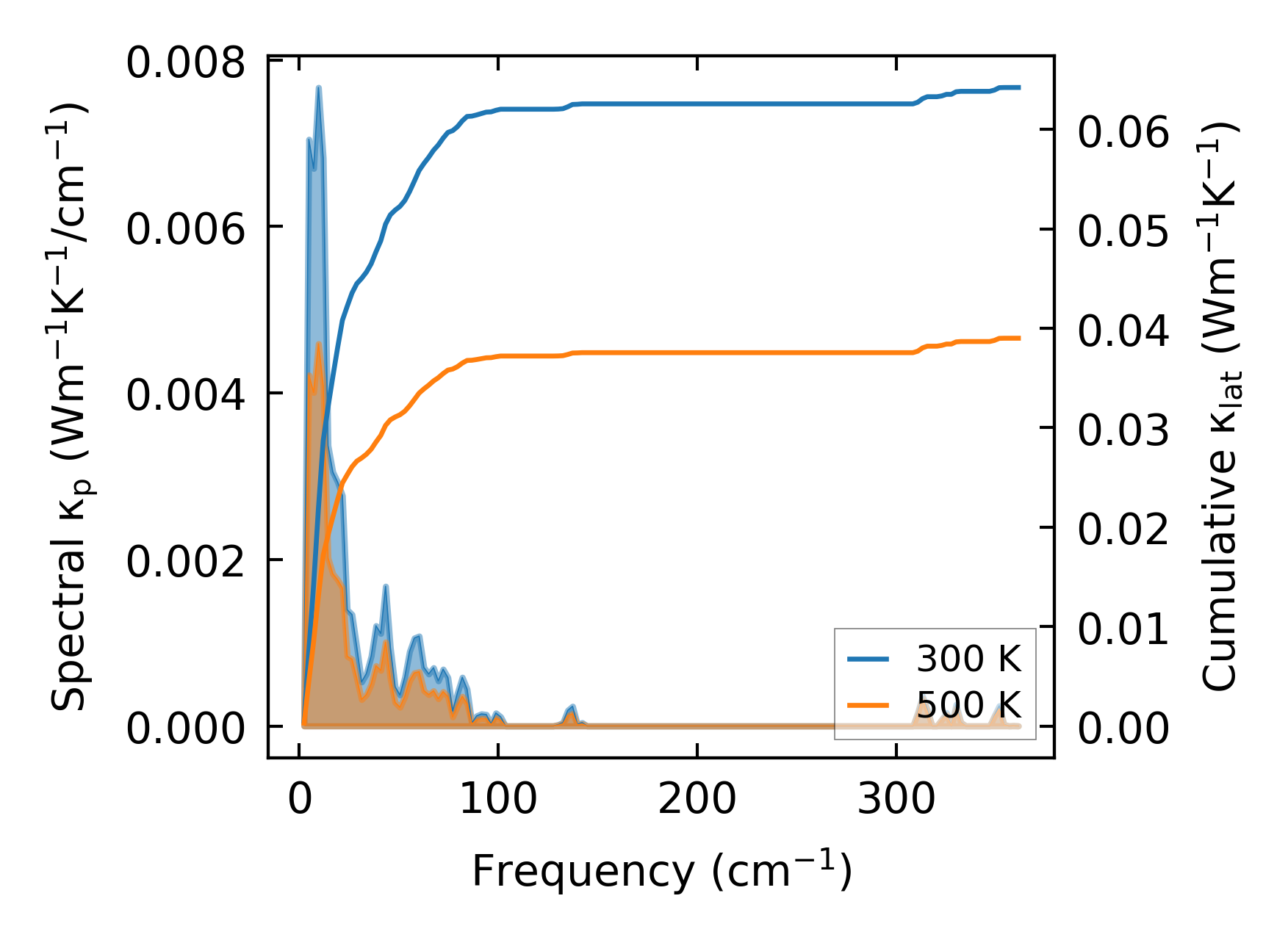

../../_images/fig_cumu_frequency4673.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4672.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211105.png — (a) Force constants w.r.t atomic distance

Summary

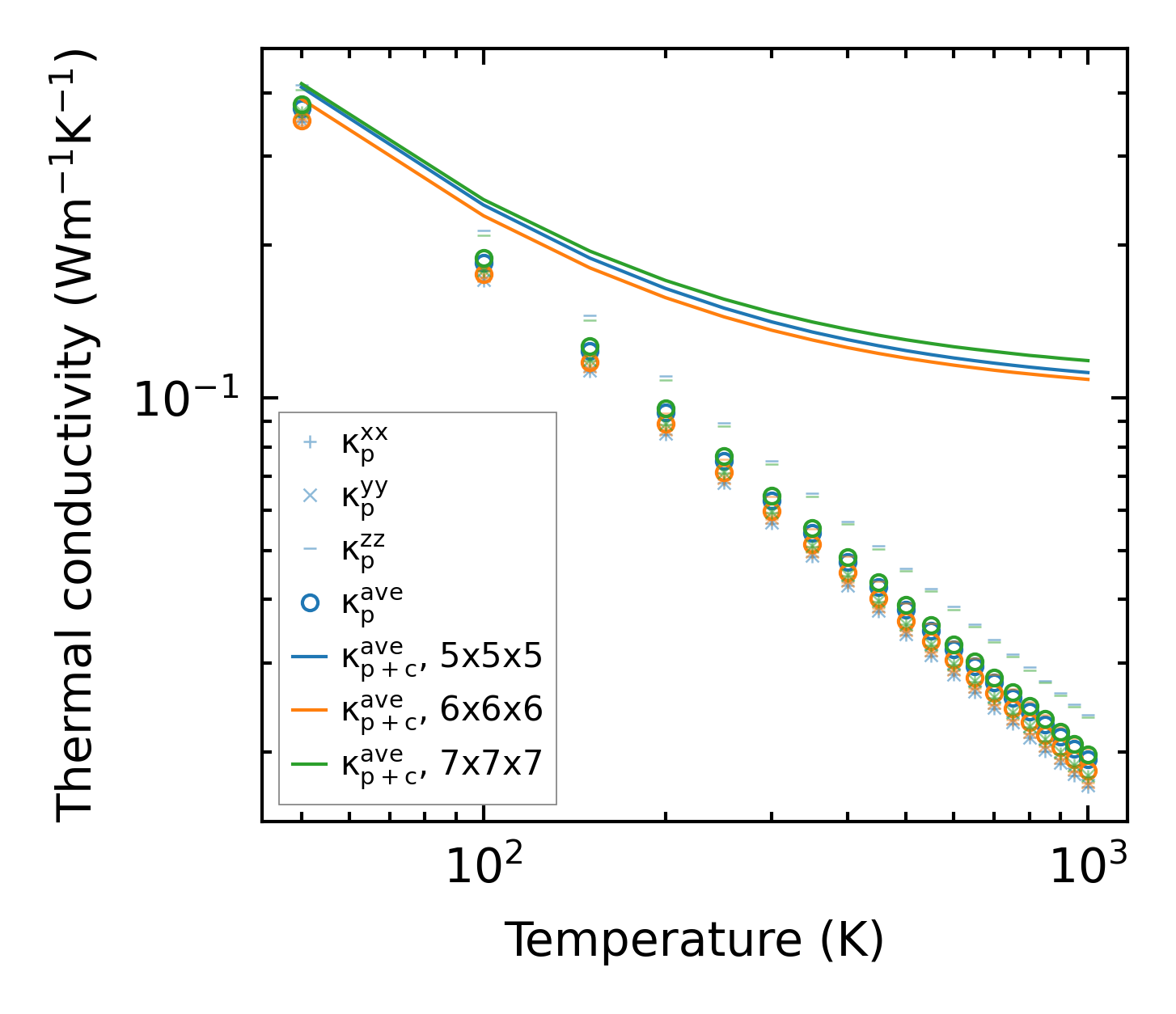

../../_images/fig_kappa8904.png — (a) Temperature-dependent lattice thermal conductivity

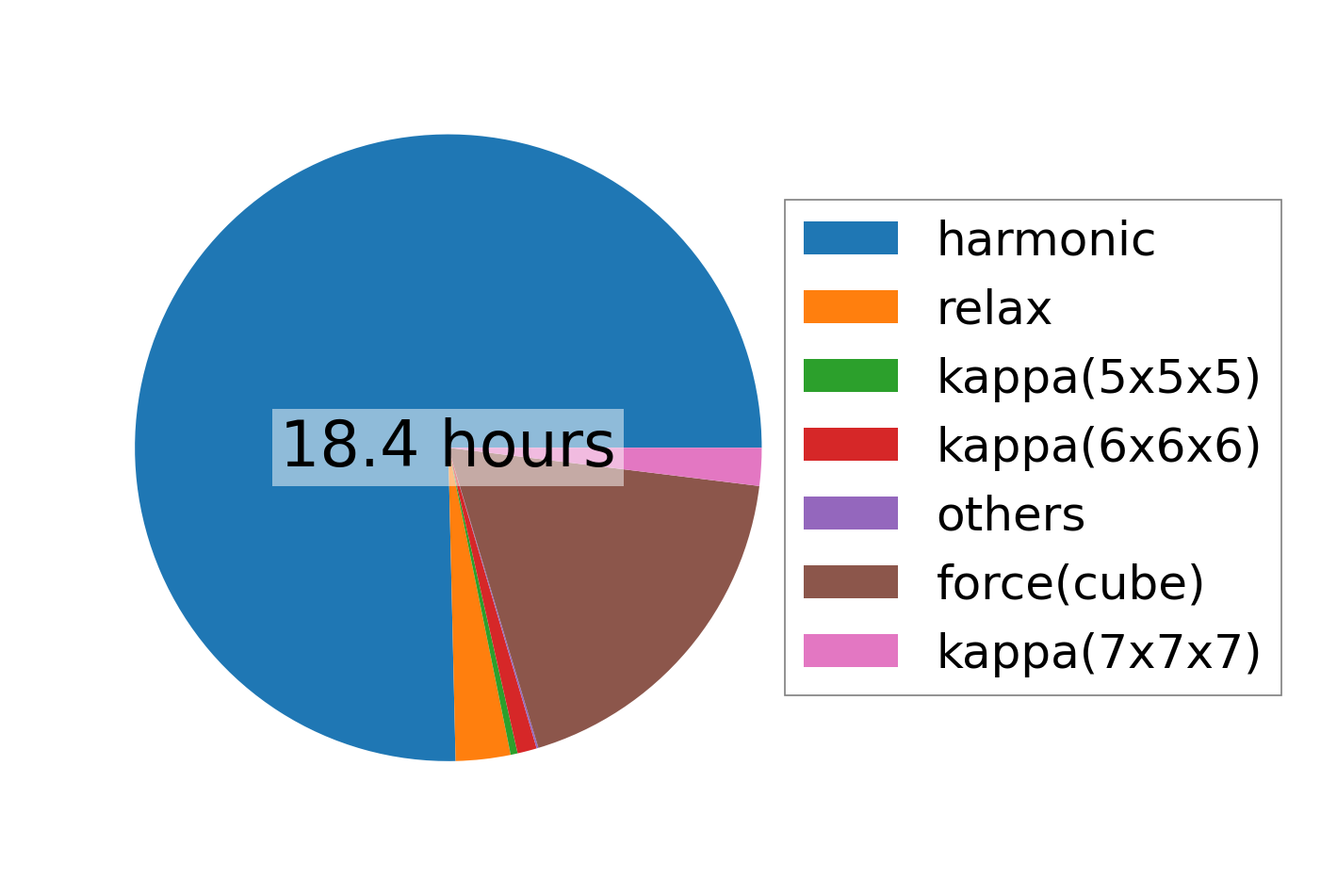

../../_images/fig_times19430.png — (b) Computation time
