mp-29097/Hg3TeBr4/anharm

Space group: Pbca (61)
Link: Materials Project
Download: mp-29097.tar.gz

Harmonic properties

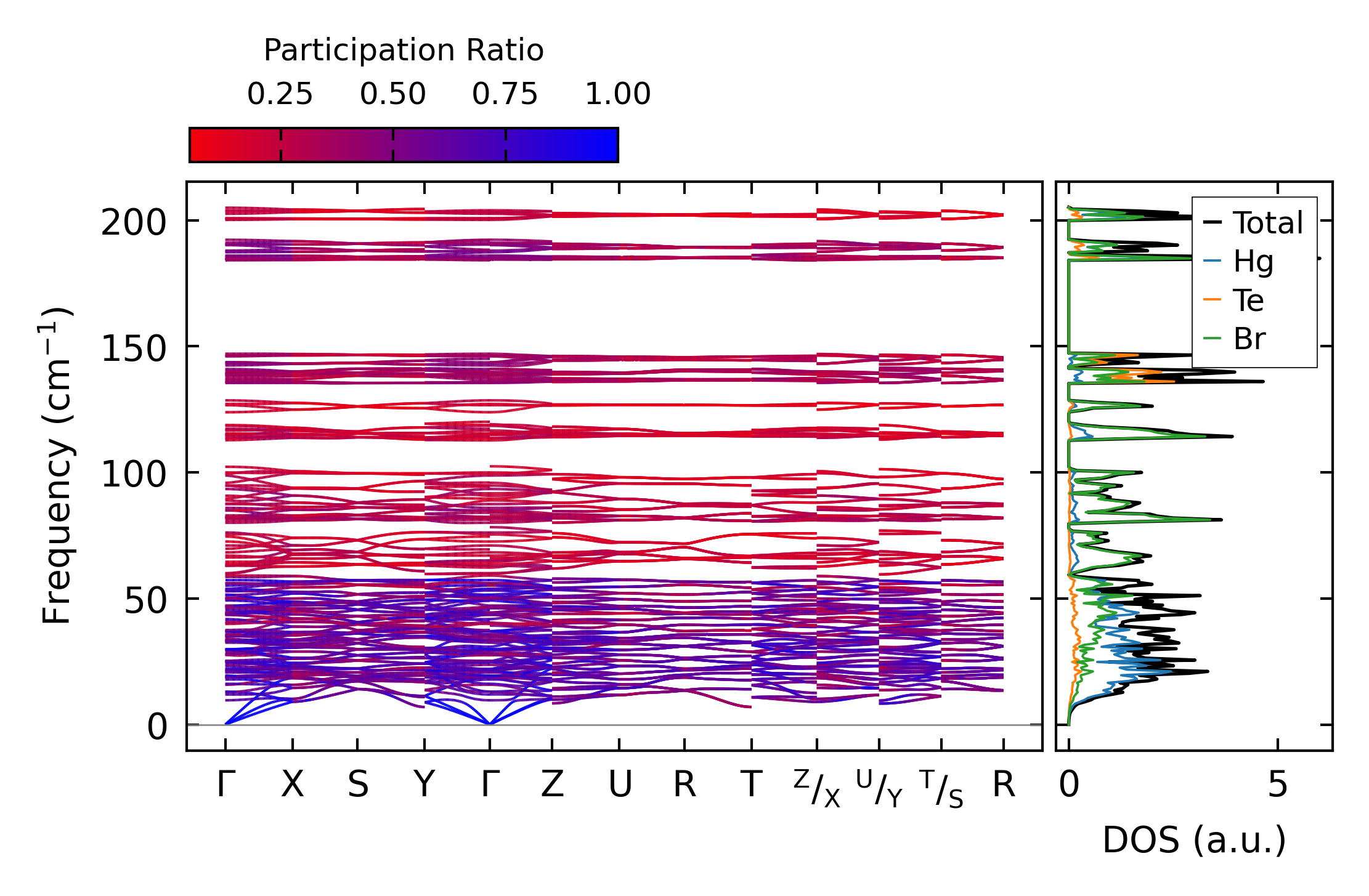

../../_images/fig_bandos_pr11393.png — (a) Phonon dispersion with participation ratio and DOS

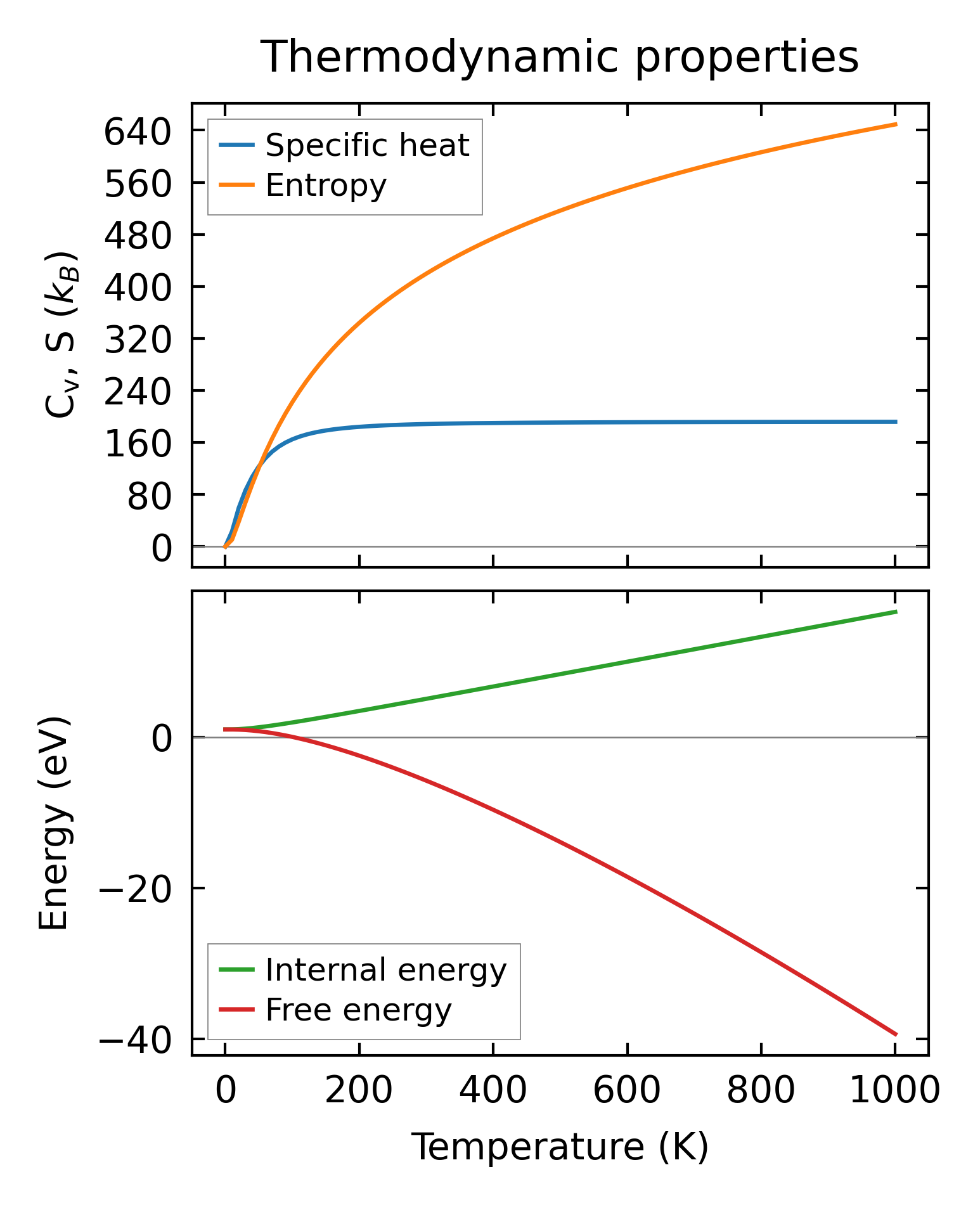

../../_images/fig_thermo11393.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all4719.png — (a) Grüneisen parameters

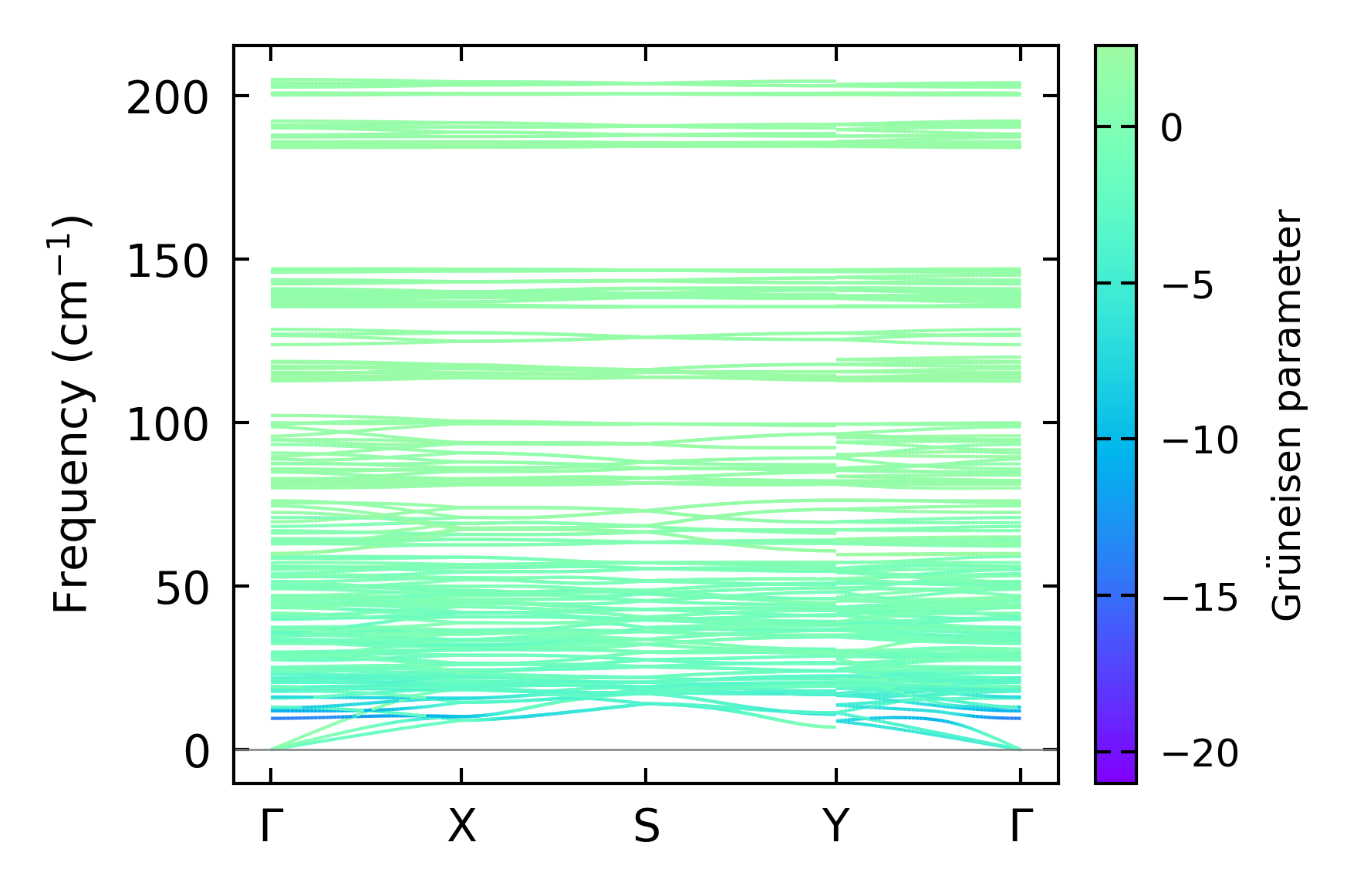

../../_images/fig_gruneisen4719.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x5x5, supercell: 2x1x1

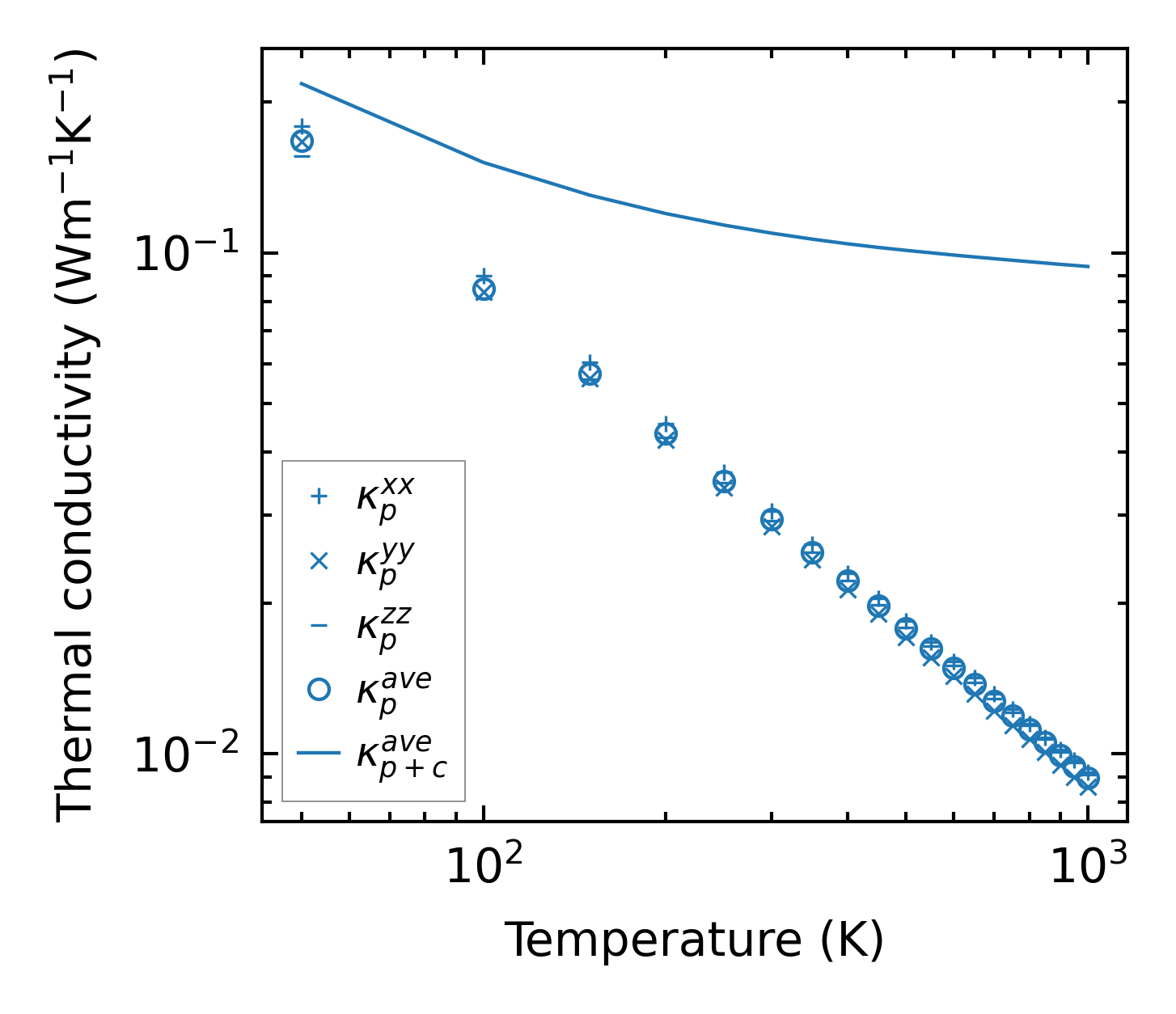

../../_images/fig_kappa8906.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4778.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4675.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4674.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

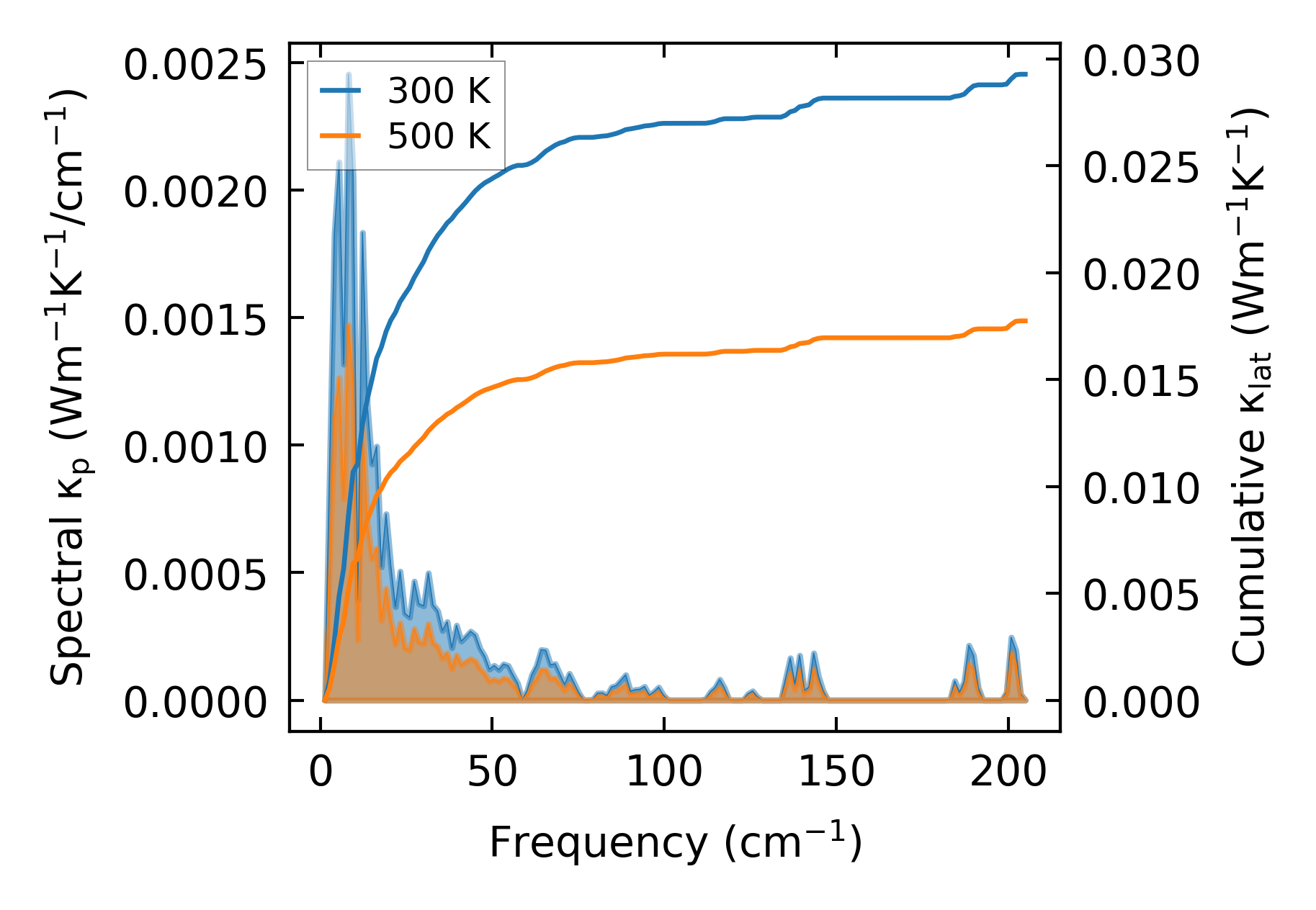

../../_images/fig_cumu_frequency4675.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

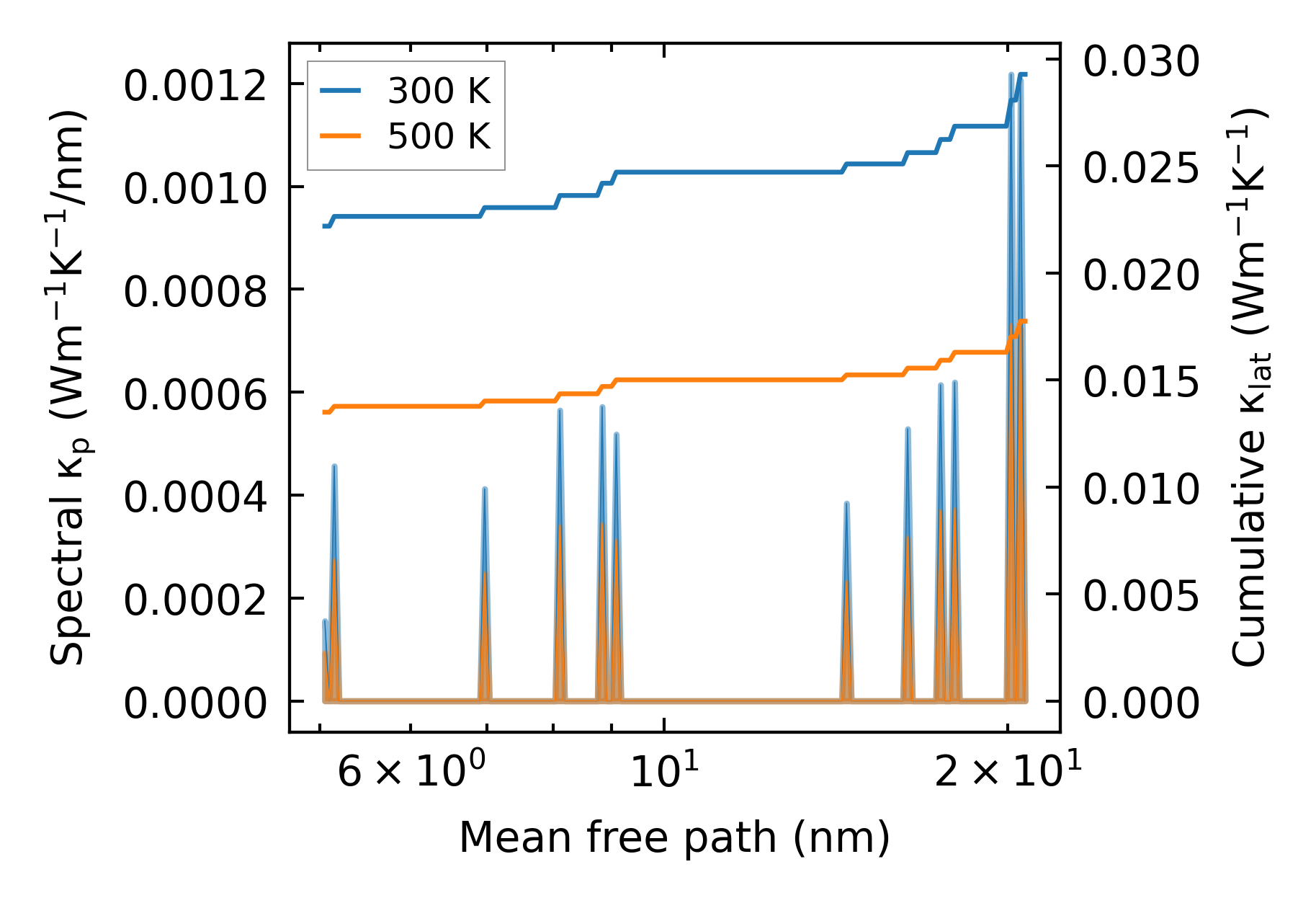

../../_images/fig_cumu_mfp4674.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

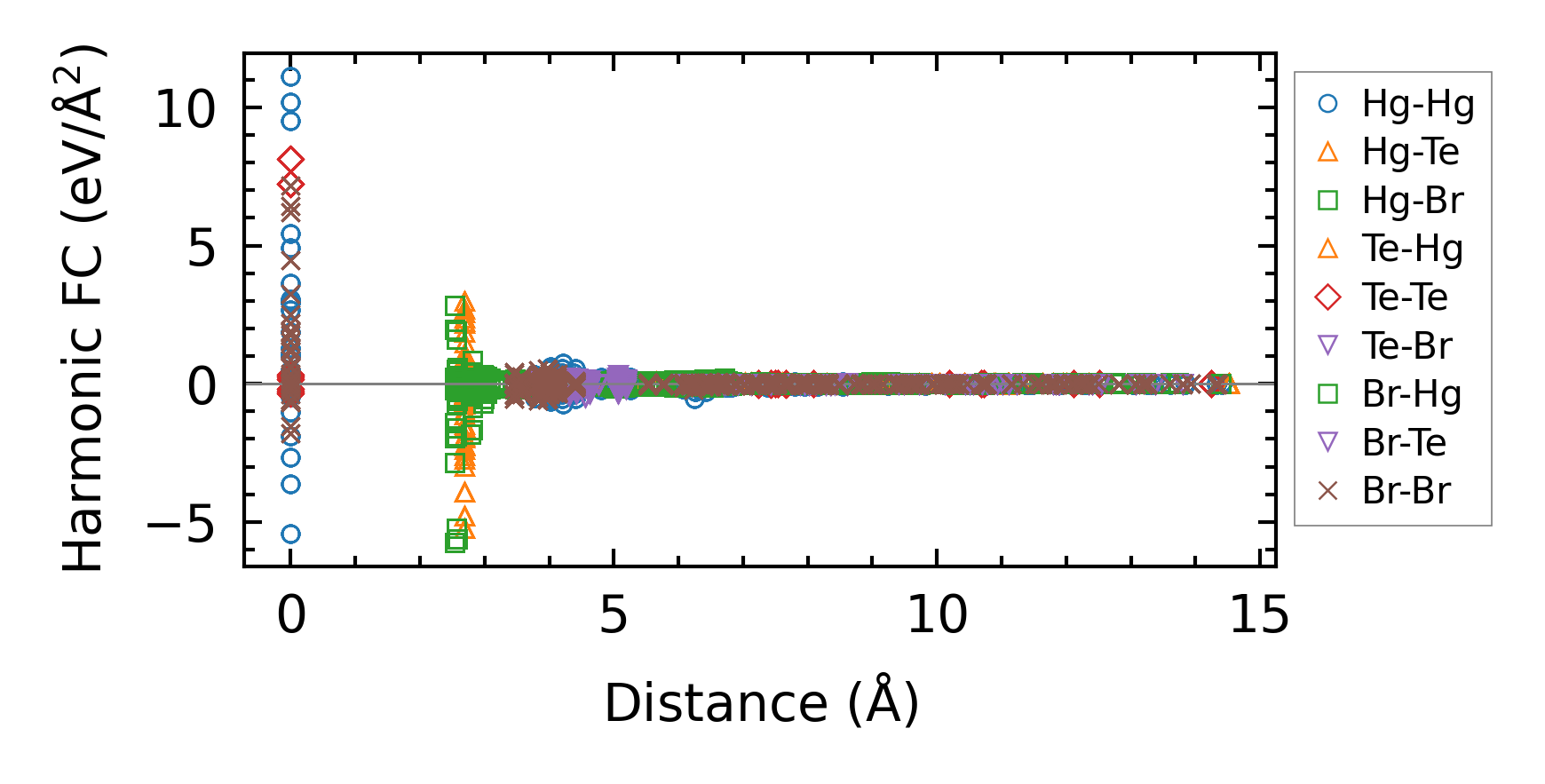

../../_images/fig_fc211109.png — (a) Force constants w.r.t atomic distance

Summary

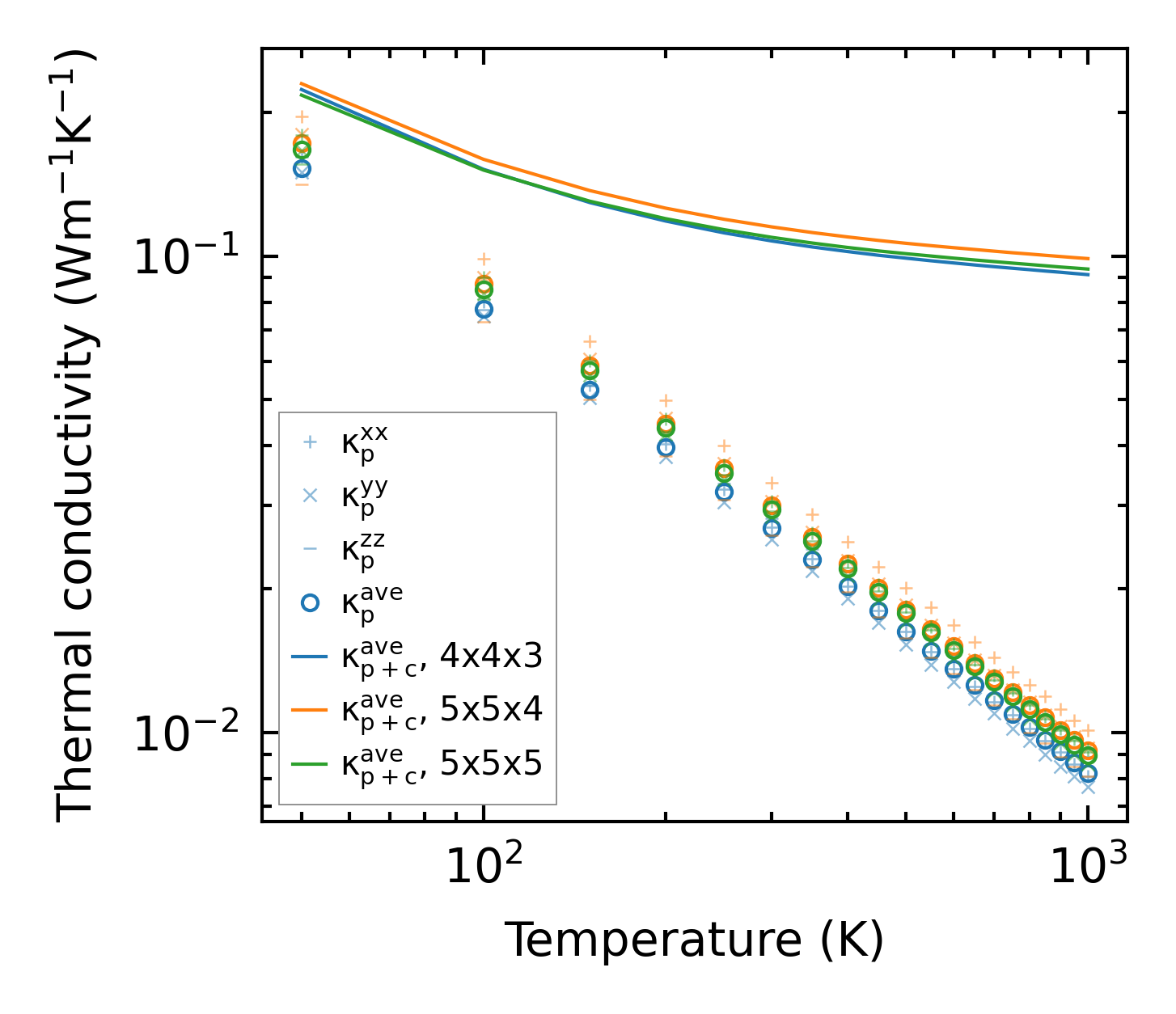

../../_images/fig_kappa8907.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19434.png — (b) Computation time
