mp-29487-3/PdCl2/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-29487-3.tar.gz

Harmonic properties

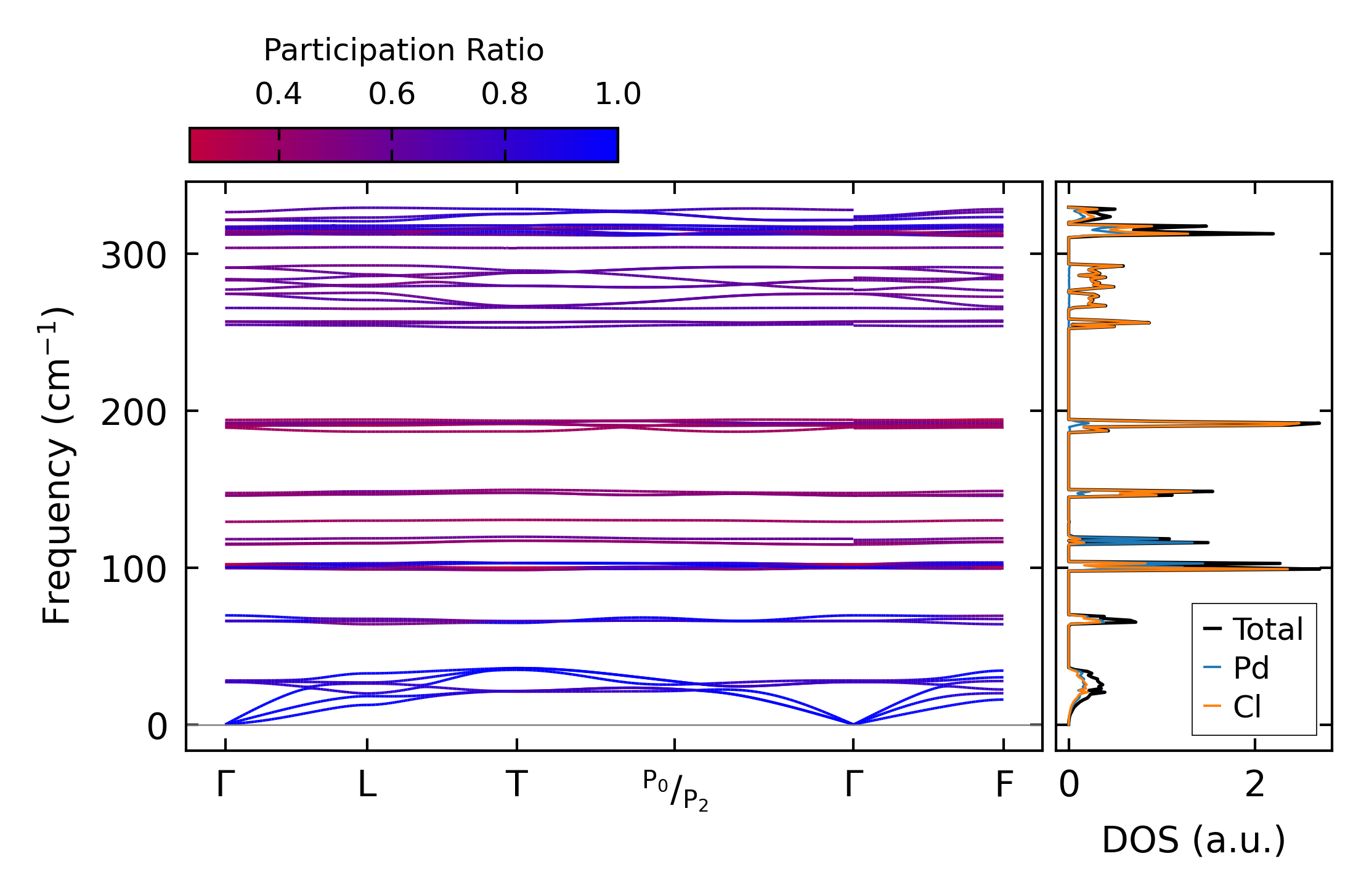

../../_images/fig_bandos_pr11222.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11222.png — (b) Thermodynamic properties

Grüneisen parameters

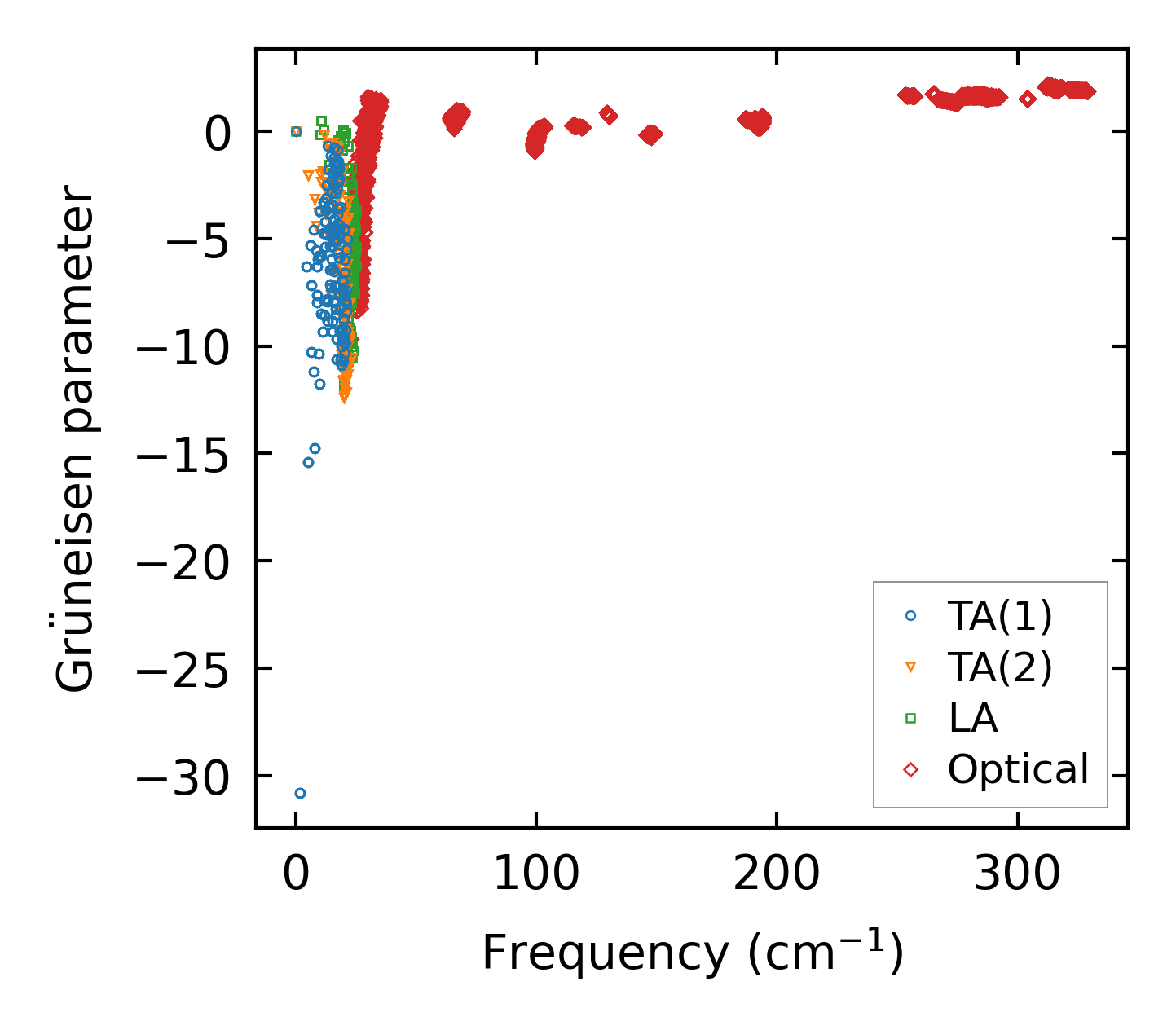

../../_images/fig_gru_all4640.png — (a) Grüneisen parameters

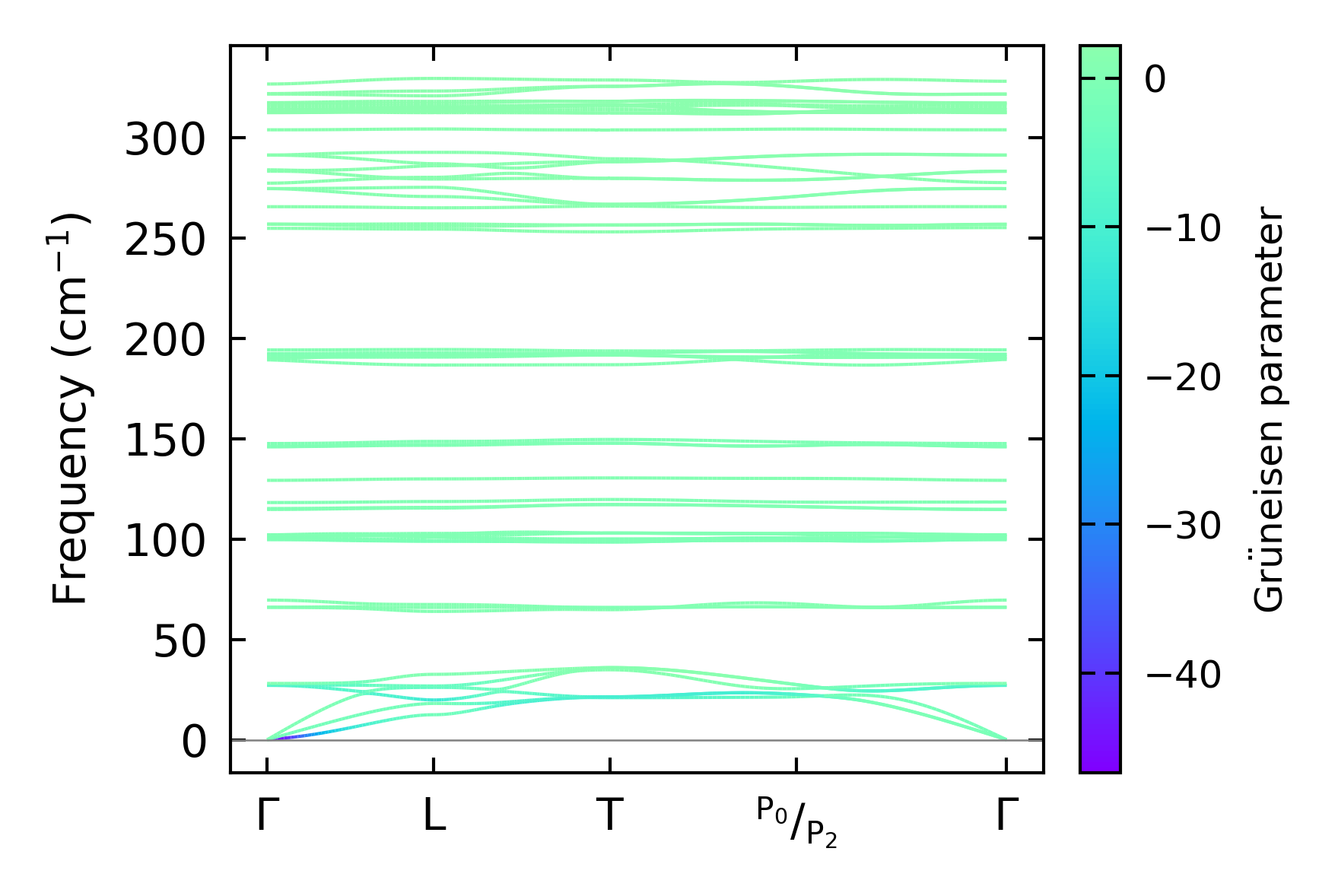

../../_images/fig_gruneisen4640.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x9x9, supercell: 1x1x2

../../_images/fig_kappa8757.png — (a) Temperature-dependent lattice thermal conductivity

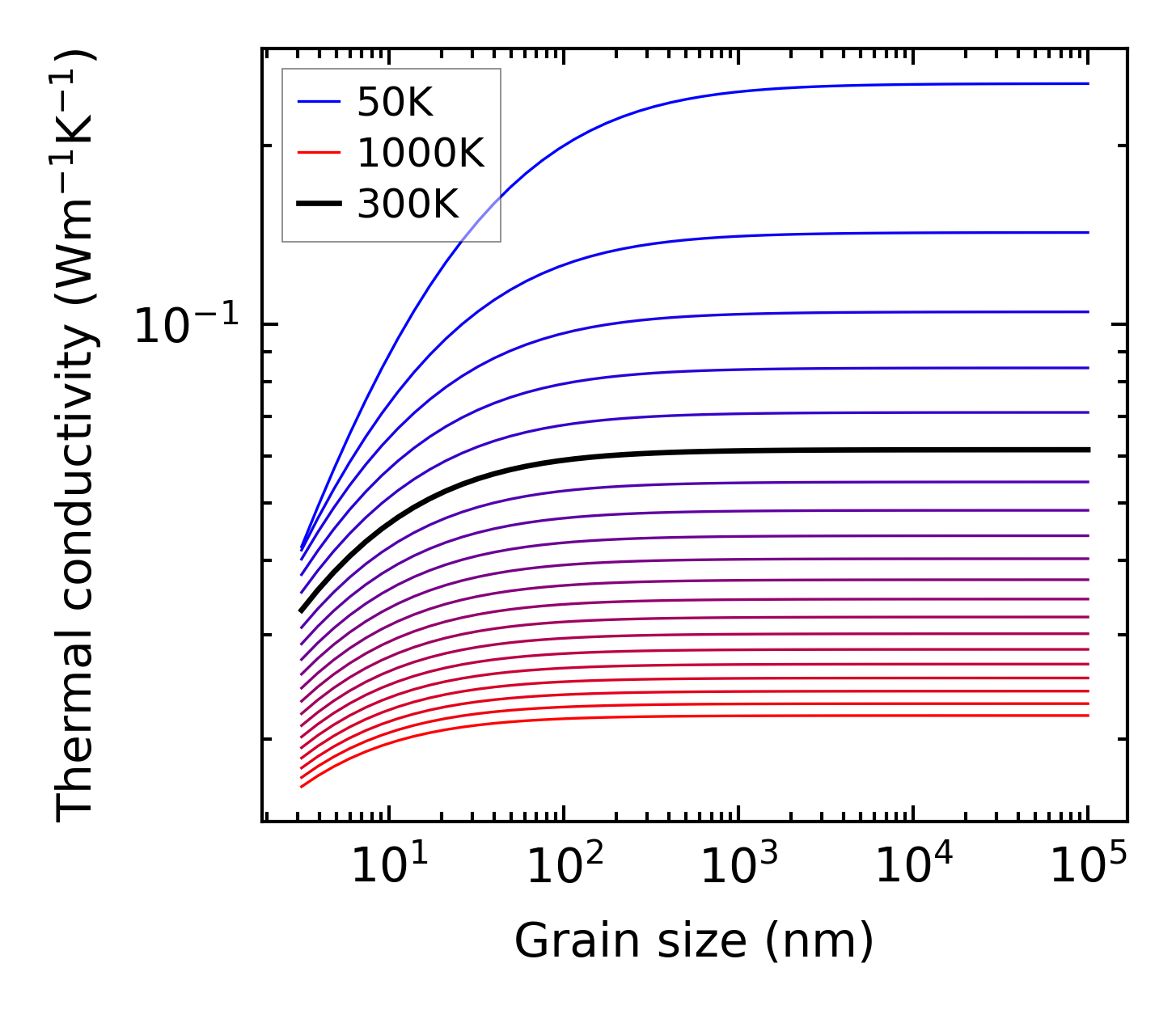

../../_images/fig_kappa_vs_grain_size4697.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

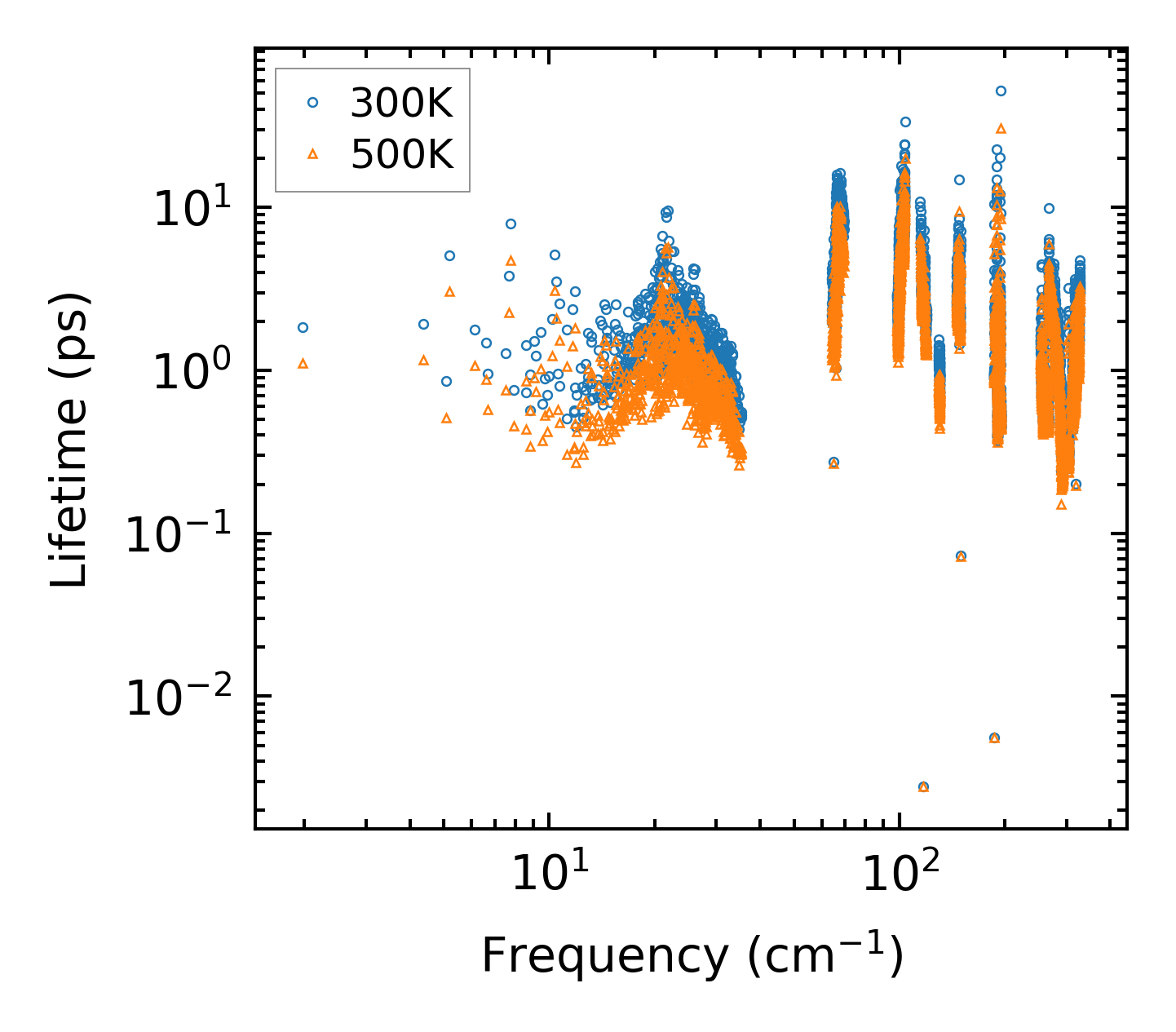

../../_images/fig_lifetime4596.png — (a) Phonon lifetime due to phonon-phonon scattering

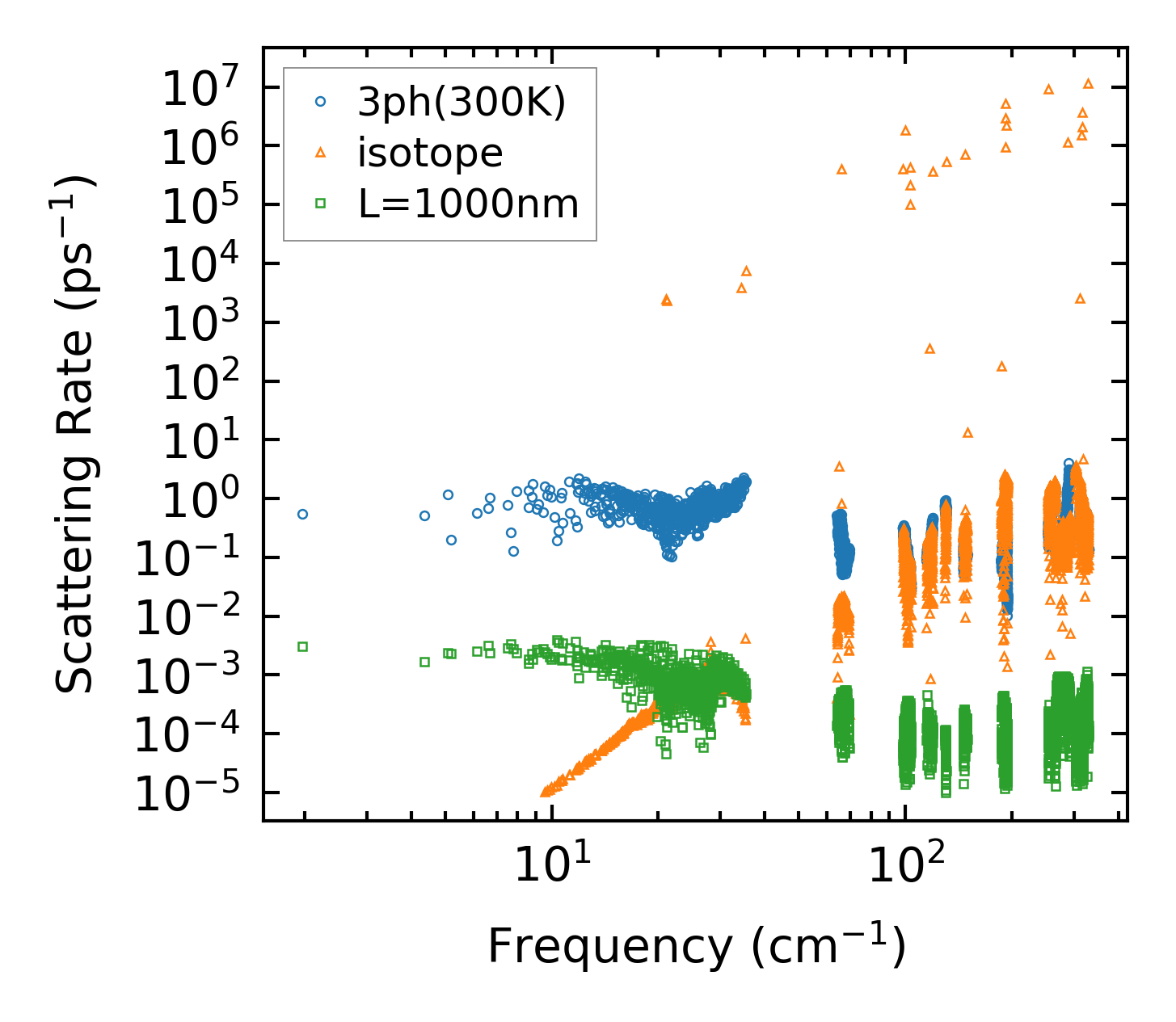

../../_images/fig_scat_rates4595.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4596.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4595.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

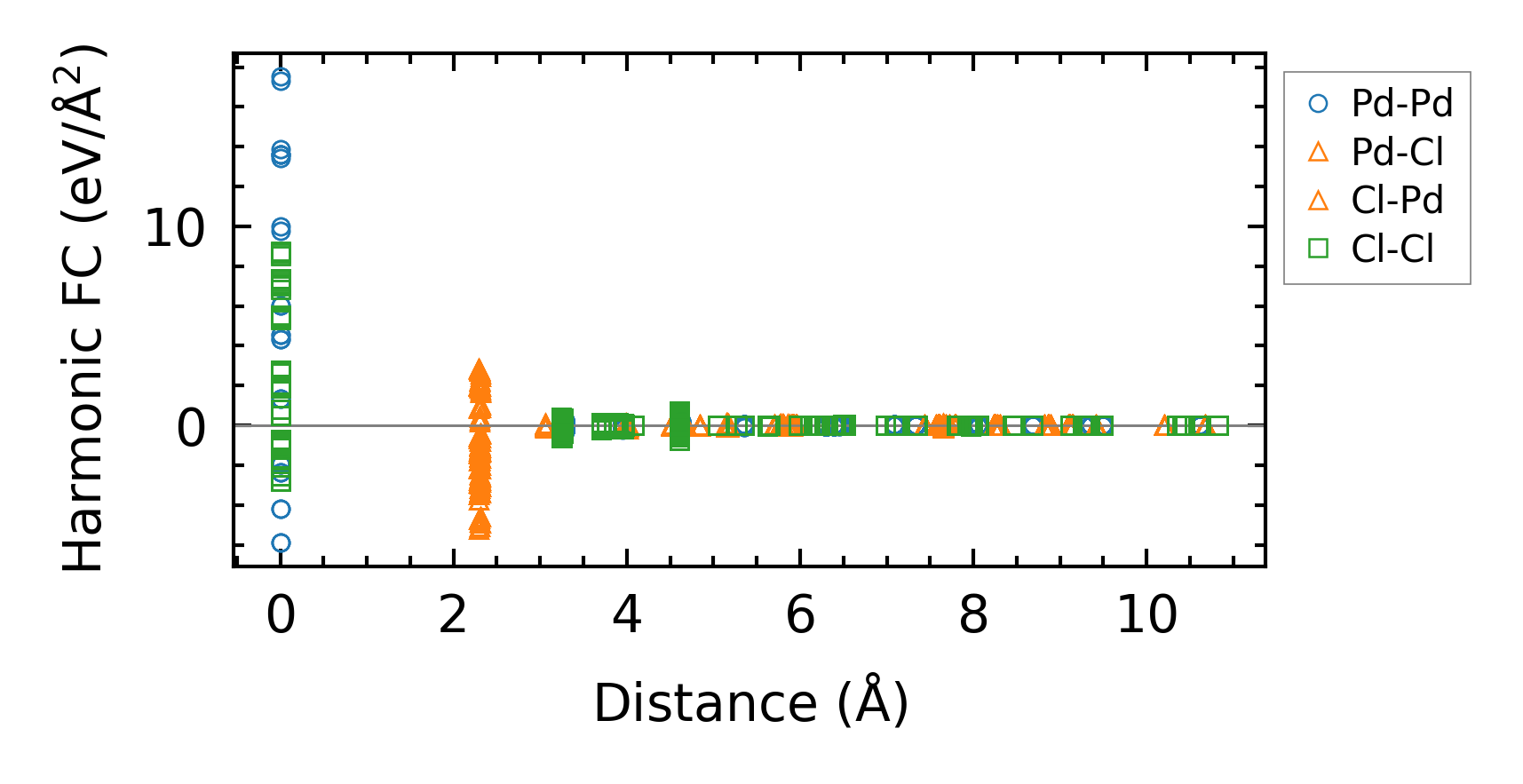

../../_images/fig_fc210938.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8758.png — (a) Temperature-dependent lattice thermal conductivity

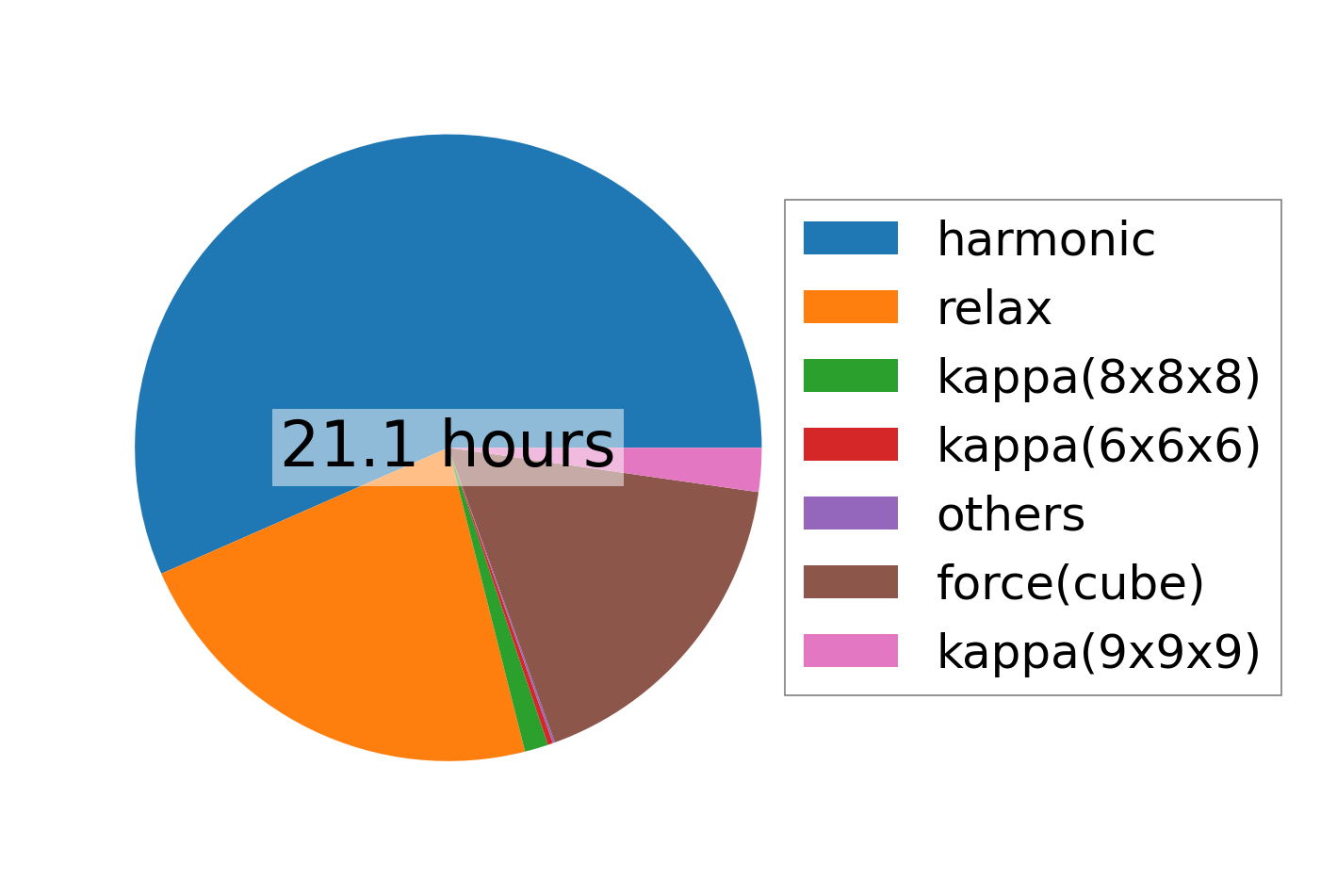

../../_images/fig_times19164.png — (b) Computation time
