mp-29386-2/K6Sn2Se7/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-29386-2.tar.gz

Equation of state

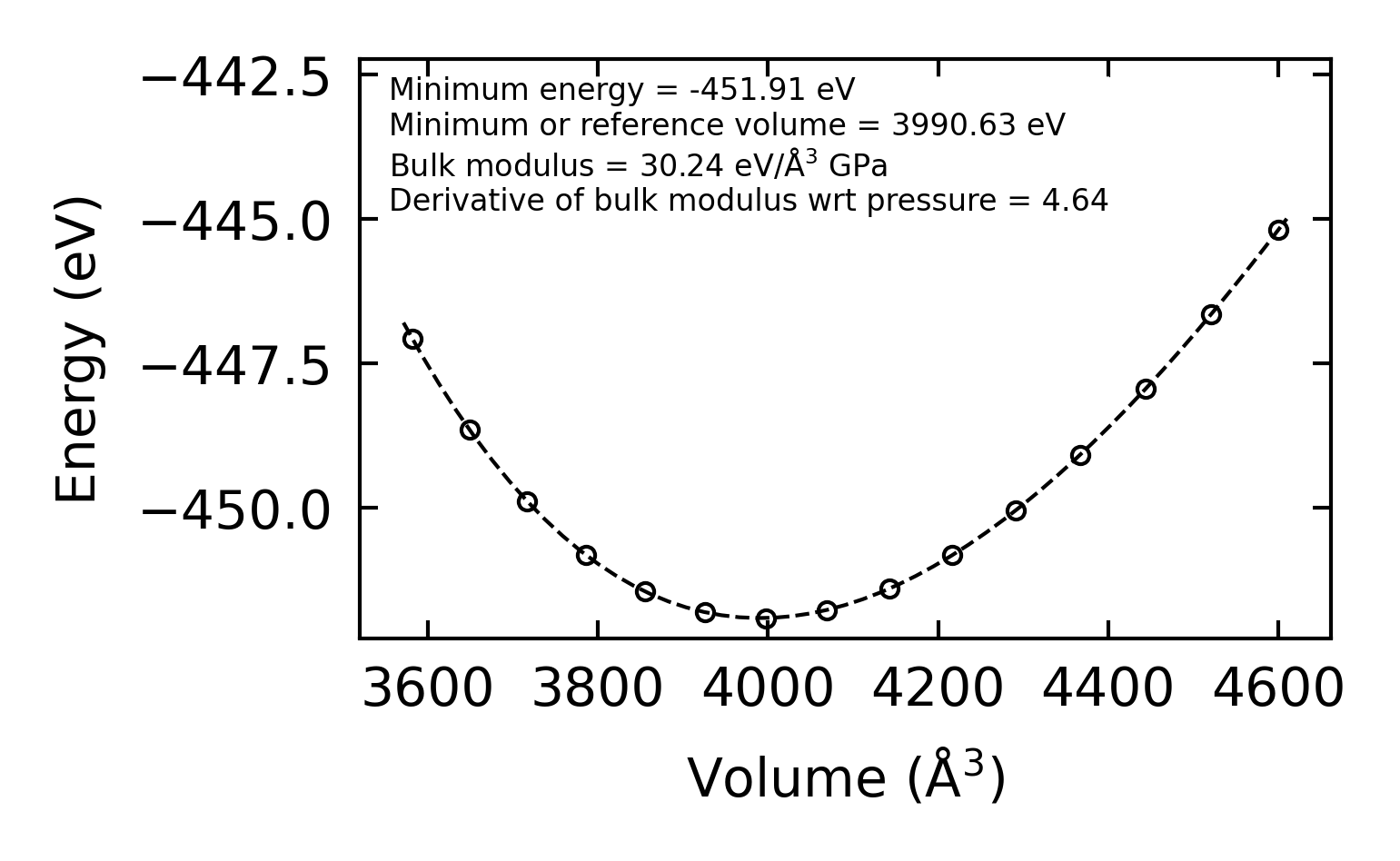

../../_images/fig_bm5464.png — (a) Equation of state

Harmonic properties

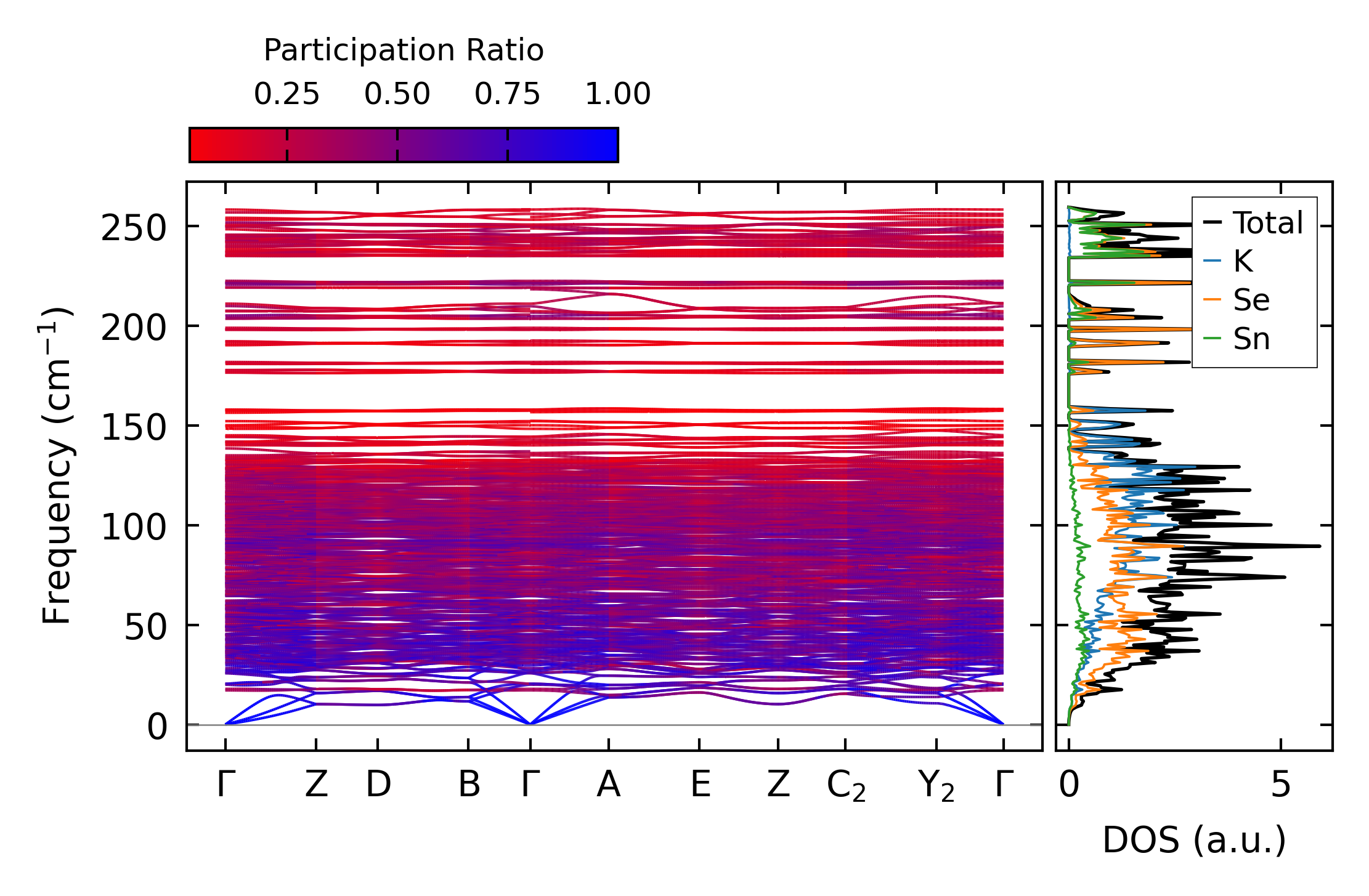

../../_images/fig_bandos_pr11177.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos15142.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11177.png — (c) Thermodynamic properties

Grüneisen parameters

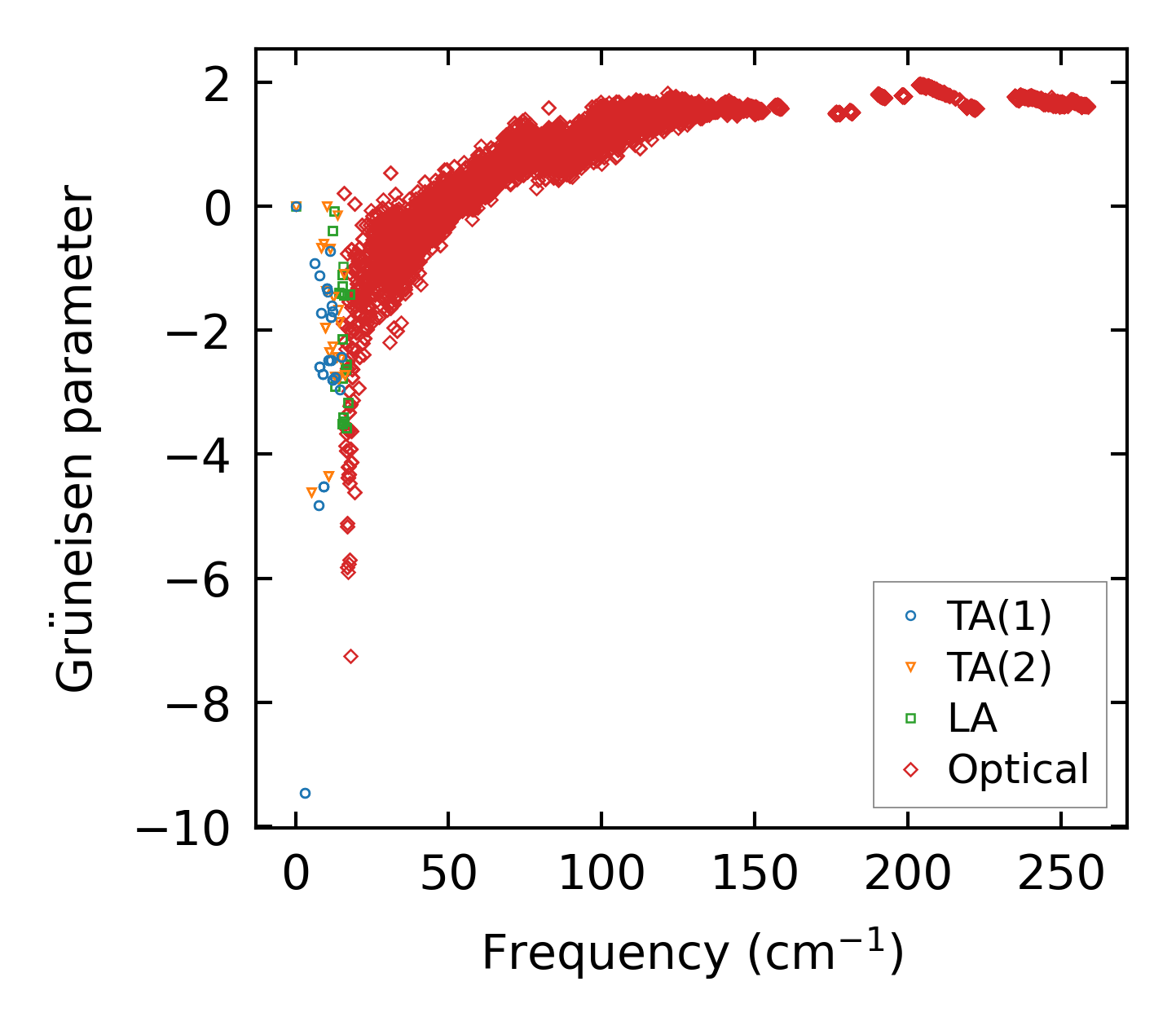

../../_images/fig_gru_all4609.png — (a) Grüneisen parameters

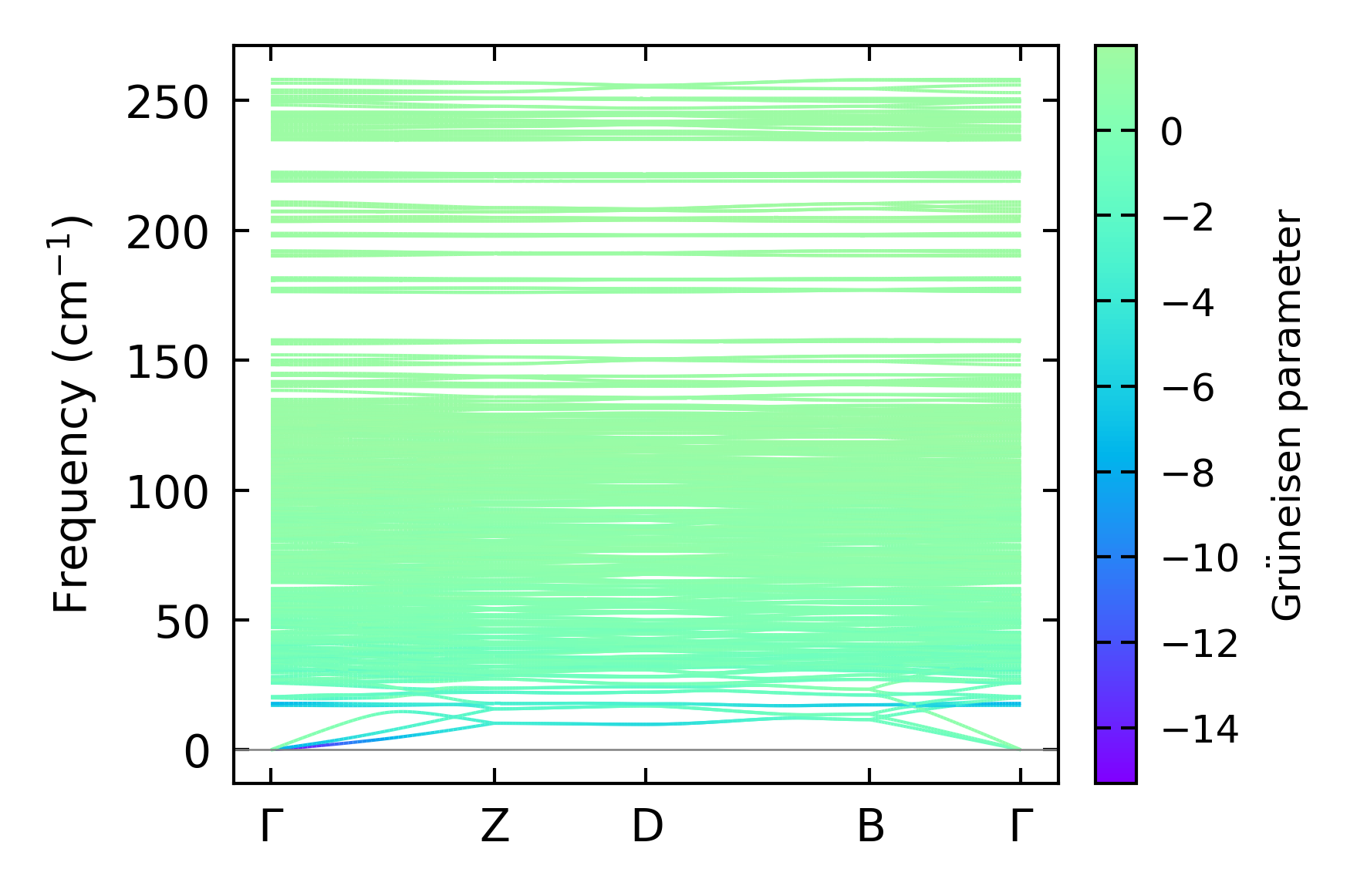

../../_images/fig_gruneisen4609.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 4x5x3, supercell: 1x1x1

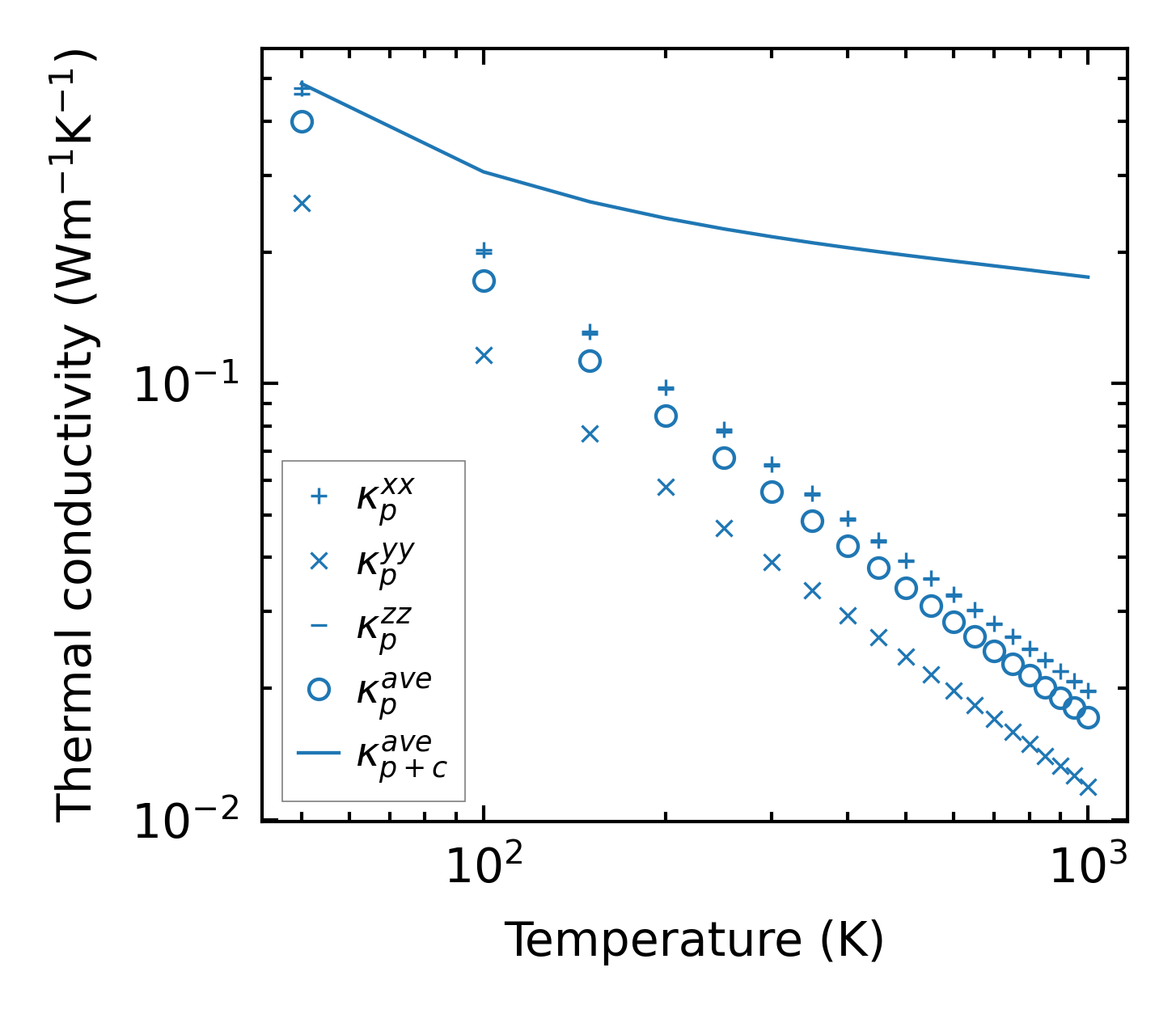

../../_images/fig_kappa8700.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4666.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4565.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4564.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

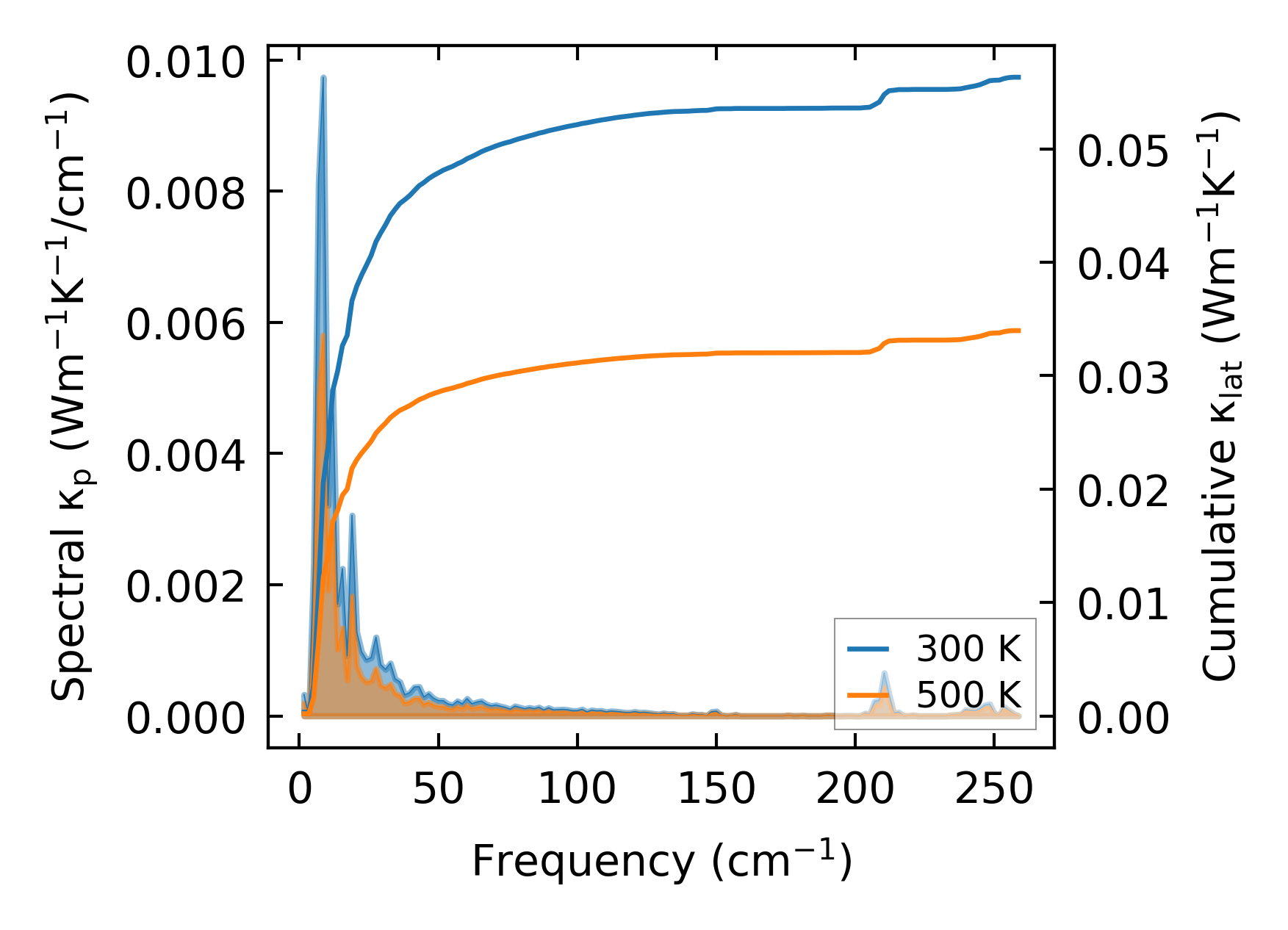

../../_images/fig_cumu_frequency4565.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4564.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

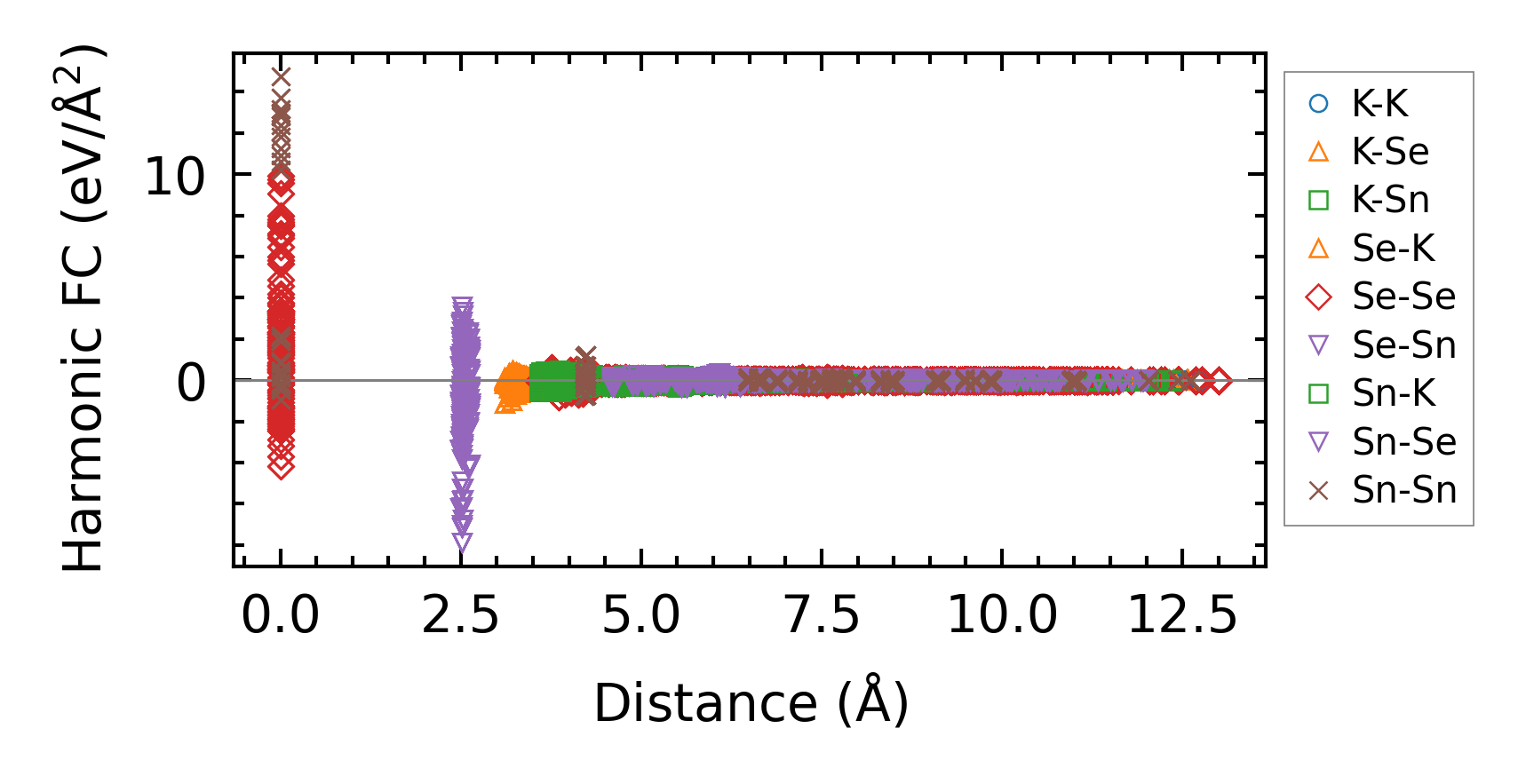

../../_images/fig_fc210894.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8701.png — (a) Temperature-dependent lattice thermal conductivity

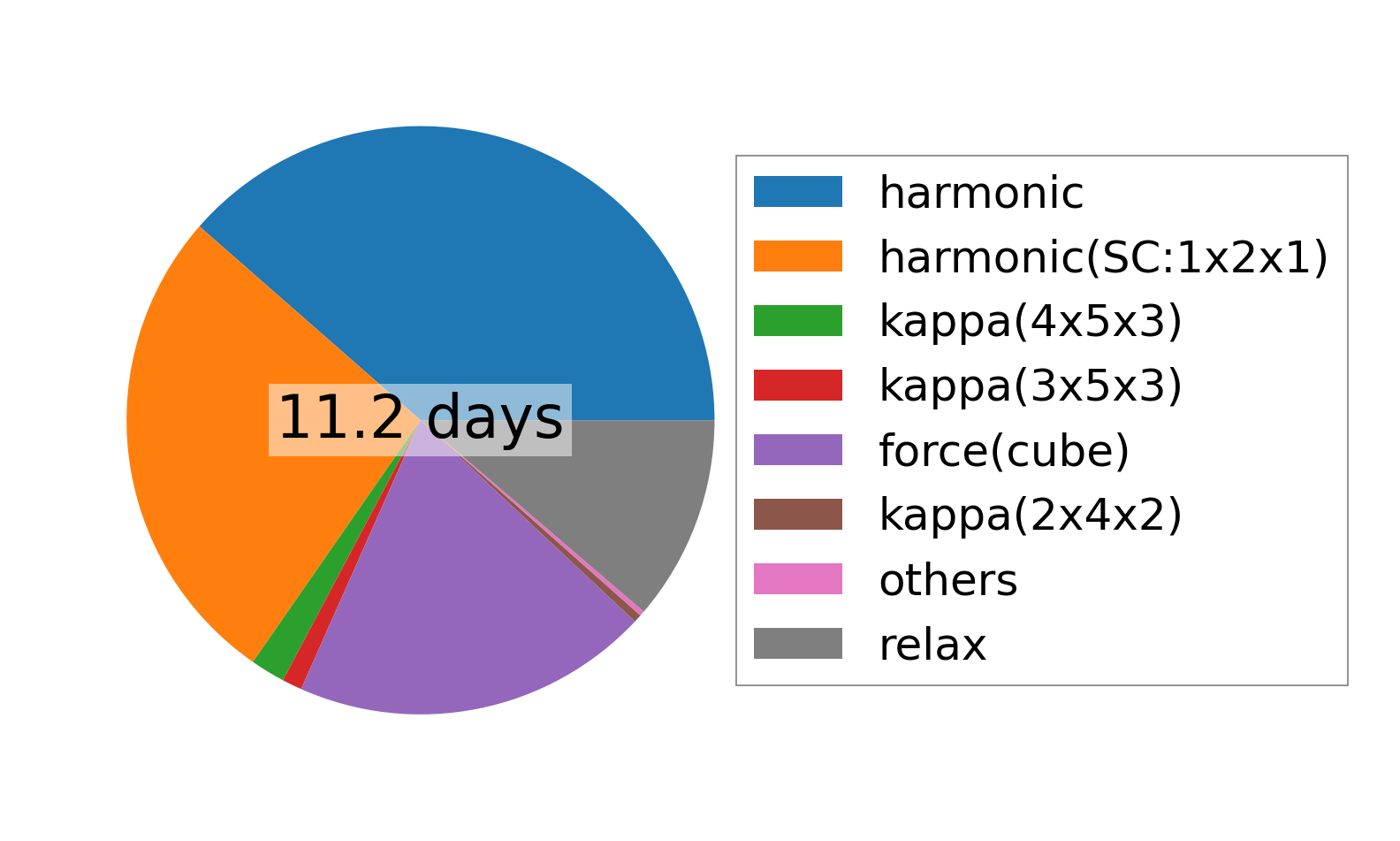

../../_images/fig_times19101.png — (b) Computation time
