mp-29498/WBr2/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-29498.tar.gz

Harmonic properties

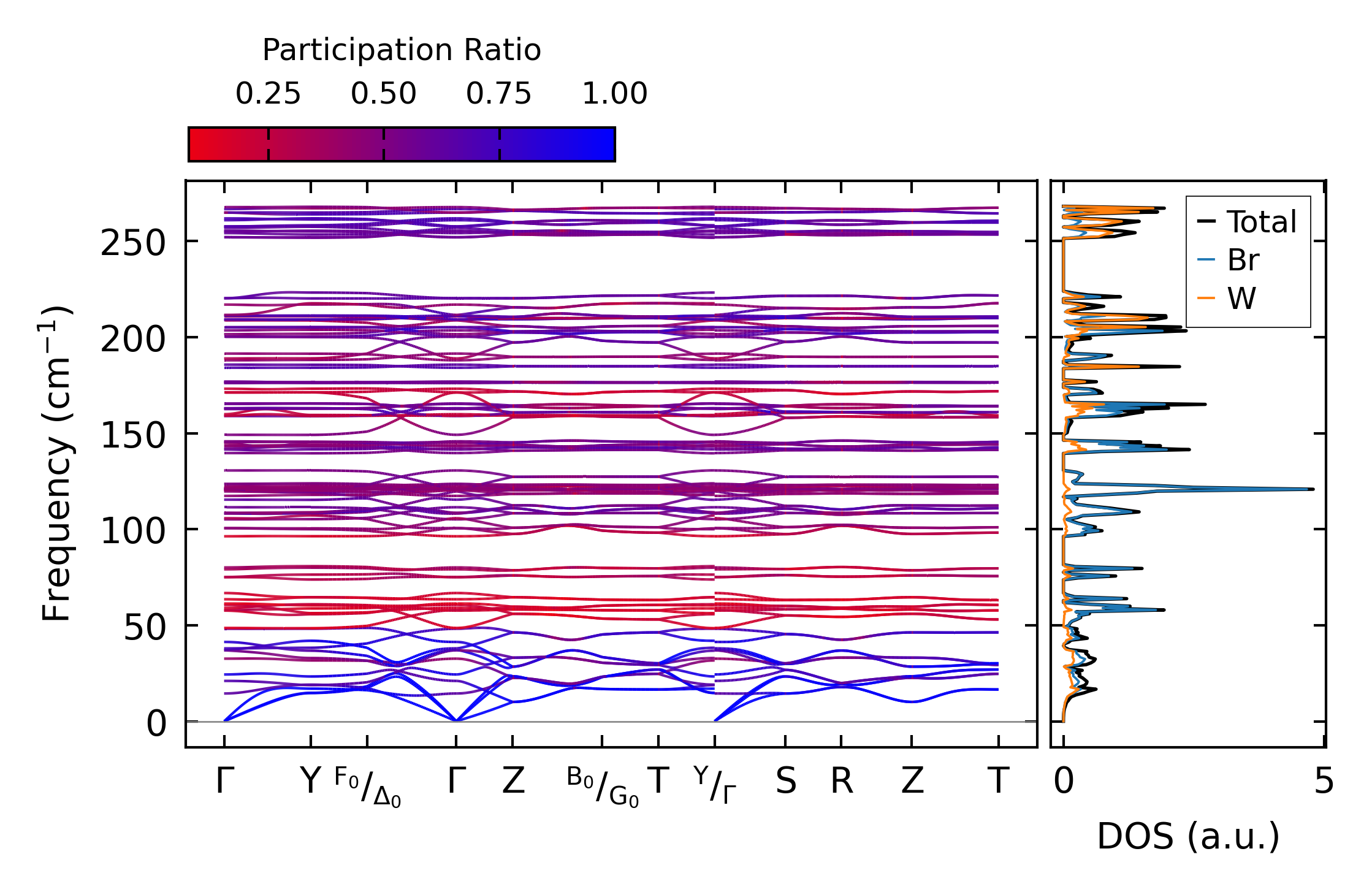

../../_images/fig_bandos_pr11224.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11224.png — (b) Thermodynamic properties

Grüneisen parameters

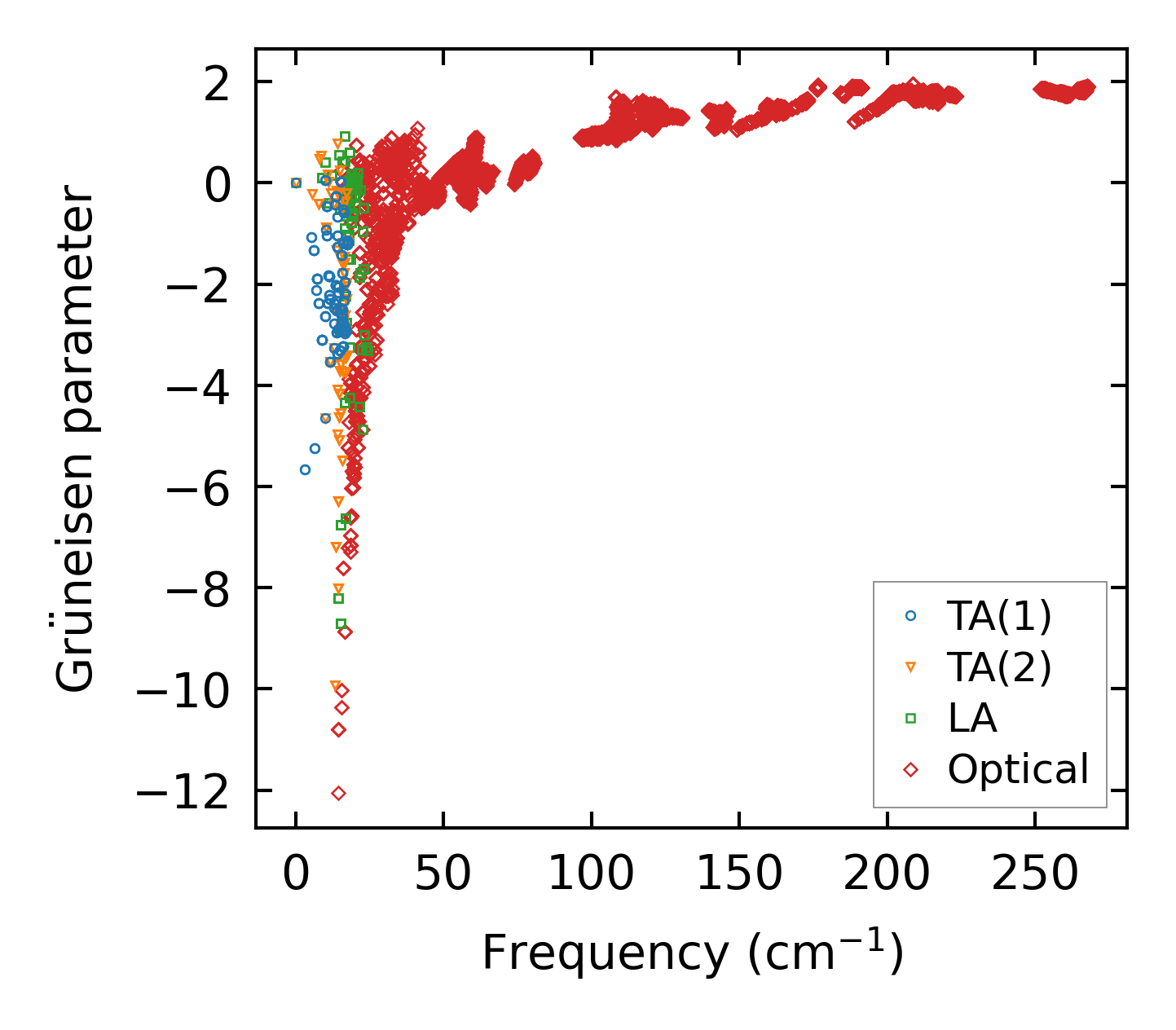

../../_images/fig_gru_all4641.png — (a) Grüneisen parameters

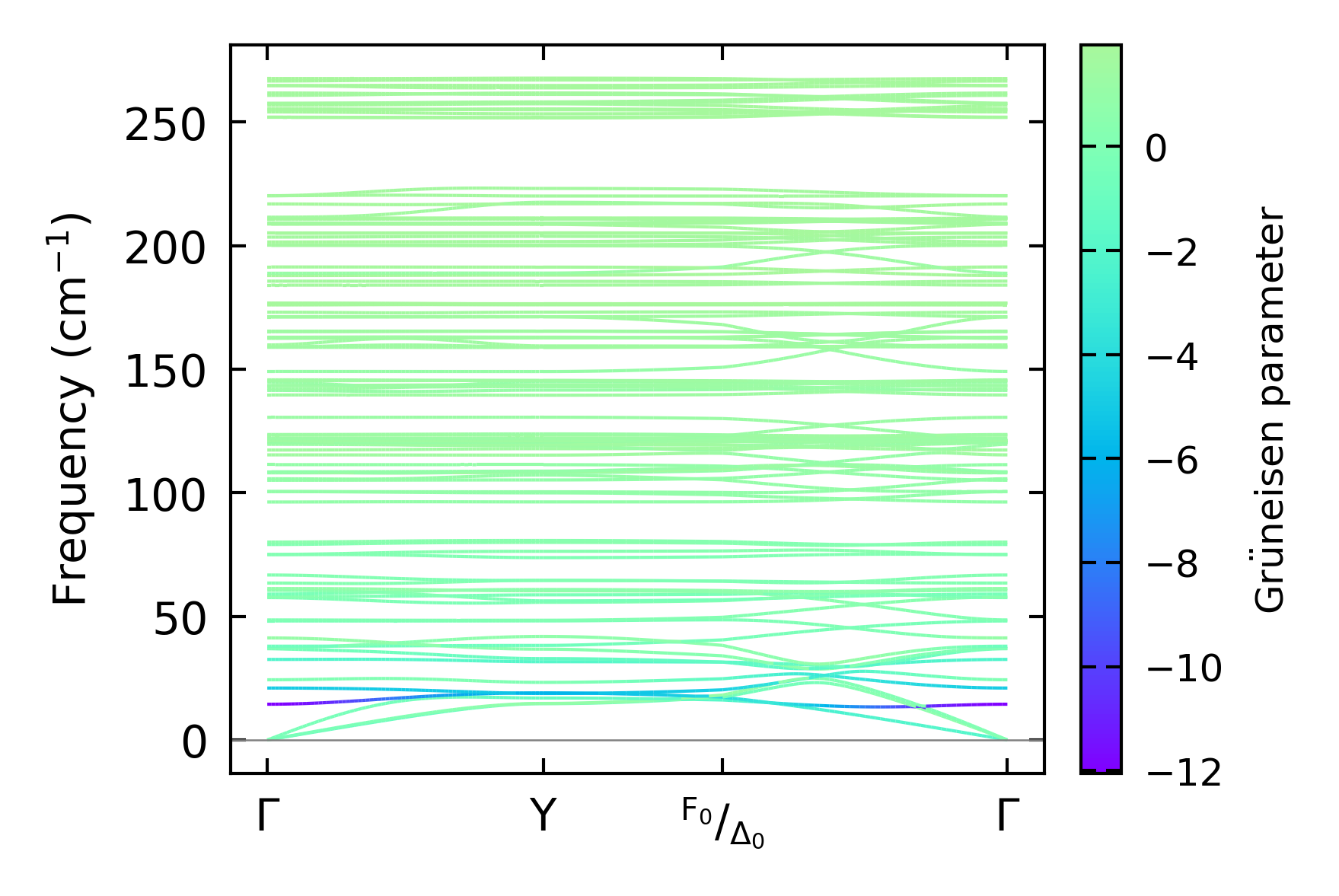

../../_images/fig_gruneisen4641.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x6, supercell: 1x2x1

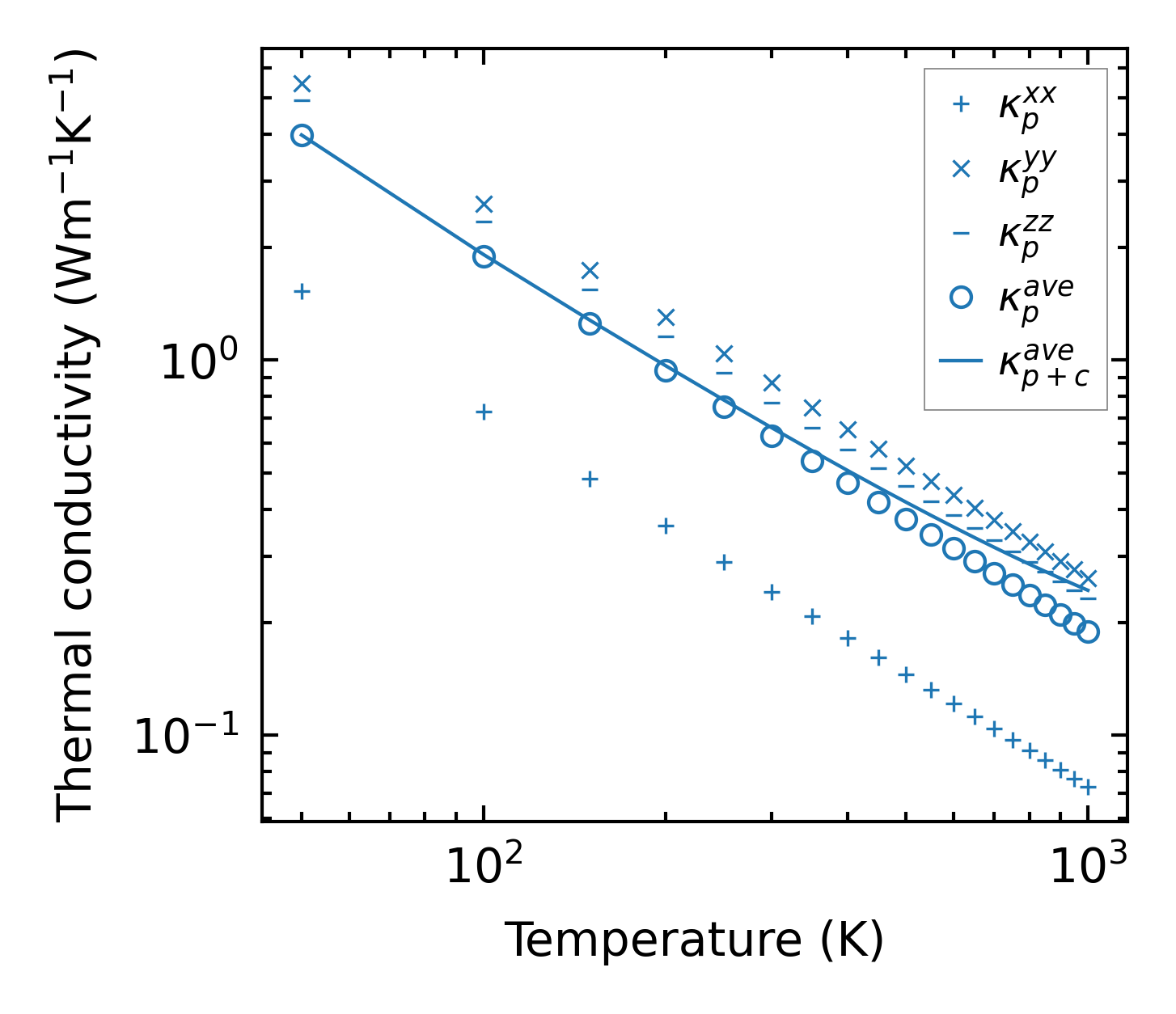

../../_images/fig_kappa8759.png — (a) Temperature-dependent lattice thermal conductivity

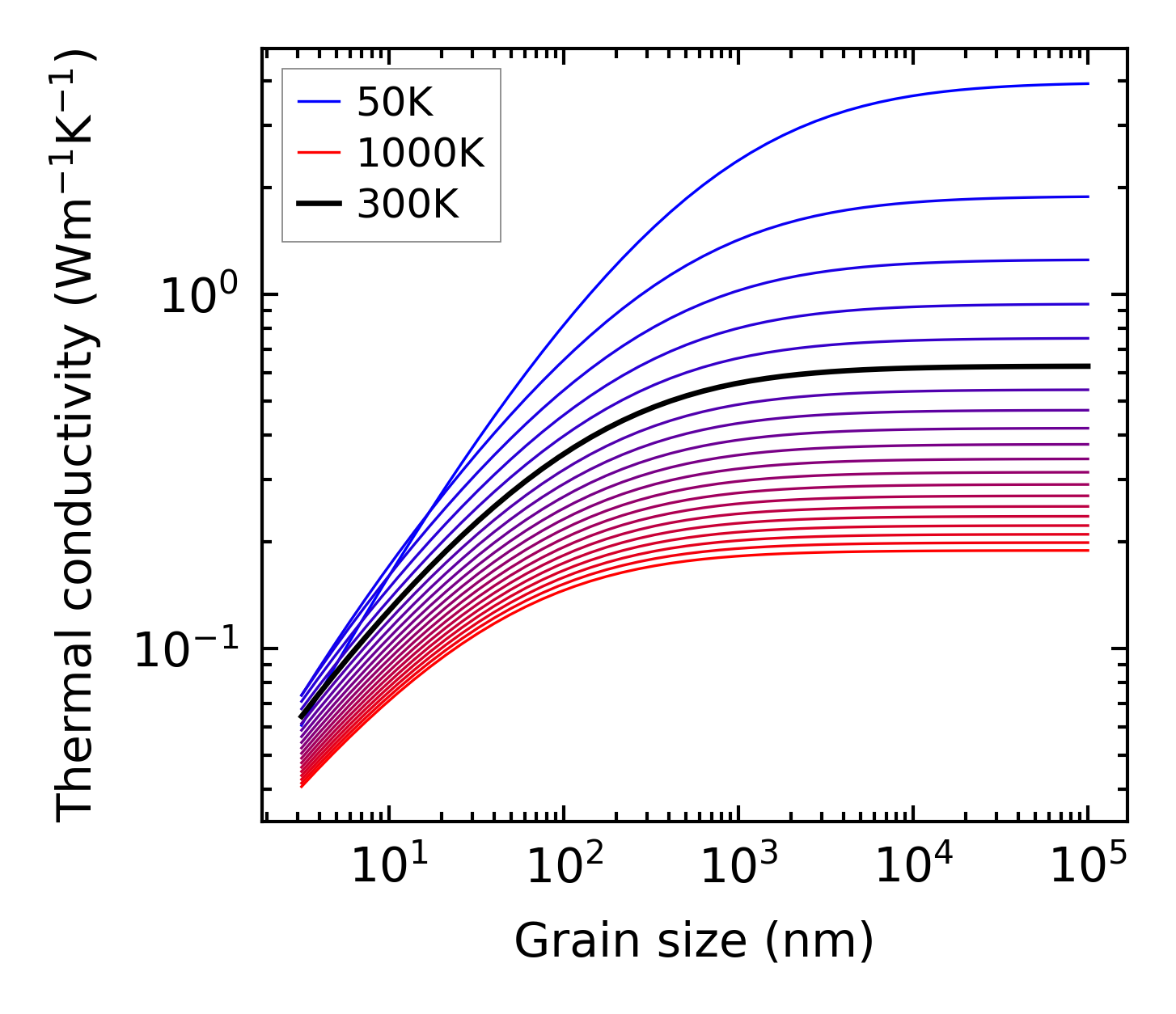

../../_images/fig_kappa_vs_grain_size4698.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

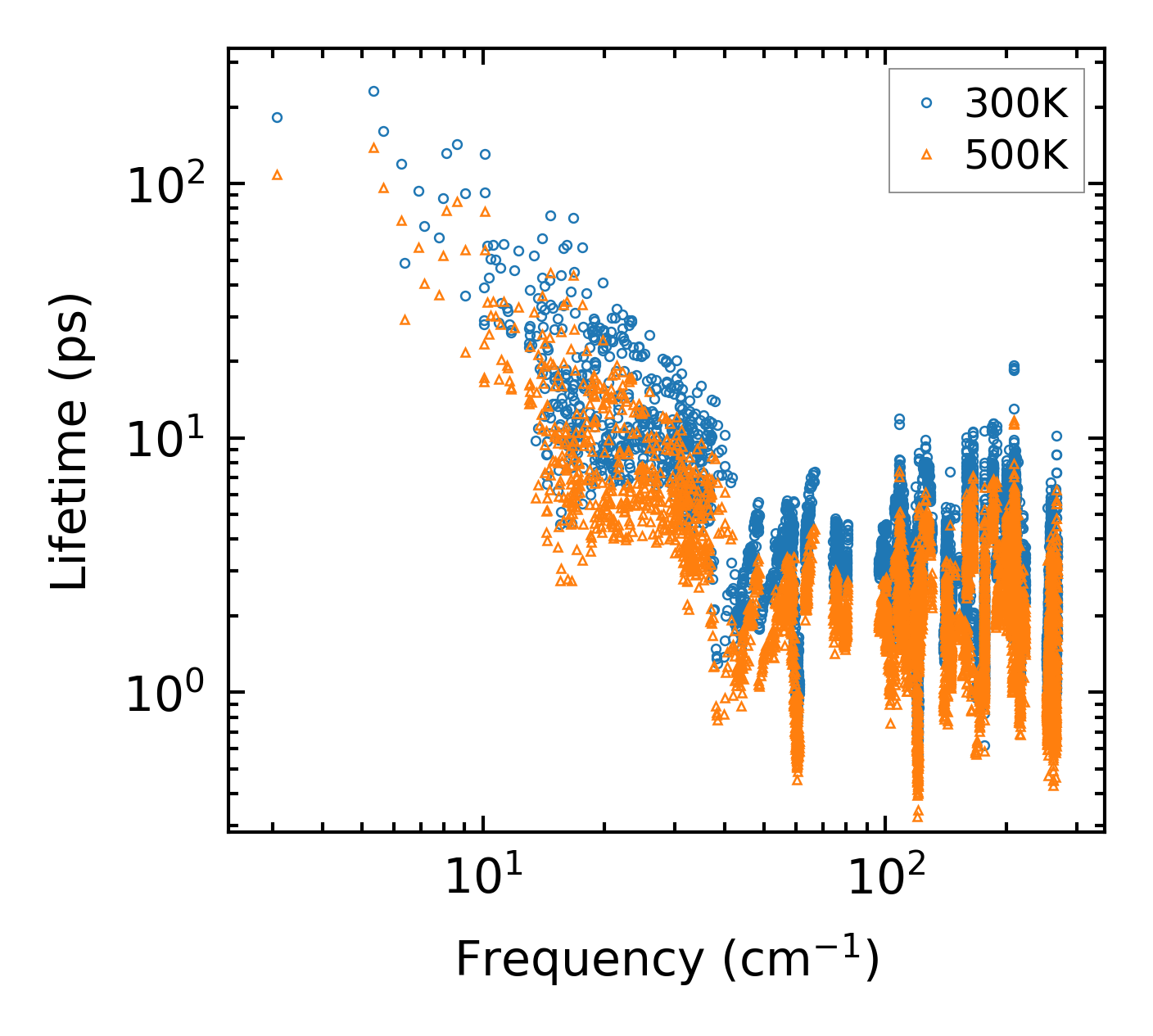

../../_images/fig_lifetime4597.png — (a) Phonon lifetime due to phonon-phonon scattering

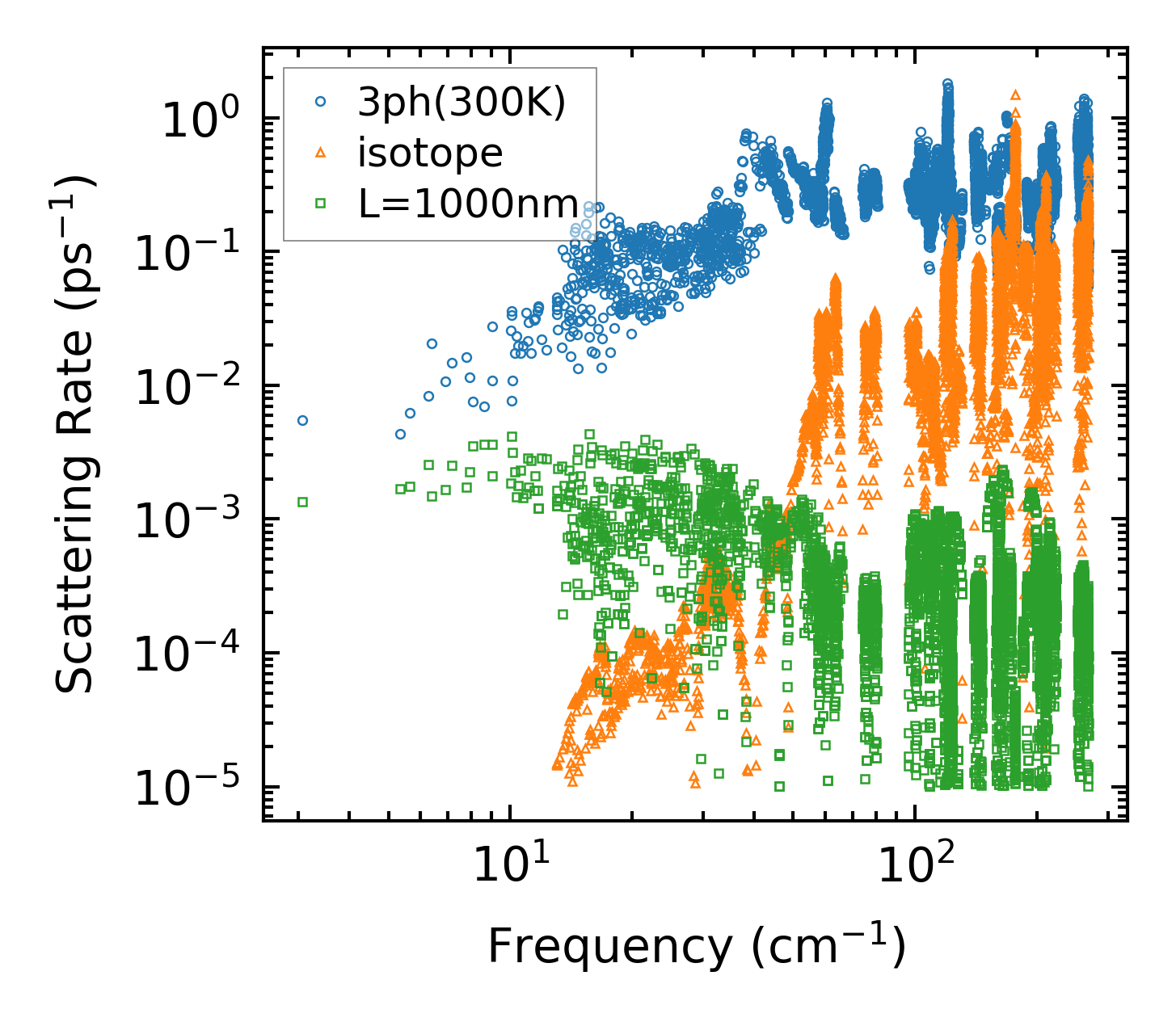

../../_images/fig_scat_rates4596.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

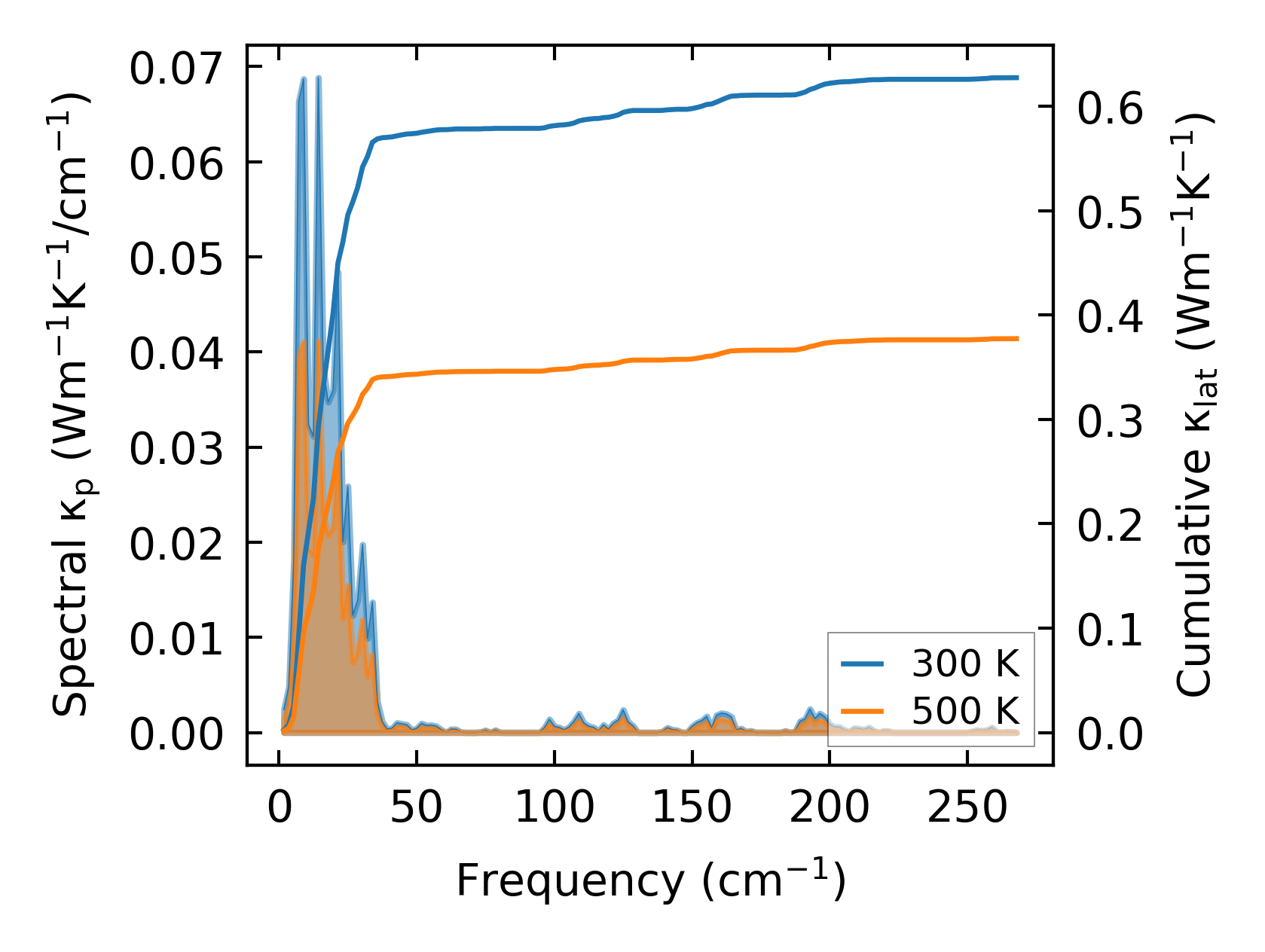

../../_images/fig_cumu_frequency4597.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

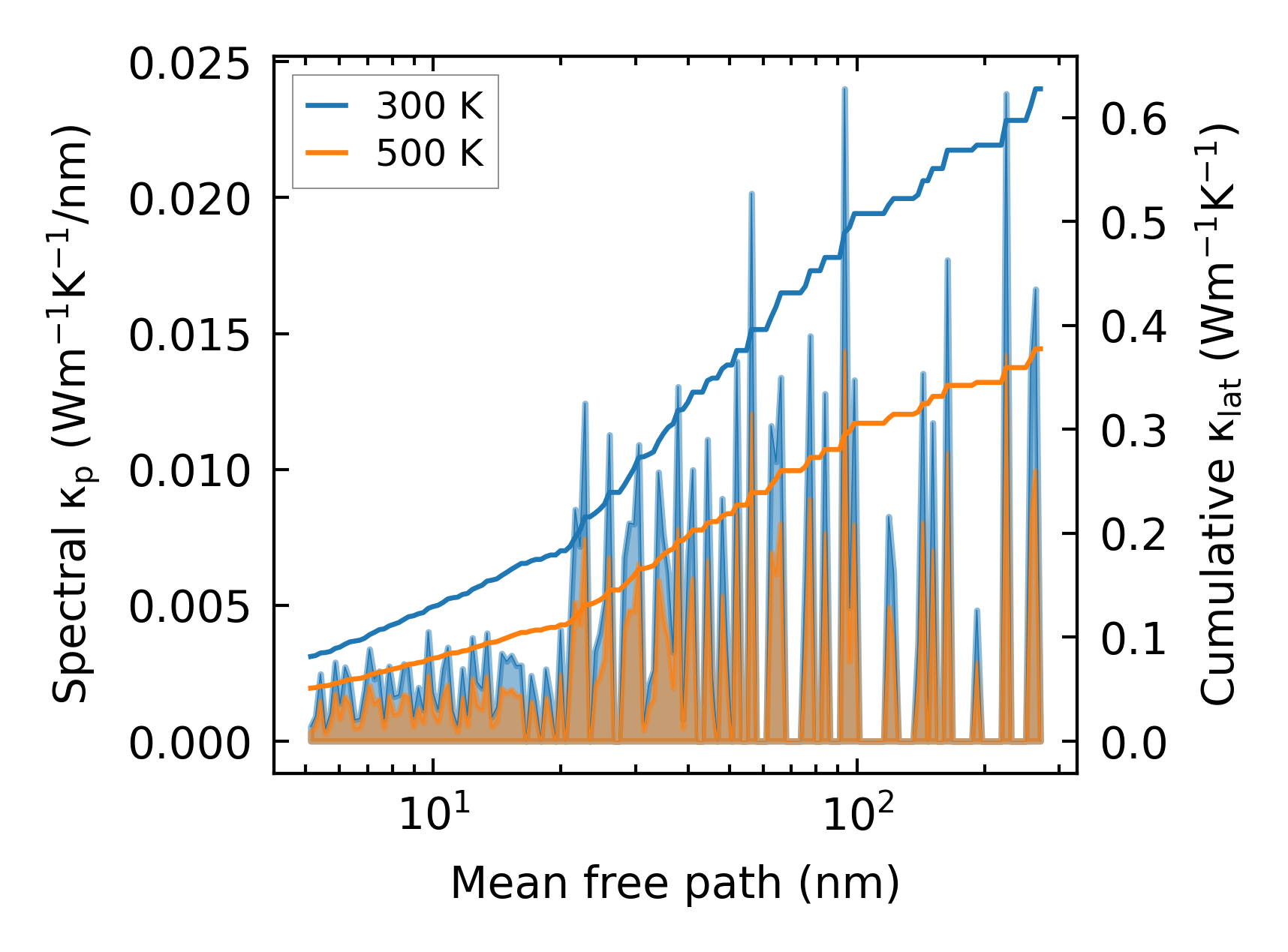

../../_images/fig_cumu_mfp4596.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

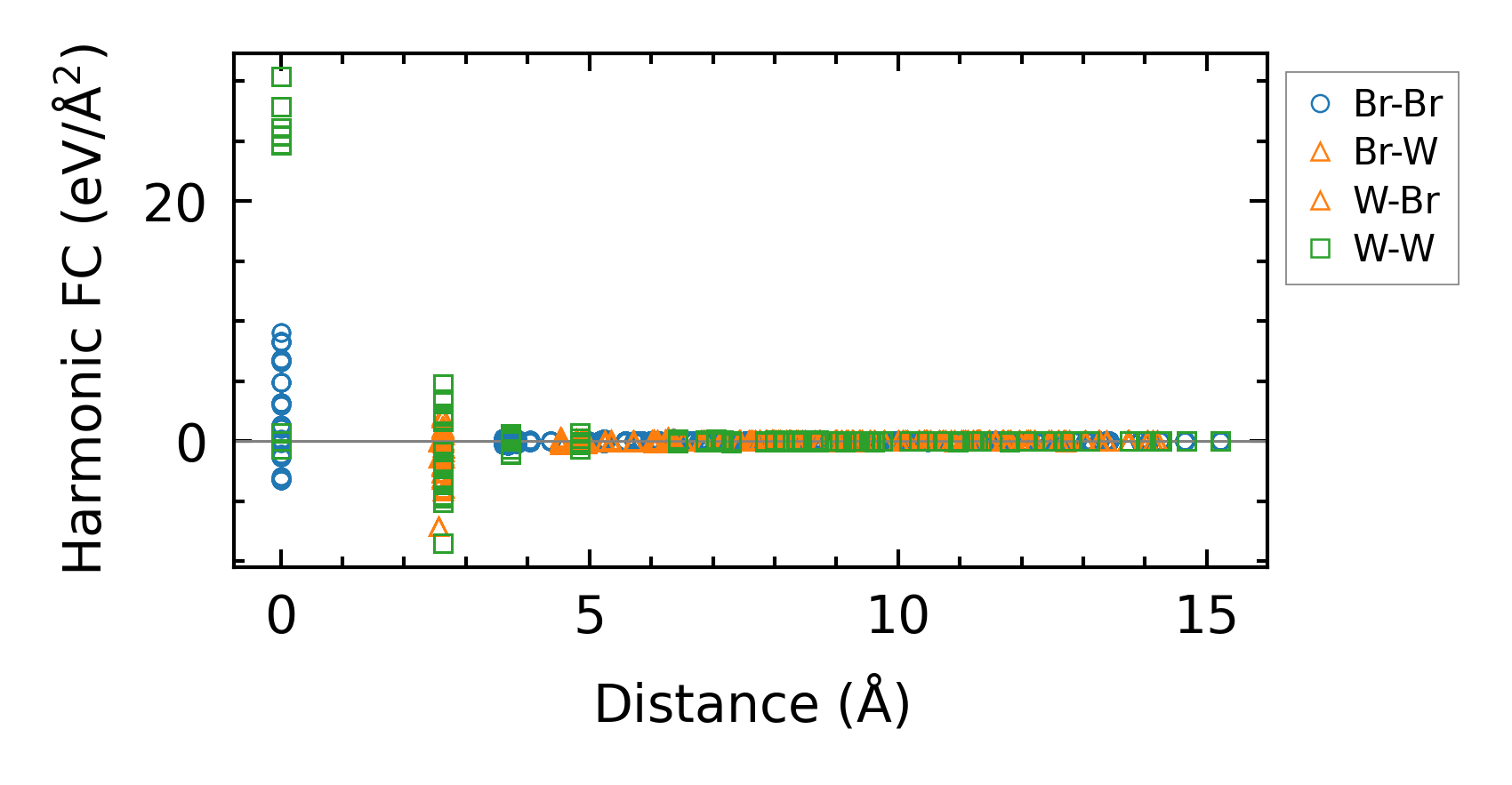

../../_images/fig_fc210940.png — (a) Force constants w.r.t atomic distance

Summary

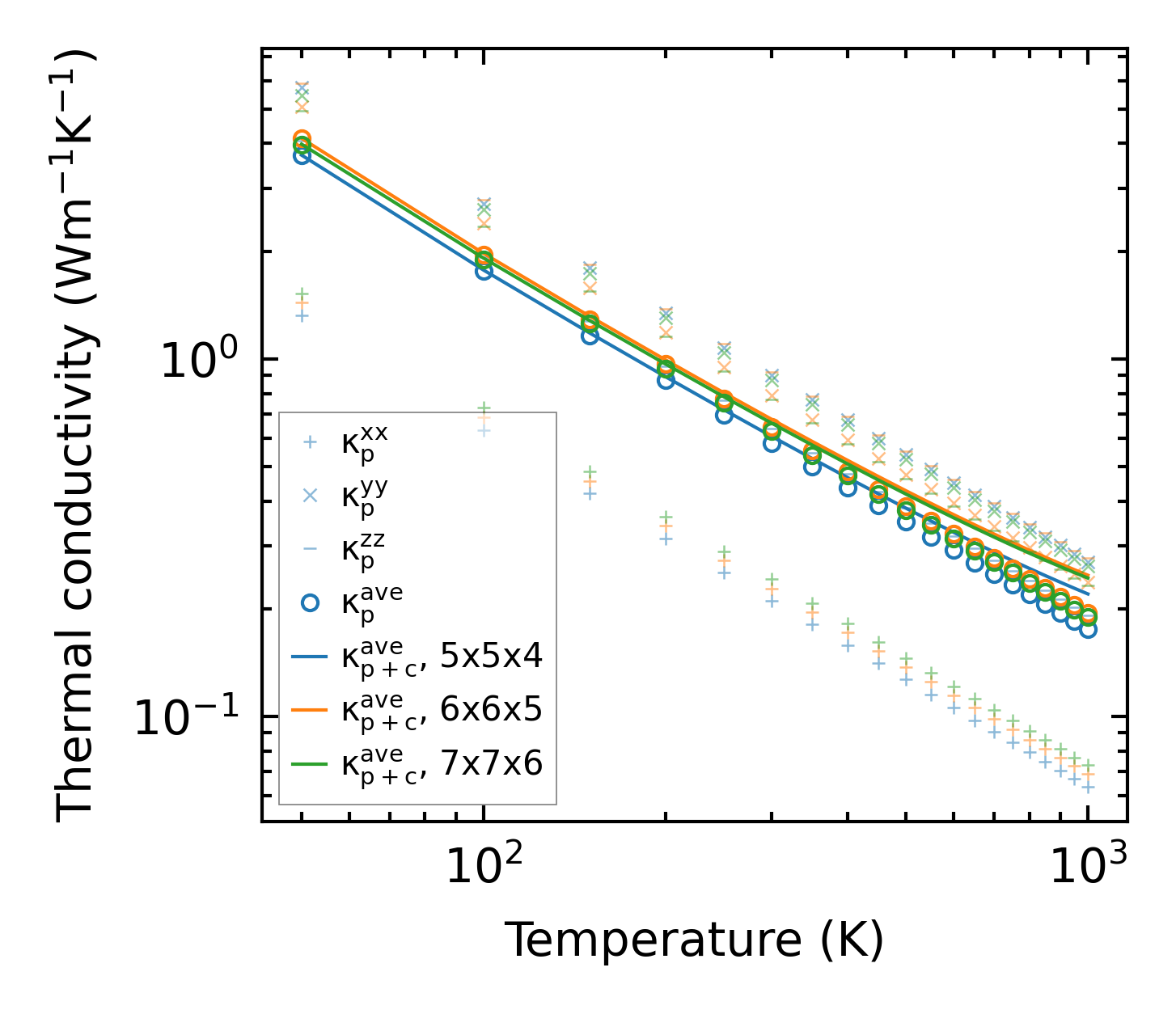

../../_images/fig_kappa8760.png — (a) Temperature-dependent lattice thermal conductivity

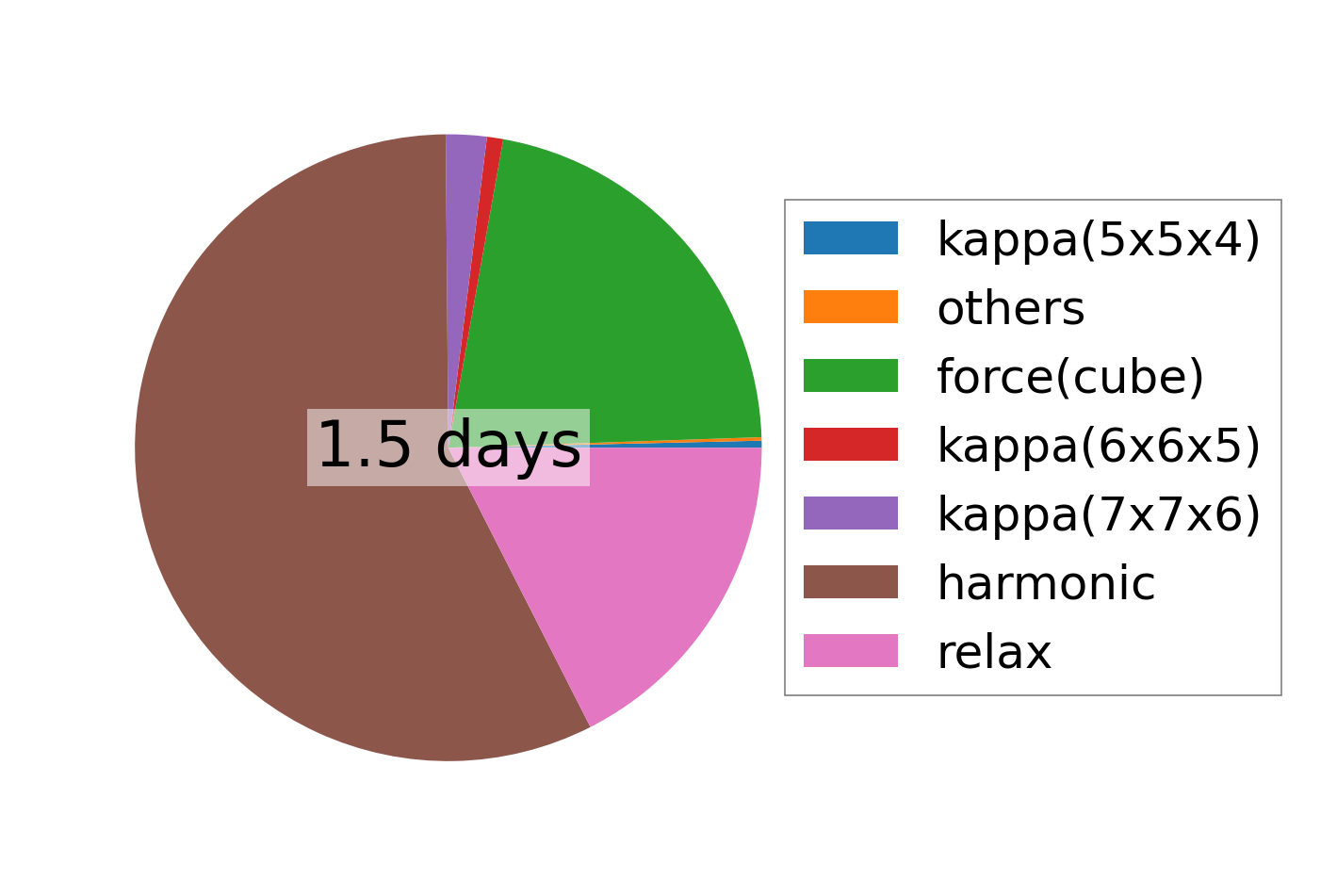

../../_images/fig_times19171.png — (b) Computation time
