mp-29183-2/LaNb7O12/anharm

Space group: P2_1/c (14)
Link: Materials Project
Download: mp-29183-2.tar.gz

Harmonic properties

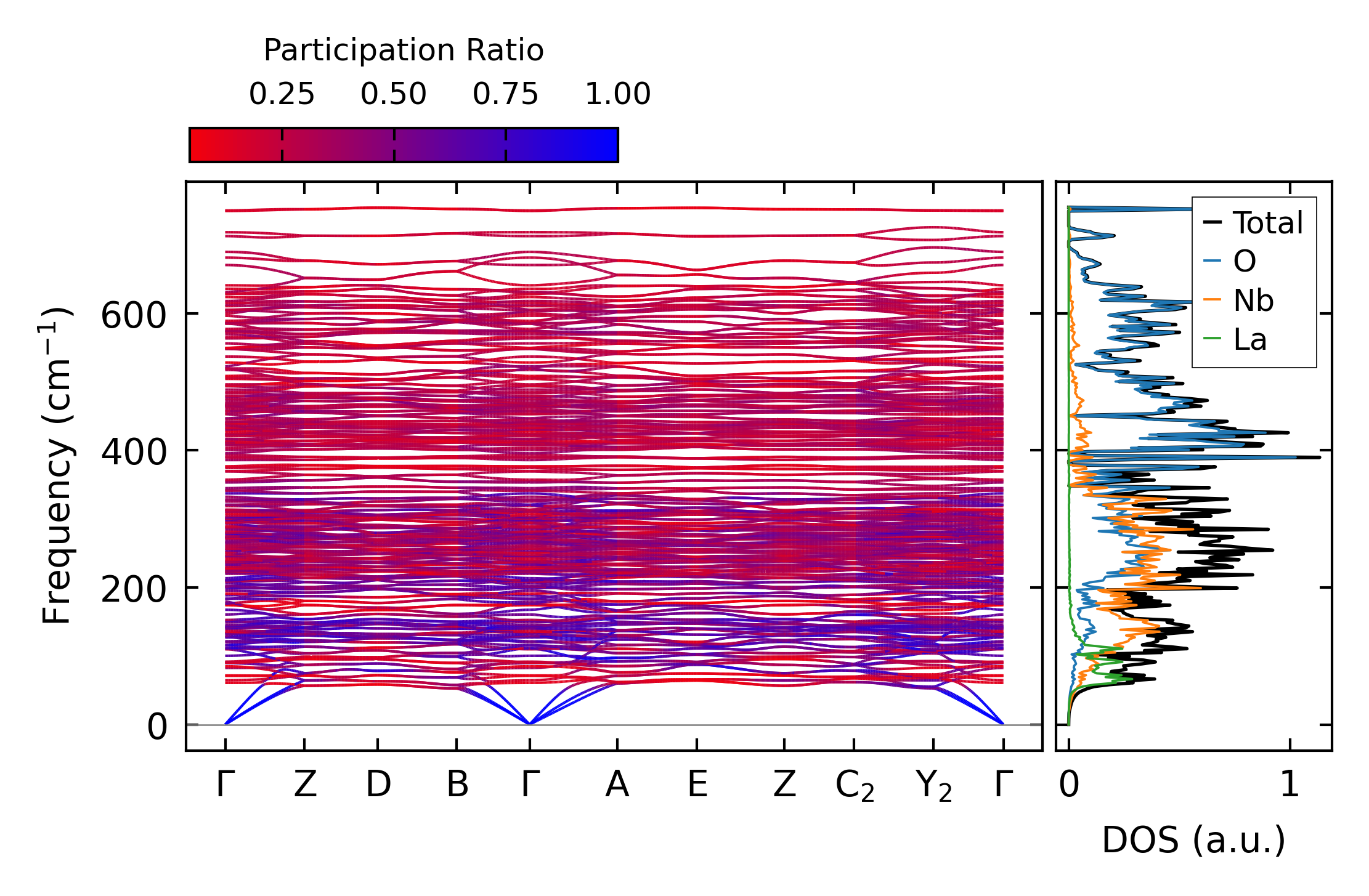

../../_images/fig_bandos_pr11428.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11428.png — (b) Thermodynamic properties

Grüneisen parameters

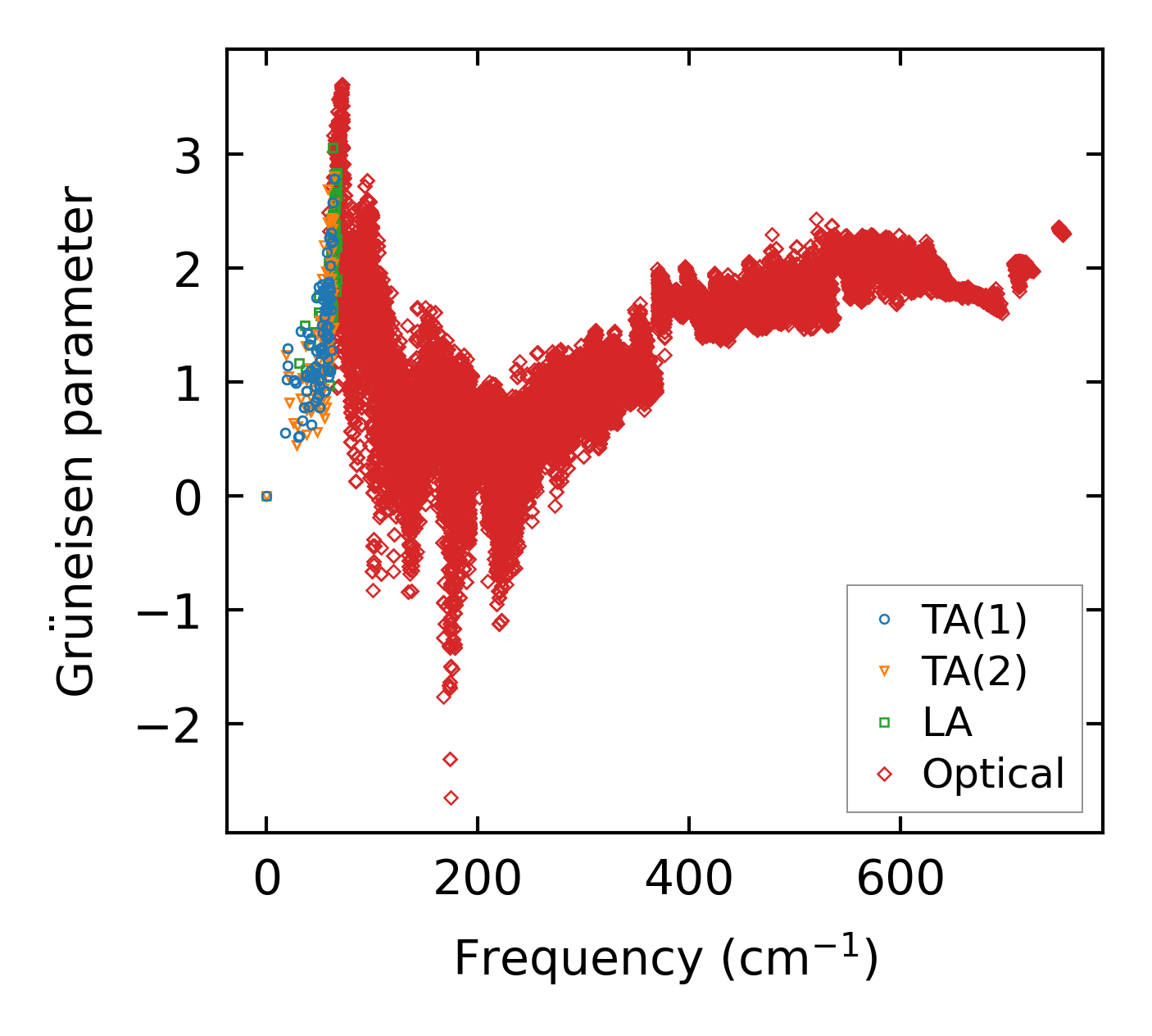

../../_images/fig_gru_all4736.png — (a) Grüneisen parameters

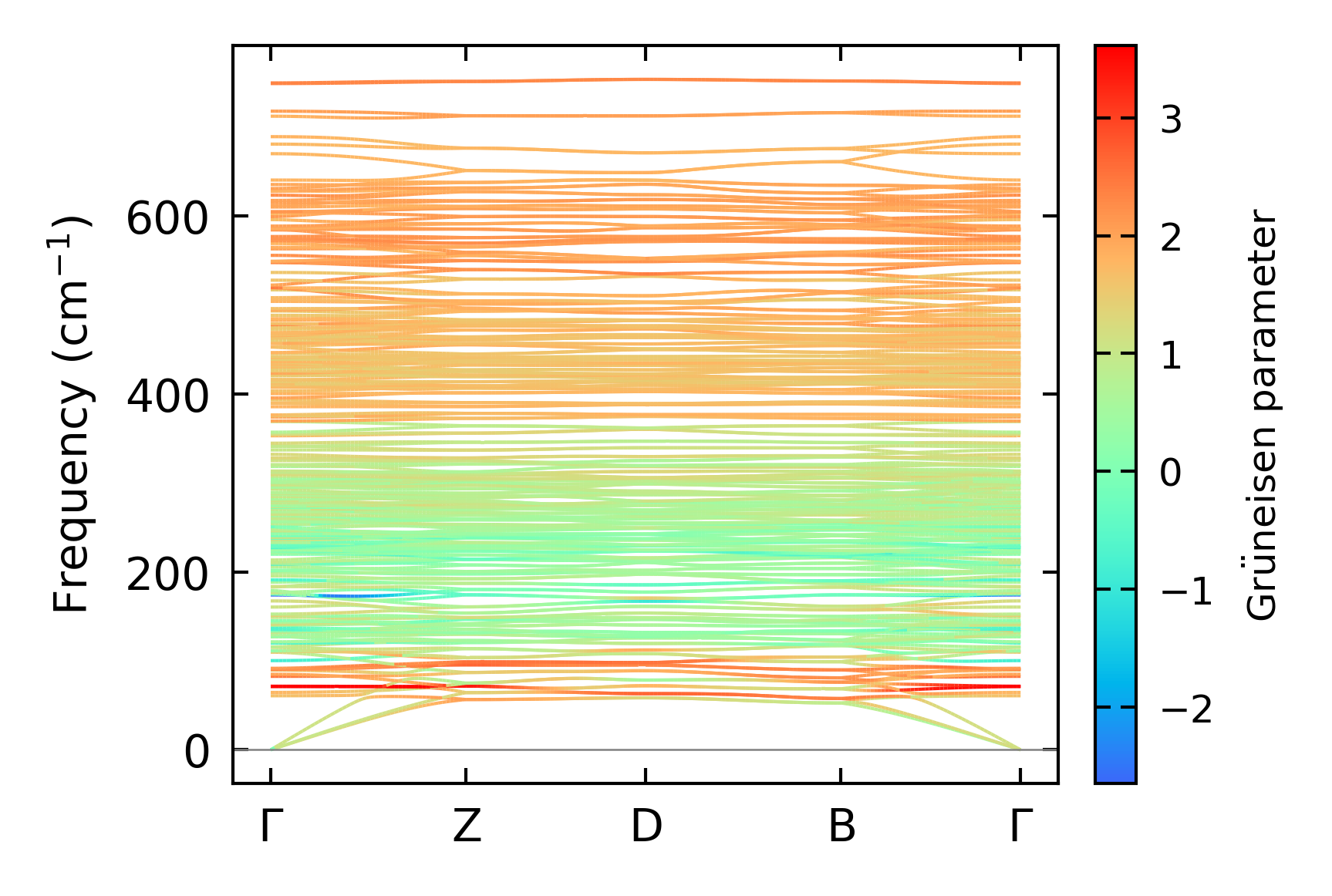

../../_images/fig_gruneisen4736.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x7x7, supercell: 1x1x1

../../_images/fig_kappa8937.png — (a) Temperature-dependent lattice thermal conductivity

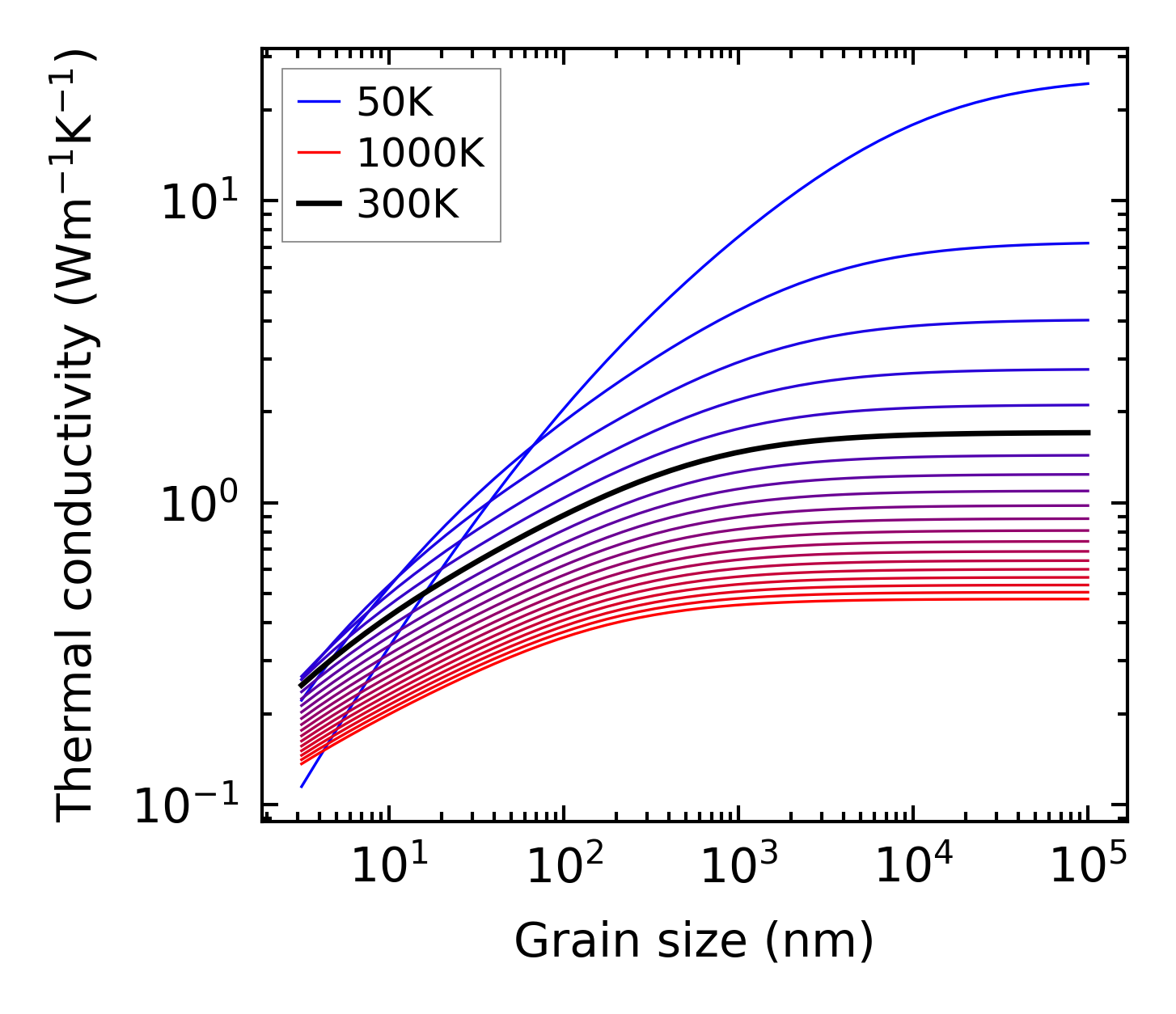

../../_images/fig_kappa_vs_grain_size4794.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4691.png — (a) Phonon lifetime due to phonon-phonon scattering

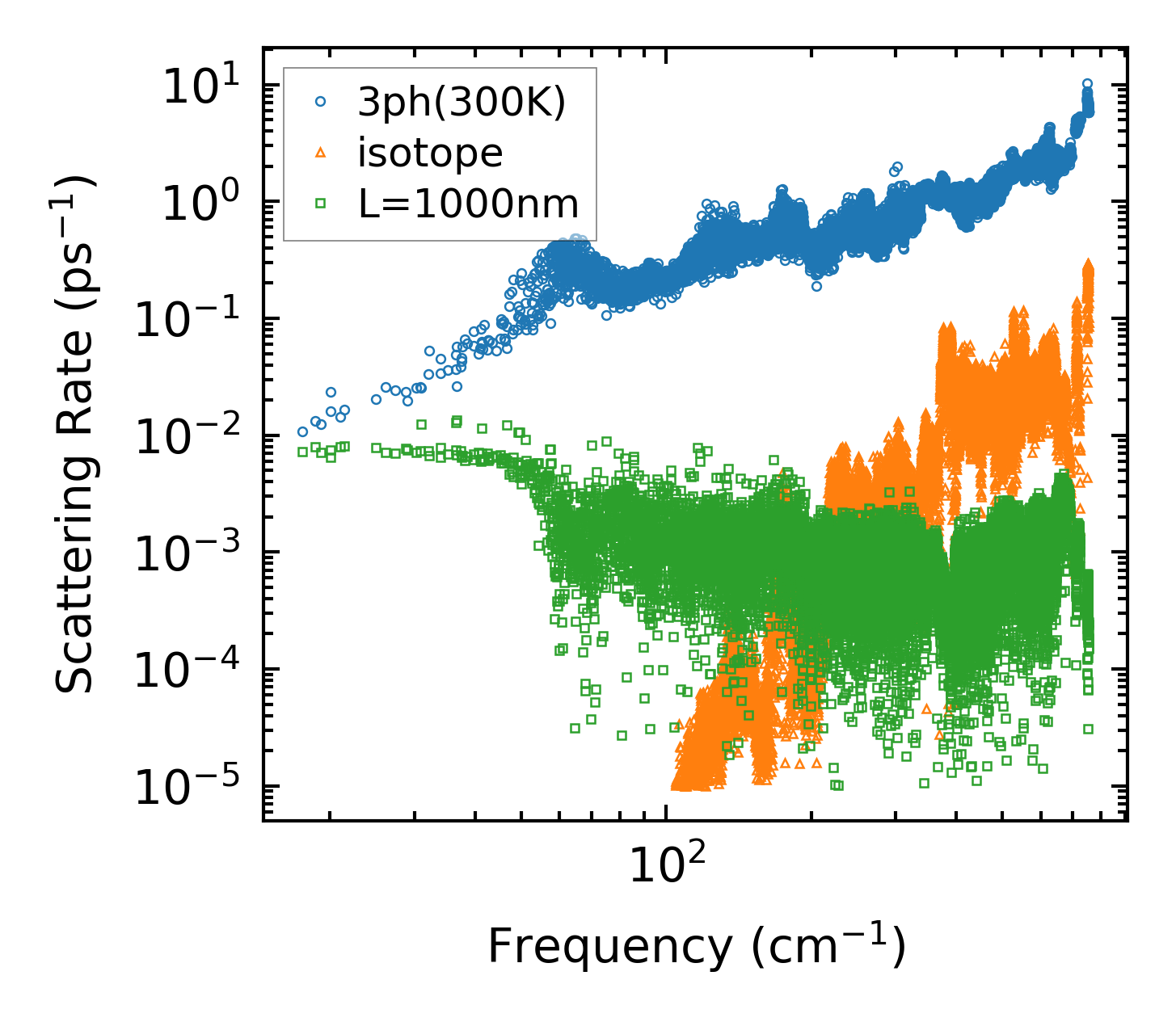

../../_images/fig_scat_rates4690.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

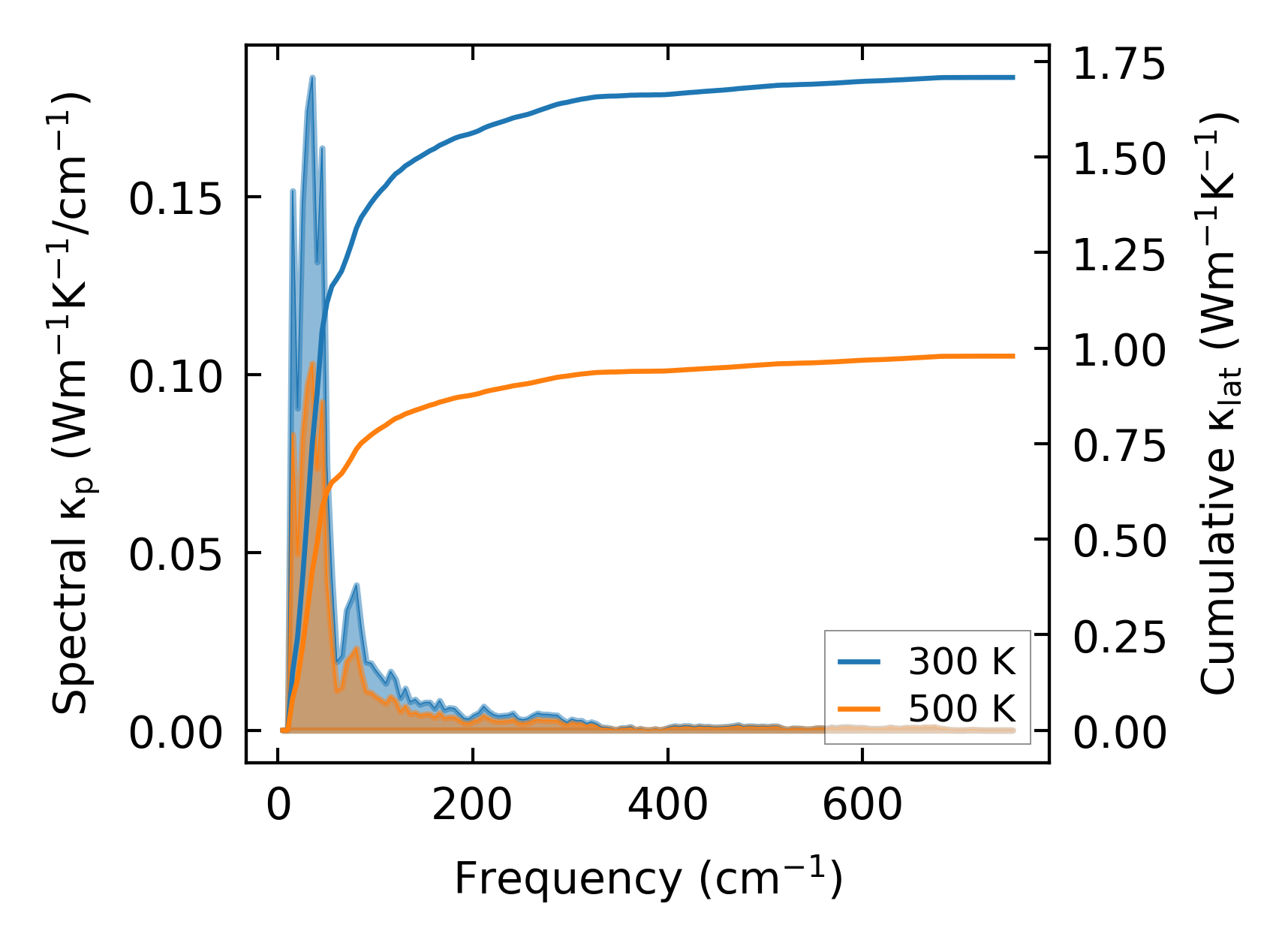

../../_images/fig_cumu_frequency4691.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

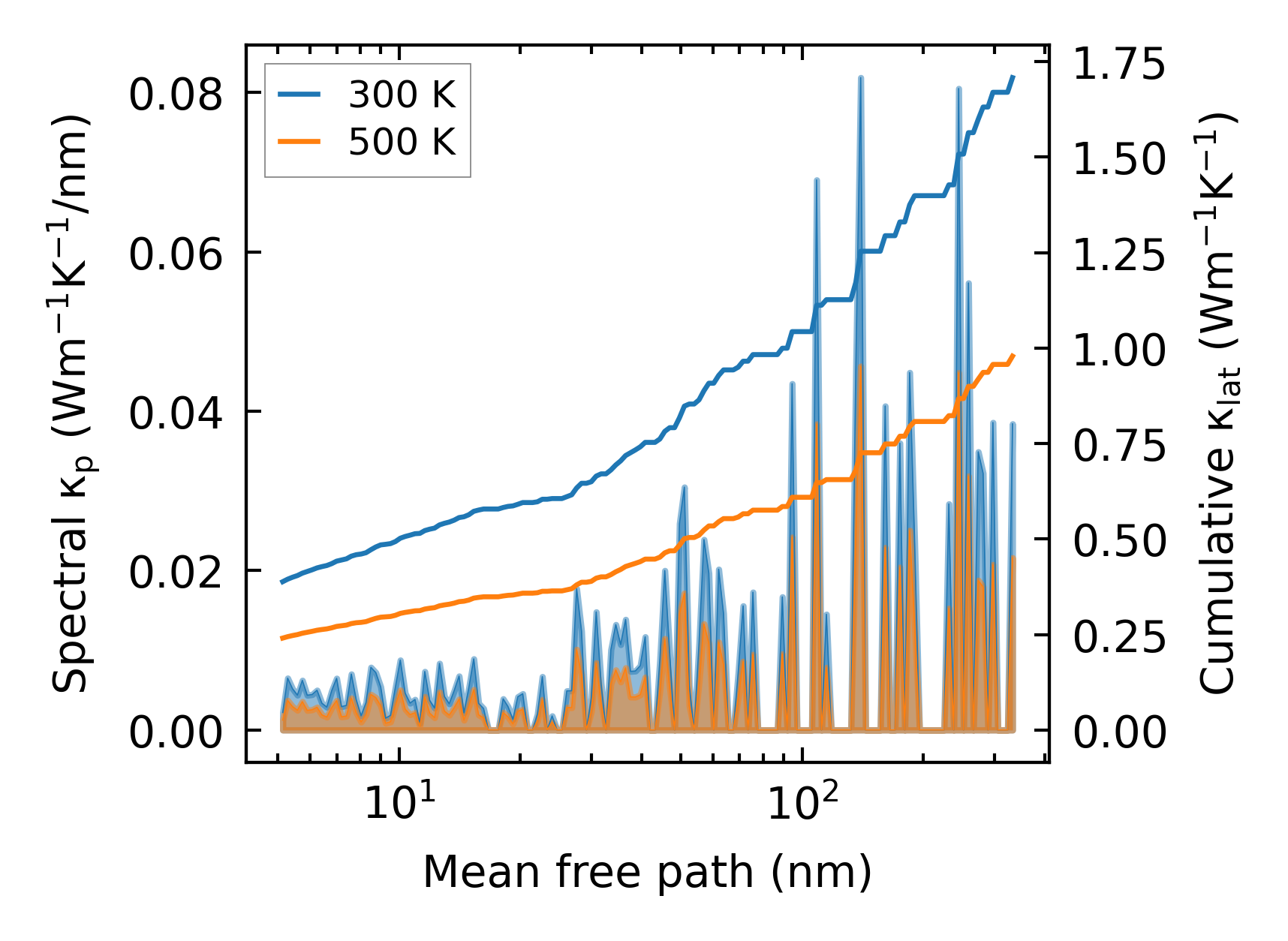

../../_images/fig_cumu_mfp4690.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211144.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8938.png — (a) Temperature-dependent lattice thermal conductivity

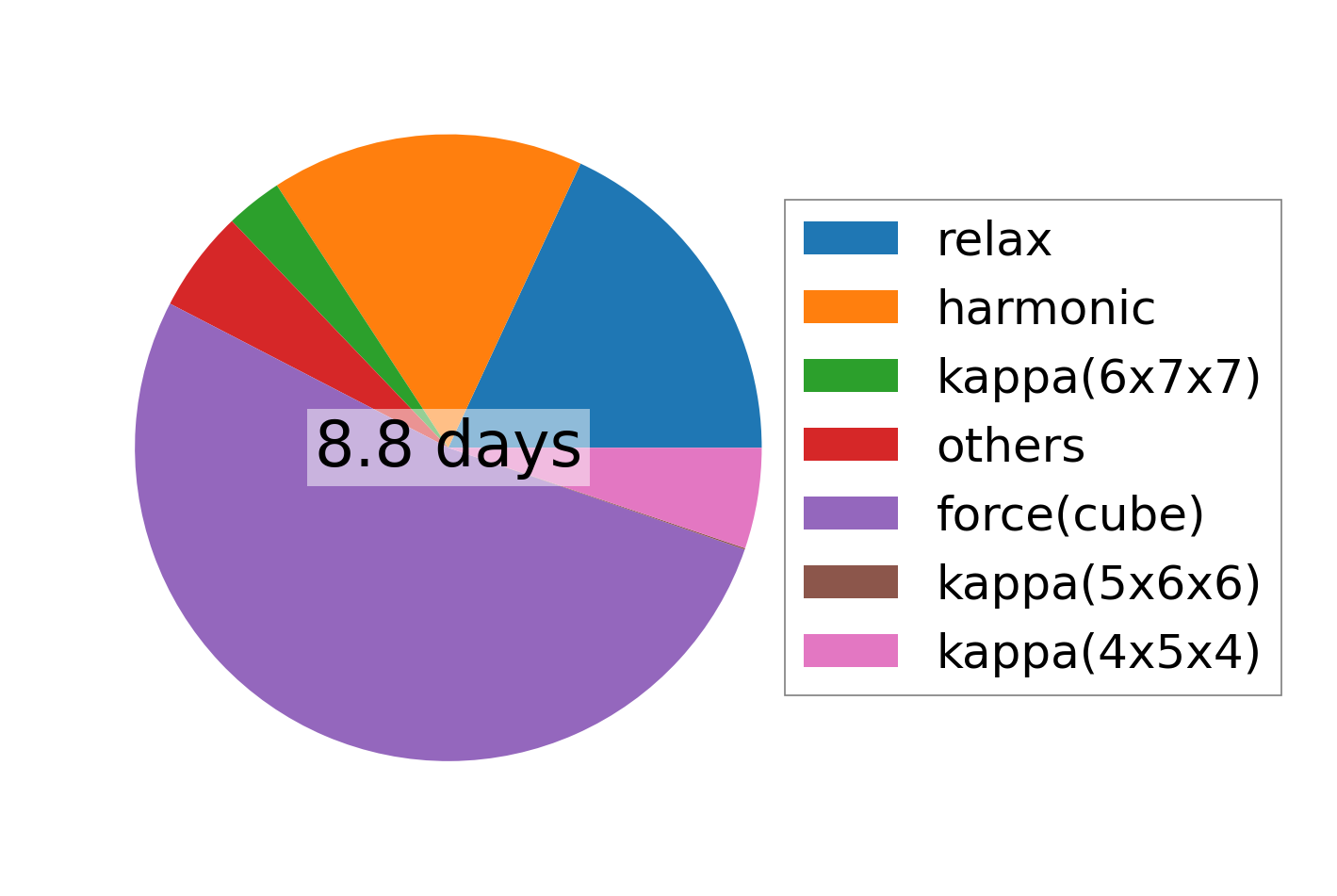

../../_images/fig_times19485.png — (b) Computation time
