mp-29405-2/RbSnI3/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-29405-2.tar.gz

Equation of state

../../_images/fig_bm5468.png — (a) Equation of state

Harmonic properties

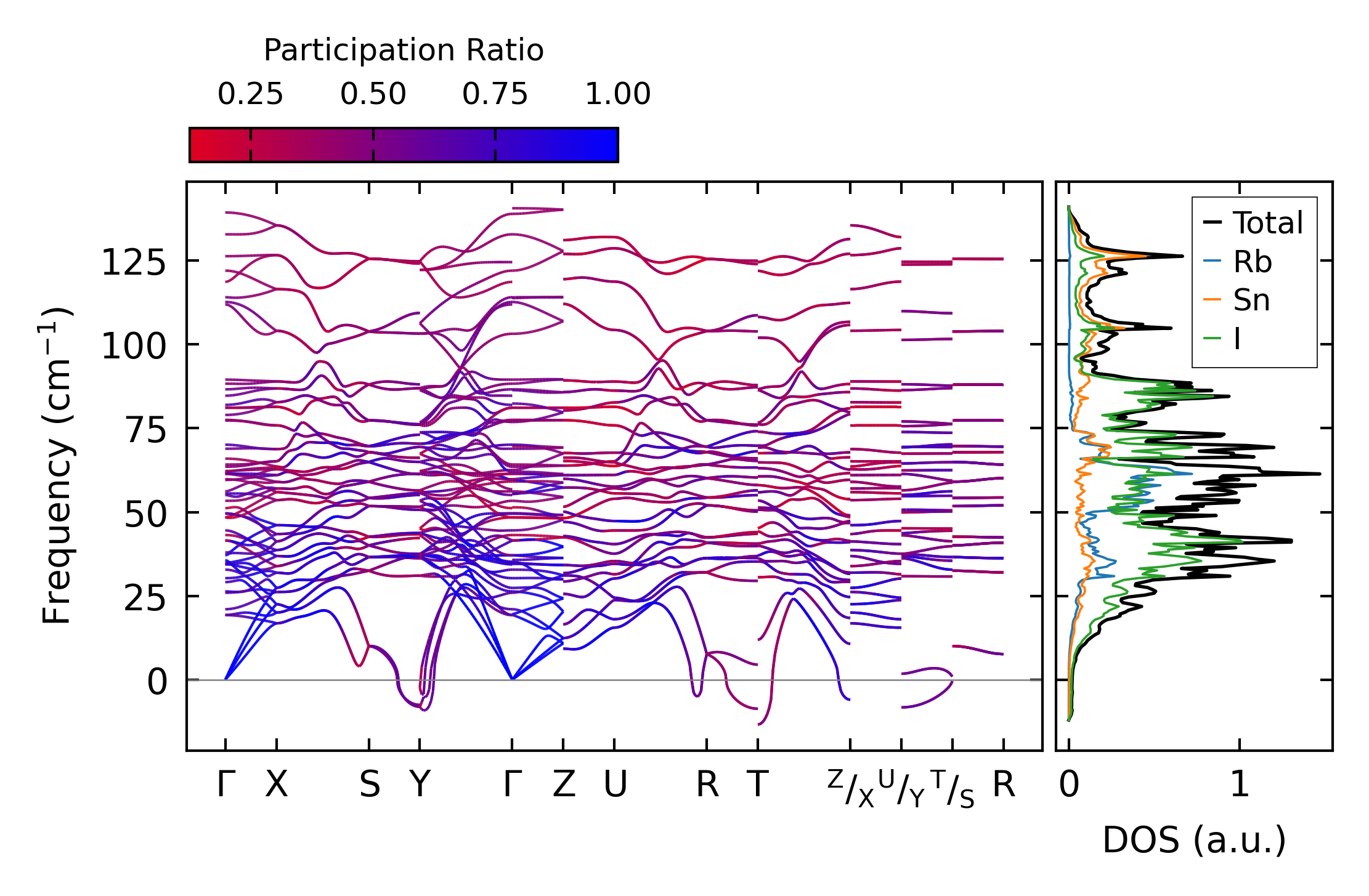

../../_images/fig_bandos_pr11185.png — (a) Phonon dispersion with participation ratio and DOS

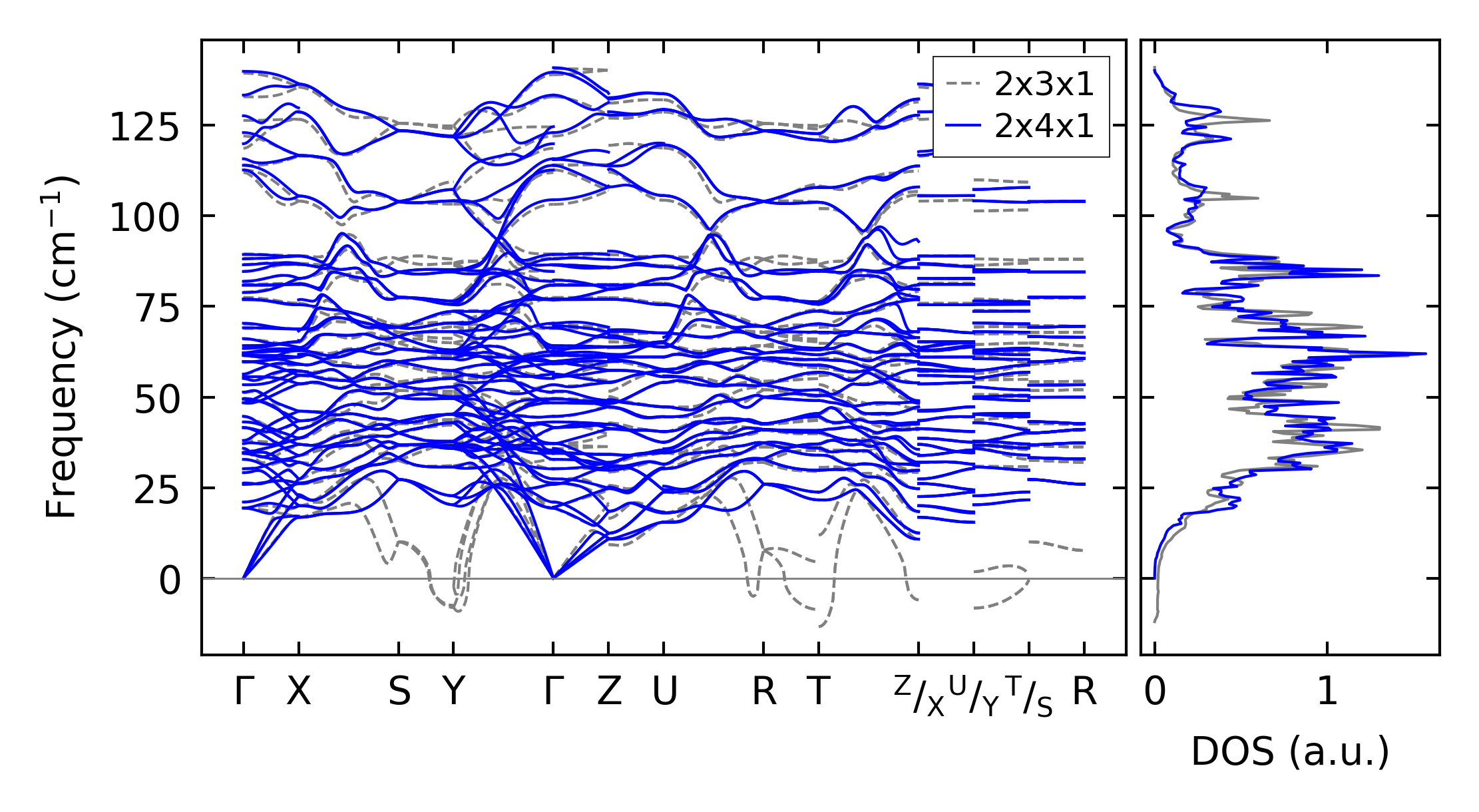

../../_images/fig_bandos15152.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11185.png — (c) Thermodynamic properties

Grüneisen parameters

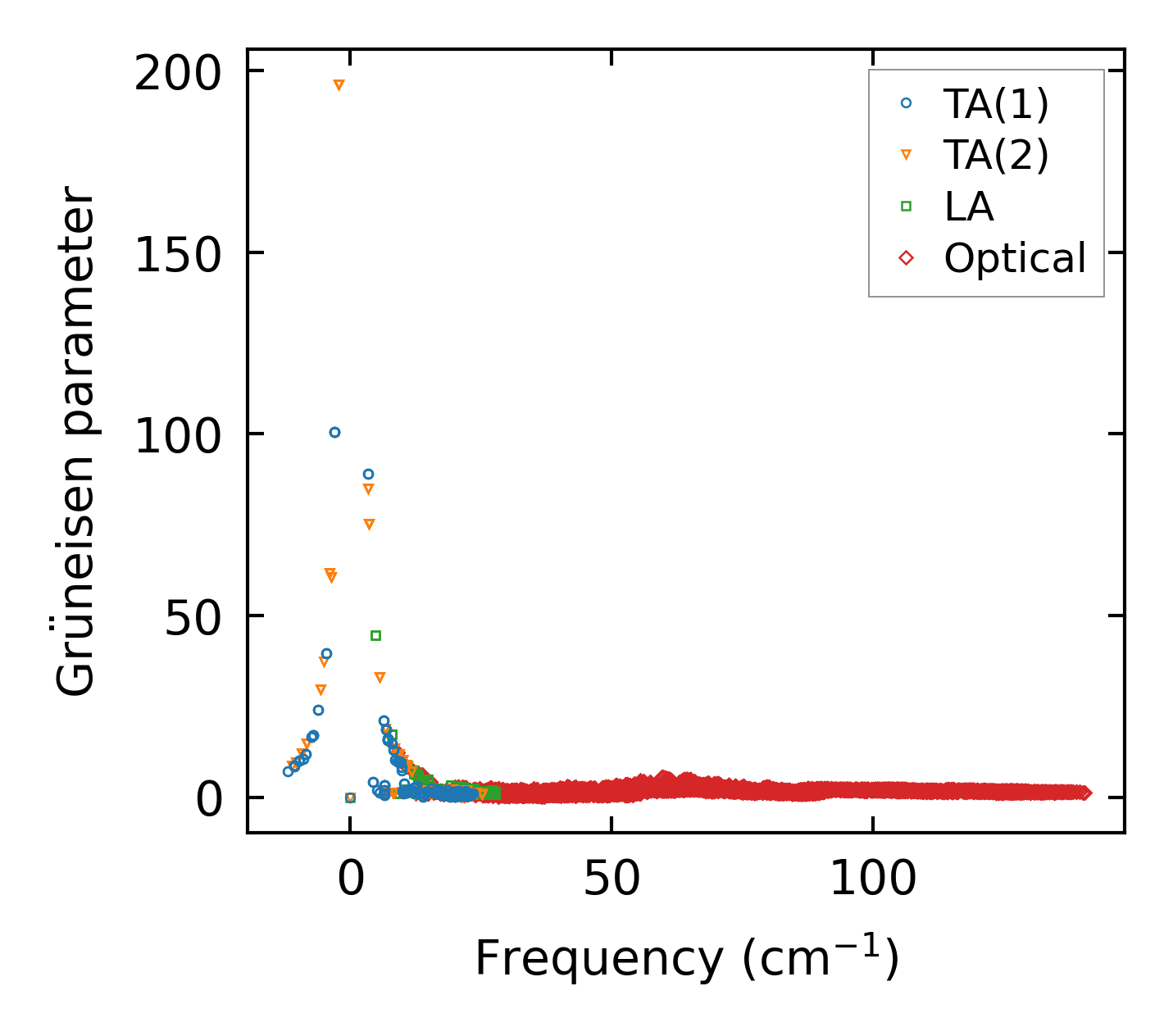

../../_images/fig_gru_all4614.png — (a) Grüneisen parameters

../../_images/fig_gruneisen4614.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x4x1 — q-mesh: 7x15x4, supercell: 2x4x1

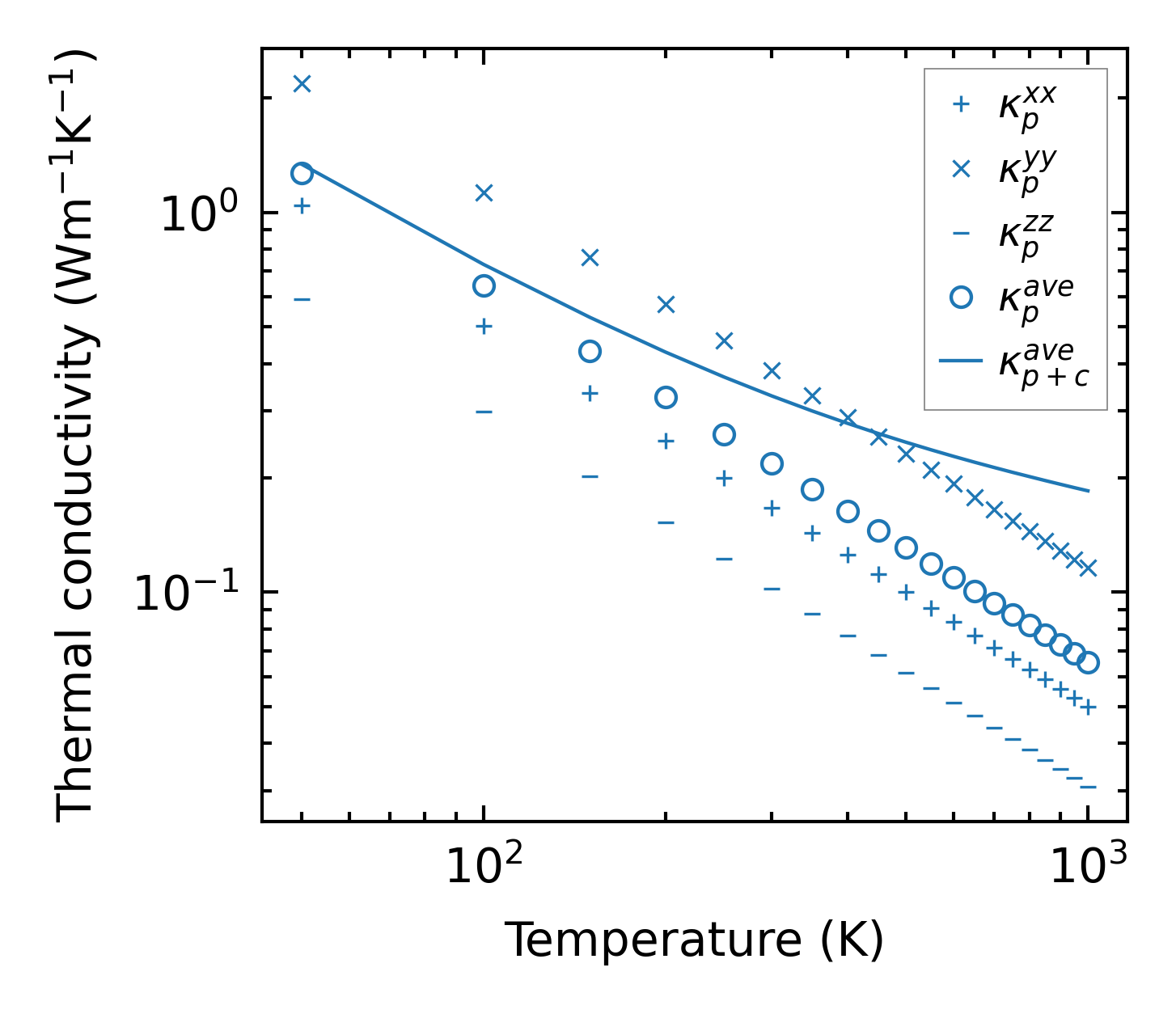

../../_images/fig_kappa8709.png — (a) Temperature-dependent lattice thermal conductivity

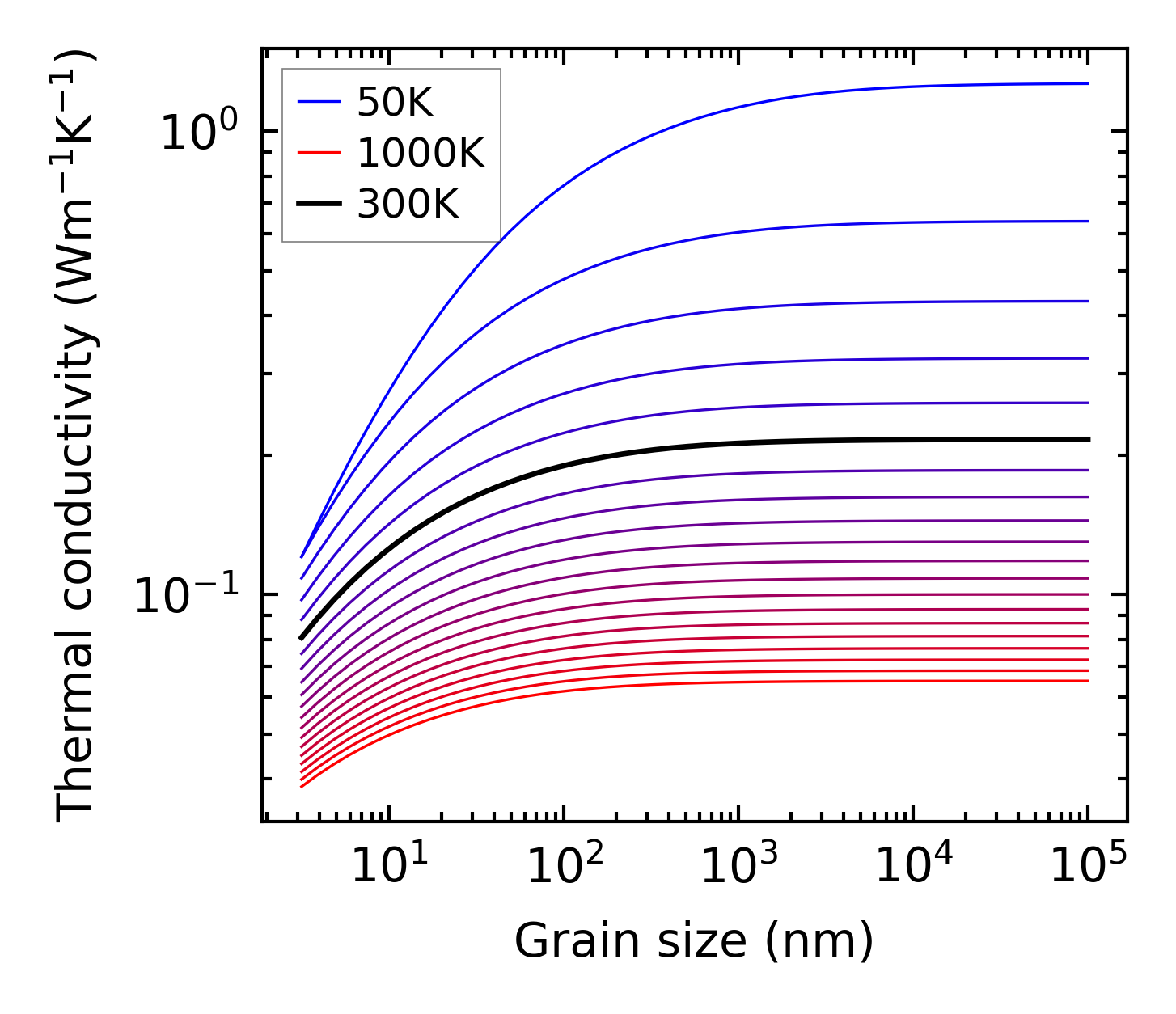

../../_images/fig_kappa_vs_grain_size4671.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4570.png — (a) Phonon lifetime due to phonon-phonon scattering

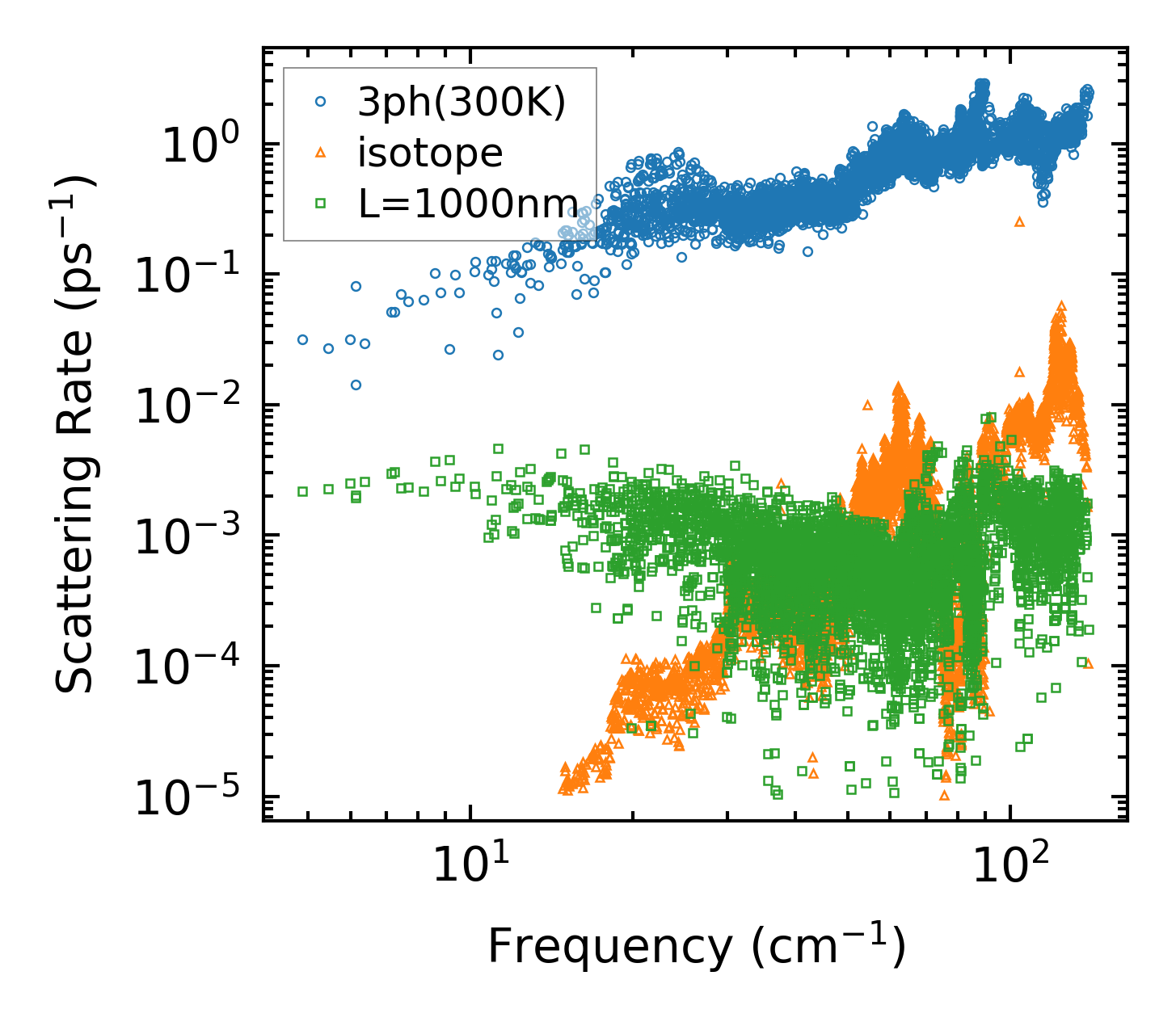

../../_images/fig_scat_rates4569.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4570.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4569.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

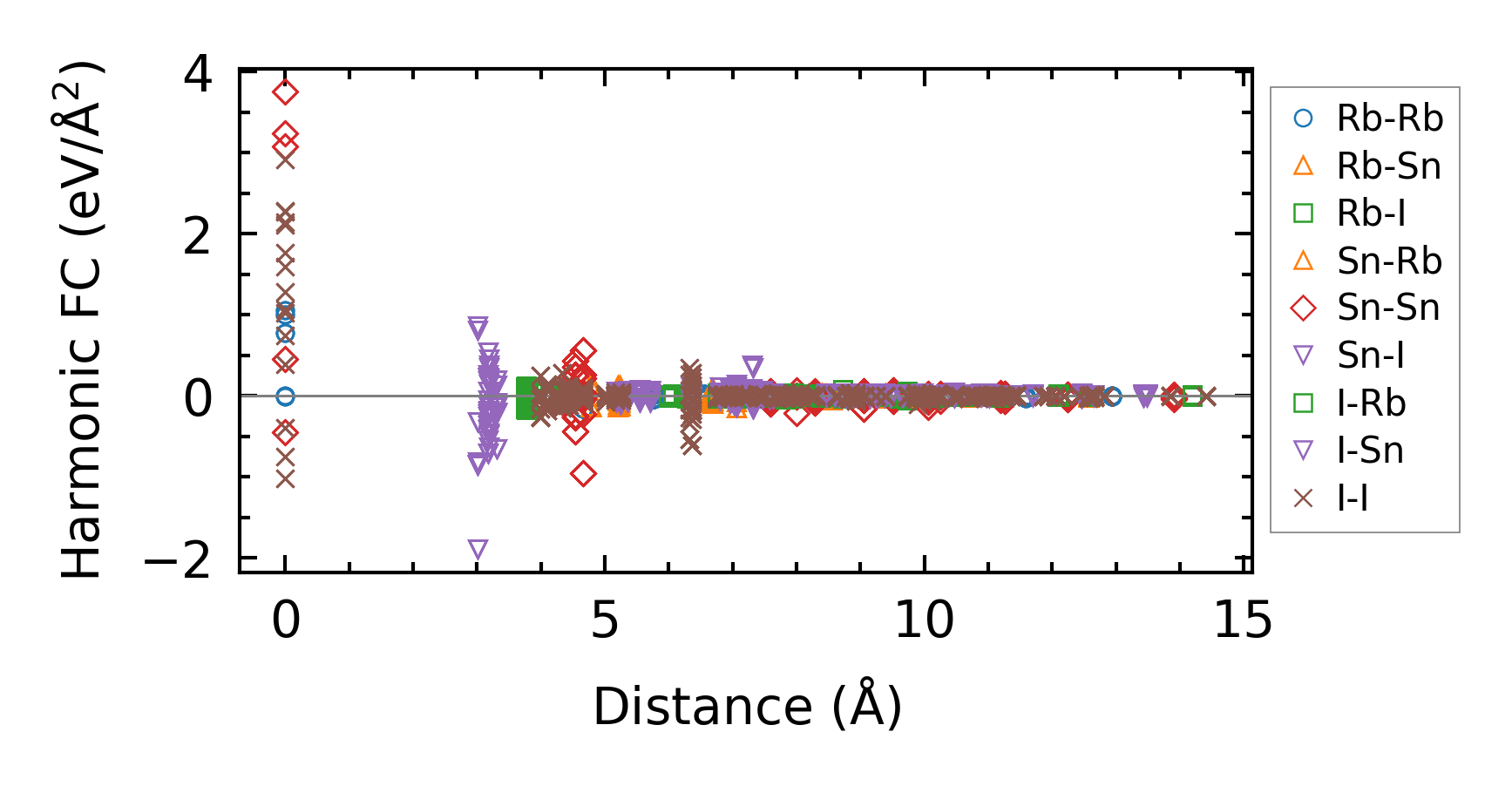

../../_images/fig_fc210901.png — (a) Force constants w.r.t atomic distance

Summary

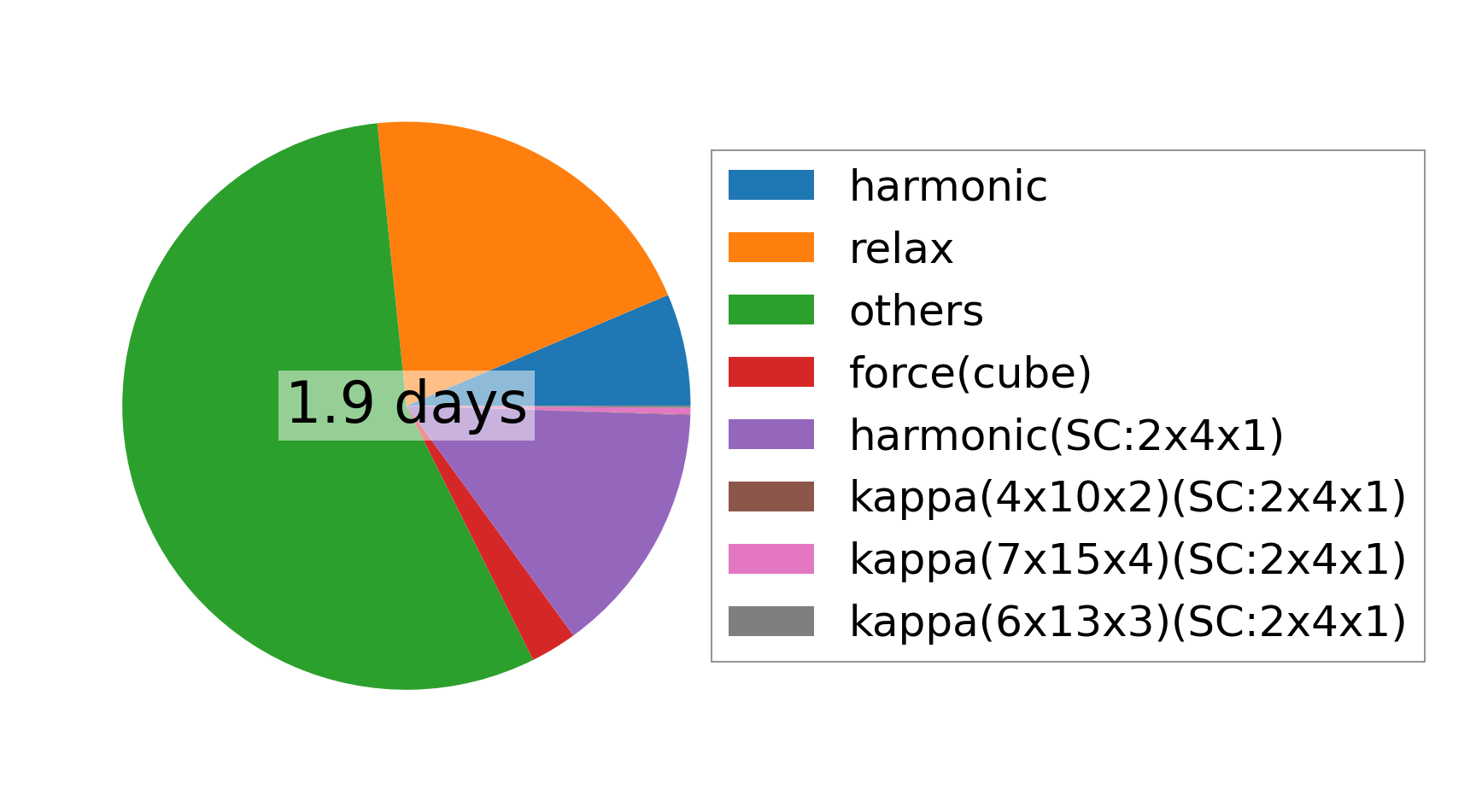

../../_images/fig_times19114.png — (a) Computation time
