mp-29070/La5C2Br9/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-29070.tar.gz

Harmonic properties

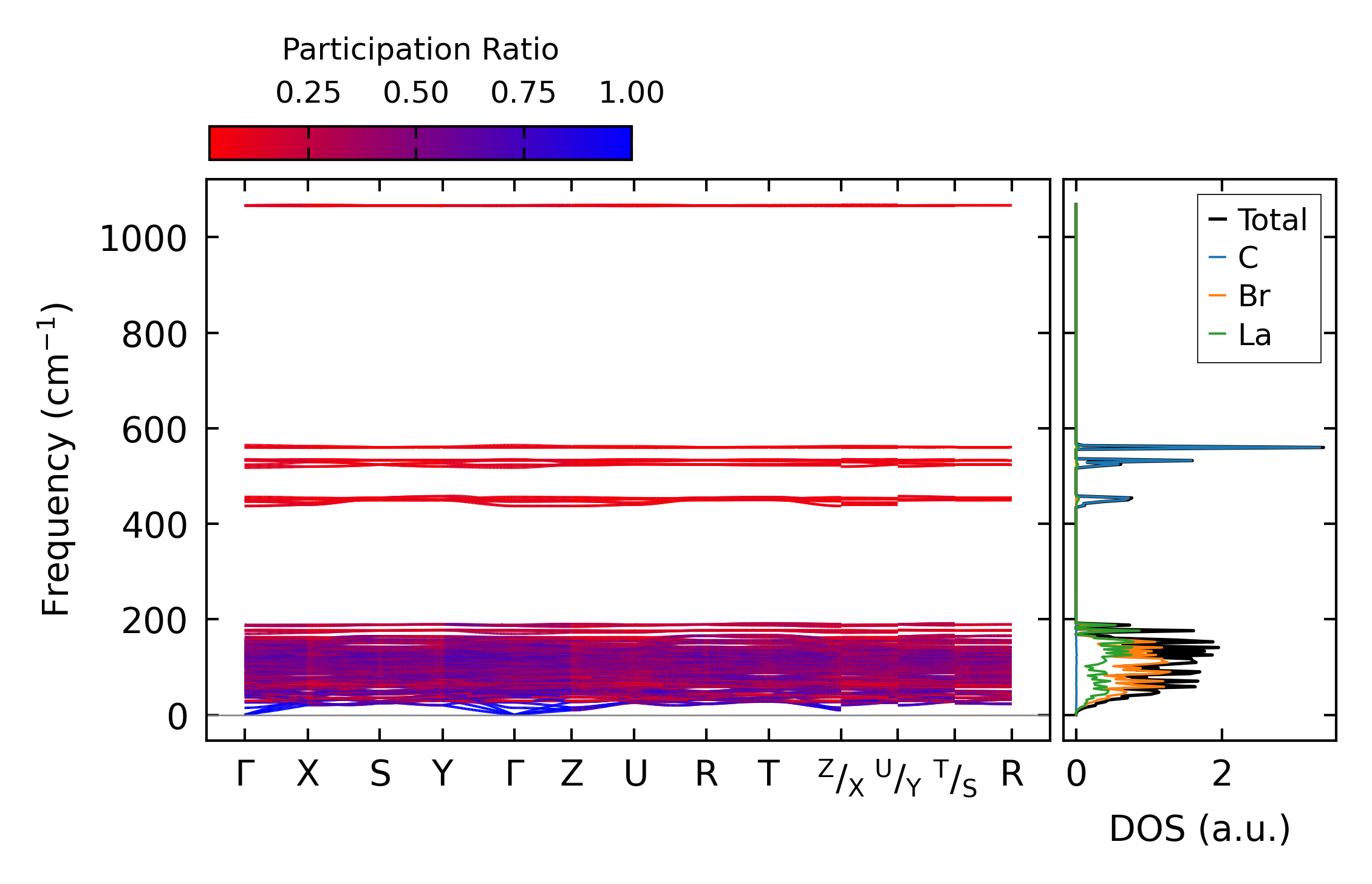

../../_images/fig_bandos_pr11382.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11382.png — (b) Thermodynamic properties

Grüneisen parameters

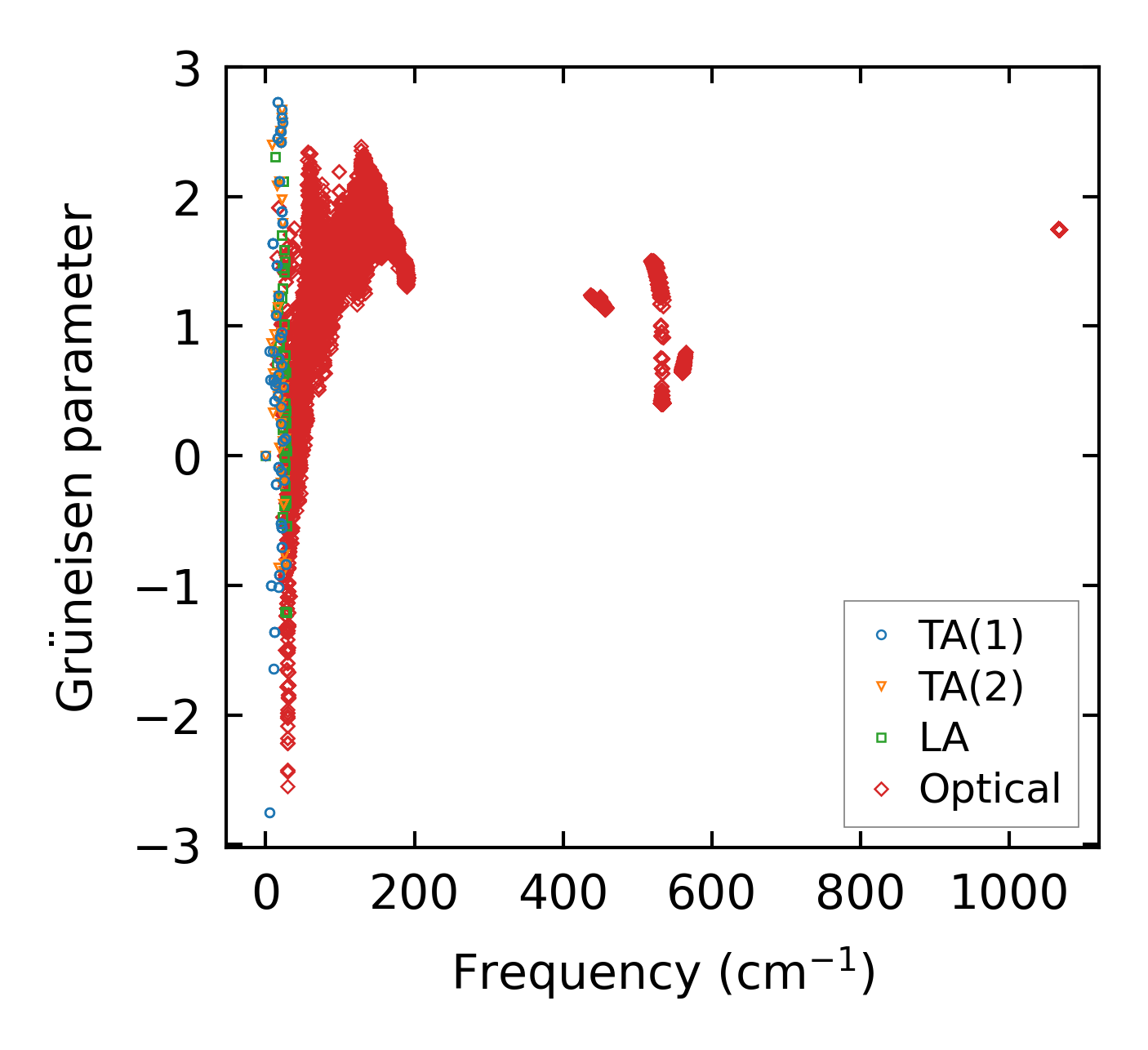

../../_images/fig_gru_all4713.png — (a) Grüneisen parameters

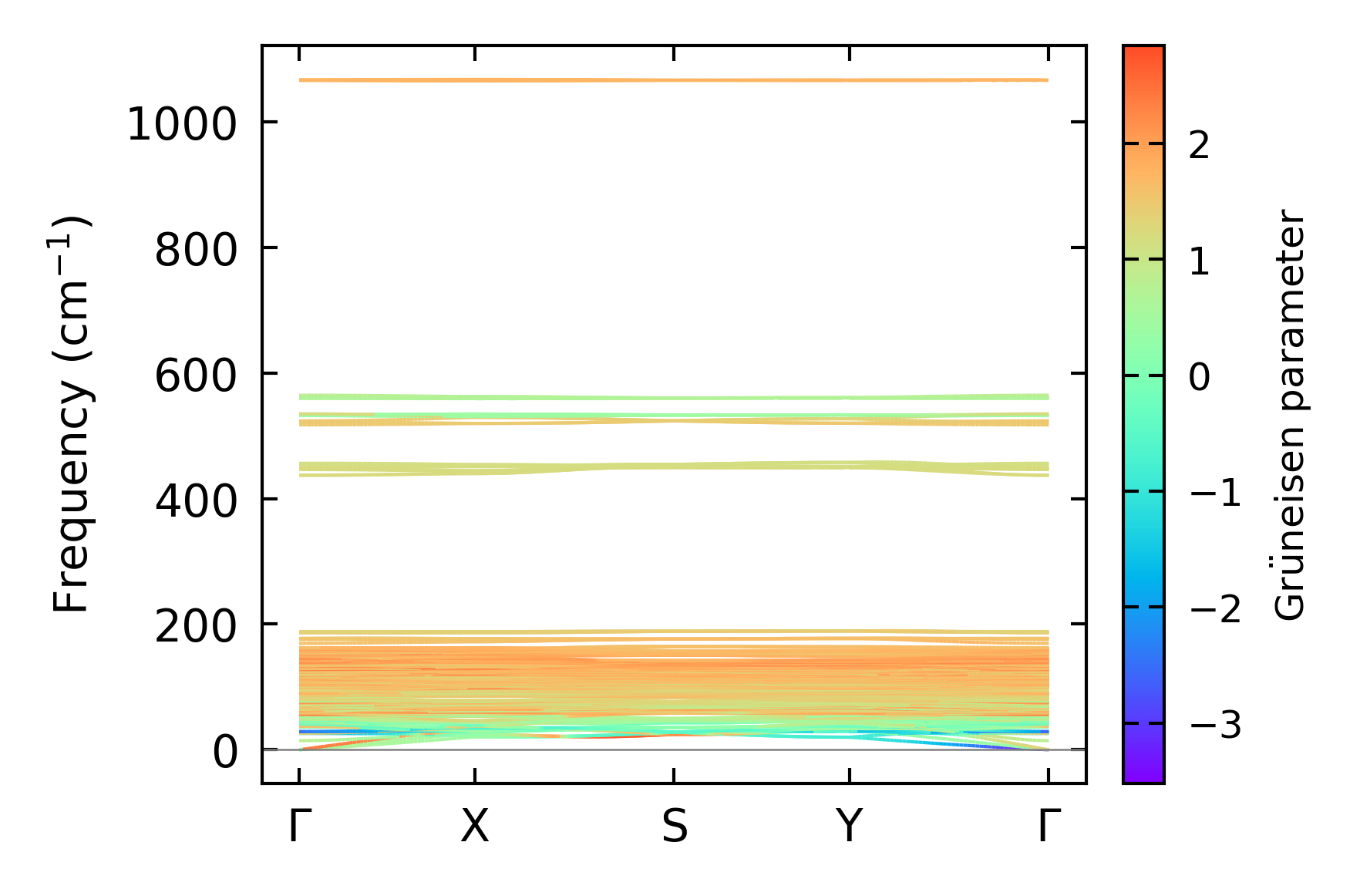

../../_images/fig_gruneisen4713.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x7x4, supercell: 1x2x1

../../_images/fig_kappa8896.png — (a) Temperature-dependent lattice thermal conductivity

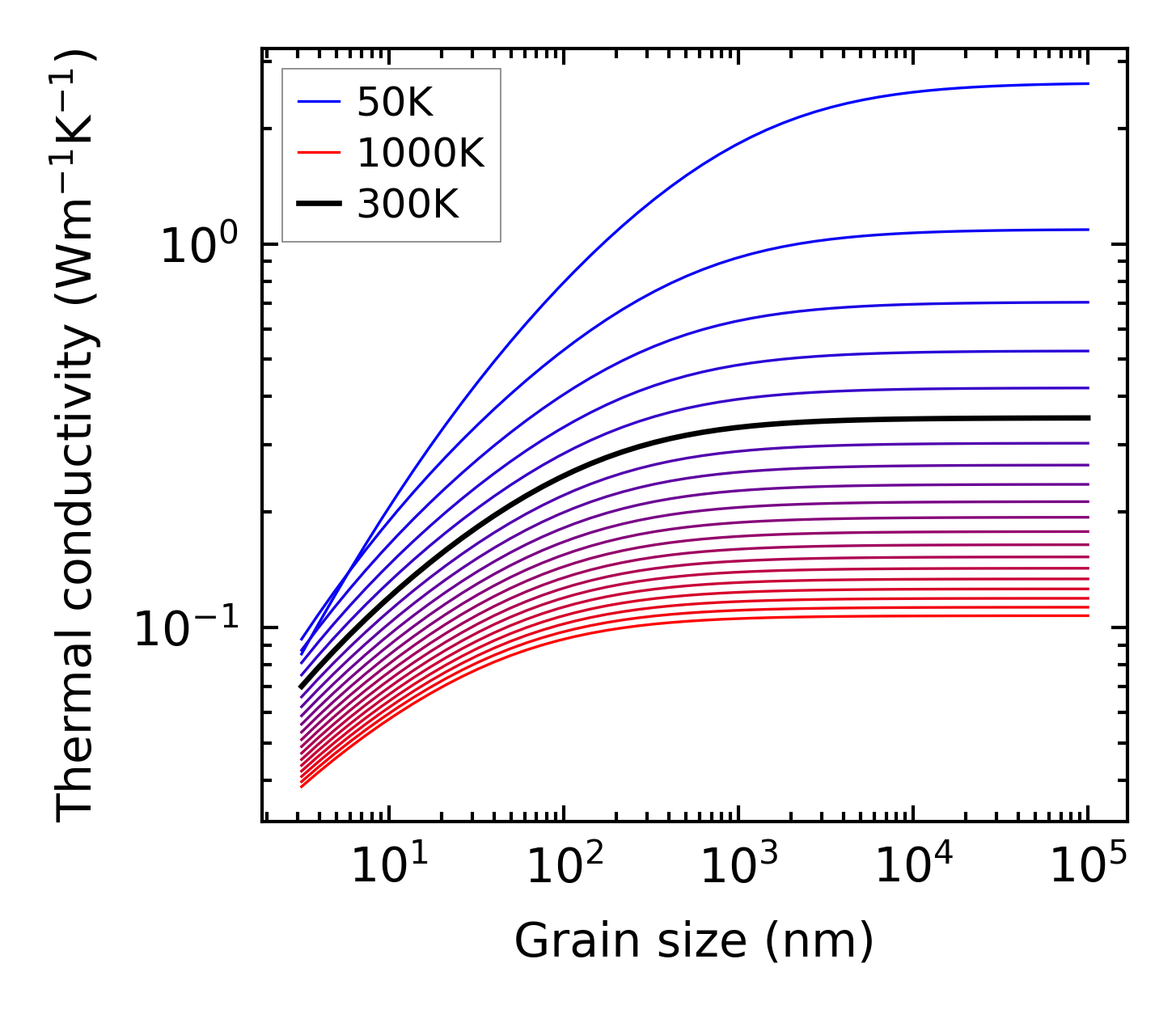

../../_images/fig_kappa_vs_grain_size4772.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

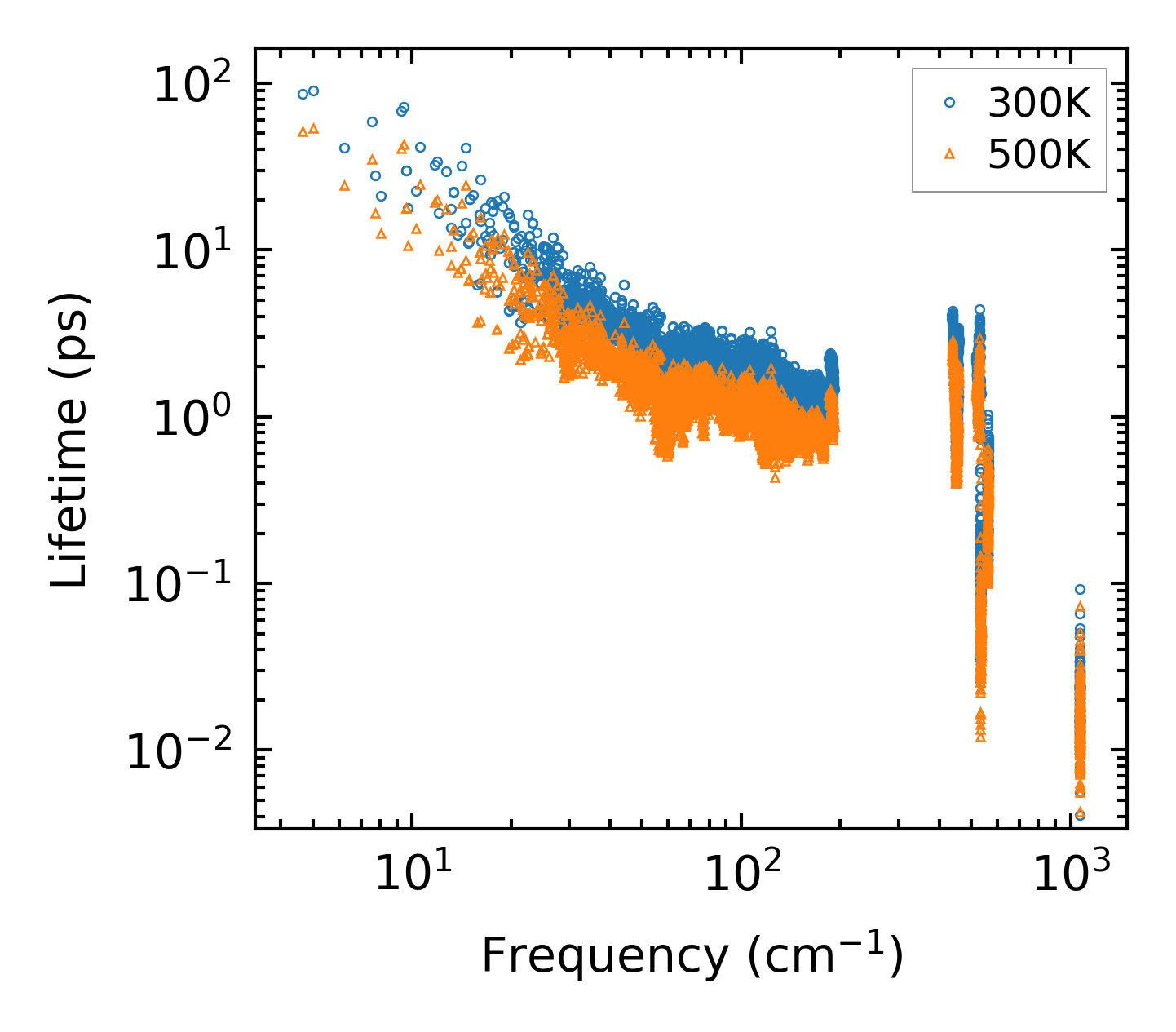

../../_images/fig_lifetime4669.png — (a) Phonon lifetime due to phonon-phonon scattering

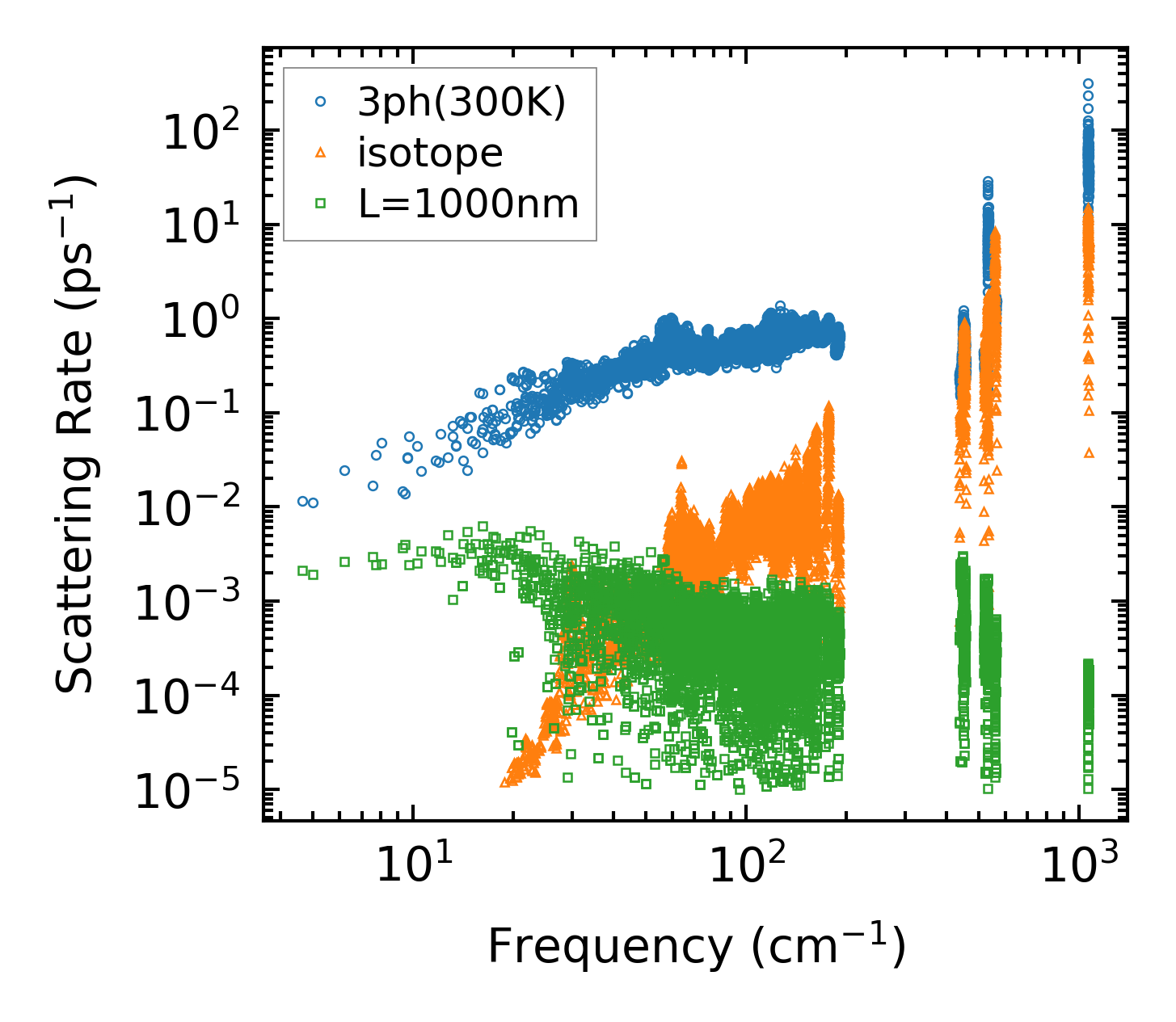

../../_images/fig_scat_rates4668.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

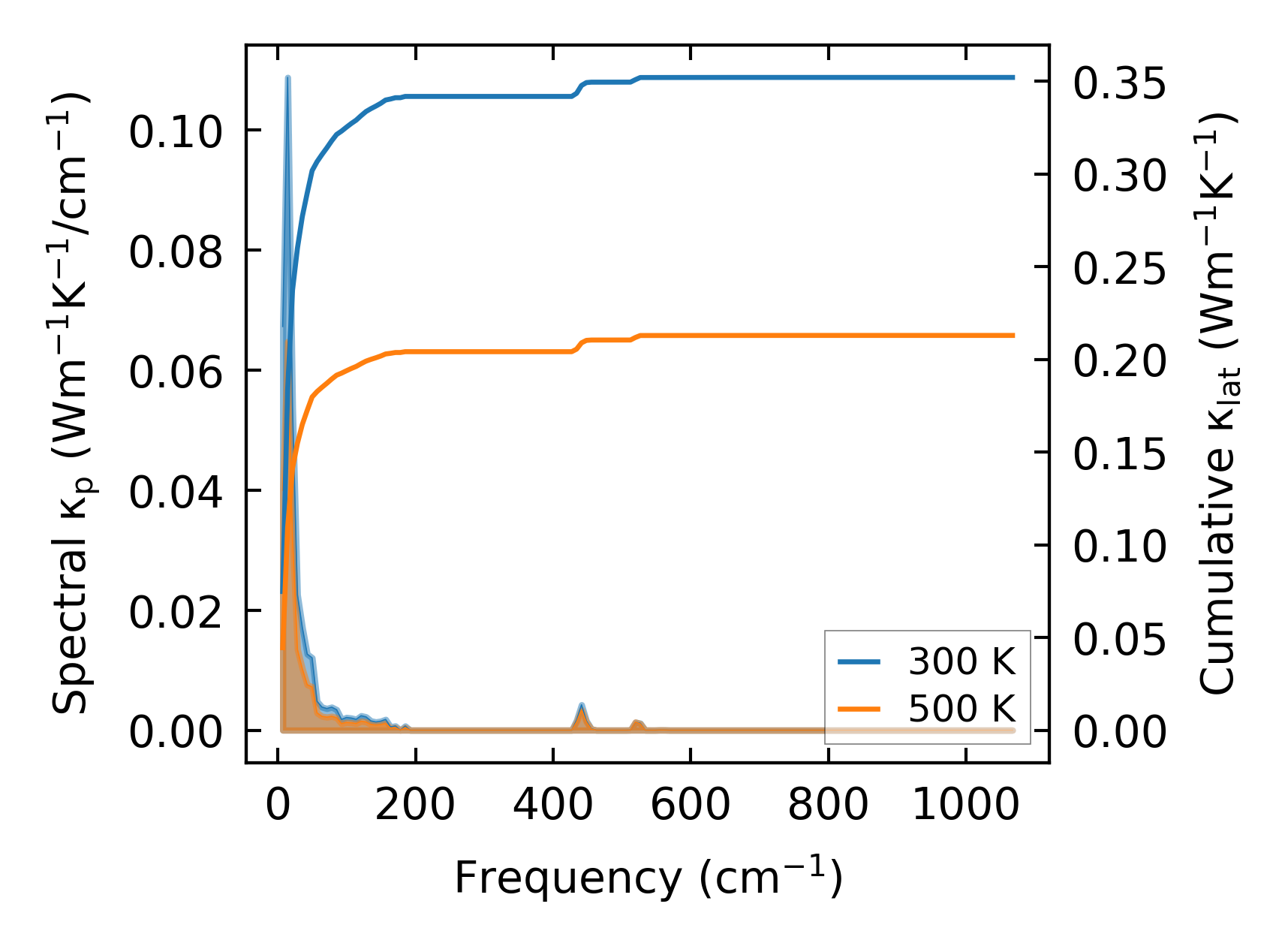

../../_images/fig_cumu_frequency4669.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp4668.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

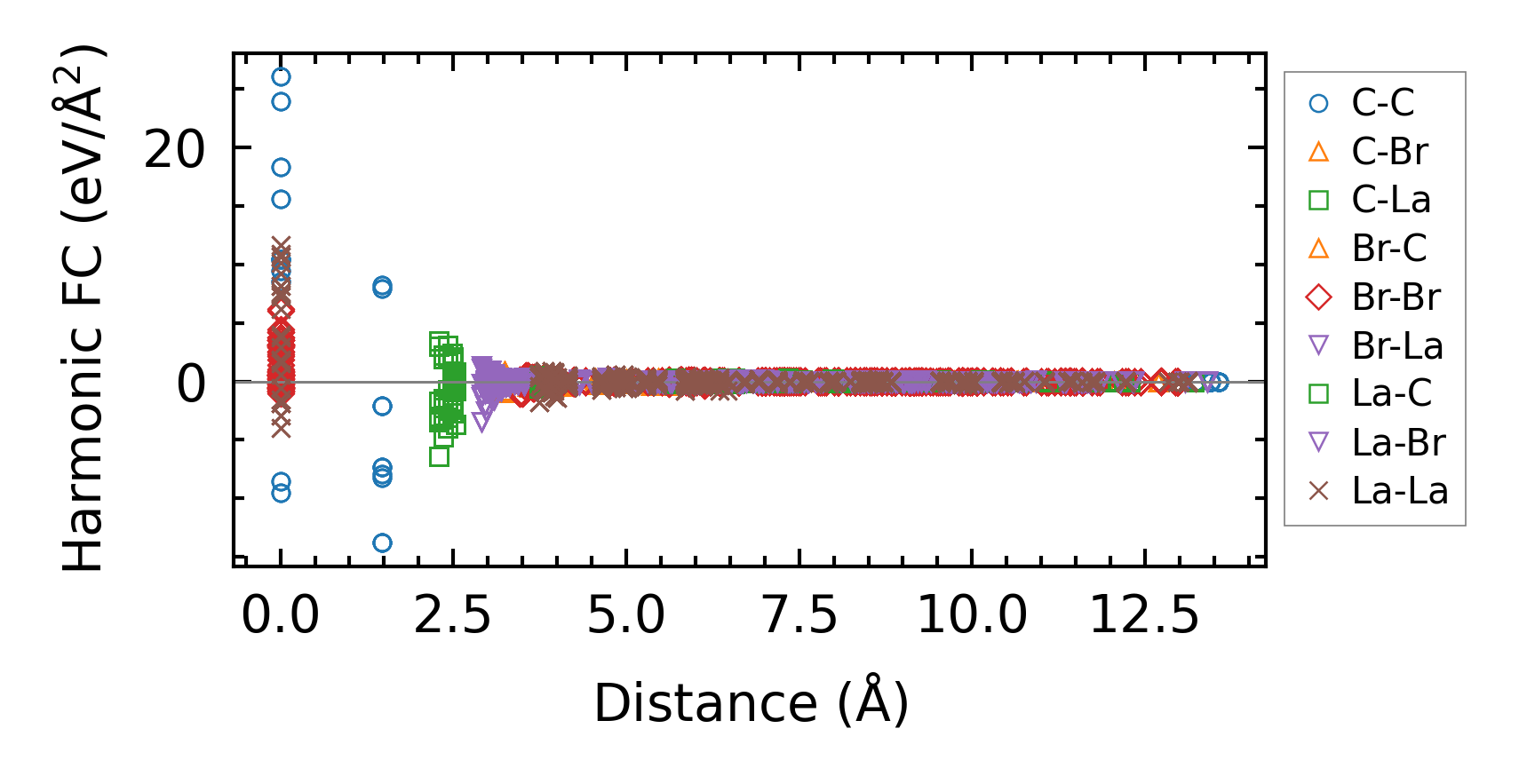

../../_images/fig_fc211098.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8897.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times19419.png — (b) Computation time
