mp-29246-2/Cd2P3Cl/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-29246-2.tar.gz

Harmonic properties

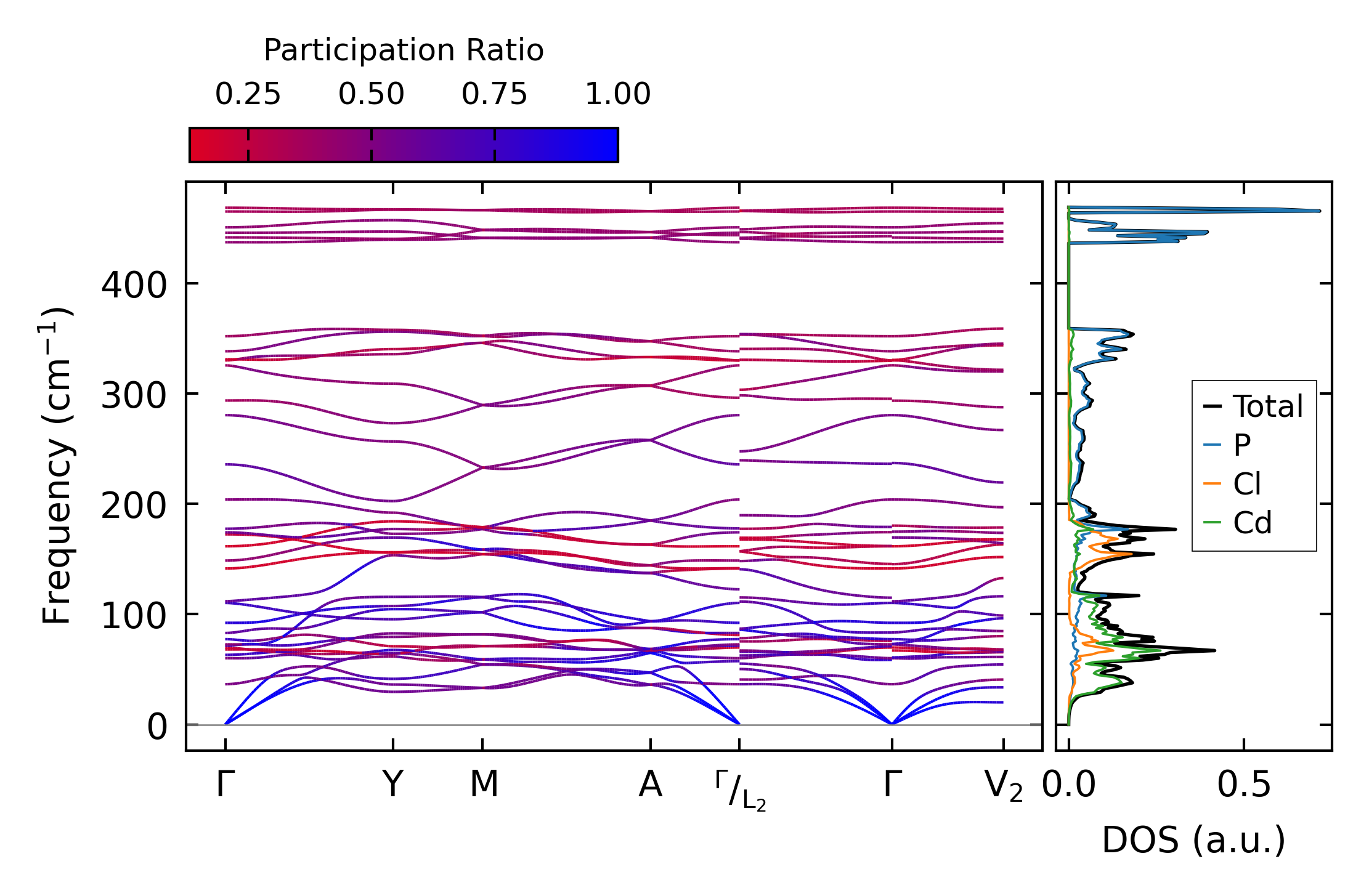

../../_images/fig_bandos_pr11461.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11461.png — (b) Thermodynamic properties

Grüneisen parameters

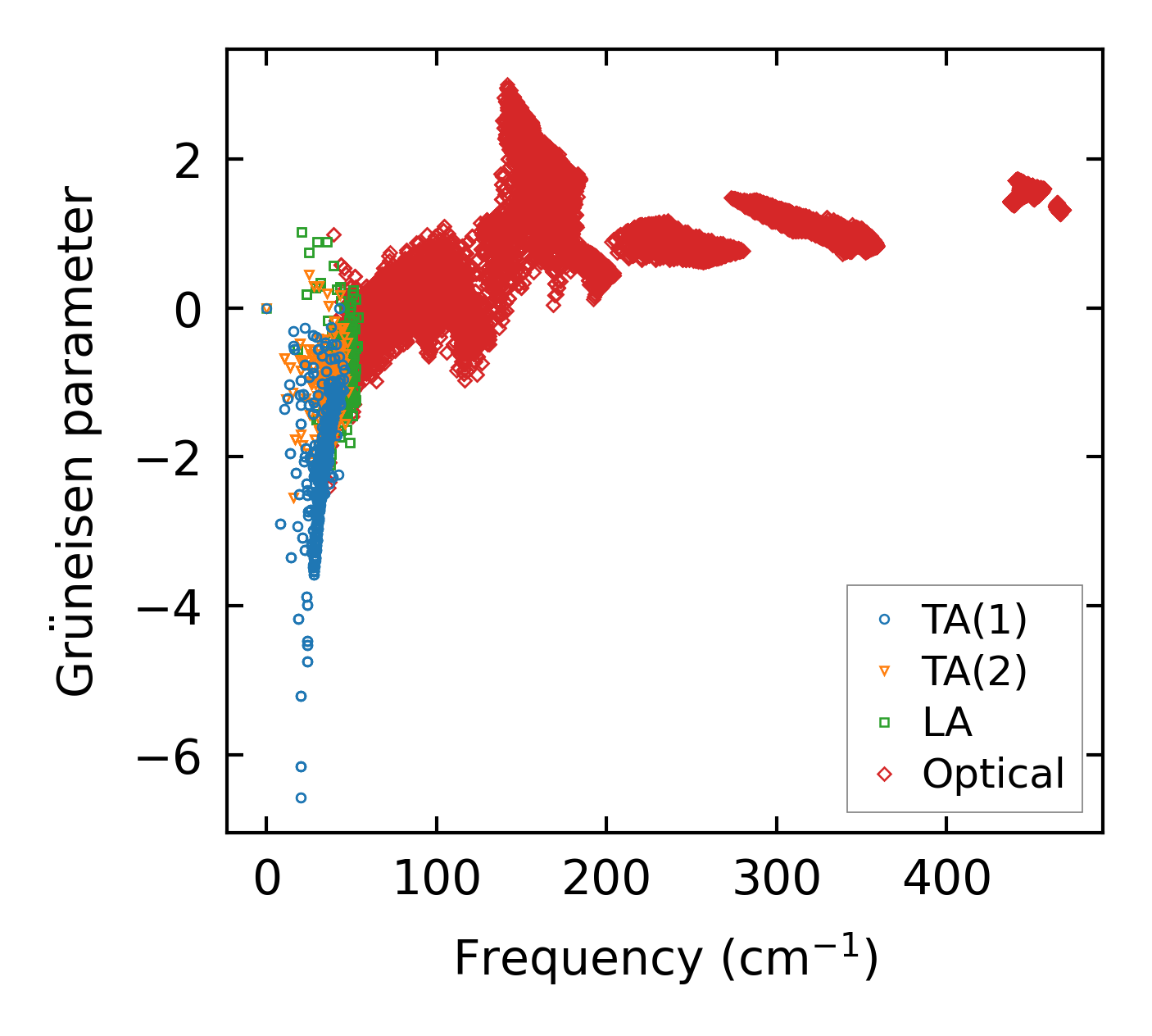

../../_images/fig_gru_all4751.png — (a) Grüneisen parameters

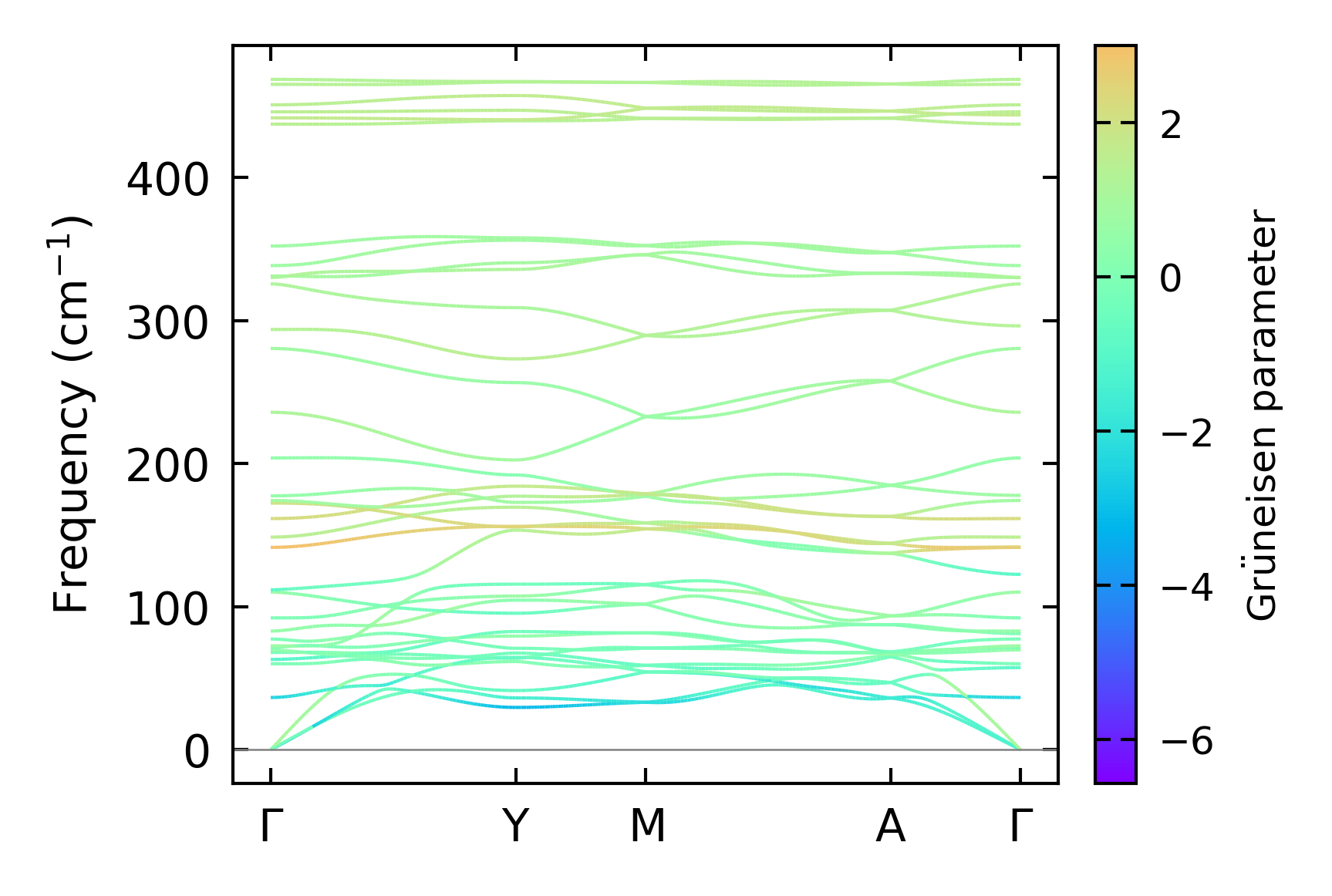

../../_images/fig_gruneisen4751.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x9, supercell: 2x1x2

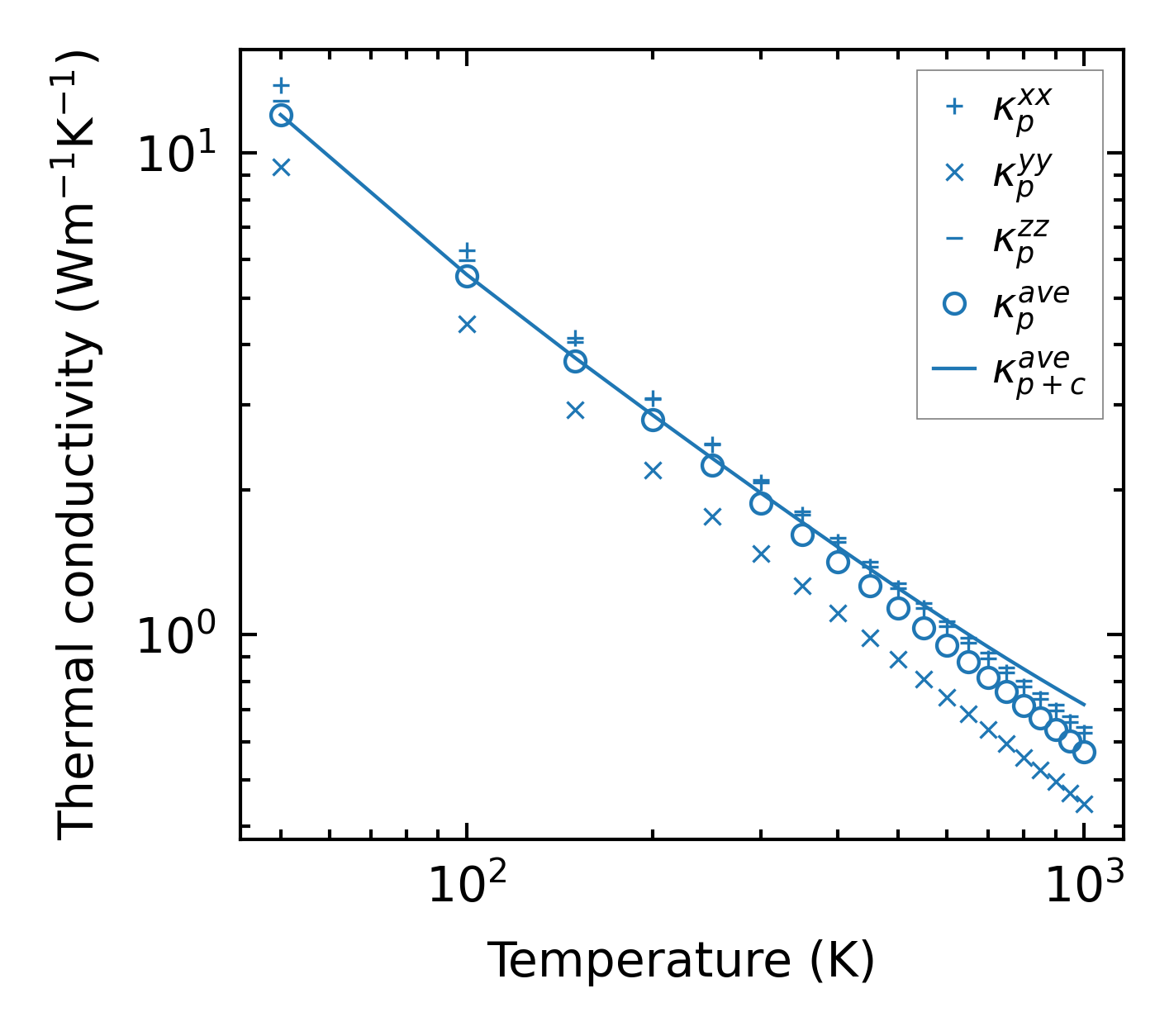

../../_images/fig_kappa8966.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4809.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4706.png — (a) Phonon lifetime due to phonon-phonon scattering

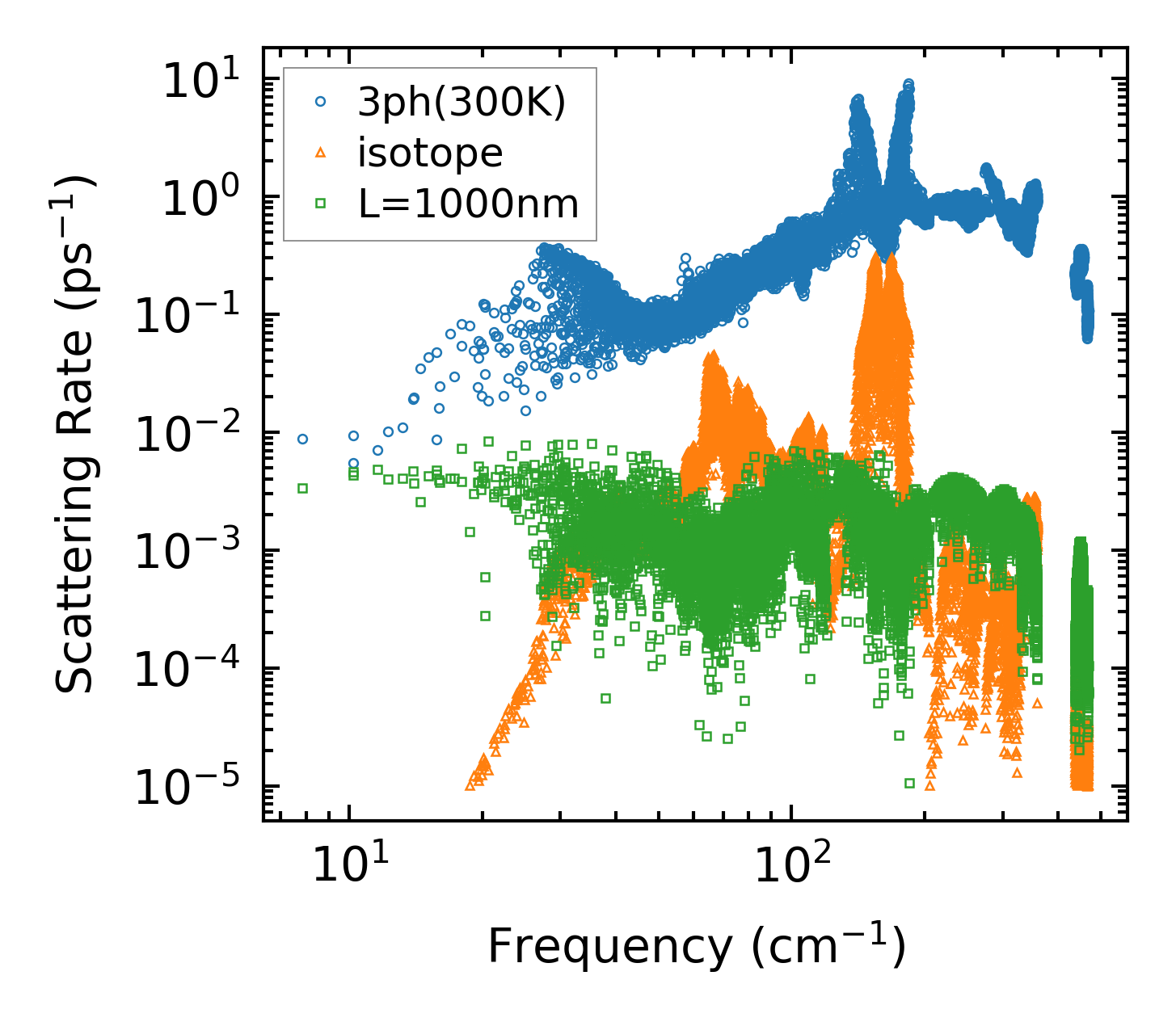

../../_images/fig_scat_rates4705.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

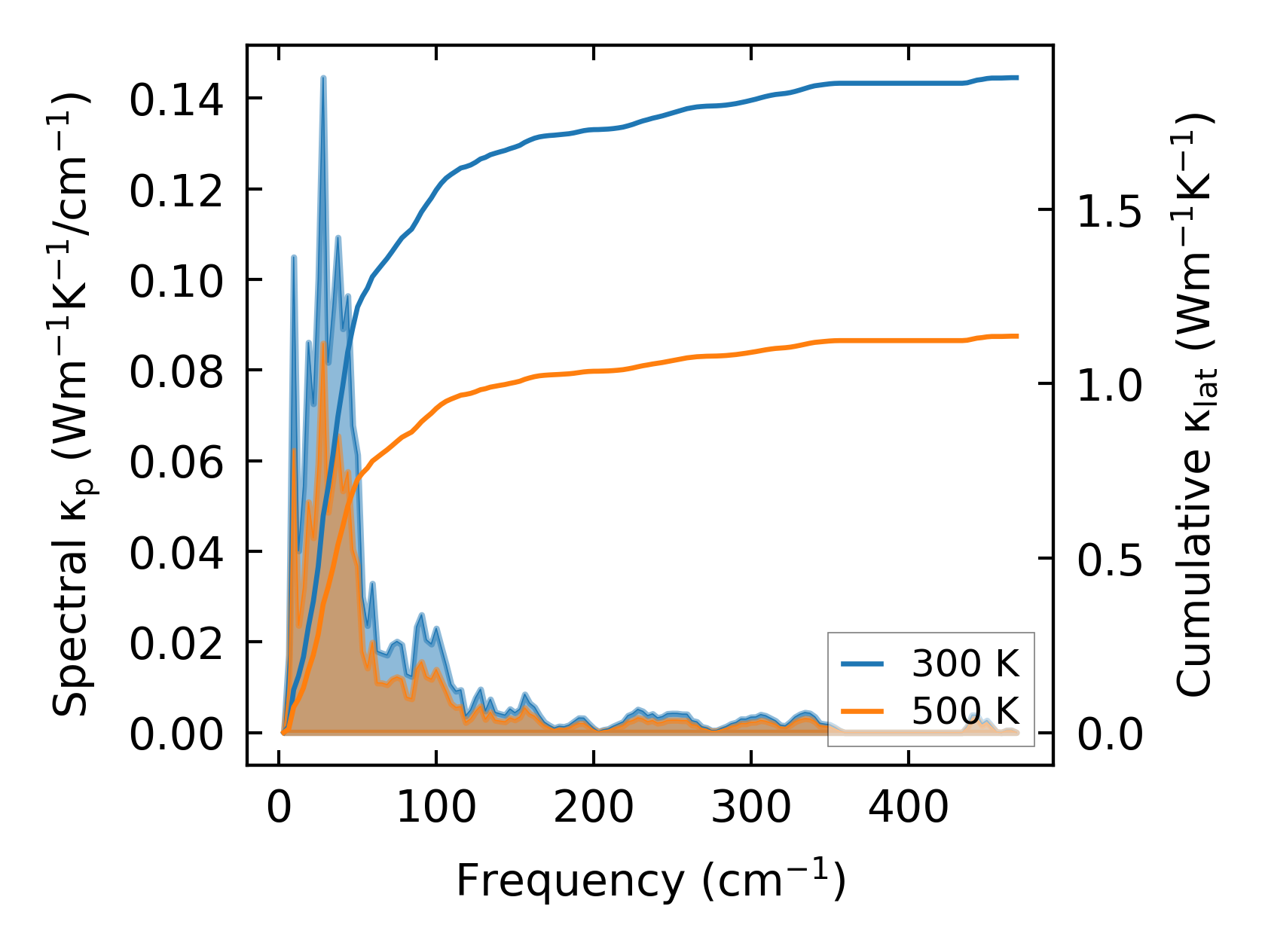

../../_images/fig_cumu_frequency4706.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

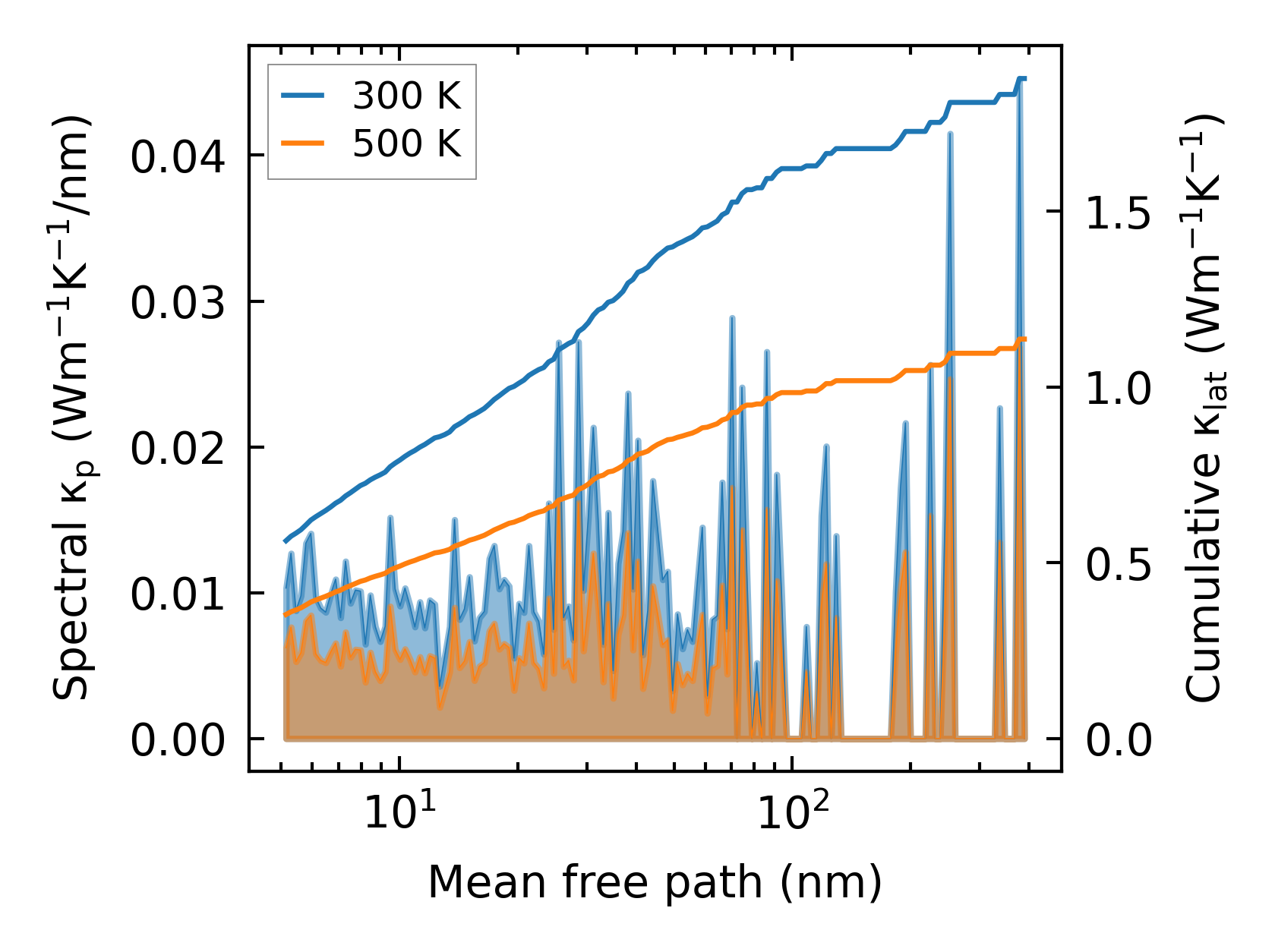

../../_images/fig_cumu_mfp4705.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc211177.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa8967.png — (a) Temperature-dependent lattice thermal conductivity

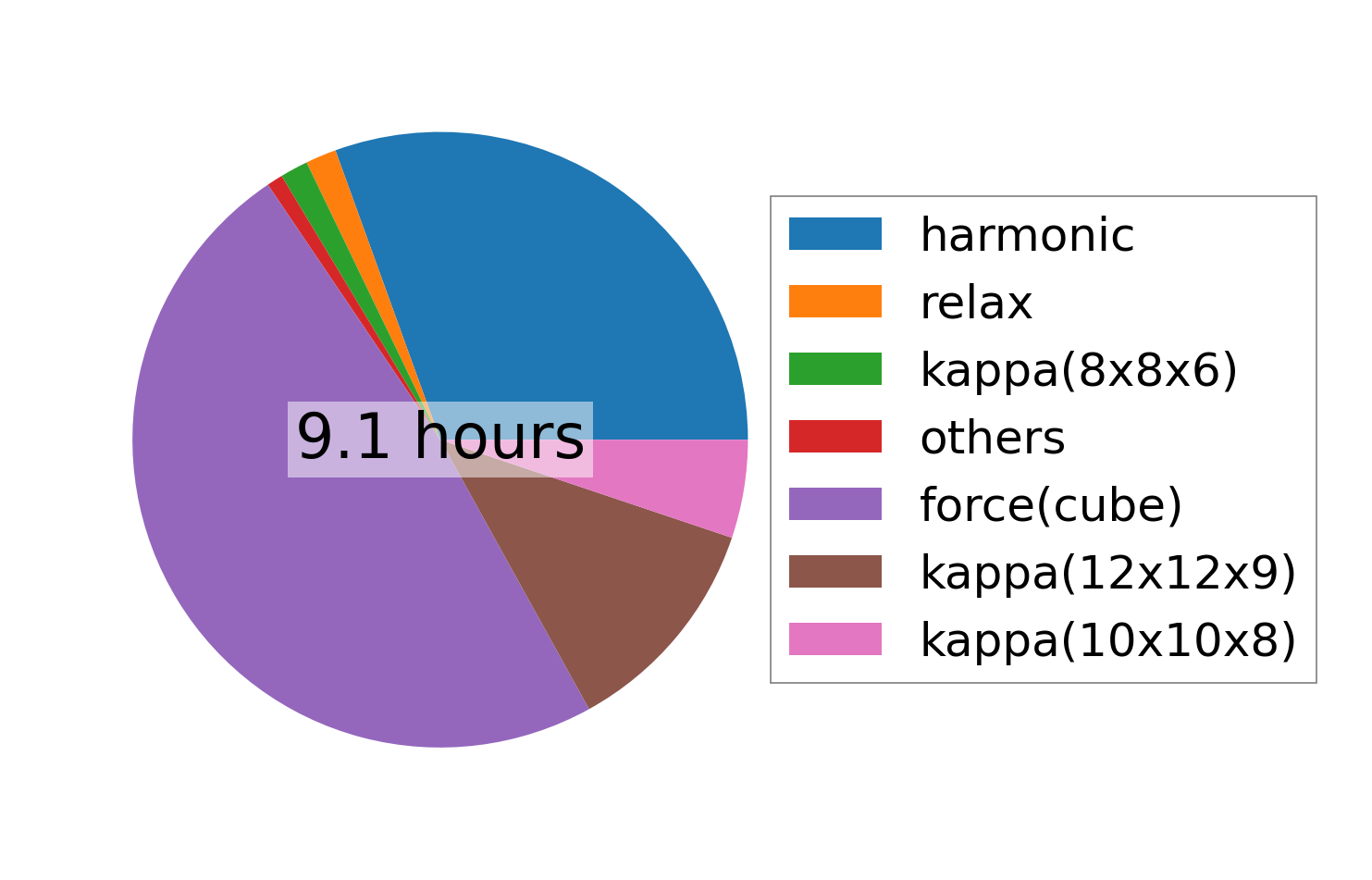

../../_images/fig_times19533.png — (b) Computation time
