mp-29826-2/ZnCN2/anharm

Space group: I-42d (122)
Link: Materials Project
Download: mp-29826-2.tar.gz

Equation of state

../../_images/fig_bm5530.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr11324.png — (a) Phonon dispersion with participation ratio and DOS

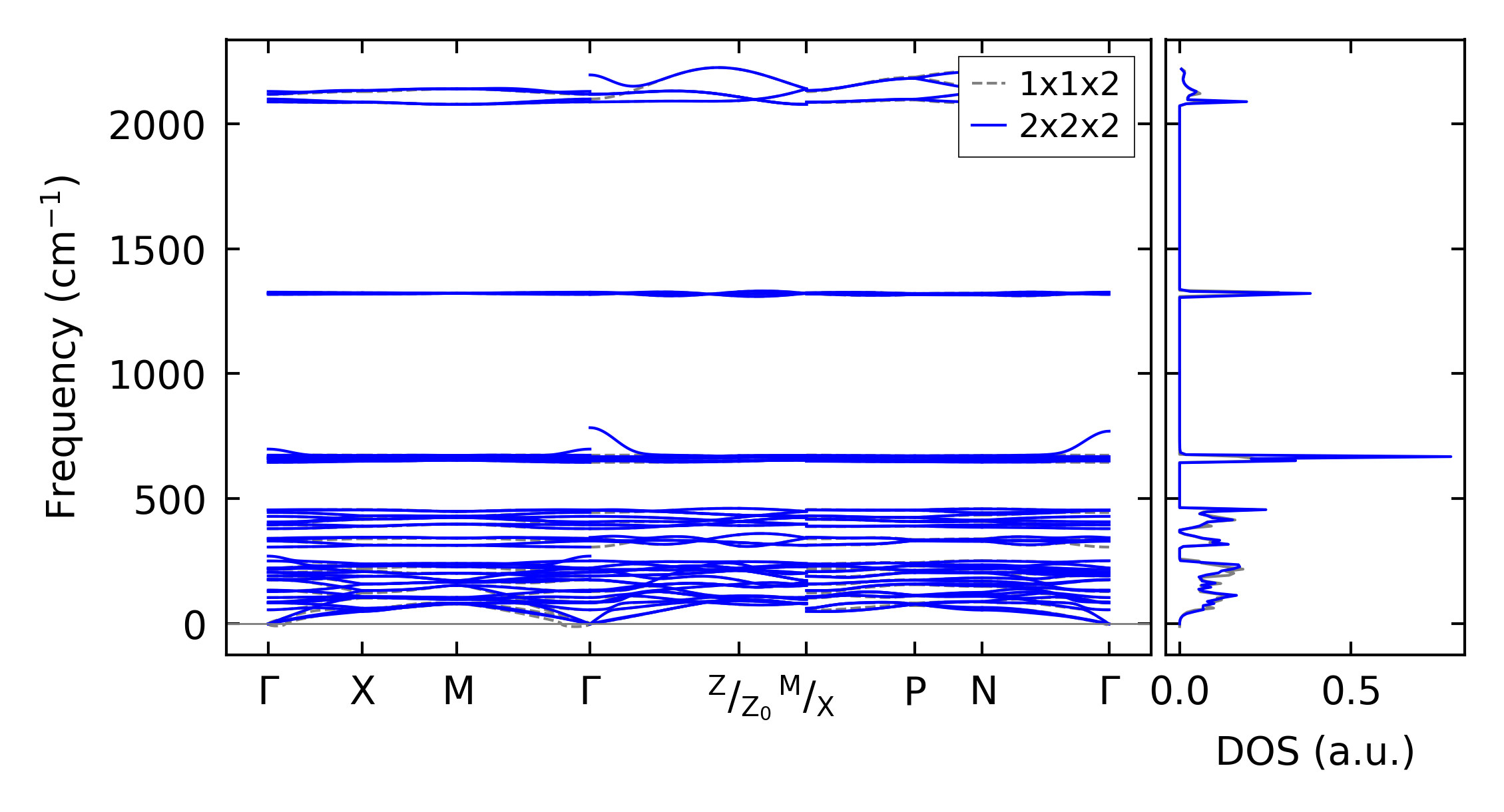

../../_images/fig_bandos15305.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo11324.png — (c) Thermodynamic properties

Grüneisen parameters

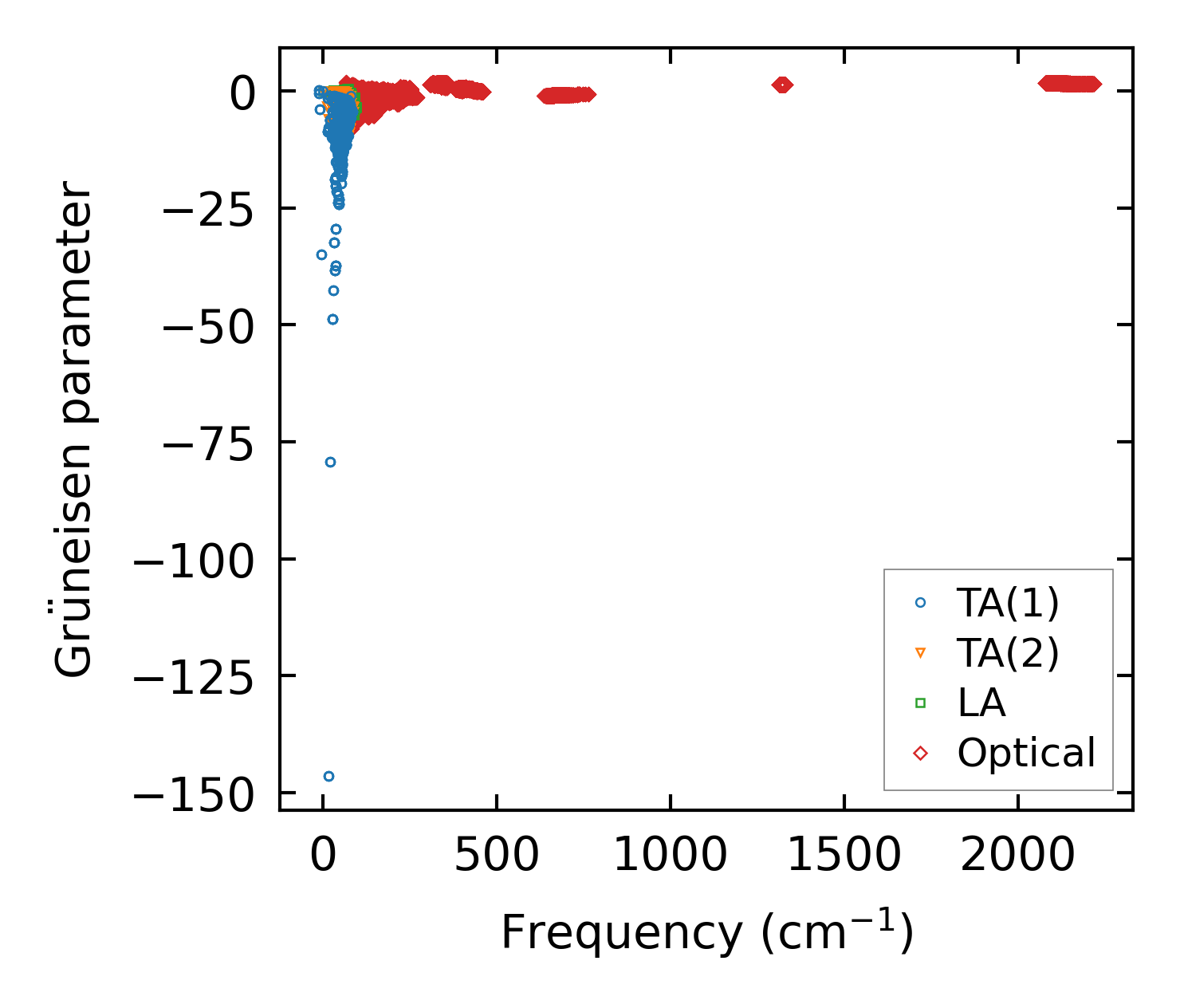

../../_images/fig_gru_all4681.png — (a) Grüneisen parameters

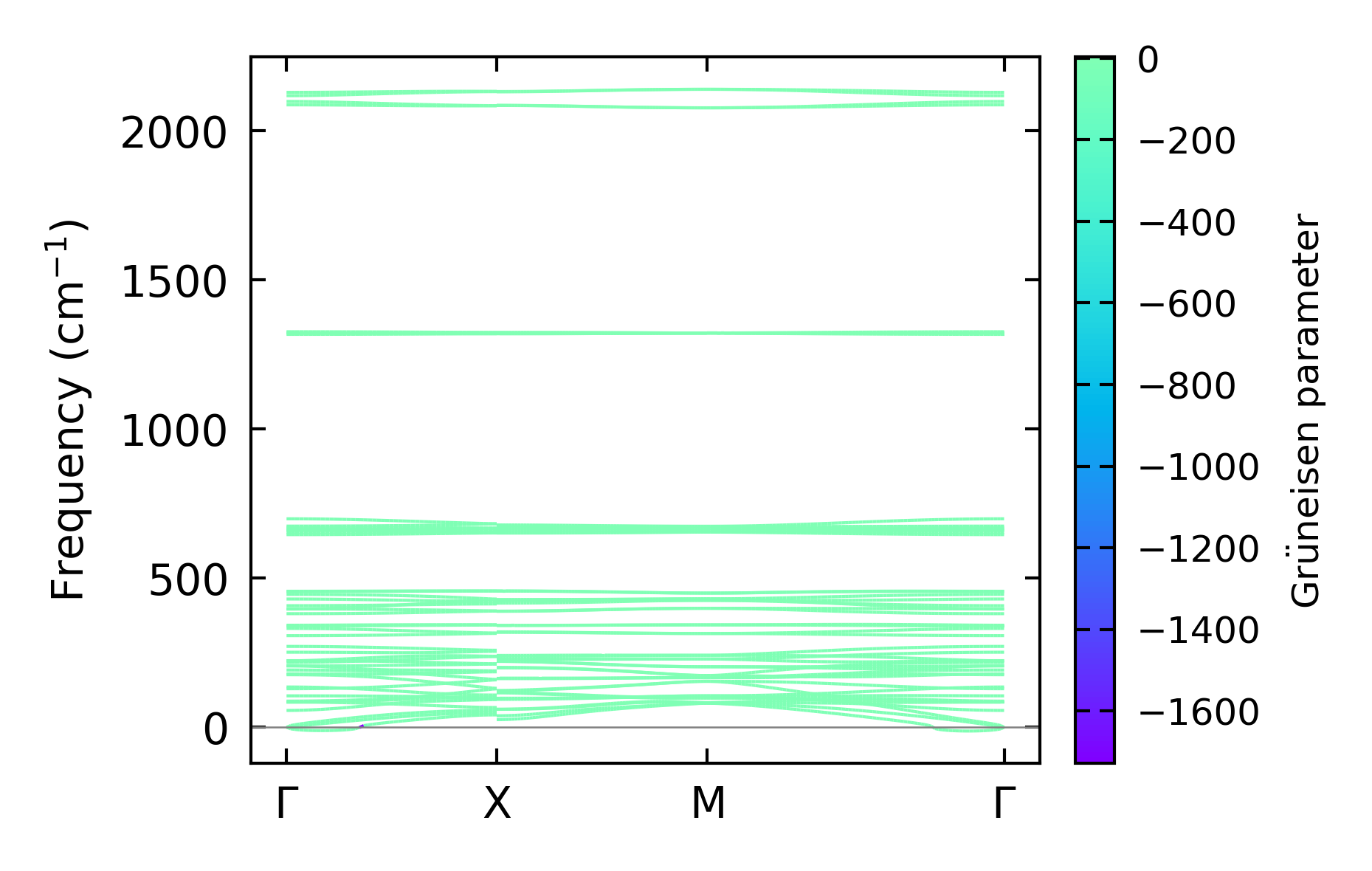

../../_images/fig_gruneisen4681.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 12x12x12, supercell: 2x2x2

../../_images/fig_kappa8835.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4738.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4637.png — (a) Phonon lifetime due to phonon-phonon scattering

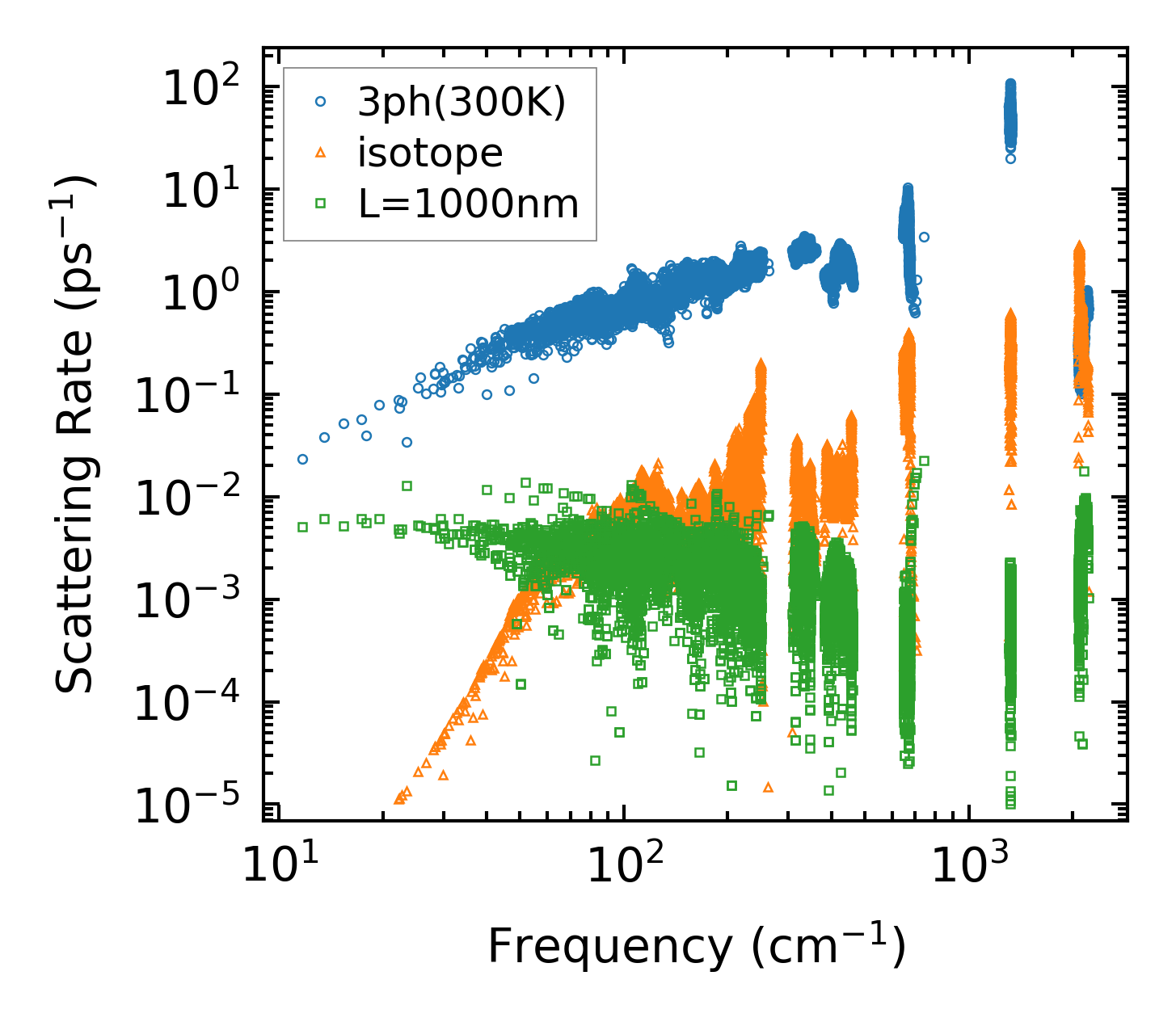

../../_images/fig_scat_rates4636.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

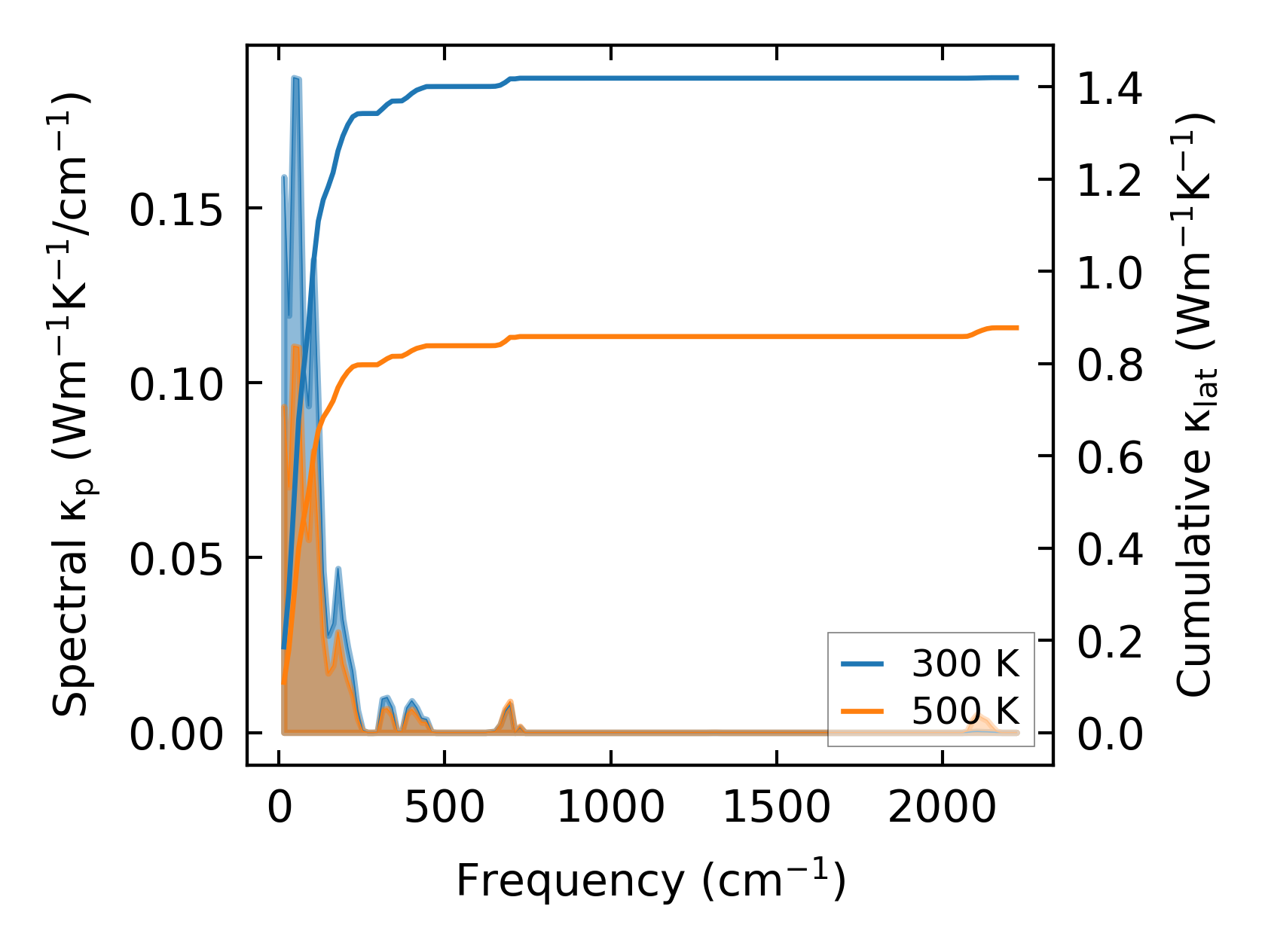

../../_images/fig_cumu_frequency4637.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

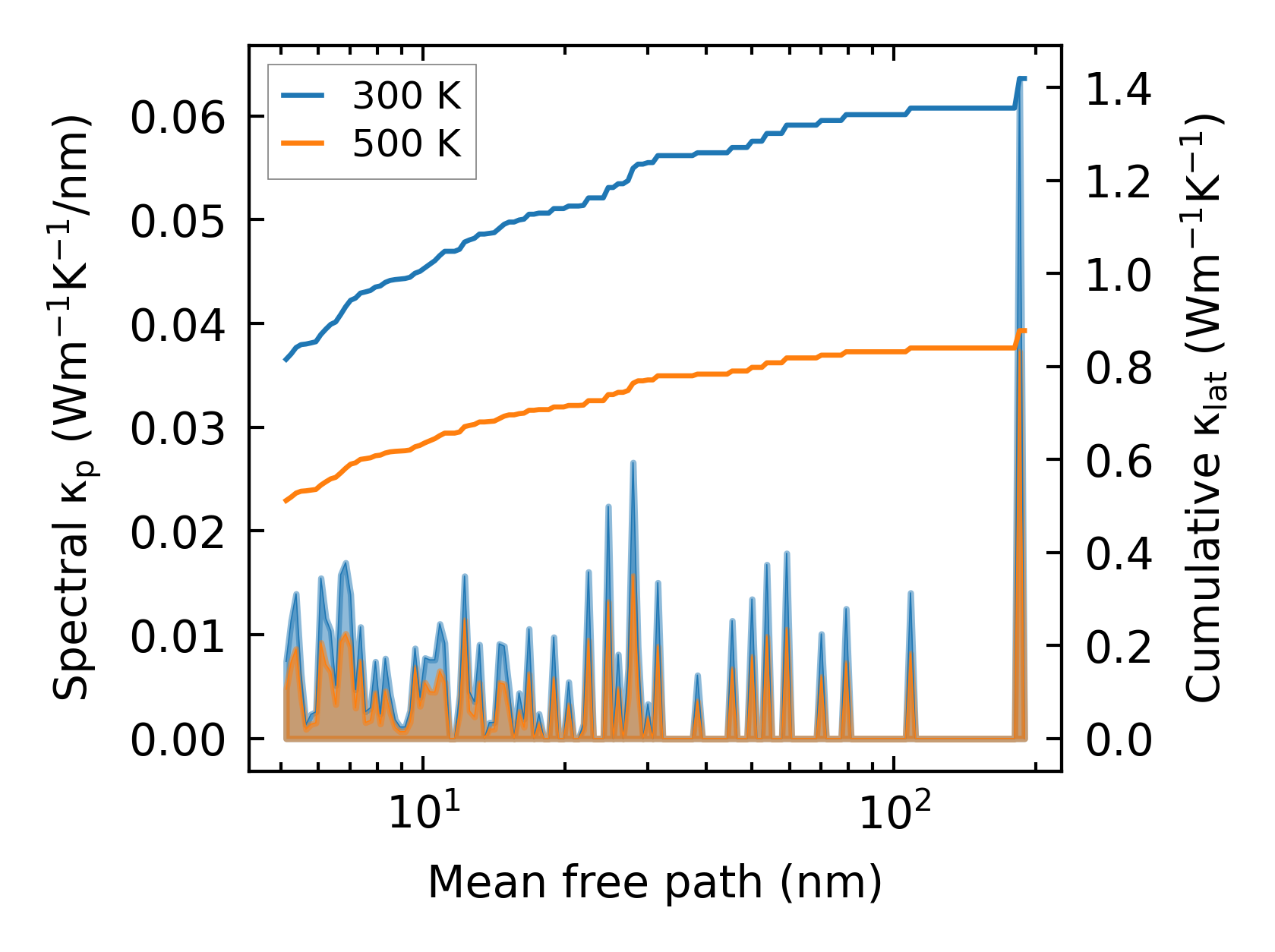

../../_images/fig_cumu_mfp4636.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

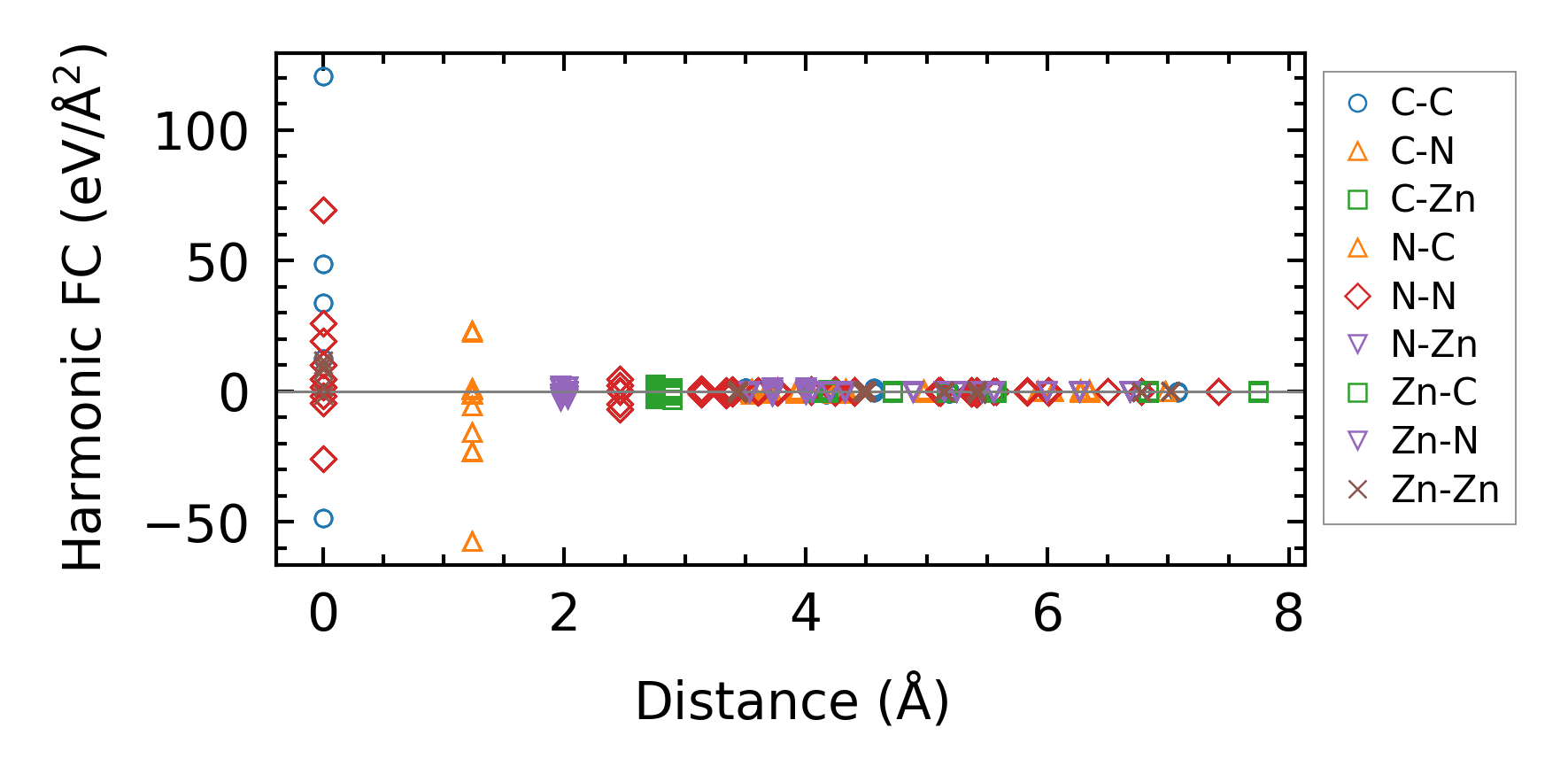

../../_images/fig_fc211040.png — (a) Force constants w.r.t atomic distance

Summary

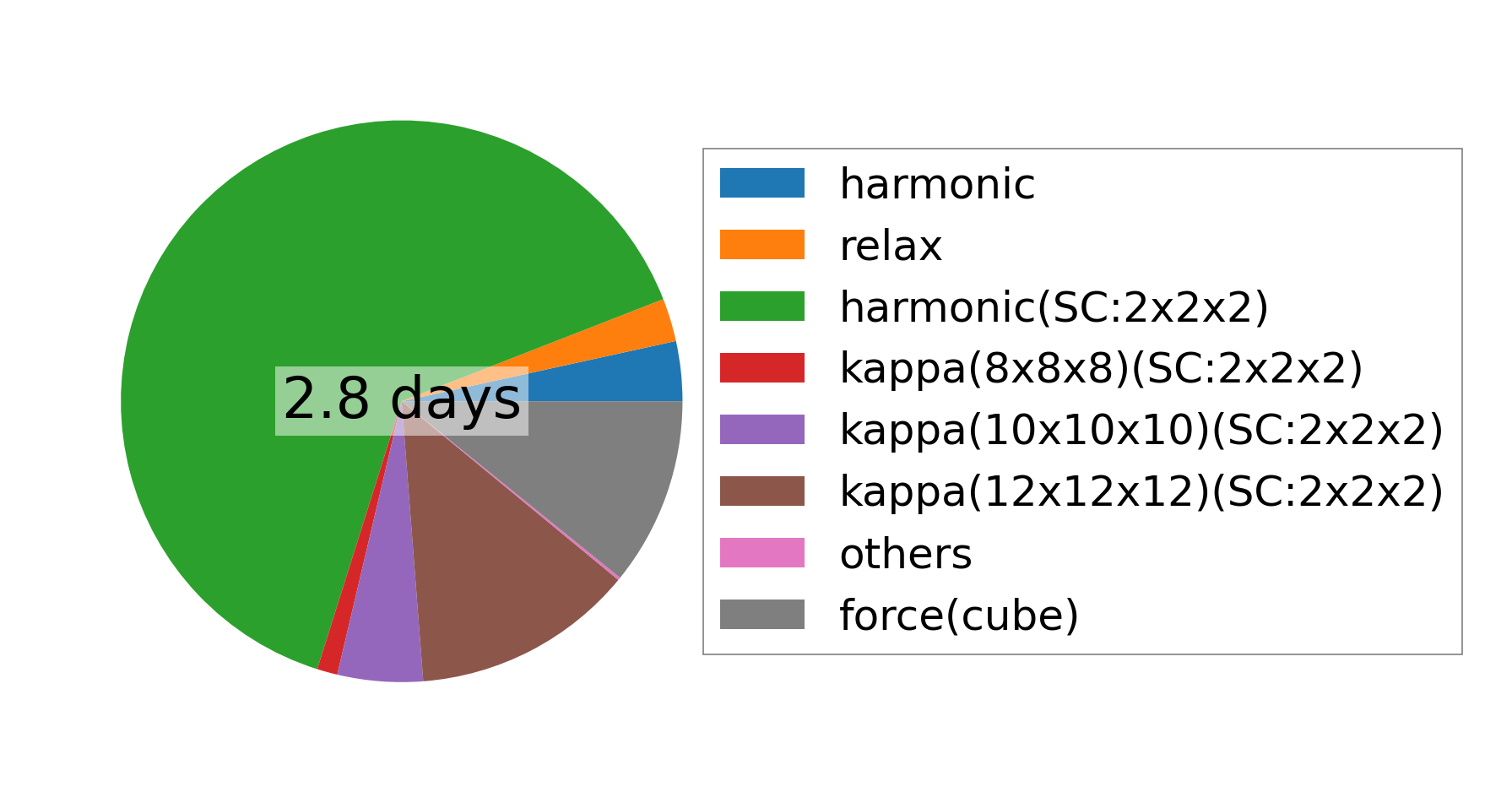

../../_images/fig_times19326.png — (a) Computation time
