mp-29196/AuCN/anharm

Space group: P6mm (183)
Link: Materials Project
Download: mp-29196.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11435.png — (a) Phonon dispersion with participation ratio and DOS

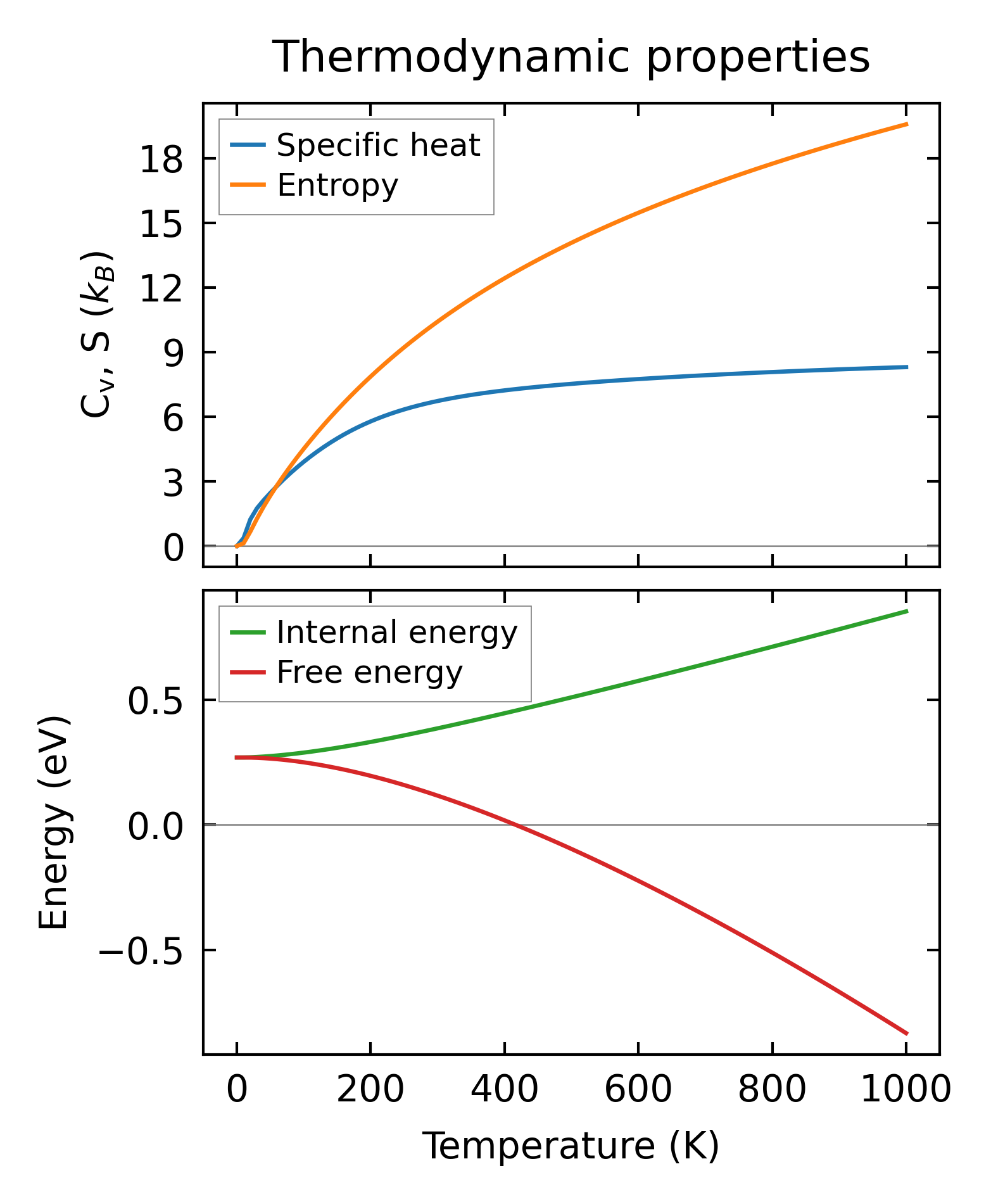

../../_images/fig_thermo11435.png — (b) Thermodynamic properties

Grüneisen parameters

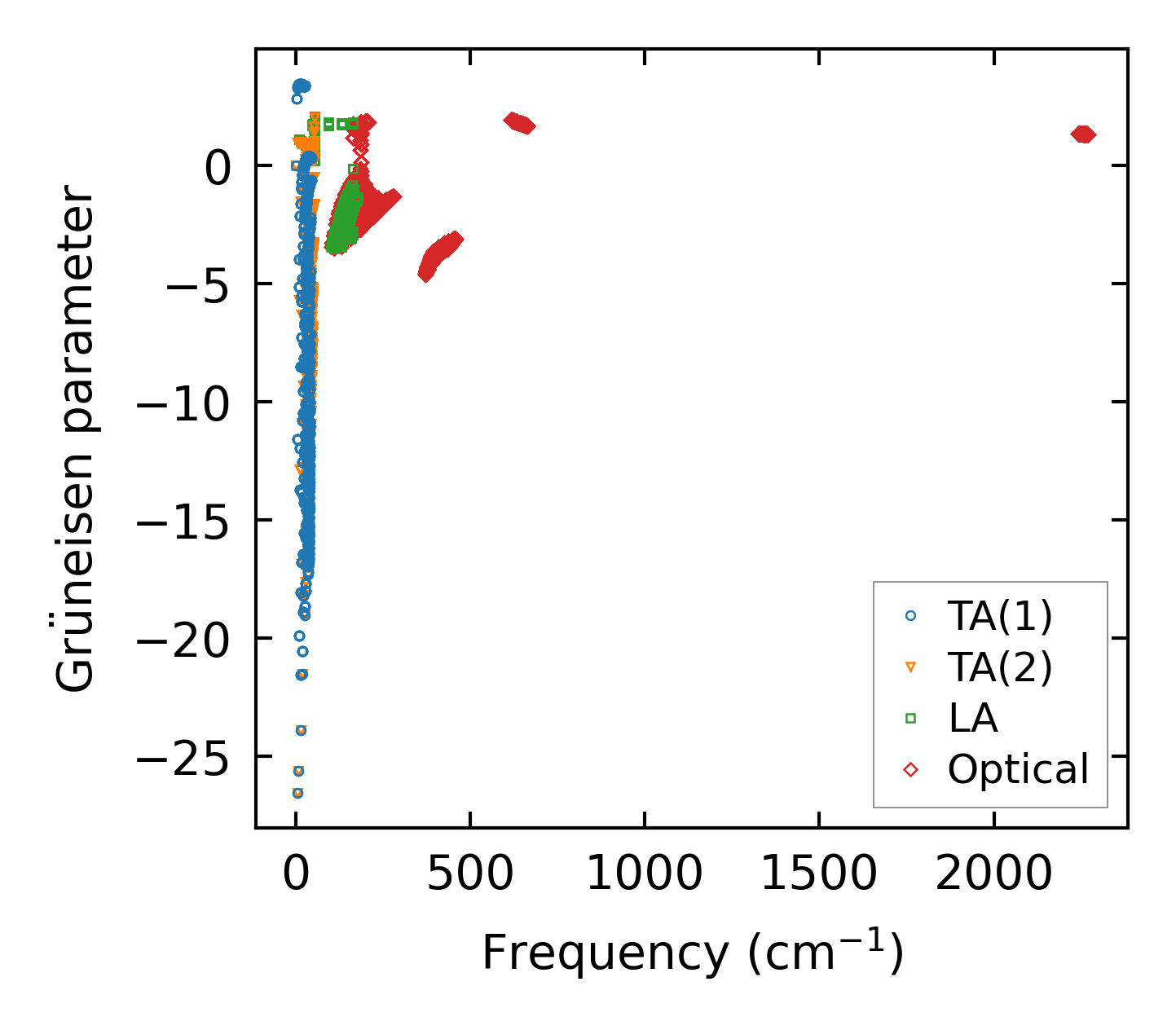

../../_images/fig_gru_all4737.png — (a) Grüneisen parameters

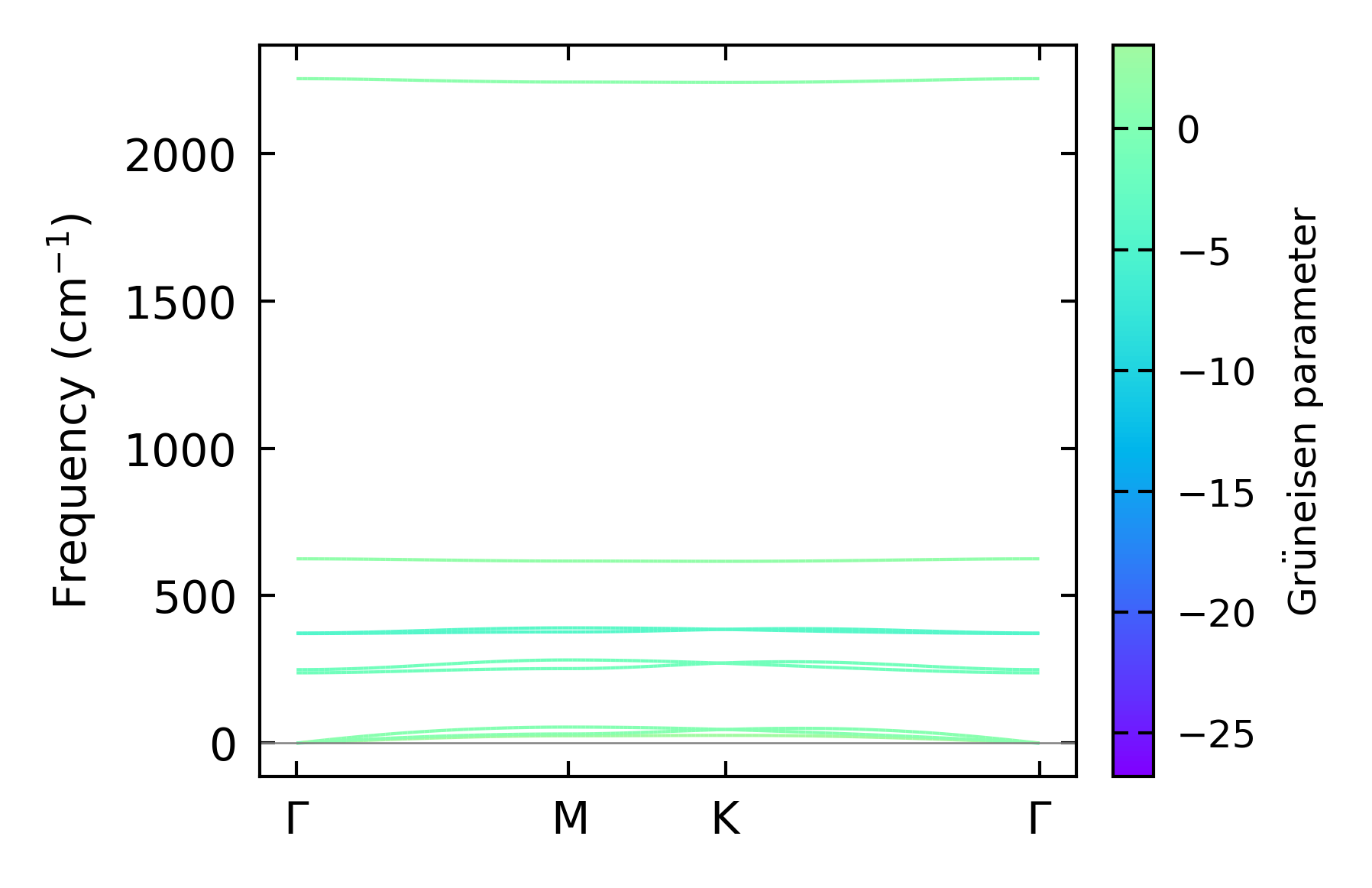

../../_images/fig_gruneisen4737.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 22x22x14, supercell: 4x4x3

../../_images/fig_kappa8939.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4795.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4692.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates4691.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

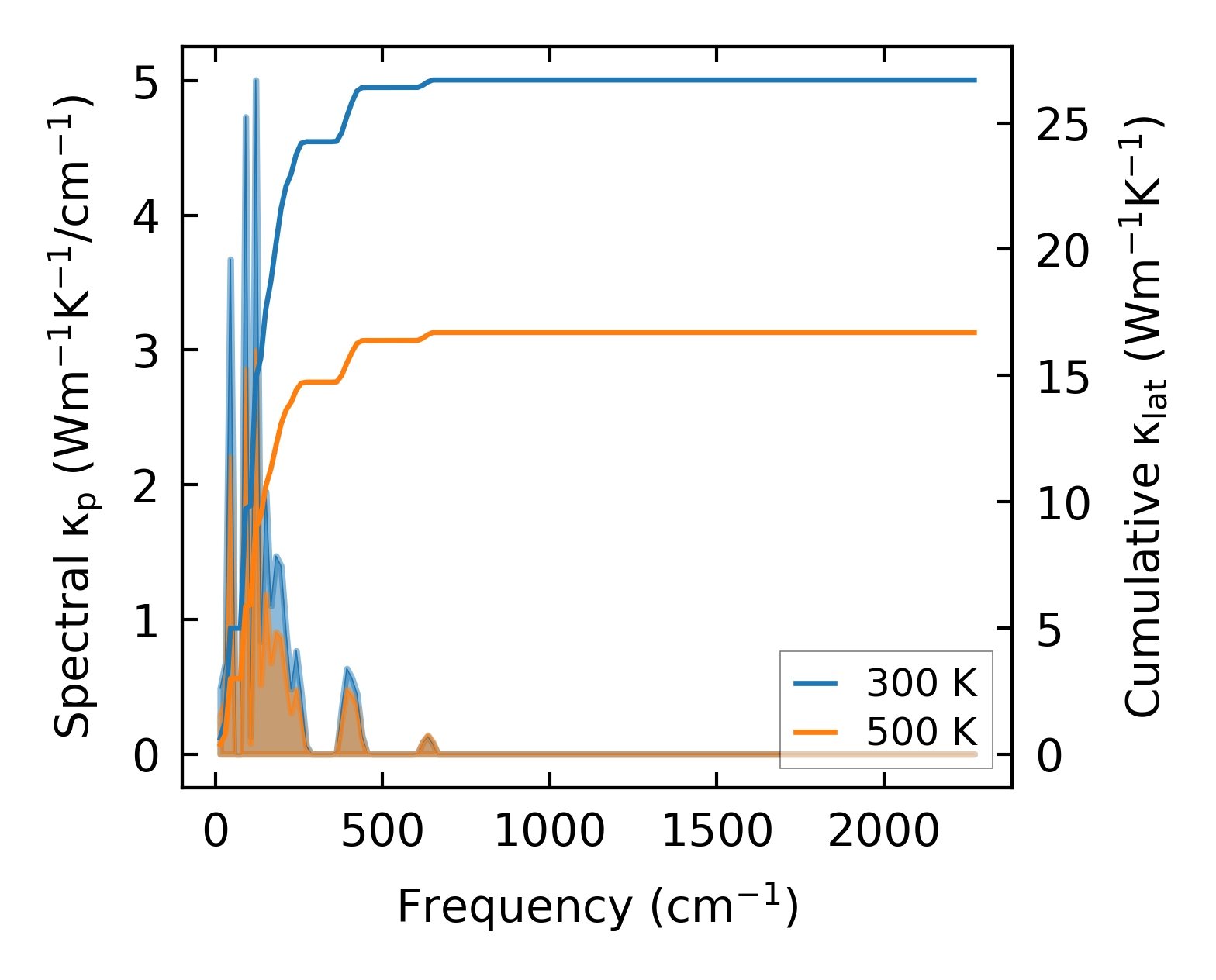

../../_images/fig_cumu_frequency4692.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

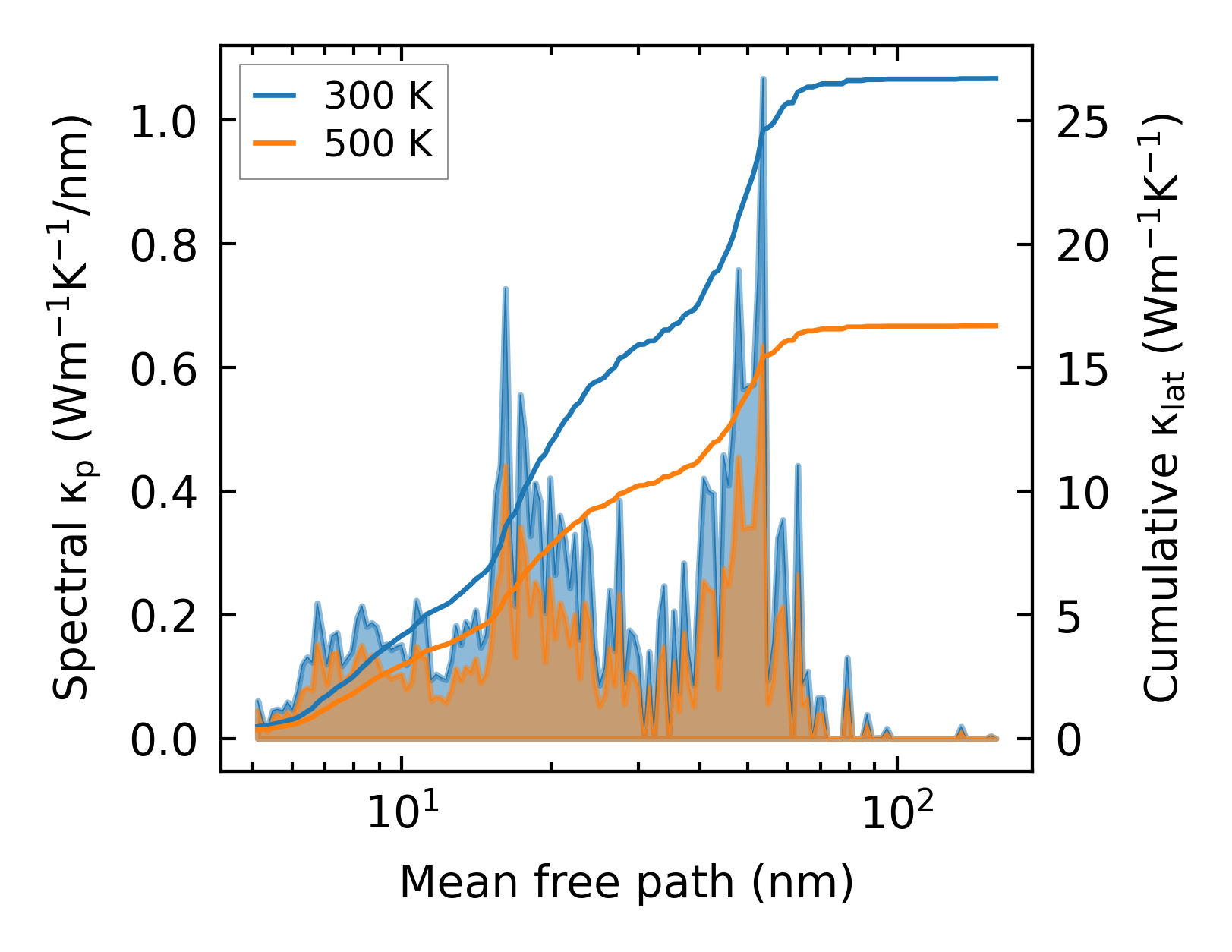

../../_images/fig_cumu_mfp4691.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

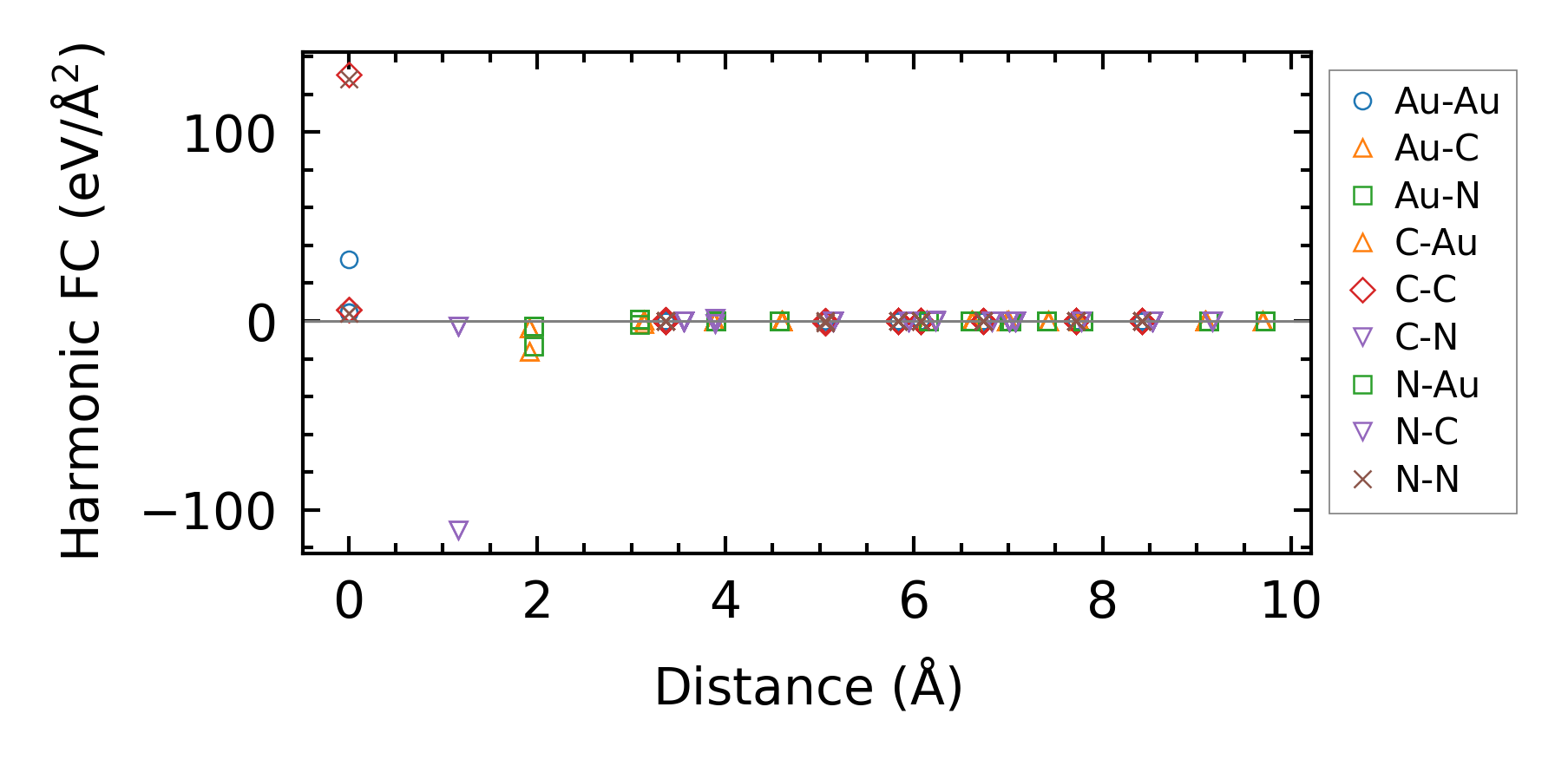

../../_images/fig_fc211151.png — (a) Force constants w.r.t atomic distance

Summary

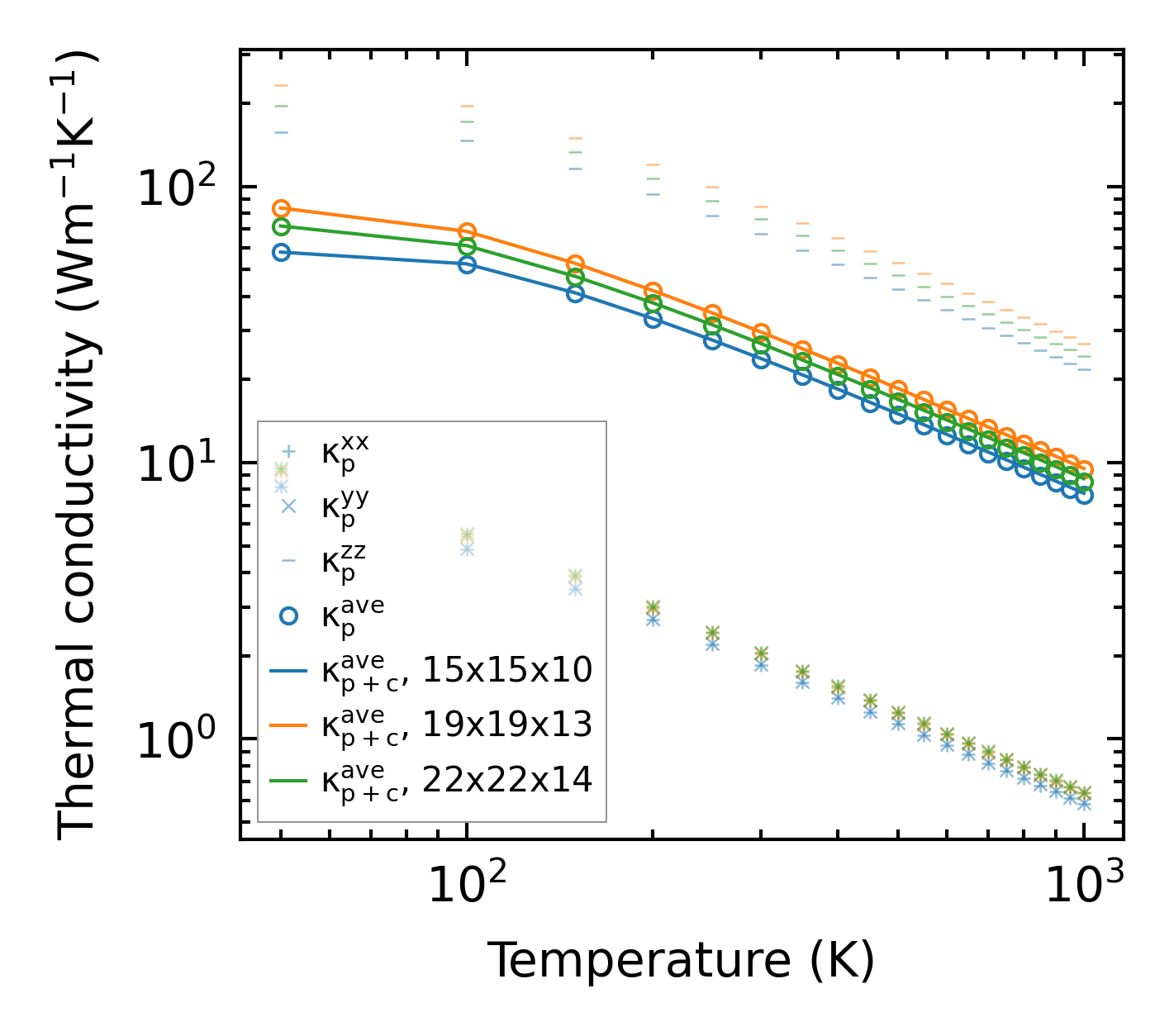

../../_images/fig_kappa8940.png — (a) Temperature-dependent lattice thermal conductivity

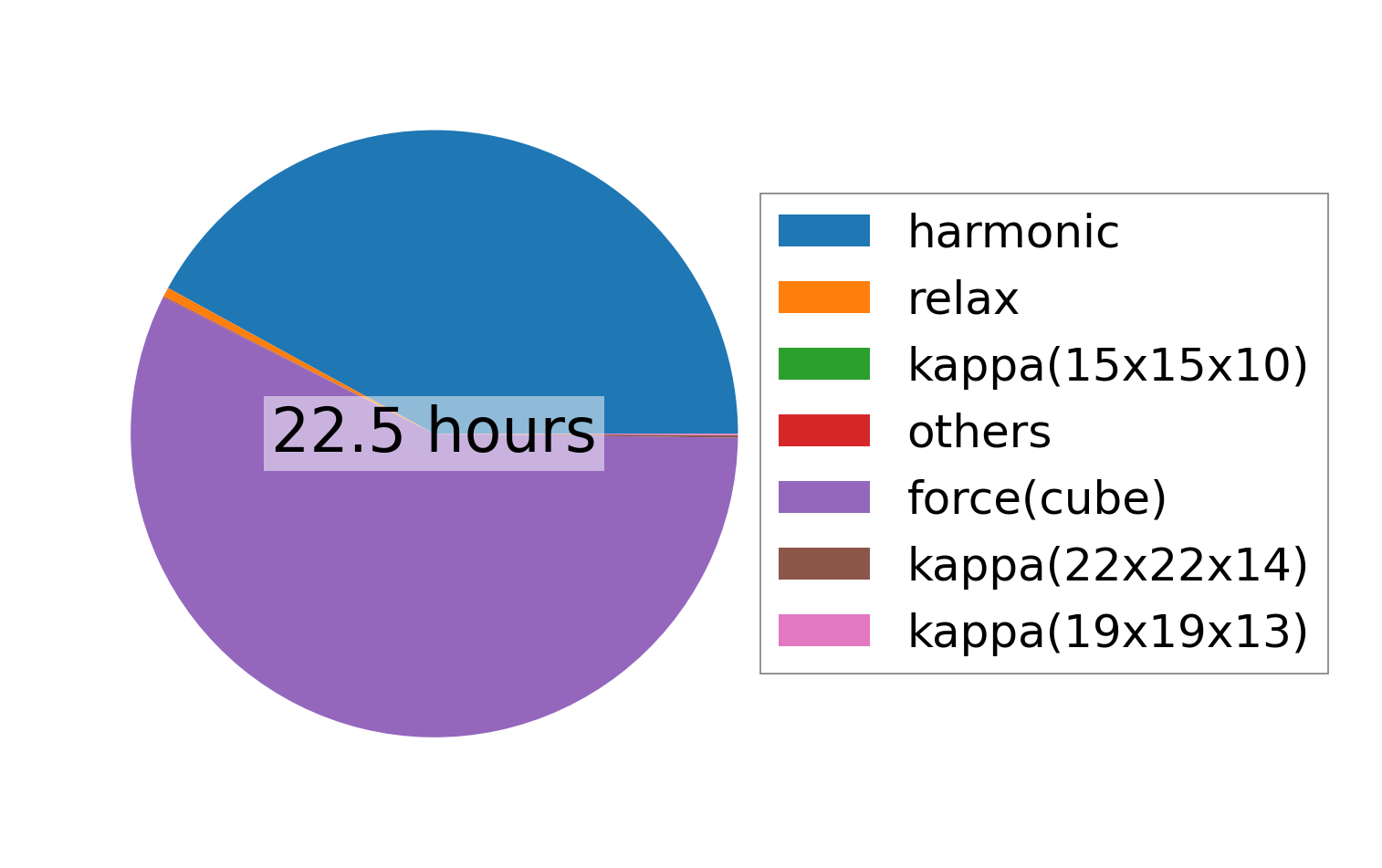

../../_images/fig_times19495.png — (b) Computation time
