mp-29008/Li6MgBr8/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-29008.tar.gz

Harmonic properties

../../_images/fig_bandos_pr11355.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo11355.png — (b) Thermodynamic properties

Grüneisen parameters

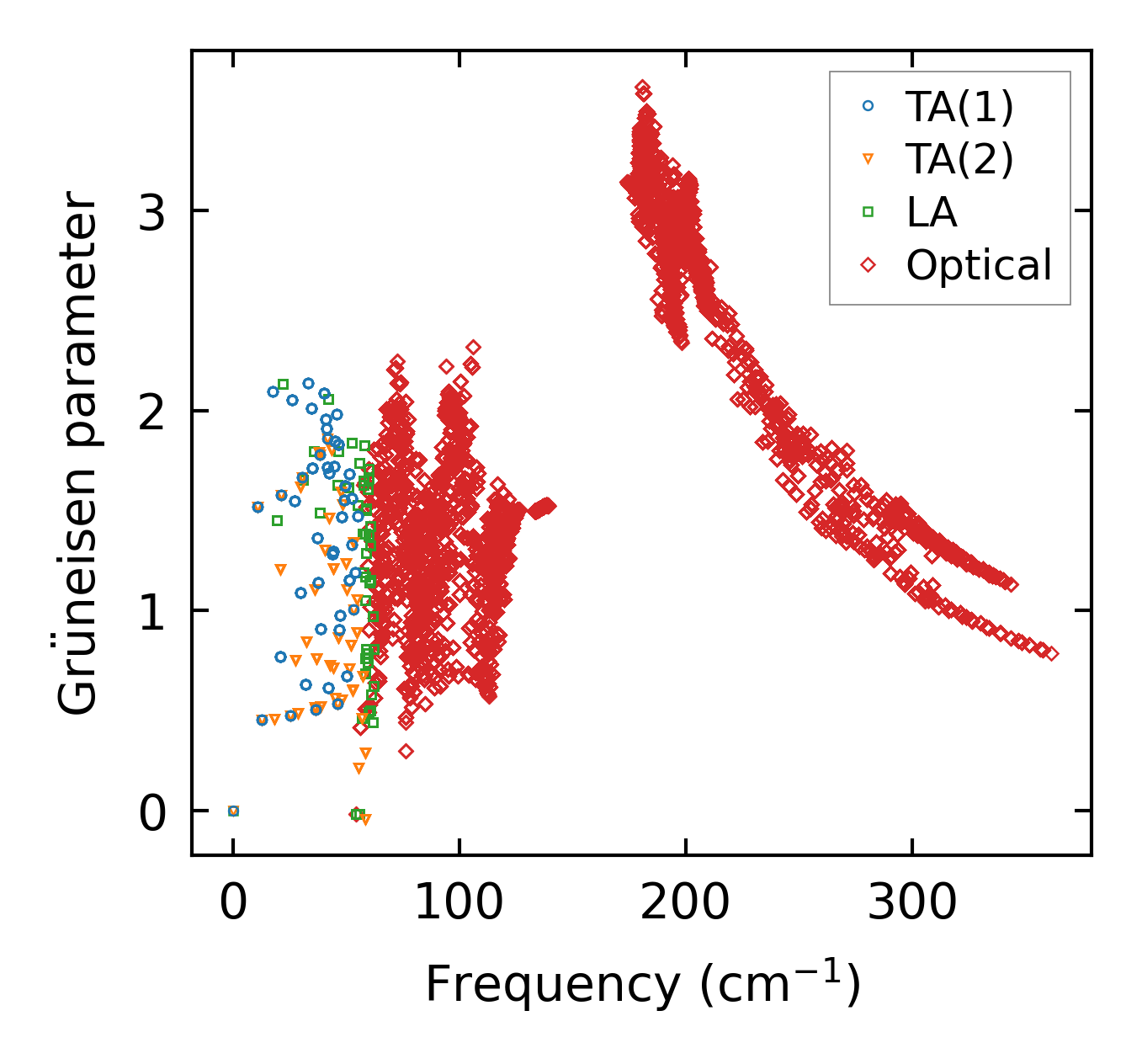

../../_images/fig_gru_all4698.png — (a) Grüneisen parameters

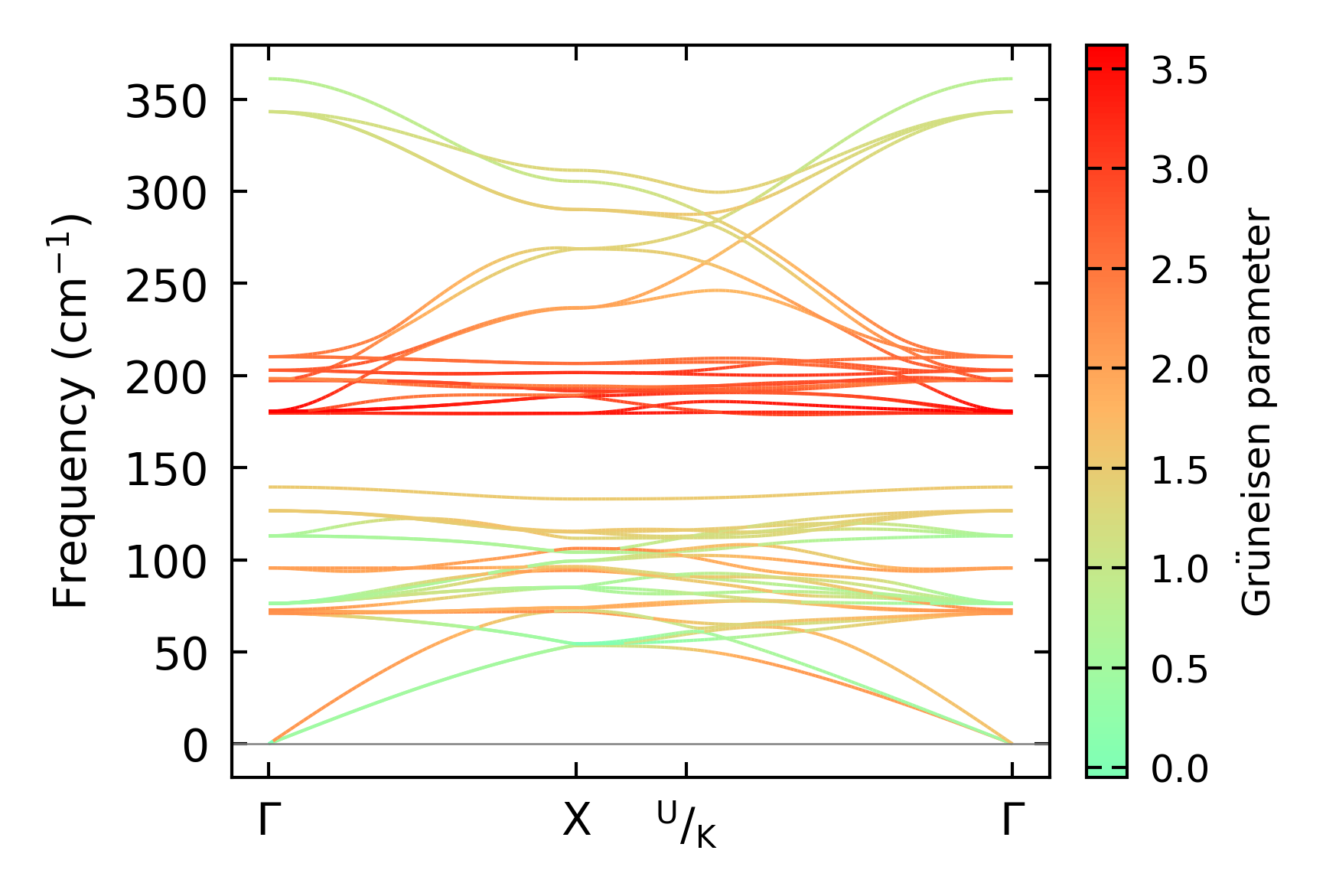

../../_images/fig_gruneisen4698.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

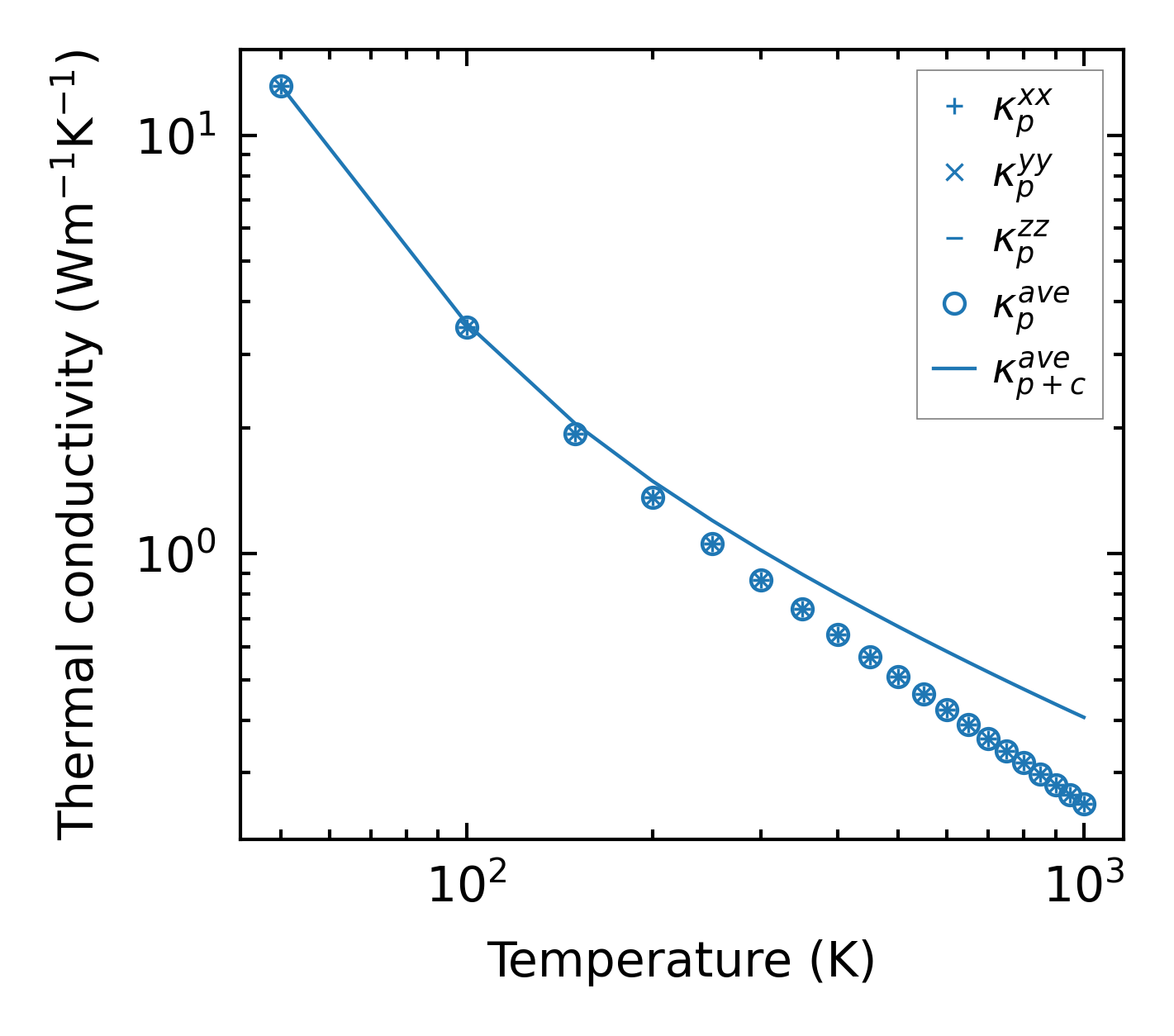

../../_images/fig_kappa8868.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size4757.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime4654.png — (a) Phonon lifetime due to phonon-phonon scattering

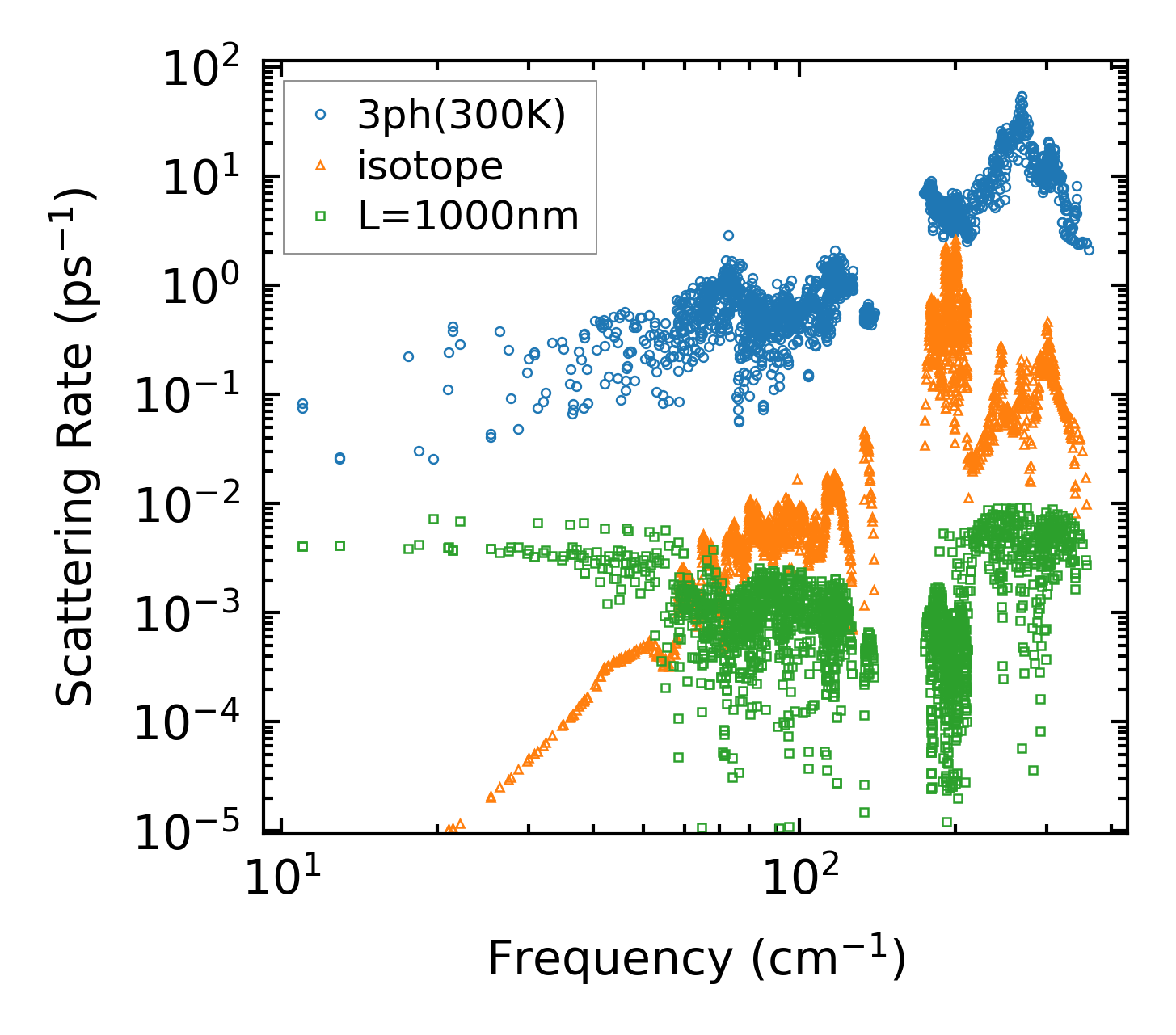

../../_images/fig_scat_rates4653.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency4654.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

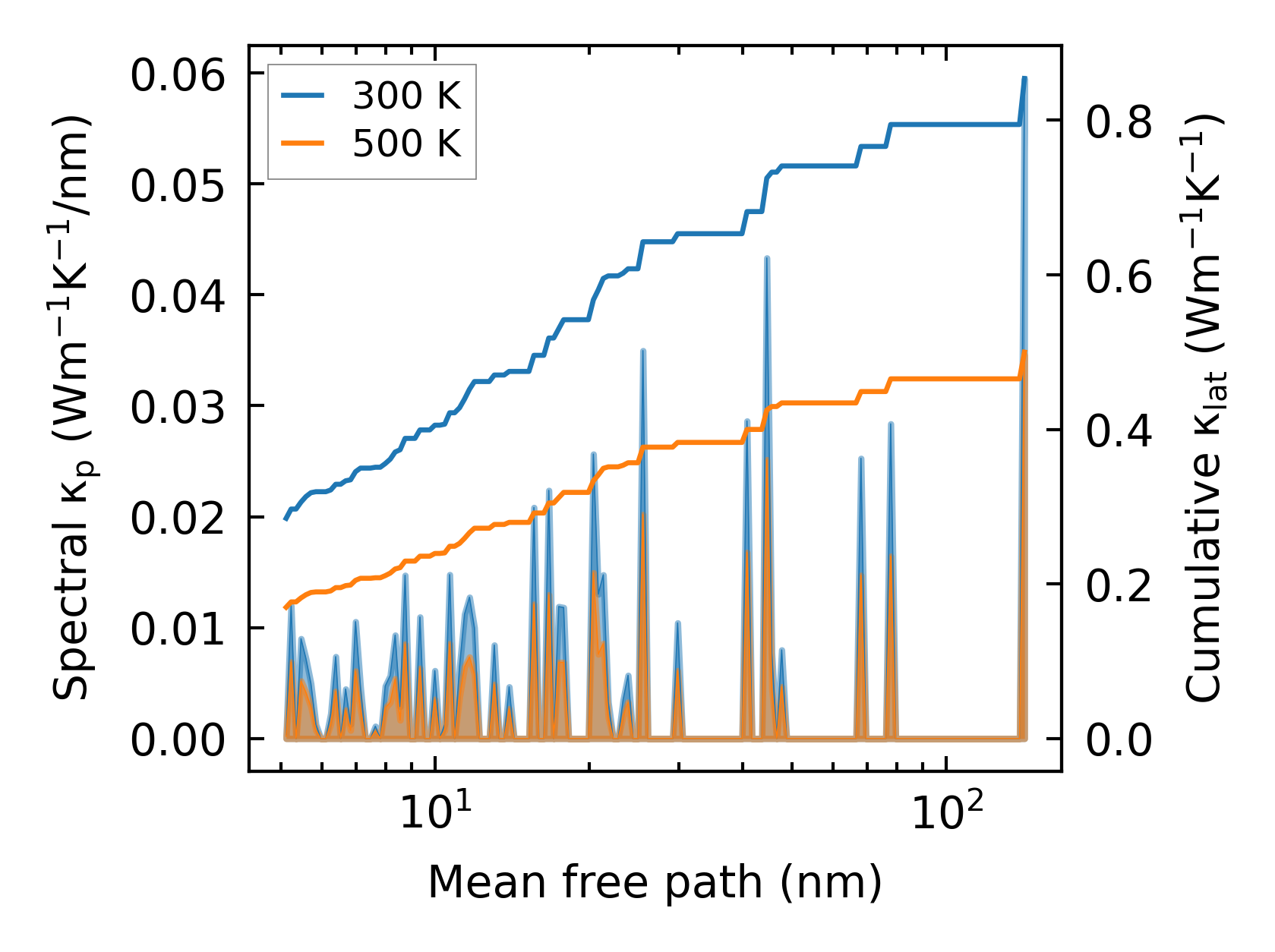

../../_images/fig_cumu_mfp4653.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

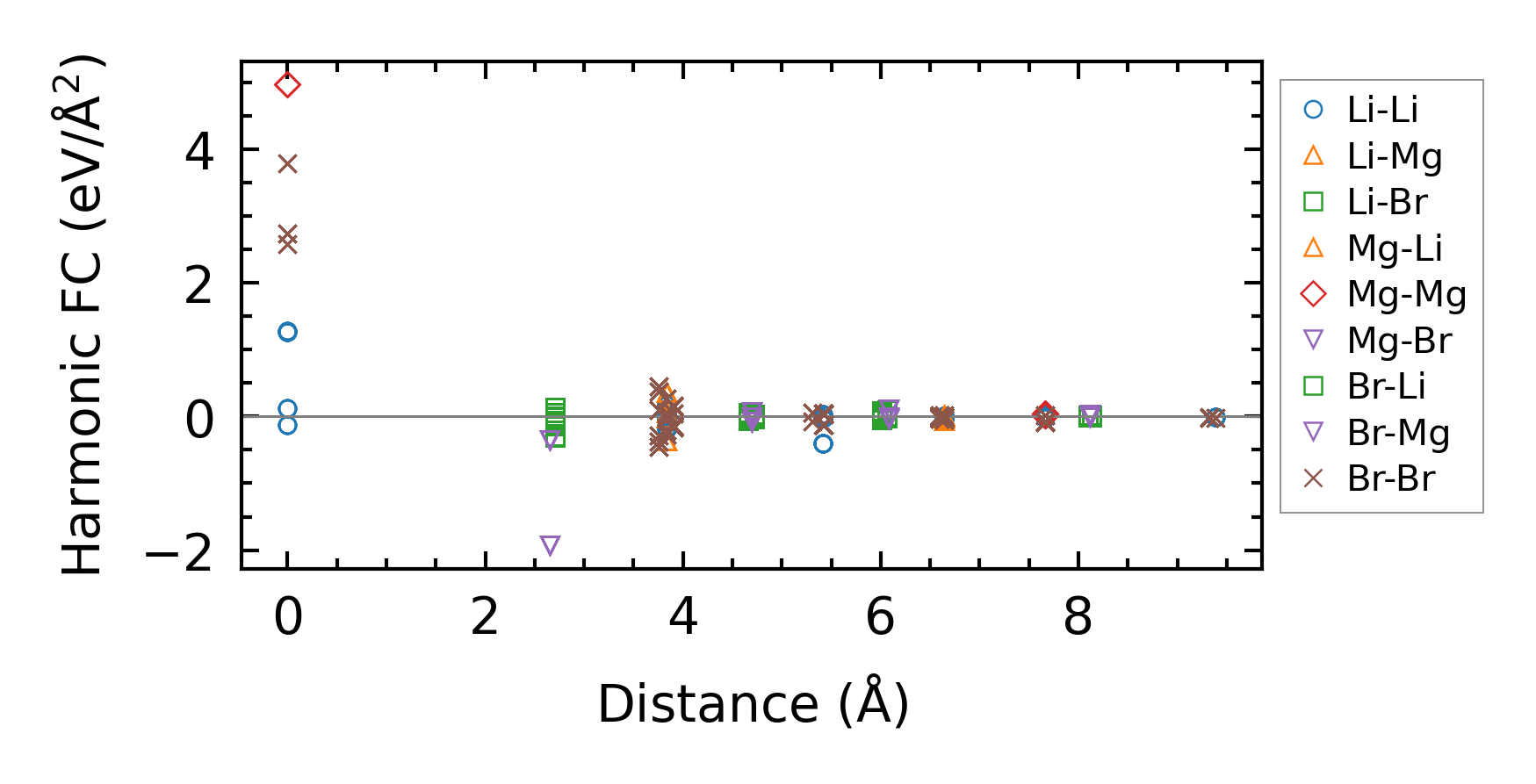

../../_images/fig_fc211071.png — (a) Force constants w.r.t atomic distance

Summary

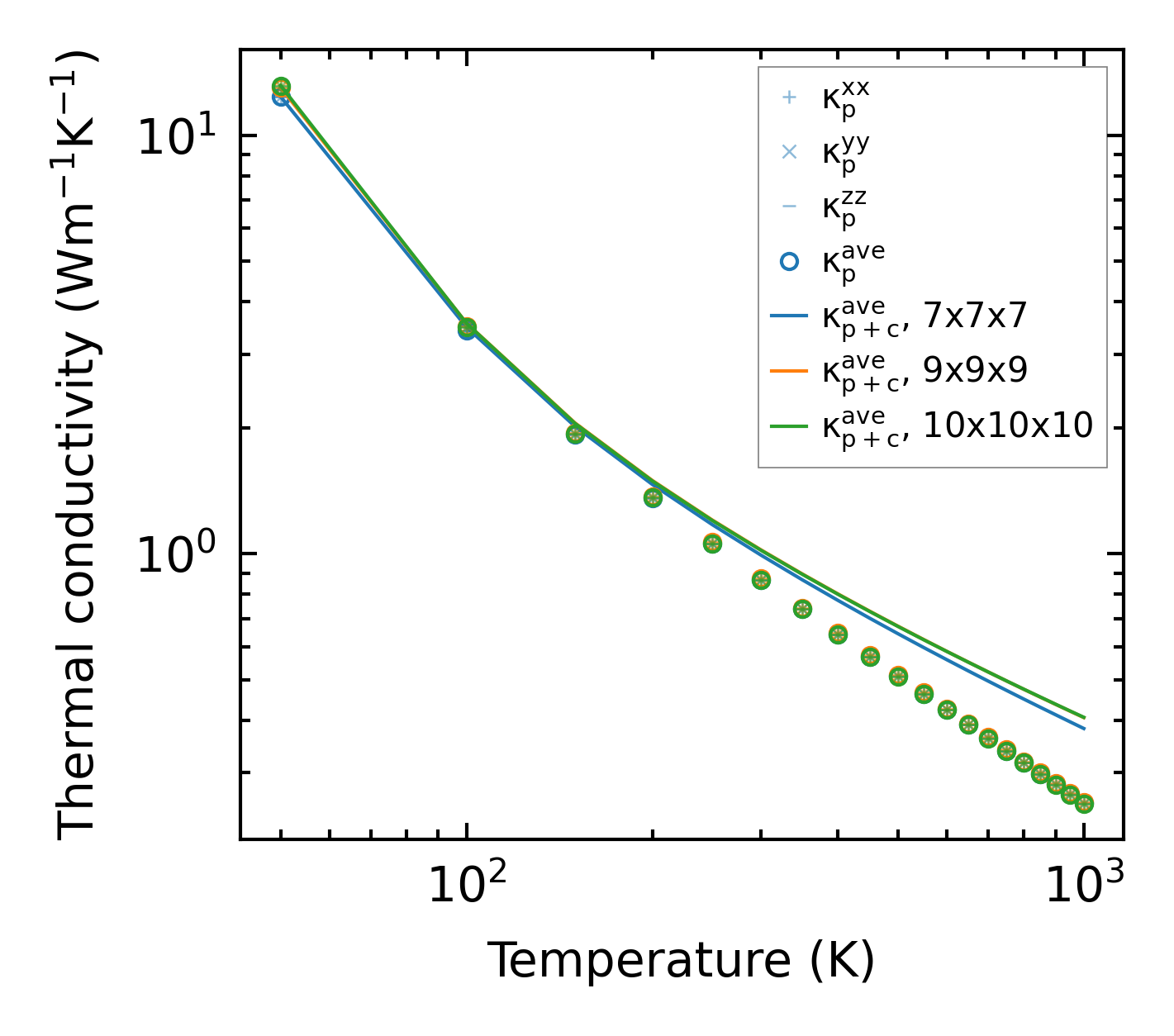

../../_images/fig_kappa8869.png — (a) Temperature-dependent lattice thermal conductivity

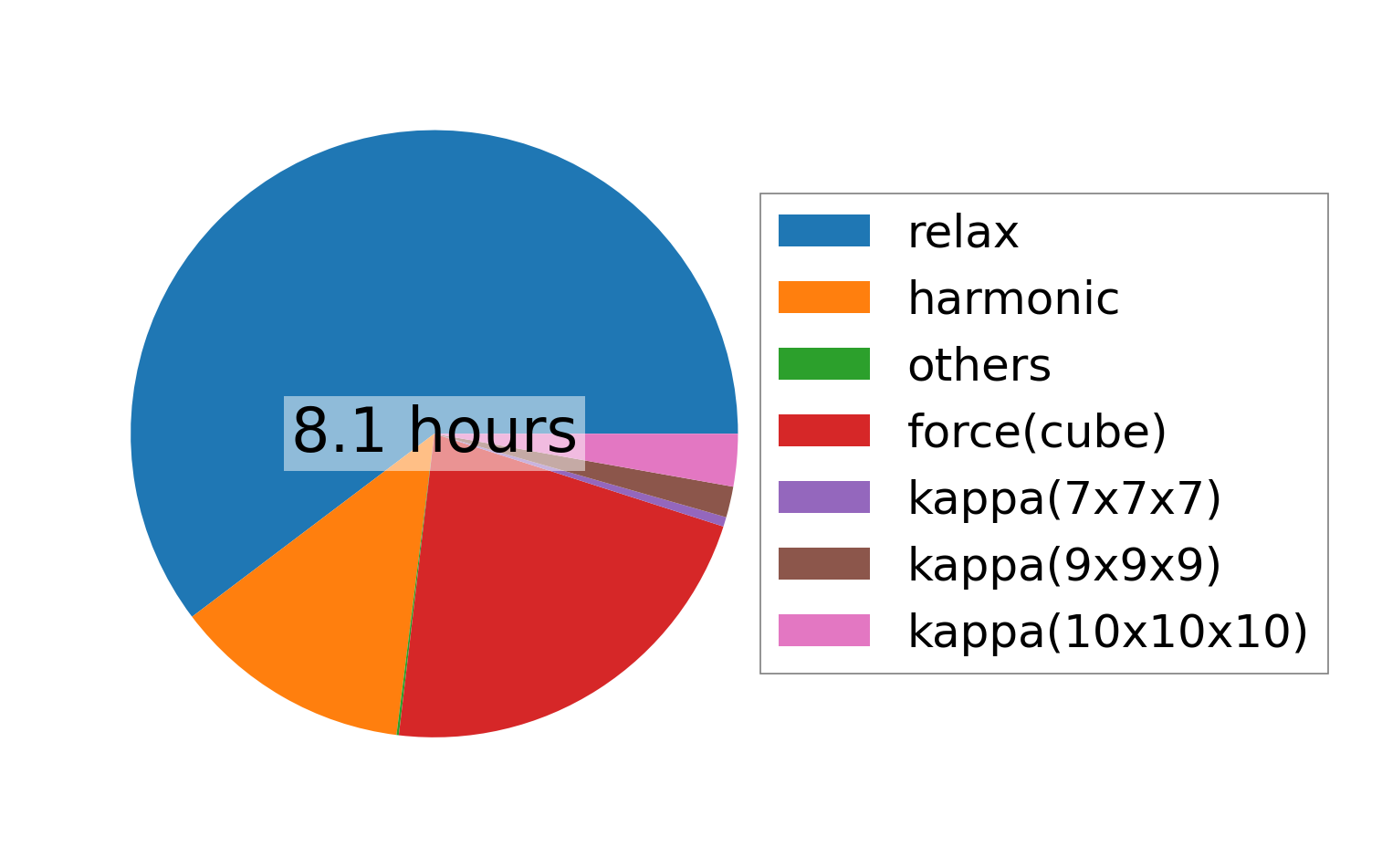

../../_images/fig_times19383.png — (b) Computation time
